LBL Lighting Fiona Grande SCF User Manual

Installation Instructions for

980FIONAGSCF

Fiona Grande Suspension (Compact Fluorescent)

Suspension

GP I :ENERAL RODUCT NFORMATION

This product is suitable for damp locations.

CAUTION - RISK OF FIRE

This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.

PF680_CF

1.0

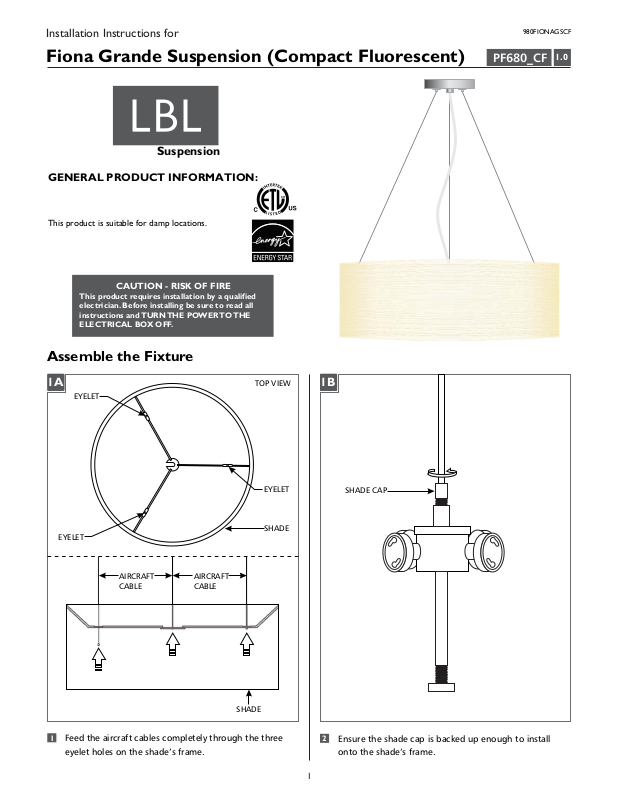

Assemble the Fixture

1A 1B

EYELET

EYELET

AIRCRAFT
CABLE

AIRCRAFT
CABLE

TOP VIEW

EYELET

SHADE

SHADE CAP

SHADE

1

Feed the aircraft cables completely through the three
eyelet holes on the shade’s frame.

2

Ensure the shade cap is backed up enough to install
onto the shade’s frame.

1

1C

SOCKET
ASSEMBLY

SOCKET
ASSEMBLY

SHADE
FRAME

SHADE
FRAME

TOP VIEW

2B

DIFFUSER CAP

2

2

Unscrew the diffuser cap from the socket assembly.

2C

SHADE

PEG

2

3

Install the shade by sliding onto the socket assembly.

24

Re-tighten the shade cap to secure the lamp shade.

Install the Lamps and Diffuser

2A

LAMP

SOCKET

NIPPLE

DIFFUSER CAP

DIFFUSER

23

Insert the glass diffuser onto the nipple and secure it
against the shade pegs by screwing the diffuser cap
back into place.

NOTE:To re-lamp, reverse section 2.

CAUTION: To reduce the risk of a burn or electric
shock during relamping, disconnect the power to
the fixture.

Use Volt, Type GU24MAX 27120 Watt
Base Self Ballasted Spiral Compact
Fluorescent Lamps.

21

Push the lamp pins into the large portion of the socket
slots and rotate it clockwise to lock it in place securely.

2
