LBL Lighting Fiona Grande S User Manual

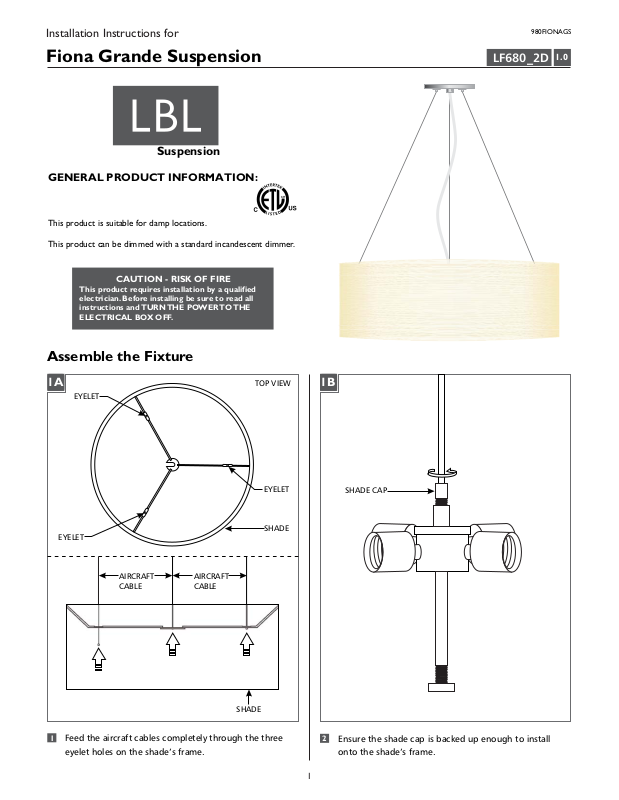

Installation Instructions for
980FIONAGS
Fiona Grande Suspension
Suspension
GENERAL PRODUCT INFORMATION:
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
LF680_2D
1.0
Assemble the Fixture
1A 1B
EYELET
EYELET
AIRCRAFT
CABLE
AIRCRAFT
CABLE
TOP VIEW
EYELET
SHADE
SHADE CAP
SHADE
1
Feed the aircraft cables completely through the three
eyelet holes on the shade’s frame.
2
Ensure the shade cap is backed up enough to install
onto the shade’s frame.
1
1C
SOCKET
ASSEMBLY
SOCKET
ASSEMBLY
SHADE
FRAME
SHADE
FRAME
TOP VIEW
2B
DIFFUSER CAP
2
2
Unscrew the diffuser cap from the socket assembly.
2C
SHADE
PEG
2
3
Install the shade by sliding onto the socket assembly.
24
Re-tighten the shade cap to secure the lamp shade.
Install the Lamps and Diffuser
2A
LAMP
SOCKET
NIPPLE
DIFFUSER CAP
DIFFUSER
23
Insert the glass diffuser onto the nipple and secure it
against the shade pegs by screwing the diffuser cap
back into place.
NOTE:To re-lamp, reverse section 2.
CAUTION: To reduce the risk of a burn or electric
shock during relamping, disconnect the power to
the fixture.
SAVE THESE INSTRUCTIONS!
Use
Type A19 Medium Base Lamp.
2
1
Screw the lamps into the sockets.
120 voltMAX 75 Watt
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2012 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
2
A Generation Brands Company
