LBL Lighting Ensu LED User Manual

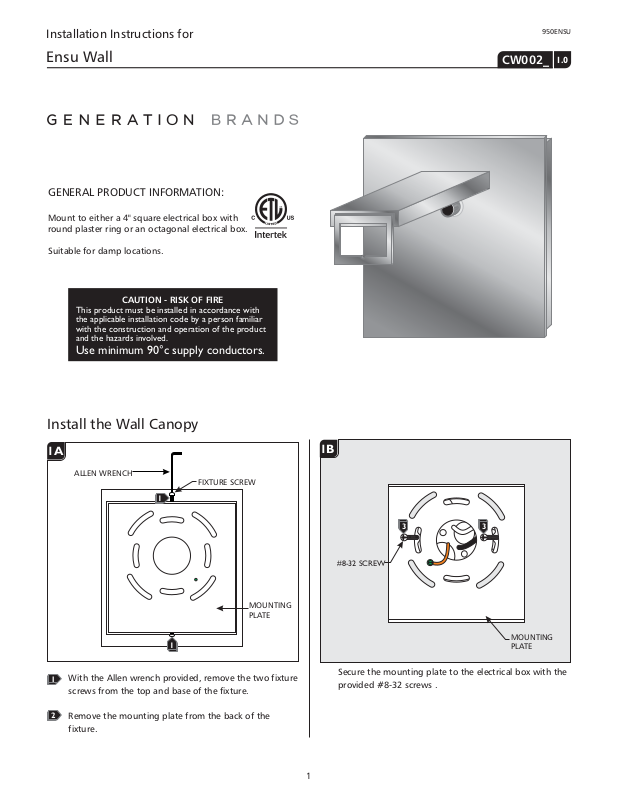

Installation Instructions for
950ENSU
Ensu Wall
GP I :ENERAL RODUCT NFORMATION
Mount to either a 4" square electrical box with
round plaster ring or an octagonal electrical box.
Suitable for damp locations.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
C 002_W
1.0
Install the Wall Canopy
1A
1A
ALLEN WRENCH
1
With the Allen wrench provided, remove the two fixture
1
screws from the top and base of the fixture.
2
Remove the mounting plate from the back of the
fixture.
FIXTURE SCREW
1
1A1B
3 3
#8-32 SCREW
MOUNTING
PLATE
MOUNTING
PLATE
Secure the mounting plate to the electrical box with the
provided #8-32 screws .
1
Install the Fixture
1A1C
TRANSFORMER
5
4
6
4
Connect the fixture to a suitable ground in accordance
with local electrical codes.
5
Connect the white fixture wire to the neutral power line
wire with a wire nut.
6
Connect the black fixture wire to the hot power line
wire with a wire nut.
7
Properly place the transformer, wires, and wires nut
connections into the electrical box.
8
Mount the fixture by sliding it back onto the mounting
plate and reinstalling the two fixture screws (reversal of
figure 1A).
Note: Depending on the size of the shade and the
desired distance of the shade from the wall,
Adjustments of the canopy length can be made
using the following section. It is important to plan
out the desired height of the pendant along with the
desired distance from the wall before shortening the
cable.
1A3A
CANOPY FREEJACK
CANOPY
ARM
1
Follow the instruction provided with the pendant to
shorten the cable.
2
While securing the pendant with one hand, pass the
Freejack male connector through the hole in the canopy
arm.
For installations that are not extending the canopy arm:
In order for the Freejack connector to pass through the
canopy arm, the canopy arm must be temporarily
extended. Follow section 2A to extend the arm, pass the
Freejack connector through the canopy arm, and then
secure the canopy arm back to the original position.
3
Screw the Fixture FreeJack male connector into the
FreeJack female connector.
CONNECTOR
7
FIXTURE FREEJACK
CONNECTOR
Adjust the Canopy
1A2A
EXTENSION SCREW
CANOPY ARM
1
If needed, adjust the canopy arm’s length by loosening
the extension screw, pull the arm out to the desired
position, and secure it in place by re tightening the
screw.
1
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.generation-brands.com
© 2014 Generation Brands.All rights reserved.The "Genereation Brands"
graphic is a registered trademark of Generation Brands. Generation Brands
reserves the right to change specifications for product improvements without
notification.
2
