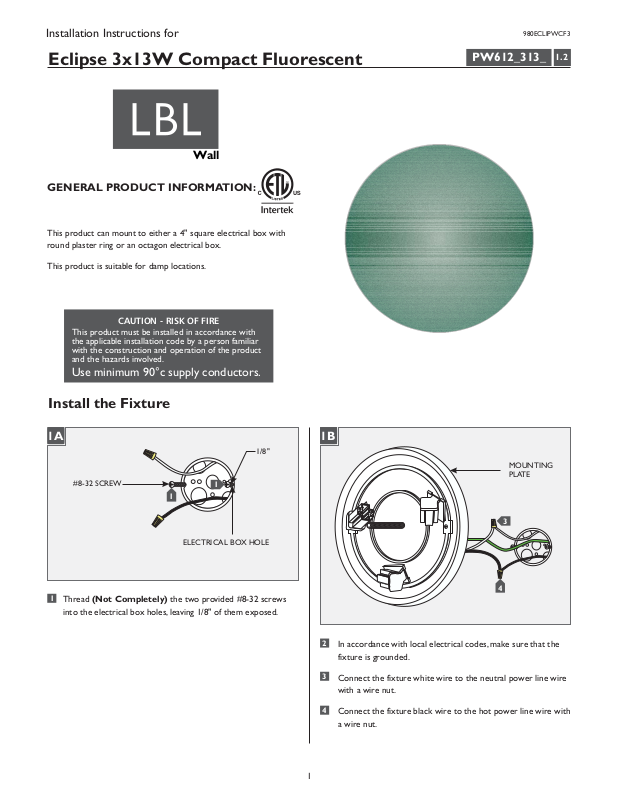

Installation Instructions for
980ECLIPWCF3
Eclipse 3x13W Compact Fluorescent
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PW612_313_
1.2
Install the Fixture
1A 1B
1/8"
#8-32 SCREW
1
ELECTRICAL BOX HOLE
1
Thread the two provided #8-32 screws(Not Completely)
into the electrical box holes, leaving 1/8" of them exposed.
1
2
3
MOUNTING
PLATE
3
4
In accordance with local electrical codes, make sure that the
fixture is grounded.
Connect the fixture white wire to the neutral power line wire
with a wire nut.
4
Connect the fixture black wire to the hot power line wire with
a wire nut.
1
1C
KEY HOLE
1D
#8-32 SCREW
6
6
5
Place all wires and wire nut connections properly inside the
electrical box.
6
Place the large portion of the key holes onto the exposed
#8-32 screws.
7
7
7
Rotate the mounting plate so that the #8-32 screw heads are
locked into the small portion of the key holes.
2
Install the Lamps & Shade
2A 2B
SOCKET
1
1
1
3
2
LAMP
For The FixturesWith Electronic Ballast,
MAX 13
Use WattType Quad Tube G24q-1
Base 4-PIN Compact Fluorescent Lamp,
With Each Socket.
For The Fixtures With Magnetic Ballast,
MAX 13
Use WattType Quad Tube
GX23-2 Base Compact Fluorescent Lamp,
With Each Socket.
Push the lamp pins completely into the socket holes.
1
EXPOSED
THREADED NIPPLE
METAL SHADE
2
Align the metal shade center hole with the exposed threaded
nipple.
3
While holding the mounting plate in place, rotate to tighten
the metal shade to the mounting plate.
NOTE:To replace the lamp:
- Hold the mounting plate and rotate the metal shade
counter clockwise to remove it.
- Remove the old lamp.
- Follow steps 1 through 3 on this page.
3
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
