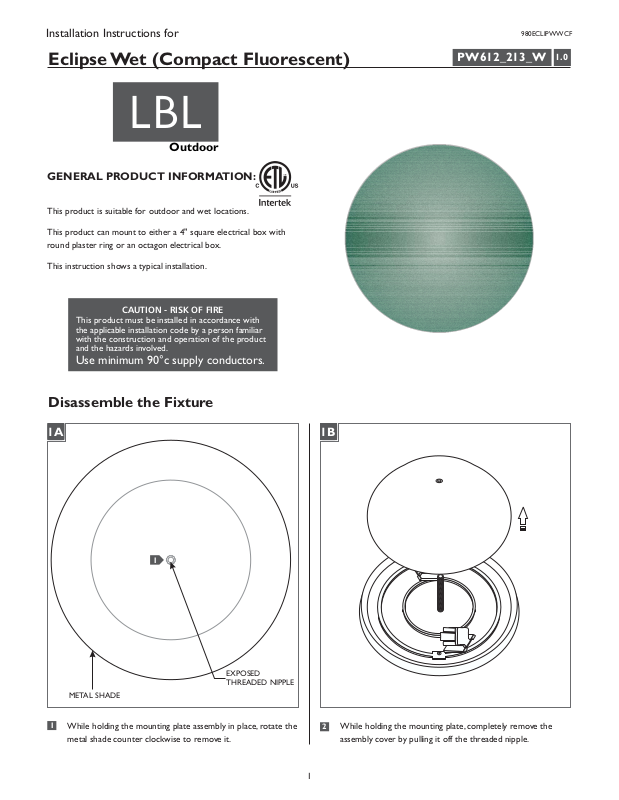

Installation Instructions for
980ECLIPWWCF
Eclipse Wet (Compact Fluorescent)
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product is suitable for outdoor and wet locations.
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PW612_213_W
1.0
Disassemble the Fixture
1A 1B
1
EXPOSED
THREADED NIPPLE
METAL SHADE
4
1
While holding the mounting plate assembly in place, rotate the
metal shade counter clockwise to remove it.
While holding the mounting plate, completely remove the
2
assembly cover by pulling it off the threaded nipple.
1

Install the Fixture
2A
#8-32 SCREW
1
ELECTRICAL BOX HOLE
1
Thread the two provided #8-32 screws(Not Completely)
into the electrical box holes, leaving 1/8" of them exposed.
2B
MOUNTING
PLATE
3
1/8"
2C
KEY HOLE
6
6
5
Place all wires and wire nut connections properly inside the
electrical box.
6
Place the large portion of the key holes onto the exposed
#8-32 screws.
2D
#8-32 SCREW
4
2
In accordance with local electrical codes, make sure that the
fixture is grounded.
3
Connect the fixture white wire to the neutral power line wire
with a wire nut.
4
Connect the fixture black wire to the hot power line wire with
a wire nut.
2
7
7
7
Rotate the mounting plate so that the #8-32 screw heads are
locked into the small portion of the key holes.
2

Install the Lamps & Shade
SOCKET
3B3A
1
1
LAMP
For The Fixtures With Electronic Ballast,
MAX 13
Use WattType Quad Tube G24q-1
Base 4-PIN Compact Fluorescent Lamp,
With Each Socket.
1
Push the lamp pins completely into the socket holes.
2
METAL SHADE
2
Reassemble the fixture by reversing figures 1A and 1B.
EXPOSED
THREADED NIPPLE
3

SAVE THESE INSTRUCTIONS!
