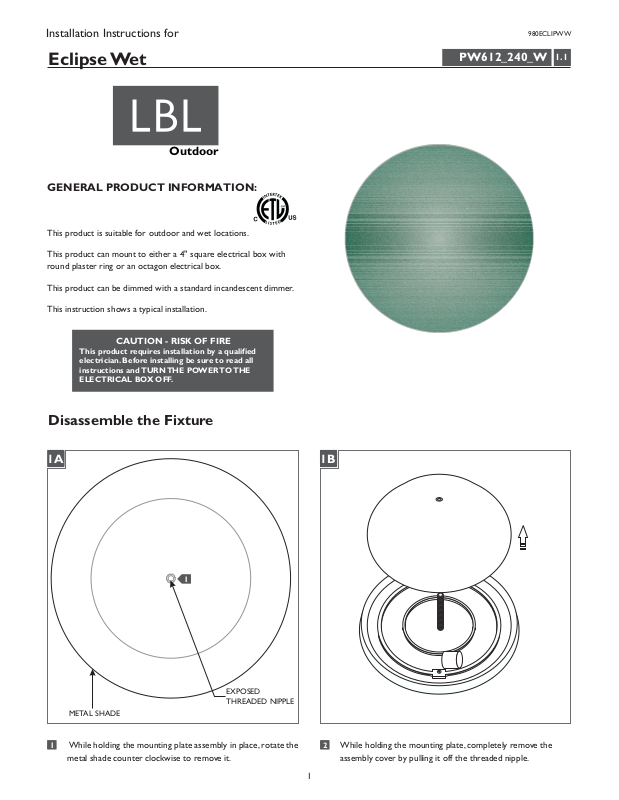

Installation Instructions for

980ECLIPWW

Eclipse Wet

Outdoor

GENERAL PRODUCT INFORMATION:

This product is suitable for outdoor and wet locations.

This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.

This product can be dimmed with a standard incandescent dimmer.

This instruction shows a typical installation.

CAUTION - RISK OF FIRE

This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWERTO THE
ELECTRICAL BOX OFF.

PW612_240_W

1.1

Disassemble the Fixture

1A 1B

1

EXPOSED
THREADED NIPPLE

METAL SHADE

4

11 12

While holding the mounting plate assembly in place, rotate the

metal shade counter clockwise to remove it.

1

While holding the mounting plate, completely remove the
assembly cover by pulling it off the threaded nipple.

Install the Fixture

2A

#8-32 SCREW

1

ELECTRICAL BOX HOLE

11

Thread the two provided #8-32 screws

(Not Completely)

into the electrical box holes, leaving 1/8" of them exposed.

2B

MOUNTING
PLATE

3

1/8"

2C

#8-32 SCREW

KEY HOLE

15

Place all wires and wire nut connections properly inside the
electrical box.

Place the large portion of the key holes onto the exposed

16

#8-32 screws.

5

2D

4

12

In accordance with local electrical codes, make sure that the
fixture is grounded.

13

Connect the fixture white wire to the neutral power line wire
with a wire nut.

14

Connect the fixture black wire to the hot power line wire with
a wire nut.

7

7

17

Rotate the mounting plate so that the #8-32 screw heads are
locked into the small portion of the key holes.
