LBL Lighting Dover W LED User Manual

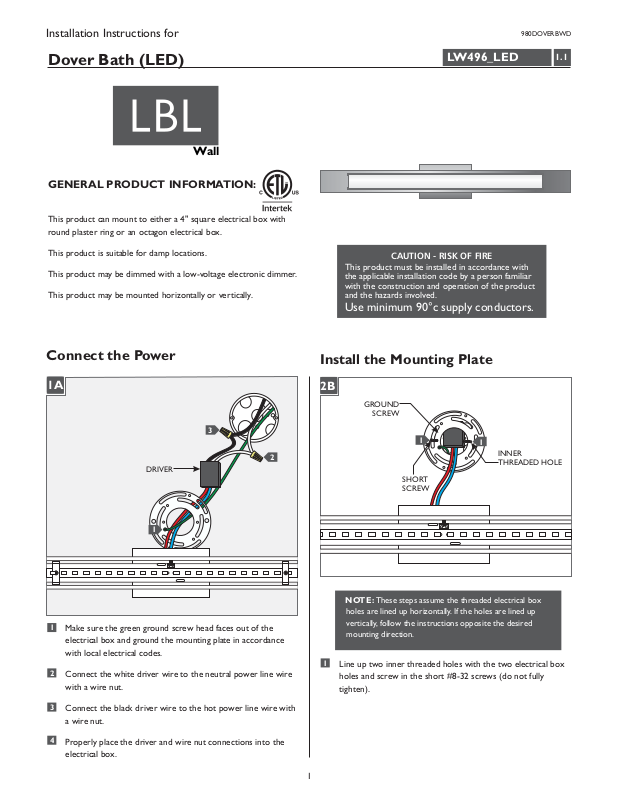

Installation Instructions for
980DOVERBWD
Dover Bath (LED)
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product may be dimmed with a low-voltage electronic dimmer.
This product may be mounted horizontally or vertically.
LW496_LED
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
1.1
Connect the Power
1A
3
DRIVER
1
1
Make sure the green ground screw head faces out of the
electrical box and ground the mounting plate in accordance
with local electrical codes.
2
Connect the white driver wire to the neutral power line wire
with a wire nut.
Install the Mounting Plate
2B
GROUND
SCREW
1
2
SHORT
SCREW
NOTE: These steps assume the threaded electrical box
holes are lined up horizontally. If the holes are lined up
vertically, follow the instructions opposite the desired
mounting direction.
1
Line up two inner threaded holes with the two electrical box
holes and screw in the short #8-32 screws (do not fully
tighten).
1
INNER
THREADED HOLE
3
Connect the black driver wire to the hot power line wire with
a wire nut.
4
Properly place the driver and wire nut connections into the
electrical box.
1
Install the Backplate
Install the Shade
3A
INNER THREADED HOLE
SLOT
1
Hold the backplate up to the mounting plate. Line up the slots
1
BACKPLATE
SLOT
INNER THREADED HOLE
in the backplate with the inner threaded holes in the mounting
plate.
2
Adjust the mounting plate as necessary so the backplate is
level when the threaded holes line up with the slots.
3
Fully tighten the short #8-32 screws to secure the mounting
plate in the desired position.
3B
4A
SHADE
3
1
Remove the thumbscrew from the bracket on the backplate.
Place the shade onto the backplate.
2
3
Insert the thumbscrew through the hole in the shade and
screw it into the bracket on the backplate to secure the shade.
THUMB SCREW
LONG #8-32 SCREW
5
5
4
Line up the two backplate slots with the two mounting plate
inner threaded holes.
5
Secure the backplate to the electrical box with the two long
#8-32 screws provided.
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
2
