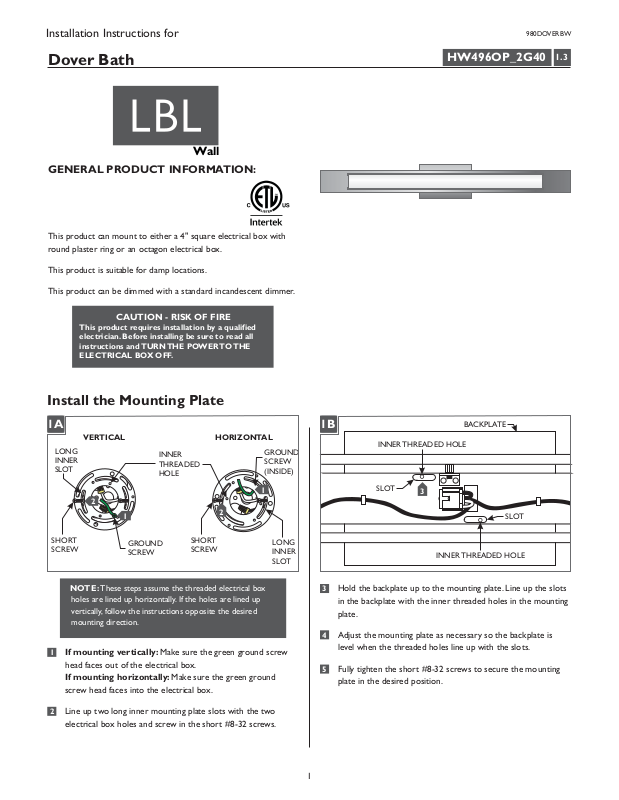

Installation Instructions for
980DOVERBW
Dover Bath
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWERTO THE
ELECTRICAL BOX OFF.
HW496OP_2G40
1.3
Install the Mounting Plate
1A 1B
VERTICAL
LONG
INNER
SLOT
2
1
SHORT
SCREW
NOTE: These steps assume the threaded electrical box
holes are lined up horizontally. If the holes are lined up
vertically, follow the instructions opposite the desired
mounting direction.
1
If mounting vertically: Make sure the green ground screw
GROUND
SCREW
INNER
THREADED
HOLE
head faces out of the electrical box.
Make sure the green groundIf mounting horizontally:
screw head faces into the electrical box.
HORIZONTAL
SHORT
SCREW
GROUND
SCREW
(INSIDE)
1
2
LONG
INNER
SLOT
3
4
5
BACKPLATE
INNER THREADED HOLE
SLOT
3
SLOT
INNER THREADED HOLE
Hold the backplate up to the mounting plate. Line up the slots
in the backplate with the inner threaded holes in the mounting
plate.
Adjust the mounting plate as necessary so the backplate is
level when the threaded holes line up with the slots.
Fully tighten the short #8-32 screws to secure the mounting
plate in the desired position.
2
Line up two long inner mounting plate slots with the two
electrical box holes and screw in the short #8-32 screws.
1
Connect the Power
Install the Lamps and Shade
2A
1
2
3
1
Make sure that the mounting plate is grounded in accordance
with local electrical codes.
2
Connect the black fixture wire to the hot power line wire with
a wire nut.
3
Connect the white fixture wire to the neutral power line wire
with a wire nut.
4
Properly place all wires into the electrical box.
4A
CAUTION: To reduce the risk of a burn or electric
shock during relamping, disconnect the power to
the fixture.
Use Volt, Type T4,MAX 40120 Watt
G9 Base Bi-Pin Halogen Lamp.
1
Push the lamp base completely into the socket. Repeat for all
five lamps.
4B
Install the Backplate
3A
LONG #8-32 SCREW
2
2
1
Line up the two backplate slots with the two mounting plate
inner threaded holes.
2
Secure the backplate to the electrical box with the two long
#8-32 screws provided.
SHADE
4
2
Remove the thumbscrew from the bracket on the backplate.
Place the shade onto the backplate.
3
4
Insert the thumbscrew through the hole in the shade and
screw it into the bracket on the backplate to secure the shade.
THUMB SCREW
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2013 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
