LBL Lighting Dia User Manual
Installation Instructions for
Dia and Mini-Dia Pendant
Fusion Jack™
GP I :ENERAL RODUCT NFORMATION
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
980FSJDIA
HS782_
HS783_
1.0
NOTE:To replace the lamp, reverse section 1.

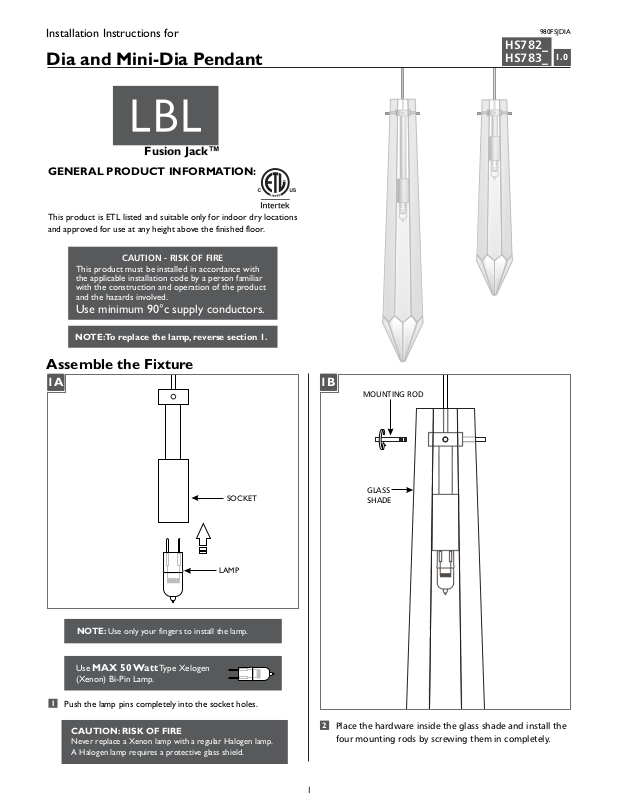

Assemble the Fixture
1A
SOCKET
LAMP
1B
MOUNTING ROD
GLASS
SHADE
NOTE:Use only your fingers to install the lamp.
Use Type XelogenMAX 50 Watt
(Xenon) Bi-Pin Lamp.
1
Push the lamp pins completely into the socket holes.
CAUTION: RISK OF FIRE
Never replace a Xenon lamp with a regular Halogen lamp.
A Halogen lamp requires a protective glass shield.
22
Place the hardware inside the glass shade and install the
four mounting rods by screwing them in completely.
1
Adjust the Fixture Height
2A
ALLEN WRENCH
SET SCREW
1
CONNECTOR
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
2B
ALLEN WRENCH
SET SCREW
2
2
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
2E
6
CONICAL CONNECTOR
6
Feed and push the coaxial cable into the conical connector.The
coaxial cable will come to a stop point after being inserted
3/4" into the conical connector.
2F
7
WRINKLE ON OUTER
WRAPPED WIRE
7
Keep pushing the coaxial cable into the connector while
rotating the connector to ease feeding the inner wire into the
tip of the connector.The outer wrapped wire will start
wrinkling while being inserted another 1/2" into the connector.
OUTER WRAPPED
WIRE STOPS HERE
INNER WIRE
STOPS HERE

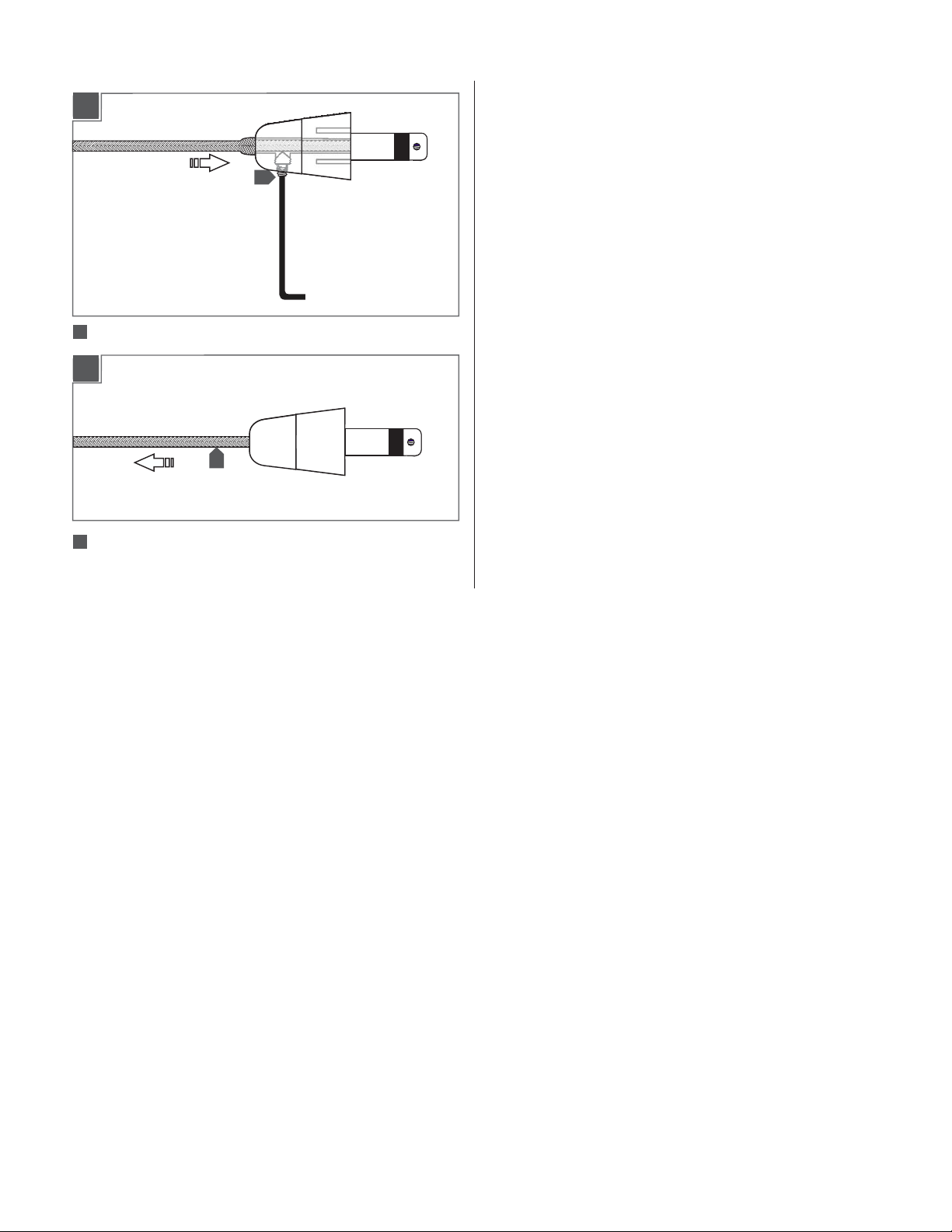

2C
4
3
Cut the coaxial cable to the desired length.
4
Gently twist the end of the coaxial cable between thumb and
forefinger.
2D
SURFACE
PLATE
2G
ALLEN WRENCH
8
Look into the sight hole on the top of the connector to make
INNER WIRE
SIGHT HOLE
9
sure that the inner wire is contacting the end of the connector.
9
Hold the coaxial cable in place and tighten the set screw on tip
of the connector with the provided Allen wrench. Make sure
this set screw connection is tight.
8
5
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
2
