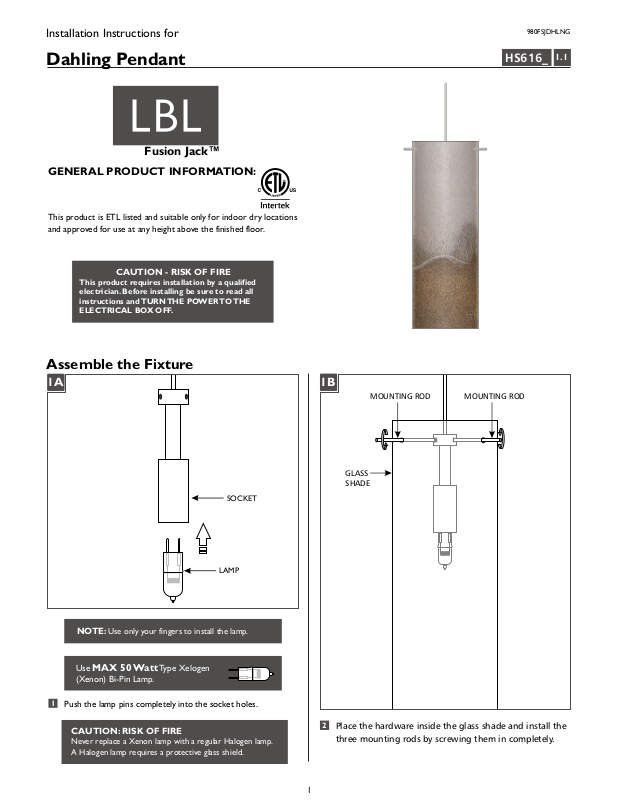

Installation Instructions for
980FSJDHLNG
Dahling Pendant
Fusion Jack™
GENERAL PRODUCT INFORMATION:
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
HS616_
1.1
Assemble the Fixture
1A
NOTE: Use only your fingers to install the lamp.
MOUNTING ROD MOUNTING ROD
GLASS
SHADE
SOCKET
LAMP
Use MAX 50 Watt Type Xelogen
(Xenon) Bi-Pin Lamp.
1
Push the lamp pins completely into the socket holes.
CAUTION: RISK OF FIRE
Never replace a Xenon lamp with a regular Halogen lamp.
A Halogen lamp requires a protective glass shield.
21B2
Place the hardware inside the glass shade and install the
three mounting rods by screwing them in completely.
1
Page 2
Adjust the Fixture Height
2A
ALLEN WRENCH
SET SCREW
1
CONNECTOR
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
2B
ALLEN WRENCH
SET SCREW
2
2
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
2E
6
CONICAL CONNECTOR
6
Feed and push the coaxial cable into the conical connector. The
coaxial cable will come to a stop point after being inserted
3/4" into the conical connector.
2F
7
WRINKLE ON OUTER
WRAPPED WIRE
7
Keep pushing the coaxial cable into the connector while
rotating the connector to ease feeding the inner wire into the
tip of the connector. The outer wrapped wire will start
wrinkling while being inserted another 1/2" into the connector.
OUTER WRAPPED
WIRE STOPS HERE
INNER WIRE
STOPS HERE
2C
4
3
Cut the coaxial cable to the desired length.
4
Gently twist the end of the coaxial cable between thumb and
forefinger.
2D
SURFACE
PLATE
2G
ALLEN WRENCH
8
Look into the sight hole on the top of the connector to make
INNER WIRE
SIGHT HOLE
9
sure that the inner wire is contacting the end of the connector.
9
Hold the coaxial cable in place and tighten the set screw on tip
of the connector with the provided Allen wrench. Make sure
this set screw connection is tight.
8
5
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
2
Page 3
2H
3B
10
10
Firmly tighten the set screw on the conical connector.
2I
11
11
Pull the coaxial cable toward the fixture to smooth the
wrinkles.
Replacing the Lamp
3A
GLASS SHADE
SOCKET
1
NOTE: Use only your fingers to replace the lamp.
Use MAX 50 Watt Type Xelogen
(Xenon) Bi-Pin Lamp.
2
Remove the old lamp.
3
Push the new lamp pins completely into the socket holes.
CAUTION: RISK OF FIRE
Never replace a Xenon lamp with a regular Halogen lamp.
A Halogen lamp requires a protective glass shield.
LAMP
3C
1
SOCKET
NOTE: To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
1
Lift the glass shade up to expose the lamp and socket.
1
4
3
GLASS SHADE
3
SOCKET
Lower the glass shade until the socket is properly inside the
socket assembly.
Page 4
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2013 LBL Lighting. All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
