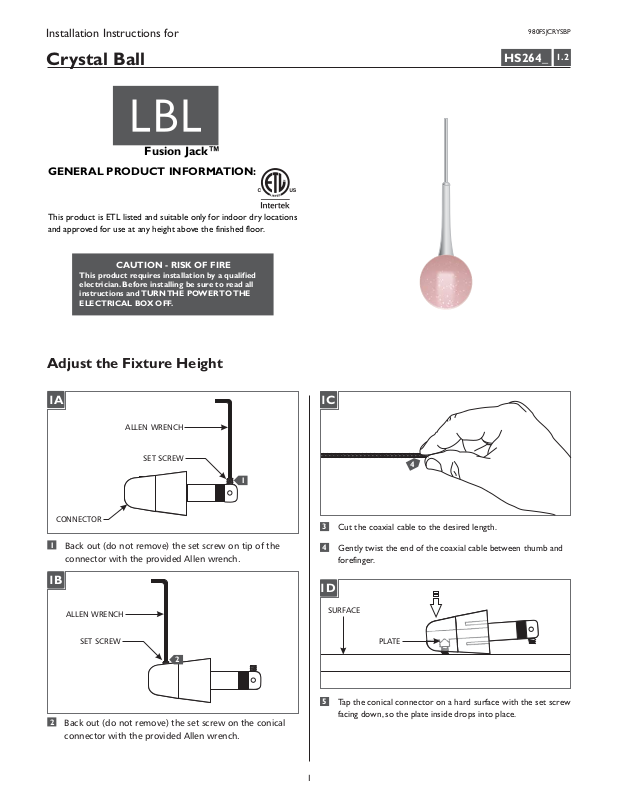

Page 1
Installation Instructions for
980FSJCRYSBP
Crystal Ball
Fusion Jack™
GP I :ENERAL RODUCT NFORMATION
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
HS264_
1.2
Adjust the Fixture Height
1A
ALLEN WRENCH
SET SCREW
CONNECTOR
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
1B
ALLEN WRENCH
SET SCREW
1C
4
1
3
Cut the coaxial cable to the desired length.
4
Gently twist the end of the coaxial cable between thumb and
forefinger.
1D
SURFACE
PLATE
2
2
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
5
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
1
Page 2
1E
1H
6
10
CONICAL CONNECTOR
6
Feed and push the coaxial cable into the conical connector.The
OUTER WRAPPED
WIRE STOPS HERE
coaxial cable will come to a stop point after being inserted
3/4" into the conical connector.
1F
7
WRINKLE ON OUTER
WRAPPED WIRE
7
Keep pushing the coaxial cable into the connector while
INNER WIRE
STOPS HERE
rotating the connector to ease feeding the inner wire into the
tip of the connector.The outer wrapped wire will start
wrinkling while being inserted another 1/2" into the connector.
1G
INNER WIRE
10
Firmly tighten the set screw on the conical connector.
1I
11
11
Pull the coaxial cable toward the fixture to smooth the
wrinkles.
SIGHT HOLE
9
ALLEN WRENCH
8
Look into the sight hole on the top of the connector to make
sure that the inner wire is contacting the end of the connector.
9
Hold the coaxial cable in place and tighten the set screw on tip
of the connector with the provided Allen wrench. Make sure
this set screw connection is tight.
8
2
Page 3
Replace the Lamp & Shade
2A 2C
1
1
1
Gently remove the glass shade and old lamp.
2B
SOCKET
LAMP
ALLEN
WRENCH
GLASS
SHADE
SPRING CLIP
4
3
Place the spring clip back onto the socket make sure that the
3
SOCKET
LAMP
flat portion is against the socket cap.
NOTE:Use only your fingers and a soft cloth to install
the lamp.
Use Watt Bi-Pin XelogenMAX 10
(Xenon) Lamp.
4
Push the lamp pins completely into the socket holes.
WARNING: RISK OF FIRE
Never replace a Xenon (Xelogen) lamp with a regular
Halogen lamp.A regular Halogen lamp requires a protective
glass shield.
GLASS
SHADE
2
2
If the spring clip gets stuck in the glass shade, use the provided
SPRING
CLIP
Allen wrench to remove it.
2D
SOCKET
5
Replace and push the glass shade completely onto the
5
spring clip.
SPRING CLIP
GLASS
SHADE
Page 4
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2013 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
