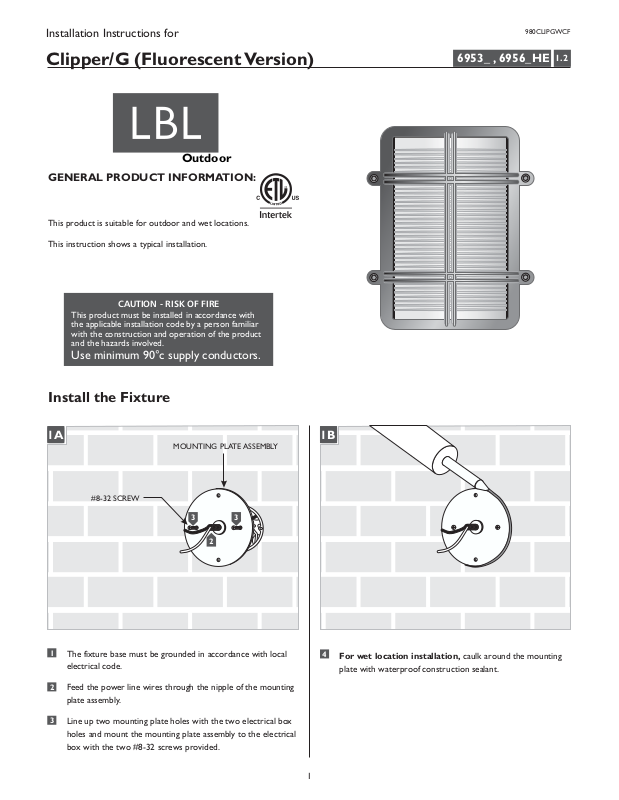

Installation Instructions for
980CLIPGWCF
Clipper/G (FluorescentVersion)
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product is suitable for outdoor and wet locations.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
6953_ , 6956_HE
1.2
Install the Fixture
MOUNTING PLATE ASSEMBLY
#8-32 SCREW
3 3
2
1
The fixture base must be grounded in accordance with local
electrical code.
2
Feed the power line wires through the nipple of the mounting
plate assembly.
1B1A
4
For wet location installation, caulk around the mounting
plate with waterproof construction sealant.
3
Line up two mounting plate holes with the two electrical box
holes and mount the mounting plate assembly to the electrical
box with the two #8-32 screws provided.
1
1C
1E
WASHER
5 5
5/32 ALLEN
WRENCH
5 5
CAP SCREW
5
Remove all four cap screws with the 5/32 Allen wrench
provided.
1D
INSIDE
NUT
7
Feed the power line wires through the base center hole,
7
7
washer and inside nut.
1F
10
9
8
NIPPLE
6
FRONT COVER
6
Carefully remove the front cover and the glass shade from the
GLASS SHADE
BASE
base.
8
Slide the base onto the mounting plate nipple and tighten the
inside nut completely to secure the base against the wall.
9
Connect the fixture white ballast wire to the neutral power
line wire with a wire nut.
10
Connect the fixture black ballast wire to the hot power line
wire with a wire nut.
2
1G
1H
LAMP
REFLECTOR
SOCKET
FRONT COVER GLASS SHADE BASE
CAUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Use Watt GX23-2 BaseMAX 13
Quad Tube Compact Fluorescent Lamp
With The 6953NM and 6953MCNM Models.
Use Watt GX24Q-1 BaseTripleMAX 13
Tube Compact Fluorescent Lamp With The
6953HE and 6953MCHE Models.
Use Watt G24Q-3 BaseTripleMAX 26
Tube Compact Fluorescent Lamp With The
6956HE and 6956MCHE Models.

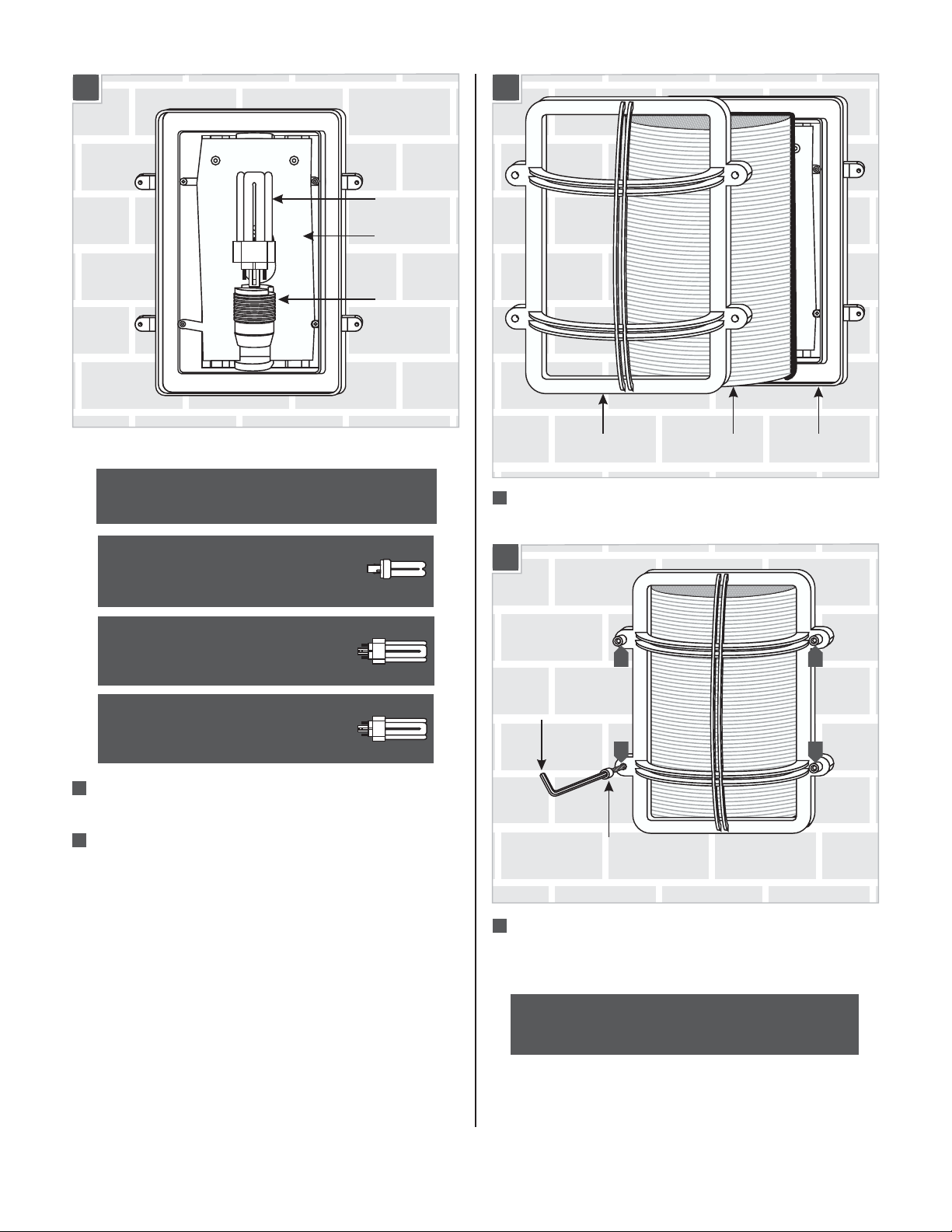

11
Position the wires and wire nut connections behind the
reflector away form the lamp.
12
Push the lamp pins completely into the socket holes.
13
Replace the glass shade and the front cover onto the base.
Align the front cover holes with the base holes.
1I
14 14
5/32 ALLEN
WRENCH
14 14
CAP SCREW
While supporting the glass shade and front cover in place,
14
replace and tighten the four cap screws with the 5/32 Allen
wrench provided.
NOTE:To replace the lamp, follow steps 5 & 6 on page 2,
remove the old lamp, and then follow steps 11 though 14.
3
SAVETHESE INSTRUCTIONS!
