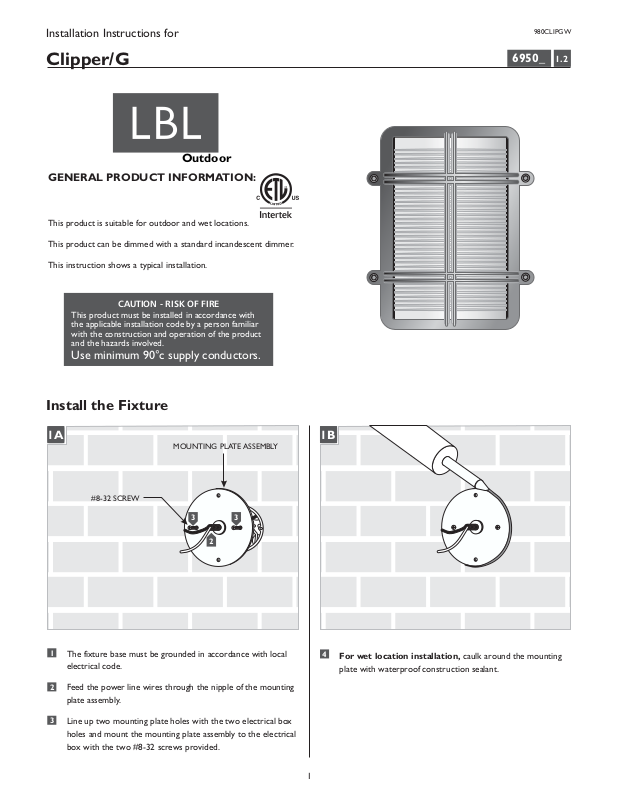

Installation Instructions for
980CLIPGW
Clipper/G
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product is suitable for outdoor and wet locations.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
6950_
1.2
Install the Fixture
MOUNTING PLATE ASSEMBLY
#8-32 SCREW
3 3
2
1
The fixture base must be grounded in accordance with local
electrical code.
2
Feed the power line wires through the nipple of the mounting
plate assembly.
1B1A
4
For wet location installation, caulk around the mounting
plate with waterproof construction sealant.
3
Line up two mounting plate holes with the two electrical box
holes and mount the mounting plate assembly to the electrical
box with the two #8-32 screws provided.
1
1C
1E
WASHER
5 5
5/32 ALLEN
WRENCH
5 5
CAP SCREW
5
Remove all four cap screws with the 5/32 Allen wrench
provided.
1D
INSIDE NUT
10
9
7
7
Feed the power line wires through the base center hole,
8
NIPPLE
washer and inside nut.
8
Tighten the inside nut completely to secure the base against
the wall.
9
Connect the fixture white wire to the neutral power line wire
with a wire nut.
10
Connect the fixture black wire to the hot power line wire
with a wire nut.
6
FRONT COVER
6
Carefully remove the front cover and the glass shade from the
GLASS SHADE
BASE
base.
2
1F
1H
14 14
11
CAUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Use Volt, WattType A19MAX 75120
Medium Base Lamp.
11
Screw the lamp completely into the socket.
12
Position the wires and wire nut connections behind the socket
away from the lamp.
LAMP
SOCKET
5/32 ALLEN
WRENCH
14 14
CAP SCREW
While supporting the glass shade and front cover in place,
14
replace and tighten the four cap screws with the 5/32 Allen
wrench provided.
NOTE:To replace the lamp, follow steps 5 & 6 on page 2,
remove the old lamp, and then follow steps 11 though 14.
1G
13
FRONT COVER GLASS SHADE BASE
13
Replace the glass shade and the front cover onto the base.
Align the front cover holes with the base holes.
3
SAVETHESE INSTRUCTIONS!
SAVETHESE INSTRUCTIONS!
