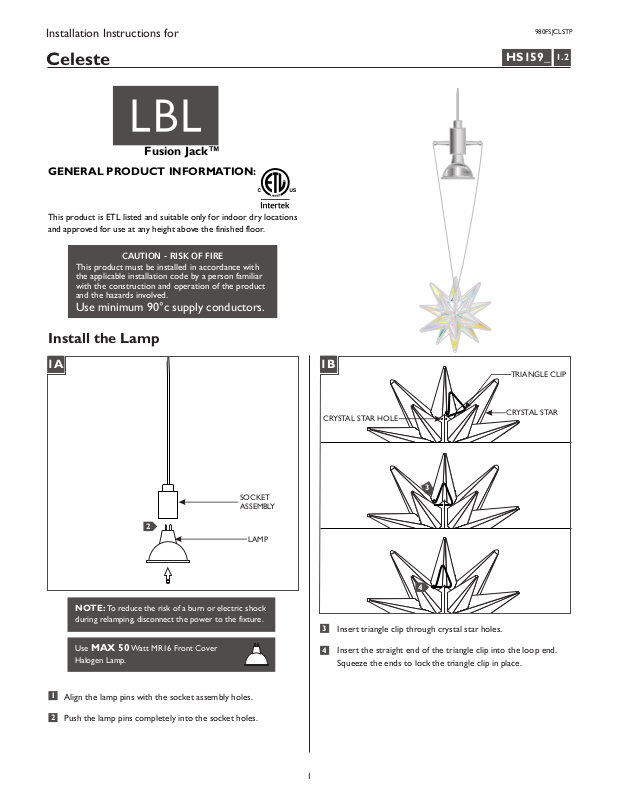

Installation Instructions for
980FSJCLSTP
Celeste
Fusion Jack™
GENERAL PRODUCT INFORMATION:
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
This product requires installation by a qualified
the applicable installation code by a person familiar
electrician. Before installing be sure to read all
with the construction and operation of the product
instructions and TURN THE POWER TO THE
and the hazards involved.
ELECTRICAL BOX OFF.
Use minimum 90°c supply conductors.
Install the Lamp
CAUTION - RISK OF FIRE
HS159_
1.2
1A
2
NOTE: To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Use MAX 50 Watt MR16 Front Cover
Halogen Lamp.
SOCKET
ASSEMBLY
LAMP
1B
TRIANGLE CLIP
CRYSTAL STAR HOLE
3
4
3
Insert triangle clip through crystal star holes.
Insert the straight end of the triangle clip into the loop end.
4
Squeeze the ends to lock the triangle clip in place.
CRYSTAL STAR
1
Align the lamp pins with the socket assembly holes.
2
Push the lamp pins completely into the socket holes.
1
Page 2
1C
PIN SCREW
SOCKET CAP HOLE
5
5
Tighten one pin screw into the socket cap hole.
1E
7
PIN SCREW
1D
TRIANGLE CLIP
PIN SCREW
6
7
Tighten the other pin screw into the other socket cap hole to
secure the crystal star in place.
6
Slide the other pin screw completely through the triangle clip.
2
Page 3
Adjust the Fixture Height
2A
ALLEN WRENCH
SET SCREW
1
CONNECTOR
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
2B
ALLEN WRENCH
SET SCREW
2
2
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
2E
6
CONICAL CONNECTOR
6
Feed and push the coaxial cable into the conical connector. The
coaxial cable will come to a stop point after being inserted
3/4" into the conical connector.
2F
7
WRINKLE ON OUTER
WRAPPED WIRE
7
Keep pushing the coaxial cable into the connector while
rotating the connector to ease feeding the inner wire into the
tip of the connector. The outer wrapped wire will start
wrinkling while being inserted another 1/2" into the connector.
OUTER WRAPPED
WIRE STOPS HERE
INNER WIRE
STOPS HERE
2C
4
3
Cut the coaxial cable to the desired length.
4
Gently twist the end of the coaxial cable between thumb and
forefinger.
2D
SURFACE
PLATE
2G
ALLEN WRENCH
8
Look into the sight hole on the top of the connector to make
INNER WIRE
SIGHT HOLE
9
sure that the inner wire is contacting the end of the connector.
9
Hold the coaxial cable in place and tighten the set screw on tip
of the connector with the provided Allen wrench. Make sure
this set screw connection is tight.
8
5
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
3
Page 4
2H
10
10
Firmly tighten the set screw on the conical connector.
2I
11
11
Pull the coaxial cable toward the fixture to smooth the
wrinkles.
