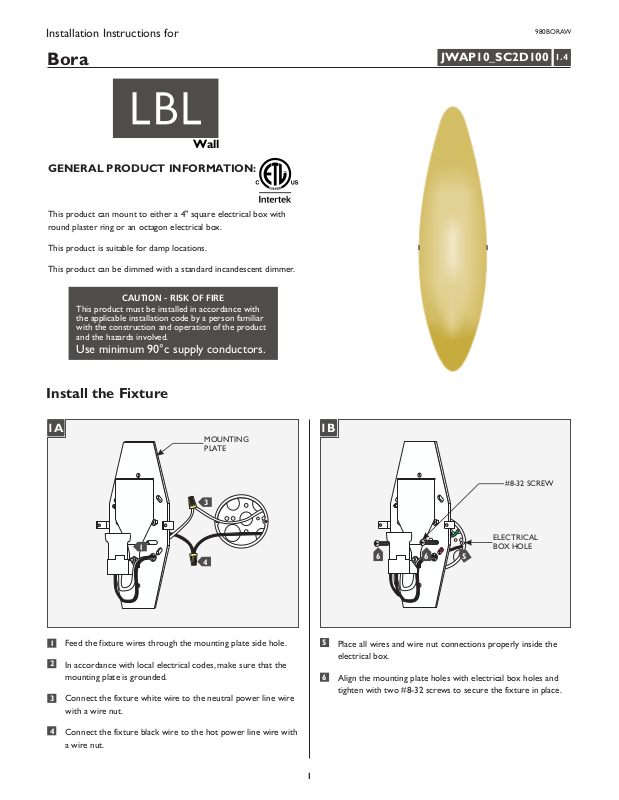

Installation Instructions for
980BORAW
Bora
Wall
GENERAL PRODUCT INFORMATION:
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
JWAP10_SC2D100
1.4
Install the Fixture
1A
1
1
Feed the fixture wires through the mounting plate side hole.
2
In accordance with local electrical codes, make sure that the
mounting plate is grounded.
3
Connect the fixture white wire to the neutral power line wire
with a wire nut.
MOUNTING
PLATE
3
4
1B
#8-32 SCREW
5
6
6 6
5
Place all wires and wire nut connections properly inside the
electrical box.
6
Align the mounting plate holes with electrical box holes and
tighten with two #8-32 screws to secure the fixture in place.
6
5
ELECTRICAL
BOX HOLE
4
Connect the fixture black wire to the hot power line wire with
a wire nut.
1
1
Install the Lamp and Shade
2A
SOCKET
Use MAX 120 Volt, 100 Watt Type A19
Medium Base Lamp.
1
Screw the lamp into the socket.
1
2B
LAMP
THUMB
SCREW
2 2
MOUNTING
PLATE
GLASS
SHADE
2
Place the glass shade onto the mounting plate. Align the glass
shade holes with the mounting plate holes, replace and tighten
the thumb screws to secure the glass shade in place.
NOTE: Do not over tighten the thumb screws which may
cause the glass shade to break.
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting. All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
2
A Generation Brands Company
