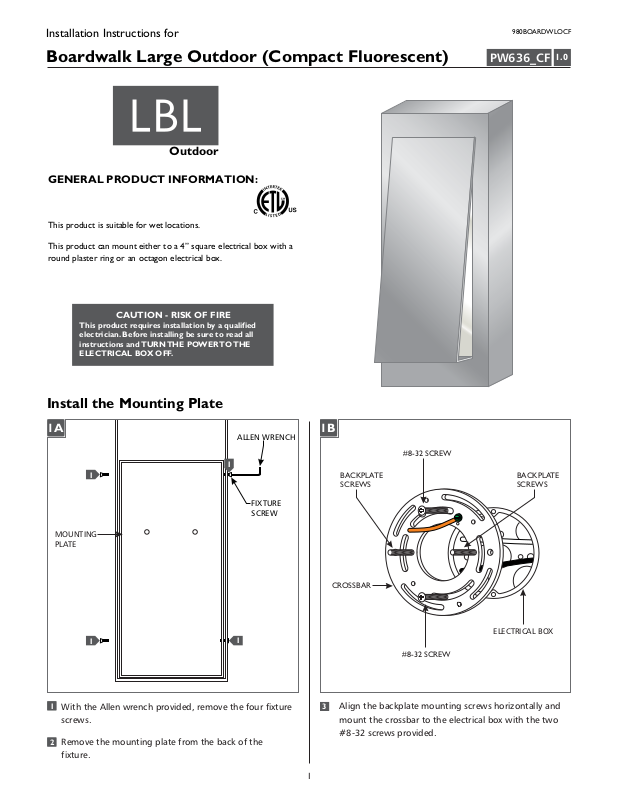

Installation Instructions for
980BOARDWLOCF
Boardwalk Large Outdoor (Compact Fluorescent)
Outdoor
GENERAL PRODUCT INFORMATION:
This product is suitable for wet locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
PW636_CF
1.0
Install the Mounting Plate
1A
1
MOUNTING
PLATE
1
ALLEN WRENCH
1
FIXTURE
SCREW
1
1B
CROSSBAR
BACKPLATE
SCREWS
#8-32 SCREW
BACKPLATE
SCREWS
ELECTRICAL BOX
#8-32 SCREW
1
1
With the Allen wrench provided, remove the four fixture
screws.
Remove the mounting plate from the back of the
2
2
fixture.
23
Align the backplate mounting screws horizontally and
mount the crossbar to the electrical box with the two
#8-32 screws provided.
1
Assemble the Fixture
1C
4
5
4
Connect the mounting plate ground wire to a suitable
ground according to local electrical codes.
2A
SOCKET
3
LAMP
1
CAUTION: To reduce the risk of a burn or electric
shock during lamping and re-lamping, disconnect
the power to the fixture.
5
Connect the white fixture wire to the neutral power line
wire with a wire nut.
6
Connect the black fixture wire to the hot power line
wire with a wire nut.
1D
THUMB NUT THUMB NUT
1
Use GX24Q-2 Base
MAX 18 Watt
Triple Tube Compact Fluorescent Lamp.
1
Push the lamp base into the socket.
7
Install the mounting plate onto the crossbar and secure
it tightly with the two thumb nuts.
2
2B
ALLEN WRENCH
1
1
FIXTURE
SCREW
1
1
2
Remount the fixture onto the mounting plate and
1
secure it tightly with the four fixture screws using the
allen wrench.
NOTE: To re-lamp, reverse figures 2A and 2B or
simply reach inside the fixture if possible.
12C3
For wet locations, caulk around the base with
waterproof construction sealant.
3
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2012 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
