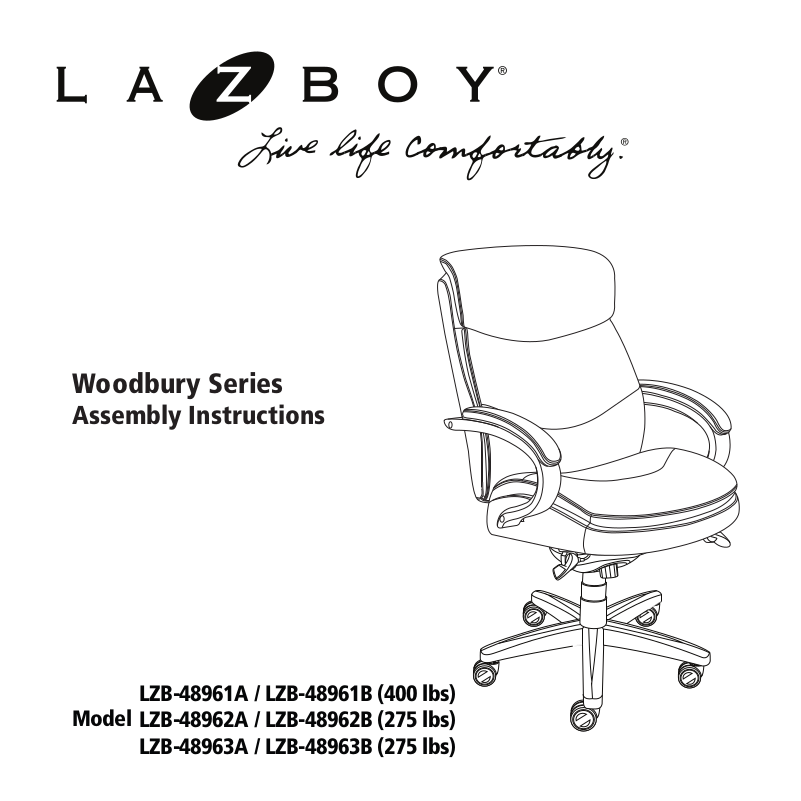

Woodbury Series
Assembly Instructions
LZB-48961A / LZB-48961B (400 lbs)
Model
LZB-48962A / LZB-48962B (275 lbs)
LZB-48963A / LZB-48963B (275 lbs)
PARTS/PIÈCES
A
Casters
Quantity: 5
E1
Left Arm
Quantity: 1
H
Plastic Shroud
Quantity: 1
B
Star Base
Quantity:1
E2
Right Arm
Quantity: 1
I
1” Screws
Quantity: 2
L
2-1/2” Screws with Spring Washers
Quantity: 4
Gas Lift with Telescoping Cover
Quantity: 1
Seat Cushion
Quantity:1
M
Plastic Caps
Quantity: 4
C
F
J
1-1/2” Screws
Quantity: 2
N
Allen Key
Quantity: 1
D1
D
Seat Plate
Quantity: 1
G
Back Cushion
Quantity: 1
K
1-1/4” Screws
Quantity: 4
D2
2
Step 1
Place the Star Base (B) upside down and insert 5 Casters (A)
into the holes on the Star Base (B).
Step 2
Turn the Star Base (B) over and insert the Gas Lift with
Telescoping Cover (C) through the center hole on top of Star
Base (B).
A
B
C
B
3
N
J
Step 3
Attach Seat Plate (D) to the bottom of the Seat Cushion (F) (with the
front of the seat plate facing the front of seat cushion). Attach by using
two 1-1/2” Screws (J) for the front holes of the Seat Plate (D) and two 1”
Screws (I) for the rear holes of the Seat Plate (D) and tighten the screws
using Allen Key (N).
*Note: Tighten the screws completely.
Step 4
Insert Levers (D1 & D2) of Seat Plate (D) to the pre-attached
cable lever receivers on the underside of Seat Cushion (F) (with
the front of levers facing the front of seat cushion). Push down the key
on the receivers to pull out the levers.
*Note: Fix the cable for the seat plate into the plastic clips
attached to the bottom of the seat cushion.
I
D
F
D1
D2
D
F
Insert
Assemble the lever
Push
Disassemble the lever
4
