USE AND CARE GUIDE

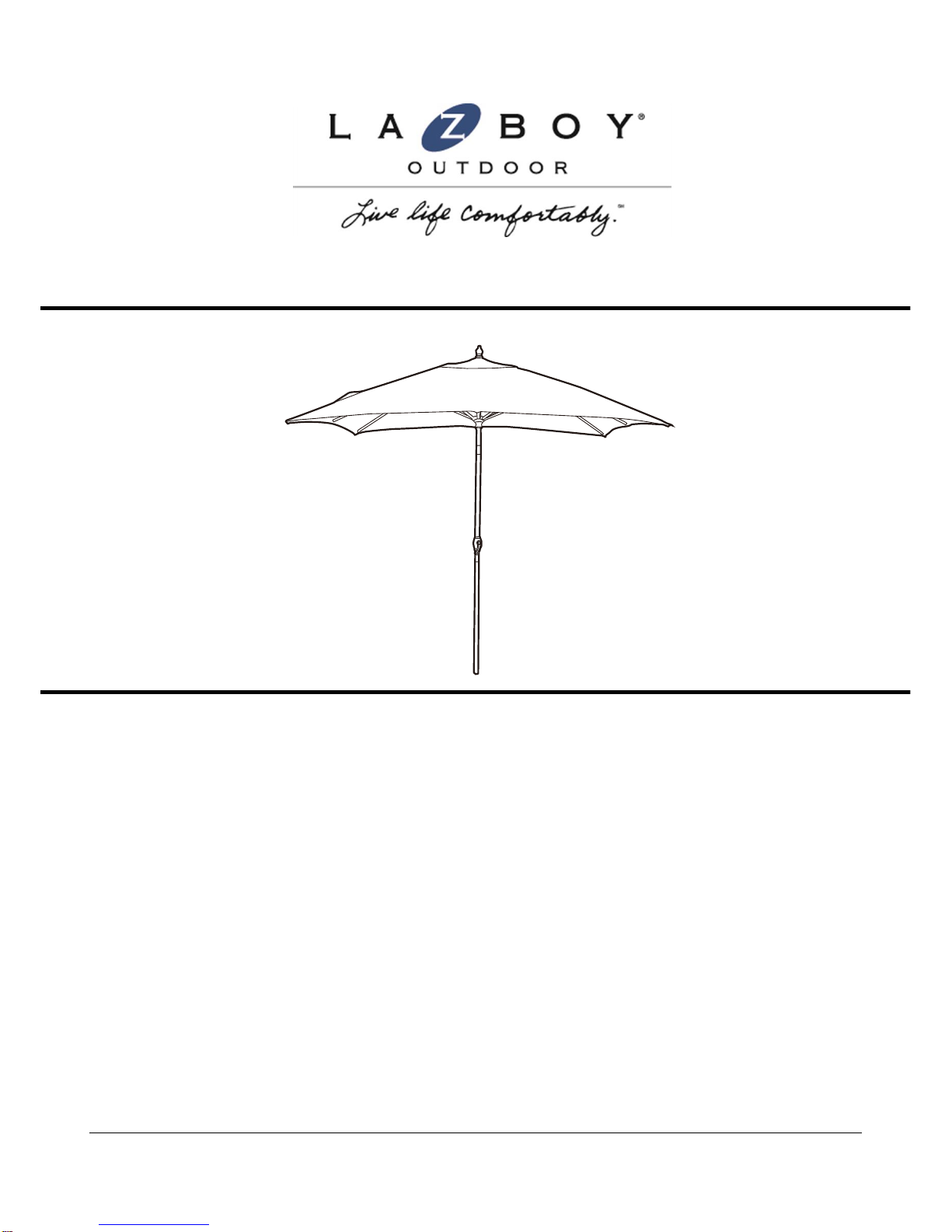

Sears Madeline Umbrella - Green
Product Code: D71 M20926
UPC Code: 7-22938-11285-2
Date of Purchase: __ / __ / __
La-Z-Boy® is a registered trademark of La-Z-Boy Incorporated and is used under license to BJI, Inc.
© 2015 La-Z-Boy Incorporated.
Page 2
2
Thank you for your purchase
THANK YOU FOR YOUR PURCHASE!
We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you
enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously
considered all the way down to the smallest details, exclusively for you, by our world class design
team. We know you have a choice when it comes to your patio furniture needs, so from our team to
yours, thank you for letting us be a part of your outdoors.
Table of Contents
Table of Contents .......................... .. .. .. .. ... ..... 2
Safety Information ........................................ 3
Set up your item properly ............................ 3
Examine your item ...................................... 3
Warranty ........................................................ 3
What is covered .......................................... 3
What is not covered .................................... 3
Care and Maintenance .......................... ... .. .. . 4
Pre-Assembly ................................................ 5
Planning assembly ...................................... 5
Package contents ....................................... 6
Assembly Instruction ................................... 7
Customer Service ....................................... 11
Page 3
3
Safety Information
SET UP YOUR ITEM PROPERLY
□
Ensure that all parts are assembled
properly and fully tightened as per the
instructions.
EXAMINE YOUR ITEM
□
Examine occasionally to ensure that there
are no loose parts. If loose parts are found,
they must be retightened fully before
additional use.
Warranty
THIS IS A RESIDENTIAL WARRANTY AND DOES NOT APPLY FOR
COMMERCIAL USE.
1 YEAR WARRANTY FOR FRAME.
WHAT IS COVERED
We warrant the frame to be free of manufacturing defects to the original purchaser for 1 year.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service
center.
This warranty does not cover commercial use, hardware, acts of nature, fire, freezing and abusive
use.
Discoloration or fading of the finish or fabrics as a result of chemicals or spills is not covered.
Glass table top breakage and corrosion or rusting of hardware are not covered.
In addition, purchase parts are not covered under this warranty.
Proof of purchase (dated register receipt) is required for warranty claims.
CAUTION: Read all of the instructions in
this manual before you begin assembly.
Failure to do so may result in faulty
assembly and potential injury!
WARNING: 1.
Never use umbrella without
an umbrella base and matching table.
2. Never use umbrella in high wind
conditions. Damage to umbrella and / or
table can occur.
3. Always leave umbrella in down position
when not in use.
NOTICE:
Table and umbrella base are only for
instruction reference and are sold separately.
Page 4
4
We reserve the right to make substitutions with similar merchandise, if the model in question is no
longer in production.
For a copy of our full limited warranty, please contact our customer service team below.
Contact the Customer Service Team at 1-866-391-4868 or visit www.bjifurniture.com.
Care and Maintenance
□ Do not allow water to build up in frames. This will cause corrosion and possible freezing damage
in cold climates.
□ Use a mild soap and water for normal cleaning. DO NOT use janitorial or alcohol based cleaners.
Some cleaners may be marked as natural, but some ingredients can cause discoloration or have
adverse reaction to your finish.
□ Rinse with clean water and dry with a soft, absorbent cloth towel.
□ Cushions, slings, and/or an umbrella may be cleaned by hand with a solution of soap and water
with a clean water rinse. Never machine wash as this will result in shrinking or damage. After
cleaning, tip on end and allow to drip dry. Never use a commercial or home dryer to tumble dry
fabric goods.
□ Treat frames with liquid wax for maximum protection against UV rays and /or salty, damp air.
□ Umbrella should be closed when not in use. Umbrella should be removed and stored in the event
of wind, rain, hail, sleet, snow, or any other inclement weather. To prevent damage to your table,
always use an umbrella base with your umbrella. Store indoors during winter months.
□ Use and operation: To prolong the life of your outdoor furniture, cover when not in use. Store
indoors during winter months.
Warranty (continued)
Page 5
5
Pre-Assembly
PLANNING ASSEMBLY
PLEASE READ COMPLETE USE AND CARE GUIDE PRIOR TO ASSEMBLY!
Identify all parts packed in the carton against the parts list. Remove all protective materials and place
the parts on a nonabrasive surface to avoid scratching. It takes about 5 minutes for 1 person to
complete all the assembly.
NOTE: More than one person may be
required to complete the assembly of this
product.
Page 6
6
Pre-Assembly (continued)
PACKAGE CONTENTS
Part Description Quantity
A Plastic Cap 1
B Umbrella W/crank handle 1
C Support Tube 1
Page 7
7
Assembly Instruction
1
Attaching the plastic cap
□ Attach the plastic cap (A) to the umbrella (B).
NOTICE: Do not open the umbrella.
Page 8
8
Assembly Instruction
(continued)
2
Inserting the support tube
□ Place the umbrella base under the center of the table.
□ Loosen the knob on the umbrella base.
□ Insert the support tube (C) through the hole in the table and into the umbrella base.
□ Tighten the knob on the umbrella base.
NOTICE: Table and umbrella base are only for
instruction reference and are sold separately.
Page 9
9
Assembly Instruction
(continued)
3
Attaching the umbrella
□ Before opening the umbrella (B), turn it upside down and shake gently to separate ribs.
□ Carefully screw the umbrella (B) into the support tube (C) until attached tightly.
Page 10
10
Assembly Instruction
(continued)
4
Opening the umbrella
□ Slowly turn the handle of the umbrella (B) until the umbrella is completely open.
□ Umbrella is ready for your enjoyment.
WARNING: 1.Never use umbrella without an
umbrella base and matching table.
2. Never use umbrella in high wind conditions.
Damage to umbrella and / or table can occur.
3. Always leave umbrella in down position when
not in use.
Page 11
11
Please refer to part number when reordering
Questions, problems, missing parts? Before returning to the store,
call our Customer Service
8 a.m. - 5 p.m., EST, Monday-Thursday
8 a.m. – 4 p.m., EST, Friday
1-866-391-4868
Made in/ Hecho en CHINA
Distributed by Sears, Roebuck and Co., Hoffman Estates, IL60179
See our extensive assortment of outdoor living products on-line
at www.sears.com
and www.kmart.com
Retain this manual for future use.
