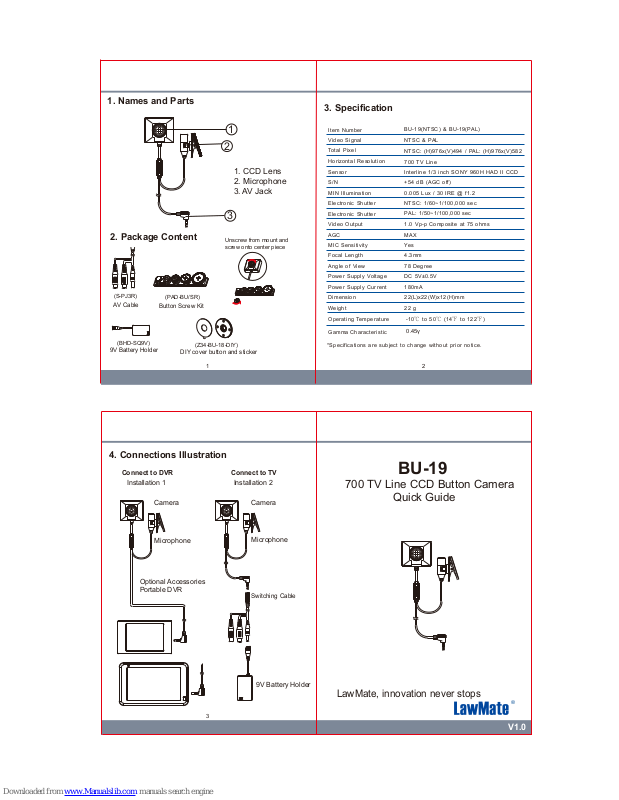

Lawmate BU-19 Quick Manual

Yes

BU-19(NTSC) & BU-19(PA L)

NTSC & PA L

MAX

1.0 V p-p Composite at 75 ohms

4.3mm

78 Degree

Int erline 1 /3 inch SONY 960H HAD II CCD

DC 5 V±0.5V

22(L)x22(W)x12(H)mm

+54 dB ( AGC of f)

180mA

22 g

MIN I llumination

0.005 Lux / 30 I RE @ f 1.2

Electronic Shutter

Electronic Shutter

NTSC: 1 /60~1/100, 000 s ec

PAL: 1/50~1 /100,000 sec

Video Output

MIC S ensitivity

Item Number

Video Signal

Total Pixel

S/N

Horizontal Resolution

Senso r

AGC

Focal Length

Angle of V iew

Power Supply Volt age

Power Supply Current

Dimension

Weight

700 TV Line

NTSC: (H)976x (V)494 / PAL: (H)976x(V )582

*Spec ifi cat ions are subject to change without prior notice .

2 1

3

4. Connections Illustration

Connect to DVR

Connect to TV

Camera

9V Battery Holder

Microphone

Switching Cable

Microphone

Camera

Optional Accessories
Portable DVR

Installation 1

Installation 2

V1.0

BU-19

700 TV Line CCD Button Camera

Quick Guide

LawMate, innovation never stops

®

Operating Temperature -10℃ to 50℃ (14℉ t o 122℉ )

1. Names and Parts

2. Package Content

2

1

3

1. CCD Lens

2. Microphone

3. AV Jack

9V Battery Holder

AV Cable

Button Screw Kit

(S-PJ3R)

(PAD-BU/SR)

(BHD-SQ9V)

(Z34-BU-18-DIY)

DIY cover button and sticker

3. Specification

Gamma Characteristic

0.45γ

Unscrew from mount and
screw onto center piece
