IMPORTANT:
READ THIS MANUAL COMPLETELY BEFORE
INSTALLING OR OPERATING YOUR LIFT
Model
TLT210
-AS
pictured
LAUNCH
Installation, Operation & Maintenance Manual
Two Post Surface Mounted Lifts
LAUNCH TECH USA INC.
TLT210-A TLT210-AS TLT210-XT TLT211-AS
10,000 lb. Capacity 10,000 lb. Capacity 10,000 lb. Capacity 11,000 lb. Capacity
2,500 lbs. per Arm 2,500 lbs. per Arm 2,500 lbs. per Arm 2,750 lbs. per Arm
1820 S Milliken Ave. Ontario, California 91761 Telephone: 562 463-1580 Fax: 562 463-1590
www.launchtechequipment.com
ALI Lifting it Right
safety manual
ALI S
afety Tips card
Series, ALI Uniform Warning Label Decals/Placards
Vehicle Lifting Points/Quick
American National Standard for Automotive Lifts
-
Safety Requirements for Operation, Inspection and Maintenance
American National Standard for Automotive Lifts
-
Safety Requirements for Operation, Inspection and Maintenance
American National Standard for Automotive
ALI Lifting it Right safety manual
ALI Safety Tips card
American National
Inspection and Maintenance
ALI Uniform Warning
Label Decals/Placards
Vehicle Lifting Points/Quick Reference Guide for Frame
Engaging Lifts
Safety Requirements
for the Lockout/Tagout of Energy Sources
OWNER / EMPLOYER OBLIGATIONS
1. The Owner/Employer shall ensure that lift operators are qualified and that
they are trained in the safe use and operation of the lift using the
manufacturer’s operating instructions; ALI/SM 93-1,
; ALI/ST-90
American National Standard for Automotive Lifts - Safety
Requirements for Operation, Inspection and Maintenance; ALI/WL
frame engaging lifts, ALI/LP-GUIDE,
Reference Guide for Frame Engaging Lifts.
2. The Owner/Employer shall establish procedures to periodically inspect the
lift in accordance with the lift manufacturer’s instructions or ANSI/ALI
ALOIM-2008,
; ANSI/ALI ALOIM-2008,
; and in the case of
; and
the Employer shall ensure that the lift inspectors are qualified and that
they are adequately trained in the inspection of the lift.
3. The Owner/Employer shall establish procedures to periodically maintain
the lift in accordance with the lift manufacturer’s instructions or ANSI/ALI
ALOIM-2008,
the Employer shall ensure that the lift maintenance personnel are qualified
and that they are adequately trained in the maintenance of the lift.
4. The Owner/Employer shall maintain the periodic inspection and
maintenance records recommended by the lift manufacturer’s instructions
or ANSI/ALI ALOIM-2008,
Lifts - Safety Requirements for Operation, Inspection and
Maintenance.
; and
5. The Owner/Employer shall display the lift manufacturer’s operating
instructions; ALI/SM 93-1,
; ANSI/ALI ALOIM-2008,
Standard for Automotive Lifts - Safety Requirements for Operation,
; ALI/WL Series,
; and in the case of frame engaging lifts, ALI/LP-
GUIDE,
in a conspicuous location in the lift area convenient to the
operator.
6. The Owner/Operator shall provide necessary lockout/tagout means for
energy sources per ANSI Z244.1-1982 (R1993),
, before beginning any lift
repairs and maintenance.
; ALI/ST-90
2
7. The Owner/Employer shall not modify the lift in any manner without the
prior written consent of the manufacturer.
IMPORTANT SAFETY INSTRUCTIONS
1. When using this lift, basic safety precautions should always be
followed, including the following:
2. Read all instructions in this manual and on the lift thoroughly before
installing, operating, servicing or maintaining the lift.
3. Care must be taken as burns can occur from touching hot parts.
4. Do not operate equipment with a damaged cord or if the equipment has
been dropped or damaged – until it has been examined by a qualified
service person.
5. Do not let a cord hang over the edge of the table, bench, or counter or
come in contact with hot manifolds or moving fan blades.
6. If an extension cord is necessary, a cord with a current rating equal to or
more than that of the equipment should be used. Cords rated for less
current than the equipment may overheat. Care should be taken to
arrange the cord so that it will not be tripped over or pulled.
7. Always unplug equipment from electrical outlet when not in use. Never
use the cord to pull the plug from the outlet. Grasp plug and pull to
disconnect.
8. Let equipment cool completely before putting away. Loop cord loosely
around equipment when storing.
9. To reduce the risk of fire, do not operate equipment in the vicinity of open
containers of flammable liquids (gasoline).
10. Adequate ventilation should be provided when working on operating
internal combustion engines.
11. Keep hair, loose clothing, fingers, and all parts of body away from moving
parts.
12. To reduce the risk of electric shock, do not use on wet surfaces or expose
to rain.
3
ALWAYS WEAR SAFETY GLASSES.
NOTE:
Caution!
13. Use only as described in this manual. Use only manufacturer’s
recommended attachments.
14.
impact resistant lenses, they are not safety glasses.
Everyday eyeglasses only have
15. Inspect lift daily. Do not operate if it malfunctions or problems have been
encountered.
16. Never attempt to overload the lift. The manufacturer’s rated capacity is
shown on the identification label on the power side column. Do not
override the operating controls or the warranty will be void.
17. Before driving vehicle between the towers, position the arms to the drivethrough position to ensure unobstructed clearance. Do not hit or run over
arms as this could damage the lift and/or vehicle.
18. Only trained and authorized personnel should operate the lift. Do not allow
customers or bystanders to operate the lift or be in the lift area.
19. Position the lift support pads to contact the vehicle manufacturers
recommended lifting points. Raise the lift until the pads contact the
vehicle. Check pads for secure contact with the vehicle. Check all arm
restraints and insure they are properly engaged. Raise the lift to the
desired working height.
20. Some pickup trucks may require an optional truck adapter to clear running
boards or other accessories.
21.
22.
engaged.
Always use all 4 arms to raise and support vehicle.
Never work under the lift unless the mechanical safety locks are
23. Note that the removal or installation of some vehicle parts may cause a
critical load shift in the center of gravity and may cause the vehicle to
become unstable. Refer to the vehicle manufacturer’s service manual for
recommended procedures.
24. Always keep the lift area free of obstruction and debris. Grease and oil
spills should always be cleaned up immediately.
25. Never raise vehicle with passengers inside.
26. Before lowering check area for any obstructions.
27. Before removing the vehicle from the lift area, position the arms to the
drive-thru position to prevent damage to the lift and /or vehicle.
4
ATTENTION!
Failure to
28. Do not remove hydraulic fittings while under pressure.
WARNING!
provide the recommended mounting surface
could result in unsatisfactory lift performance, property damage, or personal injury.
Failure by purchaser to
LOCATION
This lift has been evaluated for indoor use only with an operating ambient temp. range of 5 - 40°C (41-
104°F)
For additional safety instructions regarding lifting, lift types, warning labels,
preparing to lift, vehicle spotting, vehicle lifting, maintaining load stability,
emergency procedures, vehicle lowering, lift limitations, lift maintenance,
good shop practices, installation, operator training and owner/employer
responsibilities, please refer to “Lifting It Right” (ALI/SM) and “Safety Tips”
(ALI/ST) and vehicle lift points for service garage lifting SAE J2184.
For additional instruction on general requirements for lift operation, please
refer to “Automotive Lift-Safety Requirements for Operation, Inspection and
Maintenance” (ANSI/ALI ALOIM).
Installation shall be performed in accordance with ANSO/ALI ALIS, Safety
Requirements for Installation and Service of Automotive Lifts.
This lift is intended for indoor installation only. It is
prohibited to install this product outdoors. Operating environment
temperature range should be 41 – 104 °F (5 – 40 °C).
adhere will result in decertification, loss of warranty, and
possible damage to the equipment.
5
REFERENCE: AUTOMOTIVE LIFT INSTITUTE (ALI)
SAFETY AWARENESS
SAVE THESE INSTRUCTIONS
Note: Some images in this manual are generic and may not resemble
the lift you have purchased.
6
SPECIFICATIONS
A. Maximum Lifting Height
B. Minimum Column Height
C. Cylinder Full Height
D. Total Width
E. Drive-Thru Clearance
F. Floor to Overhead Switch
G. Front Arm Reach (min / max)
H. Rear Arm Reach (min / max)
I. Screw Pad Height
J. Inside Column Width
Electric Hydraulic Power Unit
Voltage
Rise Speed
Max. Load Per Arm
Minimum Ceiling Height Required
Narrow Bay Setting
Maximum Column Height
Power Unit Operating Pressure
TLT211- AS 11,000 lb. Capacity TLT210- AS / XT 10,000 lb. Capacity TLT-210- A / XT 10,000 lb. Capacity
75.6" (1920mm) 76.4" (1940mm) 76.4" (1940mm)
143" (3634mm) 143" (3634mm) 143" (3634mm)
145.2" (3688mm) 145.2" (3688mm) 145.2" (3688mm)
137.8" (3500mm) 136.6" (3470mm) 137.9" (3502mm)
96" (2438mm) 98.4" (2500mm) 88" (2235mm)
140" (3556mm) 140" (3556mm) 140" (3556mm)
23.6"(600mm) / 39.4" (1000mm) 23.6"(600mm) / 43.5" (1105mm) 23.6"(600mm) / 43.5" (1105mm)
38.6" (980mm) / 61.8" (1570mm) 38.6" (980mm) / 61.8" (1570mm) 38.6" (980mm) / 61.8" (1570mm)
4.3" (110mm) to 7.5" (190mm) 4.3" (110mm) to 7.5" (190mm) 4.3" (110mm) to 7.5" (190mm)
108" (2742mm) 110.2" (2800mm) 101.9" (2588mm)
2 HP 2 HP 2 HP
208-230Volt/60hz./Single Phase 208-230Volt/60hz./Single Phase 208-230Volt/60hz./Single Phase
54 Seconds 54 Seconds 54 Seconds
2750 Lbs. (1247 Kilos) 2500 Lbs. (1134 Kilos) 2500 Lbs. (1134 Kilos)
143.9" (3655mm) 143.5" (3644mm) 143.5" (3644mm)
Non-Adjustable Deduct 5.9" (149mm) Deduct 5.9" (149mm)
149" (3784mm) 149" (3784mm) 149" (3784mm)
2750 PSI 2700 PSI 2750 PSI
LAUNCH TECH USA
Figure 1
TLT Series Specifications
Rise height measured with footpads in the highest position.
Lift capacity rating is based on loads equally distributed on all four arms.
Lifting and lowering speeds may vary depending on the weight of the vehicle.
7
The main structural components and parts
PACKING LIST
The complete lift is contained in two (2) packages:
1.
are packed in a steel frame.
2. Power Unit Box including Shutoff Switch and all Documents
Main Structural Components and Parts
1pc. - Power side tower and carriage assembly
1pc. - Slave side tower and carriage assembly
1pc. - Overhead Beam
1pc. - Actuator Bar w/ foam
1pc. - Power side column extension
1pc. - Slave side column extension
2pc. - Two front arm assembles (Three piece design)
2pc. - Two rear arm assembles (Two piece design)
2pcs. - Safety Covers w/Decals
1pc. - Hardware Package w/Packing List
1pc. - Actuator Extension
1pc. - Actuator Mounting Bracket
1pc. - Safety Release Cable
2pc. - Hydraulic Hose (Long)
2pc. - Hydraulic hose (Short)
2pcs. - Equalizing Cable w/Hex Nuts
1pc. - ALI manual “Lifting It Right”
1pc. - Automotive Lift Safety Tips
1pc. - Automotive Lift, Operation, Inspection and Maintenance Manual
1pc. - ALI” Quick Reference Guide
1pc. - Owner’s manual
1pc. - Warranty Statement and Warranty Registration Instructions
1pc. - Power Unit Box with Microswitch and Document Package
8
IMPORTANT:
j. Pry Bar
INSTALLATION REQUIREMENTS AND TOOLS
FOUNDATION
It is the user’s responsibility to provide a satisfactory installation
area for the lift. Lifts should only be installed on level concrete floors with a
minimum thickness of four inches (4") or 102 mm. Concrete must have a minimum
strength of 3500 psi should be aged thirty (30) days prior to installation. Please
consult the architect, contractor or engineer if doubt exists as to the strength and
feasibility of the floor to enable proper lift installation and operation.
A qualified person should be consulted to address seismic loads and other local
or state requirements.
It is the user’s responsibility to provide all wiring for electrical hook-up prior to
installation and to insure that the electrical installation conforms to local building
codes. Where required, it is the user’s responsibility to provide an electrical
isolation switch located in close proximity to the lift that will enable emergency
stop capability and isolate electrical power from the lift for any servicing
requirements.
TOOLS
a. 16ft. Measuring Tape
b. Chalk Line
c. Rotary Hammer Drill
d. 3/4” diameter or 19mm diameter Masonry Drill Bit
e. Hammer
f. SAE Wrenches and Ratchet Set
g. Metric Wrenches and Ratchet Set
h. 2ft. Level
i. 4ft. Level
k. 12ft. Step Ladder
l. Side Cutters
m. Screwdrivers
n. 4” x 4” Wooden Blocks (for unpacking)
o. 4 gal. ISO 32 Hydraulic Fluid
p. Torque Wrench
q. Hydraulic Fitting Sealant Compound ( DO NOT USE TEFLON TAPE) Launch
*Tech USA recommends Permatex brand part number 54540
OR Loctite brand 545 thread sealant
9
Check for any freight damages.
NOTE:
MANUFACTURER IS NOT RESPONSIBLE FOR ANY FREIGHT DAMAGE.
INSTALLATION INSTRUCTIONS
When the lift arrives on site:
Read the owner’s manual and make sure the installation instructions are
fully understood.
inspected as soon as it is received. The signed bill of lading is
acknowledgement by the carrier of receipt in good condition of shipment
covered by our invoice .If any of the goods called for on your bill of lading
are shorted or damaged, do not accept them until the carrier makes a
notation on the freight bill of the missing or damaged goods. Do this for
your own protection. Check the contents of the accessory and hardware
boxes to make sure no parts are missing.
IT IS DIFFICULT TO COLLECT FOR LOSS OR DAMAGE AFTER
The shipment should be thoroughly
YOU HAVE GIVEN THE CARRIER A CLEAR RECEIPT. THE LIFT
UNPACKING PROCEDURE
Important! Place the main structural components on wooden blocks so
that the steel shipping frames can be removed.
Remove Power Unit Box.
Remove the plastic wrapping.
Remove the cross member, and the actuator bar.
Remove the arms and parts boxes
Unbolt the steel shipping frames.
Lay each tower on the floor with the carriage side up.
Check the installation area for obstructions. (Lights, Heating Ducts,
Ceiling, Floor Drains, etc.)
10
IMPORTANT:
Note: Leave any additional room for any
Important Notice: For narrow bay installation, deduct
BAY LAYOUT
installing or servicing a vehicle lift.
Prepare the bay by selecting the location of the lift relative to the walls.
Clear the installation area of all packaging materials to avoid trip
hazards.
Measure midpoint of door.
Using measuring tape, scribe
two arcs, equal distance from
the midpoint.
The centerline of the lift occurs
Always wear PPE (Personal Protection Equipment) when
between the intersection of the
arcs and the midpoint of the door.
desired aisle or work area.
Recommended minimum clearance
around lift is three feet (3 ft.) and
above lift is four inches (4”).
Ensure clearance conforms to local
building and fire codes.
Figure 2
Measure the specified distance to draw a second chalk line at 90° for locating the
lift towers. Refer to Figure 3 and Figure 4 and Figure 5 below for correct
measurements.
The lift is centered between the door and the walls of the area.
Mark chalk lines at the exact position of each baseplate to show that when
installing the columns each baseplate will be position properly.
All the dimensions are based on the external border of the base plate.
The lift layout is very important. If not done properly, problems may
occur during the final assembly and operation
5.9” (150 mm) from
the width layouts.
11
Figure 3
TLT210-AS or TLT210-XT Bay Layout
Deduct 150mm/5.9 in. from the width dimensions for the narrow installation
12
Deduct
Figure 4
TLT210-A or TLT210-XT Bay Layout
150mm/5.9 in. from the width dimensions for the narrow installation
13
Figure 5
TLT211-AS Bay Layout
Note: There is no narrow bay setting on the TLT211-AS
14
It is recommended that the TLT211
AS the bolts may
power side column is installed the slave column is raised into
COLUMN ASSEMBLE
Assemble the column extensions and the positive carriage stop brackets to each
column using 12 sets of 12x35 hex bolts, flat washers, lock washers and nuts.
Repeat for opposite column and extension. Determine if the lift will be in the tallest
or lowest position at this time. Note that the TLT211-AS column extensions are
already assembled and may be preassembled at either the short or tallest position.
-AS lift be installed at the tallest position to
accommodate large and taller vehicles. Recheck the bolt tightness on the TLT211-
have loosened from shipping and handling. See illustration
below for reference. (Tallest position shown below)
INSTALLING THE COLUMNS
Raise the completed power side column upright to the chalked location. Align
the baseplate of column with the chalk line layout. Using the baseplate as a
template, drill holes into the concrete slab and use the five concrete anchor
Note: If theTLT-211AS lift is
installed at the tallest position,
this carriage stop bracket is
not to be used.
bolts to attach the column to the floor. (Note: the TLT211-AS lift uses six (6)
anchor bolts) During the drilling process, do not allow any movement of the
column from the chalk line.
Note: Power side column should always be installed first. After the
but not anchored to the floor. Installing the overhead beam must be
completed before the slave side column is anchored to the floor.
Use a four foot level on both sides of the column and use shims under
position
baseplate to level the column in both directions. Ensure that the base plate is
completely supported by shims including near the center where it does not
contact the floor.
15
Hand tighten all anchor bolts.
Torque all anchor bolts to
125 ft.
-
lbs.
NOT USE AN IMPACT GUN TO INSTALL OR TIGHTEN THE ANCHOR
BOLTS.
Supplier for further details).
Refer to Bay Layout Figures about to ensure that the column is still in the
proper position before the anchor bolts are installed
Prior to installing anchors, assemble the nut and washer onto anchors. A
minimum of six threads must be visible below the surface of the nut. Refer to
the figure below while reading through the following instructions.
Using a ¾” concrete drill bit and rotary hammer drill, drill ¾” holes for the
anchor bolts on the power side column. Drill through the concrete floor. (In
case longer anchors are required, supplied anchors can be hammered
through concrete).
Clean out the drilling dust from the holes and place anchor bolts into the
hole. Add the washers and nut to the so that the top of the anchor bolt and
top of the nut are flush with each other then hammer in the anchor bolts
until they make contact with the baseplate.
Check that the column is level front to rear and side to side. Adjust
shims as required.
column is level as you proceed.
USE ONLY A TORQUE WRENCH TO TIGHTEN THE ANCHOR BOLTS DO
continually checking that the
If anchor bolts do not tighten to 125 ft.-lbs. OR project more than 2 ¼”
above the concrete surface due to floor slope, the concrete should be
replaced by an appropriate concrete pad. (Consult Product Manufacturer
At this time the slave column should be raised into position and aligned with chalk
marks on the floor. DO NOT ANCHOR THE SLAVE COLUMN AT THIS TIME. Use
caution to not move the slave column as is may tip over.
16
photos below.
Note:
INSTALLING THE OVERHEAD BEAM
After positioning the slave column at the designated chalk location; assemble the
overhead beam on the shop floor to either the narrow or widest lift width hole
positions as determined by the chalk line measurements. See the photo below for
illustration.
Photo below shows the overhead
beam assembled at the widest
(most common) position.
While the overhead beam is still on the shop floor install the provided 4 pulleys
(sheaves). Two (2) pulleys on each side of the overhead beam using the parts
shown below. Note: Asymmetric installation (rotated column position as shown in
figure 5) requires the pulleys to be installed offset to each other using two (2)
axles and related parts. Symmetric installation (as shown in figure 4) requires the
pulleys to be installed on a common axle using the related parts. See related
Some TLT210 series models may already
have the pulleys installed. The TLT211-AS model has
the pulleys pre-installed at the factory. If this is case,
disregard the instructions below and proceed to the
next phase of installation.
17
ASYMMETRIC PULLEY INSTALLATION
Use the 4 pulleys (sheaves) located in the parts packaging combined with the
parts in the packet marked “Asymmetric Installation” to install the pulleys for an
Asymmetric configuration. Below is what is contained in the asymmetric parts
packet.
No.
1
Name and Specs
Asymmetric shaft
Part Number
103200966
Qty.
4
2
3
Spacer Ⅱ
Spacer Ⅰ
(Narrow)
(Wide)
201011257
201011258
2
2
4 Retainer Ring 25
103050035
8
18
Asymmetric Pulley Configuration Continued….
The photo below illustrated the proper alignment and placement of the pulleys into
the overhead beam. Note that the outer pulley is positioned on the overhead
beam in the outer most axle holes and that it is closest to the front of the lift. The
inner pulley is positioned in the inner most axles holes and is mounted toward the
rearward area of the lift. When installing the opposite set of pulleys they must
correspond exactly as the first set of pulleys that you installed.
Note: Inner pulley is
facing to the rear of the lift
Symmetric Pulley Assemble shown on the following page
Note: Outer pulley is
facing to front of the lift
19
SYMETRIC PULLEY INSTALLTION
Use the 4 pulleys (sheaves) located in the parts packaging combined with the
parts in the packet marked “Symmetric Installation” to install the pulleys for a
Symmetric configuration. Below is what is contained in the symmetric parts
packet.
No.
1
Name and Specs
Symmetric shaft
Part Number
103200967
Qty.
2
2
3
Spacer Ⅱ
(Wide)
Spacer Ⅰ
(Narrow)
201011257
201011258
2
2
4
Cotter Pin 5x40
103060349
4
5 Retainer Ring #25 103050035 4
20
Symmetric Pulley Installation Continued…
The photos below illustrate the proper alignment and placement of the pulleys
(sheaves) into the overhead beam. Note that both pulleys are positioned on the
overhead beam sharing a common axle and the axle is positioned in the outer
most axle holes and that is closest to outer most area of the overhead beam.
Install both sets of pulleys on each end of the over beam to exactly match each
other.
ASYMETRIC OVERHEAD BEAM INSTALLATION
Lift the overhead beam to the level of the column tops and use the provided
fasteners to attach it to the upper columns and the transitional brackets. If you are
installing for an Asymmetric configuration the column mounting bolts must be
aligned as show below. IMPORTANT: HAND TIGHTEN THE BOLTS ONLY AT
THIS TIME

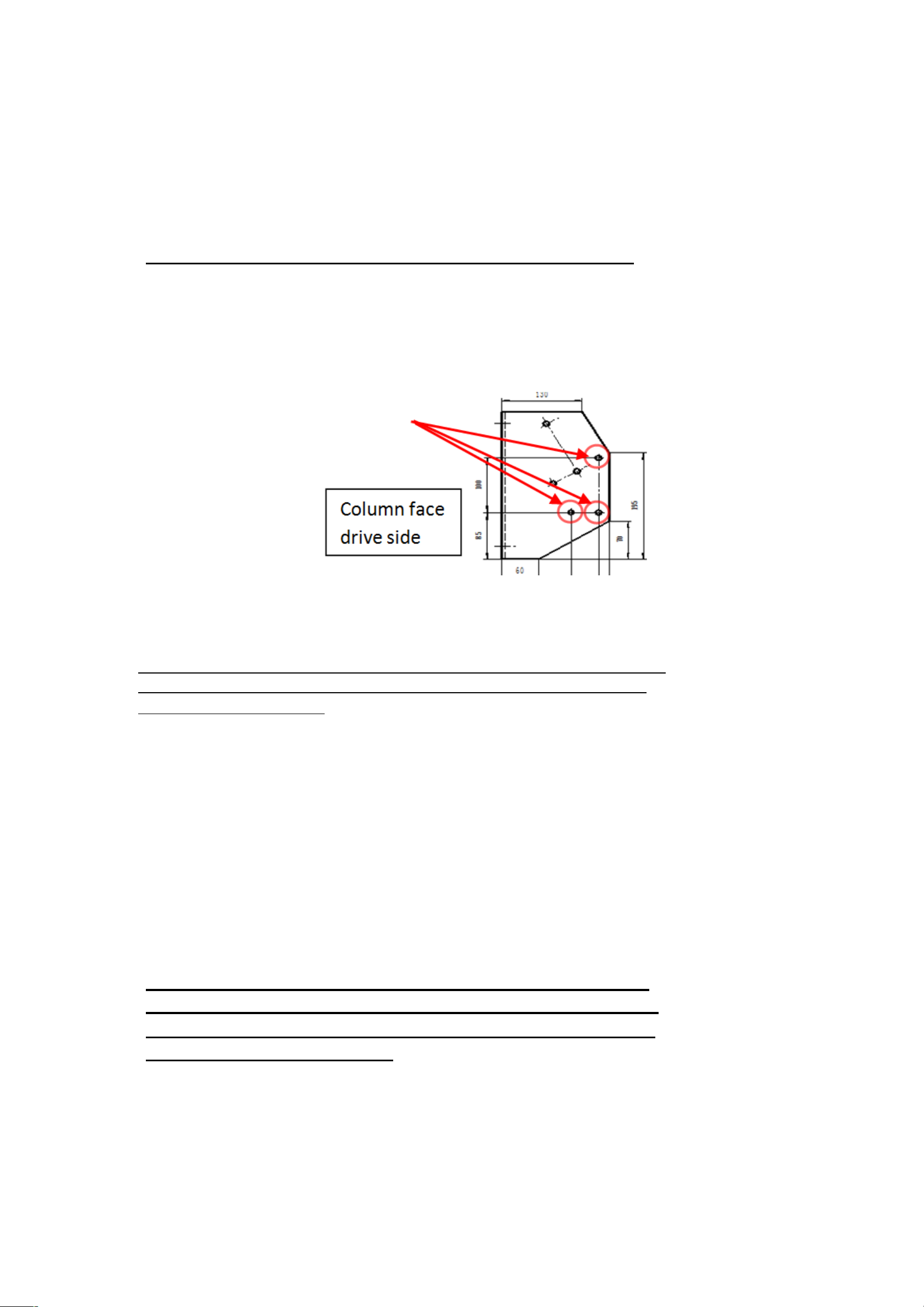

The drawing below outlines where the overhead beam bolt positions are used on
the transitional brackets
Figure
21
IMPORTANT: HAND TIGHTEN THE BOLTS ONLY AT THIS TIME
Note:
After the slave side column has been installed proceed back to
proceeding to the next section.
SYMETRIC OVERHEAD BEAM INSTALLATION
Lift the overhead beam to the level of the column tops and use the fasteners to
attach it to the upper columns and the transitional brackets. If you are installing for
a Symmetric configuration the column mounting bolts must be aligned as show
below.
The drawing below outlines where the overhead beam bolt positions are used on
the transitional brackets
Figure 6
When installing the overhead beam, ensure the microswitch support (It is the U-
shaped bracket welded to the bottom of the overhead beam) is adjacent to the
power side column location. This will allow you to route the microswitch cord
through the end of the overhead beam and down the outside of the power unit
column.
Since the idler column is not secured to the floor by the bolts at this stage,
be careful to not move the idle column as it is not anchored to the floor.
SLAVE SIDE COLUMN INSTALLATON
Measure the distance between the top and bottom of each column to insure the
columns are parallel to each other. Finish leveling, anchor bolt drilling, shimming if
needed and the anchor bolt installation of the slave side column at this time as
instructed above for the power unit column..
the overhead beam section and tighten all connection bolts and
nuts of the overhead beam and the transitional brackets before
22
Note: The Electrical Shutoff Switch cord will be connected when the power unit is
Power Unit Column
Slave Side Column
Shut
-
Off Switch
Padded Shut
-
Off Bar
INSTALLING THE PADDED SAFETY BAR AND SHUTOFF SWITCH
Install the safety shut-off electrical switch to the bracket on the underside of the overhead
beam adjacent to the power unit column. Use the provided shoulder bolt and cotter pin to
attach to the bracket and then route the electrical cord up into the overhead beam via the
small hole next to the bracket. When this is done the shut-off switch will be in a vertical
position. When the shut-off bar is installed shut off bar will protrude into the open end of the
safety switch as shown in the photo below.
Electrical Safety
After inserting the rounded end of the shut off bar into the electrical switch (as shown
above) connect the flatted end of the padded shut off bar to the underside of the
overhead beam adjacent to the slave side column using the provided should bolt and
nut. See photo below for reference.
installed.
Shoulder Bolt
23
Note: For the widest and ta
INSTALLING THE EQUALIZATION CABLES
llest configuration the cables must be connected to the
lowest innermost hole inside the carriage. For either the narrow or shortest
configuration the cables must be connected to the middle hole inside the carriage. For
both the narrow and shortest configuration the cables must be connected to the top
hole inside the carriage and you must use the cable tube extensions (They look like a
1”x6” diameter pipe) so the cable bolts can be tightened.
24
25
HYDRAULIC HOSE INSTALLATION
Refer to the drawing below for the hydraulic hose location.
Please reference the hydraulic hose instructions preceding the drawing.
Figure 7
26
Note: The hydraulic hose that go through the overhead beam must be positioned inside the
Hydraulic Hose Installation continued…
After referring to the drawing above install the hydraulic hoses in this sequence.
Notice: DO NOT USE TYFLON TAPE ON ANY HIGH PRESSURE FITTTINGS. THIS ABOVE
GROUND TWO POST LIFT UTILIZATES ONLY HIGH PRESSURE HYDRAULIC OIL FITTINGS.
TYFLON TAPE IS ONLY DESIGNED FOR LOW PRESSURE WATER PIPE. Use only high
pressure oil sealant compound to the male and female threads. Failure to properly seal the hydraulic
lines and fittings could result in hydraulic leaks and or hydraulic failure. Hydraulic leaks due to
improper installation will not be covered by warranty or any manufacturer liability.
1. Remove the plastic pugs from the base of the hydraulic cylinders and attach the two (2)
flow control valves. (Item #107 above) Use a high pressure oil sealant when installing
these valves to prevent leakage. Be careful to not over tighten these threads.
2. Install the short hydraulic hose (Item # 106 above) to the power side column cylinder
connecting at the flow control valve.
3. Install the “T” fitting to the short hydraulic hose. (Item 105 above)
4. Connect the long hydraulic hose (Item #104 above) to the “T” fitting.
5. Connect the medium length hose (Item #112) to the long hydraulic hose using the hose
connector (Item # 111) midpoint inside of the overhead beam assemble.
6. Connect the medium length hydraulic hose to the flow control valve (Item #107) on the
slave side column.
hose brackets mounted in the base of the overhead beam to protect the hoses from rubbing
on the equalizing cables. Use the provided plastic zip ties to attach the hose to the three (3)
brackets to prevent movement. See photo below for reference.
27

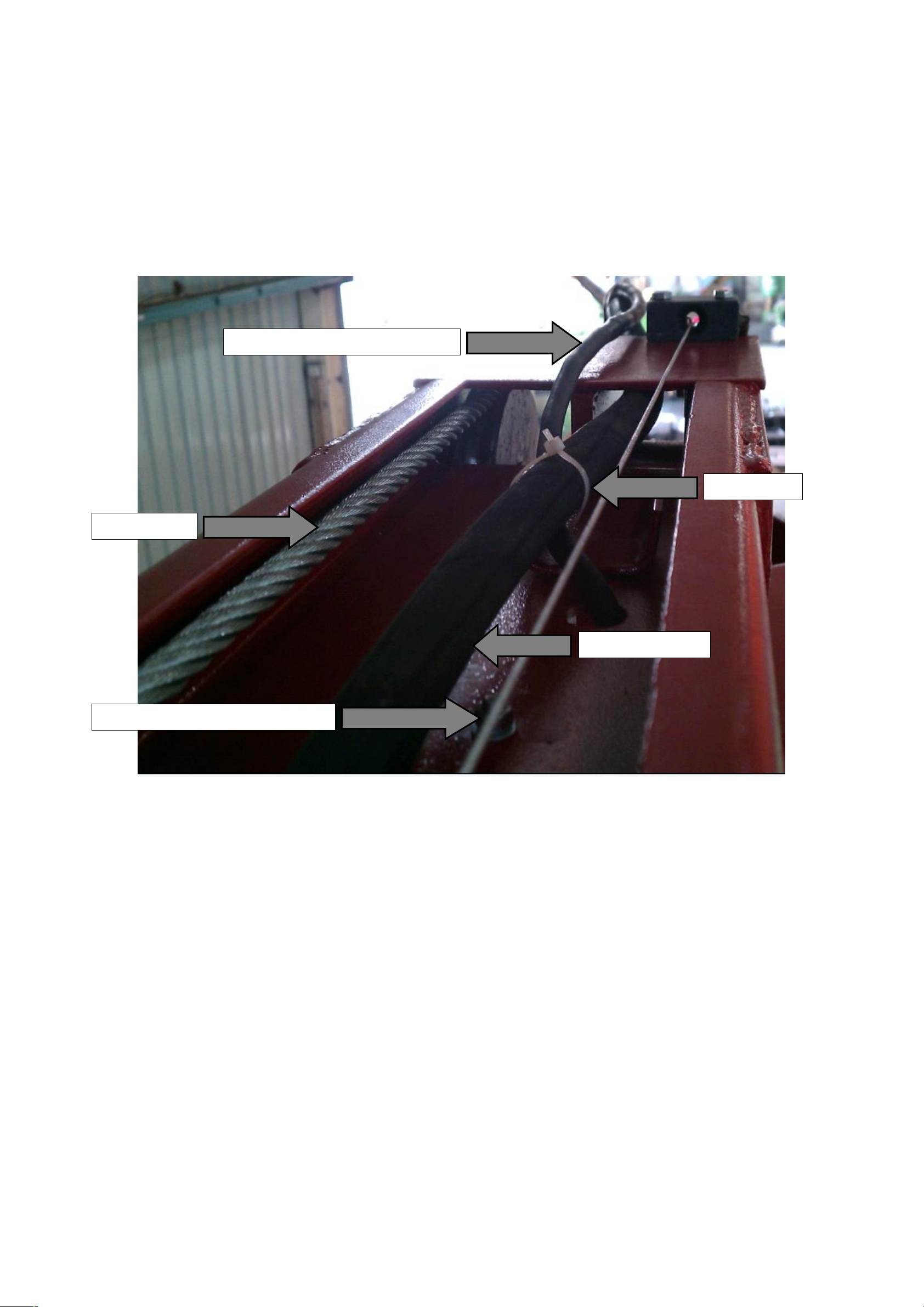

Shutoff Switch Electrical Cord
Steel Cable
Single Point Lock Release Cable
Hydraulic Hose
Plastic Tie
SAFETY SHUTOFF SWITCH
It is very important to keep proper clearance between shutoff switch electrical cord
and the steel cable. Use the provided plastic ties to connect the electrical cord and
hose together to avoid any possible damage caused by interference between the
electrical cord and the steel cable.
The electrical cord will route over the outer edge of the overhead beam as shown
above and downward to the power unit junction box.
28
Note:
Push Start Button
Lowering Lever
POWER UNIT INSTALLATION
1) Remove the power unit from the shipping box.
2) Remove the red plastic plug on the oil tank.
3) Remove the black breather cap on the lower section of the oil tank.
4) Install the black breather cap into the fill hole at the top of the tank.
5) Install the red plastic plug into the hole at the bottom of the tank.
6) After removing the plastic plug on the side of the power unit valve body
install the 90 degree hydraulic fitting using high pressure sealant compound.
DO NOT USE TEFLON TAPE.
7) Use the provided bolts and washers to secure the power unit to the power
unit mounting bracket.
8) Use 5/16x18 bolts and washers (see fig. 8) to secure the power unit.
Figure 8
After the securing the power unit to the column, remove the black breather cap and
fill the reservoir with approx. 4.5 gallons (18 liters) of ISO-32 hydraulic oil (10
weight hydraulic oil) DO NOT USE TRANSMISSION FLUID or reclaimed hydraulic
oil. Use of transmission fluid or reclaimed hydraulic oil will void the manufacturer’s
warranty.
Use caution to avoid dust and other pollutants mixing with the hydraulic oil
while filling the power unit by using a clean funnel and clean paper strainer.
After the power unit has been mounted, install and connect the one remaining short
hydraulic hose to the 90 degree elbow and connect to the “T” fitting.
For lifts that have an SPX brand power unit, review the wiring diagram that is
attached to the inside cover of the push button junction box.
29
certified electrician
CONNECTING THE POWER SUPPLY
1) A
the overhead Shutoff Switch to the electrical supply.
must connect the 230Volt/1Ph power unit and
2) Remove the sealed cover on the electrical junction box on the power
unit and connect the wiring according to the wiring diagram. See
Figure 9
3) A power supply switch is required to be installed near the lift for
rapidly disconnecting the electrical power supply during maintenance
or in case of emergency.
Figure 9
Note: Motor damage due to improper wiring is not warranted. Verify if the oil
tank is full; do not operate if there is no oil. After pressing the up button, if
the power unit does not run or makes unusual noises or has excessive heat
stop the power unit immediately and check of proper electrical connections.
30
HYDRAULIC SYSTEM BLEEDING
Crack the bleeder valve located at the top of both cylinders (approx. ¼ turn)
Power up 2”-3”. You should hear air escaping around the bleeder valve.
Repeat 3 – 4 times or until only oil is coming out of the bleeder valve.
Tighten the bleed screw and lower the lift and recheck oil tank level.
31
and screws
Hose cover cutout
Unit shown
After bleeding the hydraulic system and checking for leaks, install all of the
metal hose covers. In the parts box you will find small threaded bolts with
the top of the bolt drilled and taped. Install these bolts into the predrill holes
on the side of each column. On the power unit side at the hydraulic “T” fitting
a special hose cover with a cutout to allow for the “T” connectors shall be
used. Cover each section of the hose and then use the marching bolts to
attach the hose covers to the special predrilled bolts. Reference the photo
below that shows the “T” fitting and hose covers.
Hose from the Power
Hose cover studs
32
not used on the overhead beam.
SAFETY RELEASE CABLE ROUTING AND ADJUSTMENT
The mechanical safety automatically engages. To release the mechanical safety,
you must first raise the lift approximately 2”, and then pull the safety release lever
down. This disengages the power side safety locks and activates the safety cable to
release the slave side safety lock.
Included in the parts packaging you will find the extra-long steel single point lock
release cable, cable clamps and four (4) metal cable guides and two (2) white nylon
cable guides with two (2) small retaining rings.
Using the provided bolts attach one metal cable guide to the inner edge at the top of
each column. Attach another metal cable guide to the outer inside edge of the
overhead beam. See the photo below for reference.
Single Point Lock Release Cable
Guides mounted to the column
and to the overhead beam. Mount
as shown to both columns. For the
TLT211-AS model a cable guide is
33
Next route the steel cable under the nylon cable guide as shown above on the
Attach the two (2) provided white nylon cable guides using the retaining rings onto
the horizontal metal post just above the carriage locking mechanism on the slave
side column. Inspect the metal post for any paint overspray and clean with
sandpaper if necessary. Use a small amount of general purpose grease on the metal
post prior to installing these cable guides. Attach the steel cable to the large metal
post on the slave side column side using the provided cable clamps. See the photo
below for reference.
Slave Side Column
inside of the column and up into the bottom hole of the metal cable guide on the
mounted on top of the column. Continue to route the cable over the top of the metal
roller wheel on the metal cable guide and over the top of the metal cable guide
mounted on the overhead beam and exit on the metal cable guide hole as shown in
the metal cable guide photo above. Complete the routing of the cable across the
overhead beam and down the power unit column repeating the same route used on
the slave side column. Route the steel cable through the white nylon cable guide
ABOVE the carriage release on the power unit side and then connect the cable as
shown below.
34
Power Unit Column
Adjust the slack in the single point lock cable at the power unit side so that when the
release lever is pulled down both carriage locks will disengage. Tighten the cable
clamps and install the carriage lock covers on each side with the four (4) provided
screws. (Factory tip: Adjust the cables to release the locks just before the lock
release lever has reached maximum travel…this prevents overstretching the cable).
At this time install the carriage lock covers and install the release lever on the power
unit column.
INSTALLING THE LIFT ARM ASSEMBLES
All four (4) arms come completely assembled. The long 2-piece arms are mounted
to the rear of the lift and the shorter 3-piece arms are mounted to the front of the lift.
Insert the arm assembles in the correct gaps in the carriage. Align the holes in the
carriage with the holes in the carriage and insert the metal arm pivot pins. Repeat
for all arms. When the arms pivot pins have been installed use the provided metal
retaining rings and attach them to the grooves in the bottom edge of the arm pivot
pins to prevent these pivot pins from moving upward. See photo below for
reference.
35
FOOTPAD EXTENSION STORAGE
Attach the two (2) footpad extension storage brackets one to each column using the
two (2) metal screws. Store the footpad extensions as show in the photo below.
At this time operate the lift up and down 2-3 times and re-adjust the
equalization cables if needed so the carriage locks engage equally.
36
"Lifting it Right"
"Safety Tips"
NOTE:
Lift Point
Guide
FINAL CHECK OF ASSEMBLED LIFT
1. Final dimension check after anchoring
2. Check for hydraulic leaks.
3. Ensure cables are properly routed and free from
obstructions.
4. Check jam nuts on cables are tightened.
5. Check for oil leaks.
6. Check adjustment of safety release cable to ensure both
sides are working properly.
7. Re-check level of towers.
8. Check torque of anchor bolts.
9. Check all fasteners, tighten if necessary.
10. Check shut off at top of stroke to ensure lift shuts off.
11. Check proper operation of arm restraints.
12. Operate lift to full stroke then lower to ground while checking
for proper functionality.
13. Check proper operation of arm restraints.
14. Ensure all documents listed below are given to the owner.
15. Operation Manual
16. ANSI / ALI Lift It Right Manual
17. ANSI / ALI Safety Tip Card
18. ANSI / ALI ALIS Safety Requirements for Installation
19. ANSI / ALI Quick Reference Guide
20. Train end user on operation of lift.
OPERATING INSTRUCTIONS
Read and understand all safety and operation labels on the lift. Refer to the
manual and
important instructions and information.
card supplied to you for additional
Some vehicles may have the manufacturer's Service Garage Lift Point
locations identified by triangle shape marks on its undercarriage (reference SAE
J2184). Also, there may be a label located on the right front door lock face
showing specific vehicle lift points. If the specific vehicle lift points are not
identified, refer to the "Typical Lift Points" figure below or the ANSI/ALI
included with your lift.
37
1. Position arms to drive-thru position.
2. Refer to supplied literature prior to loading vehicle. Center the vehicle
between the lift posts.
3. Only lift the vehicle on the manufacturers recommended lift points. Refer
to supplied lift points guide (reference ANSI/SAE J2184-1992).
4. Locate lift pads on auto manufacturer's recommended lift points. Once
you have correctly positioned the lift arms, ensure that all arm restraints
are properly engaged.
5. Raise the vehicle by pushing the "UP" button on the power pack until
the vehicle's suspension has left the ground.
6. Inspect to make sure there is no interference with any objects and for
proper engagement of the lifting pads.
7. Shake vehicle moderately by pushing on either the front or rear bumper.
Visually inspect the lifting pads again. If the vehicle starts slipping on the
lifting pads, or otherwise appears unstable on the lift, you have positioned
the swing arms and adapters incorrectly. Carefully lower the lift and start
over.
8. When satisfied, continue lift the vehicle to the desired working height,
lower onto the mechanical safety using the lowering lever.
9. Once vehicle is ready to be removed, raise lift so that the mechanical
safety can be released. Pull down and hold the mechanical safety release
lever, then press the hydraulic lowering lever until the lift has fully
collapsed to the grounds and the arm restraints are disengaged.
10. Swing the lift arms to the drive-thru position prior to moving the vehicle.
38
OPERATION TEST WITH VEHICLE
Prior to starting this section, please refer to Section 2 of this manual for important
safety instructions.
1. Lower lift to ground.
2. Drive vehicle on to lift and locate the arms as per the “Lift it Right” manual.
3. Raise lift to and lower onto 3-4 lock positions during full rise to ensure all
locks are working correctly.
4. Re-adjust cables if necessary while vehicle is on.
5. Check lowering speed and smooth decent rate.
6. Lower lift to ground and drive vehicle off lift.
If any problems occur during the final checkout or operation of the lift please
contact your lift distributor, sales representative or the manufacturer.
39
Refer to
MAINTENANCE GUIDELINES
SAFETY INSTRUCTIONS
Section 2 for more Safety Instructions.
Read operating and safety manuals before using any lift.
Do not operate a lift that has been damaged or is in disrepair.
Proper inspection and maintenance is necessary for safe operation.
PERIODIC MAINTENANCE
DAILY:
1. Check all hydraulic lines and fittings for pinch points , damage , cracks or leaks
2. Check all electrical wiring for pinch points , cracks or damage
3. Check all moving parts for uneven or excessive wear
4. Repair or replace all damaged, defective, worn or broken components immediately.
5. Check the telescopic arms for movement. Clean any grease or oil from the lifting
adapters.
6. Raise and lower the lift at the beginning of each shift, without a vehicle on, to verify the lift
is leveled and operating properly.
EVERY TWO MONTHS:
1. Clean and re-grease slide block channels inside of both columns
2. Grease arm pins
3. Lubricate safety dogs and check safety release cable adjustment
4. Check arm restraints and lubricate
5. Check anchor bolts and re-torque if required
EVERY FOUR MONTHS:
1. Dismantle and clean inner arms
2. Lubricate cable pulleys
3. Check equalizing cable adjustment
EVERY YEAR:
1. Inspect lift as per Automotive Lift Operation, Inspection and Maintenance (ALOIM)
EVERY TWO YEARS:
1. Change hydraulic fluid
LUBRICATION:
Where grease is required > multi-purpose lithium grease
Where lubricating oil is required > multi-purpose SAE 30 lubricating oil
Where hydraulic oil is required > ISO 32 10W - non detergent hydraulic oil
NOTE: If the lift locks, while in the fully raised position this will indicate
that the hydraulic system has not been inspected or maintained as
recommended. This is a safety back-up system. If you are unclear
call your local representative immediately.
40
Broken wires
Excessive wear of wires
Rust on sheave stack and ropes
WIRE ROPES
Wire ropes are critical to safe and reliable performance of your lift.
Cables are expendable items and should be replaced as a set.
WIRE ROPE CONDITION GUIDE
Typical good
cable
Cable with
necking
(Pictures above are of a 4-Post Lift, conditions still apply to 2-Post Lifts)
Corrugated sheave groove
41
9.2, Fig.75
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
WIRE ROPE REPLACEMENT CRITERIA:
If any cable is found to be in need of replacement, the entire
cable set, pulleys and safety rollers must be replaced
immediately.
See cable conditions guide.
In the following table, "lay" means the distance
measured along a line parallel to the axis of the
rope in which the strand makes one complete turn
about the axis of the rope, or the wires make a
complete turn about the axis of the strand.
The wire rope must be removed from service if one or more of the following criteria
are met:
More than six randomly distributed broken wires in one rope lay or 6d length.
More than three broken wires in one strand in one rope lay or 6d length.
Three or more broken wires at rope terminations.
One outer wire broken at the point of contact with the core of the rope which has
worked its way out of the rope structure and protrudes or loops out from the rope
structure
Heavy rusting, corrosion, or pitting. A light surface corrosion on outer wires is normal.
Wear or scraping of one-third of the original diameter of outside individual wires
Excessive stretch. It is normal for new cable to require adjustment during “break-in”,
after which small periodic adjustments may be required. However, if a cable that has
been in service for 6 months should suddenly require frequent adjustments or has
used all the cable adjustment available, all cables must be replaced immediately.
Deformed strands, kinking, crushing, bird-caging, or any other damage or distortion
of wire rope structure
Variations in diameter (necking) or any change from normal appearance
Reductions from nominal diameter of more than 1/32" (for cables 3/8" to 1/2" dia.
inclusive)
End attachments cracked, deformed or worn
WIRE ROPE INSPECTION
Inspect wire rope cables for wear or damage. Wipe cables with a rag to detect
hard to see small broken or frayed cable strands. See chapter
ANSI/ALI ALOIM standard.
and
42
WIRE ROPE LUBRICATION
Lubricate wire ropes with lift in both lowered and raised position, by spraying
them with wire rope lubricant (i.e. 2001 MONOLEC®) and wiping the cable down.
WIRE ROPE ADJUSTMENT
Adjust cables if lifting is uneven or lift is not level (See chapter 7.15.3). Never
make adjustments with weight on lift. If running out of adjustment threads, cables
need to be replaced. Do not add washers or other spacers to re-use previously
used adjustment threads.
Wire rope tension adjustment should be performed when installing the lift and
every three months.
43
MAINTENANCE SCHEDULE
Maintenance
and Training
Performed
Date
By
Notes
44
TROUBLESHOOTING GUIDE
PROBLEM REASON SOLUTION
Power Unit (Motor) not
running.
Power Unit (Motor) runs but
lift does not go up.
Bad Fuse or Circuit breaker. Replace bad fuse or reset circuit
Incorrect voltage to motor. Provide proper voltage to motor.
Improper wiring. Have certified electrician check
Power Unit up switch not
functioning.
Overhead Microswitch not
functioning.
Power Unit motor burned out. Replace motor.
Low oil level. Fill reservoir with proper
Lowering valve remains open. Repair or replace oil valve.
breaker.
wiring.
Replace Power Unit up switch.
Replace overhead Microswitch.
hydraulic oil.
Pump sucking air. Tighten all fittings and suction
lines.
Lift goes up slowly or oil
coming out from filler cap.
Lift doesn’t come down. Dirt in directional valve Call installer to clean valve. (Do
Safety Locks do not engage. Safety lock jammed. Oil or replace pin to free Safety
Safety Lock does
not disengage.
Lift goes up unlevel. Equalizing cables are loose. Adjust equalizing cables to
Lift goes up with chatter or
Air in hydraulic fluid lines Bleed hydraulic lines (Call
installer).
not attempt to open hydraulic
lines unless vehicle is secure)
Lock.
Check or replace spring.
Safety lock is being limited Check for any obstructions.
correct tension.
Floor unlevel. Shim lift to make towers level.
(Do not exceed ½” of shimming).
Low oil level. Fill reservoir to correct level with
does not fully rise.
Air in hydraulic fluid
lines/cylinder.
Anchor bolts do not stay tight. Holes are too large. Relocate lift using proper size
Incorrect concrete floor
specification (Thickness and
holding strength).
Noticeable Deflection of Arm
or arm dragging on floor.
Lift out of plumb. Plumb columns.
Unlevel floor. Replace floor of shim columns.
Worn arm or carriage holes. Replace parts.
Worn carriage slide blocks. Replace side blocks.
Bent arm (Overloaded). Replace arm. Also check
proper hydraulic oil.
Bleed hydraulic lines. (Call
installer).
drill bit.
Break existing floor and pour
new pad for lift.
damage to carriage.
45
Accessible
Conveniently located to facilitate the application of lockout devices
Located outside any hazardous area.
At a convenient manipulating height (i.e. not overhead, on ladders or
Capable of being locked or otherwise secured in an effective
LOCK OUT AND TAG OUT INSTRUCTIONS
IMPORTANT: This machine does not have integral devices that will isolate
the electrical, pneumatic, stored and hydraulic energy source. Appropriate
isolation or blocking devices must be used that have the provisions to be
switched in the off position and locked in that position.
ALL MAINTANANCE AND SERVICE MUST BE PERFORMED BY A
QUALIFIED PERSON.
ALL MAINTANANCE AND SERVICE MUST BE PERFORMED WITH THE LIFT
UNLOADED.
IT IS THE SHOP OWNERS RESPONSIBILITY TO ENSURE ENERGY
ISOLATING DEVICES ARE:
during service and maintenance
under machinery)
Adequately labeled or marked. Identification shall include machine
ID, energy type and magnitude.
isolating position.
Effective hazardous energy control procedures will protect employees during
machine and equipment servicing and maintenance where the unexpected
energization, start up or release of stored energy could occur and cause injury,
as well as while working on or near exposed de-energized electrical conductors
and parts of electrical equipment. Hazards being guard against include being
caught in, being crushed by, being struck by, being thrown from, or contacting
live electrical circuits/parts.
In preparation for lockout, an initial survey must be made to locate and identify all
energy isolating devices to be certain which switch, valve, or other energy
isolating devices apply to the machine / equipment to be locked out. More than
one energy source (electrical, hydraulic, pneumatic, or others) may be involved.
SHUT DOWN PROCEDURE
Notify all affected employees that a lockout or tagout system is going to be
utilized and the reason for. The authorized employee shall know the type
46
ELECTRICAL:
and magnitude of energy that the lift utilizes and shall understand the
associated hazards.
button to disconnect the raise and lower functions.
Located at the user control panel, press the “E-STOP”
ELECTRICAL ENERGY IS STILL PRESENT AT THE LIFTS
ELECTRICAL PANEL WHEN THE EMERGENCY STOP
BUTTON IS PRESSED. ELECTRICAL ENERGY MUST BE
TURNED OFF AND ISOLATED AT THE DISCONNECT
PANEL PRIOR TO PERFORMING SERVICE OR
MAINTANANCE ON THE LIFT.
ISOLATION AND VERIFICAITON PROCEDURES:
Table 1: ISOLATION AND VERIFICATION PROCEDURES:
ENERGY TYPE
AND SOURCE
STORED
ENERGY
AND
HYDRAULIC
PRESSURE
3000-5000
PSI
LOCKOUT
LOCATION
(TO BE
COMPLETED
BY END
USER)
PROCEDURE FOR LOCING OUT
AND OR RELEASING ENERGIES
LOWER THE LIFT TO ITS
LOWEST REST POSTION. IF THE
LIFT MUST BE SERVICED OR
MAINTAINED IN THE RAISED
POSITION, ENSURE THAT THE
LIFT IS PLACED ON THE
MECHANICAL LOCKS.
FOR SCISSOR LIFTS,
ADDITIONAL SUPPORT WITH
SUPPLEMENTARY JACK
STANDS, BLOCK AT THE
SLIDERS AND A COME ALONG
SECURED BETWEEN THE
SCISSORS.
FOR 4-POST LIFTS, ADDITIONAL
SUPPORT WITH
SUPPLEMENTARY JACK
STANDS.
VERIFY PROCEDURES
VERIFY THAT THE LIFT IS (IF
APPLICABLE):
CONTACTING THE
MECHANICAL LOCKS,
RESTING ON THE
SUPPLEMENTARY JACK
STANDS,
BLOCKS ARE SECURLY PLACED
COME ALONG IS SECURED
BETWEEN THE SCISSORS.
47
ELECTRICAL
240VOLTS
PNEUMATIC
UPTO
160PSI
AT THE LIFT, PRESS THE
EMERGENCY STOP BUTTON
COMPLETELY TO DE-ENERGIZE
THE CONTROL BUTTONS (IF
APPLICABLE).
AT THE DISCONNECT PLANEL,
PLACE THE DISCONNECT
HANDLE IN OFF POSITION.
ATTACH A MULTIPLE LOCUOUT
ATEMPT TO RESTART THE
SYSTEM, THE SYSTEM MUST
NOT START. VISUALLY VERIFY
OPEN DISCONNECTS AND
LOCKING DEVICE INSTALLED.
DEVICE. LOCK AND TAG.
DANGER: LINE SIDE OF
DISCONNECT REMAINS
ENERGIZED
SLOWLY CLOSE LOCKOUT
VALVE TO RELEASE AIR
PRESSURE GRADUALLY.
ATTACH MULTIPLE LOCKOUT
DEVICE, LOCK AND TAG.
DANGER: LINE SIDE OF
DISCONNECT REMAINS
PRESSURIZED
VERIFY THE VALVE IS CLOSED
AND LOCKOUT DEVICE IS
PROPERLY ATTACHED.
OPERATE THE PNEUMATIC
SYSTEM TO ENSURE THE
SYSTEM IS DE-ENERGIZED. IT
MAY BE NECESSARY TO BLEED
THE SYSTEM OF REMAINING
COMPRESSED AIR, THIS CAN
BE PERFORMED AT THE BASE
OF THE WATER SEPARATOR
BOWL.
RETURNING TO SERVICE:
Check the lift and the immediate area around the lift to ensure that
nonessential items,, tools and parts are removed and that the lift
components are operationally intact.
Check the work area to ensure that all employees have been safely
positioned or removed from the work area.
Notify all employees that the lockout/tagout is going to be removed and
the lift is going to restarted.
Remove the lockout/tagouts in the reverse order as the installation.
Verify the proper operation of the equipment.
Notify affected employees that the maintenance/service is completed and
the machine is ready for operation.
48
EMERGENCY OPERATION:
If the lift becomes inoperative in the raised position, it is best to wait until the
electrical power is restored before lowering the vehicle. However, if it’s critical to
safety that the lift be lowered, the following steps should be taken.
WARNING: DO NOT LOOSEN OR REMOVE HYDRAULIC
CONNECTIONS OR FITTINGS UNDER PRESSURE. SERIOUS
INJURY OR DEATH COULD OCCUR.
NOTE: Safely performing this process requires 3 people. All personnel
should stay clear of the path of the lift. All tools and other non-secured
items should be removed from the surface of the runways.
1) Survey the area surrounding the lift; remove any items and personnel from
area before proceeding with this procedure.
2) Perform the appropriate lockout/tag out procedure on the electrical
energy.
3) Use a second person standing at a safe distance away from the lift to
keep watch on the area, lift, vehicle and other personnel throughout the
process. This person should signal the person performing the procedure
to stop if necessary.
4) Use a caution tape or similar to barrier the area around the lift to avoid
personnel from accidently entering the area while this process is being
performed.
5) Do not proceed with this procedure if you are unfamiliar with the lift or its
function.
IF THE MECHANICAL LOCKS ARE NOT ENGAGED:
1) Pull safety release lever simultaneously pressing the descent lever on the
power pack.
2) Keep a close eye on the movement of the lift and the position of the
vehicle; release descent lever if any abnormal movement is detected.
3) Continue until the lift is fully lowered.
4) Once power is restored follow the lockout/tag out procedure to return the
lift back into service.
IF THE MECHANICAL LOCKS ARE ENGAGED:
Various methods can be used to raise the lift in order to get sufficient clearance
to disengage the mechanical locks. The safest method would employ temporary
electrical power to the lift using a portable power generator. Any electrical
connections should be done by a licensed electrician; lockout/tag out procedures
should also be employed at this time.
This process should only be performed by a trained professional. Contact
customer service or a local service professional for further assistance.
49
PARTS VIEW AND IDENTIFICATION
Part numbers with an “A” is for the TLT211-AS Model
50
107A
Part numbers with an “A” are for the TLT211-AS Model
51
201
201A
Parts numbers with an “A” are for the TLT211-AS model
226
209
227
208
228
223A
230
223
231
234
229
233
210
235
205
206
207
204
202
215
217
232
225
225A
224
224A
214
211
221
220
216
218
212
213
219
219A
222
222A
52
53
No. Part Number Part Number Updated
201024604
1
201624622
201624620
201014670
3
201024624
4
6
201024608
103010432
201024604
201024785
201024622
201024620
201014670
201024624
201024608
103010432
Column for TLT210-AS Power Unit Side
Column for TLT210-AS Idler
Column for TLT211-AS Idler
Column for TLT211-AS Power Unit Side
Column extension
Column extension for TLT211- AS
Power unit bracket
screw M5×12
7 103040132 103040132 Flat washer
8 201013268 103203019 Lateral positioning plate
9 103020188 103020188 Bolt M5×10
10 201011739 201011739
Connection bracketⅠ
Part Description
11 103020164 103020164 Bolt M12×35
12 103040044 103040044 Spring washer
13 103040110 103040110 Flat washer
14 103030129 103030129 Nut M12
15 103040123 103040123 Flat washer 10
16 103040122 103040122 Spring sealer, GB/T93-1987 11
17 103020207 103020207 Bolt M10×20
18 201011740 201011740
Connection bracketⅡ
19 201011154 201011154 Reinforcement plate
20 103020100 103020100 Bolt M8×25
21 103040134 103040134 Flat washer 8
22 103040141 103040141 Spring washer, 8
23 103020171 103020171 Bolt M6×12
24 201024606 201024606 Cable guide block
25 103020163 103020163 Bolt M6×25
201021179 201021179 Outer overhead beam bracket
26
201624629 201024629 Overhead Beam for the TLT211-AS
27 201020809 201020809 Inner overhead beam bracket
28 201011257 201011257 Sheave Spacer, Power Side, 8mm
29 103200699 103200699 Bush, SF-2 2520
30 201013282 103203017 Sheave
31 103050035 103050035 Elastic ring, 25,GB/T894.1- 1987
32 103200966 103200966 Asymmetric shaft
33 201011258 201011258 Spacer I
34 103200967 103200967 Symmetric shaft
35 103020126 103020126 Bolt M12×25
54
201014671
36
201014680
37
104130196
38
39 201014672
40 201014673
41 103030018
201014671
201014680
104130196
102100206
Shutoff bar
Shutoff Bar for the TLT211-AS
Sleeve(inner hole Ф22), L=1.8M
Limit switch TS-10 Limit switchSP-1403-14
201014672 Switch bracket
103202751 Switch shaft
103030018 Nut M5
42 103060342 103060342 Cotter pin 3×26, GB91-87
43 201011477 201011477 Shutoff shaft
44 103260260 103260341 Cable assembly
103260341 103260341 Use this # after August 2013
45 103020117 103020117 Anchor bolt M19×140
46 201014674 201025080 Column long hood at three-way fitting
201025177 TLT210-AS Idler column bottom hood
47 201014675 201025081 Column long hood
48 201014676 201025082 Column short hood
49 201014685 103202748 Shaft for Hose hood
101
102
M-4509-0200
AC-10AH RV21
104120132 104120132 Power unit hose L=880
Bucher Power Unit
SPX Power Unit
104120159 TLT211-AS hose
103
104
105
106
103202113 103202113 Adjustable right angle fitting
104120134 104120134 Overhead beam hose, L=5370
103100294 103100294 Three-way fitting
104120133 104120133 Hose, L=930
103100322 103100322 Flow control fitting assembly
Use # this after August 2013
103100327 103100327
Flow control fitting assembly
107
103100323 103100323 Flow control fitting for the TLT211-AS
Use this # after August 2013
10300328 103100328
Flow control fitting for the TLT211-AS
109
111
112
103202112 103202112 Cylinder
103100295 103100295 Straight fitting
104120135 104120135 Idler column hose L=4250
104120160 TLT211-AS Idler column hose L=4130
TLT211-AS high setting hose,
104120161
TLT211-AS-50-03- A, L=270
201
201024611 201024611 Carriage
201021093 TLT211-AS Carriage
202
104990132 104990132 Slide block, strengthen nylon
55
202
204
104990132
104990135
104990134
201011855
104990132
104990135
104990134
201025138
Slide block, strengthen nylon
TLT211-AS slide block Ⅰ
TLT211-AS slide block Ⅱ
Top board
201025139 TLT211-AS Top board
205
206
207
208
103010473 103010473 Screw M10×30
103040122 103040122 Spring sealer, GB/T93-1987 11
103040123 103040123 Ring GB/T95-1985 11
104130191 104130192 TLT series Anti Shock Pad
104130372 N/A
209
210
211
212
103010539 103010539 Screw M8×12
103202184 103202184 Restraint shaft assembly
103060376 103060376 Pin 5×32
103060355 103060355 Cotter pin, 3.2×30
213
214
215
103201914 103201914 Spring
103201744 103201744 Small gear block
201010982 103202280 Pin shaft
103202778 TLT211-AS Pin shaft
216
217
218
219
103010443 103011102 Bolt M10×25
103201771 103201771 Big gear block
103050030 103050030 Retaining ring 40
201021763 201021763 Long female arm
201624631 201024631 Long female arm for TLT211- AS
220
221
222
104130186 104130186 Arm rubber pad
103010608 103010608 Bolt M6×10
201021532 201021532 Long male arm
201024632 201024632 Long male arm for the TLT211- AS
223
201024616 201024616 Front female arm
201624634 201024634 Front female arm for the TLLT211-AS
224
201024645 201024645 Front middle arm
201024632 201024635 Front middle arm for the TLT211-AS
225
201024646 201024646 Front male arm
201024636 201024636 Front male arm for the TLT211-AS
226
227
228
229
230
104130315 104130315 Rubber pad
201021561 201021561 Threaded rod assembly
103202107 103202107 Dual-threaded adjustment sleeve
103202106 103202106 Support bracket
103050091 103050091 Retaining ring, 30
56
231
232
233
234
103050090
201014690
201014691
201011475
103050090
103203210
103203209
201011475
Retaining ring, 45
Long extension tube(optional)
Short extension tube(optional)
Positioning plate
103010586 103010586 Bolt M8×12-12.9
Asymmetric adjustable bushing for asymmetric
235
201011741 103203213
installation
201011742 201011742 Adjustable bushing for narrow style installation
401
402
403
404
405
104090074 104090074 Lock release mechanism hood
201012086 103203057 Lock release plate
201020584 103203056 Cam (Power side)
103201450 103201450 Torsion springⅠ
103201451 103201451
Torsion springⅡ
406
407
408
409
412
413
414
415
416
417
418
419
420
103201455 103201455 Lock release plate shaft
202010074 103203055 Lock Release roller
103201454 103201454 Lock release latch
103260186 103260186 Latch cover BM10×50（black）
201011156 103203061 Adjustment washer I
104130210 104130210 Small rubber pad
103050021 103050021 Retaining ring 9
103060333 103060333 Pin, 6×40
103260179 103260179 Cable Clamp 3
Cable, F1.4, L=8901
101060019 101060019
Cable, Ф1.6mm, L=8300mm
103201478 103201478 Cable clamp f2
103050025 103050025 Retaining ring 20
103010393 103010393 Screw,M8×12
421
422
103040134 103040134 Washer C, 8
104090073 104090073 Idler lock release mechanism hood
Revised March 2014 Installation Instructions
57
Loading...
