LAUNCH ScanPad 071 User’s Manual — Table of Contents
Table of Contents
1 INTRODUCTIONS............................................................................................ 1
1.1
PRODUCT PROFILE ............................................ 1
1.2 FEATURES ................................................... 1
1.3 KNOWLEDGE OF SCANPAD 071................................... 2
1.3.2 ScanPad 071 tablet computer...........................................................3
1.3.4 DBScar diagnostic connector (using with ScanPad 071)..................4
1.4
TECHNICAL PARAMETERS ....................................... 6
1.5 PACKAGE LIST ................................................ 7
2 PREPARATIONS..............................................................................................8
2.1
INSTALL SD CARD ............................................. 8
2.2 CHARGE SCANPAD 071......................................... 8
2.3 ON USING YOUR BATTERY ....................................... 8
2.4 POWER ON / POWER OFF SCANPAD 071 ............................ 9
2.5
ABOUT DESKTOP .............................................. 9
2.6 CUSTOMIZE YOUR DESKTOP .................................... 10
2.6.1 Add items on the desktop................................................................10
2.6.4 Change your wallpaper.....................................................................11
2.7
ON USING TOUCH SCREEN...................................... 11
2.8 AUTO-ROTATE THE SCREEN ..................................... 11
2.9 LOCK & UNLOCK THE SCREEN ................................... 12
2.9.1 Lock the screen............................................................................... 12
2.10
NOTICE BAR................................................ 12
2.10.1 Turn on the notification panel ........................................................ 12
2.11
HOW TO SET AS AIRPLANE MODE................................ 12
3 HOW TO DIAGNOSE..................................................................................... 14
LAUNCH ScanPad 071 User’s Manual — Table of Contents
3.1
CONNECT DBSCAR ........................................... 14
3.2 BLUETOOTH SETTING.......................................... 15
3.3 DIAGNOSIS FLOWCHART........................................ 15
3.4 USER AND CONNECTOR REGISTRATION ............................ 16

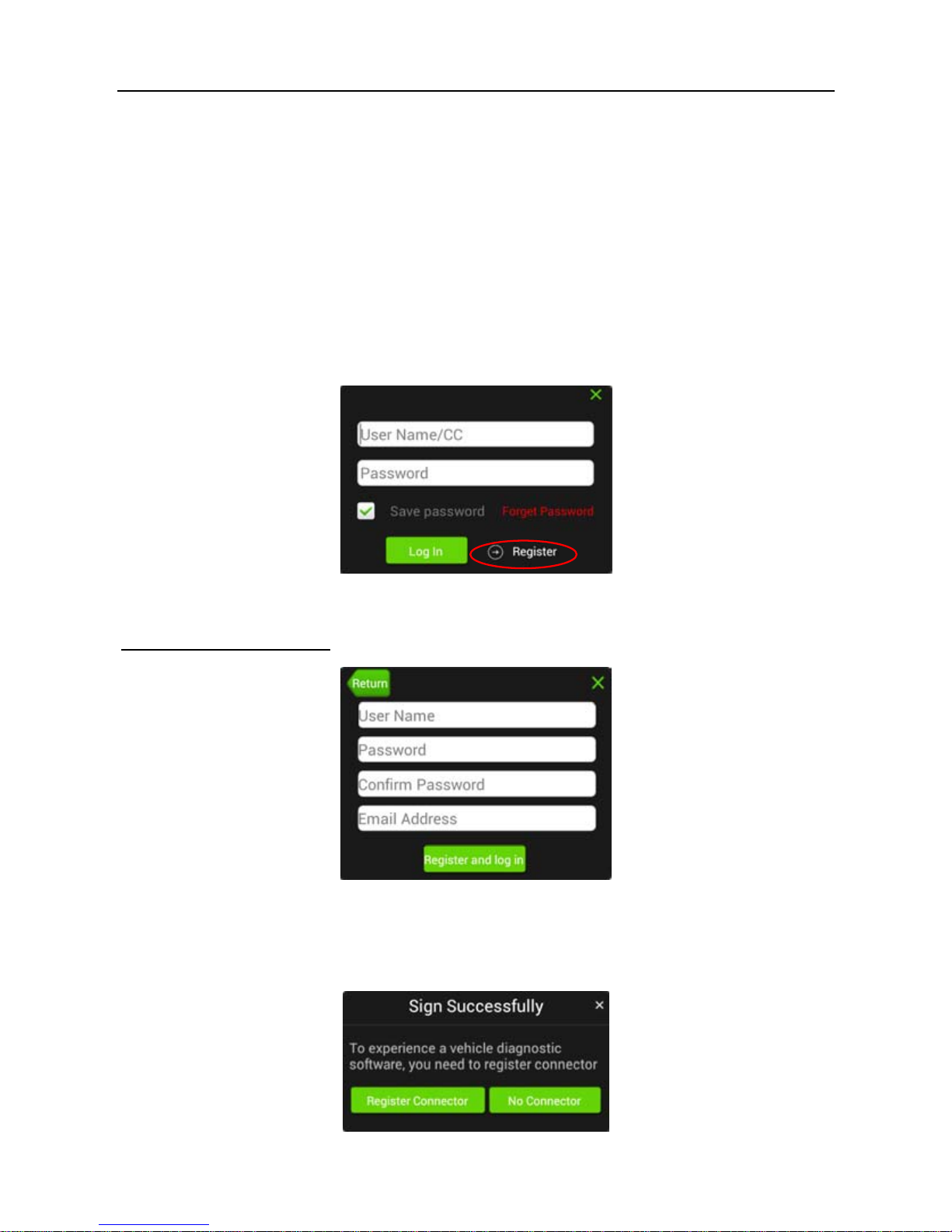

3.4.1 User registration .............................................................................. 16
3.4.2 Software layout................................................................................18
3.5

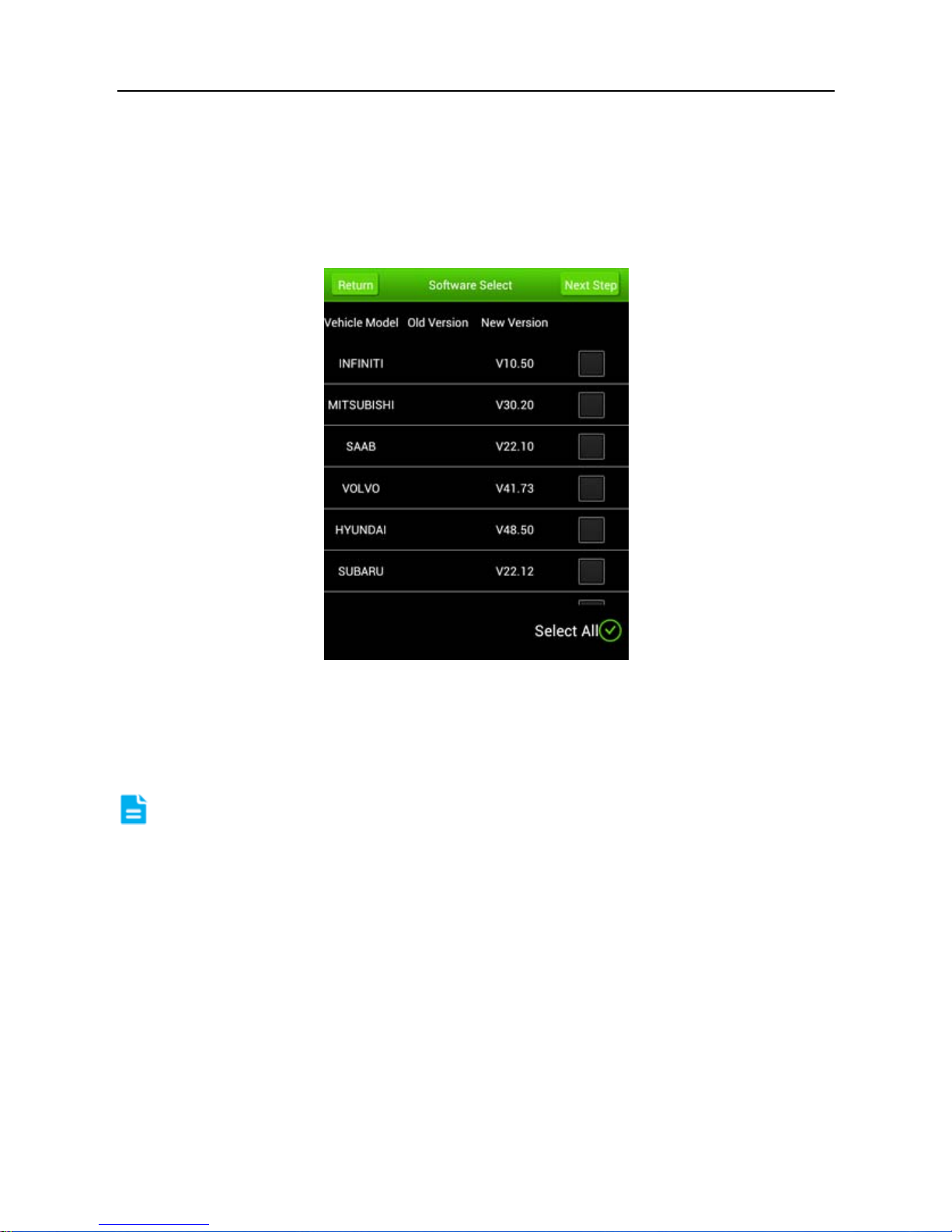

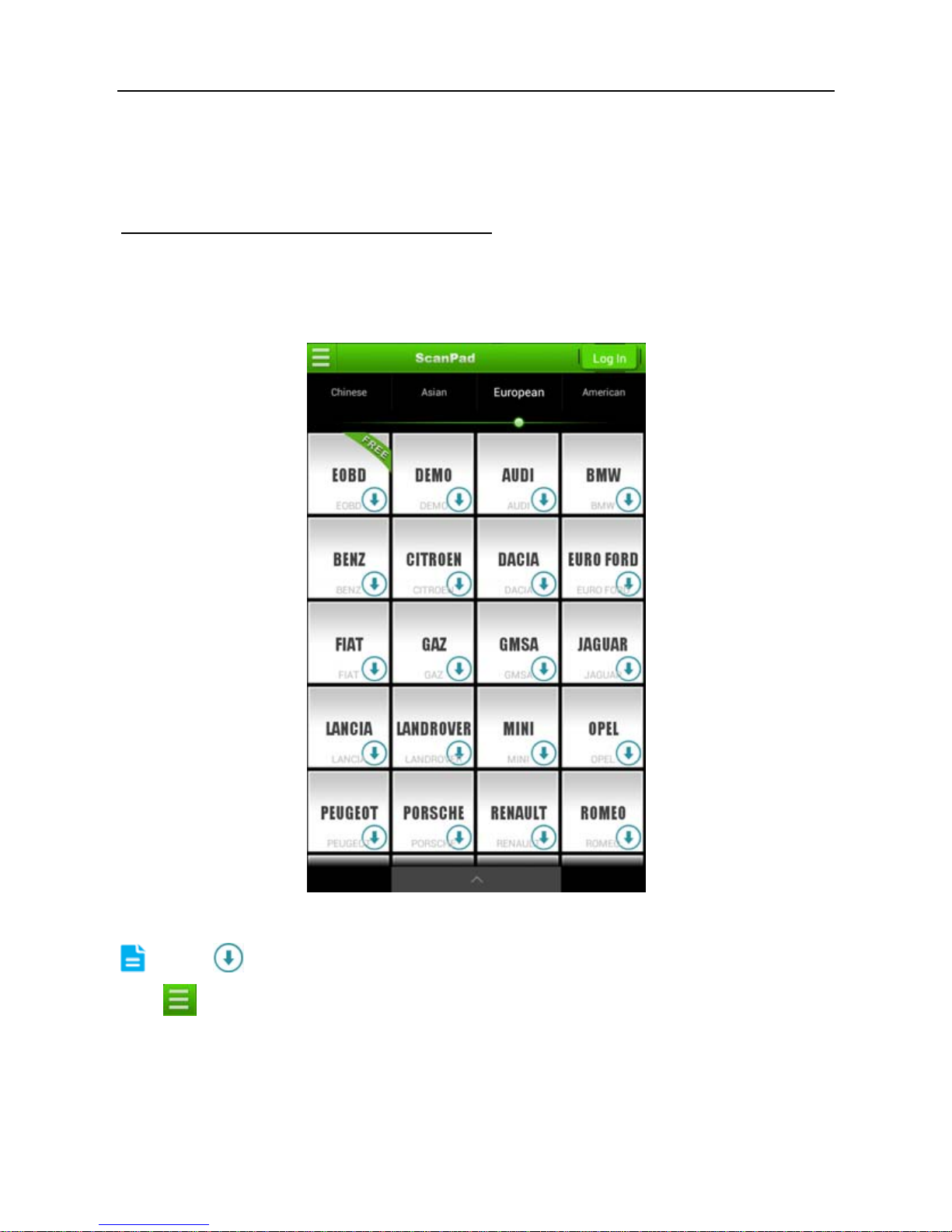

DOWNLOAD DIAGNOSTIC SOFTWARE .............................. 19

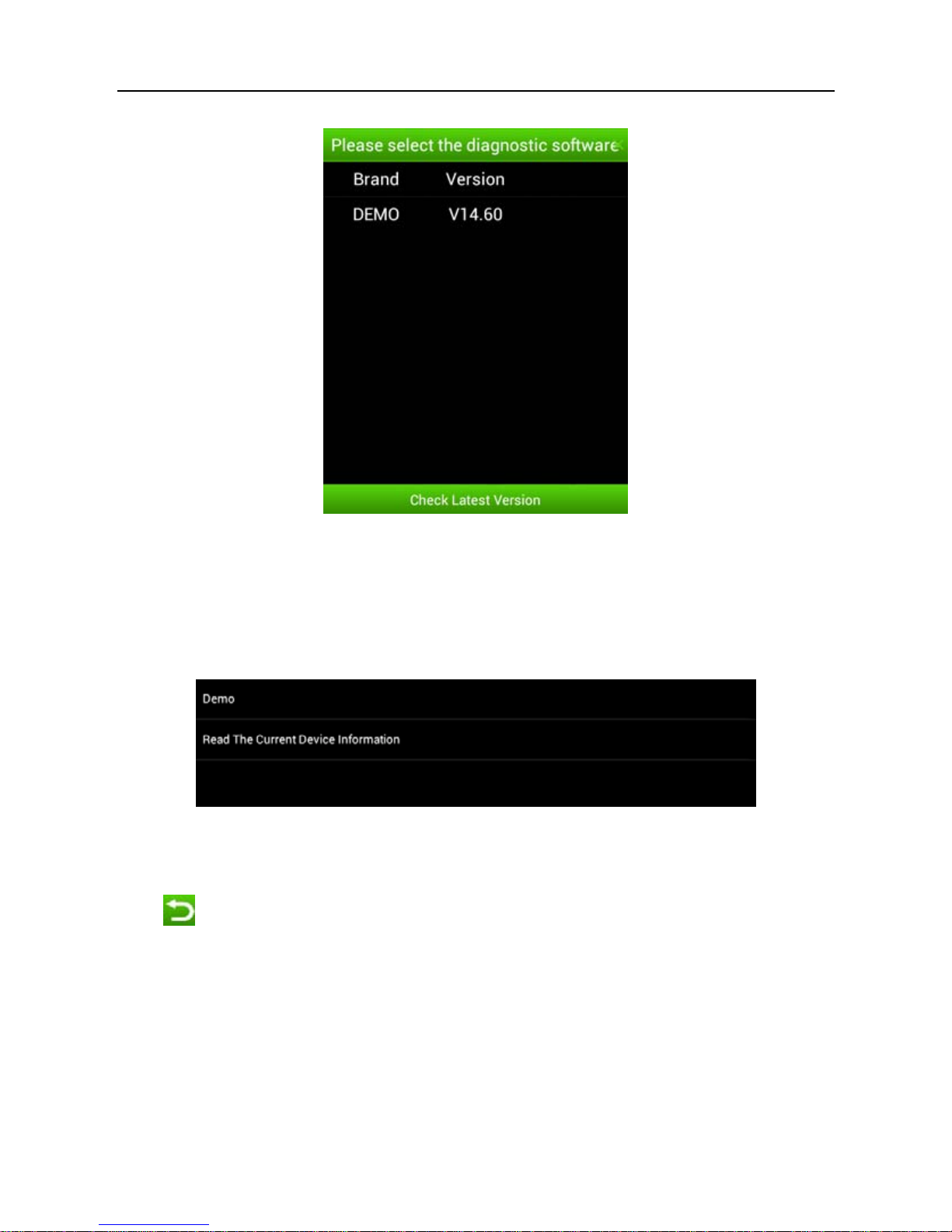

3.6 START DIAGNOSING ........................................... 21

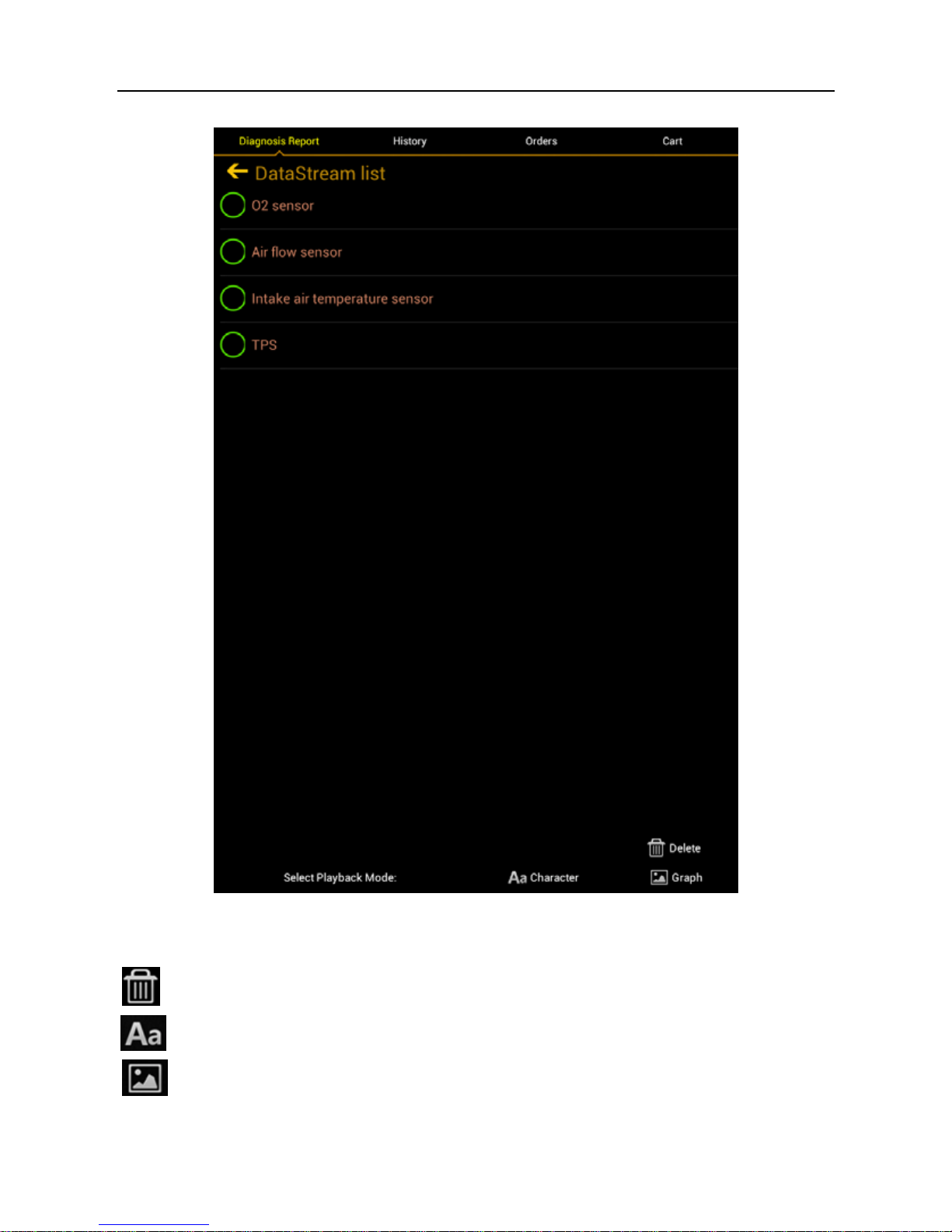

3.6.3 Read Data S tream...........................................................................25
3.7

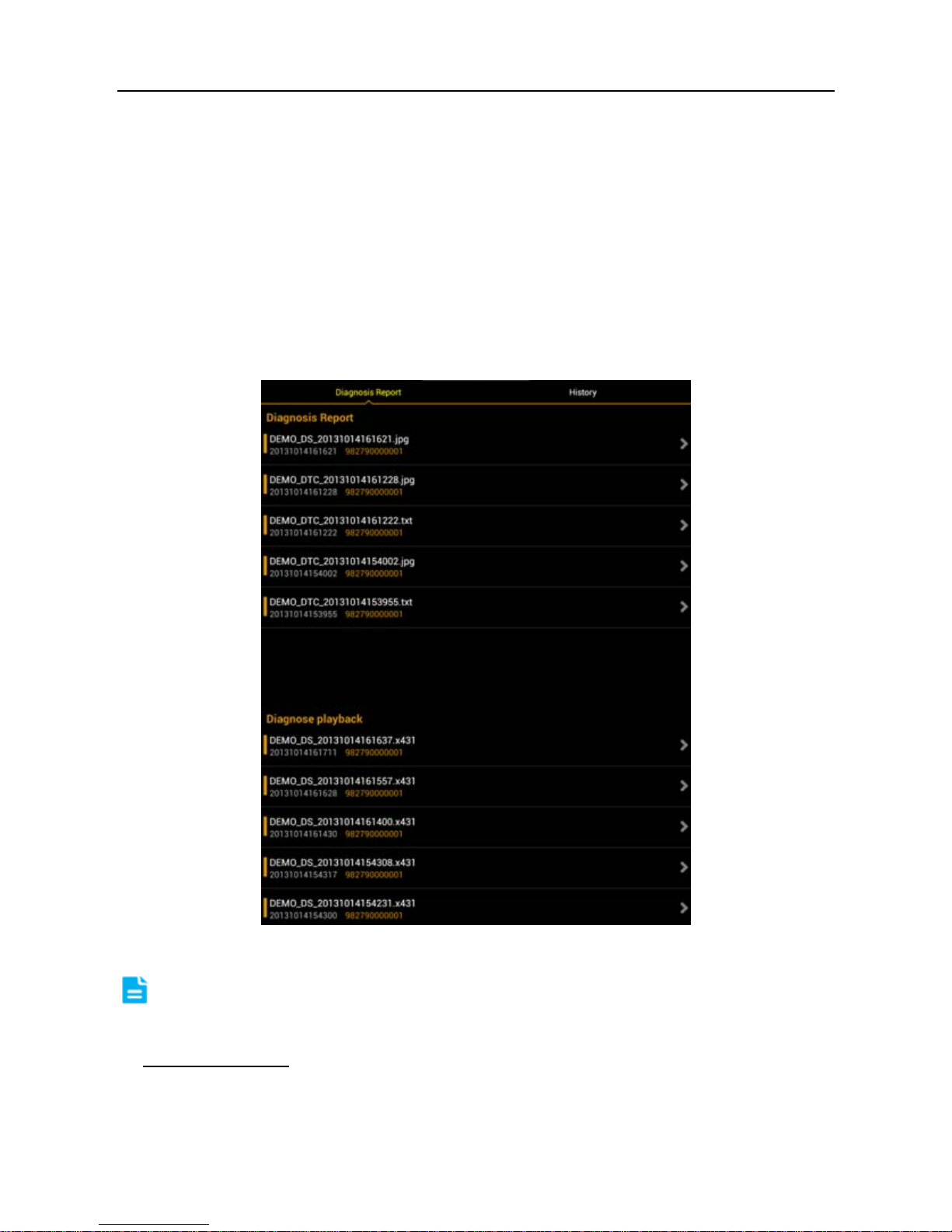

MY SPACE .................................................. 28
3.8
LAUNCH NEWS............................................... 31

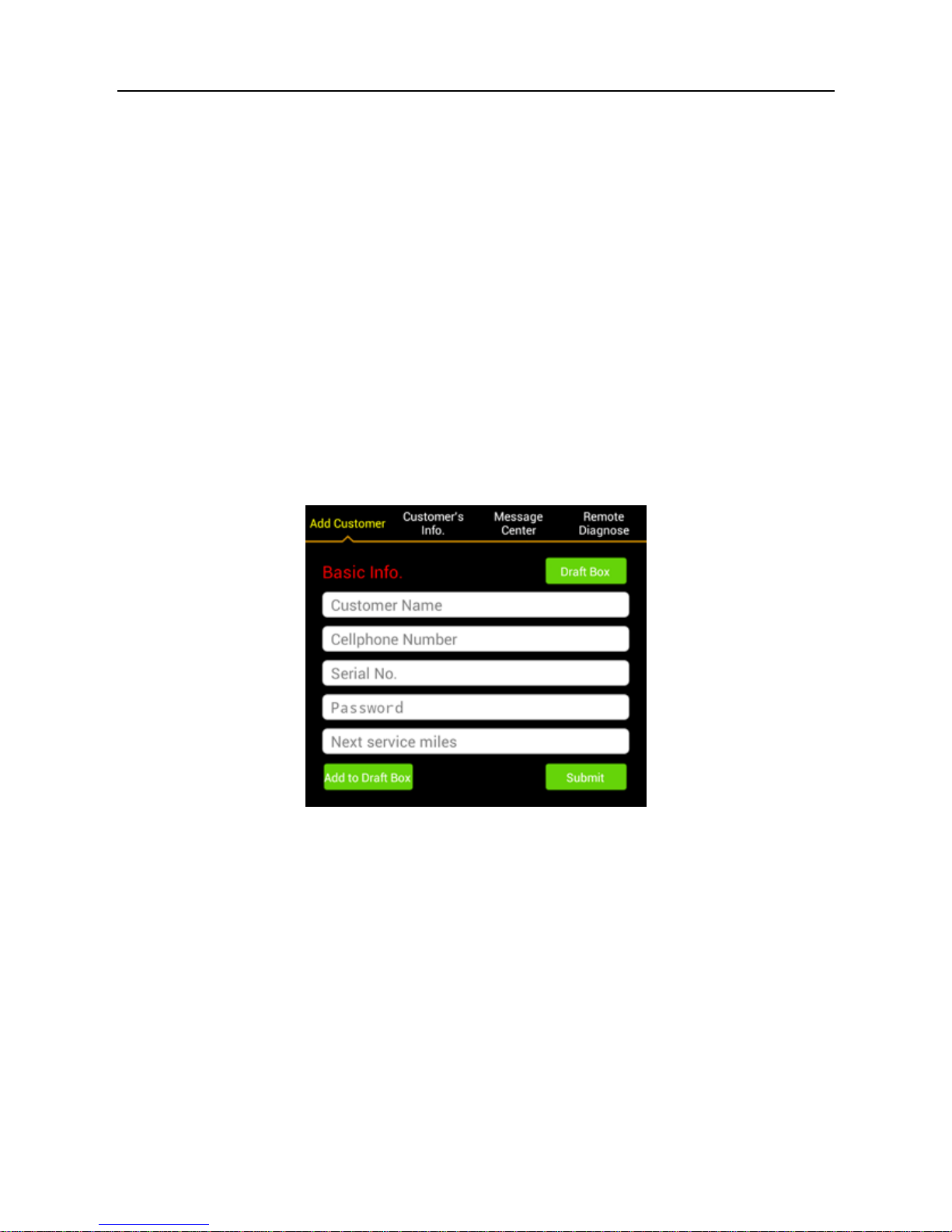

3.9 CUSTOMER MANAGEMENT...................................... 31
3.10 ONE KEY UPGRADE.......................................... 32

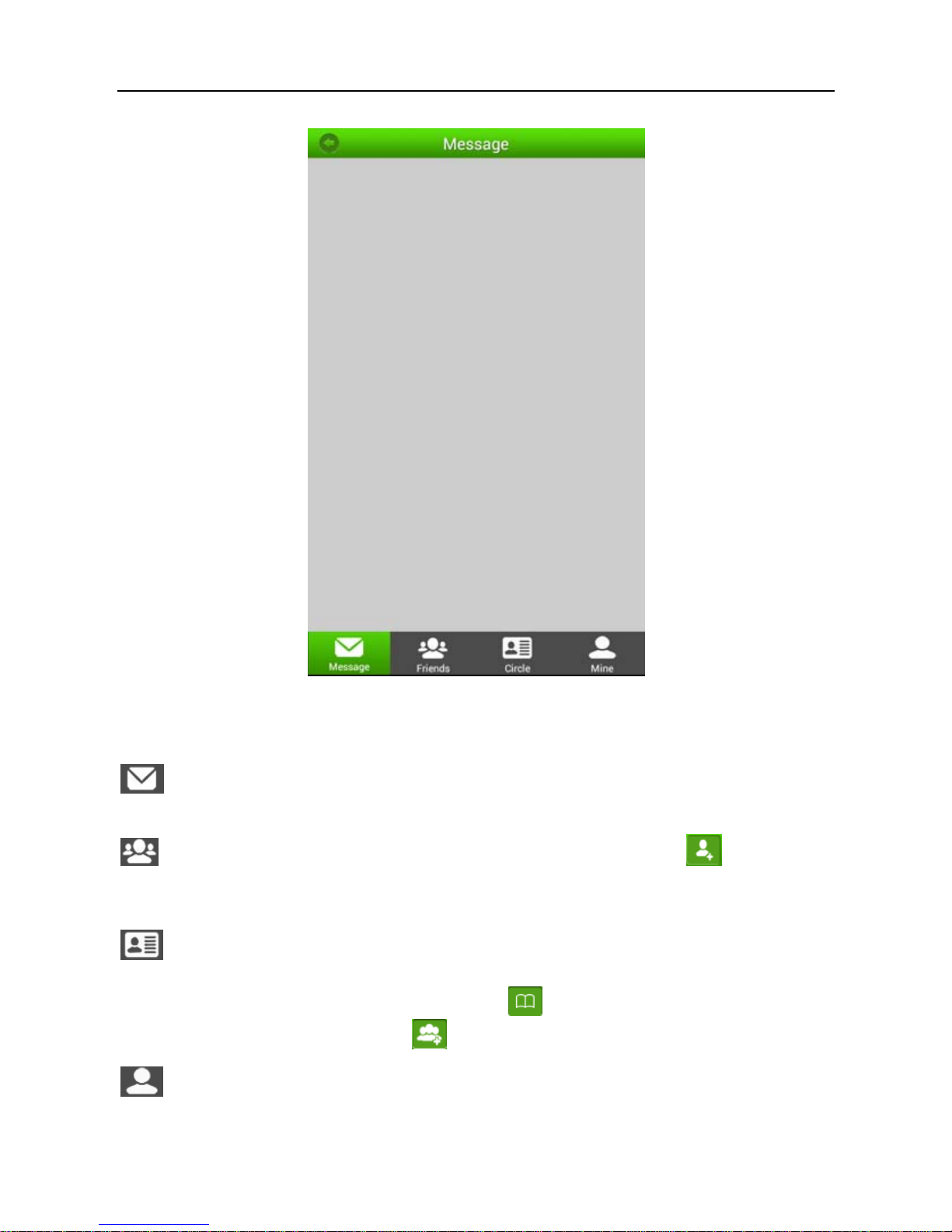

3.11 CIRCLE.................................................... 32
3.12 USER MANAGEMENT ......................................... 34
3.12.2 Modify Personal Information.......................................................... 34
3.12.5 Forget password............................................................................35

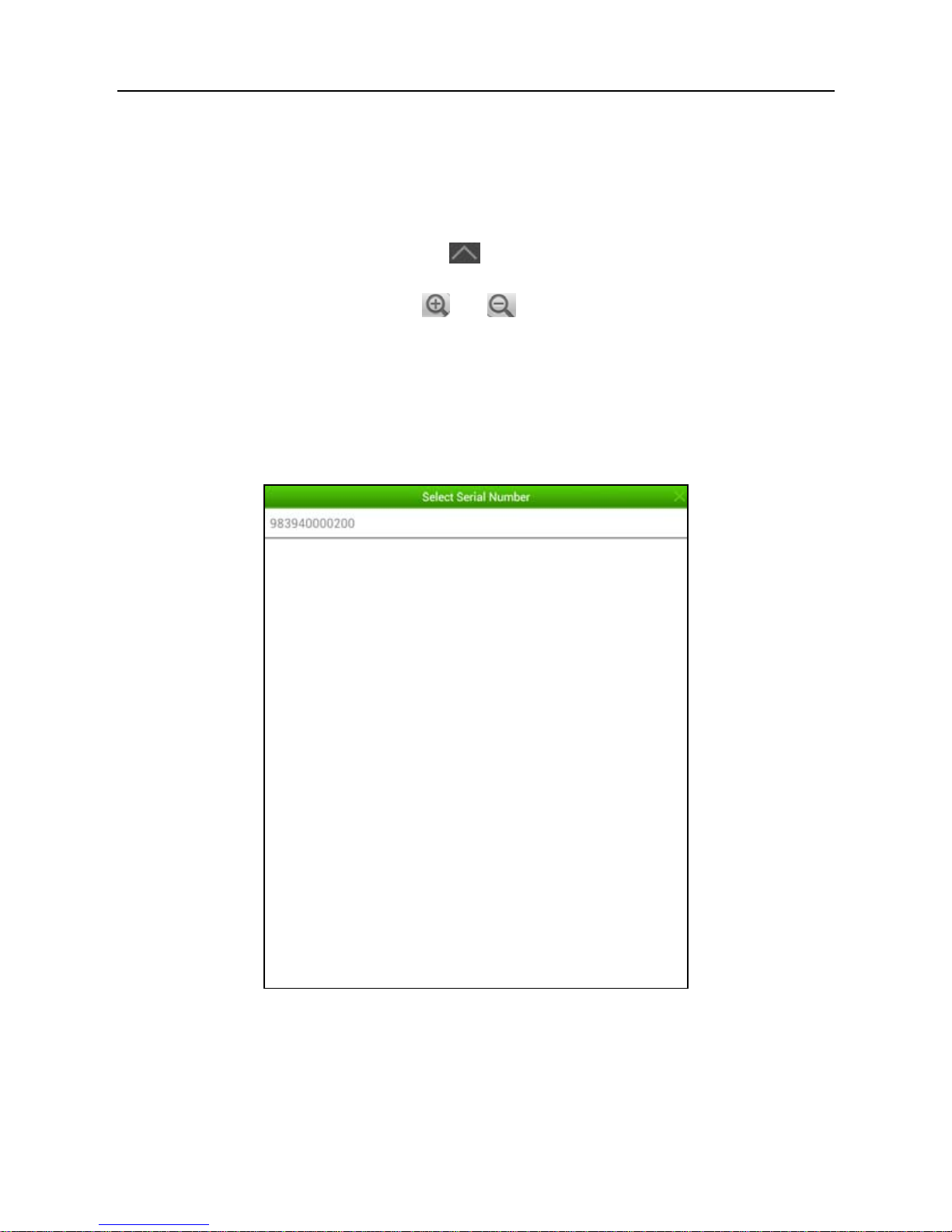

3.13.7 Select Serial Number..................................................................... 35
3.12.8 Connector firmware upgrade file download................................... 35
3.13
MORE..................................................... 35
4 OTHERS.........................................................................................................36
4.1
EMAIL...................................................... 36
4.1.1 Add an email acc ount......................................................................36
4.1.2 Delete an email account..................................................................36
4.1.4 View email .......................................................................................37
4.2
WLAN ..................................................... 38
LAUNCH ScanPad 071 User’s Manual — Table of Contents
4.3

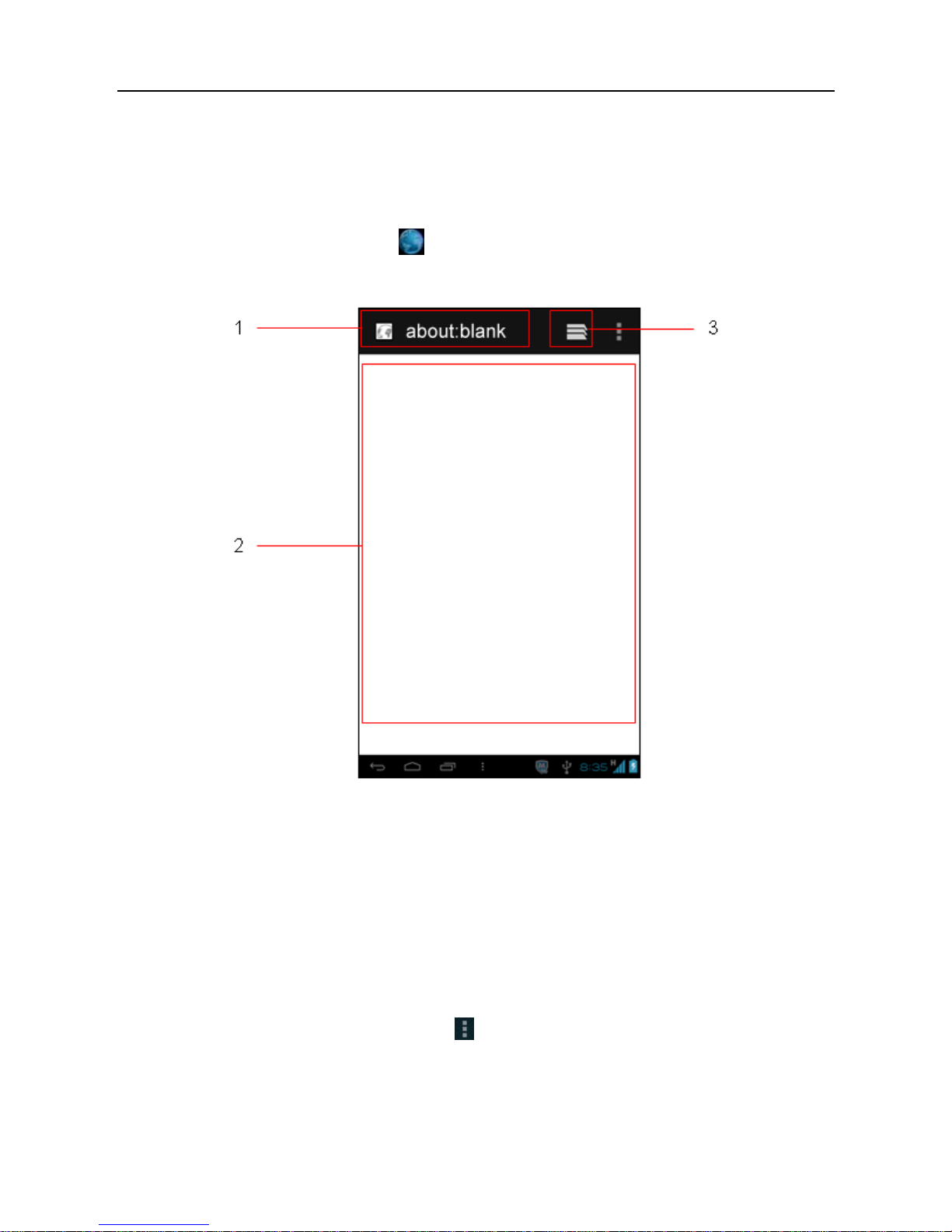

BROWSER .................................................. 39
4.3.4 Find on page.................................................................................... 40
4.3.5 Save favorite webpage to bookmark...............................................40
4.3.6 Open multiple pages........................................................................40
4.4
USING BLUETOOTH ........................................... 41
4.5
CAMERA.................................................... 42
4.5.1 Open and close camera .................................................................. 42
4.5.2 Take a photo.................................................................................... 42
4.5.3 View a photo....................................................................................42
4.5.4 Record a video ................................................................................42
4.5.5 View a video ....................................................................................43
4.5.6 Customize camera settings.............................................................43
4.6
GALLERY ................................................... 44
4.6.1 Open gallery .................................................................................... 44
4.6.4 Zoom in/ out images........................................................................44
4.7
MUSIC ..................................................... 44

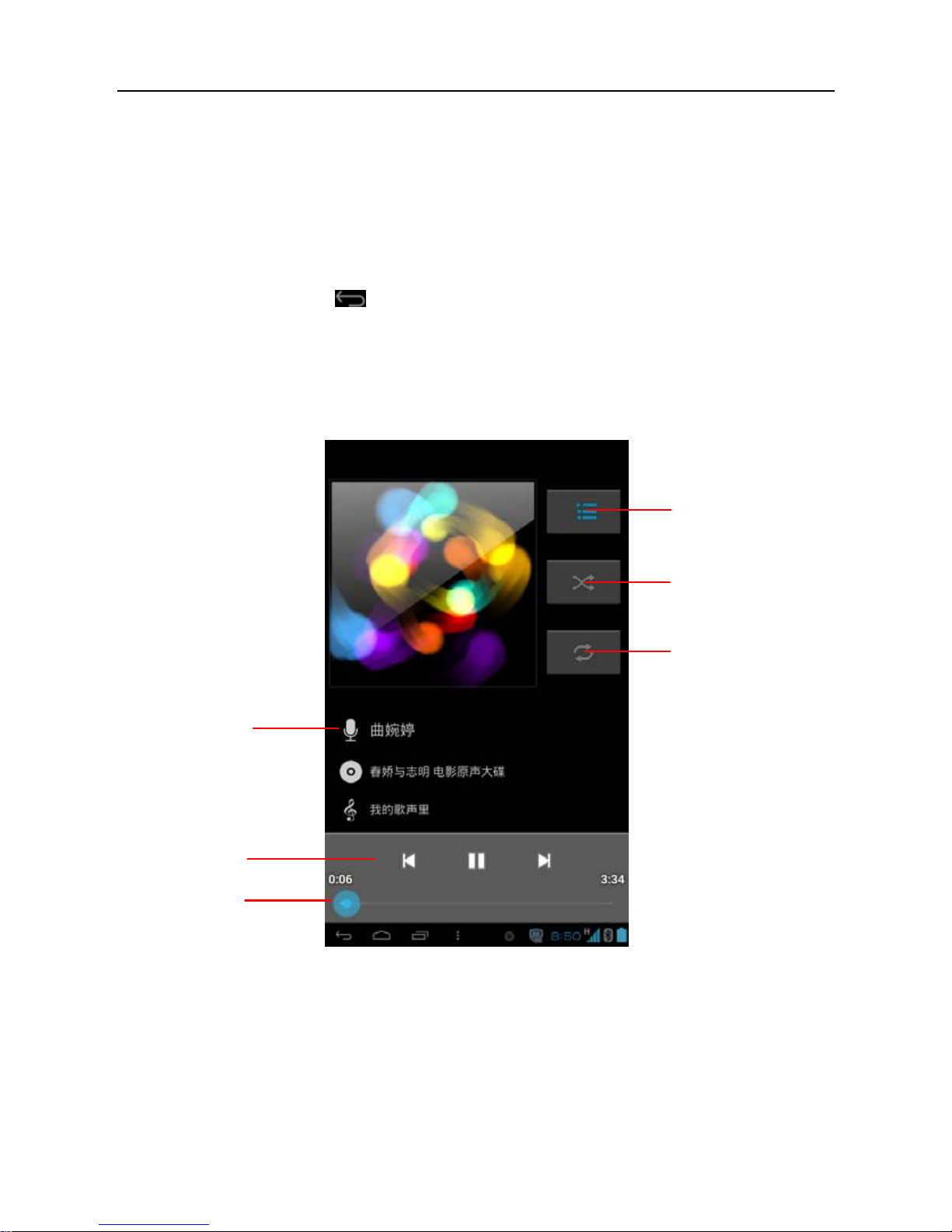

4.7.1 Play audio files ................................................................................ 44
4.7.3 Create a new playlist.......................................................................46
4.7.4 Delete a playlist ............................................................................... 46
4.8
CALENDAR.................................................. 46
4.9 ALARMS .................................................... 46
4.9.1 Add an alarm ................................................................................... 46
4.9.2 Delete an alarm ............................................................................... 47
4.10
FILE MANAGER ............................................. 47
4.11 DISPLAY................................................... 47
4.12
SET SCREEN LOCK........................................... 48
LAUNCH ScanPad 071 User’s Manual — Table of Contents
4.13
APPLICATIONS .............................................. 48
4.13.1 View installed applications............................................................. 48
4.13.2 View the running applications........................................................ 49
4.14
LANGUAGE & INPUT .......................................... 49
4.15 SET DATE & TIME............................................ 49
4.16 VIEW AND RELEASE THE MEMORY OF SD CARD AND SCANPAD 071..... 49
4.17 RESTORE SCANPAD 071 TO FACTORY SETTINGS ................... 50
4.18 DOWNLOADS ............................................... 50
4.19 INSTALL / UNINSTALL APPS ................................... 50
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
1
1 Introductions
1.1 Product Profile
ScanPad is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from LAUNCH’s advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
Through the Bluetooth communication between vehicle diagnostic connector and variant mobile intelligent terminals, it achieves X431 series full car model and full system vehicle trouble diagnosis, which include reading DTCs, clearing DTCs, reading datastream, actuation test and special functions.
Meanwhile, taking advantage of mobile internet, it integrates more application and service, such as Customer Management, One Key Upgrade, Circle etc.
1.2 Features
1. Diagnose: Can diagnose the electronic control system of prevailing vehicle
models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Special functions etc;
Specially designed for Android platform with clear and user-friendly
interface;
Via Bluetooth, it is simple for DBScar diagnostic connector to
communicate with ScanPad 071;
Equipped with an exclusive ScanPad 071 protection sleeve to prevent
it from being damaged;
2. Browser: built-in Wi-Fi module makes surfing on the internet freely;
3. Email: allows you to send and receive email. External POP3 or IMAP email
account for some common Web email service provider can be added;
4. Search: enables you to locate your target quickly and conveniently;
5. File Manager: with it, you can manage the files or downloaded files stored
in SD card efficiently;
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
2
6. Settings: to configure your personalized ScanPad 071 through it;
7. Other additional functions: alarm, calendar and calculator etc.
8. Applications: Other android based applications can be customized to install
or uninstall.
1.3 Knowledge of ScanPad 071
1.3.1 ScanPad 071 Whole Set
ScanPad 071 is composed of a ScanPad 071 tablet computer, a protection sleeve and a diagnostic connector (in red & black).
Fig. 1-1 ScanPad 071 whole set
A ---- ScanPad 071 tablet computer (See Chapter“1.3.2”) B ---- Protection sleeve (See Chapter “1.3.3”) C ---- Diagnostic connector (in red & black) (See Chapter “1.3.4”)
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
3
1.3.2 ScanPad 071 tablet computer
Fig. 1-2 ScanPad 071 tablet computer
No. Name Notes
1 POWER key
In Off mode, press it to turn on
ScanPad 071;
In On mode, press it to activate the
LCD if the LCD is blank.
In On mode, press it to turn off the
LCD if the LCD lights up. 2 VOLUME +/- key Used to adjust the volume. 3 Earphone jack 4 Rear camera 5 Reset key (Inside
the housing) 6 SD card slot 7 Speaker 8 USB port
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
4
9 Microphone
1.3.3 ScanPad 071 protection sleeve
It mainly includes: upper enclosure, soft sleeve and lower enclosure.
How to dismantle ScanPad 071 protection sleev e
To remove protection sleeve from ScanPad 071 main unit, follow the steps described as below to proceed:
1. Pull the black sleeve outwards from the right margin of ScanPad 071, and then remove it completely.
2. Reverse the upper enclosure and then use the screwdriver to loosen all screws.
3. Take out the lower enclosure from the upper enclosure.
4.
Finally remov
e ScanPad 071 tablet computer from the upper enclosure.
Note: Reverse the above-mentioned steps to install ScanPad 071 protection sleeve. While mounting it, please pay more attention to the installation direction.
1.3.4 DBScar diagnostic connector (using with ScanPad 071)
1
2
4
3
Fig. 1-3 DBScar diagnostic connector
①
OBD-16 diagnostic connector
To connect on vehicle’s OBD2 DLC.
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
5
②
Power indicator It lights up while the DBScar
connector plugged into the vehicle’s DLC.
③
Communication indicator
It will flash once the DBScar connector is communicating with ScanPad 071 or it is being reset.
④
Micro USB port To connect to PC for data
transmission or upgrade via USB cable.
This diagnostic connector works only with ScanPad 07 1. If it is not in use, please place it in right position.
1.3.5 GOLO diagnostic connector (applied for personal car owners)
Fig. 1-4 GOLO diagnostic connector (optional)
The GOLO diagnostic connector shown in Fig. 1-7 provides same indicators and ports as the DBScar diagnostic connector (red & black). Please refer to Chapter
1.3.4. However it is designed for personal car owners and mainly applied with smart
phone based on Android OS (Before using this connector, users need to download and install the diagnostic software firstly. For detailed operations, please refer to “User’s Manual” included with it.). It can not be used with ScanPad 071 together.
Since ScanPad 071 features Customer Management, it is very helpful for repair shops to maintain friendly relationship with customers and manage customer’s data. In view of it, repair shops may recommend this powerful connector to customers.
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
6
1.4 Technical Parameters
ScanPad 071:
 Operating system: Android  CPU: Dual core 1GHz  Battery: 3000mh, rechargeable polymer lithium battery  Standby time: It is subject to the using environment. Generally it can keep
working for 4 hours.
Extension memory card: 32G Micro SD(TF) card supported  Memory: 512MB  Storage capacity: 2GB  LCD: 7.0 inch  LCD resolution: 1024X600  Touch screen: 5 points capacitive touch screen  Cameras: 2 mega rear and 0.3 mega front  Wi-Fi: Supported  Bluetooth: Supported  Working temperature: -10 ~ ℃ 55 ℃ (14°F to 131°F) Storage temperature: -20 ~ ℃ 70 ℃ (-4°F to 158°F) Weight: About 0.68Kg  Outline dimension: 198*124*10.1mm
DBScar Connector:
Working voltage: 9 ~15V  A verage working current: About 35mA  Standby current: About 25mA  Working temperature: -20 to 55 (℃ -4°F to 131°F) Storage temperature: -30 to 70 (℃ -22°F to 158°F) Storage humidity : <80%  Working humidity: <60%  Net weight: About 26g
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
7
1.5 Package List
While purchasing, please check the following accessories:
• ScanPad 071 tablet computer (including ScanPad 071 protection sleeve)
• Password envelope
•
DBScar diagnostic connector (red & black)
• OBD II extension cable
•
Cigarette
lig
hter cable
•
Pow
er adaptor
•
USB
data cable
•
Non-16pin c
onnector
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
8
2 Preparations
2.1 Install SD card
1. Push the rear top cover outwards in Fig. 1-2 until it is completely released.
2. Insert the SIM card and SD card in right direction as indicated on the slot.
Note: Do not plug or eject the SD card while using ScanPad 071.
Eject SD card
1. Tap
on the desktop to open the main menu.
2. Choose “Settings” > “Device” > “Storage” > “Unmou
nt SD ca
rd”.
3.
R
e
move it from the SD card slot.
2.2 Charge ScanPad 071
1. Insert the included USB cable into the charger.
2. Plug the charger into AC out
let.
3.
Connect the other end of US
B cable to Sc
anPad 071. If
appears on the
screen, it indica
tes it is being ch
arged.
4.
If the logo changes into
, it indicates that the battery is fully charged.
Dis
connect the charger from th
e AC outlet.
5.
Unplu
g
the USB cable on the charger from ScanPad 071.
2.3 On using your battery
z If the battery keeps unused for a long time or battery is completely
discharged, it is normal if it can not be turned on while being charged. Please charge it for a period and then turn it on.
z Using data service will cause more power consumption and shorten the
standby time.
z The charging time of battery varies with temperature condition and battery
consumption status.
z While ScanPad 071 has low battery, a beep will sound. If it is very low,
ScanPad 071 will be switched off automatically.
Note: Do one of the followings to save power:
z When ScanPad 071 keeps unattended, press POWER key to turn off the
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
9
LCD.
z Shorten the standby time: Enter main menu, choose “Settings” > “DEVICE”
> “Display” > “Sleep” to select a shorter standby time.
z Decrease the brightness of LCD display: Enter main menu, choose
“Settings” > “DEVICE” > “Display” > “Brightness”, and then drage the slider to adjust it.
z Change “Live wallpaper” into “Gallery”. z Set Bluetooth off: Enter main menu, choose “Settings” > “Wireless &
Network” > “Bluetooth”, and then toggle the switch to OFF.
z Set Wi-Fi off: Enter main menu, choose “Settings” > “Wireless & Network” >
“Wi-Fi”, and then toggle the switch to OFF.
z Turn off GPS satellites: choose “Settings” > “Personal” > “Location access”
and set GPS satellites to OFF.
z Press VOLUME key to decrease the volume.
2.4 Power on / power off ScanPad 071
2.4.1 Power on
1. Press the POWER key to turn on ScanPad 071.
2. If it is the first time you turned on ScanPad 071, the system will prompt you to make some initial setup.
3.
Set y
our account.
4.
Set date and time.
Note: if use netw
ork-provided time is selected, it is unnecessary to set date, time
and time zone.
2.4.2 Power off
1. Press the POWER key, an option menu will pop up on the screen.
2. Tap “Power off” to turn off ScanPad 07
1.
2.5 About desktop
On-screen keys and status bar are as follows:
A.
RETURN key: Return to the previous screen or exit the running
application.
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
10
B.
MAIN MENU key: To switch to main menu screen.
C.
SHORTCUT key: To view the recent applications.
D.
OPTION MENU key: To select operation option from the list.
E. Notice bar: To notify users of new events and display the status (For
detailed indicators, please see the following table.).
Definitions of indicators
Indicators Definitions Indicators
Definitions
Connected to PC Preparing SD card Connected to Wi-Fi Airplane mode Bluetooth is on Alarm has been set.
View more notices
Connected to other Bluetooth device
Battery is fully charged
Mute your ScanPad 071
Charging Low battery New mail Full memory
2.6 Customize your desktop
2.6.1 Add items on the desktop
On the main menu screen, hold and press the desired item, the system will automatically enter the desktop, place the icon into the circle.
Hint: If many applications occupy the desktop, hold and press the desired one to move it to other extension desktop.
2.6.2 Move items on the desktop
1. Hold and press the item to be moved.
2. After a movable circle appears on the screen, drag it to the target location.
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
11
2.6.3 Delete items from the desktop
1. Hold and press the desired item, “X Delete” appears in the upper middle of the screen.
2. Drag it on the icon until it ch
ange into red, then release it.
2.6.4 Change your wallpaper
1. Hold and press a blank area on the desktop, a pop-up wallpaper window will be show
n on th
e screen.
2.
Set dif
f
erent wallpaper as desired:
• Wallpapers: Choose a still picture from gallery as wallpaper.
•
Live Wallpapers: Open it to choose one of the preset live wallpapers as wallpaper.
•
Gallery: Set the pictures you captured as wallpaper.
2.6.5 Create a folder on the desktop
1. Drag one icon on another icon, the system will create a folder.
2. Input the folder name.
2.7 On using touch screen
z To obtain better operations, you are suggested to remove the protection
film before using ScanPad 071.
z Never hit the touch screen with any sharp, keen object. z Tap: Use your finger to tap the desired items to confirm or open it. z Long-press: hold and press the current interface, icon or input field to open
the available operation options.
z Slide: Use your finger to slide the screen horizontally or vertically. For
instance, slide the screen to choose the desired image.
z Drag: Hold and press the desired item, then drag it to a location. For
example, drag to move or delete the application icon on the desktop.
2.8 Auto-rotate the screen
To perform such operations as browsing webpage, viewing images etc, rotate ScanPad 071, the screen will automatically change the display direction. To
LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071
12
disable this function, tap “Settings”, and tap “Display” to enter. Unselect the option “Auto-rotate screen”.
2.9 Lock & unlock the screen
2.9.1 Lock the screen
• When ScanPad 071 is ON, press POWER key once to lock the screen;
• The system will lock the screen automatically after ScanPad 0
71 remains idle
for a long time.
2.9.2 Unlock the screen
Press POWER key to activate the screen, and then drag the lock to “Unlock” position.
Note: If you define as unlock using the pattern, you have to draw the right target pattern to unlock it.
2.10 Notice bar
The notice bar is used to display some activities, such as new message, to do list and running tasks. You can also open the notice bar to view the reminder or activity notification.
2.10.1 Turn on the notification panel
1. When a new notification icon appears on the status bar, slide the status bar upw
ards to ope
n it.
2.
In the notification pane
l, tap the desired n
otification item to open it.
2.10.2 Turn off the notification panel
Slide the panel upwards, and then specify the notifications as OFF to turn off it.
2.11 How to set as airplane mode
According to the regulations of some countries or areas, PC device must be turned off before boarding on the airplane.
Loading...
+ 38 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
