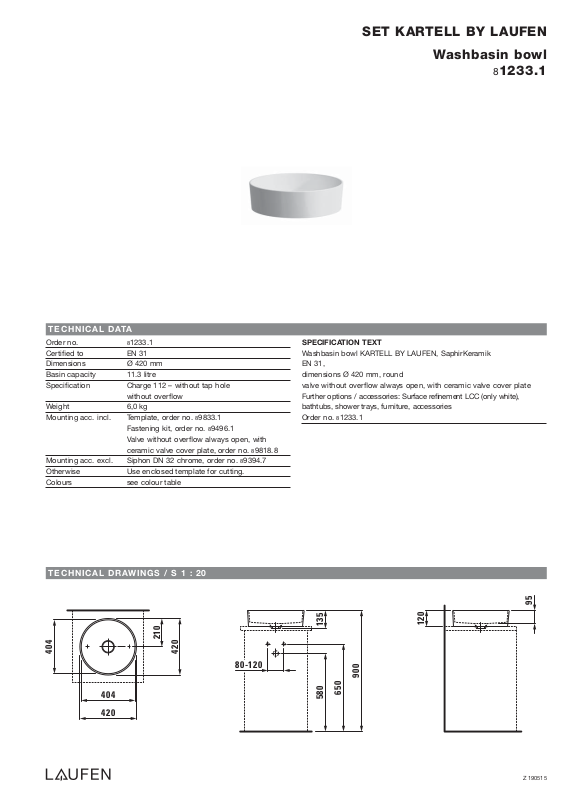

Laufen 8.1233.1 Datasheet

SET KARTELL BY LAUFEN

210

420

120

135

580

650

900

80-120

95

420

404

404

Washbasin bowl

81233.1

TECHNICAL DATA

Order no. 81233.1
Certified to EN 31
Dimensions Ø 420 mm
Basin capacity 11.3 litre
Specification Charge 112 – without tap hole
without overflow
Weight 6,0 kg
Mounting acc. incl. Template, order no.
Fastening kit, order no.
Valve without overflow always open, with
ceramic valve cover plate, order no. 89818.8
Mounting acc. excl. Siphon DN 32 chrome, order no. 89394.7
Otherwise Use enclosed template for cutting.
Colours see colour table

89833.1

89496.1

TECHNICAL DRAWINGS / S 1 : 20

SPECIFICATION TEXT

Washbasin bowl KARTELL BY LAUFEN, SaphirKeramik
EN 31,
dimensions Ø 420 mm, round
valve without overflow always open, with ceramic valve cover plate
Further options / accessories: Surface refinement LCC (only white),
bathtubs, shower trays, furniture, accessories
Order no. 81233.1

Z 190515
