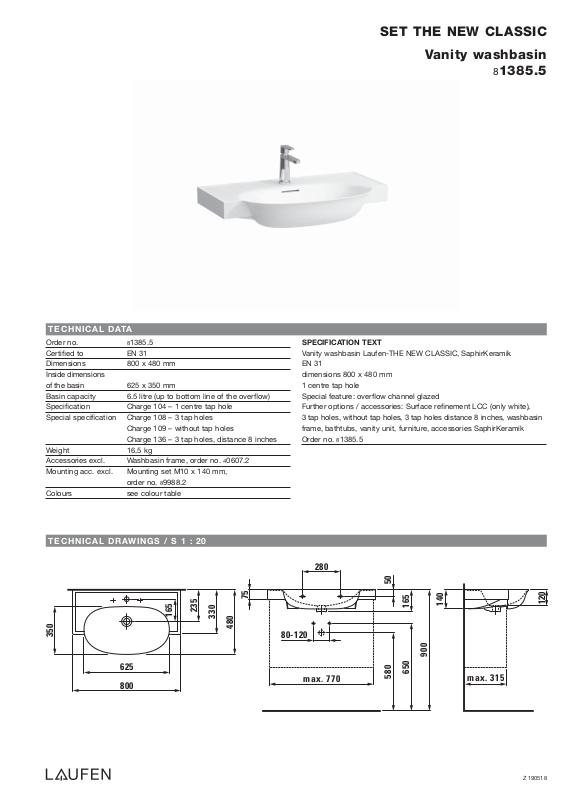

SET THE NEW CLASSIC
Vanity washbasin
81385.5
TECHNICAL DATA
Order no. 81385.5
Certified to EN 31
Dimensions 800 x 480 mm
Inside dimensions
of the basin 625 x 350 mm
Basin capacity 6.5 litre (up to bottom line of the overflow)
Specification Charge 104 – 1 centre tap hole
Special specification Charge 108 – 3 tap holes
Charge 109 – without tap holes
Charge 136 – 3 tap holes, distance 8 inches
Weight 16,5 kg
Accessories excl. Washbasin frame, order no. 40607.2
Mounting acc. excl. Mounting set M10 x 140 mm,
order no. 89988.2
Colours see colour table
TECHNICAL DRAWINGS / S 1 : 20
75
235
165
330
480
350
SPECIFICATION TEXT
Vanity washbasin Laufen-THE NEW CLASSIC, SaphirKeramik
EN 31
dimensions 800 x 480 mm
1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
3 tap holes, without tap holes, 3 tap holes distance 8 inches, washbasin
frame, bathtubs, vanity unit, furniture, accessories SaphirKeramik
Order no. 81385.5
280
50
165
140
80-120
120
625
800
max. 770
580
650
900
max. 315
Z 190518
