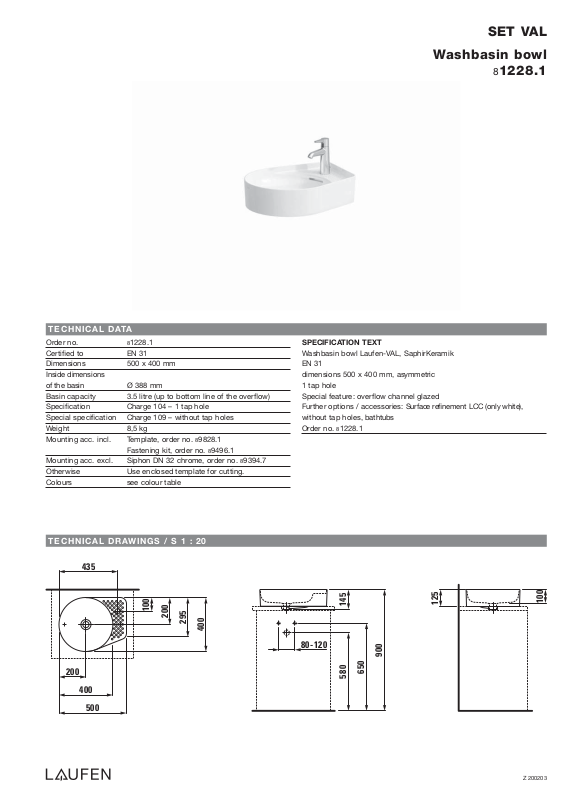

Laufen 8.1228.1 Datasheet

SET VAL

Washbasin bowl

81228.1

TECHNICAL DATA

Order no. 81228.1
Certified to EN 31
Dimensions 500 x 400 mm
Inside dimensions
of the basin Ø 388 mm
Basin capacity 3.5 litre (up to bottom line of the overflow)
Specification Charge 104 – 1 tap hole
Special specification Charge 109 – without tap holes
Weight 8,5 kg
Mounting acc. incl. Template, order no.
Fastening kit, order no. 89496.1
Mounting acc. excl. Siphon DN 32 chrome, order no. 89394.7
Otherwise Use enclosed template for cutting.
Colours see colour table

89828.1

TECHNICAL DRAWINGS / S 1 : 20

435

100

200

295

400

SPECIFICATION TEXT

Washbasin bowl Laufen-VAL, SaphirKeramik
EN 31
dimensions 500 x 400 mm, asymmetric
1 tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
without tap holes, bathtubs
Order no. 81228.1

145

125

100

200

400

500

80-120

580

900

650

Z 200203
