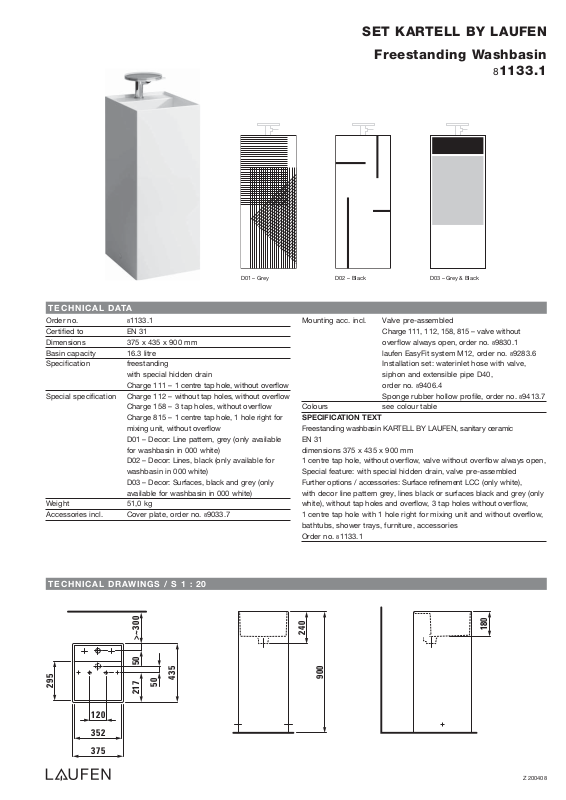

Laufen 8.1133.1 Datasheet

240

900

217

435

375

50

>~300

120

50

295

352

180

TECHNICAL DATA

Order no. 81133.1
Certified to EN 31
Dimensions 375 x 435 x 900 mm
Basin capacity 16.3 litre
Specification freestanding
with special hidden drain
Charge 111 – 1 centre tap hole, without overflow
Special specification Charge 112 – without tap holes, without overflow
Charge 158 – 3 tap holes, without overflow

Charge 815 – 1 centre tap hole, 1 hole right for

mixing unit, without overflow
D01 – Decor: Line pattern, grey (only available
for washbasin in 000 white)

D02 – Decor: Lines, black (only available for
washbasin in 000 white)

D03 – Decor: Surfaces, black and grey (only
available for washbasin in 000 white)
Weight 51,0 kg
Accessories incl. Cover plate, order no. 89033.7

Mounting acc. incl. Valve pre-assembled
Charge 111, 112, 158, 815 – valve without

overflow always open, order no.
laufen EasyFit system M12, order no.
Installation set: waterinlet hose with valve,
siphon and extensible pipe D40,
order no. 89406.4
Sponge rubber hollow profile, order no. 89413.7
Colours see colour table

SPECIFICATION TEXT

Freestanding washbasin KARTELL BY LAUFEN, sanitary ceramic
EN 31
dimensions 375 x 435 x 900 mm
1 centre tap hole, without overflow, valve without overflow always open,
Special feature: with special hidden drain, valve pre-assembled
Further options / accessories: Surface refinement LCC (only white),
with decor line pattern grey, lines black or surfaces black and grey (only
white), without tap holes and overflow, 3 tap holes without overflow,
1 centre tap hole with 1 hole right for mixing unit and without overflow,
bathtubs, shower trays, furniture, accessories
Order no. 81133.1

SET KARTELL BY LAUFEN

Freestanding Washbasin

81133.1

D02 – BlackD01 – Grey D03 – Grey & Black

89830.1

89283.6

TECHNICAL DRAWINGS / S 1 : 20

Z 200408
