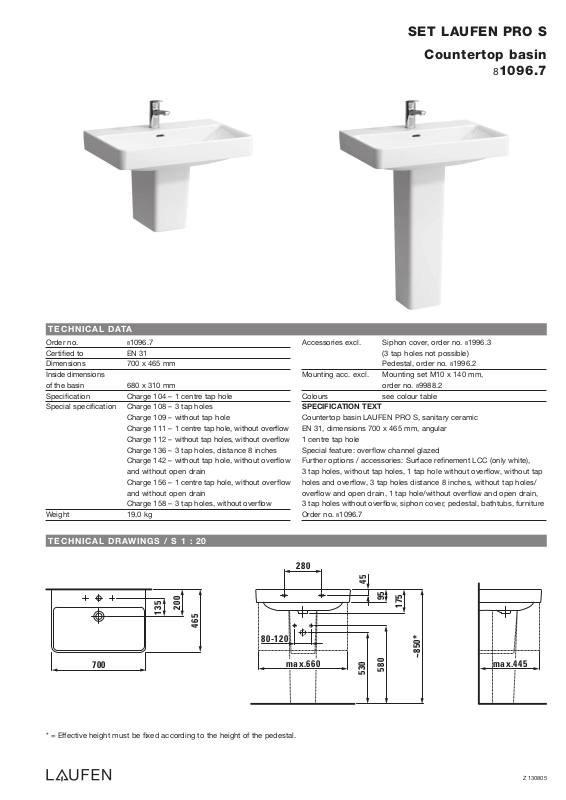

SET LAUFEN PRO S

Countertop basin

81096.7

TECHNICAL DATA

Order no. 81096.7
Certified to EN 31
Dimensions 700 x 465 mm
Inside dimensions
of the basin 680 x 310 mm
Specification Charge 104 – 1 centre tap hole
Special specification Charge 108 – 3 tap holes

Charge 109 – without tap hole
Charge 111 – 1 centre tap hole, without overflow
Charge 112 – without tap holes, without overflow
Charge 136 – 3 tap holes, distance 8 inches
Charge 142 – without tap hole, without overflow
and without open drain
Charge 156 – 1 centre tap hole, without overflow
and without open drain
Charge 158 – 3 tap holes, without overflow

Weight 19,0 kg

TECHNICAL DRAWINGS / S 1 : 20

200

135

465

80-120

Accessories excl. Siphon cover, order no.

(3 tap holes not possible)
Pedestal, order no. 81996.2

Mounting acc. excl. Mounting set M10 x 140 mm,

order no. 89988.2

Colours see colour table

SPECIFICATION TEXT

Countertop basin LAUFEN PRO S, sanitary ceramic
EN 31, dimensions 700 x 465 mm, angular
1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
3 tap holes, without tap holes, 1 tap hole without overflow, without tap
holes and overflow, 3 tap holes distance 8 inches, without tap holes/
overflow and open drain, 1 tap hole/without overflow and open drain,
3 tap holes without overflow, siphon cover, pedestal, bathtubs, furniture
Order no. 81096.7

81996.3

280

45

95

175

700

* = Effective height must be fixed according to the height of the pedestal.

max.660

530

580

~850*

max.445

Z 130805
