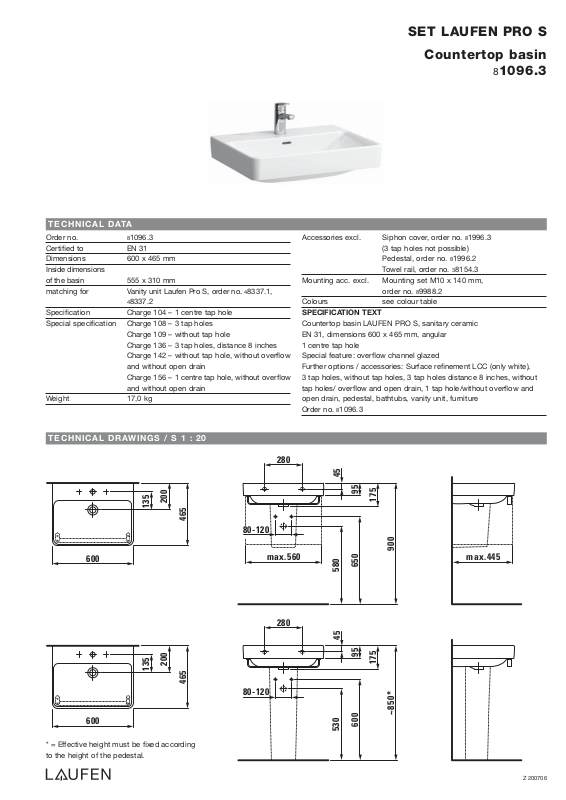

Laufen 8.1096.3 Datasheet

200

135

465

600

80-120

175

45

530

600

~850*

95

280

200

135

465

600

80-120

175

45

580

650

900

95

max.560

280

max.445

TECHNICAL DATA

Order no. 81096.3
Certified to EN 31
Dimensions 600 x 465 mm
Inside dimensions
of the basin 555 x 310 mm
matching for Vanity unit Laufen Pro S, order no.

48337.2
Specification Charge 104 – 1 centre tap hole
Special specification Charge 108 – 3 tap holes

Charge 109 – without tap hole
Charge 136 – 3 tap holes, distance 8 inches
Charge 142 – without tap hole, without overflow
and without open drain
Charge 156 – 1 centre tap hole, without overflow
and without open drain

Weight 17,0 kg

48337.1,

SET LAUFEN PRO S

Countertop basin

81096.3

Accessories excl. Siphon cover, order no. 81996.3
(3 tap holes not possible)
Pedestal, order no.
Towel rail, order no. 38154.3
Mounting acc. excl. Mounting set M10 x 140 mm,
order no. 89988.2
Colours see colour table

SPECIFICATION TEXT

Countertop basin LAUFEN PRO S, sanitary ceramic
EN 31, dimensions 600 x 465 mm, angular
1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
3 tap holes, without tap holes, 3 tap holes distance 8 inches, without
tap holes/ overflow and open drain, 1 tap hole/without overflow and
open drain, pedestal, bathtubs, vanity unit, furniture
Order no. 81096.3

81996.2

TECHNICAL DRAWINGS / S 1 : 20

* = Effective height must be fixed according
to the height of the pedestal.

Z 200706
