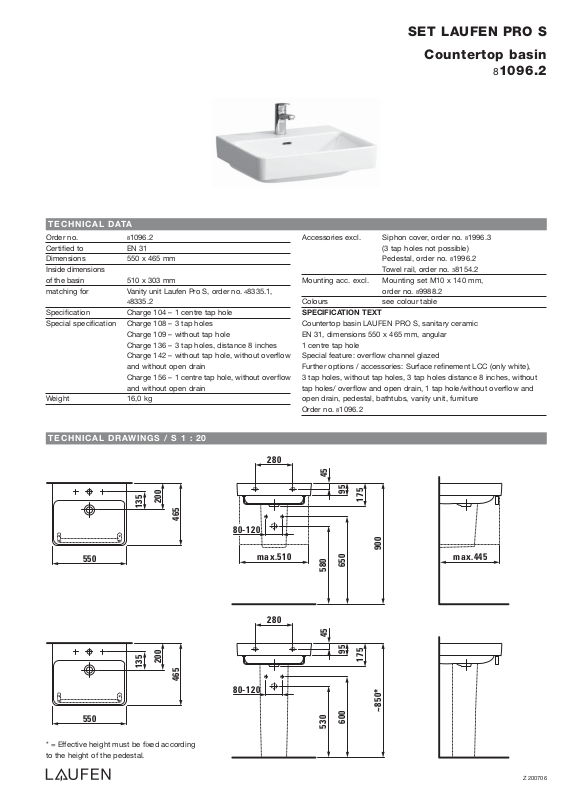

Laufen 8.1096.2 Datasheet

TECHNICAL DATA
200
135
465
550
80-120
175
45
530
600
~850*
95
280
200
135
465
550
80-120
175
45
580
650
900
95
max.510
280
max.445
Order no. 81096.2 Certified to EN 31 Dimensions 550 x 465 mm Inside dimensions of the basin 510 x 303 mm matching for Vanity unit Laufen Pro S, order no.
48335.2 Specification Charge 104 – 1 centre tap hole Special specification Charge 108 – 3 tap holes Charge 109 – without tap hole Charge 136 – 3 tap holes, distance 8 inches Charge 142 – without tap hole, without overflow and without open drain Charge 156 – 1 centre tap hole, without overflow and without open drain Weight 16,0 kg
48335.1,
SET LAUFEN PRO S
Countertop basin
81096.2
Accessories excl. Siphon cover, order no. 81996.3 (3 tap holes not possible) Pedestal, order no. Towel rail, order no. 38154.2 Mounting acc. excl. Mounting set M10 x 140 mm, order no. 89988.2 Colours see colour table
SPECIFICATION TEXT
Countertop basin LAUFEN PRO S, sanitary ceramic EN 31, dimensions 550 x 465 mm, angular 1 centre tap hole Special feature: overflow channel glazed Further options / accessories: Surface refinement LCC (only white), 3 tap holes, without tap holes, 3 tap holes distance 8 inches, without tap holes/ overflow and open drain, 1 tap hole/without overflow and open drain, pedestal, bathtubs, vanity unit, furniture Order no. 81096.2
81996.2
TECHNICAL DRAWINGS / S 1 : 20
* = Effective height must be fixed according to the height of the pedestal.
Z 200706
