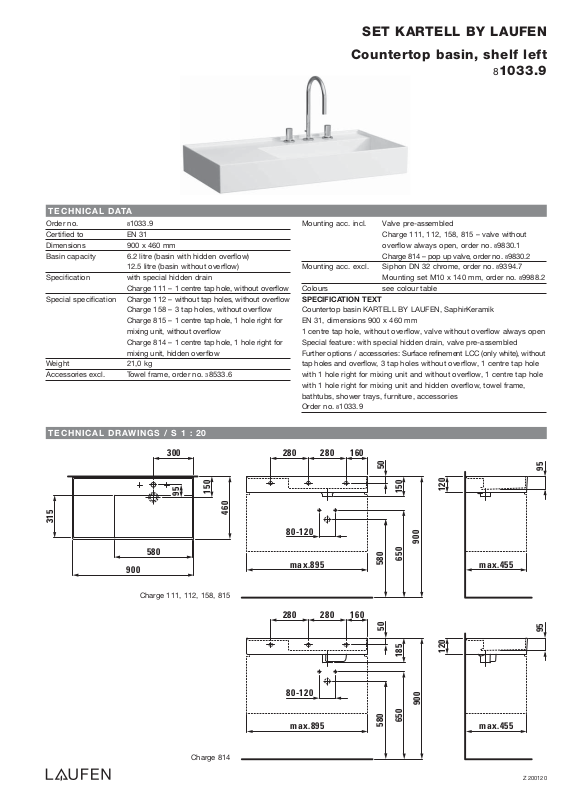

Laufen 8.1033.9 Datasheet
TECHNICAL DATA
580
650
900
80-120
150
120
50
280280 160300
460
150
95
max.455
max.895
900
580
315
95
580
650
900
80-120
185
120
50
280280 160
max.455
max.895
95
Order no. 81033.9
Certified to EN 31
Dimensions 900 x 460 mm
Basin capacity 6.2 litre (basin with hidden overflow)
12.5 litre (basin without overflow)
Specification with special hidden drain
Charge 111 – 1 centre tap hole, without overflow
Special specification Charge 112 – without tap holes, without overflow
Charge 158 – 3 tap holes, without overflow
Charge 815 – 1 centre tap hole, 1 hole right for
mixing unit, without overflow
Charge 814 – 1 centre tap hole, 1 hole right for
mixing unit, hidden overflow
Weight 21,0 kg
Accessories excl. Towel frame, order no. 38533.6
SET KARTELL BY LAUFEN
Countertop basin, shelf left
81033.9
Mounting acc. incl. Valve pre-assembled
Charge 111, 112, 158, 815 – valve without
overflow always open, order no.
Charge 814 – pop up valve, order no. 89830.2
Mounting acc. excl. Siphon DN 32 chrome, order no.
Mounting set M10 x 140 mm, order no. 89988.2
Colours see colour table
SPECIFICATION TEXT
Countertop basin KARTELL BY LAUFEN, SaphirKeramik
EN 31, dimensions 900 x 460 mm
1 centre tap hole, without overflow, valve without overflow always open
Special feature: with special hidden drain, valve pre-assembled
Further options / accessories: Surface refinement LCC (only white), without
tap holes and overflow, 3 tap holes without overflow, 1 centre tap hole
with 1 hole right for mixing unit and without overflow, 1 centre tap hole
with 1 hole right for mixing unit and hidden overflow, towel frame,
bathtubs, shower trays, furniture, accessories
Order no. 81033.9
89830.1
89394.7
TECHNICAL DRAWINGS / S 1 : 20
Charge 111, 112, 158, 815
Charge 814
Z 200120
