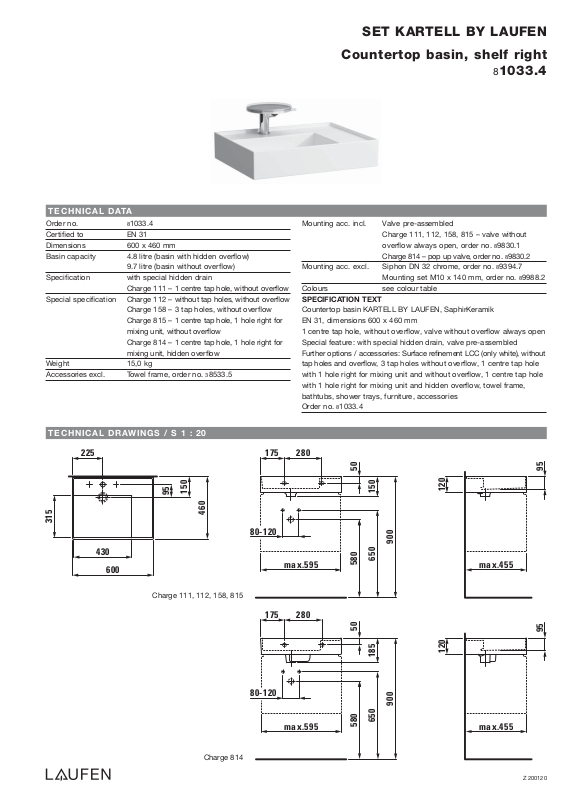

Laufen 8.1033.4 Datasheet

580

650

900

80-120

185

120

50

280175

max.455

max.595

95

TECHNICAL DATA

580

650

900

80-120

150

460

150

120

50

280175225

95

max.455

max.595

600

430

315

95

Order no. 81033.4
Certified to EN 31
Dimensions 600 x 460 mm
Basin capacity 4.8 litre (basin with hidden overflow)

9.7 litre (basin without overflow)
Specification with special hidden drain
Charge 111 – 1 centre tap hole, without overflow
Special specification Charge 112 – without tap holes, without overflow
Charge 158 – 3 tap holes, without overflow

Charge 815 – 1 centre tap hole, 1 hole right for
mixing unit, without overflow
Charge 814 – 1 centre tap hole, 1 hole right for

mixing unit, hidden overflow
Weight 15,0 kg
Accessories excl. Towel frame, order no. 38533.5

SET KARTELL BY LAUFEN

Countertop basin, shelf right

81033.4

Mounting acc. incl. Valve pre-assembled
Charge 111, 112, 158, 815 – valve without
overflow always open, order no.
Charge 814 – pop up valve, order no. 89830.2
Mounting acc. excl. Siphon DN 32 chrome, order no.
Mounting set M10 x 140 mm, order no. 89988.2
Colours see colour table

SPECIFICATION TEXT

Countertop basin KARTELL BY LAUFEN, SaphirKeramik
EN 31, dimensions 600 x 460 mm
1 centre tap hole, without overflow, valve without overflow always open
Special feature: with special hidden drain, valve pre-assembled
Further options / accessories: Surface refinement LCC (only white), without
tap holes and overflow, 3 tap holes without overflow, 1 centre tap hole
with 1 hole right for mixing unit and without overflow, 1 centre tap hole
with 1 hole right for mixing unit and hidden overflow, towel frame,
bathtubs, shower trays, furniture, accessories
Order no. 81033.4

89830.1

89394.7

TECHNICAL DRAWINGS / S 1 : 20

Charge 111, 112, 158, 815

Charge 814

Z 200120
