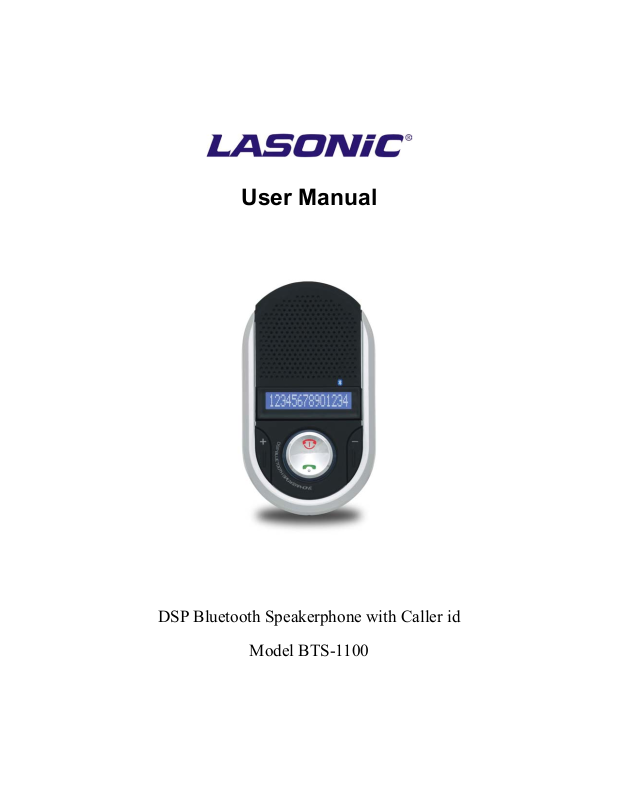

User Manual
DSP Bluetooth Speakerphone with Caller id
Model BTS-1100
Table of Contents Page
Introduction………………………………………………….. .2
Package contents…………………………………………….. .2
Sunvisor Mounting…………………………………………….3
Keys and Functions……………………………………………4
Features………………………………………………………...5
Pairing Procedure………………………………………………5
Disconnect and Re-connect pairing……………………………6
Answer, Hang up a call…………………………………………6
Volume Control…………………………………………………6
Mute mic during conversation………………………………….6
Call Waiting……………………………………………………..7
Call Transfer…………………………………………………….7
Make Call from Received &
Missed calls memory……………………………………………7
IB-BT-1100-CAR-01 -1-
Introduction
z This product is a speakerphone with caller ID.
z You could use this car kits in car, home, office.
z This speakerphone is compliant with bluetooth version 1.2
z Support both Handsfree and Headset profile.
Package Contents
This package includes 3 parts:
< ---------- Main unit
Car Charger------->
<--------- Rotating sunvisor clip
Plastic Clip adapter---------->
-2-
Mounting the car kit at sunvisor
Method 1 : Mounting with rotating clip
Step I
Plug rotating clip
Into speakerphone
Bracket holder
Plug rotating clip
Into speakerphone
Bracket holder
Step II
1. Slide the clip into car sunvisor
2. Adjust the LCD display to be readable by driver.
3. Fasten the screw.
Slide this clip
Into the car sunvisor
Method 2 : Mounting without rotating clip
Remove the Put the plastic Slide the metal clip (Photo.2.1)
adjustable clip adapter into clip into this bracket.
Photo 2.1 -3-
Buttons and Function (Front View)
1. Speaker
2. Answer Call
3. Hang up
4. Vo l u m e –
5. Vo l u m e +
6. LCD Display
7. Microphone
z Side View
DC 6V
z Rear View
Special Note: Press Reset when this device gets connecting with mobile.
-4-
Charging socket
Sunvisor clip
holding bracket
Bluetooth
upgrade socket
Reset
Features
z Display caller telephone number
z Mute microphone on/off
z Support voice dialing
z Last number redial
z 10 calls memory
z Call transfer
z Battery Charging indicator
z Pairable for 4users
z Talk time: up to 10 hours
z Standby time: 120 hours.
Pairing Procedure
Step 1 : Power on bluetooth speakerphone by press and hold
for 5 seconds.
Step 2 : Press and hold
Step 3 : Bluetooth speakerphone shows Ready to pair.
Step 4 : Activate the phone SEARCH for bluetooth device.
Step 5 : In SEARCH, you may find a list of bluetooth device in phone,
Select ‘’ BT-1100’’.
Step 6 : Enter generic pass code ‘’1234’’ to associate(Pair’’) and
connect the speakerphone.
Step 7 : Once you have entered the pass code, your phone is
paired for this bluetooth speakerphone.
Step 8 : If the car kits LCD shows your name of phone
(i.e. Nokia N73), it means that pairing has succeeded. You can
use the speakerphone.
-5-
for 2 seconds to activate pairing
How to disconnect
Press for 2 seconds,
How to re-connect.
Press once.
Answer incoming calls
Press button,
Press phone Answer call button.
Reject and Hang up a call
Press button to reject or hang up.
Or press phone hang up button to end the call.
Volume up and down
Press to increase volume
Press
to decrease volume
Mute Mic during conversation
Press and hold
The display shows ‘’Mute’’
Press
again, the mic is on.
How to redial.
Double click
How to power off
Press for 5 seconds.
-6-
Call waiting
On conversation with 1st call, a new 2nd calls comes in.
Double press
to activate 2nd call. This will keep 1st call waiting.
Call transfer
Press and hold to transfer calls from speakerphone to mobile
Press
once to transfer the calls from mobile to speakerphone.
Voice dialing
Press
Can say the desired name ‘’ voice tap’’ Say the voice tap.
The phone plays the voice tap and dials the related phone number.
Note: This voice dialing function is available for phone
supporting voice dialing.
once until you hear a tone that indicates you.
Making a call from Received calls or missed calls
Press and hold
mode.
Press
Press
Press
telephone no.
-7-
once to select recent calls.
once to view next recent calls.
to dial corresponding selected caller
for 2 seconds to enter Memory
