Laser KB-IPADA Quick Manual

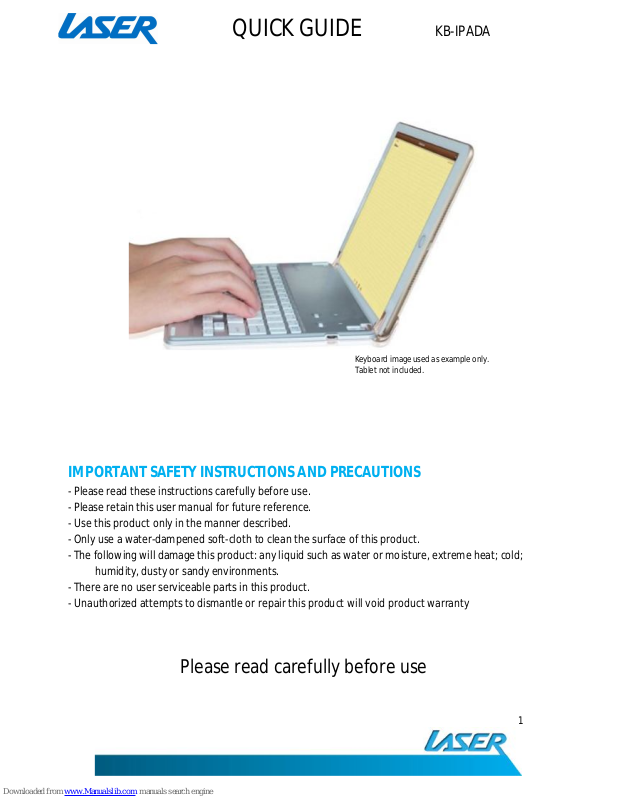

QUICK GUIDE KB-IPADA

1

IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS

- Please read these instructions carefully before use.

- Please retain this user manual for future reference.

- Use this product only in the manner described.

- Only use a water-dampened soft-cloth to clean the surface of this product.

- The following will damage this product: any liquid such as water or moisture, extreme heat; cold;
humidity, dusty or sandy environments.

- There are no user serviceable parts in this product.

- Unauthorized attempts to dismantle or repair this product will void product warranty

Please read carefully before use

Keyboard image used as example only.

Tablet not included.

QUICK GUIDE KB-IPADA

2

WHAT’S IN THE BOX

1 x Bluetooth keyboard, 1 x USB cable, 1 x User Manual

OVERVIEW

Bluetooth technology range up to 10-15 meters

CONTROLS AND INDICATORS

Function Action Description

Status

Bluetooth status

Flashing when pairing a new
device (only)

Power status

Indicates when keyboard is
turned On

Battery Status

Blinks twice every 5 seconds,
when charge required.

Connect Turn on Bluetooth

Press CONNECT when ready to
pair to your new device

(Power)

Charging Indicator Indicates while charging

Off / On

Power button

Turn keyboard On or Off.

Note: Your keyboard will always attempt to re-pair with the previous paired device where possible.

QUICK GUIDE KB-IPADA

3

FUNCTION KEY COMMANDS

Apple voice command App

Long Press = Launch Siri

Single Press = Exit

Brightness Adjustment

Increase and decrease brightness

On-screen Keyboard: On, Off

Word Editing: Cut, Copy And Paste

Find function

Launch "Spotlight Search"

Media playback

Video: Pause, Replay, Next/Previous Clip
Music: Pause, Replay, Next/Previous Clip

Volume

Increase, Decrease, Mute

Security

Lock, Unlock Device

Navigation

Document and Webpage: Page up, Page

down, Goto Home, Goto End.

QUICK GUIDE KB-IPADA

4

PC, TABLET OR SMARTPHONE PAIRING

Before installing this product, please make sure your PC or device supports Bluetooth, that the feature
is enabled or that the Bluetooth dongle has been installed correctly.

1) Turn the Keyboard on by sliding the power switch to ON

2) Open the Bluetooth program of your PC or device and activate Bluetooth connectivity. Then
begin the “SEARCH NEW DEVICE” function.

3) Press the CONNECT button at the front of the keyboard

4) After a short scanning period, your PC or Device will indicate that your KB-IPADA keyboard has
been discovered and is ready for connection/pairing

5) Double click the icon for the Bluetooth keyboard.

6) If you are prompted to enter a pin-code, a random code will automatically be generated for
you (usually 8 numerical digits long) Enter this code as directed to complete the installation.

Note: If the above pairing process has failed, please ensure your Bluetooth receiver or software has
been installed correctly and then repeat the above steps.

APPLE IPHONE/IPAD® PAIRING

1) Turn the Keyboard on by sliding the power switch to ON

2) In the iPhone/iPad home screen, select settings，then general，then Bluetooth

2) Swipe the on/off switch to “on” The message “Now Discoverable” will appear

3) Press the CONNECT button on the back of keyboard, the keyboard LED light will flash

4) The KB-IPADA should be identified by your iPhone/iPad. Select it to complete the pairing

Note: If you are prompted to enter a pin-code, a random code will automatically be generated for you

(usually 8 numerical digits long) Enter this code as directed to complete the installation.

SONY PLAYSTATION 3® PAIRING

1) Turn the unit on by sliding the power switch to ON

2) In the PS3 menu，go to the settings section，select accessory settings，then go to
Manage Bluetooth Devices

3) Select REGISTER NEW DEVICE

4) Press the CONNECT button on the back of keyboard, the keyboard LED light will flash

5) Your PS3 will search for Bluetooth devices. When the KB-IPADA has been identified, select
“Bluetooth keyboard"

Note: If you are prompted to enter a pin-code, a random code will automatically be generated for you
(Usually 8 numerical digits long) Enter this code using the keyboard and press enter when

complete, to finish the installation.

PLEASE NOTE. AS THIS PRODUCT IS DESIGNED TO WORK PRIMARILY WITH APPLE TABLETS
SOME FUNCTIONS AND KEYS MAY NOT WORK WITH OTHER DEVICES.

QUICK GUIDE KB-IPADA

5

MAC INSTALLATION (OS X 10)

Go to System Preferences and click the Bluetooth
icon

Click the “+” sign to add new BT keyboard
(bottom left of screen)

The “Bluetooth Setup Assistant” program will
then open. Make sure your KB-IPADA is turned
on, then press the CONNECT button at the back
of the keyboard. Once the keyboard is detected,
it will appear on the hardware list. Click the
keyboard icon and then press “Continue”. If you
are prompted to enter a pin-code, a random
code will automatically be generated for you
(usually 8 numerical digits long). An example
only is provided below. This number is an
example number only) Type the generated digits
in the required fields then click the Return
button to finish the setup.

Note: All function keys may not be available when using your Mac OS

QUICK GUIDE KB-IPADA

6

SUPPORTED DEVICES

Apple iPad Air2, Pro 9.7"

SPECIFICATIONS

Dimension: 240 (L) x 175 (W) x 9 (H) mm
Weight: 355grams
Expected Battery life: Up to 150 hours
Transmission Distance: 10-15 meters (line of sight)

TROUBLE SHOOTING / Q & A

Why do I only get a few hours battery life?

Try sliding the power switch to the off
position when not in use.

I always find configuring Bluetooth
software to be very difficult. Do you have
any tips to make this easier?

For the first time user, we recommend
that you read these instructions carefully
before connecting your first device.
Bluetooth technology is the preferred
wireless technology, with the set up steps
simply repeated for any Bluetooth device.

For further product information and instruction please visit our product web

page at www.laserco.net or email [e-mail]

Please note: As continual improvements are made to this product, slight operational differences may

occur. For the most up-to-date user manual, please visit our web site.

QUICK GUIDE KB-IPADA

7

Warranty Against Defects

Laser Corporation Pty Ltd (“Laser”) warrants your new product to be free from defects in materials and workmanship for
12 months, from the date of purchase, provided that the product is used in accordance with accompanying
recommendations or instructions where provided. The benefit of this warranty is in addition to your rights under the
Australian Consumer Law and to other rights and remedies of the consumer under a law in relation to the goods or
services to which the warranty relates.

Through a network of retailers and resellers, Laser will provide you with your choice of a refund, repair or exchange
(where possible) for this product if it becomes defective within the warranty period. This warranty will no longer apply
where the defect is a result of alteration, accident, misuse, abuse, normal wear and tear, neglect or improper storage.

Please retain your receipt as proof of purchase
How to make a product warranty claim:
Step 1: Find your receipt which proves the date of purchase. Where the date of purchase cannot be verified, your place

of purchase or Laser will make an assessment based on the date of manufacture, the condition of the Laser Product and
the type of defect.

Step 2a): Contact your place of purchase. They will assess the nature of the fault and refund or replace the product as
per their store refund or warranty policy.

Step 2b): If your place of purchase cannot be contacted, then you can contact Laser . Customer Service with details of
your defective Laser Product: Phone: [phone]; or Email: [e-mail] or online

www.laserco.net/support/warranty (click on “Consumers (End Users)”). Our business address is at 1/6-8 Byfield Street,

North Ryde, NSW 2113
Step 3: Laser . will issue you with a Return Authorisation (RA) number within 48 hours. When requested, send us the

defective Product and a copy of your receipt. Laser will cover the cost of the return delivery.
Step 4: Wait for us to contact you. Once we have received your defective Laser Product for inspection, we will inform

you of our assessment of your claim within 7 days. When we contact you, we will firstly let you know whether you have a
valid claim under this Warranty, and if so, we will inform you whether your defective Laser Product will be replaced or
repaired, together with the number of days you can expect to wait to receive your replaced or repaired Laser Product.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
