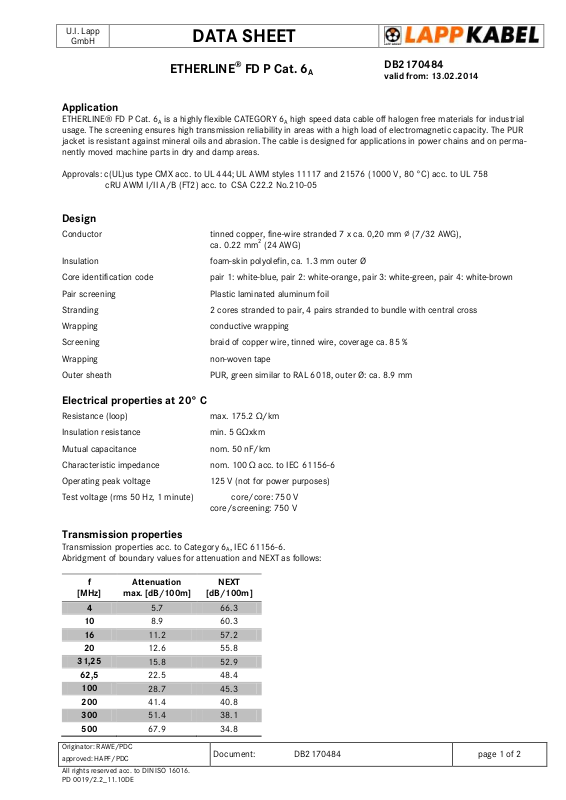

Page 1
U.I. Lapp
GmbH
DATA SHEET
ETHERLINE® FD P Cat. 6
A
DB2170484
valid from: 13.02.2014
Originator: RAWE/PDC
approved: HAPF/PDC
Document: DB2170484
page 1 of 2
Conductor
tinned copper, fine-wire stranded 7 x ca. 0,20 mm ∅ (7/32 AWG),
ca. 0.22 mm2 (24 AWG)
Insulation
foam-skin polyolefin, ca. 1.3 mm outer Ø
Core identification code
pair 1: white-blue, pair 2: white-orange, pair 3: white-green, pair 4: white-brown
Pair screening
Plastic laminated aluminum foil
Stranding
2 cores stranded to pair, 4 pairs stranded to bundle with central cross
Wrapping
conductive wrapping
Screening
braid of copper wire, tinned wire, coverage ca. 85 %
Wrapping
non-woven tape
Outer sheath
PUR, green similar to RAL 6018, outer Ø: ca. 8.9 mm
Resistance (loop)
max. 175.2 Ω/km
Insulation resistance
min. 5 GΩxkm
Mutual capacitance
nom. 50 nF/km
Characteristic impedance
nom. 100 Ω acc. to IEC 61156-6
Operating peak voltage
125 V (not for power purposes)
Test voltage (rms 50 Hz, 1 minute)
core/core: 750 V
core/screening: 750 V
f
[MHz]
Attenuation
max. [dB/100m]
NEXT
[dB/100m]
4
5.7
66.3
10
8.9
60.3
16
11.2
57.2
20
12.6
55.8
31,25
15.8
52.9
62,5
22.5
48.4
100
28.7
45.3
200
41.4
40.8
300
51.4
38.1
500
67.9
34.8
Application
ETHERLINE® FD P Cat. 6A is a highly flexible CATEGORY 6A high speed data cable off halogen free materials for industrial
usage. The screening ensures high transmission reliability in areas with a high load of electromagnetic capacity. The PUR
jacket is resistant against mineral oils and abrasion. The cable is designed for applications in power chains and on permanently moved machine parts in dry and damp areas.
Approvals: c(UL)us type CMX acc. to UL 444; UL AWM styles 11117 and 21576 (1000 V, 80 °C) acc. to UL 758
cRU AWM I/II A/B (FT2) acc. to CSA C22.2 No.210-05
Design
Electrical properties at 20° C
Transmission properties
Transmission properties acc. to Category 6A, IEC 61156-6.
Abridgment of boundary values for attenuation and NEXT as follows:
All rights reserved acc. to DIN ISO 16016.
PD 0019/2.2_11.10DE
Page 2
U.I. Lapp
GmbH
DATA SHEET
ETHERLINE® FD P Cat. 6
A
DB2170484
valid from: 13.02.2014
Originator: RAWE/PDC
approved: HAPF/PDC
Document: DB2170484
page 2 of 2
Minimum bending radius
moved: 15 x cable Ø
fixed installation: 8 x cable Ø
Permissible temperature range
moved: -30˚ C up to +70˚ C
fixed installation: -40˚ C up to +80˚ C
Power chain
min. 2.500.000 bending cycles
length 5 m
acceleration 3 m/s2
speed 3 m/s
Flame propagation
flame retardant acc. to IEC 60332-1-2, VW-1 acc. to UL 1581
Oil resistance
oil resistant acc. to IEC 60811-2-1
Halogen free
halogen free acc. to VDE 0472-815
General requirements
Dangerous and forbidden substances acc. to RoHS directive (2011/65/EU)
are not allowed to the manufacturing.
Mechanical and thermal properties
All rights reserved acc. to DIN ISO 16016.
PD 0019/2.2_11.10DE
