Dal 1905 macchine per caffè
www.lapavoni.com
La Pavoni S.p.A.
Via Privata Gorizia, 7
20098 San Giuliano Milanese (MI) - Italy
Telefono +39 02 98217.1
Fax +39 02 9821787
Cod. Fiscale e P. IVA 00790800155
e-mail: espresso @ lapavoni.it

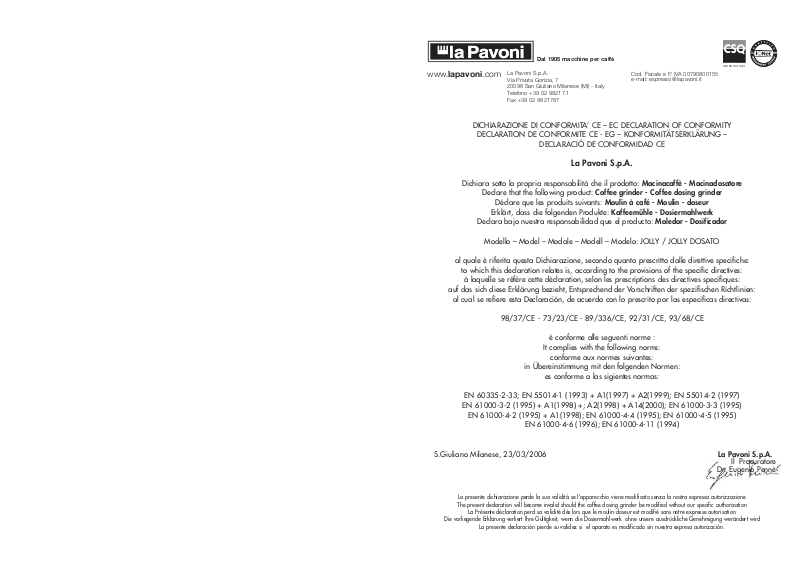

DICHIARAZIONE DI CONFORMITA’ CE – EC DECLARATION OF CONFORMITY
DECLARATION DE CONFORMITE CE - EG – KONFORMITÄTSERKLÄRUNG –
DECLARACIÓ DE CONFORMIDAD CE
La Pavoni S.p.A.
Dichiara sotto la propria responsabilità che il prodotto: Macinacaffè - Macinadosatore
Declare that the following product: Coffee grinder - Coffee dosing grinder
Déclare que les produits suivants: Moulin à café - Moulin - doseur
Erklärt, dass die folgenden Produkte: Kaffeemühle - Dosiermahlwerk
Declara bajo nuestra responsabilidad que el producto: Moledor - Dosificador
Modello – Model – Modale – Modell – Modelo: JOLLY / JOLLY DOSATO
al quale è riferita questa Dichiarazione, secondo quanto prescritto dalle direttive specifiche:
to which this declaration relates is, according to the provisions of the specific directives:
à laquelle se réfère cette dèclaration, selon les prescriptions des directives specifiques:
auf das sich diese Erklärung bezieht, Entsprechend der Vorschriften der spezifischen Richtlinien:
al cual se refiere esta Declaración, de acuerdo con lo prescrito por las especificas directivas:
98/37/CE - 73/23/CE - 89/336/CE, 92/31/CE, 93/68/CE
UNI EN ISO 9001
è conforme alle seguenti norme :
It complies with the following norms:
conforme aux normes suivantes:
in Übereinstimmung mit den folgenden Normen:
es conforme a las sigientes normas:
EN 60335-2-33; EN 55014-1 (1993) + A1(1997) + A2(1999); EN 55014-2 (1997)
EN 61000-3-2 (1995) + A1(1998) +; A2(1998) + A14(2000); EN 61000-3-3 (1995)
EN 61000-4-2 (1995) + A1(1998); EN 61000-4-4 (1995); EN 61000-4-5 (1995)
EN 61000-4-6 (1996); EN 61000-4-11 (1994)
S.Giuliano Milanese, 23/03/2006 La Pavoni S.p.A.
Il Procuratore
Dr. Eugenio Pennè
La presente dichiarazione perde la sua validità se l’apparecchio viene modificato senza la nostra espressa autorizzazione
The present declaration will become invalid should the coffee dosing grinder be modified without our specific authorization
La Présente déclaration perd sa validité dés lors que le moulin-doseur est modifié sans notre expresse autorisation
Die vorliegende Erklärung verliert Ihre Gültigkeit, wenn die Dosiermahlwerk ohne unsere ausdrückliche Genehmigung werändert wird
La presente declaraciòn pierde su validez si el aparato es modificado sin nuestra expresa autorización.
Italiano
I
Gentile cliente,
La ringraziamo per aver acquistato un nostro
prodotto, costruito secondo le ultime innovazioni tecnologiche. Seguendo scrupolosamente
le semplici operazioni riguardanti l’uso corretto del nostro prodotto in conformità alle
prescrizioni essenziali di sicurezza indicate
nel presente manuale, potrà ottenere il massimo delle prestazioni e verificare la notevole
affidabilità di questo prodotto nel corso degli
anni. Qualora dovesse riscontrare anomalie
nel funzionamento potrà sempre contare sulla
rete dei Centri di Assistenza che fin d’ora sono
a Sua disposizione.
English
GB
Dear Customer,
We thank you for buying one of our products,
made in accordance with the most up-to date
technological innovations. Following carefully
the simple operations of use contained in this
manual, which comply with essential safety
regulations, you will get the best performances
and notice the remarkable reliability of this
product along the years. In case of running
troubles, our network of Services Centres is at
your complete disposal from now on.
Français
F
Cher client,
nous Vous remercions pour l’achat d’un de nos
produits, construit sélon les dernières innovations technologiques. En suivant ettentivement
les indicatoins contenues dans le manuel sur
l’utilisation correcte de notre produit, en conformité avec les prescriptions essentielles de
securité, Vous pourrez attendre le grandes performances et verifier la remarquable fiabilité
de ce produit au cours des ans. En case d’anomalies de fontionnement, vous pourrez toujours
vous addresser à nos Services Après-Ventes qui
sont dès maintenant à votre disposition.
Deutsch
Sehr geehrte Kundin, Sehr geehrter Kunde,
Wir danken Ihnen, da Sie eine useren produkt
gekauft haben nach den letzten tecnologischer
Neuerungen geplant und hergestellt. Wir bitten
Sie, aufmerksam die im Handbuch enthaltenen
Hinweise bezüglich der richtigen Verwendung
unseres Produktes in Übereinstimmung mit den
wesentlichen Sicherheitsvorschriften zu lesen.
Wenn Sie diese Bedienungsanleitung sorgfälti
durchlesen und beachten, dann werden Sie
und Ihre Gäste mit diesem Gerät viel Freude
haben Noch etwas ist wichtig zu wissen: Sollten
einmal, entgegen allen Erwartungen, irgendwelche Störungen auftreten, dann ist unser
Kundendienst für Sie da, auch lange nach dem
Kauf Ihrer Maschinen.
Español
Estimado cliente,
le agradecemos ante todo el haber comprado
un producto nuestro, construido en base a las
ùltimas novedades tecnològicas.
Siguiendo escrupulosamente las simples operaciones respecto al debido uso de nuestro
producto y en conformidad a las prescripciones indispensables de seguridad indicadas en
el presente manual del usuario, Usted podrà
disfrutar de màximas prestaciones constatando
con el pasar de los años la gran confiabilidad
de todos nuentros productos.
De cualquier manera y en el caso de encontrar
un mal funcionamiento, Usted podrà contar
con una red de Centros de Asistencia que
desde ya estan a Su disposiciòn.
D
E
Prima della messa in funzione, leggere attentamente il manuale di istruzioni.
Before starting the grinder, please read carefully instruction manual.
Avant la mise en service, lire attentivement le
manuel d’instructions.
Lesen Sie vor der Inbetriebnahme aufmerksam
die Bedienungsanleitung.
Antes de la puesta en marcha, leer atentamente el manual de instrucciones.
Importante! Inter venti necessari al buon funzionamento.
Important! Interventions required for proper
operation
Important! Interventions nécessaires au bon
fonctionnement.
Wichtig! Für den einwandfreien Betrieb notwendige Wartungseingriffe
Importante ! Intervenciones necesarias para
un buen funcionamiento.
Attenzione! Togliere l’alimentazione elettrica
quando l’apparecchio non viene usato e
prima di procedere alla sua pulizia.
Warning! Disconnect the grinder from the
electricity mains when it is not being used or
before cleaning it.
Attention! Débrancher de la prise de courant
lorsque l’appareil n’est pas utilisée et avant de
procéder à son nettoyage.
Achtung! Ziehen Sie den Netzstecker, wenn die
Gerät nicht verwendet wird und bevor sie mit
ihrer Reinigung beginnen.
Atención! Desconectar la alimentación eléctrica cuando no se utiliza el aparato y antes de
proceder a su limpieza.
Attenzione! Superfici calde
Attention! Hot surfaces.
Attention ! Surfaces chaudes.
Achtung ! Heiße Oberflächen
Atención ! Superficies calientes.
Attenzione! Operazioni particolarmente importanti e/o pericolose.
Attention! Particularly important and/or dangerous operations.
Attention! Opérations particulièrement importantes et/ou dangereuses
Achtung! Besonders wichtige und/oder gefährliche Handlungen
Atención ! Operaciones particularmente importantes y/o peligrosas.
Interventi che possono essere svolti a cura
dell’utente.
Operations that may be carried out by the
user.
Interventions qui peuvent être effectuées par
l’utilisateur.
Wartungseingriffe, die der Benutzer vornehmen
kann
Intervenciones que puede efectuar el usuario.
Interventi che devono essere svolti esclusivamente da un tecnico qualificato.
Operations that can only be carried out by a
qualified engineer
Interventions qui doivent être effectuées exclusivement par un technicien qualifié.
Wartungseingriffe, die ausschließlich von einem
qualifizierten Techniker durchgeführt werden
dürfen
Intervenciones que tienen que ser realizadas
exclusivamente por un técnico cualificado.
ISTRUZIONI PER IL TRATTAMENTO A FINE VITA
Italiano
Questo prodotto è conforme alla Direttiva EU 2002/96/EC.
Il simbolo apposto sull’ apparecchiatura o sulla confezione indica che l’ apparecchiatura, alla fine della propria vita utile, non deve essere trattata come un rifiuto
domestico generico ma deve essere portata in uno dei centri di raccolta differenziata per apparecchiature elettriche ed elettroniche approntati dalla Pubblica Amministrazione. Oppure puo’ essere consegnata al rivenditore al momento dell’acquisto
di un’ apparecchiatura nuova equivalente. L’utente è responsabile del conferimento
dell’apparecchio a fine vita alle appropriate strutture di raccolta, pena le sanzioni
previste dalla vigente legislazione sui rifiuti.
L’adeguata raccolta differenziata per l’avvio successivo dell’apparecchio dismesso
al riciclaggio, al trattamento e allo smaltimento ambientalmente compatibile contribuisce ad evitare possibili effetti negativi sull’ambiente e sulla salute umana e
favorisce il riciclo dei materiali di cui è composto il prodotto.
Per informazioni più dettagliate inerenti i sistemi di raccolta disponibili, rivolgersi
al servizio locale di smaltimento rifiuti, o al rivenditore in cui è stato effettuato
l’acquisto. Il produttore e/o l’importatore ottemperano alle proprie responsabilità
per il riciclaggio, il trattamento e lo smaltimento ambientalmente compatibile sia
individualmente sia partecipando a sistemi collettivi.
English
This product complies with EU Directive 2002/96/EC.
The symbol on the product or on its packaging indicates that this product may
not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you
purchased the product.
GB
I
Deutsch
Dieses Produkt entspricht der EU-Richtlinie 2002/96/EG.
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das
Produkt nicht als normaler Haushaltsabfall zu behandeln
ist, sondern an einem Sammelpunkt für das Recycling von elektrischen und elektronischen Geräten abgegeben werden muss.
Durch Ihren Beitrag zum korrekten Entsorgen dieses Produkts schützen Sie die
Umwelt und die Gesundheit Ihrer Mitmenschen.
Umwelt und Gesundheit werden durch falsches Entsorgen gefährdet. Weitere Informationen über das Recycling dieses Produkts erhalten Sie
von Ihrer Gemeinde, der Müllabfuhr oder dem Geschäft, in dem Sie das Produkt
gekauft haben.
9
D
Français
L’ appareil est en conçu et fabriqué pour faciliter sa valorisation, son recyclage ou
sa réutilisation conformément à la directive européenne 2002/96/CEE relative
aux appareils électriques et électroniques usagés (waste electrical and electronic
equipment - WEEE).
Le logo ci-contre apposé sur l’appareil indique que ce produit ne peut pas être
éliminé avec les déchets ménagers non triés.
Lorsque vous aurez décidé de vous en séparer définitivement, il convient de faire
procéder à la collecte sélective de cet appareil en vous conformant au mode de
reprise mis en place dans votre commune (collecte ponctuelle des encombrants,
déchèterie), ou en faisant appel au service de reprise proposé par votre distributeur, ou bien, en le confiant à des organisations caritatives et des associations à
but non lucratif.
En vous assurant que ce produit est éliminé correctement, vous favorisez la prévention des conséquences négatives pour l’environnement et la santé humaine.
Español
Este produto está conforme a directiva EU 2002/96/EC.
O simbolo impresso no produto ou na sua embalagem indica que este produto não
se pode tratar como lixo doméstico normal.
Este produto deve ser entregue num ponto de recolha de equipamentos eléctricos
e electrónicos para reciclagem.
Ao assegurar-se que este produto é eliminado correctamente, estará a ajudar
a evitar possiveis consequências negativas para o ambiente e saúde pública
que resultariam se este produto não fosse manipulado de forma adquada. Para
obter informações mais detalhadas sobre a reciclagem deste produto, por favor
contacte o gabinete da câmara municipal da sua cidade ou a loja onde comprou
o produto.
F
E
11
TABLE OF CONTENTS
GB
ITALIANO 13-23
ENGLISH 25-35
FRANÇAIS 37-47
DEUTSCH 49-59
ESPAÑOL 61-71
1 – INTRODUCTION 27
2 – FUNCTIONS OF THE COFFEE DOSING GRINDER 27
2.1 GRINDER USE 28
3 – SAFETY WARNINGS 28
3.1 MISUSE 30
3.2 RESIDUAL RISKS
4 – TECHNICAL DIAGRAM AND SPECIFICATIONS 31
5 – ELECTRIC CONNECTION 32
6 – STARTING THE GRINDER 32
7 – GRINDING REGULATION 32
8 – COFFEE DOSING 32
8.1 JOLLY MODEL
8.2 JOLLY DOSATO MODEL 33
9 – CLEANING OPERATIONS 33
9.1 CASING CLEANING
9.2 BELL JAR CLEANING
9.3 GROUND COFFEE CONTAINER CLEANING
10 – RANGE OF MODELS 34
11 – CAUSES FOR OPERATING FAILURES
OR ANOMALIES (TROUBLESHOOTING) 35
25
1 – INTRODUCTION
This instruction manual is an integral part of the grinder, it should be read
carefully and should always be available for consultation; it should be kept
for the whole life of the grinder.
In case of lost or deterioration, you can ask for a new manual from an
authorised SERVICE CENTRE.
The manual contains the information regarding the proper use of the coffee
dosing grinder, to its cleaning and maintenance, and it supplies important
indications for carrying out operations requiring special attention and for
possible residual risks.
The manual reflects the technological innovations at the time of its
publishing; the manufacturer reserves the right to introduce all the technical
modifications required on its products and to update the manuals with no
obligation to also review the previous versions.
LA PAVONI S.p.A. declines any liability for damages that may be directly
or indirectly caused to people or things for the improper use of the coffee
grinder:
- failure to comply with all the prescriptions of the current safety regulations;
- improper installation;
- improper voltage;
- illegitimate or incorrect use of the coffee dosing grinder;
- incorrect use as specified in this manual;
- serious maintenance shortcomings;
- alterations on the grinder or any unauthorised intervention;
- not original use of spare parts which are not especially meant for the
model;
- total or partial failure with the instructions;
- exceptional events.
English
2 – – FUNCTIONS OF THE COFFEE DOSING GRINDER
This grinder has been designed for the home grinding of whole coffee
blends suitable for the preparation of espresso coffee.
The user must read carefully and clearly understand the directions contained in the manual, so as to be able to use the grinder properly.
26 27
English
English
2.1 – GRINDER USE
The JOLLY models can supply:
- ground coffee with grinding regulation
The JOLLY DOSATO models can supply:
- ground coffee with grinding regulation
- preset coffee dose for one cup of espresso coffee.
3 – SAFETY WARNINGS
The user has to follow the safety regulations in force in the country where
the grinder is in use, in addition to the rules suggested by common sense
and the directions contained in this manual.
In order to guarantee proper operation of the grinder and preservation
in time of its features, the user is advised to check the right environmental
conditions (room temperature must range between 5° and 35° C). To avoid
the use of the grinder in places where jets of water are used in outdoor
environments exposed to the action of the weather (sun, rain, etc.).
After removing the coffee dosing grinder from its packaging, make sure that
it is intact and it is not damaged.
The packaging must be delivered to the proper waste disposal centres and
in no case left unattended or to the reach of children or animals.
It is forbidden to remove from the grinder the safety protections and/or
devices provided for.
Unplug the grinder from the power socket when it is not in use and before
cleaning it, without pulling the electric cable.
Do not use the grinder if it is not working properly or if the electric cable or
the plug are damaged; the user is advised to replace the electric cable or to
have the grinder checked by an authorised SERVICE CENTRE.
To avoid damages use only accessories and spare parts that have been
approved by the manufacturer.
In case of grinder failure or faulty operation, switch it off. Do not try to
repair it yourself but refer to an authorised SERVICE CENTRE to have any
worn or damaged parts replaced with original spare parts.
In case of unauthorised repairs carried out on the grinder, or the use of non
original spare parts the guarantee is not valid anymore and the manufacturer will reserve the right to no longer acknowledge its validity.
Do not use the grinder outdoors.
Do not use the grinder for any use different from the one for which it has
been manufactured.
Before any cleaning or maintenance operation, disconnect the grinder by
placing the ON/OFF switch on the OFF position and remove the plug from
the power socket without pulling the power electric cable.
Before starting the grinder, make sure that the power supply voltage specified in the data plate placed under the base of the grinder is used in the
country.
Put the grinder in a safe place, on a solid base, away from heat sources
and out of the reach of children.
Before connecting and disconnecting the grinder, make sure that the ON/
OFF switch is on the OFF position.
Do not use the grinder without any coffee beans or when the bell jar is not
in its place.
28 29
To avoid fires, electric shocks and personal damage, never immerse the
grinder, the electric cable or other electrical components in water.
In case of fire, use carbon dioxide (CO2) fire extinguishers. Do not use
water or steam extinguishers.
EnglishEnglish
3.1 – MISUSE
In case of misuse any form of guarantee is not valid and the manufacturer declines any liability for damages to people and/or things
Will be regarded as misuse:
- any different use from the one declared;
- any intervention on the grinder that is not in line with the indications
listed in this manual;
- any use of the grinder that has been tampered with components or safety
devices;
- use of the grinder outdoors.
3.2 – RESIDUAL RISKS
The manufacturer declines any liability for damages to things, people or
animals, caused by any intervention on the grinder by non qualified people
or by people who have not been authorised to carry out such functions.
Do not remove in any case the safety cover placed on the selector, under
the bell jar. This is meant to prevent the access to the rotating grinder and
to avoid any injury
4 – TECHNICAL DIAGRAM AND SPECIFICATIONS
JOLLY
2
3
4
5
1
6
1. Bell jar lid
2. Bell jar
3. Regulation selector
4. Container lid
5. Ground coffee container
6. ON/OFF switch
7. Dosing machine fork
8. Dosing machine lever
9. Release button
10. Fork reducer
11. Tamper hook
N.B. The espresso coffee machines are equipped with the tamper
JOLLY DOSATO
11
4
5
7
1
2
3
9
8
6
7
10
Single-phase motor with double electrical insulation, milled grinders, adjustable
UNI EN ISO 9001
30 31
grinding, bell jar capacity 250 gr., power supply cable length 1500 mm.
Mod. Motor Rev./ Grinder Height Width Depth Weight
Power Min. Diameter
JOLLY 95 W 1400 50 mm 300 mm 130 mm 230 mm 4,0 Kg
JOLLY
DOSATO 95 W 1400 50 mm 305 mm 135 mm 250 mm 4,5 Kg
English
English
5 – ELECTRIC CONNECTION
Warning! Before making the electric connection, make sure that the main
power voltage corresponds to the specifications indicated on the data
plate placed under the base of the grinder.
6 – STARTING THE GRINDER
- Insert the plug of the electric cable in the power socket..
- Remove the lid (1) of the bell jar and fill the bell jar (2) with coffee
beans.
- Place the switch (6) on the I position; the internal warning light shows
that the grinder is on, at the same time, grinding will start; once the
desired amount of coffee has been ground, place the switch on the O
position to stop the grinding process.
The grinder is already set on bar-type grinding.
7 – GRINDING REGULATION
To change the grinding regulation, turn the bell jar (2) clockwise to bring
the grinders closer and obtain a finer grinding, or anticlockwise to distance
them and obtain a coarser grinding; please refer to the regulation selector
scale (3) that you will find on the base of the bell jar.
8.2 – JOLLY DOSATO MODEL
- Place the filter basket inside the filter-holder and together in the fork provided (7) into the dosing grinder (the device is equipped of one reducer
(10) to put into the fork (7) to fit to the dimensions of the filter-holder).
- Pull slowly the lever (8) of the dosing device as much as possible, to
allow delivery into the filter basket of the amount of ground coffee set
for one cup of espresso coffee.
Repeat the operation if you are preparing two cups of coffee.
9 – CLEANING OPERATIONS
Clean it after each use and sometimes carry out a more accurate cleaning
procedure on the bell jar (2) and on the ground coffee container (4), to
remove any oily substances.
Before conducting any kind of cleaning operation, unplug the electric
cable from the power socket..
9.1 – CASING CLEANING
To clean the grinder casing from coffee powder and dirt, use a damp cloth,
non abrasive cloth, without alcohol or solvents, to avoid damaging the
plastic, painted or treated parts.
9.2 – BELL JAR CLEANING
After having emptied the bell jar (2) from any coffee beans, remove it from
the body of the grinder by pulling it upwards; clean the inside with soapy
water, dry carefully and fit it back on the grinder.
8 – COFFEE DOSING
Ground coffee will deposit inside the container (5).
To fill the filter basket placed in the coffee machine filter-holder, follow the
steps outlined below:
8.1 – JOLLY MODEL
Remove the lid (4) of the ground coffee container (5) and, with the aid of
the measuring spoon provided, take the amount of coffee powder required
to prepare the espresso coffee.
32 33
For safety reasons, we recommend not to use the grinder without the
bell jar
9.3 – GROUND COFFEE CONTAINER CLEANING
Jolly Model
Remove the ground coffee container (5) from the body of the grinder, pulling
it upwards until it comes off from the container fastening screw; after having
removed any ground coffee powder, wash the inside with soapy water to
remove any coffee residues and oily substances, dry carefully and put the
container back in its place, insuring that it fits into the fastening screw.
EnglishEnglish
Jolly Dosato Model
Place the container under the dosing grinder fork (7).
Pull the dosing grinder lever (8) as many times as required to empty the
ground coffee container (5).
Remove the container from the body of the grinder as follows:
- seize the container (5) with one hand
- press the button (9) to release the container
- pull it out.
Wash the inside with soapy water to remove any coffee residues and oily
substances, dry it carefully and fit the container back in its place on the
body of the grinder by following the above steps in the reverse order.
10 – RANGE OF MODELS
Available in the following models:
- painted
- chrome
- copper
11 - CAUSES FOR OPERATING FAILURES OR ANOMALIES (TROUBLESHOOTING)
PROBLEMS CAUSE SOLUTION
The grinder does not 1. Power plug non inserted 1.Insert the plug in the power socket
switch on
reach the grinder
Mechanical block Foreign body between the
grinders
The dosing grinder does
not turn
The dosing grinder lever Return spring broken Refer to the SERVICE CENTRE
does not move backwards
Very fine powder mixed
with larger fragments
2. The power supply does not 2. Check the power cable
Eliminate any foreign bodies that there
may be between the grinders, by slightly
loosening the bell jar. Restart the grinder,
after having brought the bell jar back in
its original position.
Gear broken Refer to the SERVICE CENTRE
Grinders worn Refer to the SERVICE CENTRE
34 35
