Lantronix XPort User Manual

XPort™ User Guide

Part Number 900-270

Revision E August 2004

© 2004, Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America.

XPort, with its patent-pending technology, is a trademark of Lantronix.

Ethernet is a trademark of XEROX Corporation. UNIX is a registered trademark of The Open Group. Windows 95, Windows 98, Windows 2000, Windows NT, and Windows XP are trademarks of Microsoft Corp. Netscape is a trademark of Netscape Communications Corporation.

Contacts

Lantronix Corporate Headquarters

15353 Barranca Parkway Irvine, CA 92618, USA Phone: 949-453-3990 Fax: 949-453-3995

Technical Support

Phone: 800-422-7044 or 949-453-7198 Fax: 949-450-7226 Online: www.lantronix.com/support

Sales Offices

For a current list of our domestic and international sales offices, go to the Lantronix web site at http://www.lantronix.com/about/contact/index.html

XPort™ User Guide 2

Disclaimer and Revisions

Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his or her own expense, will be required to take whatever measures may be required to correct the interference.

Changes or modifications to this device not explicitly approved by Lantronix will void the user's authority to operate this device.

Attention: With the purchase of XPort™, the OEM agrees to an OEM

firmware license agreement that grants the OEM a non-exclusive, royaltyfree firmware license to use and distribute the binary firmware image provided, only to the extent necessary to use the XPort™ hardware. For further details, please see the XPort OEM firmware license agreement.

Date Rev. Comments

A Initial release

B Updates.

11/03 C Revised for v.1.6 of the firmware.

4/04 D Information to support XPort-03.

8/04 E Added XPort-485 functionality. Updated common

settings for all models.

If you use a previous version of the firmware, go to the Lantronix FTP site at

ftp://ftp.lantronix.com/pub

to find the earlier documentation.

XPort™ User Guide 3

Contents

1: Using This Guide 7

Purpose and Audience________________________________________________ 7 Chapter Summary ___________________________________________________ 7 Additional Documentation _____________________________________________ 8

2: Introduction 9

Capabilities ________________________________________________________ 9 Applications ________________________________________________________ 9 Protocol Support ___________________________________________________ 10 Addresses and Port Numbers _________________________________________ 10

Hardware Address ______________________________________________________ 10 IP Address ____________________________________________________________ 10 Port Numbers __________________________________________________________ 10

Assigning an IP Address _____________________________________________ 11

3: Getting Started 12

Required Information ________________________________________________ 12

Hardware Address ______________________________________________________ 12 IP Address ____________________________________________________________ 12

Using DeviceInstaller to Assign an IP Address ____________________________ 12

Installing DeviceInstaller _________________________________________________ 12 Assigning an IP Address _________________________________________________ 13

Using Web-Manager to Configure the Unit _______________________________ 14 Unit Configuration Settings ___________________________________________ 15 Server Properties ___________________________________________________ 16 Port Properties _____________________________________________________ 17

Connect Mode Settings __________________________________________________ 18 Dedicated Connection ___________________________________________________ 18 Flush Mode Input Buffer__________________________________________________ 18 Packing Algorithm ______________________________________________________ 19 Additional Settings ______________________________________________________ 19

Factory Settings ____________________________________________________ 20 Update Settings ____________________________________________________ 20

4: Using Setup Mode for Configuration 21

Accessing Setup Mode ______________________________________________ 21

XPort™ User Guide 4

Contents

Using a Telnet Connection ________________________________________________ 21 Using the Serial Port _____________________________________________________ 22

Server Configuration (Network Configuration)_____________________________ 24

IP Address_____________________________________________________________ 24 Set Gateway IP Address__________________________________________________ 24 Netmask: Number of Bits for Host Part_______________________________________ 24 Change Telnet Configuration Password ______________________________________ 24 DHCP Name ___________________________________________________________ 25

Channel 1 Configuration (Serial Port Parameters) _________________________ 25

Baudrate ______________________________________________________________ 25 I/F (Interface) Mode _____________________________________________________ 26 I/F Mode: XPort-485 only _________________________________________________ 26 Flow__________________________________________________________________ 27 Port Number ___________________________________________________________ 27 Connect Mode__________________________________________________________ 28 Remote IP Address______________________________________________________ 33 Remote Port ___________________________________________________________ 33 DisConnMode __________________________________________________________ 34 Flush Mode (Buffer Flushing) ______________________________________________ 34 Pack Control ___________________________________________________________ 35 DisConnTime (Inactivity Timeout) ___________________________________________ 36 Send Characters ________________________________________________________ 36 Telnet Terminal Type ____________________________________________________ 36 Channel (Port) Password _________________________________________________ 36

E-mail Settings ____________________________________________________ 37

E-mail Setup ___________________________________________________________ 37 Trigger Setup __________________________________________________________ 38

Expert Settings ____________________________________________________ 38

TCP Keepalive time in seconds ____________________________________________ 39 ARP Cache timeout in seconds ____________________________________________ 39 High CPU Performance mode _____________________________________________ 39 Monitor Mode at Bootup __________________________________________________ 39 HTTP Port Number ______________________________________________________ 39 SMTP Port Number______________________________________________________ 39 RS-485 TX Enable Active Level.____________________________________________ 39

Security Settings ___________________________________________________ 40

Disable SNMP__________________________________________________________ 40 SNMP Community Name _________________________________________________ 40 Disable Telnet Setup_____________________________________________________ 40

XPort™ User Guide 5

Contents

Disable TFTP Firmware Upgrade __________________________________________ 41 Disable Port 77FE (Hex) _________________________________________________ 41 Disable Web Server _____________________________________________________ 41 Disable ECHO Ports_____________________________________________________ 41 Enable Encryption ______________________________________________________ 41 Encryption Tutorial ______________________________________________________ 42 Enable Enhanced Password ______________________________________________ 43 Disable Port 77F0 (Hex)__________________________________________________ 43

Factory Defaults____________________________________________________ 43

Channel 1 Configuration Defaults __________________________________________ 43 Expert Settings Defaults__________________________________________________ 44 Security Settings Defaults ________________________________________________ 44 E-mail Settings _________________________________________________________ 44

Exit Configuration Mode______________________________________________ 44

5: GPIO Interface 45

Configurable Pins___________________________________________________ 45

Features: _____________________________________________________________ 45

Control Protocol ____________________________________________________ 45

Guidelines ____________________________________________________________ 46 Commands ____________________________________________________________ 46

Examples _________________________________________________________ 48

6: Updating Firmware 50

Obtaining Firmware _________________________________________________ 50 Reloading Firmware_________________________________________________ 50

Using TFTP ___________________________________________________________ 50 Recovering the Firmware Using the Serial Port and DeviceInstaller ________________ 51

7: Monitoring the Network 52

Entering Monitor Mode via the Serial Port ____________________________________ 52 Entering Monitor Mode via the Network Port __________________________________ 52 Monitor Mode Commands ________________________________________________ 52

8: Troubleshooting 54

Problems and Error Messages ________________________________________ 54 Technical Support __________________________________________________ 57

XPort™ User Guide 6

1: Using This Guide

Purpose and Audience

This guide provides the information needed to configure, use and update the XPort™ and is intended for software developers and system integrators who are embedding the XPort in their designs. The information in this guide is relevant to XPort with firmware version 1.5 and higher.

Note: This document covers XPort™ Device Server versions XP1001000-0 1,

XP1001000-03, and XP1004000-03 (XPort-485).

Chapter Summary

The remaining chapters in this guide include:

2:Introduction

3:Getting Started

4:Using Setup Mode

5:GPIO Interface

6:Updating Firmware

7:Monitoring the Network

8:Troubleshooting

Describes the main features of the XPort and the protocols it supports.

Provides information for getting your unit up and running, using DeviceInstaller to assign an IP address, and WebManager to set parameters such as port and server properties.

Provides instructions for accessing Setup Mode (command line interface) using a Telnet connection through the network or a terminal or terminal emulation program through the serial port. Details the parameters that you must configure.

Provides instructions for configuring the three General Purpose I/O pins (CP1-3).

Provides instructions for obtaining the latest firmware and updating the XPort.

Provides instructions for accessing and using the command line interface for monitoring the network and diagnosing problems.

Describes common problems and error messages and how to contact Lantronix Technical Support.

XPort™ User Guide 7

Additional Documentation

The following guides are available on the product CD and the Lantronix web site (www.lantronix.com

1: Using This Guide

XPort Quick Start

XPort Integration Guide

Com Port Redirector User Guide

Web Enabling Your Device Server

Provides the steps for getting the XPort evaluation board up and running.

Provides information about the XPort hardware, testing the XPort using the evaluation board, and integrating the XPort into your product.

Provides information on using the Windowsbased utility to create a virtual com port.

Explains the detailed requirements for adding web services to the XPort and to other Lantronix device servers.

XPort™ User Guide 8

2: Introduction

This chapter summarizes the XPort device server’s features and basic information needed before getting started.

Capabilities

The XPort device server has the following capabilities:

 Connects devices through a TCP data channel or through a Telnet

connection to computers or to another device server. The XPort also supports UDP datagrams.

 Contains a web [HTTP] server allowing presentation of custom content and

easy configuration through the browser.

 Has three programmable I/O pins used to monitor or control attached

Applications

The XPort device server connects serial devices such as those listed below to Ethernet networks using the IP protocol family.

 ATM machines

 CNC controllers

 Data collection devices

 Universal Power Supply (UPS) management units

 Telecommunications equipment

 Data display devices

 Security alarms and access control devices

 Handheld instruments

 Modems

 Time/attendance clocks and terminals

devices.

XPort™ User Guide 9

Protocol Support

The XPort device server uses the Internet Protocol (IP) for network communications. It uses the Transmission Control Protocol (TCP) to assure that no data is lost or duplicated, and that everything sent to the connection arrives correctly at the target.

Other supported protocols include:

 ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, and SNMP for

network communications and management.

 TCP, UDP, and Telnet for connections to the serial port.

 TFTP for firmware and web page updates.

 IP for addressing, routing, and data block handling over the network.

 User Datagram Protocol (UDP) for typical datagram applications in which

devices interact with other devices without maintaining a point-to-point connection.

 SMTP for e-mail transmission.

2: Introduction

Addresses and Port Numbers

Hardware Address

The hardware address is also referred to as the Ethernet address or the MAC address. The first three bytes of the Ethernet address are fixed and read 00-20-4A, identifying the unit as a Lantronix product. The fourth, fifth, and sixth bytes are unique numbers assigned to each unit.

Example: 00-20-4A-14-01-18

IP Address

Every device connected to an IP network must have a unique IP address. This address is used to reference the specific unit.

Port Numbers

Every TCP connection and every UDP datagram is defined by a destination IP address and a port number. For example, a Telnet application commonly uses port number 23. A port number is similar to an extension on a phone system.

The unit's serial channel (port) can be associated with a specific TCP/UDP port number. Port number 9999 is reserved for access to the unit's Setup (configuration) Mode window.

XPort™ User Guide 10

Assigning an IP Address

For the unit to operate correctly on a network, it must have a unique IP address on the network. There are three basic methods for logging into the device server and assigning the IP address:

DHCP: By default, Dynamic Host Configuration Protocol (DHCP) is enabled on the

device server. DHCP allows a DHCP server to automatically assign an IP address to the device server. If you use DHCP, the device server is assigned a new IP address each time it boots.

DeviceInstaller: You can manually assign the IP address using a graphical user interface (GUI) on a PC attached to a network. (See 3:Getting Started.)

Serial Port Login: With this method, you connect a terminal or a PC running a terminal emulation program to the unit’s serial port (CH 1). (See 4:Using Setup

Mode.)

2: Introduction

XPort™ User Guide 11

3: Getting Started

This chapter covers the steps for getting the XPort device server online and working.

Required Information

Hardware Address

You need to know the unit’s hardware address (also known as MAC address), which is on the product label. It is in the format: 00-20-4a-XX-XX-XX, where the XXs are unique numbers assigned to the product.

Hardware Address: 00-20-4a-_____-_____-_____

IP Address

The XPort must have a unique IP address on the network. The systems administrator generally provides the IP address and corresponding subnet mask and gateway. The IP address must be within a valid range, unique to the network, and in the same subnet as the PC.

IP Address: _______ _______ _______ _____ __

Subnet Mask: _______ _______ _______ _______

Gateway: _______ _______ _______ _______

Using DeviceInstaller to Assign an IP Address

The unit’s IP address must be configured before it can work correctly on a network. You have several options for assigning an IP to your unit. We recommend that you manually assign the IP address over the network using DeviceInstaller software, which is on the product CD.

Note: To use a serial connection instead of an Ethernet connection to configure the

device, see Using the Serial Port on page 22.

Installing DeviceInstaller

1. Insert the product CD into your CD-ROM drive. The CD automatically starts and displays the main window.

2. If the CD does not launch automatically:

XPort™ User Guide 12

3: Getting Started

a) Click the Start button on the Task Bar and select Run. b) Enter your CD drive letter, colon, backslash, Launch.exe (e.g.,

D:\Launch.exe).

3. Click the DeviceInstaller button. The installation wizard window displays.

4. Respond to the installation wizard prompts.

Note: For more information about Device Installer, see the

DeviceInstaller User Guide on the product CD and the DeviceInstaller online help.

Assigning an IP Address

The unit’s IP address is normally set to 0.0.0.0 at the factory. The hardware address is on the product label. The unit is DHCP enabled as the default.

To manually assign an IP address:

1. Click StartÆPrograms Æ LantronixÆDeviceInstallerÆDeviceInstaller. If your

PC has more than one network adapter, a message displays. Select an adapter

and click OK.

Note: If the unit already has an IP address (e.g., DHCP has assigned an

IP address), click the Search icon and select the unit from the list of Lantronix device servers on the local network.

2. Click the Assign IP icon

3. If prompted, enter the hardware address (on the product label) and click Next.

4. Select Assign a specific IP address and click Next.

5. Enter the IP address. The Subnet mask displays automatically based on the IP

address; if desired, you may change it. On a local network, you can leave the

Default gateway blank (all zeros). Click Next.

6. Click the Assign button and wait several seconds until a confirmation message

displays. Click Finish.

7. Select the device from the main window list and select Ping from the Tools

menu. The Ping Device dialog box shows the IP address of the selected unit.

8. From the Tools menu, click the Ping button. The results display in the Status

window. Click the Clear Status button to clear the window so you can ping the

device again.

Note: If you do not receive “Reply” messages, make sure the unit is

properly attached to the network and that the IP address assigned is valid for the particular network segment you are working with. If you are not sure, check with your systems administrator.

9. Click the Close button to close the dialog box and return to the main window.

XPort™ User Guide 13

Using Web-Manager to Configure the Unit

You must configure the unit so that it can communicate on a network with your serial device. For example, you must set the way the unit will respond to serial and network traffic, how it will handle serial packets, and when to start or close a connection.

The unit’s configuration is stored in nonvolatile memory and is retained without power. You can change the configuration at any time. The unit performs a reset after you change and store the configuration.

In this chapter, we describe how you can configure the XPort using Web-Manager, Lantronix’s browser-based configuration tool. (For information on using Setup Mode,

our command line configuration interface, see 4:Using Setup Mode on page 21.)

Note: The examples in this section show a typical device. Your device may

have different configuration options.

To configure the unit:

1. Open DeviceInstaller.

3: Getting Started

2. Click the Search icon

displays.

3. Select the unit and click the Web icon Device menu.

The Lantronix Web-Manager window displays in your browser.

Note: You can also open your JAVA-enabled web browser and enter the

IP address of the XPort to open Web-Manager. Web-Manager works with JAVA v1.3.1x or higher.

Figure 3-1. Lantronix Web-Manager

. A list of Lantronix device servers on the network

, or select Web Pages from the

XPort™ User Guide 14

3: Getting Started

On the left side of the screen, Web-Manager has the following menu options (buttons):

 Unit Configuration

 Server Properties

 Port Properties

 Factory Settings1

 Update Settings

 Select Channel

4. Use the menu to navigate to subpages for the configuration of server settings.

5. When finished, click the Update Settings button to save the settings.

Notes:

 The next chapter, 4:Using Setup Mode, explains the configuration settings in

detail.

 Use Setup Mode to configure e-mail, expert settings, and security settings.

Use DeviceInstaller for the configurable pins’ settings.

Unit Configuration Settings

Click the Unit Configuration button to display the following page:

XPort™ User Guide 15

This page displays the current Server Configuration and the Port Configuration settings.

Note: The following examples represent typical web pages. See the

Lantronix web site for the latest version.

Server Properties

Click the Server Properties button to display the following page:

3: Getting Started

Change the server properties by editing any of the fields. Holding the cursor over a field displays a Help message for that field. If the IP address is changed, enter the new IP address in the browser to reload the page.

In the Telnet Password field, enter a password to prevent unauthorized access to

the Setup Mode via a Telnet connection to port 9999. The password is limited to 4

XPort™ User Guide 16

characters. (An enhanced password setting of 16 characters is available under

Security Settings on the Telnet Setup Mode window.)

Note: You do not need a password to access the Setup Mode window via a

serial connection.

Port Properties

Click the Port Properties button to display the following page:

3: Getting Started

Edit the following fields as necessary:

Serial Protocol

Speed

XPort™ User Guide 17

RS232

Note: RS-232 is the only available option for XPort Device Server

versions XP1001000-01 & XP1001000-03. RS-422/485 is an additional option for XP1004000-03 (XPort-485).

300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, and 230400 XPort-03 and greater provide high-performance mode that also supports

the baud rates 460800 and 921600 bps (see High CPU Performance mode

on page 39)

Character Size Parity Stop Bit Flow Control

8, 7

None, Even, Odd

1,2

None, XON/XOFF, XON/XOFF Pass Characters to Host, CTS/RTS (Hardware)

Connect Mode Settings

3: Getting Started

UDP Datagram Mode UDP Datagram Type Incoming Connection

Response Startup

Enable, Disable

User Selectable

Accept unconditional, Accept incoming/DTR, Never accept incoming

Nothing (quiet), Character Response

No Active Connection Startup, With Any Character, With a carriage return (C0x0D) Start Character, Manual Connection, Autostart, Modem Mode, With Active DTR

Dedicated Connection

Remote IP Address Remote Port Local Port

User selectable

User selectable (default 10001)

Flush Mode Input Buffer

XPort™ User Guide 18

3: Getting Started

On Active Connection On Passive Connection At Time To Disconnect

Enable, Disable

Packing Algorithm

Packing Algorithm Idle Time

Trailing Characters Send Immediate After Sendchars Sendchar Define2-Byte

Sequence Send Character 01 Send Character 02

Enable, Disable

Packing Interval 12 ms, Interval 52 ms, Interval 250 ms, Interval 5000 ms

None, One, Two

Enable, Disable

User selectable

Additional Settings

Disconnect Mode Check for CTRL-D to

Disconnect Port Password Telnet Mode Inactivity Timeout Inactivity Timer Port Password

Ignore DTR, With DTR Drop

Enable, Disable

User Selectable

User selectable; Port Password must be enabled

XPort™ User Guide 19

Factory Settings

Click the Factory Settings button to set the device server back to the factory default settings. For details see page Factory Defaults on page 43.

Update Settings

Click the Update Settings button to send all changed settings to the device server.

3: Getting Started

XPort™ User Guide 20

4: Using Setup Mode for Configuration

You must configure the unit so that it can communicate on a network with your serial

device. You can configure it using a web browser, as described in 3:Getting Started, or using the following procedures locally or remotely:

 Use a Telnet connection to configure the unit over the network.

 Use a terminal or terminal emulation program to access the serial port

locally.

Note: Detailed information about other setup methods is available from your

Lantronix Sales Associate.

The unit’s configuration is stored in nonvolatile memory and is retained without power. You can change the configuration at any time. The unit performs a reset after the configuration has been changed and stored.

Note: The menus in this section show a typical device. Your device may

have different configuration options.

Accessing Setup Mode

Using a Telnet Connection

To configure the unit over the network, establish a Telnet connection to port 9999.

Note: You can also use DeviceInstaller to access Telnet. Select the device

from the main window list, and click the Telnet icon Telnet icon on the DeviceInstaller toolbar, skip steps 1 and 2.

1. From the Windows Start menu, click Run and type the following command,

where x.x.x.x is the IP address, and 9999 is the unit’s fixed network configuration port number:

Note: Be sure to include a space between the IP address and 9999.

2. Click OK. The following information displays.

. If you use the

telnet x.x.x.x 9999

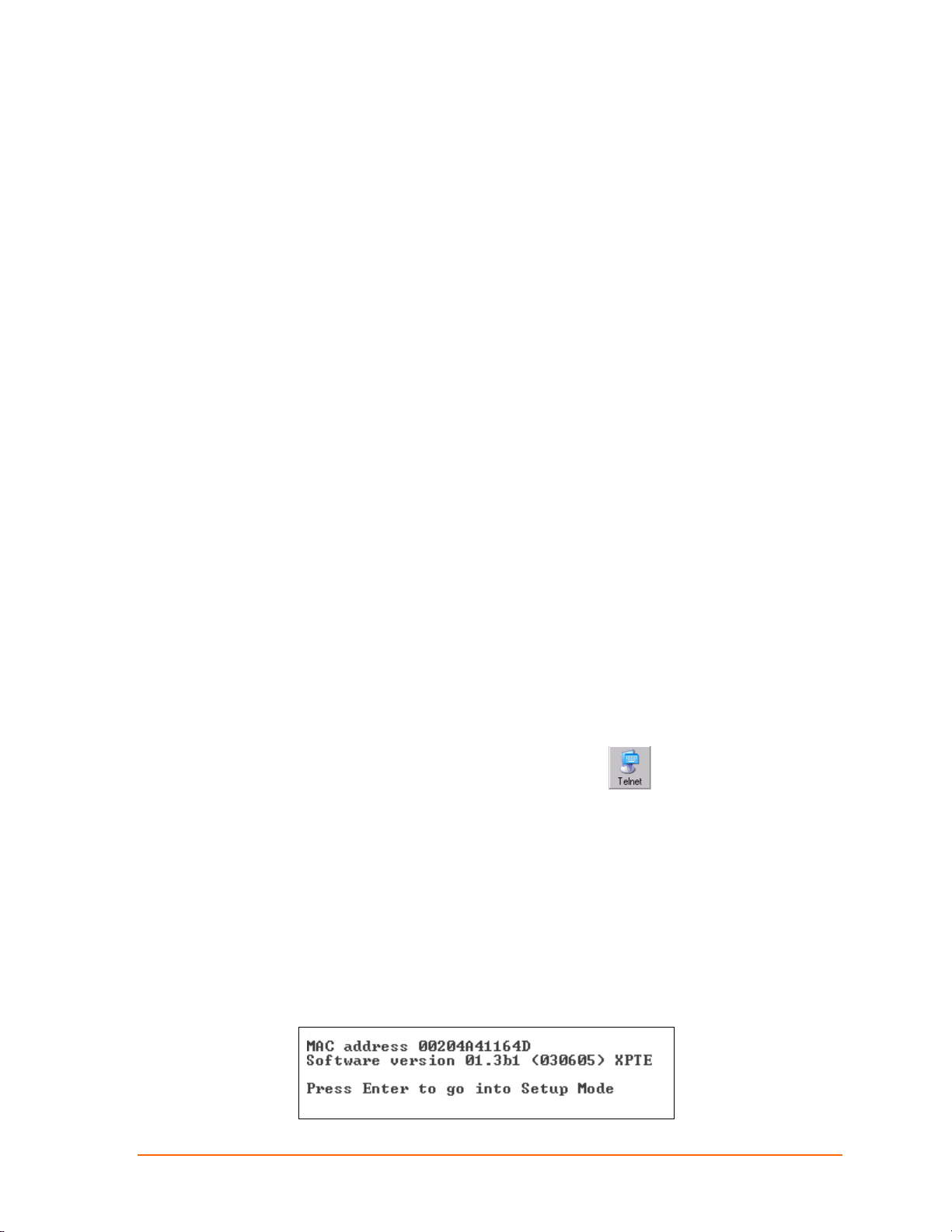

Figure 4-1. MAC Address

XPort™ User Guide 21

4: Using Setup Mode for Configuration

3. To enter the Setup Mode, press Enter within 5 seconds. The configuration

settings display, followed by the setup menu options.

Figure 4-2 Setup Menu Options

Change Setup: 0 Server configuration 1 Channel 1 configuration 3 E-mail settings 5 Expert settings 6 Security 7 Factory defaults 8 Exit without save 9 Save and exit Your choice ?

4. Select an option on the menu by entering the number of the option in the Your choice ? field and pressing Enter.

5. To enter a value for a parameter, type the value and press Enter, or to confirm a current value, just press Enter.

6. When you are finished, save the new configurations (option 9). The unit reboots.

Using the Serial Port

To initially configure the unit through a serial connection:

1. Connect a console terminal or PC running a terminal emulation program to your unit's serial port. The default serial port settings are 9600 baud, 8 bits, no parity, 1-stop bit, no-flow control.

2. To enter Setup Mode, reset the unit, either by pushing the red reset button, or

cycling the unit's power (power off and back on). The self-test will begin. You have one second to enter three lowercase x characters (xxx).

Note: The easiest way to enter Setup Mode is to hold down the x key at

the terminal (or emulation) while resetting the unit.

3. At this point, the screen display is the same as when you use a Telnet

connection. To continue, go to step 4 in Using a Telnet Connection on page 21.

The following figure shows all of the configuration parameters. The remainder of this chapter describes each parameter in detail.

XPort™ User Guide 22

4: Using Setup Mode for Configuration

Figure 4-3 Setup Mode Configuration Parameters

XPort™ User Guide 23

4: Using Setup Mode for Configuration

Server Configuration (Network Configuration)

The unit’s basic network parameters display when you select Server configuration (option 0). The IP Address, Set Gateway IP Address, and Netmask fields display

the current values.

Figure 4-4. Server Configuration Parameters

IP Address : (000) .(000) .(000) .(000) Set Gateway IP Address (N) Netmask: Number of Bits for Host Part (0=default) (0) Change telnet config password (N)

IP Address

The IP address must be set to a unique value in your network.

Set Gateway IP Address

The gateway address, or router, allows communication to other LAN segments. The gateway address should be the IP address of the router connected to the same LAN segment as the unit. The gateway address must be within the local network. The default is N (No), meaning the gateway address has not been set. To set the gateway

address, type Y and enter the address.

Netmask: Number of Bits for Host Part

A netmask defines the number of bits taken from the IP address that are assigned for the host section.

Note: Class A: 24 bits; Class B: 16 bits; Class C: 8 bits

The unit prompts for the number of host bits to be entered, then calculates the netmask, which displays in standard decimal-dot notation when the saved parameters are displayed (for example, 255.255.255.0).

Table 4-1. Standard IP Network Netmasks

Network Class Host Bits Netmask

A 24 255.0.0.0

B 16 255.255.0.0

C 8 255.255.255.0

Change Telnet Configuration Password

Setting the Telnet configuration password prevents unauthorized access to the setup menu via a Telnet connection to port 9999 or via web pages. The password must have 4 characters. An enhanced password setting (for Telnet access only) of 16

characters is available under Security Settings.

Note: You don’t need a password to access the Setup Mode window via a

serial connection.

XPort™ User Guide 24

4: Using Setup Mode for Configuration

DHCP Name

If a DHCP server has automatically assigned the IP address and network settings, you can discover the unit by using the DeviceInstaller network search feature.

There are three methods for assigning DHCP names to the unit.

 Default DHCP Name: If you do not change the DHCP name, and you are

using an IP of 0.0.0.0, then the DHCP name defaults to CXXXXXX (XXXXXX is the last 6 digits of the MAC address shown on the label on the bottom/side of the unit). For example, if the MAC address is 00-20-4A-12-34-56, then the default DHCP name is C123456.

 Custom DHCP Name: You can create your own DHCP name. If you are

using an IP address of 0.0.0.0, then the last option in Server configuration is

Change DHCP device name. This option allows you to change the DHCP

name to an alphanumeric name (LTX in our example).

Figure 4-5. Custom DHCP Name

Change DHCP device name (not set) ? (N) Y Enter new DHCP device name : LTX

 Numeric DHCP Name: You can change the DHCP name by specifying the

last octet of the IP address. When you use this method, the DHCP name is LTXYY where YY is what you chose for the last octet of the IP address. If the IP address you specify is 0.0.0.12, then the DHCP name is LTX12. This method only works with 2 digit numbers (0-99).

Channel 1 Configuration (Serial Port Parameters)

Using this option, define how the serial port will respond to network and serial communications.

Note: You must enter some values in hexadecimal notation.

Figure 4-6. Serial Port Parameters

Baudrate

The unit and attached serial device, such as a modem, must agree on a speed or baud rate to use for the serial connection. Valid baud rates are 300, 600, 1200, 2400,

XPort™ User Guide 25

4: Using Setup Mode for Configuration

4800, 9600 (default), 19200, 38400, 57600, 115200, and 230400 bits per second. XPort-03 and greater units also support high-performance baud rates of 460800, and

921600 bits per second (see Expert Settings on page 38).

I/F (Interface) Mode

The Interface (I/F) Mode is a bit-coded byte entered in hexadecimal notation.

Table 4-2. Interface Mode Options

I/F Mode Option 7 6 5 4 3 2 1 0

RS-232C

7 Bit 1 0

8 Bit 1 1

No Parity 0 0

Even Parity 1 1

Odd Parity 0 1

1 stop bit 0 1

2 stop bits

(1) 2 stop bits are implemented by the software. This might influence p erfo rmance.

(1)

0 0

(1)

1 1

Note: If attempting to select an I/F Mode bit that pertains to RS-422/485 on

XP1001000-01 or XP1001000-03, a” WARNING: RS-422/485 I/F Modes Not Supported” message displays. RS422/485 settings are available on the XP1004000-03 (XPort-485).

The following table demonstrates how to build some common Interface Mode settings:

Table 4-3. Common Interface Mode Settings

Common I/F Mode Setting Binary Hex

RS-232C, 8-bit, No Parity, 1 stop bit 0100 1100 4C

RS-232C, 7-bit, Even Parity, 1 stop bit 0111 1000 78

I/F Mode: XPort-485 only

Additional settings for RS-422/485 are available on the XPort-485.

Table 4-4. Interface Mode Options

I/F Mode Option 7 6 5 4 3 2 1 0

RS-422/485 0 1

RS-485 2-wire 1 1

XPort™ User Guide 26

4: Using Setup Mode for Configuration

Flow

Flow control sets the local handshaking method for stopping serial input/output. Use the following table to select flow control options:

Table 4-5. Flow Control Options

Flow Control Option Hex

No flow control 00

XON/XOFF flow control 01

Hardware handshake with RTS/CTS lines 02

XON/XOFF pass characters to host 05

Port Number

The setting represents the source port number in TCP connections. It is the number that identifies the channel for remote initiating connections. The default setting for Port 1 is 10001. The range is 1-65535, except for the following reserved port numbers:

Table 4-6. Reserved Port Numbers

Port Numbers Reserved for

1 – 1024 Reserved (well known ports)

9999 Telnet setup

14000-14009 Reserved for Redirector

30704 Reserved (77F0h)

30718 Reserved (77FEh)

Warning: We recommend that you not use the reserved port numbers

for this setting as incorrect operation may result.

The port number functions as the TCP/UDP source port number for outgoing packets. Packets sent to the unit with this port number are received to this channel. The port number selected is the Incoming TCP/UDP port and Outgoing TCP/UDP source port. Use Port 0 when you want the outgoing source port to change with each connection.

If the port number is 0, a random value of at least 50000 is used to actively establish a connection. Each subsequent connection increments the number by 1. When the port number reaches 59999, it wraps around to 50000.

Only use the automatic port increment feature to initiate a connection using TCP. Set the port to a non-zero value when the unit is in a passive mode or when you are using UDP instead of TCP.

XPort™ User Guide 27

4: Using Setup Mode for Configuration

Connect Mode

Connect Mode defines how the unit makes a connection, and how it reacts to incoming connections over the network. Enter Connect Mode options in hexadecimal notation.

Table 4-7. Connect Mode Options

Connect Mode Option 7 6 5 4 3 2 1 0

Incoming Connection

Never accept incoming 0 0 0

Accept with DTR Active 0 1 0

Always Accept 1 1 0

Response

Nothing (quiet) 0

Character response (C=connect, D=disconnect, N=unreachable)

Active Startup

No active startup 0 0 0 0

With any character 0 0 0 1

With DTR Active 0 0 1 0

With a specific start character 0 0 1 1

Manual connection 0 1 0 0

Autostart 0 1 0 1

Hostlist 0 0 1 0

Datagram Type

Directed UDP 1 1 0 0

Modem Mode

Full Verbose 1 0 1 1 0

Without Echo 0 0 1 1 0

Numeric modem result codes 1 0 1 1 1

Incoming Connection

Never Accept Incoming Accept with DTR Active

Always Accept

Rejects all external connection attempts.

Accepts external connection requests only when the DTR input is asserted. Cannot be used with Modem Mode.

Accepts any incoming connection when a connection is not already established. Default setting.

XPort™ User Guide 28

Response

Character Response

No Active Startup

With Any Character

With DTR Active

With a Specific Start Character

Manual Connection

4: Using Setup Mode for Configuration

A single character is transmitted to the serial port when there is a change in connection state: C = connected, D = disconnected, N = host unreachable. This option is overridden when the Active Start Modem Mode or Active Start Host List is in effect. Default setting is Nothing (quiet).

Does not attempt to initiate a connection under any

circumstance. Default setting.

Attempts to connect when any character is received from the serial port.

Attempts to connect when the DTR input changes from not asserted to asserted.

Attempts to connect when it receives a specific start character from the serial port. The default start character is carriage return.

Attempts to connect when directed by a command string received from the serial port. The first character of the command

string must be a C (ASCII 0x43), and the last character must be

either a carriage return (ASCII 0x0D) or a line feed (0x0A). No blanks or space characters may be in the command string. Between the first and last command string characters must be a full or partial destination IP address and may be a destination port number.

The IP address must be in standard dot-decimal notation and may be a partial address, representing the least significant 1, 2, or 3 bytes of the remote IP address. The period is required between each pair of IP address numbers.

If present, the port number must follow the IP address, must be presented as a decimal number in the range 1-65535, and must be preceded by a forward slash (ASCII 0x2F). The slash separates the IP address and the port number. If you omit the port number from a command string, the internally stored remote port number starts a connection.

If a partial IP address is presented in a command string, it is interpreted to be the least significant bytes of the IP address and uses the internally stored remote IP address to provide the most significant bytes of the IP address. If the IP address entered is

0.0.0.0/0, the device server enters Monitor Mode.

For example, if the remote IP address already configured in the unit is 129.1.2.3, then an example command string would be C3/7. (This would connect to 129.1.2.3 and port 7.) You may also use a different ending for the connection string. For example, C50.1/23 would connect you to 129.1.50.1 and port 23.

Table 4-10. Manual Connection Address Example

Command String Result if remote IP is 129.1.2.3 and remote port is 1234

C121.2.4.5/1 Complete override; connection is started with host 121.2.4.5, port 1

C5 Connects to 129.1.2.5, port 1234

C28.10/12 Connects to 129.1.28.10, port 12

XPort™ User Guide 29

4: Using Setup Mode for Configuration

Command String Result if remote IP is 129.1.2.3 and remote port is 1234

C0.0.0.0/0 Connects to 129.1.28.10, port 12; enters Monitor Mode

Autostart (Automatic Connection)

Hostlist

Change Setup: 0 Server configuration 1 Channel 1 configuration 3 E-mail settings 5 Expert settings 6 Security 7 Factory defaults 8 Exit without save 9 Save and exit Your choice ? 1

Baudrate (9600) ? I/F Mode (4C) ? Flow (00) ? Port No (10001) ? ConnectMode (C0) ?25

Hostlist :

No Entry !

Change Hostlist ? (N) Y

01. IP address : (000) 172.(000) 19.(000) 0.(000) 1 Port : (0) ?23

02. IP address : (000) 172.(000) 19.(000) 0.(000) 2 Port : (0) ?3001

03. IP address : (000) 172.(000) 19.(000) 0.(000) 3 Port : (0) ?10001

04. IP address : (000) .(000) .(000) .(000)

Hostlist :

01. IP : 172.019.000.001 Port : 00023

02. IP : 172.019.000.002 Port : 03001

03. IP : 172.019.000.003 Port : 10001

Change Hostlist ? (N) N

Hostlist Retrycounter (3) ? Hostlist Retrytimeout (250) ? DisConnMode (00) ? FlushMode (00) ?

If you enable autostart, the unit automatically connects to the remote IP address and remote port specified when the firmware starts.

If you enable this option, the device server scrolls through the hostlist until it connects to a device listed in the hostlist table. Once it connects, the unit stops trying to connect to any others. If this connection fails, the unit continues to scroll through the table until it is able to connect to another IP in the hostlist.

Hostlist supports a minimum of 1 and a maximum of 12 entries. Each entry contains the IP address and the port number. The hostlist is disabled for Manual Mode and for Modem Mode. The unit will not accept a data connection from a remote device when the hostlist option is enabled.

Figure 4-7. Hostlist Option

XPort™ User Guide 30

4: Using Setup Mode for Configuration

DisConnTime (00:00) ?: SendChar 1 (00) ? SendChar 2 (00) ?

To enable the hostlist:

1. Enter a Connect Mode of 0x20 (2X), where X is any digit. The menu shows you

a list of current entries already defined in the product.

2. To delete, modify, or add an entry, select Yes. If you enter an IP address of

0.0.0.0, that entry and all others after it are deleted.

3. After completing the hostlist, repeat the previous step if necessary to edit the

hostlist again.

4. For Retrycounter, enter the number of times the Lantronix unit should try to

make a good network connection to a hostlist entry that it has successfully ARPed. The range is 1-15, with the default set to 3.

5. For Retrytimeout, enter the number of seconds the unit should wait before

failing an attempted connection. The time is stored as units of milliseconds in the range of 1-65535. The default is 250.

Datagram Type

Directed UDP

When selecting this option, you are prompted for the Datagram type.

Enter 01 for directed or broadcast UDP.

When the UDP option is in effect, the unit never attempts to initiate a TCP connection because it uses UDP datagrams to send and receive data.

Modem Mode

In Modem (Emulation) Mode, the unit presents a modem interface to the attached

serial device. It accepts AT-style modem commands, and handles the modem

signals correctly.

Normally, there is a modem connected to a local PC and a modem connected to a remote machine. A user must dial from the local PC to the remote machine, accumulating phone charges for each connection. Modem Mode allows you to replace modems with XPorts, and to use an Ethernet connection instead of a phone call. By not having to change communications applications, you avoid potentially expensive phone calls.

To select Modem Mode, set the Connect Mode to C6 (no echo), D6 (echo with full verbose), or D7 (echo with 1-character response).

Note: If the unit is in Modem Mode, and the serial port is idle, the unit can

still accept network TCP connections to the serial port if Connect Mode is set to C6 (no echo), D6 (echo with full verbose), or D7 (echo with 1-character response).

Without Echo

In Modem Mode, echo refers to the echo of all of the characters

entered in command mode; it does not mean to echo data that is transferred. Quiet Mode (without echo) refers to the modem not

sending an answer to the commands received (or displaying what was typed).

XPort™ User Guide 31

4: Using Setup Mode for Configuration

Full Verbose

1-Character Response

The unit echoes modem commands and responds to a command with a message string shown in the table below.

The unit echoes modem commands and responds to a command with a single character response.

Table 4-11. Modem Mode Messages

Message Meaning

Full Verbose

OK Command was executed without error.

CONNECT A network connection has been established.

NO CARRIER A network connection has been closed.

RING n.n.n.n.

1-Character Response

0 OK

1 Connected

2 Ring

3 No Carrier

4 Error

A remote device, having IP address n.n.n.n, is connecting to this device.

Received commands must begin with the two-character sequence AT and be

terminated with a carriage return character.

The unit ignores any character sequence received not starting with AT, and only recognizes and processes single AT-style commands. The unit treats compound AT

commands as unrecognized commands.

If the Full Verbose option is in effect, the unit responds to an unrecognized command

string that is otherwise formatted correctly (begins with AT and ends with carriage return) with the OK message and takes no further action.

If the 1-Character Response option is in effect, the unit responds to an unrecognized

command string that is otherwise formatted correctly with OK and takes no further

action.

When an active connection is in effect, the unit transfers data and does not process commands received from the serial interface.

When a connection is terminated or lost, the unit reverts to command mode.

When an active connection is in effect, the unit terminates the connection if it receives the following sequence from the attached serial device:

 No serial data is received for one second.

 The character sequence +++ is received, with no more than one second

between each two characters.

 No serial data is received for one second after the last + character. At this

time, the unit responds affirmatively per the selected echo/response mode.

XPort™ User Guide 32

4: Using Setup Mode for Configuration

 The character string ATH is received, terminated with a carriage return. The

unit responds affirmatively according to the selected echo/response mode and drops the network connection. The serial interface reverts to accepting command strings.

If this sequence is not followed, the unit remains in data transfer mode.

Table 4-12. Modem Mode Commands

Modem Mode

Function

Command

ATDTx.x.x.x,pppp or ATDTx.x.x.x/pppp

ATDTx.x.x.x

ATD0.0.0.0

ATD

ATDx.x.x.x

ATH Hangs up the connection (Entered as +++ATH ).

ATS0=n

Makes a connection to an IP address (x.x.x.x) and a remote port number (pppp).

Makes a connection to an IP address (x.x.x.x) and the remote port number defined within the unit.

Forces the unit into Monitor Mode if a remote IP address and port number are defined within the unit.

Forces the unit into Monitor Mode if a remote IP address and port number are not defined within the unit.

Makes a connection to an IP address (x.x.x.x) and the remote port number defined within the unit.

Enables or disables connections from the network going to the serial port. n=0 disables the ability to make a connection from the network to the serial port. n=1-9 enables the ability to make a connection from the network to the serial port. n>1-9 is invalid.

Enables or disables character echo and responses.

ATEn

ATVn

n=0 disables character echo and responses. n=1 enables character echo and responses.

Enables 1-character response or full verbose. n=0 enables 1-character response. n=1 enables full verbose.

Note: The unit recognizes these AT commands as single commands such as

ATE0 or ATV1; it does not recognize compound commands such as ATE0V.

Remote IP Address

This is the destination IP address used with an outgoing connection.

Remote Port

You must set the remote TCP port number for the unit to make outgoing connections. This parameter defines the port number on the target host to which a connection is attempted.

XPort™ User Guide 33

4: Using Setup Mode for Configuration

Note: To connect an ASCII terminal to a host using the unit for login

purposes, use the remote port number 23 (Internet standard port number for Telnet services).

DisConnMode

This setting determines the conditions under which the unit will cause a network connection to terminate.

Note: In DisConnMode (Disconnect Mode), DTR drop either drops the

connection or is ignored.

Table 4-13. Disconnect Mode Options

Disconnect Mode Option 7 6 5 4 3 2 1 0

Disconnect with DTR drop

Ignore DTR 0

(6)

Telnet mode and terminal type

(1)

setup

Channel (port) password

Hard disconnect

(2)

(3)

Disable hard disconnect 1

State LED off with connection

Disconnect with EOT (^D)

(1) The XPort sends the "Terminal Type" upon an ou tgoing connection. (2) A password is required for a connection to the serial port from the network. (3) The TCP connection closes even if the remote site does not acknowledge the disconnection. (4) When there is a network connection to or from the serial port, the state LED turns off instead

of blinking.

(5) When Ctrl+D or Hex 04 is detected, the connection is dropped. Both Telnet mode and

Disconnect with EOT must be enabled for Disconnect w ith EOT to function properl y. Ctrl+D is only detected going from the serial port to the network.

(6) When DTR transitions from a high state t o a low state, the netw ork connection to or from th e

serial port drops.

(4)

(5)

Flush Mode (Buffer Flushing)

Using this parameter, you can control line handling and network buffers with connection startup and disconnect. You can also select between two different packing algorithms.

Table 4-14. Flush Mode Options

Function 7 6 5 4 3 2 1 0

Input Buffer (Serial to Network)

Clear with a connection that is initiated from the device to the network

Clear with a connection initiated from the network to the device

XPort™ User Guide 34

4: Using Setup Mode for Configuration

Function 7 6 5 4 3 2 1 0

Clear when the network connection to or from the device is disconnected

Output Buffer (Network to Serial)

Clear with a connection that is initiated from the device to the network

Clear with a connection initiated from the network to the device

Clear when the network connection to or from the device is disconnected

Alternate Packing Algorithm (Pack Control)

Enable 1

Pack Control

Two firmware-selectable packing algorithms define how and when packets are sent to the network. The standard algorithm is optimized for applications in which the unit is used in a local environment, allowing for very small delays for single characters, while keeping the packet count low. The alternate packing algorithm minimizes the packet count on the network and is especially useful in applications in a routed Wide Area Network (WAN). Adjusting parameters in this mode can economize the network data stream.

Pack control settings are enabled in Flush Mode. Set this value to 00 if you do not

need specific functions.

4-15. Pack Control Options

Option 7 6 5 4 3 2 1 0

Packing Interval

Interval: 12ms 0 0

Interval: 52ms 0 1

Interval: 250ms 1 0

Interval: 5sec 1 1

Trailing Characters

None 0 0

One 0 1

Two 1 0

Send Characters

2-Byte Send Character Sequence

Send Immediately After Send chars

XPort™ User Guide 35

4: Using Setup Mode for Configuration

Packing Interval: Packing Interval defines how long the unit should wait before

sending accumulated characters. This wait period is between successive network segments containing data. For alternate packing, the default interval is 12 ms.

Trailing Characters: In some applications, CRC, Checksum, or other trailing

characters follow the end-of-sequence character; this option helps to adapt frame transmission to the frame boundary.

Send Characters:

 If 2-Byte Send Character Sequence is enabled, the unit interprets the

sendchars as a 2-byte sequence; if this option is not enabled, the unit interprets them independently.

 If Send Immediately After Characters is not set, any characters already in the

serial buffer are included in the transmission after a "transmit" condition is found. If this option is set, the unit sends immediately after recognizing the transmit condition (sendchar or timeout).

Note: A transmission might occur if status information needs to be

exchanged or an acknowledgment needs to be sent.

DisConnTime (Inactivity Timeout)

Use this parameter to set an inactivity timeout. The unit drops the connection if there is no activity on the serial line before the set time expires. Enter time in the format mm:ss, where m is the number of minutes and s is the number of seconds. To

disable the inactivity timeout, enter 00:00. Range is 0 (disabled) to 5999 seconds (99

minutes, 59 seconds). Default is 0.

Send Characters

You can enter up to two characters in hexadecimal representation in sendchar. If the unit receives a character on the serial line that matches one of these characters, it sends the character immediately, along with any awaiting characters, to the TCP connection. This action minimizes the response time for specific protocol characters

on the serial line (for example, ETX, EOT). Setting the first sendchar to 00 disables

the recognition of the characters. Alternatively, the unit can interpret two characters

as a sequence (see Pack Control on page 35).

Telnet Terminal Type

This parameter displays only if you enabled the terminal type option in Disconnect Mode. If this option is enabled, you can use the terminal name for the Telnet terminal type. Enter only one name.

If the terminal type option is enabled, the unit also reacts to the EOR (end of record) and binary options, which can be used for applications like terminal emulation to IBM hosts.

Channel (Port) Password

This parameter appears only if the channel (port) password option is enabled in Disconnect Mode. If the option is enabled, you can set a password on the serial port.

XPort™ User Guide 36

E-mail Settings

Note: You can change these settings via Telnet or serial connections only,

not on the Web-Manager. To configure e-mail settings via DeviceInstaller, see E-mail Notification in the DeviceInstaller User Guide on the CD.

The unit can send an e-mail to multiple recipients when a specific trigger event occurs. There are three separate triggers, based on any combination of the configurable pins (PIO) when selected as user I/O functions. You can also use a twobyte serial string to initiate a trigger.

4: Using Setup Mode for Configuration

Figure 4-8. E-mail Settings

E-mail Setup

E-mail setup requires you to set up the e-mail server location as follows:

Mail server Unit Domain Recipient 1 Recipient 2

The IP address in decimal-dot notation.

The user name used by the XPort to send e-mail messages.

The domain name of your e-mail server.

Full e-mail address of the recipient.

Full e-mail address of the second recipient.

XPort™ User Guide 37

4: Using Setup Mode for Configuration

Trigger Setup

A trigger event can occur when the unit receives two bytes of a specified sequence on the serial port, or because of a specified combination of conditions on the configurable pins.

If the serial sequence is set to 00,00, the trigger is disabled. At the Serial Sequence

prompt, enter the ASCII Hex value. Example: A two byte sequence of 12 would be 0x31, 0x32.

If the configurable pins are all set to X (Don’t Care), then they are disabled. If both

the serial sequence and the configurable pins are disabled, the trigger is disabled.

Note: You can set the configurable pins to A = Active, I = Inactive, or X =

Don’t Care. Active can mean Active Low or Active High. To change the configurable pins’ settings, you must use DeviceInstaller or send setup records to Port 77FE.

Message Priority Min. notification

interval

Re-notification interval

Each trigger is independent of the others. Each condition within an individual trigger must be met before the unit will send the e-mail.

Expert Settings

Note: You can change these settings via Telnet or serial connections only,

not on the Web-Manager. Only an expert should change these parameters. You must definitely know

the consequences the changes might have.

TCP Keepalive time in s (1s – 65s; 0s=disable)

ARP Cache timeout in s (1s – 600s)

The subject line of the e-mail.

L is for normal priority; H is for high priority.

The minimum time allowed between individual triggers. If a trigger event occurs faster than the minimum interval, the unit ignores the trigger.

If a single trigger event stays asserted, then the unit sends an e-mail message at this time interval.

(45)

(600)

High CPU performance mode (disabled or enabled)

Monitor Mode at Bootup (disabled or enabled)

HTTP Port Number (1-65535)

SMTP Port Number (1-65535)

XPort™ User Guide 38

(Disabled) applies to XPort-03 and greater only

(Enabled)

(80)

(25)

4: Using Setup Mode for Configuration

TCP Keepalive time in seconds

This option allows you to change how many seconds the unit will wait during a silent connection before attempting to see if the currently connected network device is still on the network. If the unit then gets no response, it drops that connection.

ARP Cache timeout in seconds

Whenever the unit communicates with another device on the network, it adds an entry into its ARP table. The ARP Cache timeout option allows you to define how many seconds (1-600) the unit will wait before timing out this table.

High CPU Performance mode

This option applies to XPort-03 and greater units only. It allows you to increase the CPU performance and utilize the higher baud rates on the serial interface (i.e. 460Kbps and 920Kbps). Increasing CPU performance requires more power and lowers the unit’s operating temperature. The standard CPU performance mode supports up to 230400 baud.

Note: If baud rates of 460Kbps or 920Kbps is set and the high performance mode

disabled, the operation of the serial channel would be out of the specified error tolerance thereby leading to inconsistent speed settings on the two ends of the serial channel.

Monitor Mode at Bootup

This option allows you to disable all entries into Monitor Mode during startup, except for the ‘xxx’ sequence. This prevents entry via ‘yyy’, ‘zzz’, ‘xx1’, and ‘yy1’ key sequences (only during the bootup sequence). The default for Monitor Mode at

Bootup is enabled. See 7:Monitoring the Network.

HTTP Port Number

This option allows the configuration of the web server port number. The valid range is 1-65535. The default HTTP port number is 80.

SMTP Port Number

This options allows the configuration of the email port number. The valid range is from 1-65535. The default SMTP port number is 25.

Note: When configuring the HTTP or SMTP port number, take note of the ‘reserved’

port numbers on page 27.

RS-485 TX Enable Active Level

Note: The following applies to XPort model XP1004000-03 (XPort-485).

This option allows the selection of the active level (either ‘active high’ or ‘active low’) for the RS485_TXEN signal. The default is ‘active low’.

This setting only applies if one of the configurable pins for the RS485_TXEN functionality is selected. For the RS-485 interface mode to operate correctly,

XPort™ User Guide 39

configure one of the configurable pins to RS485_TXEN. To change the configurable pins’ settings, use DeviceInstaller or send setup records to port 77FE.

Security Settings

You can change security settings via Telnet or serial connections only, not on the

Web-Manager. We recommend that you set security over the dedicated network or

over the serial setup. If you set parameters over the network (Telnet 9999), someone else could capture these settings.

Caution: Disabling both Telnet Setup and Port 77FE will prevent users from

accessing the setup menu from the network. Disabling Port 77FE also disables the Web from configuring the device.

4: Using Setup Mode for Configuration

Figure 4-9. Security Settings

Disable SNMP

This setting allows you to disable the SNMP protocol on the unit for security reasons.

SNMP Community Name

This setting allows you to change the SNMP community name. Community name is a

required field for NMS to read or write to a device. The default setting is public. The

name is a string of 1 to 13 characters.

Disable Telnet Setup

Note: If you choose to disable this option, keep in mind that disabling both

Telnet Setup and Port 77FE will prevent users from accessing the setup menu from the network.

This setting defaults to the N (No) option. The Y (Yes) option disables access to Setup Mode by Telnet (port 9999). It only allows access locally via the web pages and the serial port of the unit.

XPort™ User Guide 40

4: Using Setup Mode for Configuration

Disable TFTP Firmware Upgrade

This setting defaults to the N (No) option. The Y (Yes) option disables the use of TFTP to perform network firmware upgrades. With this option, you can download firmware upgrades over the serial port using DeviceInstaller’s Recover Firmware

procedure. (See Recovering the Firmware Using the Serial Port on page 51.)

Disable Port 77FE (Hex)

Note: If you choose to disable this option, keep in mind that disabling both

Telnet Setup and Port 77FE will prevent users from accessing the setup menu from the network.

Port 77FE is a setting that allows DeviceInstaller, Web-Manager, and custom programs to configure the unit remotely. You may wish to disable this capability for security purposes.

The default setting is the N (No) option, which enables remote configuration. You can configure the unit by using DeviceInstaller, web pages, Telnet, or serial configuration.

The Y (Yes) option disables remote configuration and web sites.

Note: The Y (Yes) option disables many of the GUI tools for configuring the

unit, including the embedded Web-Manager tool.

Disable Web Server

This setting defaults to the N (option). The Y (Yes) option disables the web server.

Disable ECHO Ports

This setting controls whether the serial port echoes characters it receives.

Enable Encryption

This option displays only if you purchased the encrypted version of the Lantronix

XPort. You can enable or disable (default) Rijndael encryption. Rijndael is the block cipher algorithm recently chosen by the National Institute of Science and Technology (NIST) as the Advanced Encryption Standard (AES) to be used by the US government.

To enable encryption, select the key length (128, 192 or 256 bits) and enter the encryption key in hexadecimals (32, 48, or 64, respectively). The hexadecimals are echoed as asterisks to prevent onlookers from seeing the key.

Figure 4-10. Encryption Keys

XPort™ User Guide 41

4: Using Setup Mode for Configuration

Encryption only applies to the port selected for tunneling (default 10001), regardless of whether you are using TCP or UDP.

Generally, one of two situations applies.

 Encrypted XPort-to-XPort communication (and in the future, XPort

communication to other Lantronix device servers) is supported without extra

effort.

 The XPort uses standard AES encryption protocols. To communicate

successfully, products and applications on the peer side must use the same protocols and the same shared key as the XPort. To ease the development process, Lantronix provides an AES encryption DLL for Windows and

protocol source code samples. See the document entitled Encryption Enabling Your Serial Device on the Lantronix web site (www.lantronix.com

)

for more instructions and sample code.

The following export agreement is required for the optional encryption:

I agree that I will not export or re-export this software file to a national resident of Cuba, Iran, Iraq, Libya, North Korea, Sudan, Syria or any other country to which the United States has embargoed goods; or to anyone on the US Treasury Department's list of Specially Designated Nationals and Blocked Persons, US Commerce Department's Table of Denial Orders and Entitles List, or the US State Department's Debarred List. By receiving this software, I am agreeing to the foregoing and I am representing and warranting that I am not located in, under the control of, or a national or resident of any such country or on any such list.

Encryption Tutorial

Rijndael is the block cipher algorithm chosen by the National Institute of Science and Technology (NIST) as the Advanced Encryption Standard (AES) to be used by the US government. The XPort supports 128, 192 and 256 bit encryption key lengths.

Follow the steps below to configure AES encryption on the XPort.

Note: Configuring encryption should be done through a local connection to

the serial port of the XPort, or via a secured network connection. Initial configuration information including the encryption key is sent in clear text over the network.

1. Telnet to the configuration port on the XPort (Port 9999).

Example Telnet command syntax is shown below. In the command examples below, replace the x's with the IP address of the XPort.

Microsoft Windows command syntax: telnet xxx.xxx.xxx.xxx 9999 Unix command syntax: telnet xxx.xxx.xxx.xxx:9999

2. When prompted, press Enter to go into Setup Mode.

3. At the Change Setup menu, select option 6 for security.

4. When prompted to enable encryption, press Y.

5. Enter the encryption key length when prompted. XPort supports 128-, 192- and 256-bit encryption key lengths.

XPort™ User Guide 42

4: Using Setup Mode for Configuration

6. When prompted to change keys, press Y.

7. At the Enter Keys prompts, enter your encryption key. The encryption keys are

entered in hexadecimal. The hexadecimal values are echoed as asterisks to prevent onlookers from seeing the key. Hexadecimal values are 0-9 and A-F.

 For a 128-bit key length, enter 32 hexadecimal characters.

 For a 192-bit key length, enter 48 hexadecimal characters.

 For a 256-bit key length, enter 64 hexadecimal characters.

8. Continue pressing Enter until you return to the Change Setup menu.

9. At the Change Setup menu, select option 9 to save and exit.

Enable Enhanced Password

This setting defaults to the N (No) option, which allows you to set a 4-character password that protects Setup Mode by means of Telnet and web pages. The Y (Yes) option allows you to set an extended security password of 16-characters for protecting Telnet and Web Page access.

Disable Port 77F0 (Hex)

Port 77F0 is a setting that allows a custom application to query or set the three XPort configurable pins when they are functioning as general purpose I/O (GPIO). You may want to disable this capability for security purposes. The default setting is the N (No) option, which enables GPIO control. The Y (Yes) option disables the GPIO control interface.

Factory Defaults

Select 7 to reset the unit’s Channel 1 configuration, e-mail settings, and expert

settings to the factory default settings. The server configuration settings for IP address, gateway IP address, and netmask remain unchanged. The configurable pins’ settings also remain unchanged. The specific settings that this option changes are listed below.

Channel 1 Configuration Defaults

Baudrate I/F Mode Own TCP port number Connect Mode

Hostlist retry counter Hostlist retry timeout Start character for serial channel 1 All other parameters

9600

4C (1 stop bit, no parity, 8 bit, RS-232C)

10001

C0 (always accept incoming connection; no active connection startup)

250 (msec)

0x0D (CR)

XPort™ User Guide 43

Expert Settings Defaults

4: Using Setup Mode for Configuration

TCP keepalive ARP cache timeout High CPU performance mode

(XPort-03 or greater only) HTTP port number SMTP port number

Security Settings Defaults

SNMP SNMP community name Telnet setup TFTP download Port 77FEh Web Server ECHO Encryption Enhanced password Port 77F0h

45 (seconds)

600 (seconds)

Disabled

0 (resulting in an operational value of 80)

0 (resulting in an operational value of 25)

Enabled

public

Enabled

Disabled

Enabled

E-mail Settings

Priority Min. notification interval All other parameters

Exit Configuration Mode

You have two options:

 Select 8 to exit the configuration mode without saving any changes or rebooting,

 Select 9 to save all changes and reboot the device. All values are stored in

nonvolatile memory.

1 (second)

0 (e.g., e-mail notification and triggers are disabled)

XPort™ User Guide 44

5: GPIO Interface

Configurable Pins

The XPort has three pins (CP1-3) that you can configure for General Purpose I/O (GPIO).

Note: You can also configure the pins for serial port control lines, such as

CTS, RTS, DTR, and DCD, and diagnostic outputs to LED, using DeviceInstaller.

You can use these GPIO pins to control devices such as relays, servers, lights, monitor switches, sensors, and even processes such as data transfer.

You can set the functions for the three pins independently and in any combination. The initial directions (input/output) and active levels (active low or high) at boot up can also be configured through 77FE, for example, by using DeviceInstaller.

This chapter describes how the directions, active levels, and states can be dynamically controlled and probed through special port 77F0.

Features:

 TCP and UDP can be used.

 The protocol supports up to 32 GPIO for future products.

 Function configuration can be retrieved.

 Input or output selection can be retrieved and controlled.

 Active low or high selection can be retrieved and controlled.

 Active or inactive selection can be retrieved and controlled.

 77F0 can be disabled.

Every change of state (active/inactive) requires a command over TCP or UDP, and thus is not very fast. If you use this port for data transfer, the throughput is low, usually up to 1Kbps.

Control Protocol

The GPIO control protocol is a simple, proprietary protocol.

XPort™ User Guide 45

5: GPIO Interface

Guidelines

The GPIO control protocol is described from the PC side. Send means from PC to XPort. Response comes from XPort to PC.

The protocol allows for control of up to 32 GPIOs. How many are actually available depends on the product. XPort has only three.

The parameters are four bytes long and represent GPIOs 0-31, with GPIO0 in bit 0 of the first byte (Little Endian). Parameter bits for configurable pins not configured as

GPIOs are undefined for Get commands and ignored on Set commands.

Every command consists of nine bytes: one command type of one byte and two parameters of four bytes each.

Command Parameter 1 Parameter 2

0 1 2 3 4 5 6 7 8

On some commands, one or all parameters are ignored.

For UDP, command type and parameters need to be in the same datagram.

Responses to valid commands are always five bytes long, consisting of the returned command byte and as parameters in the current or updated values. In case of an invalid command, only one byte with value 0FFh is returned.

Command Parameter 1

0 1 2 3 4

When sending a command (TCP and UDP), wait for the response before sending the next command.

Commands

Byte 0 Command Types

10h Get functions 11h Get directions (input or output) 12h Get active levels (high active or low active) 13h Get current states (active or not active) 19h Set directions 1Ah Set active levels 1Bh Set current states

There is no Set functions command. Since the pin’s function depends on the

hardware in which the XPort is embedded, that configuration is only allowed via

77FE. Settings changed by any of the Set commands are not stored and are lost

when the unit is powered down or rebooted.

XPort™ User Guide 46

5: GPIO Interface

Command 10h, Get Functions

Send:

No parameters

Response:

1 parameter Bytes 1-4: Functions Bit X 1 means general purpose I/O available to the user. 0 means dedicated function (e.g., serial flow control, diagnostics) for

configurable pin X.

Command 11h, Get Directions

Send:

No parameters

Response:

1 parameter Bytes 1-4: Directions Bit X 1 means GPIO X is an output. 0 means it is an input.

Command 12h, Get Active Levels

Send:

No parameters

Response:

1 parameter Bytes 1-4: Active levels Bit X 1 means GPIO X is active low (0V when active, 3.3V when inactive). 0 means it is active high (3.3V when active, 0V when inactive).

Command 13h, Get Current States

Send:

No parameters

Response:

1 parameter Bytes 1-4: States Bit X 1 means GPIO X is active 0 means it is inactive.

Command 19h, Set Directions

Send:

2 parameters Bytes 1-4: Mask Bit X 1 means the direction for GPIO X will be updated with the value in the

second parameter. 0 means the direction for that GPIO will not change. Bytes 5-8: New Directions Bit X 1 means GPIO X will become an output. 0 means it will become an input.

Response:

1 parameter Bytes 1-4: The updated directions

XPort™ User Guide 47

5: GPIO Interface

Command 1Ah, Set Active Levels

Send:

2 parameters Bytes 1-4: Mask Bit X 1 means the direction for GPIO X will be updated with the value in the

second parameter. 0 means the active type for that GPIO will not change. Bytes 5-8: New Active Levels Bit X 1 means GPIO X will become active low. 0 means it will become active high.

Response:

1 parameter Bytes 1-4: Updated active levels

Command 1Bh, Set States

Send:

2 parameters Bytes 1-4: Mask Bit X 1 means the state for GPIO X will be updated with the value in the

second parameter. 0 means the state for that GPIO will not change. Bytes 5-8: New States Bit X 1 means GPIO X will become active. 0 means it will become inactive.

Response:

1 parameter Bytes 1-4: Updated states

Examples

Example 1: PC sends command 1 to find out which configurable pins are available as GPIO.

PC -> XPort: 10h, 00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h XPort -> PC: 10h, 03h, 00h, 00h, 00h

Command details:

10h = command 10h 00h, 00h, 00h, 00h = ignored 00h, 00h, 00h, 00h = ignored

Response details:

10h = response to command 10h 04h, 00h, 00h, 00h =

Example 2: PC sends command 1Bh to change the current states of GPIO 0 and 1.

bits 0 and 1 are 0 →CP1 and CP2 are configured as GPIOs. bit 2 is 1 → CP3 is configured as either serial control or diagnostics. The other bits are ignored because there are only three configurable pins on the XPort.

PC -> XPort: 1Bh, 01h, 00h, 00h, 00h, 00h, 00h, 00h, 00h XPort -> PC: 1Bh, 05h, 00h, 00h, 00h

XPort™ User Guide 48

5: GPIO Interface

Command details:

1Bh = command 1Bh 01h, 00h, 00h, 00h = the mask that determines which GPIOs will be changed.

bit 0 is 1 → GPIO0 will be changed. bit 1 is 0 → GPIO1 will remain the same.

00h, 00h, 00h, 00h = the new states

bit 0 is 0 → GPIO0 will become 0. bit 1 is ignored since it is masked out.

Response details:

1Bh = response to command 1Bh 05h, 00h, 00h, 00h =

bit 0 is 1 → GPIO0 = 1 bit 1 is 0 → GPIO1 = 0 bit 2 is 1 → GPIO2 = 1 The other bits are ignored because there are only three configurable pins on the XPort.

XPort™ User Guide 49

6: Updating Firmware

Obtaining Firmware

You can obtain the most up-to-date firmware and release notes for the unit from the Lantronix web site (www.lantronix.com (ftp.lantronix.com).

Reloading Firmware

There are several ways to update the unit's internal operational code (*.ROM): via DeviceInstaller (the preferred way), via TFTP, or via the serial port using DeviceInstaller. You can also update the unit's internal Web interface (*.COB) via TFTP or DeviceInstaller.

) or by using anonymous FTP

Here are typical names for those files. Check the Lantronix web site for the latest

versions and release notes.

Table 6-1. Firmware Files

ROM File COB

XPTEXE16.ROM GEN3402.COB (Web-Manager)

Using TFTP

To download new firmware from a computer:

1. Use a TFTP client to send a binary file to the unit (*.ROM to upgrade the unit's internal operational code and *.COB to upgrade its internal Web interface).

Note: TFTP requires the .ROM (binary) version of the unit's internal

operational code.

2. In the TFTP server field, enter the IP address of the unit being upgraded.

3. Select Upload operation and Binary format.

4. Enter the full path of the firmware file in the Local file name field.

5. In the Remote file name field, enter the current internal operational code or WEB6 for the internal Web interface. (For XPort-01, X1 = Standard Tunnel; for XPort-03, X2 = Standard Tunnel; for XPort-485, X3 = Standard Tunnel)

6. Click the Upload Now button to transfer the file to the unit.

XPort™ User Guide 50

6: Updating Firmware

Figure 6-1. TFTP Window

After the firmware has been loaded and stored, which takes approximately 8 seconds to complete, the unit performs a power reset.

Recovering the Firmware Using the Serial Port and DeviceInstaller

If for some reason the firmware is damaged, you can recover the firmware file by using DeviceInstaller to download the *.ROM file over the serial port.

1. Start DeviceInstaller. If your PC has more than one network adapter, a message

displays. Select an adapter and click OK.

2. From the Tools menu, select Advanced/Recover Firmware. The Serial Port

Firmware Upgrade window displays.

3. For Port on PC, enter the COM port to which your are connected.

4. For Device Model, be sure the appropriate XPort device is shown (XPort-01,

XPort-03, or XP485).

5. For Firmware File, click the Browse button and go to the location where the

firmware file resides.

Note: Make sure the XPort on which you are recovering firmware is connected to this

selected port on your PC.

6. Click OK to download the file.

7. When prompted, reset the device. Status messages and a progress bar at the

bottom of the screen show the progress of the file transfer. When the file transfer

completes, the message “Successful, Click OK to Close” appears.

8. Click the OK button to complete this procedure.

Note For more information, see Recovering Firmware in the DeviceInstaller

User Guide.

XPort™ User Guide 51

7: Monitoring the Network

Monitor Mode is a command-line interface used for diagnostic purposes.

There are two ways to enter Monitor Mode: locally via the serial port or remotely via the network.

Entering Monitor Mode via the Serial Port

To enter Monitor Mode locally:

1. Follow the same steps used for setting the serial configuration parameters

(see Using the Serial Port on page 22).

2. Instead of typing three x keys, however: a) Type zzz (or xx1) to enter Monitor Mode with network connections. b) Type yyy (or yy1) to enter Monitor Mode without network connections.

A 0> prompt indicates that you have successfully entered Monitor Mode.

Entering Monitor Mode via the Network Port

To enter Monitor Mode using a Telnet connection:

1. Establish a Telnet session to the configuration port (9999). The following message appears:

MAC address 00204A0113A3 Software version 01.0b9 (021219) XPT Press Enter to go into Setup Mode

2. Type M (upper case).

A 0> prompt indicates that you have successfully entered Monitor Mode.

Monitor Mode Commands

The following commands are available in Monitor Mode. Many commands have an IP address as an optional parameter (xxx.xxx.xxx.xxx). If you enter the IP address, the command is applied to another unit with that IP address. If you do not enter the IP address, the command is executed locally.

Note: All commands must be in capital letters.

XPort™ User Guide 52

Table 7-1. Monitor Mode Commands

Command Command Name Function

VS x.x.x.x

GC x.x.x.x

SC x.x.x.x

PI x.x.x.x

AT TT

NC RS QU

G0, G1, ....,Ge, Gf

S0, S1,...,Se, Sf

Version Queries software header record (16 bytes) of unit

with IP address x.x.x.x.

Get Configuration Gets configuration of unit with IP address x.x.x.x as

hex records (120 bytes).

Send Configuration Sets configuration of unit with IP address x.x.x.x

from hex records.

Ping Pings unit with IP address x.x.x.x to check device

status.

ARP Table Shows the unit’s ARP table entries.

TCP Connection Table

Network Connection Shows the unit’s IP configuration.

Reset Resets the unit’s power.

Quit Exits diagnostics mode.

Get configuration from memory page

Set configuration to memory page

Shows all incoming and outgoing TCP connections.

Gets a memory page of configuration information from the device.

Sets a memory page of configuration information on the device.

7: Monitoring the Network

Responses to some of the commands are given in Intel Hex format.

Note: Entering any of the commands listed above generates one of the

following command response codes:

Table 7-2. Command Response Codes

Response Meaning

0> OK; no error

1> No answer from remote device

2> Cannot reach remote device or no answer

8> Wrong parameter(s)

9> Invalid command

XPort™ User Guide 53

8: Troubleshooting

This chapter discusses how you can diagnose and fix errors quickly without having to contact a dealer or Lantronix. It helps to connect a terminal to the serial port while diagnosing an error to view summary messages that may be displayed. When troubleshooting, always ensure that the physical connections (power cable, network cable, and serial cable) are secure.

Note: Some unexplained errors might be caused by duplicate IP addresses on the

network. Make sure that your unit's IP address is unique.

When troubleshooting the following problems, make sure that the XPort is powered up. Confirm that you are using a good network connection.

Problems and Error Messages

Problem/Message Reason Solution

When you issue the ARP –S command in Windows, The

ARP entry addition failed: 5

message displays.

When you attempt to assign an IP address to the unit by the

ARP method, the Press Enter to go into Setup Mode error

(described below) message displays. Now when you Telnet to the device server, the connection fails.

When you Telnet to port 9999,

the Press Enter to go into Setup Mode message displays.

However, nothing happens

when you press Enter, or your

connection is closed.

When you Telnet to port 1 to assign an IP address to the device server, the Telnet window does not respond for a long time.

Your currently logged-in user does not have the correct rights to use this command on this PC.

When you Telnet to port 1 on the device server, you are only assigning a temporary IP address. When you Telnet into

port 9999 and do not press Enter

quickly, the device server reboots, causing it to lose the IP address.

You did not press Enter quickly

enough. You only have 5

seconds to press Enter before

the connection is closed.

You may have entered the Ethernet address incorrectly with the ARP command.

Have someone from your IT department log you in with sufficient rights.

Telnet back to Port 1. Wait for it to fail, then Telnet to port 9999

again. Make sure you press Enter

quickly.

Telnet to port 9999 again, but

press Enter as soon as you see the Press Enter to go into Setup Mode message.

Confirm that the Ethernet address that you entered with the ARP command is correct. The Ethernet address may only include numbers 0-9 and letters A-F. In Windows and usually in Unix, the segments of the Ethernet address are separated by dashes. In some forms of Unix, the Ethernet address is segmented with colons.

XPort™ User Guide 54

Problem/Message Reason Solution

The IP address you are trying to assign is not on your logical subnet.

Confirm that your PC has an IP address and that it is in the same logical subnet that you are trying to assign to the device server.

8: Troubleshooting

When you try to assign an IP with DeviceInstaller, you get the following message:

No response from device! Verify the IP, Hardware Address and Network Class. Please try again.

The device server is not communicating with the serial device it is attached to.

When you try to enter the setup mode on the device server via the serial port, you get no response.

The device server may not be plugged into the network properly.

The cause is most likely one of the following:

The Hardware address you specified is incorrect.

The IP address you are trying to assign is not a valid IP for your logical subnet.

You did not choose the correct subnet mask.

The most likely reason is the wrong serial settings were chosen.

The issue is most likely something covered in the previous problem, or possibly,

you have Caps Lock on.

Make sure that the Link LED is lit. If the Link LED is not lit, then the device server is not properly plugged into the network.

Double-check the parameters that you specified.

Note: You cannot assign an IP

address to a device server through a router.

The serial settings for the serial device and the device server must match. The default serial settings for the device server are RS-232, 9600 baud, 8 character bits, no parity, 1 stop bit, no flow control.

Double-check everything in the problem above. Confirm that

Caps Lock is not on.

You can ping the device server, but not Telnet to the device server on port 9999.

There may be an IP address conflict on your network

You are not Telnetting to port

9999.

The Telnet configuration port (9999) is disabled within the device server security settings.

Turn the device server off and then issue the following commands at the DOS prompt of your computer:

ARP -D X.X.X.X (X.X.X.X is the IP of the device server).

PING X.X.X.X (X.X.X.X is the IP of the device server). If you get a response, then there is a duplicate IP address on the network. If you do not get a response, use the serial port to verify that Telnet is not disabled.

XPort™ User Guide 55

Problem/Message Reason Solution

The device server appears to be set up correctly, but you are not communicating with your device attached to the device server across the network.

If you are sure that the serial port setting is correct, then you may not be connecting to the correct socket of the device server.

Another possibility is that the device server is not set up correctly to make a good socket connection to the network.

You can check to see whether there is a socket connection to or from the device server by checking the state of CP1, if it has been configured for LED1 functionality.

If the state of CP1 is blinking consistently, or is completely off, then there is a good socket connection.

If the state of CP1 is low, use the

Connect Mode option C0 for

making a connection to the device server from the network. Use

Connect Mode option C1 or C5

for a connection to the network from the device server. See the full list of Connect Mode options in Connect Mode on page 28.

8: Troubleshooting

When connecting to the WebManager within the device

server, the No Connection With The Device Server message

displays.

Your computer is not able to connect to port 30718 (77FEh) on the device server.

Make sure that port 30718 (77FEh) is not blocked with any router that you are using on the network. Also, make sure that port 77FEh is not disabled within the Security settings of the device server.

XPort™ User Guide 56

Technical Support

If you are experiencing an error that is not described in this user guide, or if you are unable to fix the error, you may:

 Check our online knowledge base at http://www.lantronix.com/support.

 Contact Technical Support in the US:

Phone: 800-422-7044 (US only) or 949-453-7198 Fax: 949-450-7226 Our phone lines are open from 6:00AM - 5:30 PM Pacific Time Monday

through Friday, excluding holidays.

 Contact Technical Support in Europe, Middle East, and Africa:

Phone: +49 (0) 89 31787 817 Email: eu_techsupp@lantronix.com

Firmware downloads, FAQs, and the most up-to-date documentation are available at:

http://www.lantronix.com/support.

8: Troubleshooting

When you report a problem, please provide the following information:

 Your name, and your company name, address, and phone number 

 Lantronix model number

 Lantronix MAC number

 Software version (on the first screen shown when you Telnet to port 9999)

 Description of the problem

 Status of the unit when the problem occurred (please try to include

information on user and network activity at the time of the problem).

XPort™ User Guide 57

Lantronix XPort User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Purpose and Audience

Chapter Summary

Additional Documentation

Capabilities

Applications

Protocol Support

Addresses and Port Numbers

Assigning an IP Address

Required Information

Using DeviceInstaller to Assign an IP Address

Using Web-Manager to Configure the Unit

Unit Configuration Settings

Server Properties

Port Properties

Factory Settings

Update Settings

Accessing Setup Mode

Server Configuration (Network Configuration)

Channel 1 Configuration (Serial Port Parameters)

E-mail Settings

Expert Settings

Security Settings

Factory Defaults

Exit Configuration Mode

Configurable Pins

Control Protocol

Examples

Obtaining Firmware

Reloading Firmware

Problems and Error Messages

Technical Support
