1: Introduction
About this Guide
This guide provides the information needed to use the Lantronix® xPico® embedded device
server with the evaluation kit. The intended audience is the engineers responsible for
integrating the xPico and xPico Wi-Fi into their product. In this document, “xPico” refers to all
xPico Ethernet only modules, “xPico Wi-Fi” refers to all xPico modules which have a Wi-Fi
interface and “xPico Wi-Fi SMT” refer to those modules with a surface mount mounting.
Notes: Everything required to evaluate the xPico turnkey application is provided in the
Evaluation Kit. See xPico Wi-Fi Evaluation Kit Contents for more information.
Additional Documentation
Visit the Lantronix web site at www.lantronix.com/support/documentation for the latest
documentation and the following additional documentation.
Document
Description
xPico Wi-Fi Embedded Device
Server Evaluation Kit Quick Start
Guide
Instructions for getting the xPico module up and running on the
evaluation board.
xPico Embedded Device Server
Integration Guide
Provides information for integrating the xPico module on a
customer platform.
xPico Wi-Fi SMT Embedded Device
Server Integration Guide
Provides information for integrating the xPico Wi-Fi SMT module on
a customer platform.
xPico Embedded Device Server
Product Brief
Provides a quick reference to xPico technical specifications.
xPico Wi-Fi Embedded Device
Server Product Brief
Provides a quick reference to xPico Wi-Fi technical specifications.
xPico Wi-Fi SMT Embedded Device
Server Product Brief
Provides a quick reference to xPico Wi-Fi SMT technical
specifications.
xPico Wi-Fi SMT Embedded Device
Server Datasheet
Provides a detailed reference to xPico Wi-Fi SMT technical
specifications.
xPico Embedded Device Server
User Guide
Provides information needed to configure, use, and build
applications on the xPico.
xPico Wi-Fi Embedded Device
Server User Guide
Provides information needed to configure, use, and build
applications on the xPico Wi-Fi.
xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide 7
2: Evaluation Kit
The xPico Embedded Device Server family of products can be evaluated using several
available Evaluation Kits depending upon the type of PCB mounting and interface.
The xPico Embedded Device Server Evaluation Kit (part number XPW100100K-01) is for
evaluating the xPico and xPico Wi-Fi modules with 40-pin connector interface. The xPico Wi-Fi
SMT module with on module antenna (XPCW1003100) module uses the XPCW1003100K.
The xPico Wi-Fi SMT module with U.FL connector comes on a carrier board that uses the
same board as the used for the connector versions of the module. This Evaluation Kit is the
XPCW1002100K. All of these kits can help you get familiar with your xPico module so that you
may understand how to integrate your xPico embedded device server into a given product
design.
Table 2-1 xPico Wi-Fi Evaluation Kit Contents
XPW100100K-01
XPCW1002100K
XPCW1003100K
xPico Wi-Fi Module
xPico Evaluation Board
5V Wall Adaptor
xPico Mounting Quick Clip
40-pin Connector Sample
2 dBi Swivel Type Antenna
and U.FL to RP SMA Cable
2.5 dBi PCB Strip Antenna
with U.FL cable
xPico Wi-Fi SMT W1002
Module on Carrier Board
xPico Evaluation Board
5V Wall Adaptor
2 dBi Swivel Type Antenna
and U.FL to RP SMA Cable
2.5 dBi PCB Strip Antenna
with U.FL cable
xPico Wi-Fi SMT W1003
Module
xPico SMT Evaluation Board
5V Wall Adaptor
Evaluation Board Description
The xPico Wi-Fi evaluation board provides a test platform for the Lantronix xPico device server
products. The evaluation board uses either 5V power from a USB device port connector or
power supplied to the Ethernet connector via PoE (XPW100100K-01 only). The evaluation
board also provides a header for connection to a 2.2V to 5.5V external source, such as a
battery. The Evaluation Kit includes a 5V wall adapter with a USB plug to allow powering the
evaluation board from a standard power strip. The evaluation board includes all necessary
regulators to power the 3.3V xPico module. The evaluation board has the following features:
One DB9 serial port connector with a multi-protocol RS232, RS422, RS485 transceiver at
rates up to 1Mbps. Serial port modes are configured by on-board jumpers. The xPico WiFi does not support RS485. RS485 is applicable only to the xPico.
A second RS232 serial port is available on a header.
One RJ45 10/100 Ethernet port with an integrated PoE regulator to allow powering from
standard POE PSE. (POE works with Ethernet xPico modules only) ( XPW100100K-01
only)
One Mini-Type B USB device port connector for 5V input power. This port also has an
integrated USB-to-serial converter. The USB-to-serial converter can be connected to the
xPico second serial port via a board jumper setting.
A second Mini-type B USB device port is available for connection to the xPico module
2: Evaluation Kit
xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide 8
USB device port. (Currently available on xPico Wi-Fi only)
LEDs for the xPico Ethernet, WLAN, and System status outputs along with two additional
LEDs that can be driven via jumper wire are provided.
Access to all logic level IO signals on the xPico via header pins for measurements and
connections to other places.
The figure below shows the xPico evaluation board and highlights all of the various connectors
and configuration jumpers. The following table lists each of the connectors and jumper
headers along with their function. Further description and pin assignments are included in
subsequent sections.
Figure 2-1 xPico Wi-Fi Evaluation Board XPW100100K-01 Connectors and Jumpers
2: Evaluation Kit
xPico® Wi-Fi® Embedded Device Server Evaluation Kit User Guide 9
Figure 2-2 xPico Wi-Fi SMT Evaluation Board XPW100300K – Connectors and Jumpers
Table 2-2 Evaluation Board Connectors, Header and Switches
Ref Des.
Connector/Header Function
J1
xPico Module Socket
40 pin socket for xPico module or SMT carrier board. XPW100100K-01 and
XPCW1002100K only.
J2
RJ45 Connector
10/100Mbps Ethernet connector. PoE powered device port. Functional for xPico Ethernet
modules. XPW100100K-01 and XPCW1002100K only.
J3

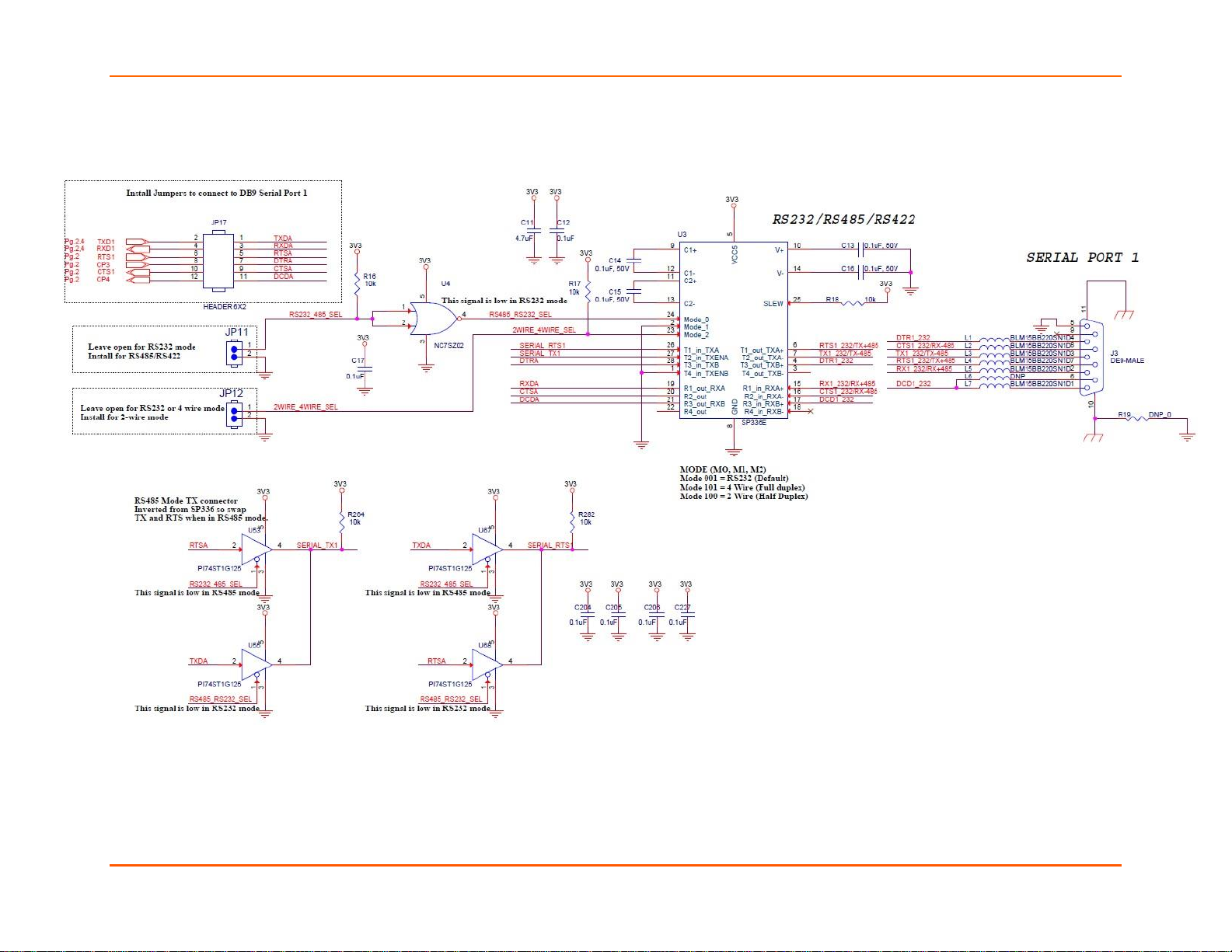

Serial Port 1 DB9
Standard RS232/RS422/RS485 DB9 serial port connector. The xPico Wi-Fi does not
support RS485. RS485 is applicable only to the xPico.
J5
Mini USB Connector
Standard USB device port that can be used to power the evaluation board and/or drive the
evaluation board USB-to-serial converter. The USB serial port converter can be connected
to the module second serial port via a jumper setting.
J6
Mini USB Connector
Standard USB device port that can be used to power the evaluation board and/or drive the
xPico Module USB device port. Functional for xPico Wi-Fi module.
Loading...
