Lantronix WP2002000-01, WiPort-485, WP2001000-01, WP2004000-01 User Manual

WiPort™ User Guide

Part Number 900-332

Revision C October 2004

Copyright and Trademark

© 2004, Lantronix. All rights reserved. No part of the contents of this book may be
transmitted or reproduced in any form or by any means without the written permission
of Lantronix. Printed in the United States of America.

WiPort, with its patent-pending technology, is a trademark of Lantronix.

Ethernet is a trademark of XEROX Corporation. UNIX is a registered trademark of
The Open Group. Windows 95, Windows 98, Windows 2000, Windows NT, and
Windows XP are trademarks of Microsoft Corp. Netscape is a trademark of Netscape
Communications Corporation.

Contacts

Lantronix Corporate Headquarters

15353 Barranca Parkway
Irvine, CA 92618, USA
Phone: [phone]
Fax: [phone]

Technical Support

Phone: [phone] or 949-453-7198
Fax: [phone]
Online: www.lantronix.com/support
Email [e-mail]

Sales Offices

For a current list of our domestic and international sales offices, go to the Lantronix
web site at http://www.lantronix.com/about/contact/

WiPort™ User Guide 2

Disclaimer and Revisions

Note: This product has been designed to comply with the limits for a Class B

digital device pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with this guide, may
cause harmful interference to radio communications.

Changes or modifications to this device not explicitly approved by Lantronix will void
the user's authority to operate this device.

WiPort™ User Guide 3

Contents

Copyright and Trademark ________________________________________________ 2
Contacts______________________________________________________________ 2
Disclaimer and Revisions_________________________________________________ 3

1: Using This Guide 7

Purpose and Audience___________________________________________________ 7
Chapter Summary ______________________________________________________ 7
Additional Documentation ________________________________________________ 8

2: Introduction 9

Capabilities ___________________________________________________________ 9
Applications ___________________________________________________________ 9
Protocol Support ______________________________________________________ 10
Configuration Methods__________________________________________________ 10
Addresses and Port Numbers ____________________________________________ 10

Hardware Address __________________________________________________________ 10
IP Address ________________________________________________________________ 10
Port Numbers ______________________________________________________________ 11

3: Configuration Using DeviceInstaller 12

Accessing WiPort using DeviceInstaller_____________________________________ 12
Server Configuration ___________________________________________________ 12
WLAN Configuration ___________________________________________________ 13
Host List Configuration__________________________________________________ 14
OEM Pin Configuration _________________________________________________ 14
Channel 1 and Channel 2 Configuration ____________________________________ 15
Email Configuration ____________________________________________________ 19

4: Configuration using Web-Manager 20

Accessing WiPort using Web-Manager _____________________________________ 20
Network Configuration __________________________________________________ 21

Automatic IP Address Configuration ____________________________________________ 22
Static IP Address Configuration ________________________________________________ 23

Server Configuration ___________________________________________________ 23
Host List Configuration__________________________________________________ 24
Channel 1 and Channel 2 Configuration ____________________________________ 25

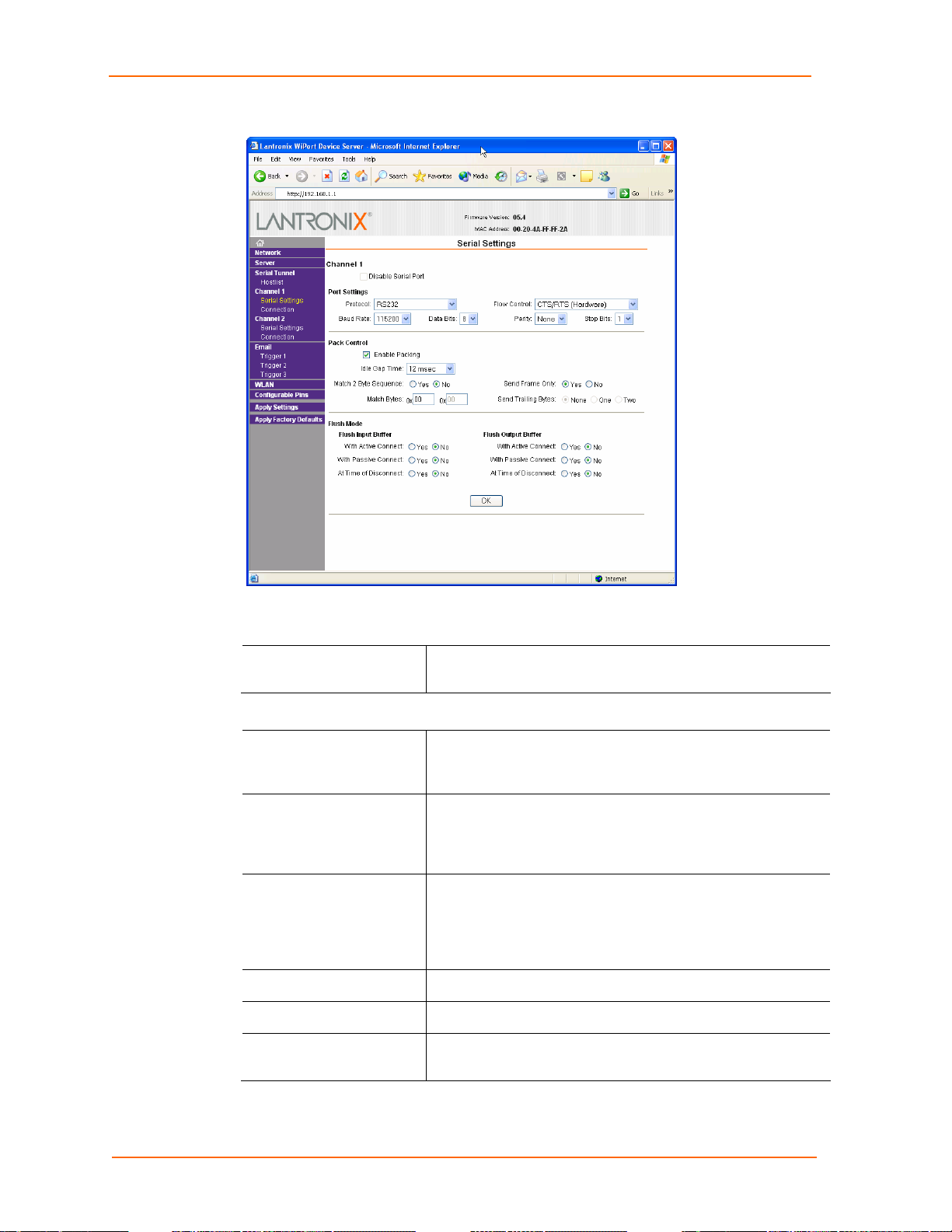

Serial Settings _____________________________________________________________ 25
Connection Settings - TCP____________________________________________________ 27
Connection Settings - UDP ___________________________________________________ 30

Email Configuration ____________________________________________________ 31

Trigger Configuration ________________________________________________________ 32

WLAN Configuration ___________________________________________________ 33
OEM Pin Configuration _________________________________________________ 35
Updating Settings______________________________________________________ 36

WiPort™ User Guide 4

Contents

5: Configuration via Serial Mode or Telnet Port 37

Accessing Setup Mode __________________________________________________37

Telnet Access ______________________________________________________________37
Serial Port Access___________________________________________________________38

Server Configuration ____________________________________________________39

Set the IP Address __________________________________________________________39
Set the Gateway IP Address___________________________________________________39
Set the Netmask ____________________________________________________________39
Change Telnet Configuration Password __________________________________________40
DHCP Name _______________________________________________________________40

Channel 1 and Channel 2 Configuration _____________________________________40

Baudrate __________________________________________________________________41
I/F (Interface) Mode _________________________________________________________41
Flow______________________________________________________________________42
Port Number _______________________________________________________________42
Connect Mode______________________________________________________________43
Remote IP Address__________________________________________________________49
Remote Port _______________________________________________________________49
DisConnMode ______________________________________________________________50
Flush Mode ________________________________________________________________50
DisConnTime (Inactivity Timeout) _______________________________________________52
SendChar 1 and SendChar2___________________________________________________52
Telnet Terminal Type ________________________________________________________52
Channel (Port) Password _____________________________________________________52

Email Configuration _____________________________________________________53

Mail Server ________________________________________________________________53
Unit Name _________________________________________________________________54
Domain Name ______________________________________________________________54
Recipient 1 ________________________________________________________________54
Recipient 2 ________________________________________________________________54
Trigger 1 __________________________________________________________________54
Trigger 2 __________________________________________________________________55
Trigger 3 __________________________________________________________________55

WLAN Settings ________________________________________________________55

Enable WLAN ______________________________________________________________55
Find Network Name _________________________________________________________55
Enable Ad Hoc Network Creation _______________________________________________55
Security ___________________________________________________________________56
Data Rate _________________________________________________________________56
Power Management _________________________________________________________56

Expert Settings ________________________________________________________56

TCP Keepalive Time _________________________________________________________56
ARP Cache Timeout _________________________________________________________56
HTTP Port Number __________________________________________________________57
SMTP Port Number__________________________________________________________57

Security Settings _______________________________________________________57

Disable SNMP______________________________________________________________57

WiPort™ User Guide 5

Contents

SNMP Community Name _____________________________________________________ 57
Disable Telnet Setup ________________________________________________________ 57
Disable TFTP Firmware Upgrade ______________________________________________ 58
Disable Port 77FE (Hex) _____________________________________________________ 58
Disable Web Server _________________________________________________________ 58
Disable Web Setup__________________________________________________________ 58
Disable ECHO Ports_________________________________________________________ 58
Enable Enhanced Password __________________________________________________ 58
Disable Port 77F0 (Hex)______________________________________________________ 59

Factory Defaults_______________________________________________________ 59

Channel 1 Configuration _____________________________________________________ 59
Channel 2 Configuration _____________________________________________________ 59
WLAN Settings _____________________________________________________________ 60
Expert Settings _____________________________________________________________ 60
Security Settings ___________________________________________________________ 60
Email Settings _____________________________________________________________ 61

Exit Configuration Mode_________________________________________________ 61

6: Configurable Pins 62

Defaults Settings: ___________________________________________________________ 62
Features: _________________________________________________________________ 62

Control Protocol _______________________________________________________ 62

Guidelines ________________________________________________________________ 62
Commands ________________________________________________________________ 63

Examples ____________________________________________________________ 65

7: Monitor Mode 67

Entering Monitor Mode via the Serial Port ___________________________________ 67
Entering Monitor Mode via the Network Port _________________________________ 67
Monitor Mode Commands _______________________________________________ 67

8: Updating Firmware 69

Obtaining Firmware ____________________________________________________ 69
Reloading Firmware____________________________________________________ 69

Using TFTP: Graphical User Interface ___________________________________________ 69
Using TFTP: Command Line Interface___________________________________________ 70
Recovering the Firmware Using the Serial Port ____________________________________ 70

9: Troubleshooting 71

Diagnostic LED States __________________________________________________ 71
Problems and Error Messages ___________________________________________ 72
Technical Support _____________________________________________________ 75

6 WiPort™ User Guide

11:: UUssiinngg TThhiiss GGuuiiddee

Purpose and Audience

This guide provides the information needed to configure, use and update the
WiPort
embedding the WiPort in their designs. This User Guide covers WiPort Device
Server versions WP2001000-01, WP2002000-01, and WP2004000-01 (WiPort-485).

Chapter Summary

The remaining chapters in this guide include:

TM

and is intended for software developers and system integrators who are

Introduction

Configuration Using
DeviceInstaller

Configuration using Web­Manager

Configuration via Serial Mode or
Telnet Port

Describes the main features of the WiPort and the protocols it
supports.

Provides information for configuring the WiPort using
DeviceInstaller.

Details configuration using the Web-Manager to set parameters
such as port and server properties.

Provides instructions for accessing Setup Mode (command line
interface) using a Telnet connection through the network or a
terminal or terminal emulation program through the serial port.
Details the parameters that you must configure.

Configurable Pins

Monitor Mode

Updating Firmware

Troubleshooting

Provides instructions for configuring the eleven General Purpose
I/O pins.

Provides instructions for accessing and using the command line
interface for monitoring the network and diagnosing problems.

Provides instructions for obtaining the latest firmware and updating
the WiPort.

Describes common problems and error messages and how to
contact Lantronix Technical Support. Also provides information on
diagnostic LEDs.

WiPort™ User Guide 7

Using This Guide

Additional Documentation

The following guides are available on the product CD and the Lantronix web site
(www.lantronix.com

)

WiPort Development Kit Quick
Start Guide

WiPort Integration Guide

DeviceInstaller User Guide

Com Port Redirector User Guide

Briefly explains the basics to get the WiPort up
and running.

Provides information about the WiPort
hardware and integrating the WiPort into
another product.

Provides instructions for using the Windows-

based utility to configure the WiPort and other

Lantronix device servers.

Provides information on using the Windows­based utility to create a virtual com port.

8 WiPort™ User Guide

22:: IInnttrroodduuccttiioonn

WiPort is a wireless embedded device server that provides a network-enabling
solution based on the IEEE 802.11b wireless standard. WiPort allows Original
Equipment Manufacturers (OEMs) to add wireless connectivity to their products by
incorporating it onto a circuit board.

The WiPort functions independently of a PC, providing a fully integrated solution that
combines a processor, memory, 802.11b transceiver, and dual high-speed serial
ports into a single compact module. It includes an operating system, an embedded
Web server, full TCP/IP protocol stack, and WEP security. In addition, the WiPort
sends email alerts and supports numerous other network communication protocols,
including ARP, UDP, TCP, ICMP, Telnet, AutoIP, DHCP, HTTP, SNMP, and SMTP.

For OEMs who wish to customize the user interface by employing common and
familiar tools, the WiPort serves applets to a Web browser, resulting in interactive
Web pages. This customization of HTML Web pages and configuration screens
tailors the WiPort to fit unique requirements.

Capabilities

The WiPort device server has the following capabilities:

 Communication between TCP and UDP to serial.
 Wireless interface (802.11b).
 Ethernet interface.
 Email notification of configurable alarms and events.
 Upgradeable firmware.
 SNMP monitoring.
 Connects devices through a TCP or UDP data channel to computers or to

another device server.

 Contains a web server allowing presentation of custom content and easy

configuration through the browser.

 Contains eleven programmable I/O pins used to monitor or control attached

devices.

Applications

The WiPort device server connects serial devices such as those listed below to
wireless and Ethernet networks using the IP protocol family.

 Remote sensing
 CNC controllers
 Data collection devices
 Telecommunications equipment
 Data display devices

WiPort™ User Guide 9

Introduction

 Security alarms and access control devices
 Time clocks and terminals

Protocol Support

The WiPort device server uses the TCP/IP protocol stack for network
communications. Other supported protocols include:

 ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, and SNMP for

network communications and management.

 TCP, UDP, and Telnet for connections to the serial port.
 TFTP for firmware and web page updates.
 IP for addressing, routing, and data block handling over the network.
 User Datagram Protocol (UDP) for typical datagram applications in which

devices interact with other devices without maintaining a point-to-point
connection.

 SMTP for e-mail transmission.

Configuration Methods

For the unit to operate correctly on a network, it must have a unique IP address on
the network. There are three basic methods for logging into the device server and
assigning IP addresses (as well as setting other configurable parameters):

DeviceInstaller: Configure the ports and other features on the WiPort using a
Graphical User Interface (GUI) on a PC attached to a network. (See 3:Configuration

Using DeviceInstaller.)

Web-Manager: Through a web interface, configure the WiPort and its settings using
the WiPort’s Web-Manager. (See 4: Configuration using Web-Manager.)

Serial & Telnet Ports: There are two approaches to accessing Serial Mode. Make

a Telnet connection to the network port (9999) or connect a terminal (or a PC running

a terminal emulation program) to the unit’s serial port. (See 5:Configuration via Serial

Mode or Telnet Port.)

Addresses and Port Numbers

Hardware Address

The hardware address is also referred to as the Ethernet address or the MAC
address. The first three bytes of the Ethernet address are fixed and read 00-20-4A,
identifying the unit as a Lantronix product. The fourth, fifth, and sixth bytes are unique
numbers assigned to each unit.

Example: 00-20-4A-14-01-18

Note: Make note of the MAC address. It is needed to locate the WiPort

using DeviceInstaller.

IP Address

Every device connected to an IP network must have a unique IP address. This
address is used to reference the specific unit. The WiPort is automatically assigned
an IP address on DHCP-enabled networks as it is DHCP-enabled by default.

10 WiPort™ User Guide

Introduction

Port Numbers

Every TCP connection and every UDP datagram is defined by a destination IP
address and a port number. For example, a Telnet application commonly uses port
number 23. A port number is similar to an extension on a phone system.

The unit's serial channel (port) can be associated with a specific TCP/UDP port
number. Port number 9999 is reserved for access to the unit's Setup (configuration)
Mode window. Ports 0-1024 are reserved as well. For more information on reserved

port numbers, refer to Table 5-5. Reserved Port Numbers.

WiPort™ User Guide 11

33:: CCoonnffiigguurraattiioonn UUssiinngg DDeevviicceeIInnssttaalllleerr

This chapter covers the steps for getting the WiPort device server online and
working.

Accessing WiPort using DeviceInstaller

Note: Make note of the MAC address. It is needed to locate the WiPort

using DeviceInstaller. For more information on the hardware address, see

Hardware Address on page 10.

Follow the instructions on the product CD to install and run DeviceInstaller.

1. Click StartÆPrograms Æ LantronixÆDeviceInstallerÆDeviceInstaller. If the

PC has more than one network adapter, a message displays requesting the

selection of a network adapter. Select an adapter and click OK.

2. Click the Search icon and select the WiPort unit from the list of Lantronix device

servers on the local network.

3. Highlight the WiPort device in the list and click Settings. The Configure Device

window for the WiPort unit displays.

4. To store configuration changes, click OK. To store and apply modifications, click

Apply.

Server Configuration

Note: The IP address is assigned via DHCP (on DHCP-enabled networks).

Assign a static IP address only if necessary.

To manually assign an IP Address:

1. Click the Assign IP icon

2. If prompted, enter the hardware address (on the product label) and click Next.

3. Select Assign a specific IP address and click Next.

4. Enter the IP address. The Subnet mask displays automatically based on the IP
address; if desired, change it. On a local network, you can leave the Default
gateway blank (all zeros). Click Next.

5. Click the Assign pushbutton and wait several seconds until a confirmation
message displays. Click Finish.

6. Select the device from the main window list and select Ping from the Tools

menu. The Ping Device dialog box shows the IP address of the selected unit.

7. Click the Ping button. The results display in the Status window. Click the Clear
Status button to clear the window so you can ping the device again.

WiPort™ User Guide 12

.

Note: If you do not receive “Reply” messages, make sure the unit is

properly attached to the network and that the IP address assigned is
valid for the particular network segment you are working with. If you are
not sure, check with your systems administrator.

8. Click the Close button to close the dialog box and return to the main window.

WLAN Configuration

Without adequate protection, a wireless LAN is susceptible to access by
unauthorized users. As such, WiPort includes the Wired Equivalent Privacy (WEP)
encryption standard as an additional means of security.

To configure the WiPort’s WLAN settings:

Note: These settings are dependent on a given network’s individual settings.

1. From the Configure Device window for the WiPort unit, click the Advanced tab.

2. In the WLAN Configurable Items section, enter the following fields:

Configuration Using DeviceInstaller

Current Network
Interface

Network Name to Search Enter the name of the network in which the WiPort unit

Ad Hoc Network
Creation

Ad Hoc Network Name
Ad Hoc Country From the pull down menu, select a country for the Ad Hoc

Ad Hoc Network
Channel

Security As an additional security measure, enable WEP on the

Authentication Select an authentication scheme from the pull down menu

Encryption Select the encryption type from the pull down menu. 128 bits

Encrypti on Key Alternatively, manually enter the Encryption Key in

Use the pull down menu to select a WLAN interface or an
Ethernet interface.

resides.

Select Enable when using a client (such as a wireless card) to

associate to a network.

Enter the network name for the Ad Hoc network.

network. The default is United States.

Select the radio channel from the pull down menu for the Ad

Hoc network. The default value is 11.

WiPort. By default, WEP is disabled on WiPort.

(None or Shared). Selecting Shared requires manually

entering the authentication key.

is the default encryption.

hexadecimal value. 10 hexadecimal characters are required
for 64 bit encryption. 26 hexadecimal characters are required
for 128 bit encryption.

Data Rate

WiPort permits the control of the transmission rate (in Mbps).

3. Click Apply to apply the changes immediately to the WiPort and automatically

reboot. Click OK to save the changes to apply at the next reboot.

WiPort™ User Guide 13

Configuration Using DeviceInstaller

Host List Configuration

If this option is set to True, the device server scrolls through the host list until it

connects to the first available device listed in the host list table. Once it connects, the
unit stops further attempts. If this connection fails, the unit continues to scroll through
the table until it is able to connect to the next available IP address in the host list.

The host list supports a minimum of 1 and a maximum of 12 entries. Each entry
contains an IP address and a port number. This field is available for configuration

only when Active Connection is not set to None.

Note: The host list is disabled for Manual and Modem Mode. The unit will not

accept a data connection from a remote device when the hostlist option is
enabled.

To configure the WiPort’s host list:

1. From the Configure Device window for the WiPort unit, click the Advanced tab.

2. In the Host List section, modify the following fields:

Retry Counter Enter the value for the number of times the WiPort should

Retry Timeout Enter the duration (in seconds) the WiPort should abandon

attempt to retry connecting to the host list.

attempting connection to the host list.

3. Click the “…” next to the Host List field to open the HostListEntry Collection

Editor Window. The list of host list IP addresses display in the Members section.

4. Click on a host list member to highlight it and enter the following information in
the Properties section:

Host
Port

5. Click Apply to apply the changes immediately to the WiPort and automatically
reboot. Click OK to save the changes to apply at the next reboot.

OEM Pin Configuration

There are 11 configurable hardware pins on the WiPort unit. For each pin, configure
the pin function, communication direction, and its active level. For more information,

see Configurable Pins on page 62.

To configure the WiPort’s Configurable Pins:

1. From the Configure Device window for the WiPort unit, click the Advanced tab.

2. In the OEM Configurable Pins section, click the … button next to the
Configurable Pins field to open the ConfigurablePin Collection Editor window.

3. Highlight a Configurable Pin from the Members section to select it for
configuration.

Enter or modify the Host’s IP address.

Enter the port on which the Host’s IP address resides.

4. In the Configurable Pin Properties section (right side of the window), modify the
following fields:

Config Pin Function From the pull down menu, select the purpose of the specified

pin.

14 WiPort™ User Guide

Configuration Using DeviceInstaller

Config Pin Direction Select whether the pin receives input or transmits output. This

field is modifiable only when Config Pin Function is set to
GPIO.

Config Pin Active Level

Select the signal active level (Low or High). The default is
Low.

5. Click OK to store the configurable pin settings and close the ConfigurablePin

Collection Editor.

6. Click Apply from the Configure Device window to apply the changes

immediately. The WiPort device automatically reboots.

Channel 1 and Channel 2 Configuration

Channel 1 and Channel 2 configurations define how the serial port responds to
network and serial communications.

To configure the channel configurations:

1. From the Configure Device window for the WiPort unit, click the Ports tab. The

list of available ports display.

2. Click on a port number and click Edit Settings. The Port Properties window

opens.

3. Click the Port Settings tab. In the available fields, change the following pull

down menu options as necessary:

Baud Rate The unit and attached serial device, such as a modem, must

agree on a speed or baud rate to use for the serial connection.
Valid baud rates are 300, 600, 1200, 2400, 4800, 9600
(default), 19200, 38400, 57600, 115200, 230400, 460800, or

921600.

Data bits
Parity Refers to the checking whether data has been lost or written

Stop bits The stop bit follows the data and parity bits in serial

Flow control Flow control manages data flow between devices in a network

Indicates the number of bits in a transmitted data package.

over when transmitted between computers. The default is

None.

communication. It indicates the end of transmission.

to ensure it is processed efficiently. Too much data arriving
before a device is prepared to manage it causes lost or
retransmitted data.

The following table demonstrates some common Interface Mode (I/F) settings:

Table 3-1. Common Interface Mode Settings

Common I/F Mode Setting

RS-232C, 8-bit, No Parity, 1 stop bit

RS-232C, 7-bit, Even Parity, 1 stop bit

To configure advanced channel configurations:

4. From the Configure Device window for the WiPort unit, click the Ports tab. The

list of available ports display.

WiPort™ User Guide 15

Configuration Using DeviceInstaller

5. Click on a port number and click Edit Settings. The Port Properties window

opens.

6. Click the Advanced tab. In the available fields, change the following pull down

menu options as necessary:

Serial Settings

Baud Rate The unit and attached serial device, such as a modem, must

agree on a speed or baud rate to use for the serial connection.
Valid baud rates are 300, 600, 1200, 2400, 4800, 9600
(default), 19200, 38400, 57600, 115200, 230400, 460800, or

921600.

Data bits
Flow control Flow control manages data flow between devices in a network

Stop bits The stop bit follows the data and parity bits in serial

Parity Refers to the checking whether data has been lost or written

Indicates the number of bits in a transmitted data package.

to ensure it is processed efficiently. Too much data arriving
before a device is prepared to manage it causes lost or
retransmitted data.

communication. It indicates the end of transmission.

over when transmitted between computers. The default is
None.

UDP Datagram Mode

Datagram Mode When the UDP option is in effect, the unit never attempts to

initiate a TCP connection because it uses UDP datagrams to

send and receive data. Select True to enable Datagram

Mode.

Datagram Type

Configurable when Datagram Mode is set to True.

Configures remote IP or network broadcast address and the

remote port. Enter 01 for directed or broadcast UDP.

Passive Connection

Accept Passive
Connection

Select Yes to permit incoming network connection on this

port.

Local Port Port number for an incoming connection. Also used as the

source port number.

Password Required Select True to require a password for incoming connections.
Port Password

This parameter appears only when Password Required is set
to True. Enter a password for the selected channel or serial

port.

Active Connection

Active Connection

Terminal Type This field is available for configuration only when Telnet Mode

Defines the unit’s connection method. The default is None

(no Active Connection).

to True.

Use the terminal name for the Telnet terminal type. Enter only
one name. When this option is enabled, the unit also reacts to

16 WiPort™ User Guide

Configuration Using DeviceInstaller

the EOR (end of record) and binary options, which can be
used for applications such as terminal emulation to UNIX
hosts.

Remote Port This field is available for configuration only when Active

Connection is not set to None.

Set the remote TCP port number for the unit to make outgoing
connections. This parameter defines the port number on the
target host to which a connection is attempted.

To connect an ASCII terminal to a host using the unit for login
purposes, use the remote port number 23 (Internet standard
port number for Telnet services).

Use Host List This field is available for configuration only when Active

Connection is not set to None.
If this option is set to True, the device server attempts a

connection from the host list. This process stops at the first
valid connection.

The host list is disabled for Manual or Modem Mode. The unit
will not accept a data connection from an incoming remote
device when the host list option is enabled.

For information on configuring the host list, see Host List

Configuration on page 14.

Modem Emulation Mode In Modem (Emulation) Mode, the unit presents a modem

interface to the attached serial device. It accepts AT-style
modem commands, and handles the modem signals
accordingly.

For more information on Modem Emulation Mode, see Modem

Mode on page 47.

Selecting Without Echo tells the modem not send an answer

to the commands received (or display typed data).

Choose Full Verbose for the unit to echo modem commands

and respond to a command with a message string.

Character Response tells the WiPort unit to echo modem

commands and respond to a command with a single character
response.

Telnet Mode This field is available for configuration only when Active

Connection is not set to None. Select True to permit a Telnet

connection to the WiPort unit.

Remote Host This field is available for configuration only when Active

Connection is not set to None.

Denotes the destination IP address used with an outgoing
connection.

Connection Response A single character is transmitted to the serial port when there

is a change in connection state. Default setting is None.

Disconnection

Disable Hard Disconnect The TCP connection closes even if the remote site does not

acknowledge a disconnect request.

Disconnect with
modem_control_in

Disconnect with EOT The connection is dropped when Ctrl-D or Hex 04 is detected.

The connection drops when modem_control_in transitions
from a high state to a low state.

Both Telnet mode and Disconnect with EOT must be enabled

WiPort™ User Guide 17

Configuration Using DeviceInstaller

Inactivity Timeout Use this parameter to set an inactivity timeout. The unit drops

Connection

for Disconnect with EOT to function properly. Ctrl D is only
detected going from the serial port to the network.

the connection if there is no activity on the serial line before
the set time expires. Enter time in the format mm:ss, where m
is the number of minutes and s is the number of seconds. To

disable the inactivity timeout, enter 00:00.

Connection LED

Select Blink for the status LEDs to blink upon connection or
None for no LED output.

Buffer Flushing

Flush Input Buffer

At Time of Disconnect Clear the network buffer when a network connection to or from

the serial port drops.

On Active Connection
On Passive

Connection

Flush Output Buffer

At Time of Disconnect Clear the buffer when the network connection to or from the

On Active Connection Clear the buffer with a new connection initiated from the

On Passive
Connection

Clear the network buffer upon initializing a connection.

Clear the buffer upon a connection initiated from the network
to the serial port.

device is dropped.

device to the network.

Clear the buffer with a connection from the network to the
device.

Packing

Enable Packing Two firmware-selectable packing algorithms define how and

when packets are sent to the network. The standard algorithm
is optimized for applications in which the unit is used in a local
environment, allowing for very small delays, while keeping the
packet count low. The alternate packing algorithm optimizes
the packet for the network and is especially useful in
applications in a routed Wide Area Network (WAN). Adjusting
parameters in this mode can economize the network data
stream.

Select True to enable packing on the WiPort.

Idle Time Select the maximum time for inactivity between data bytes on

the serial port. The default time is 12 milliseconds.

Match Byte 1 Use to set the termination byte. Set this value to 00 if not

used.

Match Byte 2 Use to indicate the end of a series of data to be sent as one

group. Set this value to 00 if specific functions are not needed.

18 WiPort™ User Guide

Configuration Using DeviceInstaller

Match 2 Byte Sequence

Send Frame Only After the detection of the byte sequence, indicates whether to

Send Trailing Bytes Select the number of bytes to send after the end-of-sequence

7. To exit the Channel 1 and Channel 2 configurations, click OK.

Email Configuration

The unit sends an e-mail when a specific trigger event occurs. There are three
separate triggers, based on any combination of the configurable pins (PIO) when
selected as user I/O functions. Optionally, use a two-byte serial string to initiate a
trigger.

To configure the WiPort’s email settings:

1. From the Configure Device window for the WiPort unit, click the Advanced tab.

2. In the Email Notification section, enter the following fields:

Domain Name

Used with Match Byte 1 and Match Byte 2 to indicate the

end of a series of data to be sent as one group. The
sequence must occur sequentially to indicate to the WiPort
end of the data packet.

send the data frame or the entire buffer (i.e. include the trailing

bytes). Select True to send only the data frame.

characters.

Enter the Email server’s domain name.

Mail Server
Recipients

Triggers A trigger event occurs when the unit receives the specified

Unit Name Enter the username used by the WiPort to send Email

Enter the IP address of the mail server.

Click the “…” box to open the Email Recipient Collection

Editor window. Click on an entry in the Members section and
enter the email address in the Email Recipient Properties

window. Click OK when finished.

trigger input as a result of a specified combination of
conditions on the configurable pins.

Each trigger is independent of the others. Each condition
within an individual trigger must be met before the unit will
send the Email.

Click the “…” box to open the Email Trigger Collection Editor

window. Highlight a trigger in the Members section and
modify its properties in the Email Trigger Properties section.
Click OK when finished.

For more information on triggers, see Email Configuration on

page 53

messages.

WiPort™ User Guide 19

44:: CCoonnffiigguurraattiioonn uussiinngg WWeebb--MMaannaaggeerr

This chapter describes how to configure the WiPort using Web-Manager, Lantronix’s
browser-based configuration tool. The unit’s configuration is stored in nonvolatile
memory and is retained without power. The unit performs a reset after the
configuration is changed and stored.

Accessing WiPort using Web-Manager

Note: Make note of the MAC address. It is needed to locate the WiPort

using DeviceInstaller. For more information on the hardware address, see

Hardware Address on page 10.

Follow the instructions on the product CD to install and run DeviceInstaller.

1. Click StartÆPrograms Æ LantronixÆDeviceInstallerÆDeviceInstaller. If the

PC has more than one network adapter, a message displays requesting the

selection of a network adapter. Select an adapter and click OK.

2. Click the Search icon and select the WiPort unit from the list of Lantronix device

servers on the local network.

3. Highlight the WiPort device in the list and click Web. Web-Manager for WiPort

opens in a new browser window.

WiPort™ User Guide 20

Figure 4-1. Web-Manager

Configuration using Web-Manager

The main menu is displayed in the left side of the Web-Manager window.

Note: Alternatively, access the WiPort’s Web-Manager if it is connected to

the network by entering its IP address in a web browser.

Network Configuration

The unit’s network values display upon selecting Network from the main menu. The

following sections describe the configurable parameters within the Network

configuration menu.

Note: The IP address is assigned via DHCP (on DHCP-enabled networks).

Assign a static IP address only if necessary.

WiPort™ User Guide 21

Configuration using Web-Manager

Figure 4-2. Network Settings

Automatic IP Address Configuration

To automatically assign an IP address and its network configuration:

1. Click Network from the main menu.

2. Select Obtain IP address automatically.

3. Enter the following (as necessary):

BOOTP

DHCP

Auto-IP The WiPort generates an IP in the 169.254.x.x address range

DHCP Host Name Enter the name of the host on the network providing the IP

Note: Disabling BOOTP, DHCP, and Auto-IP (i.e. all three checkboxes) is

not advised as the only available IP assignment method will then be ARP or
serial port.

Select Enable to permit the Bootstrap Protocol (BOOTP). The

BOOTP server automatically assigns the IP address from a
pool of addresses.

Select Enable to permit Dynamic Host Configuration Protocol

(DHCP). DHCP automatically assigns a leased IP address to
the WiPort unit.

with a Class B subnet. Select the Disable checkbox to

disable this feature.

address.

4. Click the OK button when finished.

22 WiPort™ User Guide

Static IP Address Configuration

To manually assign an IP address and its network configuration:

1. Click Network from the main menu.

2. Select Use the following IP configuration.

3. Enter the following (as necessary):

IP Address If DHCP is not used to assign IP addresses, enter it manually.

Subnet Mask A subnet mask defines the number of bits taken from the IP

Default Gateway The gateway address, or router, allows communication to

4. Click the OK button when finished.

Server Configuration

Configuration using Web-Manager

The IP address must be set to a unique value in the network.

address that are assigned for the host part.

other LAN segments. The gateway address should be the IP
address of the router connected to the same LAN segment as
the unit. The gateway address must be within the local
network.

The unit’s server values display upon selecting Server from the main menu. The

following sections describe the configurable parameters within the Server

configuration menu.

Figure 4-3. Server Settings

WiPort™ User Guide 23
