1: Using This Guide

Chapter

Description

Purpose and Audience

This guide provides the information needed to configure, use and update the WiPort and is intended for software developers and system integrators who are embedding the WiPort in their designs.

Note: For the WiPort model WP2001000M-02, additional information is in the

Modbus Protocol User Guide located at

www.lantronix.com/support/documentation.html

Chapter Summary

The remaining chapters in this guide include:

2: Introduction

3: Using DeviceInstaller

4: Configuration Using Web Manager

5: Configuration via Serial Mode or Telnet Port

6: Configurable Pins

7: Monitor Mode

8: Wireless Bridging

9: Updating Firmware

10: Troubleshooting

Describes the main features of the WiPort and the protocols it supports.

Provides information for viewing the WiPort’s configuration using DeviceInstaller.

Details configuration using the Web Manager to set parameters such as port and server properties.

Provides instructions for accessing Setup Mode (command line interface) using a Telnet connection through the network or a terminal or terminal emulation program through the serial port. Details the parameters that you must configure.

Provides instructions for configuring the eleven General Purpose I/O pins.

Provides instructions for accessing and using the command line interface for monitoring the network and diagnosing problems.

Provides information on the WiPort wireless bridging feature.

Provides instructions for obtaining the latest firmware and updating the WiPort.

Describes common problems and error messages and how to contact Lantronix Technical Support. Also provides information on diagnostic LEDs.

WiPort Embedded Wireless Device Server User Guide 9

Additional Documentation

Visit the Lantronix web site at http://www.lantronix.com/support/documentation.html for the latest documentation and the following additional documentation:

 WiPort Development Kit Quick Start Guide - Briefly explains the basics to

get the WiPort up and running.

 WiPort Integration Guide - Provides information about the WiPort hardware

and integrating the WiPort into another product.

1: Using This Guide

WiPort Embedded Wireless Device Server User Guide 10

2: Introduction

WiPort is a wireless embedded device server that provides a network-enabling solution based on the IEEE 802.11b/g wireless standard. WiPort allows Original Equipment Manufacturers (OEMs) to add wireless connectivity to their products by incorporating it onto a circuit board.

The WiPort functions independently of a PC, providing a fully integrated solution that combines a processor, memory, 802.11b/g transceiver, and dual high-speed serial ports into a single compact module. It includes an operating system, an embedded Web server, and a full TCP/IP protocol stack. In addition, the WiPort sends email alerts and supports numerous other network communication protocols, including ARP, UDP, TCP, ICMP, Telnet, AutoIP, DHCP, HTTP, SNMP, and SMTP.

Wired Equivalent Privacy (WEP) and Wireless Protected Access (WPA) are available to guarantee the security of the wireless communication. WEP uses an RC4 encryption algorithm with a configured 64-bit or 104-bit key to scramble the data. WPA uses TKIP, which expands upon WEP by changing the key automatically every session, detecting intrusion and using improved authentication.

Lantronix's exclusive, patent pending SmartRoam technology takes a proactive approach to transferring connectivity from one AP (AP) to another AP belonging to the same ESS (having the same SSID or Network Name). SmartRoam (patent pending) continuously tracks the signal strength of APs within range to smoothly and automatically transition to an AP with a stronger signal.

For OEMs who wish to customize the user interface by employing common and familiar tools, the WiPort serves applets to a Web browser, resulting in interactive Web pages. This customization of HTML Web pages and configuration screens tailors the WiPort to fit unique requirements.

Capabilities

The WiPort device server has the following capabilities:

 Communication between TCP and UDP to serial.

 Wireless interface (802.11b/g) with WEP or WPA protection.

 Ethernet interface.

 Email notification of configurable alarms and events.

 Upgradeable firmware.

 SNMP monitoring.  Connects devices through a TCP or UDP data channel to computers or to

 Contains a web server allowing presentation of custom content and easy

 Contains eleven programmable I/O pins used to monitor or control attached

another device server.

configuration through the browser.

devices.

WiPort Embedded Wireless Device Server User Guide 11

 WiPort-G models are configurable for wireless bridging (see on 8: Wireless

Bridging). This allows a host connected to the WiPort over a wired Ethernet

interface to be accessible over a wireless network.

 SmartRoam (patent pending) feature transfers connectivity from one AP to

another as necessary.

Applications

The WiPort device server connects serial devices such as those listed below to wireless and Ethernet networks using the IP protocol family.

 Remote sensing

 CNC controllers

 Data collection devices  Telecommunications equipment

 Data display devices

 Security alarms and access control devices

 Time clocks and terminals

Protocol Support

2: Introduction

The WiPort device server uses the TCP/IP protocol stack for network communications. Other supported protocols include:

 ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, and SNMP for

network communications and management.

 TCP, UDP, and Telnet for connections to the serial port.

 TFTP for firmware and web page updates.

 IP for addressing, routing, and data block handling over the network.

 User Datagram Protocol (UDP) for typical datagram applications in which

devices interact with other devices without maintaining a point-to-point connection.

 SMTP for e-mail transmission.

Configuration Methods

For the unit to operate correctly on a network, it must have a unique IP address on the network. There are three basic methods for logging into the device server:

DeviceInstaller: View the current WiPort configuration using a Graphical User Interface (GUI) on a PC attached to a network. (See 3: Using DeviceInstaller.)

Web Manager: Through a web interface, configure the WiPort and its settings using the WiPort’s Web Manager. (See 4: Configuration Using Web Manager.)

Serial & Telnet Ports: There are two approaches to accessing Serial Mode. Make a Telnet connection to the network port (9999) or connect a terminal (or a PC running a terminal emulation program) to the unit’s serial port. (See 5: Configuration via Serial

Mode or Telnet Port.)

WiPort Embedded Wireless Device Server User Guide 12

Addresses and Port Numbers

Hardware Address

The hardware address is also referred to as the Ethernet address or the MAC address. The first three bytes of the Ethernet address are fixed and read 00-20-4A, identifying the unit as a Lantronix product. The fourth, fifth, and sixth bytes are unique numbers assigned to each unit.

Example: 00-20-4A-14-01-18

Note: Make note of the MAC address. It is needed to locate the WiPort using

DeviceInstaller.

IP Address

Every device connected to an IP network must have a unique IP address. This address references the specific unit. The WiPort is automatically assigned an IP address on DHCP-enabled networks, as it is DHCP-enabled by default.

Port Numbers

Every TCP connection and every UDP datagram is defined by a destination IP address and a port number. For example, a Telnet application commonly uses port number 23. A port number is similar to an extension on a phone system.

2: Introduction

The unit's serial channel (port) can be associated with a specific TCP/UDP port number. Port number 9999 is reserved for access to the unit's Setup (configuration) Mode window. Ports 0-1024 are reserved as well. For more information on reserved port numbers, refer to Table 5-7.

WiPort Embedded Wireless Device Server User Guide 13

3: Using DeviceInstaller



This chapter covers the steps for getting the WiPort embedded wireless device server online and viewing its current configuration.

Note: DeviceInstaller is a free utility program provided by Lantronix that

discovers, configures, upgrades, and manages Lantronix Device Servers. It can be downloaded from the Lantronix website at

www.lantronix.com/support/downloads

For instructions on using DeviceInstaller to configure the IP address and related settings or for more advanced features, see the

Online Help.

Installing DeviceInstaller

DeviceInstaller

To install DeviceInstaller:

1. Download the latest version of DeviceInstaller from

http://www.lantronix.com/downloads

2. Run the executable to start the installation process.

3. Respond to the installation wizard prompts. (If prompted to select an installation type, select Typical).

Assigning an IP Address

The unit’s IP address must be configured before it can work correctly on a network. You have several options for assigning an IP to your unit. We recommend that you manually assign the IP address over the network using DeviceInstaller.

Note: To use a serial connection instead of an Ethernet connection to

configure the device, see 5 Configuration via Telnet or Serial Port (Setup

Mode) on page 46.

The unit’s IP address is normally set to 0.0.0.0 at the factory. The hardware address is on the product label. The unit is DHCP enabled as the default.

To assign an IP address manually:

4. Click StartAll Programs  LantronixDeviceInstaller

DeviceInstaller. If your PC has more than one network adapter, a message

4.4

displays. Select an adapter and click OK.

Note: If the unit already has an IP address (e.g., DHCP has assigned an IP

address), click the Search icon and select the unit from the list of Lantronix device servers on the local network.

5. Click the Assign IP icon .

6. If prompted, enter the hardware address (on the product label) and click Next.

WiPort Embedded Wireless Device Server User Guide 14

7. Select Assign a specific IP address and click Next.

Group

group

8. Enter the IP address. The Subnet mask displays automatically based on the IP address; if desired, you may change it. On a local network, you can leave the Default gateway blank (all zeros). Click Next.

9. Click the Assign button and wait several seconds until a confirmation message displays. Click Finish.

10. Select the device from the main window list and select Ping from the Tools menu. The Ping Device dialog box shows the IP address of the selected unit.

11. From the Tools menu, click the Ping button. The results display in the Status window. Click the Clear Status button to clear the window so you can ping the device again.

Note: If you do not receive “Reply” messages, make sure the unit is properly

attached to the network and that the IP address assigned is valid for the particular network segment you are working with. If you are not sure, check with your systems administrator.

12. Click the Close button to close the dialog box and return to the main window.

Accessing WiPort Using DeviceInstaller

3: Using DeviceInstaller

Note: Make note of the MAC address. You will need it to locate the WiPort

using DeviceInstaller. For more information on the hardware address, see

Hardware Address on page 13.

1. Click StartAll Programs  LantronixDeviceInstaller 4.4  DeviceInstaller.

2. Click the Wireless folder. The list of available Lantronix WiPort device servers display.

3. Expand the list of WiPort embedded wireless device servers by clicking the + symbol next to the WiPort icon. Select the WiPort unit by clicking on its IP address to view its configuration.

Viewing the WiPort Device Server’s Current Configuration

Follow the Accessing WiPort using DeviceInstaller on page 15 to locate the WiPort.

1. In the right window, click the Device Details tab. The current WiPort configuration displays:

Name Configurable field. Enter a name to identify the WiPort.

Double-click on the field, type in the value, and press Enter to complete. This name is not visible on other PCs or laptops using DeviceInstaller.

DHCP Device Name

Non-configurable field. Displays the name associated with MatchPort’s current IP address, if the IP address was obtained dynamically. To change the DHCP device name, see

4: Configuration Using Web Manager or 5: Configuration via Serial Mode or Telnet Port.

Configurable field. Enter a Double-click on the field, type in the value, and press Enter to complete. This group name is not visible on other PCs or laptops using DeviceInstaller.

WiPort Embedded Wireless Device Server User Guide 15

to categorize the WiPort.

3: Using DeviceInstaller

Extended Firmware

Displays “Dynamically” if the device automatically received an

Obtain via Auto IP with value of True or False

Comments Configurable field. Enter comments for the WiPort. Double-

click on the field, type in the value, and press Enter to complete. This description or comment is not visible on other PCs or laptops using DeviceInstaller.

Device Family

Type Non-configurable field. Displays the device type as WiPort.

Hardware Address

Firmware Version

Version

Online Status

IP Address

IP Address was Obtained

Non-configurable field. Displays the WiPort’s device family type as Wireless.

Non-configurable field. Displays the WiPort device server’s ID embedded within the box.

Non-configurable field. Displays the WiPort device server’s hardware (or MAC) address.

Non-configurable field. Displays the firmware currently installed on the WiPort.

Displays the firmware currently installed on the WiPort.

Non-configurable field. Displays the WiPort’s status as online, offline, unreachable (the WiPort is on a different subnet), or busy (the WiPort is currently performing a task).

Non-configurable field. Displays the WiPort’s current IP address. To change the IP address, see 4: Configuration

Using Web Manager or 5: Configuration via Serial Mode or Telnet Port.

IP address (e.g., from DHCP). Displays “Statically” if the IP address was configured manually. If the IP address was assigned dynamically, the following fields appear:

 Obtain via DHCP with value of True or False.  Obtain via BOOTP with value of True or False.  Obtain via RARP with value of True or False 

Subnet Mask

Gateway

Number of COB partitions supported

Number of Serial Ports

TCP Keepalive Non-configurable field. Displays 1-65s, the WiPort’s TCP

Telnet Supported

Telnet Port

WiPort Embedded Wireless Device Server User Guide 16

Non-configurable field. Displays the WiPort’s current subnet mask. To change the subnet mask, see 4: Configuration Using

Web Manager or 5: Configuration via Serial Mode or Telnet Port.

Non-configurable field. Displays the WiPort’s current gateway. To change the gateway, see 4: Configuration Using Web

Manager or 5: Configuration via Serial Mode or Telnet Port.

Non-configurable field. Displays the number of COB partitions supported (between 19 and 51).

Non-configurable field. Displays the number of ports on the WiPort.

keepalive range.

Non-configurable field. Permits Telnet sessions.

Non-configurable field. Displays the WiPort’s port for telnet sessions.

3: Using DeviceInstaller

Note:

Firmware Upgradable

True

Supports 485

Supports HTTP Server

True.

Supports GPIO

Web Port

Maximum Baud Rate Supported

Supports Configurable Pins

Supports Email Triggers Non-configurable field. Displays True, indicating email triggers

Supports AES Data Stream

Supports 921K Baudrate

Supports Wired Ethernet

Supports HTTP Setup

Non-configurable field. Displays the WiPort’s port for Web Manager configuration.

Non-configurable field. Displays the WiPort’s maximum baud rate.

the WiPort may not currently be running at this rate.

Non-configurable field. Displays firmware is upgradeable as newer version become available.

Non-configurable field. Displays True, indicating configurable pins are available on the WiPort.

are available on the WiPort.

Non-configurable field. Displays True if the WiPort unit supports AES encryption.

Non-configurable field. WiPort supports the RS-485 protocol.

Non-configurable field. WiPort supports baud rates up to 920K.

Non-configurable field. WiPort supports wired Ethernet.

Non-configurable field. Displays

Non-configurable field. WiPort supports HTTP setup.

, indicating the WiPort’s

Supports 230K Baud Rate

Non-configurable field. WiPort supports a baud rate of 230K.

Non-configurable field. WiPort supports communication via General Purpose Input Output (GPIO).

WiPort Embedded Wireless Device Server User Guide 17

4: Using DeviceInstaller

This chapter covers the steps for getting the WiPort device server online and viewing its current configuration.

Note: DeviceInstaller is a free utility program provided by Lantronix that discovers,

configures, upgrades, and manages Lantronix Device Servers. It can be downloaded from the Lantronix website at www.lantronix.com/support/downloads.

For instructions on using DeviceInstaller to configure the IP address and related settings or for more advanced features, see the DeviceInstaller Online Help.

Installing DeviceInstaller

To install DeviceInstaller:

1. Download the latest version of DeviceInstaller from http://www.lantronix.com/downloads

2. Run the executable to start the installation process.

3. Respond to the installation wizard prompts. (If prompted to select an installation type, select Typical).

Assigning an IP Address

Note: To use a serial connection instead of an Ethernet connection to

configure the device, see 5 Configuration via Telnet or Serial Port (Setup

Mode) on page 46.

The unit’s IP address is normally set to 0.0.0.0 at the factory. The hardware address is on the product label. The unit is DHCP enabled as the default.

To assign an IP address manually:

1. Click StartAll Programs  LantronixDeviceInstaller 4.4DeviceInstaller. If your PC has more than one network adapter, a message displays. Select an adapter and click OK.

Note: If the unit already has an IP address (e.g., DHCP has assigned an IP

address), click the Search icon and select the unit from the list of Lantronix device servers on the local network.

2. Click the Assign IP icon .

3. If prompted, enter the hardware address (on the product label) and click Next.

4. Select Assign a specific IP address and click Next.

WiPort Embedded Wireless Device Server User Guide 18

5. Enter the IP address. The Subnet mask displays automatically based on the IP address; if desired, you may change it. On a local network, you can leave the Default gateway blank (all zeros). Click Next.

6. Click the Assign button and wait several seconds until a confirmation message displays. Click Finish.

7. Select the device from the main window list and select Ping from the Tools menu. The Ping Device dialog box shows the IP address of the selected unit.

8. From the Tools menu, click the Ping button. The results display in the Status window. Click the Clear Status button to clear the window so you can ping the device again.

Note: If you do not receive “Reply” messages, make sure the unit is properly

attached to the network and that the IP address assigned is valid for the particular network segment you are working with. If you are not sure, check with your systems administrator.

9. Click the Close button to close the dialog box and return to the main window.

Accessing WiPort Using DeviceInstaller

1. Click StartAll Programs  LantronixDeviceInstaller 4.4  DeviceInstaller.

4: Using DeviceInstaller

2. Click the WiPort folder. The list of available Lantronix WiPort device servers display.

3. Expand the list of WiPort device servers by clicking the + symbol next to the WiPort icon. Select the WiPort by clicking on its IP address to view its configuration.

Viewing the Current Configuration

DeviceInstaller provides a view of the unit's configuration.

To view the unit's current settings:

1. Follow the instructions above to locate the WiPort device server.

2. In the right pane, click the Device Details tab. The current WiPort configuration displays:

Name

DHCP Device Name

Configurable field. A name that identifies the WiPort embedded wireless device server.

Double-click the field, type in the value, and press Enter to complete. This name is not visible on other PCs or laptops using the DeviceInstaller utility.

Non-configurable field. Displays the name associated with WiPort embedded wireless device server’s current IP address, if the IP address was obtained dynamically.

To change the DHCP device name, see Configuration Using

Web Manager or Configuration via Telnet or Serial Port (Setup Mode).

Group

Configurable field. A group name to categorize the WiPort embedded wireless device server.

Double-click the field, type in the value, and press Enter to complete. This group name is not visible on other PCs or laptops using DeviceInstaller.

WiPort Embedded Wireless Device Server User Guide 19

4: Using DeviceInstaller

Online Status

 Obtain via Auto IP with value of True or False

TCP Keepalive

Comments

Device Family

Type

Hardware Address

Firmware Version

Extended Firmware Version

Configurable field. Information about the WiPort embedded wireless device server.

Double-click the field, type in the value, and press Enter to complete. This description or comment is not visible on other PCs or laptops using DeviceInstaller.

Non-configurable field. Displays the WiPort embedded wireless device server’s device family as “Wireless.”

Non-configurable field. Displays the device type as “WiPort.”

Non-configurable field. Displays the WiPort embedded wireless device server’s ID embedded within the unit.

Non-configurable field. Displays the WiPort embedded wireless device server’s hardware (or MAC) address.

Non-configurable field. Displays the firmware currently installed on the WiPort embedded wireless device server.

Non-configurable field. Displays the full version nomenclature of the firmware.

Non-configurable field. Displays the WiPort embedded wireless device server’s status as online, offline, unreachable (the WiPort unit is on a different subnet), or busy (the WiPort embedded wireless device server is currently performing a task).

IP Address

IP Address was Obtained

Subnet Mask

Gateway

Number of COB partitions supported

Number of Serial Ports

Non-configurable field. Displays the WiPort embedded wireless device server’s current IP address. To change the IP address, see Assigning an IP Address on page 18.

Displays “Dynamically” if the WiPort embedded wireless device server automatically received an IP address (e.g., from DHCP). Displays “Statically” if the IP address was configured manually. If the IP address was assigned dynamically, the following fields appear:

 Obtain via DHCP with value of True or False.  Obtain via BOOTP with value of True or False.  Obtain via RARP with value of True or False

Non-configurable field. Displays the WiPort embedded wireless device server’s current subnet mask. To change the subnet mask, see Assigning an IP Address on page 18.

Non-configurable field. Displays the WiPort embedded wireless device server’s current gateway. To change the gateway, see

Assigning an IP Address on page 18.

Non-configurable field. Displays the number of COB partitions supported.

Non-configurable field. Displays the number of ports on the WiPort embedded wireless device server.

WiPort Embedded Wireless Device Server User Guide 20

Non-configurable field. Displays 1-65s, the WiPort embedded wireless device server’s TCP keepalive value. The default setting is 45.

4: Using DeviceInstaller

Telnet Supported

Telnet Port

Web Port

Maximum Baud Rate Supported

Firmware Upgradeable Non-configurable field. Displays True, indicating the WiPort

Supports Configurable Pins Non-configurable field. Displays True, indicating configurable

Supports Email Triggers Non-configurable field. Displays True, indicating email triggers

Supports AES Data Stream Non-configurable field. Displays True. WiPort embedded

Supports 485 Non-configurable field. Displays True. WiPort embedded

Non-configurable field. Indicates if Telnet sessions are permitted.

Non-configurable field. Displays the WiPort embedded wireless device server’s port for Telnet sessions.

Non-configurable field. Displays the WiPort embedded wireless device server’s port for Web Manager configuration.

Non-configurable field. Displays the WiPort embedded wireless device server’s maximum baud rate.

Note: The WiPort embedded wireless device server may not

currently be running at this rate.

firmware is upgradeable as newer version become available.

pins are available on the WiPort embedded wireless device server.

are supported on WiPort embedded wireless device server.

wireless device server supports AES encryption.

wireless device server supports the RS-485 protocol.

Supports 921K Baud Rate Non-configurable field. Displays True. WiPort embedded

wireless device server supports baud rates up to 921600 bits per second (bps).

Supports Wired Ethernet

Supports HTTP Server Non-configurable field. Displays True.

Supports HTTP Setup Non-configurable field. Displays True.

Supports 230K Baud Rate Non-configurable field. Displays True.

Supports GPIO Non-configurable field. Displays True, indicating the WiPort

Non-configurable field. WiPort sup ports baud rates up to 920k.

embedded wireless device server supports General Purpose Input Output (GPIO).

WiPort Embedded Wireless Device Server User Guide 21

5: Configuration Using Web Manager

This chapter describes how to configure the WiPort using Web Manager, Lantronix’s browser-based configuration tool. The unit’s configuration is stored in nonvolatile memory and is retained without power. The unit performs a reset after the configuration is changed and stored.

Accessing WiPort Web Manager Using DeviceInstaller

Note: For more information on DeviceInstaller, see 3:Using DeviceInstaller.

1. Run DeviceInstaller and search for the list of available Lantronix device servers.

2. Select the WiPort unit by clicking its IP address.

3. In the right window, click the Web Configuration tab.

4. To view the WiPort’s Web Manager in the current DeviceInstaller window, click Go. To open the Web Manager in a web browser, click Use External Browser. The Web Manager opens.

Note: Alternatively, access the WiPort’s Web Manager if it is connected

to the network by entering its IP address in a web browser.

A user and password dialog box displays.

5. Perform one of the following:

 If no Telnet password has been defined, leave both fields blank and click OK.

 If a Telnet password has been defined, leave the username blank, type in the

password, and then click OK.

The Web Manager displays.

Note: We recommend that you always use the enhanced password

setting and create a strong 16 character password. For details, see

Security Settings (Option 6) on page 72.

WiPort Embedded Wireless Device Server User Guide 22

4: Configuration Using Web Manager

Figure 4-1. Web Manager

The main menu is in the left side of the Web Manager window.

Note: Alternatively, access the WiPort’s Web Manager if it is connected to

the network by entering its IP address in a web browser.

Network Configuration

The unit’s network values display upon selecting Network from the main menu. The following sections describe the configurable parameters within the Network configuration menu.

Note: The IP address is assigned via DHCP (on DHCP-enabled networks).

Assign a static IP address if preferred.

WiPort Embedded Wireless Device Server User Guide 23

4: Configuration Using Web Manager

Figure 4-2. Network Settings

Network Mode Configuration

To determine the WiPort’s network mode:

1. Click Network from the main menu.

2. Modify the following:

Network Mode Select Wireless Only to enable only the wireless network

connectivity for the WiPort. Select Wired Only to enable only the Ethernet network connectivity. Select Bridging to enable bridging on the WiPort (for more information on bridging, see

8: Wireless Bridging).

3. When you are finished, click the OK button.

4. On the main menu, click Apply Settings.

Automatic IP Address Configuration

To assign an IP address and its network configuration automatically:

1. Click Network from the main menu.

2. Select Obtain IP address automatically.

3. Enter the following (as necessary):

WiPort Embedded Wireless Device Server User Guide 24

4: Configuration Using Web Manager

BOOTP Select Enable to permit the Bootstrap Protocol (BOOTP). The

BOOTP server automatically assigns the IP address from a pool of addresses.

DHCP Select Enable to permit Dynamic Host Configuration Protocol

(DHCP). DHCP automatically assigns a leased IP address to the WiPort unit.

Auto-IP

DHCP Host Name

The WiPort generates an IP in the 169.254.x.x address range with a Class B subnet. Select the Enable checkbox to enable this feature.

Enter the name of the host on the network providing the IP address.

Note: We do not advise disabling BOOTP, DHCP, and Auto-IP (all three

checkboxes) as the only available IP assignment method would then be ARP or serial port.

4. When you are finished, click the OK button.

5. On the main menu, click Apply Settings.

Static IP Address Configuration

To assign an IP address and its network configuration manually:

1. Click Network from the main menu.

2. Select Use the following IP configuration.

3. Enter the following (as necessary):

IP Address

If DHCP is not used to assign IP addresses, enter it manually. The IP address must be set to a unique value in the network.

Subnet Mask

Default Gateway

DNS Server

A subnet mask defines the number of bits taken from the IP address that are assigned for the host part.

The gateway address, or router, allows communication to other LAN segments. The gateway address should be the IP address of the router connected to the same LAN segment as the unit. The gateway address must be within the local network.

The DNS server allows the name of a remote machine to be resolved automatically. Enter the IP address of the DNS server. If the device is DHCP enabled, the DHCP server provides the DNS server IP address, which will override this configured value.

Note: This setting is applicable only in Manual Connection

mode.

4. When you are finished, click the OK button.

5. On the main menu, click Apply Settings.

WiPort Embedded Wireless Device Server User Guide 25

Ethernet Configuration

Figure 4-3. Ethernet Settings (Wired Only)

4: Configuration Using Web Manager

To specify how data will be transmitted:

1. Enter the following (as necessary):

Auto Negotiate

With this option, the Ethernet port auto-negotiates the speed and duplex with the hardware endpoint to which it is connected. This is the default setting.

If this option is not selected, complete the fields that become available:

Speed: The speed of data transmission. The default setting is 100 Mbps.

Duplex: The direction of data transmission. The default setting is Full.

2. When you are finished, click the OK button.

3. On the main menu, click Apply Settings.

WiPort Embedded Wireless Device Server User Guide 26

Server Configuration

The unit’s server values display upon selecting Server from the main menu. The following sections describe the configurable parameters within the Server configuration menu.

4: Configuration Using Web Manager

Figure 4-4. Server Settings

To configure the WiPort’s device server settings:

1. Click Server from the main menu.

2. Configure or modify the following fields:

WiPort Embedded Wireless Device Server User Guide 27

Server Configuration

The desired TCP re-transmission timeout value. If the ACK is

msec.

Enhanced Password

Note: We recommend

that you always enable the enhanced password setting, and create a strong 16 character password.

4: Configuration Using Web Manager

Select whether to enable enhanced password:

 Enable: selecting this option enables advanced password

creation, allowing you to create passwords up to 16 bytes in length.

 Disable: selecting this option disables advanced

password creation, allowing you to create basic passwords up to 4 bytes in length.

Advanced

Telnet/Web Manager Password

Retype Password

ARP Cache Timeout (secs)

TCP Keepalive (secs)

Monitor Mode @ Bootup Select Disable to disable the entry into the monitor mode via

CPU Performance Mode

Enter the password required for Telnet configuration and Web Manager access.

Re-enter the password required for Telnet configuration and Web Manager access.

When the unit communicates with another device on the network, it adds an entry into its ARP table. ARP Cache timeout defines the number of seconds (1-600) before it refreshes this table.

TCP Keepalive time defines how many seconds the unit waits during an inactive connection before checking its status. If the unit does not receive a response, it drops that connection. Enter a value between 0 and 65 seconds. 0 disables keepalive.

the yyy or xx1 key sequence at startup. This command prevents the unit from entering monitor mode by interpreting the stream of characters that are received during the device server's initialization at startup.

Select the WiPort’s performance mode. Higher performance settings require more energy. Low is 26 Mhz. Regular is 48 Mhz; High is 88 Mhz. The default is Regular.

HTTP Server Port

Config Server Port

MTU Size

TCP Re-transmission timeout (ms)

3. When you are finished, click the OK button.

WiPort Embedded Wireless Device Server User Guide 28

This option allows the configuration of the web server port number. The valid range is 1-65535. The default HTTP server port number is 80.

Allows for the configuration of the 0x77FE server port number. Enter a number between 1 and 65535. The configuration is available only in bridging mode for the discovery of Lantronix device servers behind the bridge. The default 0x77FE server port number is 30718.

The Maximum Transmission Unit (MTU) is the largest physical packet size a network can transmit for TCP and UDP. Enter between 512 and 1400 bytes. The default is 1400 bytes.

not received for a packet sent from the UDS device, then the unit will retransmit the data. The valid range is 500-4000

4. On the main menu, click Apply Settings.

Retry Timeout

Host List Configuration

The WiPort scrolls through the host list until it connects to a device listed in the host list table. After a successful connection, the unit stops trying to connect to any others. If this connection fails, the unit continues to scroll through the table until the next successful connection.

The host list supports a minimum of 1 and a maximum of 12 entries. Each entry contains an IP address and a port number.

Note: The host list is disabled for Manual and Modem Mode. The unit will not

accept a data connection from a remote device when the hostlist option is enabled.

To configure the WiPort’s host list:

1. From the main menu, click the Hostlist tab.

4: Configuration Using Web Manager

Figure 4-5. Hostlist Settings

2. Enter or modify the following fields from the Hostlist Settings window:

Retry Settings

Retry Counter

Enter the value for the number of times the WiPort should attempt to retry connecting to the host list.

Enter the duration (in milliseconds) the WiPort should abandon attempting a connection to the host list.

Host Information

Host Address

Port

Enter or modify the host’s IP address.

Enter the target port number.

WiPort Embedded Wireless Device Server User Guide 29

3. When you are finished, click the OK button.

4. On the main menu, click Apply Settings.

Channel 1 and Channel 2 Configuration

Channel 1 and Channel 2 configurations define how the serial ports respond to network and serial communication.

Serial Settings

To configure a channel’s serial settings:

1. From the main menu, click Serial Settings for either Channel 1 or Channel 2 to display the Serial Settings page for the selected channel.

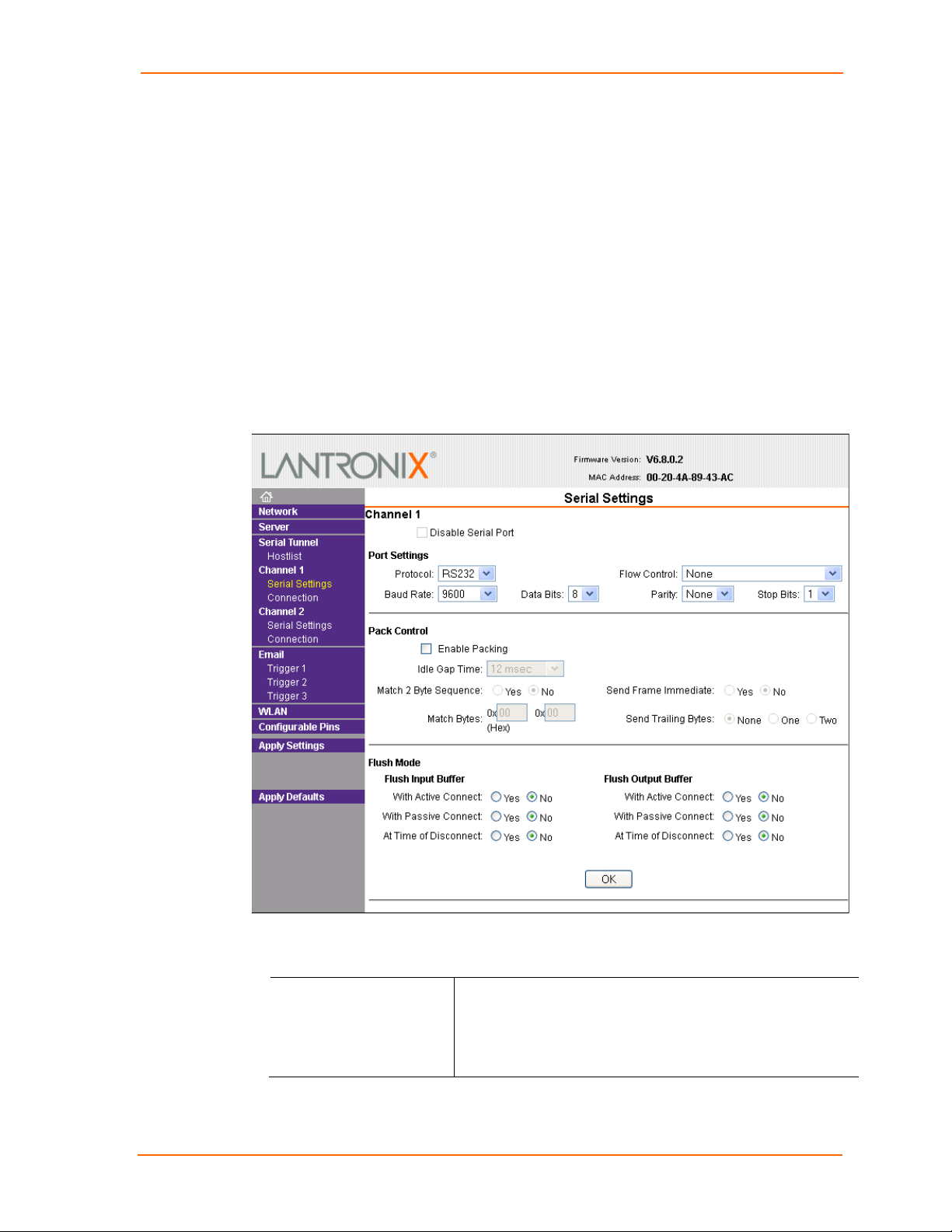

Figure 4-6. Channel Serial Settings

4: Configuration Using Web Manager

2. In the available fields, enter the following information:

Channel 1

Disable Serial Port

Available on Channel 2 settings only. When selected, disables communication through the serial port. For Channel 1 this option will be in disabled mode.

Note: Using a telnet session (see Baudrate) you may enter a

baud rate of 00 in channel settings to disable the serial port. .

WiPort Embedded Wireless Device Server User Guide 30

Port Settings

Host

Protocol

4: Configuration Using Web Manager

Select the protocol type from the pull down menu for the selected channel.

Flow Control

Baud Rate

Data Bits

Parity

Stop Bits

Pack Control

Enable Packing

Flow control manages data flow between devices in a network to ensure it is processed efficiently. Too much data arriving before a device is prepared to manage it causes lost or retransmitted data. None is the default.

 Channel 1: None, Xon/Xoff, Xon/Xoff Pass Chars to Host

or CTS/RTS (hardware).

 Channel 2: None, Xon/Xoff or Xon/Xoff Pass Chars to

921600.

Indicates the number of bits in a transmitted data package.

Checks for the parity bit. The default is None.

The stop bit follows the data and parity bits in serial communication. It indicates the end of transmission.

Select the checkbox to enable packing on the WiPort. Two firmware-selectable packing algorithms define how and

when packets are sent to the network. The standard algorithm is optimized for applications in which the unit is used in a local environment, allowing for very small delays for single characters, while keeping the packet count low. The alternate packing algorithm minimizes the packet count on the network and is especially useful in applications in a routed Wide Area Network (WAN). Adjusting parameters in this mode can economize the network data stream.

Idle Gap Time

Match 2 Byte Sequence

Match Bytes

Send Frame Immediate

Send Trailing Bytes

Select the maximum time for inactivity. The default time is 12 milliseconds.

Use to indicate the end of a series of data to be sent as one group. The sequence must occur sequentially to indicate to the WiPort end of the data collection.

Use to indicate the end of a series of data to be sent as one group. Set this value to 00 if specific functions are not needed.

After the detection of the byte sequence, indicates whether to send the data frame or the entire buffer. Select Yes to send only the data frame. The default setting is No.

Select the number of bytes to send after the end-of-sequence characters.

Flush Input Buffer (Serial to Network)

With Active Connect Select Yes to clear the input buffer with a connection that is

initiated from the device to the network.

WiPort Embedded Wireless Device Server User Guide 31

With Passive Connect Select Yes to clear the input buffer with a connection initiated

from the network to the device.

At Time of Disconnect Select Yes to clear the input buffer when the network

connection to or from the device is disconnected.

Flush Output Buffer (Network to Serial)

With Active Connect Select Yes to clear the output buffer with a connection that is

initiated from the device to the network.

With Passive Connect Select Yes to clear the output buffer with a connection initiated

from the network to the device.

At Time of Disconnect Select Yes to clear the output buffer when the network

connection to or from the device is disconnected.

3. When you are finished, click the OK button.

4. On the main menu, click Apply Settings.

Connection Settings - TCP

To configure a channel’s TCP settings:

4: Configuration Using Web Manager

1. From the main menu, click Connection for either Channel 1 or Channel 2 to display the Connection Settings page for the selected channel.

2. In the available fields, enter the following information:

Connect Protocol

Protocol Select TCP from the pull down menu.

WiPort Embedded Wireless Device Server User Guide 32

4: Configuration Using Web Manager

specific start character from the serial port. The default start

Figure 4-7. TCP Connection Settings

Connect Mode: Passive Connection

Accept Incoming Select Yes to accept incoming connections.

Password Required

Password If Password Required was set to Yes, enter the password for

Determines whether a password is required for an incoming passive connection. Field is not available when a password is set for Telnet mode.

passive connections.

Connect Mode: Active Connection

Active Connect Select None to disable Active Connect. Otherwise, indicate

the connection type from the drop-down list:

With Any Character: Attempts to connect when any character is received from the serial port.

With Active Mdm Ctrl In: Accepts external connection requests only when the modem_control_in input is asserted.

With Start Character: Attempts to connect when it receives a

WiPort Embedded Wireless Device Server User Guide 33

4: Configuration Using Web Manager

character is carriage return.

Auto increment local

Remote Port

The host list is disabled for Manual Mode and for Modem

Manual Connection: Attempts to connect when directed by a command string received from the serial port.

Auto Start: Automatically connects to the remote IP address and port after booting up.

Start Character If Active Connect is set to With Start Character, enter the

start character in this field.

Modem Mode

Show IP Address After RING

Endpoint Configuration

Local Port

port number

Remote Host

Common Options

Telnet Com Port Cntrl This field is available for configuration only when Active

Indicates the on-screen response type when in Modem Mode (if Modem Mode is enabled). The options are:

 Without Echo

 Verbose Mdm Resp & Echo

 Numeric Mdm Resp & Echo

 Verbose Mdm Resp Only  Numeric Mdm Resp Only

Indicates whether to display the remote IP address upon connection. The default setting is Yes.

Enter the local port number.

Select to auto-increment the local port number for new outgoing connections. The range of auto-incremented port numbers is 50,000 to 59,999 and loops back to the beginning when the maximum range is reached.

Enter the remote port number.

Enter the IP address of the remote device.

Connect is set to None. Select Enable to permit Telnet communication to the unit. The Telnet Com Port Cntrl feature is used in conjunction with the Com Port Redirector (CPR) utility. (See the CPR online Help for details.)

Terminal Name

Connect Response

Use Hostlist If this option is set to True, the device server scrolls through

WiPort Embedded Wireless Device Server User Guide 34

This field is available for configuration only when Telnet Mode is set to Enable.

Use the terminal name for the Telnet terminal type. Enter only one name. When this option is enabled, the unit also reacts to the EOR (end of record) and binary options, which can be used for applications such as terminal emulation to IBM hosts.

A single character is transmitted to the serial port when there is a change in connection state. Default setting is None.

the host list until it connects to a device listed in the host list table. Once it connects, the unit stops trying to connect to any others. If this connection fails, the unit continues to scroll through the table until it is able to connect to another IP in the host list.

Mode. The unit will not accept a data connection from a

LED Select Blink for the status LEDs to blink upon connection or

Inactivity Timeout

Use this parameter to set an inactivity timeout. The unit drops

value.

Disconnect Mode

On Mdm_Ctrl_In Drop Set to Yes for the network connection to or from the serial port

Hard Disconnect When set to Yes, the TCP connection closes even if the

Check EOT (Ctrl-D) Select Yes to drop the connection when Ctrl-D or Hex 04 is

4: Configuration Using Web Manager

remote device when the host list option is enabled.

None for no LED output.

to drop when Modem Control In transitions from a high state to a low state.

remote site does not acknowledge the disconnect request.

detected. Both Telnet Com Port Cntrl and Check EOT (Ctrl-D) must be enabled for Disconnect with EOT to function properly. Ctrl-D is only detected going from the serial port to the network. The default setting is No.

the TCP connection to port 10001/10002 if there is no activity on the serial line before the set time expires. Enter time in the format mm:ss, where m is the number of minutes and s is the number of seconds. To disable the inactivity timeout, enter 00:00.

Note: The default port number for Port 1 is 10001 and 10002

for Port 2. However, port numbers may be set to a different

3. When you are finished, click the OK button.

4. On the main menu, click Apply Settings.

Connection Settings - UDP

To configure a channel’s UDP settings:

1. From the main menu, click Connection for either Channel 1 or Channel 2 to display the Connection Settings page for the selected channel.

2. In the available fields, enter the following information:

Connect Protocol

Protocol Select UDP from the pull down menu.

WiPort Embedded Wireless Device Server User Guide 35

4: Configuration Using Web Manager

Accept Incoming

Yes

Remote Host

Figure 4-8. UDP Connection Settings

Datagram Mode

Datagram Type

Endpoint Configuration

Local Port

Remote Port

Use Broadcast

Device Address Table The table is enabled when Datagram Type is set to FD. Enter

Configures remote IP or network broadcast address and the remote port. Enter 01 for directed or broadcast UDP.

Select

Enter the local port number.

Enter the port number of the remote device.

Enter the IP address of the remote device.

Select to broadcast the UDP datagram. Datagrams of type 01 can be sent as a broadcast by enabling this option. The default is not to broadcast.

Note: Datagrams are sent as subnet-directed broadcasts.

values between 1 and 255 to identify units on the local network of device servers.

Note: Lantronix Tech Support supports Datagram type 01.

Datagram Type FD is for OEM use.

to accept incoming UDP datagrams.

3. When you are finished, click the OK button.

4. On the main menu, click Apply Settings.

WiPort Embedded Wireless Device Server User Guide 36

Email Configuration

Recipient 1:

The unit sends an email to multiple recipients when a specific trigger event occurs. There are three separate triggers, based on any combination of the configurable pins when selected as user I/O functions. Optionally, use a two-byte serial string to initiate a trigger. Each trigger is independent of the others. Each condition within an individual trigger must be met before the unit will send the email.

To configure the WiPort’s email settings:

1. From the main menu, select Email to open the Email Settings window.

4: Configuration Using Web Manager

Figure 4-9. Email Settings

2. Configure the following fields:

Server IP Address

Server Port

Domain Name

Unit Name

Enter the IP address of the mail server.

Enter the port number on the email server.

Enter the email server’s domain name.

Enter the username used by the WiPort to send email messages.

Note: Do not use spaces in the name.

Recipients

Enter the email address designated to receive email notifications.

Email Address

Recipient 2: Email Address

Enter an additional email address designated to receive email notifications.

3. When you are finished, click the OK button.

4. On the main menu, click Apply Settings.

WiPort Embedded Wireless Device Server User Guide 37

4: Configuration Using Web Manager

Message

Trigger Configuration

A trigger event occurs when the unit receives either one or two bytes of a specified sequence on the serial port, or because of a specified combination of conditions on the configurable pins.

Set the configurable pins to Active, Inactive, or None. The configurable pins are disabled if they are all set to None. If both the serial sequence and the configurable pins are disabled, the trigger is disabled.

To configure the WiPort’s email trigger settings:

1. From the main menu, select Trigger 1, Trigger 2, or Trigger 3 to configure the desired Trigger settings. The Email Trigger Settings page opens.

Figure 4-10. Email Trigger Settings

2. Configure the following fields:

Conditions

Configurable Pins

Enable Serial Trigger Input

Channel

Data Size

Match Data

Select the condition from the pull down menu for the configurable pins. Repeat for each Trigger Input field.

When selected, specified serial communications count as a trigger input.

Select the channel prompting the trigger.

Select the data size prompting the trigger.

Enter the data which, when appears in the communication stream, prompts a trigger.

Note: All of the conditions must match for an email notification to be sent.

Message Properties

The subject line of the trigger event email to the specified

WiPort Embedded Wireless Device Server User Guide 38

recipient(s).

Priority

Min. Notification Interval

Re-notification Interval

SP=Spain

3. When you are finished, click the OK button.

4. On the main menu, click Apply Settings.

WLAN Configuration

Without adequate protection, a wireless LAN is susceptible to access by unauthorized users.

4: Configuration Using Web Manager

The priority level for the e-mail.

The minimum time allowed between individual triggers. If a trigger event occurs within the minimum interval since the last trigger, it is ignored.

Indicates the time interval in which a new email message is sent to the recipient(s) when a single trigger event remains active.

Note: Due to regulations, the country-specific setting has been removed from the

setup menu and Web Manager. However, we provide a separate utility for changing the Country/Zone setting. The utility is called SetZone and is included in the WiPort package. It is also available for download from the Lantronix web site.

The syntax is SetZone <IP address> [<zone abbreviation>]

Leaving the zone blank causes the utility to report the current setting only. Following are valid zone abbreviations. These settings are consistent with IEEE802.11b/g zones:

US=United States CA=Canada FR=France

JP=Japan OT=Others, such as Europe (excluding

France), Asia, Africa, and Australia

To configure the WiPort’s WLAN settings:

1. Select WLAN from the main menu to open the WLAN Settings window.

WiPort Embedded Wireless Device Server User Guide 39

4: Configuration Using Web Manager

Network Name (SSID)

Security

WEP, WPA

WPA2/802.11i

Figure 4-11. WLAN Settings

WiPort Embedded Wireless Device Server User Guide 40

2. Enter or modify the following fields:

Wireless Network Configuration

Network Type Select Infrastructure or Ad-Hoc.

Channel Configurable only when Network Type is set to Ad-Hoc.

Wireless Network Security

Enter the name of the wireless network (SSID). The WiPort connects to this wireless network.

Select from the pull down menu the radio channel for the Ad Hoc network. The default value is 11.

As a security measure, enable on the WiPort. By default, wireless security is disabled on WiPort.

, or

WEP Options

TX Key

Authentication Select an authentication scheme (Open/None or Shared)

Encryption Select the encryption type (64 bits or 128 bits for WEP) from

Ke y T ype Select the key type (Hex or Passphrase).

Key/Retype Key Enter the Encryption Key in hexadecimal value if Hex is

WPA Options

Authentication Select Pre-Shared Keys from the drop down menu.

Encryption Select the encryption type from the pull down menu. TKIP is

4: Configuration Using Web Manager

from the drop down menu.

the pull down menu. 64 bits is the default encryption for WEP.

selected as the Key Type. Enter key as a string if Passphrase is selected as the Key Type. Passphrase input is not the same as ASCII input. . A passphrase of more than 20 characters is recommended for adequate security. Spaces and punctuation are permitted.

Select the key to use for transmission.

the default encryption for WPA.

Ke y T ype Select the key type (Hex or Passphrase).

Key/Retype Key Enter the Encryption Key in hexadecimal value if Hex is

802.11i/WPA2-Personal Options

Authentication Select Pre-Shared Keys from the drop down menu.

Encryption Select the encryption type from the pull down menu. CCMP is

Ke y T ype Select the key type (Hex or Passphrase).

Key/Retype Key Enter the Encryption Key in hexadecimal value if Hex is

Advanced Settings

TX Data Rate

selected as the Key Type. Enter key as a string if Passphrase is selected as the Key Type. Passphrase input is not the same as ASCII input. A passphrase of more than 20 characters is recommended. Spaces and punctuation characters are permitted.

the default encryption for WPA2.

WiPort permits the control of the transmission data rate. Click the Auto check box to allow the WiPort to automatically set the data rate (or leave unchecked to set the transmission rate manually). The default rate is 54 Mbps.

If the Auto check box is selected, choose the maximum data rate from the drop down menu.

If the Auto check box was not selected, select the fixed data rate (in Mbps) from the drop down menu.

WiPort Embedded Wireless Device Server User Guide 41

4: Configuration Using Web Manager

Max TX Failures

Min TX Data Rate

Radio Power Management

AP Roaming

Selects the minimum data rate the device will use when auto-fallback is enabled. The default is 1 Mbps.

Note: If Auto Rate Fallback is enabled and a minimum TX

data rate other than 1Mbps is configured, the radio will operate in Single Rate Drop mode. This means that if a rate drop becomes necessary, the radio will drop from the maximum rate to the lowest rate, ignoring all rates in between. This reduces the potential number of packet retransmission attempts, because the radio attempts to transmit a packet three times before transitioning to the next lowest TX rate.

Determines the maximum number of consecutive transmit packet failures before the device will drop its association with the AP and attempt to establish a new one. The range of attempts is 6 to 64 with 255 equaling disabled. The default is 6 failed attempts.

Power management reduces the overall power consumption of the WiPort unit. Selecting Enable increases the response time. Power management not permitted in Ad-Hoc mode.

SmartRoam (patent pending) technology takes a proactive approach in transferring connectivity from one AP to another AP belonging to the same ESS (having the same SSID or Network Name).

If enabled, SmartRoam (patent pending) manages the dynamic list of APs belonging to the same network as the AP to which the WiPort is currently associated and stores relevant selection criteria for this list. The WiPort uses these criteria to identify a candidate AP. If the candidate AP is not the current one, the WiPort dissociates from the current one and associates to the candidate.

The roaming technology also triggers candidate selection if the WiPort reaches the boundaries of good signal coverage for the current AP instead of waiting until signal quality degrades substantially.

3. When you are finished, click the OK button.

4. On the main menu, click Apply Settings.

Configurable Pin Settings

There are 11 configurable hardware pins on the WiPort unit. For each pin, configure the pin function, communication direction, and its activity level. For more information, see Configurable Pins on page 77.

To configure the WiPort OEM Configurable Pins:

1. Click Configurable Pins from the main menu to open the Configurable Pins window.

WiPort Embedded Wireless Device Server User Guide 42

4: Configuration Using Web Manager

Function

Direction

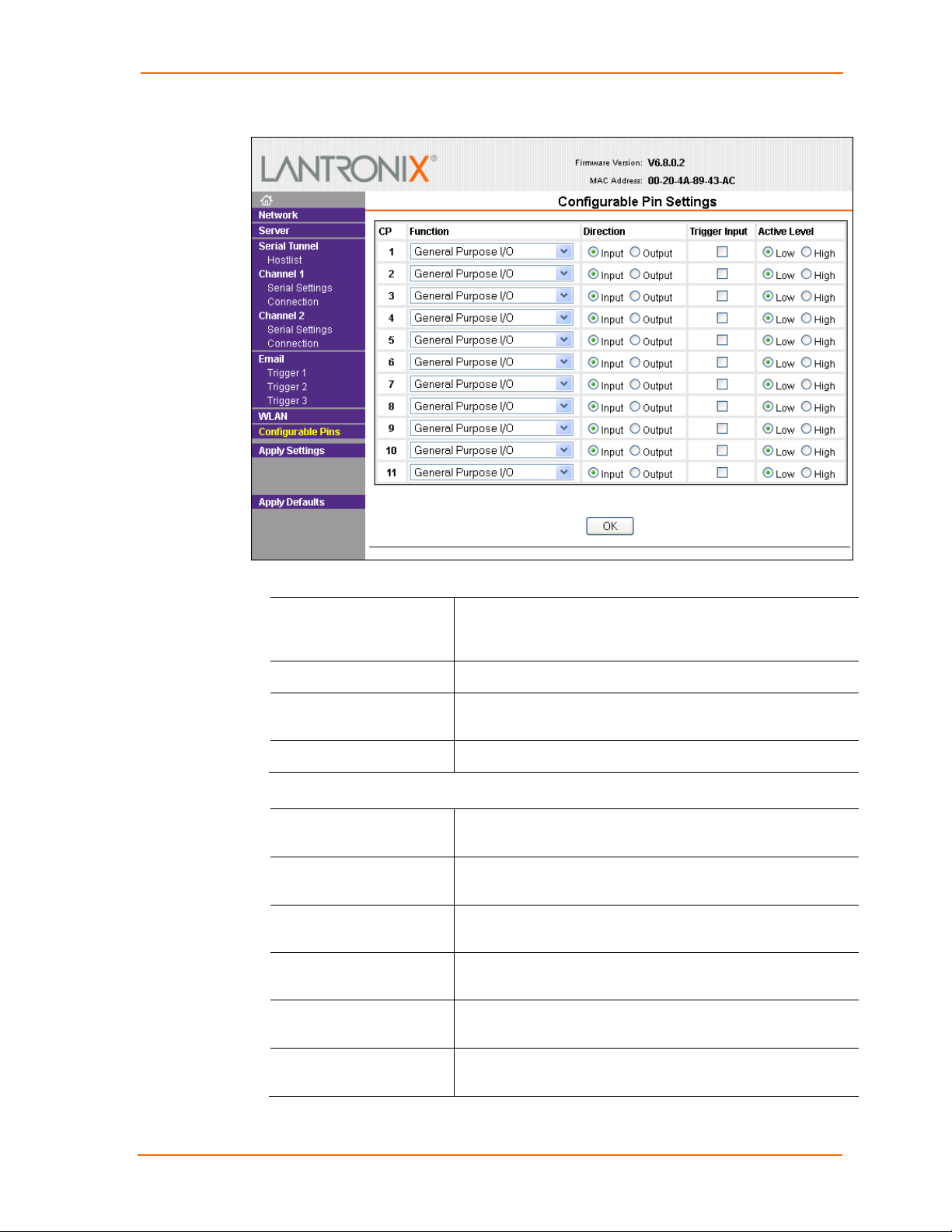

Figure 4-12. Configurable Pins Settings

2. Configure or modify the following fields for each pin:

Trigger Input

Active Level Select the signal active level (Low or High).

Configurable Pin Functions

General Purpose I/O

Modem Ctrl Channel 1 In

Modem Ctrl Channel 1 Out

Modem Ctrl Channel 2 In

From the pull down menu, select the purpose of the specified pin. See Configurable Pin Functions for a description of each available function.

Select whether the pin inputs or outputs.

Select whether the GPIO input signal is to be used as a trigger condition for email.

Monitors input via the 77F0 port or controls output by the 77F0 port.

Allows for control of the connection (and disconnection) of channel 1.

Indicates a connection is established on channel 1.

Allows for control of the connection (and disconnection) on channel 2.

Modem Ctrl Channel 2 Out

Serial Channel 1 Status LED

Indicates a connection is established on channel 2.

Indicates channel 1 status and extended diagnostics when the Diagnostics LED is lit.

WiPort Embedded Wireless Device Server User Guide 43

4: Configuration Using Web Manager

Serial Channel 2 Status LED

Diagnostics LED

Reset to Defaults (Wireless)

RS-485 Select

RS485 2-Wire

RS485 4-Wire

Reset to Defaults (Ethernet)

Indicates channel 2 status.

Indicates errors and configurations.

Asserting during bootup for at least seven seconds resets the configuration to factory defaults. Used when network access is impossible because of improper configuration.

Selects between RS-232 and RS-485 line drivers.

Selects 2-wire line drivers. Usable as a half/full duplex selector.

Selects 4-wire line drivers.

Asserting during bootup for at least seven seconds resets the configuration to factory defaults. In addition, the wired network becomes the default interface. Used when network access is impossible because of improper configuration.

3. When you are finished, click the OK button.

4. On the main menu, click Apply Settings.

Apply Settings

1. To save and apply the configuration changes to the device server, click the Apply Settings button.

Note: Clicking OK on each page does not change the configuration on the

device. Clicking the OK button tells the MatchPort what changes to use; the Apply

Apply Defaults

1. Click the Apply Defaults button to set the devic server back to the default settings. For details, see Default Settings on page 74.

2. Click Yes to set factory settings, or click No to cancel.

WiPort Embedded Wireless Device Server User Guide 44

6: Configuration via Serial Mode or Telnet Port

Configure the unit so that it can communicate on a network with your serial device. As an alternative to Web Manager, the WiPort unit is configurable using a terminal program to access the serial port locally. Using this terminal program to respond to prompts is referred to as the Setup Mode. A Telnet connection may also be used to configure the unit over the network.

The unit’s configuration is stored in nonvolatile memory and is retained without power. You can change the configuration at any time. The unit performs a reset after the configuration has been changed and stored.

Note: The menus in this section show a typical device. Not all devices

display information in the same manner.

Accessing Setup Mode

Telnet Access

Note: Alternatively, use DeviceInstaller to access Telnet. Select the device from the

main window list, and click the Telnet Configuration tab in the right window. If using Telnet from the DeviceInstaller toolbar, skip steps 1 through 3.

To configure the unit over the network, establish a Telnet connection to port 9999:

1. From the Windows Start menu, click Run.

2. From the Run dialog box, type the following command (where x.x.x.x is the IP address and 9999 is the unit’s fixed network configuration port number):

Windows: telnet x.x.x.x 9999

UNIX: telnet x.x.x.x:9999

3. Click OK. The following information displays:

Figure 5-1. MAC Address

MAC address 00204A8943AC Software version V6.8.0.2 (121024) AES library version 1.8.2.1

Press Enter for Setup Mode

4. To enter the Setup Mode, press Enter within 5 seconds.

Note: Connection fails if Enter is not pressed within 5 seconds.

The configuration settings display, followed by the setup menu options:

WiPort Embedded Wireless Device Server User Guide 45

6: Configuration via Serial Mode or Telnet Port

Figure 5-2. Setup Menu Options

Change Setup: 0 Server 1 Channel 1 2 Channel 2 3 E-mail 4 WLAN 5 Expert 6 Security 7 Defaults 8 Exit without save 9 Save and exit Your choice ?

5. Select an option on the menu by entering the number of the option in the Your choice? field and pressing Enter.

View the current configuration by pressing Enter from the Change Setup menu.

To enter a value for a parameter, type the value and press Enter. To confirm a current value, press Enter (without inputted parameters).

6. When finished, save the new configurations (9 Save and exit). The unit reboots.

Serial Port Access

To configure the unit through a serial connection:

1. Connect a console terminal or PC running a terminal emulation program to your unit's serial port. The default serial port settings are 9600 baud, 8 bits, no parity, 1 stop bit, no flow control.

2. Reset the WiPort unit by cycling the unit's power (turning the power off and back on). Immediately upon resetting the device, enter three lowercase x characters (xxx).

Note: The easiest way to enter Setup Mode is to hold down the x key at

the terminal (or emulation) while resetting the unit. This must be done within three seconds of resetting the WiPort.

3. Upon connection, the following information displays:

Figure 5-3. MAC Address

MAC address 00204A8943AC Software version V6.8.0.2 (121024) AES library version 1.8.2.1

Press Enter for Setup Mode

4. To enter the Setup Mode, press Enter within 5 seconds.

Note: Connection fails if Enter is not pressed within 5 seconds.

The configuration settings display, followed by the setup menu options:

WiPort Embedded Wireless Device Server User Guide 46

Figure 5-4. Setup Menu Options

Change Setup: 0 Server 1 Channel 1 2 Channel 2 3 E-mail 4 WLAN 5 Expert 6 Security 7 Defaults 8 Exit without save 9 Save and exit Your choice ?

5. Select an option on the menu by entering the number of the option in the Your choice ? field and pressing Enter.

View the current configuration by pressing Enter from the Change Setup menu.

To enter a value for a parameter, type the value and press Enter. To confirm a current value, press Enter (without inputted parameters).

6. When finished, save the new configurations (9 Save and exit). The unit reboots.

Server Configuration (Option 0)

6: Configuration via Serial Mode or Telnet Port

The unit’s basic server (i.e. network) values display upon selecting Server (option 0 from the Change Setup menu). The following sections describe the configurable parameters within the Server configuration menu.

Network Mode

Select the network mode for the WiPort. Options available are Wired Only, Wireless Only, and Bridging. For more information on Bridging, see 8: Wireless Bridging on

page 85.

Network Mode <0=Wired Only 1=Wireless Only 2=Bridging<One Host> >:

Set the IP Address

If DHCP is not used to assign IP addresses, enter it manually. The IP address must be set to a unique value in the network. Enter each octet and press Enter between each section inputted. The current value is displayed in parentheses.

IP Address : ( 0) ( 0) ( 0) ( 0) _

Set the Gateway IP Address

The default is N (No), indicating the gateway address has not been set. To set the gateway address, type Y. At the prompt, enter the gateway address.

Set Gateway IP Address (N) ? Y Gateway IP addr ( 0) ( 0) ( 0) ( 0)_

WiPort Embedded Wireless Device Server User Guide 47

6: Configuration via Serial Mode or Telnet Port

Network Class

Host Bits

Netmask

Set the Netmask

A netmask defines the number of bits taken from the IP address that are assigned for the host part.

Netmask: Number of Bits for Host Part (0=default) (0) _

The unit prompts for the number of host bits to be entered, then calculates the netmask, which displays in standard decimal-dot notation when the saved parameters are displayed (for example, 255.255.255.0).

Table 5-1. Standard IP Network Netmasks Representing Host Bits

A 24 255.0.0.0

B 16 255.255.0.0

C 8 255.255.255.0

Set DNS Server IP Address

The DNS server allows the name of a remote machine to be resolved automatically. The default is N (No), indicating the DNS server address has not been set. To set the DNS server address, type Y. At the prompt, enter the DNS server address. If the device is DHCP enabled, the DHCP server provides the DNS server IP address, which will override this configured value.

Note: This setting is applicable only in Manual Connection mode.

Set DNS Server IP addr (N) ? _

Change Telnet/Web Manager Password

Setting the Telnet configuration password prevents unauthorized access to the setup menu via a Telnet connection to port 9999 or via web pages.

Please protect your device from unauthorized access and follow the instructions below:

 Always select Y to enable Telnet/Web Manager password

 Enable the enhanced password setting and create a strong 16-character

password.

Note: We do not recommend that you only use the 4-character basic

password as it does not offer sufficient security. Using no password is very dangerous. For details, see Security Settings (Option 6) on page 72.

Change telnet config password (N) ? _

DHCP Name

If a DHCP server has automatically assigned the IP address and network settings, discover the unit by using the DeviceInstaller network search feature.

There are three methods for assigning DHCP names to the unit.

 Default DHCP Name: If the DHCP name is not changed and the IP is

0.0.0.0, then the DHCP name defaults to XXXXXX (XXXXXX is the last 6 digits of the MAC address shown on the label on the bottom/side of the unit).

WiPort Embedded Wireless Device Server User Guide 48

6: Configuration via Serial Mode or Telnet Port

For example, if the MAC address is 00-20-4A-12-34-56, then the default DHCP name is C123456.

 Custom DHCP Name: Create your own DHCP name. If using an IP address

of 0.0.0.0, then the last option in Server configuration is Change DHCP device name. This option allows you to change the DHCP name to an alphanumeric name (LTX in the example).

Change DHCP device name (not set) ? (N) Y Enter new DHCP device name : LTX

 Numeric DHCP Name: You can change the DHCP name by specifying the

last octet of the IP address. When you use this method, the DHCP name is LTXYY where YY is what you chose for the last octet of the IP address. If the IP address you specify is 0.0.0.12, then the DHCP name is LTX12. This method only works with 2-digit numbers (0-99).

 The third octet of the IP address sets the BootP/DHCP/AutoIP options. To

disable an option, set the appropriate bit:

Table 5-2. BootP/DHCP/AutoIP options

Options Bit

AutoIP 0

DHCP 1

BootP 2

 For example, if the third octet is 0.0.5.0, the AutoIP and BootP options are

disabled; only DHCP is enabled. (The value 5 results from adding the binary equivalents of 0 and 2.) This is the most common setting when using DHCP.

 Enable DHCP FQDN: You can choose to enable or disable

DHCPFQDNbyspecifying Y orN."

Channel 1 (Option 1) and Channel 2 (Option 2) Configuration

Select option 1 Channel 1 or 2 Channel 2 from the Change Setup menu to define how the serial port responds to network and serial communications. The following sections describe the configurable parameters within the Channel configuration menu.

Table 5-3. Serial and Telnet Port Parameters

Baudrate (9600) ? I/F Mode (4C) ? Flow (00) ? Port No (10001) ? ConnectMode (C0) ? Send '+++' in Modem Mode (Y) ? Show IP addr after 'RING' (Y) ? Auto increment source port (N) ? Remote IP Address : (000) .(000) .(000) .(000) Remote Port (0) ? DisConnMode (00) ? FlushMode (00) ? DisConnTime (00:00) ?: SendChar 1 (00) ?

WiPort Embedded Wireless Device Server User Guide 49

6: Configuration via Serial Mode or Telnet Port

I/F Mode Option

(1)

(2)

(1)

SendChar 2 (00) ?

Baudrate

The unit and attached serial device, such as a modem, must agree on a speed or baud rate to use for the serial connection. Valid baud rates are 300, 600, 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, 230400, 460800, or 921600. The current value is displayed in parentheses. The baud rates of 460800 and 921600 require a “High” CPU setting. Entering a baud rate of 00 in channel settings in a telnet session disables the serial port.

Baudrate (9600) ? _

I/F (Interface) Mode

The Interface (I/F) Mode is a bit-coded byte entered in hexadecimal notation. The current value is displayed in parentheses.

I/F Mode (4C) ? _

Note: RS-422 and RS-485 are available on Channel 2 only if the WiPort is

used with the WiPort evaluation board. Otherwise, RS-422 and RS-485 functions are available on only one channel; depending on which channel the drivers were added, these functions are available on either channel 1 or channel 2.

The following table displays available I/F Mode options:

Table 5-4. Interface Mode Options

RS-232

RS-422 4-wire

RS-485 2-wire

7 Bit 1 0

8 Bit 1 1

No Parity 0 0

Even Parity 1 1

Odd Parity 0 1

1 stop bit 0 1

2 stop bits

(1) 2 stop bits are implemented by the software. This might influence performance.

(2) On WP2004000-01 (WiPort-485) only.

0 0

0 1

1 1

WiPort Embedded Wireless Device Server User Guide 50

6: Configuration via Serial Mode or Telnet Port

Common I/F Mode Setting

Binary

Hex

Flow Control Option

Hex

Note: If attempting to select an I/F Mode bit pertaining to RS-422/485 on a

WiPort model WP2001000-01, a “WARNING: RS-422/485 I/F Modes not supported” message displays. RS-422/485 settings are available on the WP2004000-01 (WiPort-485) and all the WiPort b/g models including WP2001000G-02, WP2002000G-02, and WP200200SG-02.

The following table demonstrates some common I/F Mode settings:

Table 5-5. Common Interface Mode Settings

RS-232C, 8-bit, No Parity, 1 stop bit 0100 1100 4C

RS-232C, 7-bit, Even Parity, 1 stop bit 0111 1000 78

RS-485 2-wire, 8-bit, No Parity, 1 stop bit

RS-422, 8-bit, Odd Parity, 1 stop bit 0101 1101 5D

0100 1111 4F

Flow

Flow control sets the local handshaking method for stopping serial input/output. The current value is displayed in parentheses.

Flow (0) ? _

Use the following table to select flow control options:

Table 5-6. Flow Control Options

No flow control 00

XON/XOFF flow control 01

Hardware handshake with RTS/CTS lines 02

XON/XOFF pass characters to host 05

Port Number

The Port No setting represents the source port number in TCP connections. It is the number that identifies the channel for remote initiating connections. The port number functions as the TCP/UDP source port number for outgoing packets. Packets sent to the unit with this port number are received to this channel. The port number selected is the Incoming TCP/UDP port and Outgoing TCP/UDP source port.

WiPort Embedded Wireless Device Server User Guide 51

Port No (10001) ? _

The current value is displayed in parentheses. The default setting for Port 1 is 10001. The range is 1-65535, except for the following reserved port numbers:

6: Configuration via Serial Mode or Telnet Port

Port Numbers

Reserved for

1 – 1024

Reserved

9999

Telnet setup

14000-14009

Reserved for Redirector

30704

Reserved (77F0h)

30718

Reserved (77FEh)

Connect Mode Option

7 6 5 4 3 2 1

c) Active Startup

Table 5-7. Reserved Port Numbers

Note: We recommend that you not use the reserved port numbers for this

setting as incorrect operation may result.

Use Port 0 for the outgoing local port to change with each connection. The port range is 50,000 to 59,999. Each subsequent connection increments the number by 1 (it wraps back around to 50,000).

Only use this automatic port increment feature to initiate a connection using TCP. Set the port to a non-zero value when the unit is in a passive mode or when using UDP instead of TCP.

Connect Mode

Connect Mode defines the unit’s connection method and its reaction to incoming connections over the network. The current value is displayed in parentheses.

ConnectMode (C0) ? _

Enter Connect Mode options in hexadecimal notation:

Table 5-8. Connect Mode Options

a) Incoming Connection

Never accept incoming 0 0 0

Accept with active Modem Control In 0 1 0

Always Accept 1 1 0

b) Response

Nothing (quiet) 0

Character response (C=connect, D=disconnect, N=unreachable)

WiPort Embedded Wireless Device Server User Guide 52

No active startup 0 0 0 0

With any character 0 0 0 1

With active Modem Control In 0 0 1 0

With a specific start character 0 0 1 1

6: Configuration via Serial Mode or Telnet Port

Connect Mode Option

7 6 5 4 3 2 1

0 0 1 1

0 1 1 1 1

0 1 1 1 0

0 0 1 1 1 1

0 0 1 1 1 0

blanks or space characters may be in the command string.

Manual connection 0 1 0 0

Autostart 0 1 0 1

Hostlist 0 0 1 0

d) Datagram Type

Directed UDP 1 1 0 0

e) Modem Mode

No Echo

Echo & Modem Response (Numeric)

Echo & Modem Response (Verbose)

Modem Response Only (Numeric)

Modem Response Only (Verbose)

Incoming Connection

Never Accept Incoming

Accept with active Modem Control in

Always Accept

Response

Character Response

Rejects all external connection attempts.

Accepts external connection requests only when Modem Control In is asserted. Cannot be used with Modem Mode.

Accepts any incoming connection when a connection is not already established. Default setting.

A single character is transmitted to the serial port when there is a change in connection state:

C = connected, D = disconnected, N = host unreachable. This option is overridden when the Active Start Modem Mode or

Active Start Host List is in effect. Default setting is Nothing (quiet).

c) Active Startup

No Active Startup

With Any Character

With active Modem Control in

With a Specific Start Character

Manual Connection

WiPort Embedded Wireless Device Server User Guide 53

Does not attempt to initiate a connection. Default setting.

Attempts to connect when any character is received from the serial port.

Attempts to connect when the Modem Control In input changes from not asserted to asserted.

Attempts to connect when it receives a specific start character from the serial port. The default start character is carriage return.

Attempts to connect when directed by a command string received from the serial port. The first character of the command string must be a C (ASCII 0x43), and the last character must be either a carriage return (ASCII 0x0D) or a line feed (0x0A). No

Between the first and last command string characters must be a

Command String

Result if remote IP is 129.1.2.3 and remote port is 1234

6: Configuration via Serial Mode or Telnet Port

full or partial destination IP address and can include a destination port number.

The IP address must be in standard dot-decimal notation and may be a partial address, representing the least significant 1, 2, or 3 bytes of the remote IP address. The period is required between each pair of IP address numbers.

If present, the port number must follow the IP address, must be presented as a decimal number in the range 1-65535, and must be preceded by a forward slash (ASCII 0x2F). The slash separates the IP address and the port number. If you omit the port number from a command string, the internally stored remote port number starts a connection.

If a partial IP address is presented in a command string, it is interpreted to be the least significant bytes of the IP address and uses the internally stored remote IP address to provide the most significant bytes of the IP address. If the IP address entered is

0.0.0.0/0, the device server enters Monitor Mode.

For example, if the remote IP address already configured in the unit is 129.1.2.3, then an example command string would be C3/7. (This would connect to 129.1.2.3 and port 7.) You may also use a different ending for the connection string. For example, C50.1/23 would connect you to 129.1.50.1 and port 23.

If an IP address does not follow the first command string character (which is "C"), the subsequent character string is interpreted as the host name and domain to be used in DNS lookup. This character string can include a destination port number as well. The port number can be preceded by either a forward slash (/) or a colon ( : ).

Table 5-9. Manual Connection Address Example

C121.2.4.5/1 Complete override; connection is started with host 121.2.4.5, port 1

C5 Connects to 129.1.2.5, port 1234

C28.10/12 Connects to 129.1.28.10, port 12

C0.0.0.0/0 Enters Monitor Mode

Cwww.lantronix.com/ 80

Autostart (Automatic Connection)

Tries to connect to the Lantronix web server if the <hostname:domain> (www.lantronix.com) is configured in the DNS server database.

The unit automatically attempts a connection to the remote IP address and port after booting up.

WiPort Embedded Wireless Device Server User Guide 54

6: Configuration via Serial Mode or Telnet Port

Hostlist

If this option is set to True, the device server scrolls through the host list until it connects to the first available device listed in the host list table. Once it connects, the unit stops further attempts. If this connection fails, the unit continues to scroll through the table until it is able to connect to the next available IP address in the host list.

Hostlist supports a minimum of 1 and a maximum of 12 entries. Each entry contains the IP address and the port number.

The hostlist is disabled for Manual Mode and for Modem Mode. The unit will not accept a data connection from a remote device when the hostlist option is enabled.

Figure 5-5. Hostlist Example

Baudrate (9600) ? I/F Mode (4C) ? Flow (00) ? Port No (10001) ? ConnectMode (C0) ?25 Hostlist : No Entry ! Change Hostlist ? (N) Y

01. IP address : (000) 172.(000) 19.(000) 0.(000) 1 Port : (0) ?23

02. IP address : (000) 172.(000) 19.(000) 0.(000) 2 Port : (0) ?3001

03. IP address : (000) 172.(000) 19.(000) 0.(000) 3 Port : (0) ?10001

04. IP address : (000) .(000) .(000) .(000)

Hostlist :

01. IP : 172.019.000.001 Port : 00023

02. IP : 172.019.000.002 Port : 03001

03. IP : 172.019.000.003 Port : 10001

Change Hostlist ? (N) N

Hostlist Retrycounter (3) ? Hostlist Retrytimeout (250) ? DisConnMode (00) ? FlushMode (00) ? DisConnTime (00:00) ?: SendChar 1 (00) ? SendChar 2 (00) ?

To enable the hostlist:

1. Enter a Connect Mode of 0x20. The menu shows a list of current entries already defined in the product.

2. To delete, modify, or add an entry, select Yes. If entering an IP address of

0.0.0.0, that entry and all others after it are deleted.

3. After completing the hostlist, repeat the previous step if necessary to edit the hostlist again.

4. For Retrycounter, enter the number of times the Lantronix unit should try to make a good network connection to a hostlist entry that it has successfully ARPed. The range is 1-15, with the default set to 3.

WiPort Embedded Wireless Device Server User Guide 55

5. For Retrytimeout, enter the number of seconds the unit should wait before failing an attempted connection. The time is stored as units of milliseconds in the range of 10-65535. The default is 250.

d) Datagram Type

Directed UDP

e) Modem Mode

In Modem (Emulation) Mode, the unit presents a modem interface to the attached serial device. It accepts AT-style modem commands, and handles the modem signals correctly.

Normally, there is a modem connected to a local PC and a modem connected to a remote machine. A user must dial from the local PC to the remote machine, accumulating phone charges for each connection. Modem Mode allows you to replace modems with WiPorts, and to use an Ethernet connection instead of a phone call. By not having to change communications applications, you avoid potentially expensive phone calls.

6: Configuration via Serial Mode or Telnet Port

When selecting this option, you are prompted for the Datagram type. Enter 01 for directed or broadcast UDP. Datagrams of type 01 can be sent as a broadcast by enabling the Send as Broadcast option. The default is not to broadcast.

Note: Datagrams are sent as subnet-directed broadcasts.

When the UDP option is in effect, the unit never attempts to initiate a TCP connection because it uses UDP datagrams to send and receive data.

To select Modem Mode, set the Connect Mode to C6 (no echo), D6 (echo with full verbose), D7 (echo with numeric response), CF (modem responses only, numeric response), or CE (modem responses only, full verbose).

Note: If the unit is in Modem Mode, and the serial port is idle, the unit can

still accept network TCP connections to the serial port if Connect Mode is set to C6 (no echo), D6 (echo with full verbose), D7 (echo with numeric response), CF (modem responses only, numeric response), or CE (modem responses only, full verbose).

Without Echo

Echo & Modem Response

Modem Responses Only

In Modem Mode, echo refers to the echo of all of the characters entered in command mode; it does not mean to echo data that is transferred. Quiet Mode (without echo) refers to the modem not sending an answer to the commands received (or displaying what was typed).

Full Verbose: The unit echoes modem commands and responds to a command with a message string shown in the table below.

Numeric Response: The unit echoes modem commands and responds to a command with a numeric response.

Full Verbose: The unit responds to a command with a message string shown in the table below.

Numeric Response: The unit responds to a command with a numeric response.

WiPort Embedded Wireless Device Server User Guide 56

6: Configuration via Serial Mode or Telnet Port

Message

Meaning

Table 5-10. Modem Mode Messages

Full Verbose

OK Command was executed without error.

CONNECT A network connection has been established.

NO CARRIER A network connection has been closed.

RING n.n.n.n.

Numeric Response

0 OK

1 Connected

2 Ring

3 No Carrier

4 Error

A remote device, having IP address n.n.n.n, is connecting to this device.

Received commands must begin with the two-character sequence AT and be terminated with a carriage return character.

The unit ignores any character sequence received not starting with AT, and only recognizes and processes single AT-style commands. The unit treats compound AT commands as unrecognized commands.

If the Full Verbose option is in effect, the unit responds to an unrecognized command string that is otherwise formatted correctly (begins with AT and ends with carriage return) with the "OK" message and takes no further action.

If the Numeric Response option is in effect, the unit responds to an unrecognized command string that is otherwise formatted correctly with the "OK" message and takes no further action.

When an active connection is in effect, the unit transfers data and does not process commands received from the serial interface.

When a connection is terminated or lost, the unit reverts to command mode.

When an active connection is in effect, the unit terminates the connection if it receives the following sequence from the attached serial device:

 No serial data is received for one second.  The character sequence +++ is received, with no more than one second

between each two characters.

 No serial data is received for one second after the last + character. At this

time, the unit responds affirmatively per the selected echo/response mode.

 The character string ATH is received, terminated with a carriage return. The

unit responds affirmatively according to the selected echo/response mode and drops the network connection. The serial interface reverts to accepting command strings.

If this sequence is not followed, the unit remains in data transfer mode.

WiPort Embedded Wireless Device Server User Guide 57

6: Configuration via Serial Mode or Telnet Port

Modem Mode Command

Function

Table 5-11. Modem Mode Commands

ATDTx.x.x.x,pppp or ATDTx.x.x.x/pppp or

ATDTx.x.x.x:pppp

ATDTx.x.x.x Makes a connection to an IP address (x.x.x.x) and the remote port

ATD0.0.0.0 Forces the unit into Monitor Mode. Uses remote IP address and

ATD or ATDT Forces the unit into Monitor Mode. Uses remote IP address and

ATDx.x.x.x Makes a connection to an IP address (x.x.x.x) and the remote port

ATH Hangs up the connection (Entered as +++ ATH ).

ATS0=n Enables or disables connections from the network going to the

Makes a connection to an IP address (x.x.x.x) and a remote port number (pppp).

number defined within the unit.

port settings to initiate a connection.

number defined within the unit.

serial port. n=0 disables the ability to make a connection from the network to

the serial port. n=1-9 enables the ability to make a connection from the network

to the serial port.

n>9 is invalid.

ATEn Enables or disables character echo and responses.

n=0 disables character echo and responses. n=1 enables character echo and responses.

ATVn Enables numeric response or full verbose.

n=0 enables numeric response. n=1 enables full verbose.

Note: The unit recognizes these AT commands as single commands such as

ATE0 or ATV1; it does not recognize compound commands such as ATE0V.

Send the Escape Sequence (+++) in Modem Mode

Send ‘+++’ in Modem Mode (Y) ? _

Disable or enable the WiPort’s ability to send the escape sequence. The default is Y (Yes) (send the escape sequence).

Show IP addr after 'RING'

Show IP addr after ‘RING’ (Y) ? _

Disable or enable the WiPort's ability to show the IP address after RING in Modem Mode. The default is Y (Yes) (shows the IP address).

WiPort Embedded Wireless Device Server User Guide 58

6: Configuration via Serial Mode or Telnet Port

Disconnect Mode Option

7 6 5

3 2 1

(2)

(3)

(4)

(5)

Auto Increment Source Port

Auto increment source port (N) ? _

Y (Yes) auto increment the source port. The WiPort increments the port number used with each new connection.

Remote IP Address

This is the destination IP address used with an outgoing connection.

Remote IP Address : ( 0) ( 0) ( 0) ( 0)_

Note: This option is not displayed when Hostlist is enabled from the

ConnectMode prompt (see page 52 for more information).

Remote Port

Set the remote TCP port number for the unit to make outgoing connections. This parameter defines the port number on the target host to which a connection is attempted.

Remote Port ( 0) ? _

To connect an ASCII terminal to a host using the unit for login purposes, use the remote port number 23 (Internet standard port number for Telnet services).

Note: This option is not displayed when Hostlist is enabled from the

ConnectMode prompt (see page 52 for more information).

DisConnMode

Disconnect Mode (DisConnMode) determines the conditions under which the unit will cause a network connection to terminate. The current value is displayed in parentheses.

DisConnMode ( 0) ? _

In DisConnMode, modem_control_in either drops the connection or is ignored. The following table displays the available input options:

Table 5-12. Disconnect Mode Options

Disconnect when Modem Control In is not asserted

Ignore Modem Control In 0

Telnet Com Port Cntrl and terminal type setup

Channel (port) password

Hard disconnect

(6)

(1)

WiPort Embedded Wireless Device Server User Guide 59

Disable hard disconnect 1

State LED off with connection

Disconnect with EOT (^D)

6: Configuration via Serial Mode or Telnet Port

Function

7 6 5 4 3

2 1 0

(1) The WiPort sends the "Terminal Type" upon an outgoing connection. (2) A password is required for a connection to the serial port from the network. (3) The TCP connection closes even if the remote site does not acknowledge the disconnection. (4) When there is a network connection to or from the serial port, the state LED turns off instead of blinking. (5) When Ctrl-D or Hex 04 is detected, the connection is dropped. Both Telnet Com Port Cntrl and

Disconnect with EOT must be enabled for Disconnect with EOT to function properly. Ctrl+D is only detected going from the serial port to the network.

(6) When Modem Control In transitions from a high state to a low state, the network connection to or from the

serial port drops.

Flush Mode

The FlushMode (buffer flushing) parameter controls line handling and network buffers with connection startup and disconnect.

FlushMode ( 0) ? _

Select between two different packing algorithms (the current configuration is displayed within the parentheses). Available Flush Mode options are:

Table 5-13. Flush Mode Options

Input Buffer (Serial to Network)

Clear with a connection that is initiated from the device to the network

Clear with a connection initiated from the network to the device

Clear when the network connection to or from the device is disconnected

Output Buffer (Network to Serial)

Clear with a connection that is initiated from the device to the network

Clear with a connection initiated from the network to the device

Clear when the network connection to or from the device is disconnected

Alternate Packing Algorithm (Pack Control)

Enable 1

Pack Control

The packing algorithm defines how and when packets are sent to the network. The standard algorithm is optimized for applications in which the unit is used in a local environment. The alternate packing algorithm minimizes the packet count on the network and is especially useful in applications in a routed Wide Area Network (WAN). Adjusting parameters in this mode can economize the network data stream.

Pack control settings are enabled in Flush Mode. Set this value to 00 if specific functions are not needed.

WiPort Embedded Wireless Device Server User Guide 60

6: Configuration via Serial Mode or Telnet Port

Option

Trailing Characters

Send Characters

Table 5-14. Pack Control Options

Packing Interval

Interval: 12ms 0 0

Interval: 52ms 0 1

Interval: 250ms 1 0

Interval: 5sec 1 1

None 0 0

One 0 1

Two 1 0

2-Byte Send Character Sequence

Send Immediately After Send chars

Packing Interval: Packing Interval defines how long the unit should wait before

sending accumulated characters. This wait period is between successive network segments containing data. For alternate packing, the default interval is 12 ms.

Trailing Characters: In some applications, CRC, Checksum, or other trailing

characters follow the end-of-sequence character; this option helps to adapt frame transmission to the frame boundary.

Send Characters:

 If 2-Byte Send Character Sequence is enabled, the unit interprets the

sendchars as a 2-byte sequence; if this option is not enabled, the unit interprets them independently.

 If Send Immediately After Characters is not set, any characters already in

the serial buffer are included in the transmission after a "transmit" condition is found. If this option is set, the unit sends immediately after recognizing the transmit condition (sendchar or timeout).

Note: A transmission might occur if status information needs to be

exchanged or an acknowledgment needs to be sent.

DisConnTime (Inactivity Timeout)

Use this parameter to set an inactivity timeout. The unit drops the TCP connection to port 10001/10002* if there is no activity on the serial line before the set time expires. Enter time in the format mm:ss, where m is the number of minutes and s is the number of seconds.

Note*: The default port number for Port 1 is 10001 and 10002 for Port 2. However,

port numbers may be set to a different value.

DisConnTime (0: 0) ?:

WiPort Embedded Wireless Device Server User Guide 61

6: Configuration via Serial Mode or Telnet Port

To disable the inactivity timeout, enter 00:00. Range is 0 (disabled) to 5999 seconds (99 minutes, 59 seconds). The default is 0.

SendChar 1 and SendChar 2

Enter up to two characters in hexadecimal representation.

SendChar 1 ( 0) ? _ SendChar 2 ( 0) ? _

If the unit receives a character on the serial line that matches one of these characters, it sends the character immediately, along with any awaiting characters, to the TCP connection. This action minimizes the response time for specific protocol characters on the serial line (for example, ETX, EOT). Setting the first SendChar to 00 disables the recognition of the characters. Alternatively, the unit can interpret two characters as a sequence (see Pack Control on page 60).

Telnet Terminal Type

This parameter displays only if the terminal type option is enabled in Disconnect Mode. If this option is enabled, use the terminal name for the Telnet terminal type. Enter only one name.

If the terminal type option is enabled, the unit also reacts to the EOR (end of record) and binary options, which can be used for applications such as terminal emulation to UNIX hosts.

Channel (Port) Password

This parameter displays only if the channel (port) password option is enabled in Disconnect Mode. If the option is enabled, set a password on the serial port.

Email Configuration

The unit sends an email to multiple recipients when a specific trigger event occurs. There are three separate triggers, based on any combination of the configurable pins (PIO) when selected as user I/O functions. Optionally, use a two-byte serial string to initiate a trigger. To configure email configuration settings, select option 3 Email from the Change Setup menu.

Mail server (0.0.0.0) ? (000) .(000) .(000) .(000) Unit name () ? Domain name () ? Recipient 1 () ? Recipient 2 () ?

- Trigger 1 Enable serial trigger input (N) ? Trigger input1 [A/I/X] (X) ? Trigger input2 [A/I/X] (X) ? Trigger input3 [A/I/X] (X) ? Message () ? Priority (L) ? Min. notification interval (1 s) ? Re-notification interval (0 s) ?

- Trigger 2 Enable serial trigger input (N) ?

Figure 5-6. Email Settings

WiPort Embedded Wireless Device Server User Guide 62

6: Configuration via Serial Mode or Telnet Port

Trigger input1 [A/I/X] (X) ? Trigger input2 [A/I/X] (X) ? Trigger input3 [A/I/X] (X) ? Message () ? Priority (L) ? Min. notification interval (1 s) ? Re-notification interval (0 s) ?

- Trigger 3 Enable serial trigger input (N) ? Trigger input1 [A/I/X] (X) ? Trigger input2 [A/I/X] (X) ? Trigger input3 [A/I/X] (X) ? Message () ? Priority (L) ? Min. notification interval (1 s) ? Re-notification interval (0 s) ?

Mail Server

Enter the IP address of the mail server. Enter each 3-digit section and press Enter between each section inputted. The current value is displayed in parentheses.

Mail Server (0.0.0.0) ? ( 0) _

Unit Name

Enter the username used by the WiPort to send email messages. The current value is displayed in parentheses. Note: Do not use spaces in the name.

Unit name () ? _

Domain Name

Enter the email server’s domain name. The current value is displayed in parentheses.

Domain name () ? _

Recipient 1

Enter the full email address of the trigger email recipient. The current value is displayed in parentheses.

Recipient 1 () ? _

WiPort Embedded Wireless Device Server User Guide 63

6: Configuration via Serial Mode or Telnet Port

Recipient 2

Enter the full email address of the trigger email recipient. The current value is displayed in parentheses.

Recipient 2 () ? _

Trigger 1

A trigger event occurs when the unit receives the specified trigger input because of a specified combination of conditions on the configurable pins.

Enable serial trigger input (N) ? Trigger input1 [A/I/X] (X) ? Trigger input1 [A/I/X] (X) ? Trigger input1 [A/I/X] (X) ? Message () ? Priority (L) ? Minimum notification interval (1 s) ? Re-notification interval (0 s) ?

Set the configurable pins to A = Active, I = Inactive, or X = Don’t Care. Active can mean Active Low or Active High. If the configurable pins are all set to X (Don’t Care), then they are disabled. If both the serial sequence and the configurable pins are disabled, the trigger is disabled.

To change the configurable pins’ settings, send setup records to Port 77FE.

The Message is the subject line of the trigger event email to the specified recipient(s).

The Priority is the priority level for the trigger even email. Enter L for normal priority or H for high priority.

The Minimum notification interval is the minimum time allowed between individual triggers. If a trigger event occurs within the minimum interval since the last trigger, it is ignored.

The Re-notification interval indicates the time interval in which a new email message is sent to the recipient(s) when a single trigger event remains active.

Trigger 2

Refer to Trigger 1 for details on completing these fields.

Note: Each trigger is independent of the others. Each condition within an

individual trigger must be met before the unit will send the email.

Trigger 3

Refer to Trigger 1 for details on completing these fields.

Note: Each trigger is independent of the others. Each condition within an

individual trigger must be met before the unit will send the email.

WiPort Embedded Wireless Device Server User Guide 64

WLAN Settings

Without adequate protection, a wireless LAN is susceptible to access by unauthorized users. As such, WiPort features the WPA security standard, based on IEEE802.11i and IEEE802.1X. WEP is provided for backwards compatibility and interaction with older devices.

When in WPA and WPA2 modes, the encryption setting denotes the lowest acceptable encryption method. CCMP is higher than TKIP, and TKIP is higher than WEP. For example, if the WiPort is configured for WEP and the AP supports TKIP, the negotiation results in the use of TKIP. If the WiPort is configured for TKIP and the AP supports only WEP, the association will fail because the AP does not meet the WiPort’s requirements.

Unicast communication occurs between the AP and a single wireless device. It uses the pairwise encryption method. Multicast communication occurs between the AP and multiple wireless devices. It uses the group encryption method. The group encryption for all wireless devices communicating with the same access point must be equal in order to receive broadcast and multicast messages. If any device is WEP-only (i.e. no support for WPA), set the encryption to TKIP+WEP. To use higher security with the WiPort than other devices connecting to the same AP, use a group encryption lower than the pairwise encryption.

6: Configuration via Serial Mode or Telnet Port

Note: Due to regulations, the country-specific setting has been removed from the

The syntax is SetZone <IP address> [<zone abbreviation>]

Leaving the zone blank causes the utility to report the current setting only. Following are valid zone abbreviations. These settings are consistent with IEEE802.11b/g zones:

US=United States CA=Canada FR=France

JP=Japan OT=Others, such as Europe (excluding

France), Asia, Africa, and Australia

SP=Spain

To modify WLAN settings, select 4 WLAN from the Change Setup menu.

Topology: 0=Infrastructure, 1=Ad-Hoc (0) ? Network name (SSID) (LTXTS2) ? Security suite: 0=none, 1=WEP, 2=WPA, 3=WPA2/802.11i (1) ? Authentication: 0=open/none, 1=shared (1) ? Encryption: 1=WEP64, 2=WEP128 (2) ? Change Key (N) ? TX Key index (1) ? TX Data rate: 0=fixed, 1=auto fallback (1) ? TX Data rate: 0=1, 1=2, 2=5.5, 3=11, 4=18, 5=24, 6=36, 7=54 Mbps (3) ? Minimum TX Data rate: 0=1, 1=2, 2=5.5, 3=11, 4=18, 5=24, 6=36, 7=54 Mbps (0) Enable power management (N) ? Enable Soft AP Roaming (Y) ? Max failed packets (6 – 64; 255=disable): (6) ?

WiPort Embedded Wireless Device Server User Guide 65

6: Configuration via Serial Mode or Telnet Port

Encryption

Change key

Topology

Select Infrastructure (ESS) mode or Adhoc (IBSS) mode. Infrastructure mode communicates with APs. Adhoc mode communicates only with other clients.

Topology 0=Infrastructure, 1=Adhoc (0) ? _

Network Name (SSID)

Enter the name of the network to which the WiPort will connect.

Network name (LTRX_IBSS) ? _

Adhoc Network Channel

When Adhoc is selected in the Topology parameter and the WiPort cannot find the specified network, it creates one with that name by transmitting a beacon on the selected channel.

Channel (11) ? _

Only channels allowed in the country for which the WiPort is designated can be selected. The country is shown in the Setup Mode settings overview.

Security Suite

The WiPort features WEP, WPA, and W PA2/802.11i to secure all wireless communication. WPA and WPA2/802.11i are not available when Adhoc is selected as the topology.

The WPA2/802.11i mode is compliant with the Robust Secure Network that is specified in the IEEE standard 802.11i. It enables the AES-based strong CCMP encryption.

Security suite 0=none, 1=WEP, 2=WPA, 3=WPA2/802.11i (0) ? _

WEP

Security suite: 0=none, 1=WEP, 2=WPA, 3=WPA2/802.11i (1) ? 1 Authentication: 0=open/none, 1=shared (1) ? Encryption: 1=WEP64, 2=WEP128 (2) ? Change Key (N) ? Y Display key (N) ? Key type 0=hex, 1=passphrase (0) ? Enter Key: **-**-**-**-**-**-**-**-**-**-**-**-** TX Key index (1) ? 1 TX Data rate: 0=fixed, 1=auto fallback (1) ?

Authentication

Display Key

Select whether the encryption keys are matched (1 = shared) with those of the communication partner before passing through messages or not (2 = open/none).

Length of the encryption key and the security strength. WEP64 uses a 40 bits/5 bytes key (option 1); WEP128 uses a 104 bits/13 bytes key (option 2).

Select Y (Yes) to modify the currently configured key.

Select Y (Yes) to show the currently configured key/passphrase.

WiPort Embedded Wireless Device Server User Guide 66

6: Configuration via Serial Mode or Telnet Port

TX Key index

Ke y t yp e

Key type

Enter key

TX Data rate

Indicate whether the new key is in hexadecimal or passphrase format.

Enter the new encryption key. The passphrase input is not the same as ASCII input (as used on some products). ASCII is translated directly into hexadecimal bytes according to the ASCII table. The WiPort passphrase is hashed using the Neesus Datacom algorithm (for WEP64) or MD5 (for WEP128).

The passphrase input is safer because it is up to 63 chars long. ASCII input is a maximum of 5 (WEP64) or 13 (WEP128) characters long and limits the number of key combinations.

Please refer to the other equipment’s manual to determine the passphrase input style recommended.

Note: Lantronix recommends using a passphrase of 20

characters or more for maximum security.

Select the WEP key used for transmissions. Enter a value from 1 to 4.

Select the Data Transmit rate. The value are 1 MB, 2 MB,

5.5 MB, 11 MB, 18 MB, 24 MB, 36 MB, and 54 MB.

WPA

This firmware version allows only Pre-Shared Keys (PSK) for authentication.

Security suite: 0=none, 1=WEP, 2=WPA, 3=WPA2/802.11i (0) ? 2 Change key (N) ? Y Display key (N) ? Key type 0=hex, 1=passphrase (1) ? 1 Enter key: *********************** Encryption: 0=TKIP, 1=TKIP+WEP (0) ?

Change key Select Y (Yes) to modify the currently configured key.

Display key Select Y (Yes) at the prompt to show the currently configured

key/passphrase

Indicate whether the new key is in hexadecimal or passphrase format.

Enter key

Encryption

Enter the passphrase. The maximum length is 63 characters.

Note: Lantronix recommends using a passphrase of 20

characters or more for maximum security.

Set the type to the minimum required security level. The “+” sign indicates that the group (broadcast) encryption method is different from the pairwise (unicast) encryption (WEP and TKIP).

802.11i/WPA2-PERSONAL

Security suite: 0=none, 1=WEP, 2=WPA, 3=WPA2/802.11i (0) ? 3 Change key (N) ? Y Display key (N) ? Key type 0=hex, 1=passphrase (1) ? Enter key: *********************** Encryption: 0=CCMP, 1=CCMP+TKIP, 2=CCMP+WEP, 3=TKIP, 4=TKIP+WEP (3) ?

WiPort Embedded Wireless Device Server User Guide 67

6: Configuration via Serial Mode or Telnet Port

Change key Select Y (Yes) to modify the currently configured key.

Display key Select Y (Yes) to show the currently configured

key/passphrase.

Ke y t yp e

Enter key

Encryption

Indicate whether the new key is in hexadecimal or passphrase format.

Enter the passphrase. The maximum length is 63 characters. Lantronix recommends using a passphrase of 20 characters or more for maximum security.

Set the type to the minimum required security level. The “+” sign indicates that the group (broadcast) encryption method is different from the pairwise (unicast) encryption. For example, for CCMP+TKIP, CCMP is the pairwise encryption and TKIP is the group encryption. CCMP is the default for WPA2.

Fixed or Automatic Data Rate

WiPort permits the control of the transmission rate. Select 0 to set a fixed data rate or select 1 to set an automatic data rate. The default is 1 (auto).

TX Data rate 0=fixed, 1=auto (1) ? _

Transmission Data Rate

If the above TX Data rate is set to fixed, the selected data rate is the WiPort’s fixed transmission rate. If the above TX Data rate is set to auto, the selected data rate is the WiPort’s maximum data rate. Lower data rates allow for larger distances. It may also be required when communicating with older devices. The default is 54 Mbps.

TX Data rate 0=1, 1=2, 2=5.5, 3=11 Mbps (0) ? _

WiPort version WP2001000G-02 offers additional transmission rate options:

TX Data rate 0=1, 1=2, 2=5.5, 3=11 4=18, 5=24, 6=36, 7=54 Mbps (0) ? _

Minimum TX Data Rate

Selects the minimum data rate the device will use when auto-fallback is enabled. The default is 1 Mbps.

MinTX Data Rate 0=1, 1=2, 2=5.5, 3=11, 4=18, 5=24, 6=36, 7=54 Mbps <0> ? _

Note: If Auto Rate Fallback is enabled and a minimum TX data rate other than

1Mbps is configured, the radio will operate in Single Rate Drop mode. This means that if a rate drop becomes necessary, the radio will drop from the maximum rate to the lowest rate, ignoring all rates in between. This reduces the potential number of packet retransmission attempts, because the radio attempts to transmit a packet three times before transitioning to the next lowest TX rate.

Note: If the Minimum TX Data Rate is set for 54 Mbps for the minimum and

maximum, the auto fallback capability is eliminated.

WiPort Embedded Wireless Device Server User Guide 68

6: Configuration via Serial Mode or Telnet Port

Max TX Failures

Determines the maximum number of consecutive transmit packet failures before the device will drop its association with the AP and attempt to establish a new one. The range of attempts is 6 to 64; 255 equals disabled. The default is 6 failed attempts.

Max failed packets <6 – 64; 255=disable>: <6> ? _

Enable Power Management

This allows the software to turn off the radio when expecting not to receive or transmit soon. This feature reduces the power consumption by up to 170 mA. Enabling power management increases the response time, because the radio needs to start up again. The radio is enabled to synchronize and check for incoming messages (every 100 ms). The default value is N.

Note: This option is not available when the Topology is set to Adhoc.

Enable power management (N) ? _

Enable Soft AP Roaming

Choose to enable Y (Yes) or disable N (No) No Lantronix's (patent pending) Roam technology. The default value is N.

Enable Soft AP Roaming (Y) ?

Expert Settings (Option 5)

Note: Change these settings via Telnet or serial connections only

Caution: Only an expert should change these parameters. These

changes hold serious consequences.

TCP Keepalive time in s (1s - 65s; 0s=disable): (45) ? ARP Cache timeout in s (1s - 600s) : (600) ? CPU performance (0=Regular, 1=Low, 2=High): (0) ? Disable Monitor Mode @ bootup (N) ? HTTP Port Number : (80) ? SMTP Port Number : (25) ? MTU Size (512 - 1400): (1400) ? TCP Re-transmission Timeout (500 - 4000) (ms): (500) ? Enable alternate MAC (N) ? Ethernet connection type: (0) ?

Note: The Config Server Port Number and Automatic Host MAC Detection

option display only in Bridging. For more information, see Configurable

Server Port Number and Automatic Host MAC Detection on page 71.

WiPort Embedded Wireless Device Server User Guide 69

6: Configuration via Serial Mode or Telnet Port

TCP Keepalive time in seconds

TCP Keepalive time defines how many seconds the unit waits during a silent connection before checking whether the currently connected network device is still on the network. If the unit does not receive a response, it drops that connection.

TCP Keepalive time in s (1s – 65s; 0s=disable): (45)? _

ARP Cache timeout in seconds

When the unit communicates with another device on the network, it adds an entry into its ARP table. ARP Cache timeout defines the number of seconds (1-600) the unit waits before timing out this table.

ARP Cache timeout in s (1s – 65s; 0s=disable): (600)? _

CPU Performance

Select the WiPort’s performance mode. Higher performance settings require more energy. Low is 26 Mhz, Regular is 48 Mhz, High is 88 Mhz. The default setting is Regular.

CPU performance (0=Regular, 1=Low, 2=High): (0) ? _)?

Notes:

 If a baud rate of 460 Kbps or 920 Kbps is set, and the high performance mode is

disabled, the operation of the serial channel would be out of the specified error tolerance, thereby leading to inconsistent speed settings on the two ends of the serial channel.

 Increasing CPU clock speed consumes more power and generates more heat.

This reduces the maximum operating temperature specification. See the appropriate product brief for details.

Disable Monitor Mode

This option allows you to disable all entries into Monitor Mode during startup, except for the ‘xxx’ sequence. This prevents entry using yyy, zzz, xx1, and yy1 key sequences (only during the bootup sequence). The default setting for Monitor Mode at bootup is N (No). (See 7: Monitor Mode.)

HTTP Port Number

This option allows the configuration of the web server port number. The valid range is 1-65535. The default HTTP server port number is 80.

HTTP Port Number : (80) ? _

SMTP Port Number

This option allows the configuration of the SMTP port number. The valid range is 1-

65535. The default HTTP server port number is 25.

SMTP Port Number : (25) ? _

WiPort Embedded Wireless Device Server User Guide 70

6: Configuration via Serial Mode or Telnet Port

MTU Size

The Maximum Transmission Unit (MTU) is the largest physical packet size a network can transmit for TCP and UDP. Enter between 512 and 1400 bytes. The default is 1400 bytes.

MTU Size: (1400) ? _

TCP Re-transmission Timeout

This feature allows the configuration of the desired TCP re-transmission timeout value. If the ACK is not received for a packet sent from the WiPort device, then the unit will retransmit the data. The valid range is 500-4000 msec.

MTU Size *512 – 1499): (500) ? _

Enable Alternate MAC

If necessary, enable the alternate MAC address (if specified in the OEM setup record).

Enable alternate MAC (N) ? _

Ethernet Connection Type

The WiPort allows for the Ethernet speed to be manually configured. Enter 0 for automatic negotiation (default). To select the speed and duplex, enter one of the following: 2 (10Mbit/half duplex), 3 (10Mbit/full duplex), 4 (100Mbit/half duplex), or 5 (100Mbit/full duplex).

Note: Manually configured speed/duplex settings only work correctly if the peer or

switch also uses a static setting. If the peer is set for auto negotiation, it will not necessarily result in the correct mode. This is a common Ethernet problem and is not WiPort-specific.

Ethernet connection type: (0) ? _

Configurable Server Port Number

The host attached to the WiPort may communicate with other CoBos devices on the wireless network using the Lantronix Configuration Access Protocol (LCAP). This service is available on server port number 0x77FE (30718) and is fixed. When the WiPort is in bridging mode, the LCAP port number is modifiable so that the LCAP service is available on the wired interface for WiPort configuration.

For more information on bridging, see 8: Wireless Bridging.

Config Server Port Number: (30718) ? _

Automatic Host MAC Detection

When Automatic Host MAC Detection is disabled (set to “N”) for bridging mode, the MAC address of the bridged host can be set. When enabled (set to “Y'”), the MAC address of the bridged host is detected automatically.

Automatic Host MAC Detection <Y> ? _ Wired Host MAC <00:00:00:00:00:00> <00> _ _

WiPort Embedded Wireless Device Server User Guide 71

Security Settings (Option 6)

Security settings can only be changed using the setup menu (telnet or serial).

Caution: It is recommended to set security over a dedicated network or over

the serial setup, to prevent eavesdropping.

Note: To prevent any unauthorized access from the network, disable the

Telnet setup, port 77FE, and the Web setup features.

Disable SNMP (N) ?

SNMP Community Name (public):

Disable Telnet Setup (N) ?

Disable TFTP Firmware Update (N) ?

Disable Port 77FEh (N) ?

Disable Web Server (N) ?

Disable Web Setup (N) ?

Disable ECHO ports (Y) ?

Enable Encryption (N) ?

Enable Enhanced Password (N) ?

Disable Port 77F0h (N) ?

6: Configuration via Serial Mode or Telnet Port

Disable SNMP

For security purposes, disable SNMP (if required) on the WiPort unit. The current setting is displayed in parentheses.

Disable SNMP (N) ? _

SNMP Community Name

The SNMP Community Name is a required field for NMS to read or write to a device. Enter a string of 1 to 13 characters.

SNMP Community Name (public): _

The default entry is public. The current value is displayed in parentheses.

Disable Telnet Setup

Note: Disabling both Telnet Setup and Port 77FE prevents users from

accessing the setup menu from the network.

This setting defaults to the N (No) option. The Y (Yes) option disables access to Setup Mode by Telnet (port 9999). It only allows access locally via the web pages and the serial port of the unit.

Disable Telnet Setup (N) ? _

WiPort Embedded Wireless Device Server User Guide 72

6: Configuration via Serial Mode or Telnet Port

prompt) in hexadecimal numbers. Enter 32 characters for 128 bits

Disable TFTP Firmware Upgrade

This setting defaults to the N (No) option. The Y (Yes) option disables TFTP for network firmware upgrades.

Disable TFTP Firmware Update (N) : _

Disable Port 77FE (Hex)

Note: Disabling both Telnet Setup and Port 77FE and Web Setup prevents

users from accessing the setup from the network.

Port 77FE is used by Web Manager and custom programs to configure the unit remotely. If required, disable this capability for security purposes.

Disable Port 77FEh (N) ? _

The default setting is the N (No) option, which enables remote configuration. As a result, configure the unit by using web pages, Telnet, or serial configuration.

The Y (Yes) option disables remote configuration and web sites.

Note: The Y (Yes) option disables many of the GUI tools for configuring the

unit, including the embedded Web Manager tool.

Disable Web Server

The Y (Yes) option disables the web server. This setting defaults to the N (No) option.

Disable Web Server (N) ? _

Disable Web Setup

The Y (Yes) option disables configuration via the Web Manager. This setting defaults to the N (option).

Disable Web Setup (N) ? _

Disable ECHO Ports

This setting controls whether port 7 echoes characters it receives.

Disable ECHO ports (Y) ? _

Enable Encryption

Enable Encryption (Y) ? _ Key length in bits (256): _ Change Key (N) ? _ Enter Key: _

Enable Encryption This option displays only if the WiPort model features AES

encryption. It enables AES encryption for tunneling only.

Key length in bits Valid options are 128, 192 and 256 bits.

Change Key

Enter Key

Select to modify the current AES encryption key. The default is N (No).

If you selected Change Key, enter the key (at the Enter Key

WiPort Embedded Wireless Device Server User Guide 73

6: Configuration via Serial Mode or Telnet Port

key length, 48 characters for 192 bits key length, or 64 characters

Connect Mode All other parameters

for 256 bits key length.

Enable Enhanced Password

The Enhanced Password setting allows you to set a password of up to 16 characters for protecting Telnet and Web Page access. We recommend that you select the Y (Yes) option and enable the enhanced password setting.

Avoid using either the 4 character basic password setting or no password at all as they are not secure options.

Enable Enhanced Password (Y) ? _

Disable Port 77F0 (Hex)

Port 77F0 allows a custom application to query or set the eleven WiPort configurable pins when they are functioning as general purpose I/O (GPIO). Disable this capability, if desired, for security purposes.

Disable Port 77F0h ? _

The default setting, the N (No) option, enables GPIO control. The Y (Yes) option disables the GPIO control interface.

Default Settings (Option 7)

Select 7 Defaults from the Change Setup menu to reset the unit’s Channel 1 configuration, Channel 2 configuration, E-mail settings, and Expert settings to the factory default settings. The server configuration settings for IP address, gateway IP address, netmask, wireless enable, infrastructure or ad hoc setting, and wireless security settings remain unchanged. The configurable pins’ settings also remain unchanged. The specific settings this option changes are listed below.

Note: To reset network settings to factory defaults, use one of the “Reset to

Defaults” Configurable Pin Settings. For more information on Configurable Pins, see Configurable Pins on page 77.

Channel 1 Configuration

Baudrate

I/F Mode

Port No

Hostlist Retry Counter

9600

4C (1 stop bit, no parity, 8 bit, RS-232C, no flow control)

10001

C0 (always accept incoming connection; no active connection startup)

Hostlist Retry Timeout

Send Character

WiPort Embedded Wireless Device Server User Guide 74

250 (msec)

0x0D (CR)

6: Configuration via Serial Mode or Telnet Port

Hostlist Retry Counter

All other parameters

Topology

Network Name

TX Data Rate1

Channel 2 Configuration

Baudrate

I/F Mode

Port No

Connect Mode

Hostlist Retry Timeout

Send Character

WLAN Settings

Channel

Security

9600

4C (1 stop bit, no parity, 8 bit, RS-232C, no flow control)

10002

C0 (always accept incoming connection; no active connection startup)

250 (msec)

0x0D (CR)

1 (AdHoc)

LTRX_IBSS

0 (none)

54 Mbps

TX Data Rate Auto Fallback1

Minimum TX Data Rate1

Max TX Failures1

Enable Power Management1

Enable Soft AP Roaming

1 (auto fallback)

1 Mbps

6 (failed attempts)

N (No)

Expert Settings

TCP Keepalive

ARP Cache Timeout

CPU Performance

Disable Monitor Mode

This is included in the 7 Defaults menu reset. To reset the other WLAN settings, use one of the “Reset to Defaults” Configurable Pin Settings. For more information on Configurable Pins, see

Configurable Pins on page 80.

45 (seconds)

600 (seconds)

Regular

N (No)

WiPort Embedded Wireless Device Server User Guide 75

6: Configuration via Serial Mode or Telnet Port

SMTP Port Number

(500-4000)

Ethernet Connection Type

Disable SNMP

Disable Port 77F0h

HTTP Port Number

MTU Size

TCP Re-transmission Timeout

Enable Alternate MAC

Automatic Host MAC Detection

Security Settings

SNMP Community Name

Disable Telnet Setup

Disable TFTP Firmware Update

Disable Port 77FEh

Disable Web Server

1400

500 (msec)

N (No) ( for OEM use only)

0 (auto negotiate)

Y (Yes)

N (No)

public

N (No)

Disable Web Setup

Disable ECHO ports

Enable Encryption

Enable Enhanced password

Email Settings

Trigger Priority

Min. notification interval

All other parameters

Exit Configuration Mode

To exit setup mode:

 Select option 9 Save and exit from the Change Setup menu to save all

changes and reboot the device. All values are stored in nonvolatile memory or

 Select option 8 Exit without save from the Change Setup menu to exit the

configuration mode without saving any changes or rebooting.

N (No)

Y (Yes)

N (No)

1 second

0 (e.g. Email notification and triggers are disabled)

WiPort Embedded Wireless Device Server User Guide 76

7: Configurable Pins

The WiPort has eleven pins configurable for General Purpose I/O (GPIO).

Use these GPIO pins to control devices such as relays, servers, lights, monitor switches, sensors, and even processes such as data transfer.

Default Settings

 Function: general purpose input/output

 Direction: input

 Active Level: low

Set the functions for the eleven pins independently and in any combination. The initial directions (input/output) and active levels (low or high active) at bootup can also be configured through 77FE.

This chapter describes how the directions, active levels, and states can be dynamically controlled and probed through special port 77F0.

Features

 TCP and UDP can be used.

 The protocol supports up to 32 GPIO for future products.  Function configuration can be retrieved.

 Input or output selection can be retrieved and controlled.

 Active low or high selection can be retrieved and controlled.

 Active or inactive selection can be retrieved and controlled.

 77F0 can be disabled.

Every change of state (active/inactive) requires a command over TCP or UDP, and thus is not very fast. If you use this port for data transfer, the throughput is low, usually up to 1 Kbps.

Control Protocol

The GPIO control protocol is a simple, proprietary protocol, which is described below.

Guidelines

The GPIO control protocol is described from the PC side. Send means from PC to WiPort. Response comes from WiPort to PC.

The protocol allows for control of up to 11 GPIOs.

The parameters are four bytes long and represent GPIOs 0-31, with GPIO0 in bit 0 of the first byte (Little Endian). Parameter bits for configurable pins not configured as GPIOs are undefined for Get commands and ignored on Set commands.

WiPort Embedded Wireless Device Server User Guide 77

Every command consists of nine bytes: one command type of one byte and two

Command

Parameter 1

Parameter 2

Byte

0 1 2 3 4 5 6 7 8

Pin Number

0 7 8

31 0 7 8 15

Command

Parameter 1

Byte 0 1 2 3

Pin Number

0 7 8 15

12h

Get active levels

parameters of four bytes each.

On some commands, one or all parameters are ignored.

For UDP, command type and parameters need to be in the same datagram.

Responses to valid commands are always five bytes long, consisting of the returned command byte and as parameters in the current or updated values. In case of an invalid command, only one byte with value 0FFh is returned.

When sending a command (TCP and UDP), wait for the response before sending the next command.

Commands

Byte 0 Command Types

10h Get functions

7: Configurable Pins

11h Get directions (input or output)

13h Get current states (active or not active)

19h Set directions

1Ah Set active levels

1Bh Set current states

There is no Set functions command. Since the pin’s function depends on the hardware in which the WiPort is embedded, that configuration is only allowed via 77FE. Settings changed by any of the Set commands are not stored and are lost when the unit is powered down or rebooted.

Command 10h, Get Functions

Send:

No parameters

Response:

1 parameter

Bytes 1-4: Functions

Bit X 1 means general purpose IO available to the user.

0 means dedicated function (e.g., serial flow control, diagnostics) for

configurable pin X.

(high active or low active)

WiPort Embedded Wireless Device Server User Guide 78

Command 11h, Get Directions

Send:

Response:

No parameters

Response:

1 parameter

Bytes 1-4: Directions

Bit X 1 means GPIO X is an output.

0 means it is an input.

Command 12h, Get Active Levels

No parameters

Response:

1 parameter

Bytes 1-4: Active levels

Bit X 1 means GPIO X is active low (0V when active, 3.3V when inactive).

0 means it is active high (3.3V when active, 0V when inactive).

7: Configurable Pins

Command 13h, Get Current States

Send:

No parameters

1 parameter

Bytes 1-4: States

Bit X 1 means GPIO X is active

0 means it is inactive.

Command 19h, Set Directions

Send:

2 parameters

Bytes 1-4: Mask

Bit X 1 means the direction for GPIO X will be updated with the value in the

second parameter.

0 means the direction for that GPIO will not change.

Bytes 5-8: New Directions

Bit X 1 means GPIO X will become an output.

0 means it will become an input.

Response:

1 parameter

Bytes 1-4: The updated directions

WiPort Embedded Wireless Device Server User Guide 79

Command 1Ah, Set Active Levels

Send:

2 parameters

Bytes 1-4: Mask

Bit X 1 means the direction for GPIO X will be updated with the value in the

second parameter.

0 means the active type for that GPIO will not change.

Bytes 5-8: New Active Levels

Bit X 1 means GPIO X will become active low.

0 means it will become active high.

Response:

1 parameter

Bytes 1-4: Updated active levels

Command 1Bh, Set States

Send:

2 parameters

Bytes 1-4: Mask

Bit X 1 means the state for GPIO X will be updated with the value in the

second parameter.

0 means the state for that GPIO will not change.

Bytes 5-8: New States

Bit X 1 means GPIO X will become active.

0 means it will become inactive.

Response:

1 parameter

Bytes 1-4: Updated states

7: Configurable Pins

Examples

Example 1: PC sends command 10h to find out which configurable pins are available as GPIO.

PC -> WiPort: 10h, 00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h WiPort -> PC: 10h, 03h, 02h, 00h, 00h

Command details:

10h = command 10h 00h, 00h, 00h, 00h = ignored 00h, 00h, 00h, 00h = ignored

Response details:

10h = response to command 10h 03h, 02h, 00h, 00h =

bits 0, 1, and 9 are 0 →CP0, CP1, and CP9 are configured as GPIOs (i.e. GPIO0, GPIO1, GPIO9). bits 2 to 8 and 10 are 0 → configured for a special function and are unavailable for control or monitoring by the user.

WiPort Embedded Wireless Device Server User Guide 80

7: Configurable Pins

Example 2: PC sends command 1Bh to change the current states of GPIO 0 and 1 (assuming they are configured as outputs).

PC -> WiPort: 1Bh, 01h, 02h, 00h, 00h, 01h, 00h, 00h, 00h WiPort -> PC: 1Bh, 03h, 00h, 00h, 00h

Command details:

1Bh = command 1Bh 01h, 00h, 00h, 00h = the mask that determines which GPIOs will be changed.

Bit 0 and 9 are 1 → GPIO0 and GPIO9 will be changed. bit 1 is 0 → GPIO1 will remain the same.

01h, 00h, 00h, 00h = the new states

bit 0 is 1 → GPIO0 will become 1. bit 1 is ignored since it is masked out. bit 0 is 0 → GPIO9 will become 0.

Response details:

1Bh = response to command 1Bh 03h, 00h, 00h, 00h =

bit 0 is 1 → GPIO0 = 1 bit 1 is 1 → GPIO1 = 1 bit 9 is 0 → GPIO9 = 0

WiPort Embedded Wireless Device Server User Guide 81

Command

Command Name

Function

8: Monitor Mode

Monitor Mode is a command-line interface used for diagnostic purposes.

There are two ways to enter Monitor Mode: locally via the serial port or remotely via the network.

Entering Monitor Mode via the Serial Port

To enter Monitor Mode locally:

1. Follow the same steps used for setting the serial configuration parameters (see

Serial Port Access on page 46).

2. Instead of typing three x keys, however:

a) Type zzz to enter Monitor Mode with network connections.

b) Type yyy to enter Monitor Mode without network connections.

A 0> prompt indicates that you have successfully entered Monitor Mode.

Entering Monitor Mode via the Network Port

To enter Monitor Mode using a Telnet connection:

1. Establish a Telnet session to the configuration port (9999). The following message appears:

MAC address 00204A08943AC Software version 6.8.0.2 (121024) AES library version 1.8.2.1

Press Enter to go into Setup Mode

2. Type M (upper case).

A 0> prompt indicates that you have successfully entered Monitor Mode.

Monitor Mode Commands

The following commands are available in Monitor Mode.

Note: All commands are case sensitive .

Table 7-1. Monitor Mode Commands

WiPort Embedded Wireless Device Server User Guide 82

Version Queries software header record (16 bytes) of unit.

Get Configuration Gets configuration of unit as hex records (120

bytes).

8: Monitor Mode

Command

Command Name

Function

PI x.x.x.x

G0, G1, ....,Ge, Gf

S0, S1,...,Se, Sf

Send Configuration Sets configuration of unit from hex records.

Ping Pings unit with IP address x.x.x.x to check device

status.

ARP Table Shows the unit’s ARP table entries.

TCP Connection Table

Network Connection Shows the unit’s current IP address, gateway,

Reset Resets the unit.

Quit Exits diagnostics mode.

Get configuration from memory page

Set configuration to memory page

Get MAC address Shows the unit's 6-byte MAC.

Set Security record Sets the Security record without the encryption key

Shows all incoming and outgoing TCP connections.

subnet mask, and DNS server.

Gets a memory page of configuration information from the device.

Sets a memory page of configuration information on the device.

and length parameters. The entire record must still be written, but the encryption-specific bytes do not need to be provided (they can be null since they are not overwritten).

Scan Initiates a wireless scan if the wireless interface is

enabled. Reports any stations found, including BSSID, SSID, and RSSI. If SA is followed by a string, the string is used to filter SSIDs before reporting. If the BSS does not broadcast its SSID, only the BSSID and RSSI are returned.

Network Status Reports the network interfaces’ statuses. Includes

potentially negotiated parameters like speed/duplex for Ethernet or BSSID, encryption, authentication for wireless interfaces.

Set IP address, host bits, gateway , and DNS server IP

Wireless Status Displays wireless device server status that includes

Example:

co 192.168.0.10 8 192.168.0.1 10001 192.168.1.10 with

192.168.0.10 = IP address of the MatchPort 8 = number of host bits

192.168.0.1 = gateway IP address 10001 = port number of the MatchPort

192.168.1.10 = IP address of the DNS Server

The MatchPort stores the setup and performs a reset. It sends an X before the reset if the command was OK.

packets received, transmitted, and dropped.

Responses to some of the commands are given in Intel Hex format.

WiPort Embedded Wireless Device Server User Guide 83

8: Monitor Mode

Response

Meaning

Note: Entering any of the commands listed above generates one of the

following command response codes:

Table 7-2. Command Response Codes

0> OK; no error

1> No answer from remote device

2> Cannot reach remote device or no answer

8> Wrong parameter(s)

9> Invalid command

WiPort Embedded Wireless Device Server User Guide 84

9: Wireless Bridging

The WiPort supports wireless bridging. This allows a host, connected on the WiPort’s wired Ethernet interface, to be accessible over the wireless network (via the WiPort).

Note: The WiPort with firmware version 6.2 and later supports bridging.

To initialize the bridging feature:

1. Configure the WiPort’s wireless settings.

2. Enable bridging in Serial Mode. See Server Configuration on page 47.

3. Set up the wired host connected to the WiPort’s Ethernet port.

Configuring the WiPort in Bridging Mode

Once in bridging mode, the services on the WiPort are available only through the wired interface. There are 3 methods for configuring the WiPort when in bridging mode.

Method 1

This method uses the current Ethernet wired host to configure the WiPort. This requires the modification of the wired host’s IP address as well as the following steps:

1. Use a utility to locate the WiPort’s MAC address and auto-IP address. This utility must use the Lantronix access protocol to query the WiPort.

2. Assign a static auto-IP address to the wired host within the same subnet as the WiPort.

3. Use the WiPort’s Web Manager or Telnet to port 9999 to configure the WiPort as necessary.

4. Configure the wired host’s IP address back to the original IP address configuration.

Method 2

This method requires the current wired host to be disconnected temporarily. Another device physically connects to the WiPort’s wired interface for configuration.

1. Disconnect the current wired host from the WiPort and connect the device used for configuring the WiPort.

2. Reset the WiPort.

3. Use a utility to locate the WiPort’s MAC address and auto-IP address. This utility must use the Lantronix access protocol to query the WiPort.

4. Assign a static auto-IP address to the wired host within the same subnet as the WiPort.

5. Use the WiPort’s Web Manager or Telnet to port 9999 to configure the WiPort as necessary.

WiPort Embedded Wireless Device Server User Guide 85

9: Wireless Bridging

6. Disconnect the wired device and reconnect the original wired host to the WiPort.

7. Reset the WiPort.

Method 3

As an alternative to configuring through the wired interface, connect a device through the WiPort’s serial port. For more information on configuration through the serial port, see 5: Configuration via Serial Mode or Telnet Port on page 45.

WiPort Embedded Wireless Device Server User Guide 86

10: Updating Firmware

ROM File

COB

This chapter explains how to obtain and update the unit’s firmware.

Obtaining Firmware

Obtain the most up-to-date firmware and release notes for the unit from the Lantronix web site (www.lantronix.com) or by using anonymous FTP (ftp.lantronix.com

Reloading Firmware

There are several ways to update the unit's internal operational code (*.ROM): via DeviceInstaller (the preferred way), via TFTP, or via the serial port. You can also update the unit's internal Web interface (*.COB) via TFTP or DeviceInstaller.

Here are typical names for those files. Check the Lantronix web site for the latest versions and release notes.

Table 9-1. Firmware Files

WPTxxx.ROM WPT_WNxxx.COB (Web Manager)

Please refer to the DeviceInstaller User Guide for information about reloading firmware using DeviceInstaller. The other methods are discussed below.

Note: For upgrading from pre-6.0.0.0 versions, see separate upgrade sheet.

Using TFTP: Graphical User Interface

To download new firmware from a computer:

1. Use a TFTP client to put a binary file to the unit (*.ROM to upgrade the unit's internal operational code and *.COB to upgrade its internal Web interface).

Note: TFTP requires the .ROM (binary) version of the unit's internal

operational code.

2. In the TFTP server field, enter the IP address of the unit being upgraded.

3. Select Upload operation and Binary format.

4. Enter the full path of the firmware file in the Local file name field.

5. In the Remote file name field, enter the current internal operational code or

WEB1 to WEB19 for the internal Web interface with 2 MB flash, or WEB1 to WEB51 for 4 MB flash.

6. Click the Upload Now button to transfer the file to the unit. The unit performs a power reset after the firmware has been loaded and stored.

WiPort Embedded Wireless Device Server User Guide 87

10: Updating Firmware

Using TFTP: Command Line Interface

To download new firmware from a computer, enter the following from a TFTP command line interface:

tftp –i <ip address> put <local filename> <destination file name>

The following examples demonstrate the TFTP command sequence to download the .rom file, the .fwx file, and the .cob file:

tftp –i 192.168.1.111 put wpt6101.rom W4 tftp –i 192.168.1.111 put wpt_webm_1300.cob WEB1

Recovering the Firmware Using the Serial Port

If for some reason the firmware is damaged, you can recover the firmware file by using the serial port to download the *.ROM file.

Note: See also Recovering Firmware in the DeviceInstaller User Guide.

1. Start DeviceInstaller.

2. From the Tools menu, select Advanced/Recover Firmware. The Recover Firmware window displays.

3. Enter the com port on your PC and the location of the firmware file. The Device Model should indicate WiPort.

4. Click OK to download the file.

WiPort Embedded Wireless Device Server User Guide 88

Condition

Diagnostic LED

Channel 1 Status LED

11: Troubleshooting

This chapter discusses how you can diagnose and fix errors quickly without having to contact a dealer or Lantronix. The WiPort’s diagnostic LEDs indicate the unit’s status. It helps to connect a terminal to the serial port while diagnosing an error to view summary messages that may be displayed. When troubleshooting, always ensure that the physical connections (power cable, network cable, and serial cable) are secure.

Note: Some unexplained errors might be caused by duplicate IP addresses on the

network. Make sure that your unit's IP address is unique.

When troubleshooting the following problems, make sure that the WiPort is powered up. Confirm that you are using a good network connection.

Diagnostic LED States

No Errors OFF N/A

Firmware storage checksum error

RAM error ON Blink 2x/4 seconds

Network controller error ON Blink 3x/4 seconds

Serial number storage checksum error

Duplicate IP address present ON Blink 5x/4 seconds

Firmware and hardware mismatch

Radio command failure ON Blink 7x/4 seconds

Faulty network connection Blink 2x/second Blink 4x/4 seconds

No DHCP response Blink 2x/second Blink 5x/4 seconds

ON Blink 1x/4 seconds

ON Blink 4x/4 seconds

ON Blink 6x/4 seconds

WiPort Embedded Wireless Device Server User Guide 89

Setup menu active Blink 2x/second Follow Diagnostic LED for 2

seconds, off for 2 seconds

Problems and Error Messages

Problem/Message

Reason

Solution

Telnet back to Port 1. Wait for it to

Enter

are separated by dashes. In some

11: Troubleshooting

When you issue the ARP –S command in Windows, The

ARP entry addition failed: 5

message displays.

When you attempt to assign an IP address to the unit by the ARP method and Telnet to the device server through port 1, the connection fails.

When you Telnet to port 9999, the Press Enter to go into Setup Mode message displays. However, nothing happens when you press Enter, or your connection is closed.

When you Telnet to port 1 to assign an IP address to the device server, the Telnet window does not respond for a long time.

Your currently logged-in user does not have the right to use this command on this PC.

When you Telnet to port 1 on the device server, you are only assigning a temporary IP address. When you Telnet into port 9999 and do not press Enter quickly, the device server reboots, causing it to lose the IP address.

You did not press enough. You only have 5 seconds to press Enter before the connection is closed.

You may have entered the Ethernet address incorrectly with the ARP command.

quickly

Have someone from your IT department log you in with sufficient rights.

fail, then Telnet to port 9999 again. Make sure you press Enter within 5 seconds.

Telnet to port 9999 again, but press Enter as soon as you see the Press Enter to go into Setup Mode message.

Confirm that the Ethernet address that you entered with the ARP command is correct. The Ethernet address may only include numbers 0-9 and letters A-F. In Windows and usually in Unix, the segments of the Ethernet address

When you try to assign an IP with DeviceInstaller, you get the following message:

No response from device! Verify the IP, Hardware Address and Network Class. Please try again.

The IP address you are trying to assign is not on your logical subnet.

The device server may not be plugged into the network properly.

The cause is most likely one of the following:

The Hardware address you specified is incorrect.

The IP address you are trying to assign is not a valid IP for your

forms of Unix, the Ethernet address is segmented with colons.

Confirm that your PC has an IP address and that it is in the same logical subnet that you are trying to assign to the device server.

Make sure that the Link LED is lit. If the Link LED is not lit, then the device server is not properly plugged into the network.

Double-check the parameters that you specified.

Note: You cannot assign an IP

address to a device server through a router.

WiPort Embedded Wireless Device Server User Guide 90

Problem/Message

Reason

Solution

logical subnet.

device and the device server must

D X.X.X.X (X.X.X.X is the IP

checking the state of CP1, if it has

making a connection to the device

You did not choose the correct subnet mask.

11: Troubleshooting

The device server is not communicating with the serial device to which it is attached.

When you try to enter the setup mode on the device server via the serial port, you get no response.

You can ping the device server, but not Telnet to the device server on port 9999.

The most likely reason is the wrong serial settings were chosen.

The issue is most likely something covered in the previous problem, or possibly, you have Caps Lock on.

There may be an IP address conflict on your network

You are not Telneting to port

9999.

The Telnet configuration port (9999) is disabled within the device server security settings.

The serial settings for the serial

match. The default serial settings for the device server are RS-232, 9600 baud, 8 character bits, no parity, 1 stop bit, no flow control.

Double-check everything in the problem above. Confirm that Caps Lock is not on.

Turn the device server off and then issue the following commands at the DOS prompt of your computer:

ARP of the device server).

PING X.X.X.X (X.X.X.X is the IP of the device server).

If you get a response, then there is a duplicate IP address on the network. If you do not get a response, use the serial port to verify that Telnet is not disabled.

The device server appears to be set up correctly, but you are not communicating with your device attached to the device server across the network.

WiPort Embedded Wireless Device Server User Guide 91

If you are sure that the serial port setting is correct, then you may not be connecting to the correct socket of the device server.

Another possibility is that the device server is not set up correctly to make a good socket connection to the network.

You can check to see whether there is a socket connection to or from the device server by

been configured for LED1 functionality.

If the state of CP1 is blinking consistently, or is completely off, then there is a good socket connection.

If the state of CP1 is low, use the Connect Mode option C0 for

server from the network. Use Connect Mode option C1 or C5 for a connection to the network from the device server. See the full list of Connect Mode options in Connect Mode on page 52.

11: Troubleshooting

Problem/Message

Reason

Solution

network. Also, make sure that port

When connecting to the Web Manager within the device server, the No Connection With The Device Server message displays.

Your computer is not able to connect to port 30718 (77FEh) on the device server.

Make sure that port 30718 (77FEh) is not blocked with any router that you are using on the

77FEh is not disabled within the Security settings of the device server.

WiPort Embedded Wireless Device Server User Guide 92

12: Technical Support

Lantronix offers many resources to support our customers and products at

http://www.lantronix.com/support

downloads, access the FTP site and search through tutorials, FAQs, bulletins, warranty information, extended support services, and product documentation.

To contact technical support or sales, look up your local office at

http://www.lantronix.com/about/contact.html

provide the following information:

 Your name, company name, address, and phone number

 Lantronix product and model number

 Lantronix MAC number or serial number

 Firmware version and current configuration

. For instance, ask a question, find firmware

. When you report a problem, please

 Description of the problem

 Status of the unit when the problem occurred (please try to include information

on user and network activity at the time of the problem).

WiPort Embedded Wireless Device Server User Guide 93

Lantronix WiPort, WiPort NR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright and Trademark

Warranty

Contacts

Disclaimer

Revision History

1: Using This Guide

Purpose and Audience

Chapter Summary

Additional Documentation

2: Introduction

Capabilities

Applications

Protocol Support

Configuration Methods

Addresses and Port Numbers

3: Using DeviceInstaller

Accessing WiPort Using DeviceInstaller

Viewing the WiPort Device Server’s Current Configuration

4: Using DeviceInstaller

Viewing the Current Configuration

5: Configuration Using Web Manager

Accessing WiPort Web Manager Using DeviceInstaller

Network Configuration

Server Configuration

Host List Configuration

Channel 1 and Channel 2 Configuration

Email Configuration

WLAN Configuration

Configurable Pin Settings

Apply Settings

Apply Defaults

6: Configuration via Serial Mode or Telnet Port

Accessing Setup Mode

Server Configuration (Option 0)

Channel 1 (Option 1) and Channel 2 (Option 2) Configuration

Email Configuration

WLAN Settings

Expert Settings (Option 5)

Security Settings (Option 6)

Default Settings (Option 7)

Exit Configuration Mode

7: Configurable Pins

Control Protocol

Examples

8: Monitor Mode

Entering Monitor Mode via the Serial Port

Entering Monitor Mode via the Network Port

Monitor Mode Commands

9: Wireless Bridging

Configuring the WiPort in Bridging Mode

10: Updating Firmware

Obtaining Firmware

Reloading Firmware

11: Troubleshooting

Diagnostic LED States

Problems and Error Messages

12: Technical Support
