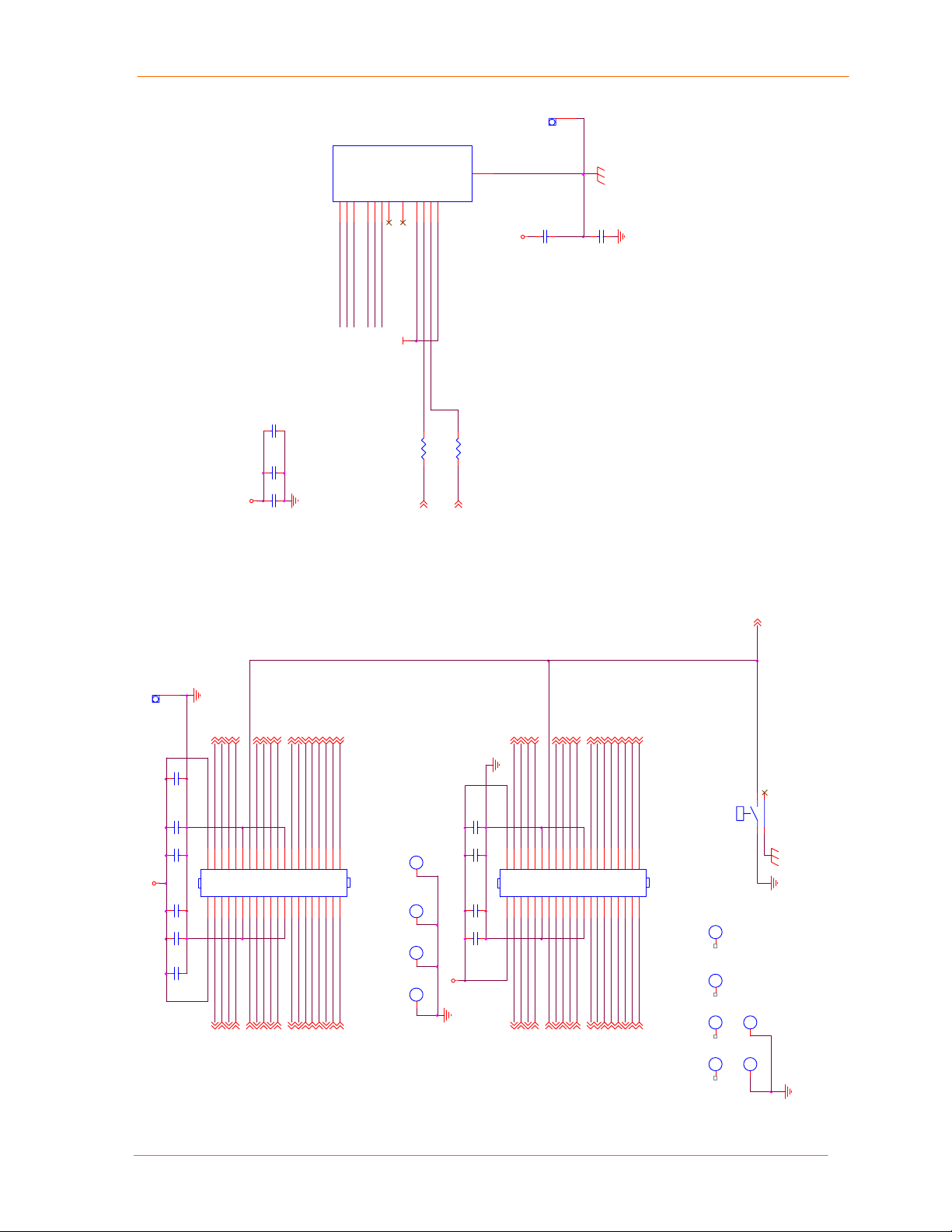

Figure 3-2. Evaluation Board Schematics............................................................................................25
List of Tables
Table 2-1. PCB Interface Signals.........................................................................................................10
Table 2-2. Mating Connectors..............................................................................................................11
Table 2-3. Channel 1 Connections.......................................................................................................12
Table 2-4. Channel 2 Connections.......................................................................................................12
Table 2-5. Channel 2 RS-422/485 4-Wire Connections.......................................................................12
Table 2-6. Channel 2 RS-485 2-Wire Connections..............................................................................12
Table 2-7. WLAN Signals.....................................................................................................................14
Table 2-8. Ethernet Signals..................................................................................................................15
Table 2-9. Power, Ground, and Reset Pins..........................................................................................15
Table 2-10. Absolute Maximum Ratings ..............................................................................................15
Table 2-11. Operating Conditions, Serial Ports, & Configurable Pins..................................................16
Table 2-12. Ethernet Input Characteristics...........................................................................................16
Table 2-13. 100Base-TX Transceiver Attributes..................................................................................16
Table 2-14. Wireless Specifications.....................................................................................................16
Table 2-15. Technical Specifications....................................................................................................18
Table 3-1. RS-232 Signals ...................................................................................................................23
Table 3-2. Channel 2 RS-485 4-Wire Connector.................................................................................23
Table 3-3. Channel 2 RS-485 2-Wire Connector.................................................................................23
Table 3-4. Jumper Configurations........................................................................................................23
Table 3-5. Configurable Pin Configurations .........................................................................................24
WiPort™ Integration Guide 6
11:: IInnttrroodduuccttiioonn

About the Integration Guide

This guide provides the information needed to integrate the WiPort device server within another product. The intended audiences are the enginee rs responsible for integrating the WiPort into their product.

Additional Documentation

The following guides are available on the product CD and the Lantronix Web site (
www.lantronix.com)
WiPort™ Development Kit Quick Start Guide
WiPort™ User Guide
Briefly explains the basics to get the WiPort up and running.
Provides information needed to configure, use, and update the WiPort firmware.
WiPort Integration Guide 7
22:: DDeessccrriippttiioonn aanndd SSppeecciiffiiccaattiioonnss
The WiPort wireless embedded device server is a complete network-enabling solution based on the IEEE 802.11b/g wireless standard, with WPA and WEP capabilities. WiPort allows Original Equipment Manufacturers (OEMs) to add wireless connectivity to their products by incorporating it onto a circuit board with minimal engineering.
The WiPort functions independently of a PC, providing an integrated solution that combines a processor, memory, 802.11b/g transceiver and dual high-speed serial ports into a single compact module. It includes a wireless connection, an operating system, an embedded Web server, and a full TCP/IP protocol stack. In addition, the WiPort sends email alerts and supports numerous other network communication protocols, including ARP, UDP, TCP, ICMP, Telnet, AutoIP, DHCP, HTTP and SNMP.

WiPort Overview

The WiPort contains Lantronix’s own DSTni controller with 256 Kbytes of internal zero wait state SRAM, 16 Kbytes of boot ROM, and integrated 10/100 PHY.
The WiPort also contains the following:
Two 3.3-volt v24 serial interfaces (5V tolerant) Up to 921600 Baud 16 or 32Mbit flash memory (with optional additional 8Mbit SRAM) 88 MHz clock 802.11b/g interface 11 configurable pins 10/100 Ethernet interface
The WiPort requires +3.3-volt power and is designed to operate within a temperature range of -40ºC to +70ºC.
WiPort Integration Guide 8

WiPort Block Diagram

The following drawing is a block diagram of the WiPort showing the relationships of the components.
Figure 2-1. WiPort Block Diagram
Description and Specifications
WiPort™ Integration Guide 9

PCB Interface

Pin Number WiPort Pin
1 3.3V Power 2 3.3V Power 3 RTS0
4 TXD0
5 RXD0
6 CP2 7 CP3 8 CTS0
9 CP10 10 CP8 11 Signal Ground 12 Signal Ground 13 Reset In
14 CP0 15 RTS1
16 TXD1
17 RXD1
18 CP9 19 CP4 20 CTS1
21 Reserved 22 Reserved 23 Signal Ground 24 Signal Ground 25 Reserved 26 Reserved 27 Ethernet Status
28 Ethernet Status 29 Ethernet TX-
30 Ethernet TX+
Description and Specifications
Table 2-1. PCB Interface Signals
Notes
Function
Supply input Supply input Request “to send” hardware flow control output (logic level), serial port 0 Transmit data output (logic level), serial port 0 Receive data input (logic level), serial port 0 Configurable pin Configurable pin. Clear “to send” hardware flow control input (logic level), serial port 0 Configurable pin Configurable pin
Resets the WiPort unit. Reset In is low active. Minimum reset pulse width is 2ms at IIL = -500 µA Configurable pin Request “to send” hardware flow control output (logic level), serial port 1 Transmit data output (logic level), serial port 1 Receive data input (logic level), serial port 1 Configurable pin Configurable pin Clear “to send” hardware flow control input (logic level), serial port 1 Reserved for future use Reserved for future use
Reserved for future use Reserved for future use Ethernet activity
LED2
Ethernet link
LED1
Output Output
WiPort™ Integration Guide 10
Description and Specifications
Pin Number WiPort Pin
Function
31 Ethernet RX Center
Tap
32 Ethernet TX Center
Tap
33 Ethernet RX­34 Ethernet RX+ 35 CP1 36 WLAN Power LED
(WiPort B only)
Notes
Input Input Configurable pin High active output, tristated in Ethernet mode. WiPortB: 4mA high active output. WiPortG: reserved.
37 CP6 38 CP5 39 WLAN Activity LED
Configurable pin. Configurable pin. High active output, tristated in Ethernet mode. WiPortB: 4mA
high active output. WiPortG: 4mA low active output.
40 CP7
Configurable pin.
Note: For all the configurable pins, see the WiPort User Guide for selectable
functions.

Mating Connector

Mating Connector Description
Recommended: Samtec FTMH-120-03-F-DV-ES (shrouded header) Alternative: Samtec FTMH-120-03-F-DV (not shrouded) Alternative: Oupiin 2411-2X20GDN/017 (not shrouded)

Serial Input/Output

The unit has two serial ports compatible with V24 serial standards at data rates up to 921Kbps. The serial I/O signals are 3.3V CMOS logic level and pins are 5V tolerant. Serial signals connect to an internal device, such as a UART. For evaluation and prototype work, it is convenient to have an external RS-232 interface that can connect to the serial port on a PC. The WiPort Evaluation Board has one RS-232 and one RS-232/422/485 transceiver (level shifters) to implement this external interface (only the WiPort 485 supports the RS-422/485 interface).
If desired, use the CPs to create a DTE or DCE-style interface using any 3 available CPs. To create these interfaces, connect the signals according to Table 2-3 and
Table 2-4.
Note: CPx, CPy, and CPz are any of the available CPs.
Table 2-2. Mating Connectors
The mating connector is a 1mm micro header, 40 pins, 2 x 20.
WiPort™ Integration Guide 11
Description and Specifications
Table 2-3. Channel 1 Connections
WiPort DCE Connector DTE Connector
Signal Description
RXD0 Data In 2 3 RXD0 3 2 TXD0 TXD0 Data Out 3 2 TXD0 2 3 RXD0 RTS0 H/W Flow Control
Output CTS0 H/W Flow Control Input 8 5 CTS0 7 4 RTS0 CPx Modem Control Input 1 8 DCD 4 20 DTR CPy Modem Control Output 4 20 DTR 1 8 DCD CPz LED
WiPort DCE Connector DTE Connector
Signal Description
RXD1 Data In 2 3 RXD0 3 2 TXD1 TXD1 Data Out 3 2 TXD0 2 3 RXD1 RTS1 H/W Flow Control
Output CTS1 H/W Flow Control Input 8 5 CTS0 7 4 RTS1 CPx Modem Control Input 1 8 DCD 4 20 DTR CPy Modem Control Output 4 20 DTR 1 8 DCD CPz LED
DB9 DB25 Signal DB9 DB25 Signal
7 4 RTS0 8 5 CTS0
Table 2-4. Channel 2 Connections
DB9 DB25 Signal DB9 DB25 Signal
7 4 RTS0 8 5 CTS1
Table 2-5. RS-422/485 4-Wire Connections
WiPort Signal
TX+ TX+ 14 7 TX- TX- 15 3 RX+ RX+ 21 2 RX- RX- 22 8 RTS TX Enable CPx RS-485 Select CPy RS-485 2-wire CPz RS-485 4-wire
WiPort Signal
TX+/RX+ TX+/RX+ 14 7 TX-/RX- TX-/RX- 15 3 RTS TX Enable CPx RS-485 Select CPy RS-485 2-wire CPz RS-485 4-wire
Description
Table 2-6. RS-485 2-Wire Connections
Description
DB25 Pinout DB9 Pinout
DB25 Pinout DB9 Pinout
WiPort™ Integration Guide 12

Sample Layouts for RS-485 Connectivity

Figure 2-2. Combined RS-232/422 Transceiver
Figure 2-3. Separate RS-232/422 Transceivers
Description and Specifications
WiPort™ Integration Guide 13
Description and Specifications
Figure 2-4. Separate RS-422 Transceivers for 2-Wire and 4-W i re Setups

WLAN Input/Output

The following table displays the WLAN input and output functions.
Pin Number Pin Function
36 WLAN Power LED (WiPortB only) 39 WLAN Activity LED
WLAN Power LED can be used to drive an external LED to monitor the status of the radio. When the WLAN Power LED is on continuously, it indicates the radio is on and in normal mode. When it is blinking, it indicates the radio is in power saving mode.
WLAN Activity LED is also used to drive an external LED to monitor the status of the radio. When the LED is blinking, it is receiving or transmitting wireless data. When it is off, it indicates there is no wireless activity.
WiPortB
WLAN Power LED output can be used to drive an external LED to monitor the status of the radio. The output is active when the receiver and or transmitter are on. WLAN Activity LED output can be used to drive an external LED to monitor the activity of the radio. The output is active when an actual packet is received or transmitted. Both outputs are active high and can drive LEDs with 4mA. The LED shall be connected between the output and ground with a series resistor of 220 ohm.
Table 2-7. WLAN Signals
WiPortG
Pin 36 is reserved. WLAN Activity LED output can be used to drive an external LED to monitor the activity of the radio. The output is active when the receiver and or transmitter are on. The output is active low and can drive an LED with 4mA. The LED shall be connected between the output and 3.3V with a series resistor of 220 ohm.
WiPort™ Integration Guide 14
Note: If you have questions or concerns, please contact Lantronix Technical
Support at (800) 422-7055 (US only) or (949) 453-7198.
For both WiPortB and WiPortG, if power management is disabled, and when the unit is associated with a network, the receiver will always be on and thus any LED output, that indicates the receiver or transmitter being on (Power LED on WiPortB and Activity LED on WiPortG), will be active continuously.

Ethernet Input/Output

The following table displays the Ethernet input and output functions.
Table 2-8. Ethernet Signals
Pin Number Pin Function
Ethernet
30 TX+ 29 TX­32 TX Center Tap 34 RX+ 33 RX­31 RX C enter Tap 28 Status LED1 27 Status LED2
Ethernet communication lines connect to external magnetics and an external RJ-45 jack. They are used for the creation of an Ethernet interface (instead of using the wireless interface). Either Ethernet or WLAN is selectable for communication (not both).
Description and Specifications
Ethernet Link LED 1 can be used to drive an external LED. The LED is on when a link exists.
Ethernet Activity LED 2 is also used to drive an external LED. The LED blinks when activity is present.

Power, Ground, and Reset

Table 2-9. Power, Ground, and Reset Pins
Power Ground Reset
Pin 1 Pin 11 Pin 13 Pin 2 Pin 12 Pin 23 Pin 24
Driving the Reset In line low resets the WiPort. Minimum reset pulse width is 2ms at IIL = -500uA

Absolute Maximum Ratings

Table 2-10. Absolute Maximum Ratings
Parameter Min Max Units
Supply Voltage 3.0 3.6 V Input Voltage -0.5 6 V Output Voltage -0.5 6 V Operating Temperature -40 70 Storage Temperature -40 85
ºC ºC
WiPort™ Integration Guide 15

Recommended Operating Conditions

The following table illustrates the optimal and recommended operating conditions for the WiPort device.
Table 2-11. Operating Conditions, Serial Ports, & Configurable Pins
Parameter Min Typical Max Units
Supply Voltage 3.135 3.3 3.45 V Voltage Ripple 2 % VIL Input Low Voltage* -0.3 0.8 V VIH Input High Voltage* 2 5.5 V II Input Leakage Current* +/- 10 nA
VOL Output Low Voltage @ IOL max* 0.4 V VOH Output High Voltage @ IOH max* 2.4 V TXD0, RTS0, TXD1, RTS1 IOL Low Level Output Current @ VOL 0.4V CP0-CP10 Low Level Output Current @VOL 0.4V TXD0, RTS0, TXD1, RTS1 IOH High Level Output Current @ VOH 2.4V CP0-CP10 IOH High Level Output Current @ VOH 2.4V
* For UART and CP pins
Description and Specifications
µA
+/- 1
2.2 3.5 4.3 mA
4.4 7.1 8.5 mA
-3.2 -6.4 -10.0 mA
-6.4 -12.8 -20.0 mA

Ethernet PHY Receiver Input Characteristics (RX+, RX-)

Table 2-12. Ethernet Input Characteristics
Parameter Specification Units Comments
Full Scale Input Voltage 3.0 differential pk-to-pk V Input Common Mode 1.6 – 2.0 V Gain dependent

100Base-TX Transceiver Characteristics (TX+, TX-)

The following table displays the 100Base-TX transceiver characteristics.
Table 2-13. 100Base-TX Transceiver Attributes
Parameter Sym Min Typical Max Units
Peak Differential Output Voltage VP 0.95 1.05 V 100M TX mid-level -50 50 mV Signal Amplitude Symmetry VSS 98 102 % Signal Rise/Fall Time TRF 3.0 5.0 ns Rise/Fall Time Symmetry TRFS 0.5 ns Duty Cycle Distortion DCD 35 50 65 % Overshot/Undershot VOS 5 % Jitter (measured differentially) 1.4 ns Ethernet LED1, LED2 current 8.8 14.1 17.0 mA

Wireless Specifications

Refer to the following table for the WiPort’s wireless specifications:
Table 2-14. Wireless Specifications
Category IEEE 802.11b IEEE 802.11b/g
WiPort™ Integration Guide 16
Description and Specifications
Frequency Range 2.412 – 2.484 GHz 2.412 – 2.484 GHz Output Power 14 +/- 1.0 dBm 14 +/- 1.0 dBm <= 12 Mbps
12 +/- 1.0 dBm > 12 Mbps Antenna Connector 1 1 Data Rates 1,2,5.5,11 Mbps (802.11b HR) 1*,2*,5.5*,11*,6,9,12,18*,24*,36*,48,54*
Mbps Radio
Security WEP 64/128,WPA WEP 64/128,WPA Maximum Receive Level 10 dBm (with PER < 8%) 10 dBm (with PER < 8%) Receiver Sensitivity 82 dBm for 11 Mbps
WLAN Power and Link LED Current
Number of Selectable Subchannels**
Modulation DSSS,DBPSK,DQPSK,CCK DSSS,DBPSK,DQPSK,CCK, OFDM, Antenna
Connector
US 1-11 CA 1-11 JP 1-14 FR 10-13 SP 10-11 OT 1-13 (OT=Others)
1 1
87 dBm for 5.5 Mbps 89 dBm for 2.0 Mbps 93 dBm for 1.0 Mbps
Max: 4 mA Max: 4 mA
US 1-11
CA 1-11
JP 1-14
FR 10-13
SP 10-11
OT 1-13 (OT=Others)
16QAM, 64QAM
72 dBm for 54 Mbps
87 dBm for 11 Mbps
89 dBm for 5.5 Mbps
90 dBm for 2.0 Mbps
92 dBm for 1.0 Mbps
WiPort™ Integration Guide 17
Description and Specifications

Technical Specifications

Table 2-15. Technical Specifications
Category WiPort B WiPort G
CPU, Memory Lantronix DSTni-EX 186 CPU, 256 KB zero
wait state SRAM 2048 KB Flash or 4096 KB Flash, 16 KB Boot
ROM, 1024 KB SRAM Firmware Upgradeable via TFTP and serial port Upgradeable via TFTP and serial port Reset Circuit Reset In is low active. Minimum reset pulse
width is 2 ms at IIL = -500 µA Serial Interface CMOS (Asynchronous) 3.3V - level signals
Speed software selectable (300 bps to 921600
bps) Serial Line Formats 7 or 8 data bits, 1-2 Stop bits, Parity: odd,
even, none Modem Control DTR, DCD DTR, DCD Flow Control XON/XOFF (software), CTS/RTS (hardware),
none Network Interface 802.11b and 10/100 Ethernet 802.11b/g and 10/100 Ethernet Protocols Supported ARP, UDP, TCP, Telnet, ICMP, SNMP,
DHCP, BOOTP, Auto IP, HTTP, SMTP, TFTP
Management Internal web server, SNMP (read only)
Serial login, Telnet login, DeviceInstaller
software Internal Web Server Serves web pages
WEB storage capacity: 1.2 MB (or 3.2 MB) Distance Up to 328 feet Indoors Up to 328 feet Indoors Average Power Consumption
(at 3.3V)
Peak Supply Current (at 3.3V) 420 mA 650 mA Security Password protection, locking features, 64/128
Weight 29 grams 29 grams Material Metal shell Metal shell Temperature Operating range: -40°C to +70°C
Warranty 2-year limited warranty 2-year limited warranty
Wireless Mode Associated
1200 mW (High performance. Data transfer at
922 kbps.)
900 mW (Regular performance. Data transfer
at 230 kbps.)
550 mW (High performance. No data
transfer.)
400 mW (Regular performance. No data
transfer.)
250 mW (Low performance. No data transfer.)
Ethernet Mode
750 mW (Regular performance. No data
transfer.)
bit WEP, WPA
Storage range: -40°C to +85°C (-40°F to
185°F)
Lantronix DSTni-EX 186 CPU, 256 KB zero wait state SRAM
2048 KB Flash or 4096 KB Flash, 16 KB Boot ROM, 1024 KB SRAM
Reset In is low active. Minimum reset pulse width is 2 ms at IIL = -500 µA
CMOS (Asynchronous) 3.3V - level signals Speed software selectable (300 bps to
921600 bps) 7 or 8 data bits, 1-2 Stop bits, Parity: odd,
even, none
XON/XOFF (software), CTS/RTS (hardware), none
ARP, UDP, TCP, Telnet, ICMP, SNMP, DHCP, BOOTP, Auto IP, HTTP, SMTP, TFTP
Internal web server, SNMP (read only) Serial login, Telnet login, DeviceInstaller software
Serves web pages WEB storage capacity: 1.2 MB (or 3.2 MB)
Wireless Mode Associated
1300 mW (High performance. Data transfer at 922 kbps.)
950 mW (Regular performance. Data transfer at 230 kbps.)
580 mW (High performance. No data transfer.)
430 mW (Regular performance. No data transfer.)
300 mW (Low performance. No data transfer.)
Ethernet Mode
750 mW (Regular performance. No data transfer.)
Password protection, locking features, 64/128 bit WEP, WPA
Operating range: -40°C to +70°C Storage range: -40°C to +85°C (-40°F to
185°F)
WiPort™ Integration Guide 18
Description and Specifications
Category WiPort B WiPort G
Included Software Windows™ 98/NT/2000/XP based Device
Installer configuration software and
Windows™ based Com Port Redirector,
DeviceInstaller, Web-Manager.
Windows™ 98/NT/2000/XP based Device Installer configuration software and Windows™ based Com Port Redirector, DeviceInstaller, Web-Manager.

Dimensions

The WiPort dimensions are shown in the following diagrams:
Figure 2-5. Side Views
Figure 2-6. Top View
WiPort™ Integration Guide 19
Figure 2-7. Bottom View
Description and Specifications
Figure 2-8. Wireless Connector Dimensions
WiPort™ Integration Guide 20

Recommended PCB Layout

The hole pattern and mounting dimensions for the WiPort device server are shown in the following drawing:
Figure 2-9. PCB Layout
Description and Specifications

Product Information Label

The product information label contains important information about your specific unit, such as its product ID (name), bar code, part number, and MAC address.
Figure 2-10. Product Label
Part Number
MAC Address Revision Manufacturing Code
WiPort™ Integration Guide 21
33:: DDeevveellooppmmeenntt KKiitt
The WiPort Development Kit includes everything needed to begin to integrate the WiPort into a given product design.

Contents of the Kit

The development kit contains the following items:
WiPort Evaluation Board WiPort Device Server 3.3V Power Supply RS-232 cable, DB9F/F, null modem CAT5e UTP RJ45M/M Ethernet cable CD with software utilities and documentation (in PDF format) Antenna

Evaluation Board Description

The WiPort Evaluation Board provides a test platform for the Lantronix WiPort device server. It supplies 3.3V power. The WiPort Evaluation Board provides access to all signals to and from the WiPort device server. For connecting to an external device, the Evaluation Board two serial ports (DTE).
An on-board Complex Programmable Logic Device (CPLD) drives status LEDs and configures external connections.
Note: Either disregard WLAN POWER and WLAN ACTIVITY LEDs in the
Ethernet Mode or add 15K resistors between test header J2 pin 36 and GND, and pin 39 and GND. With these resistors, LEDs are OFF in the Ethernet Mode

Serial Interfaces

The WiPort serial interfaces are 3.3V logic level and typically connected to a Universal Asynchronous Receiver/Transmit t er (UART). For connection to an external device, the evaluation board has RS-232 and RS-232/422/485 transceivers. Port 0 supports RS-232. Port 1 (channel 2) supports RS-232/485. Connect to a PC using a null-modem serial cable with 9-pin connectors (F/F).
The table below lists the RS-232 signals and corresponding pins on the WiPort. Note that the WiPort data and hardware flow control signals are actually buffered by the evaluation board CPLD. All signals are level-shifted by the RS-232 transceivers.
WiPort Integration Guide 22
Table 3-1. RS-232 Signals
Development Kit
WiPort PIN FUNCTION
UART 0 Con2
TXD0 (Data Out) 3 RXD0 (Data In) 2 CTS0 (HW Flow Control Input) 8 RTS0 (HW Flow Control Output) 7 DCD0 (Modem Control Input) 1 DTR0 (Modem Control Output) 4
UART 1 Con1
TXD1 (Data Out) 3 RXD1 (Data In) 2 CTS1 (HW Flow Control Input) 8 RTS1 (HW Flow Control Output) 7 DCD1 (Modem Control Input) 1 DTR1 (Modem Control Output) 4
Table 3-2. Channel 2 RS-485 4-Wire Connector
WiPort Signal
TX+ Data Out 7 TX- Data Out 3 RX+ Data In 2 RX- Data In 8
Description
DB9 Pin #
DB9 Pin Number
Table 3-3. Channel 2 RS-485 2-Wire Connector
WiPort Signal
TX+/RX+ Data Out/In 7 TX-/RX- Data Out/In 3
Description

Power Supply

The evaluation board uses an external 3.3V regulated supply (included with kit). The evaluation board contains additional filtering and protection.

General Control PLD

The following table denotes the configuration of the evaluation board. Configuring the jumper re-routes the signals on the evaluation board as required for a given product. This also drives the LEDs.

Configuration Switch Bank

Table 3-4. Jumper Configurations
Jumpers Details
JP1 in and JP2 in CP10 and CP4 connected to RS-232
transceiver; can function as DTR1 and
DCD1. JP1 in and JP2 in JP1 out and JP2 out
CP10 and CP4 not connected to RS-232
transceiver; can function as general purpose
I/O pins.
DB9 Pin Number
WiPort™ Integration Guide 23
Development Kit
Jumpers Details
JP5 in and JP6 in CP2 and CP3 connected to RS-232
transceiver; function as DTR0 and DCD0. JP5 out and JP6 out CP2 and CP3 not connected to RS-232
transceiver; can function as general purpose
I/O pins. JP3 in CP0 connected to RS232/RS485 select JP4 in CP1 connected to RS485 2-wire/4-wire
select JP7 out and JP8 out WiPort serial ports connected to RS-232
transceivers. JP7 (Mode 0) In JP8 (Mode 1) Out
WiPort serial ports not connected to RS-232
transceivers. WiPort serial ports 0 and 1 are
connected directly to each other through the
PLD. Can be used for loopback tests.
Note: Other JP7, JP8 jumper configurations are not recognized by the CPLD
at this time.
If using CPs for any combination of the above evaluation board configurations, please use the appropriate CP function selection as shown in the following table:
Table 3-5. Configurable Pin Configurations
Configurable Pin Function
CP0 RS-485 Select CP1 RS-485 2-Wire (Half Duplex) CP2 Modem Ctrl Out, Channel 1 CP3 Modem Ctrl In, Channel 1 CP4 Modem Ctrl In, Channel 2 CP5 Serial Status LED Out, Channel 1 CP6 Serial Status LED Out, Channel 2 CP7 Diagnostics LED CP8 General Purpose Input/Output (GPIO) CP9 GPIO CP10 Modem Ctrl Out, Channel 2

Evaluation Board Layout

Figure 3-1. WiPort Evaluation Board Layout
WiPort™ Integration Guide 24

Evaluation Board Schematics

Figure 3-2. Evaluation Board Schematics
Development Kit
WiPORT TEST HEADERS 2X10 - 2EA
INSTALLED WiPORT
UART0
UART1
STATUS LED's
RESET-
I2C/CAN
ETH PHY
USB
RF LED's
3.3V
UART0
UART1
STATUS LED's
RESET-
I2C/CAN
+3.3V
POWER SUPPLY
RESET SWITCH
CPLD
LED
UART0 TXCVR
UART1 TXCVR
PWR SWITCH
RS232
RS232/485
PWR CONN
DB9
DB9
TXD0 ACTIVE LED
RXD0 ACTIVE LED
TXD1 ACTIVE LED
RXD1 ACTIVE LED
3 STATUS LED's
ETH PHY
USB
RF LED's
RJ-45 with MAGNETICS and 2 LED's
PIGTAIL
ANTENNA
2 LED's
WiPort™ Integration Guide 25
Development Kit
1
TP2
RJ1
RJ2
RJ3
RJ4
RJ5
RJ6
RJ7
RJ8
RJ-45, LU 1T041C -43
J3
TX+1TX-2RX+3TCT4RX-6RCT7NC05NC18LEDRIGHT-11LEDLEFT+9LEDLEFT-10LEDRIGHT+
Ethernet RJ-45
TX+
TCT
RX+
TX-
RCT
RX-
3V3
DNP
C49
0.01uF
DNP
12
C48 4.7uF
3V3
C47
0.1uF
DNP
Place C1,C2, C53 close to J1 pin 1
Place C3,C4, C54 close to J1 pin 2
1
TP1
CP3
CP10
RXD0
RTS0
C54
0.01uF
RXD0
RTS0
12
C4 4.7uF
J1
135791113151719212325272931333537
C3
0.1uF
3V3_Wi
0.1uF
246
C2
12
C1
4.7uF
C53
0.01uF
TXD0
CP2
CP2
TXD0
CP4
RXD1
RTS1
CP3
CP10
RXD1
RSTIN#
RTS1
CP4
8
101214161820222426283032343638
CP9
CTS0
CP8
TXD1
CTS1
CP0
CTS0
CP8
CP0
CP9
CTS1
TXD1
RX-
RCT
CP1
CP6
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
WLAN ACT
ELED2
TX-TX+
TX-
RCT
RX-
ELED2ELED1
CP1
CP6
WLAN ACT
39
40
FTMH12003FDVES
TCT
RX+
WLAN POW
CP7
CP5
TX+
TCT
RX+
CP7
CP5
ELED1
WLAN POW
Wiport Connector
MH7 - MH10 are used
MH9
1
MH7
1
MH8
1
MH10
1
SHIELD
12
C9
.01uF, H V
3V3
12
SHIELD
1 2
C10 . 01uF , HV
Left LED - ACTIVE (Green)
Right LED - LINK (Yellow)
R1182
R2182
ELED2
ELED1
RSTIN#
CP3
CP10
RXD0
RTS1
RTS0
RXD1
RCT
RX-
CP6
RESERVED
CP1
WLAN ACT
ELED2
TX-
CP4
RESERVED
CP3
CP10
RXD0
RTS0TXD0
RTS1
to solder the enclosure
MHOLE
MHOLE
MHOLE
MHOLE
12
C8 4.7uF
J2
C7
0.1uF
0.1uF
C6
12
C5
4.7uF
3V3
RSTIN#
135791113151719212325272931333537
246
8
101214161820222426283032343638
CTS0
CP8
TXD1
CP2
CP0
CTS0
CP2
CP8
CP0
TXD0
TX-
RCT
RX-
RESERVED
RXD1
RESERVED
CP4
ELED2
CP1
CP6
WLAN ACT
39
40
TSM-120-01-T-DV
RESET SWITCH
MH4
1
Test Header for WiPort I/O
MH3
CP9
TXD1
TCT
RX+
RESERVED
RESERVED
CTS1
CP9
CTS1
WLAN POW
CP7
ELED1
CP5
TX+
TX+
RX+
TCT
CP7
CP5
ELED1
RESERVED
RESERVED
WLAN POW
1
MH2
1
MH1
1
34
SW1
2 1
EVO0PFC03M
MHOLE
MHOLE
MH6
MHOLE
MHOLE
1
MH5
MHOLE
MHOLE
1
WiPort™ Integration Guide 26
In RS485 mode,
RTS1 is used to
3V3
3V3
enable the RS485
output driver
12
1 2
C11 0.1uF
RS232/RS485 PORT 1
3V3
U1
0.1uF
1 2
C13
C12 4.7uF
RS232 PORT 0/1
3V3
10
594837261
12
C15
0.1uF
17
19
V-
VCC
2
V+
1
20
12
C14
0.1uF
0.1uF
12
C17
3
19
U2
12
DTR1_232
CTS1_232/RX-485
C19 0.1uF
C2+
C18 0.1uF
V+
VCC
C1+2C1-
C16
Development Kit
1 2
C23 .01uF, H V
3V3
10k
R4
9
10
FAST
SHDN#
RS485/R S232#
HDPX
11
12
1 2
1 2
CP1
CP0
EN-1SHUTDOWN-20ONLINE-14STATUS-
3V3
R3
JP2
10
594837261
CON2
DB9-MALE
11
ITA25B1
6 7 8
CTS0_232
DCD0_232
DTR0_232
RXD0_232
RTS0_232
TX D0_232
R7
DNP_10k
RS232 PORT 0
Place R7, not R4 to enable slew rate limiting.
12
C27
C28
0.1uF
0.1uF
3V3
Place R4, not R7 to disable slew rate limiting .
12
3
GND
4
3V3
MAX3160EAP
R6 10k
R5 10k
7
V-
V+
VCC
19
C1+2C1-
U3
RS232
C2+5C2-
4
1 2
C31 0.1uF
C30 0.1uF
JP4
3V3
1 2
C26 0.1uF
12
C25 4.7uF
9
8
R1IN16R2IN
T1OU T17T2OU T
T2IN12T1IN
R1OUT15R2OUT
6
13
1 2
EN-1SHUTDOWN-20ONLINE-14STATUS-
10
3V3
R8
JP5
JP6
1 2
1 2
GND
18
11
SP3223EUEA
10k
GND
18
CP2
CP3
RTS0_B
CTS0_B
11
SP3223EUEA
10k
DNP = Do Not Place
DB9-MALE
CON1
TX D1_232/TX-485
18
C21
4
0.1uF
11
1 2
C22 . 01uF, H V
DCD1_232
RTS1_232/TX+485
RXD1_232/RX+485
3V3
45 3 2 1
TS1
1 2
13
6
5
C2-
RSXXXTTL
C1-3C1+
1 2
12
7
V-
C2+5C2-
C20
0.1uF
Z(B)/T1OUT
DI/T1IN16DE485/T2IN
TXD1_B
RS232
6
0.1uF
B/R1IN14A/R2IN
Y(A)/T2OUT
R1OUT7RO/R2OUT
8
15
CTS1_B
RXD1_B
JP3
RTS1_B
TXD0_232
RXD0_232
DCD1_232
DTR1_232
9
8
R1IN16R2IN
T1OU T17T2OU T
T2IN12T1IN
R1OUT15R2OUT
13
10
1 2
JP1
1 2
1 2
CP10
CP4
TXD0_B
RXD0_B
WiPort™ Integration Guide 27
Development Kit
1
TP5
TXD0 ACTIVE
RXD1 ACTIVE
1
TP4
TXD1 ACTIVE
STATUS1/PIO24
STATUS2/PIO25
STATUS3/PIO26
3V3_Wi
1
TP3
0
R10
C37
0.1uF, 50V
3V3
1
TP6
1 2
C36
100uF, 6. 3V, X5R
3V3
LN1371-G
D4
POWER
R16182
RXD0 ACTIVE
3V3
C33
2
0
CMC1
R9
1
Place CMC1 and remove R9 and R13
to reduce emissions if required.
DC_IN
SW2
1101M2S3CQE2
1
2 3
CON3
POWER JACK
LN1371-G
0.1uF, 50 V
1 2
Place C38,C44 close TO U4:21
Place C40,C45 close TO U4:32
0
C46
C45
C44
C41
C40
C38
3V3
Place C41,C46 close TO U4:41
.01uF
.01uF
.01uF
0.1uF, 50V
1 2
1 2
1
TXD0_BR
PAD4
0.1uF, 50V
44
0.1uF, 50V
1 2
I/O161I/O17
32 41 21
I/O02I/O13I/O2
U4
RXD0_R
3
R13
4
DNP_DLW5BSN102SQ2
1.5A, 1000 ohms @ 100mHZ
1 2
C32
0.1uF, 50V
C34
22uF, 6. 3V, X5R
1 2
C35
0.1uF, 50V
1 2
D2
1SMB5917BT3, 4.7V
LN1371-G
D5
CTS0_B
CTS1_B
RXD0_B
RTS1_BR
RTS0_BR
39
43
42
40
I/O19
I/O2238I/O2337I/O2436I/O2535I/O2634I/O2733I/O28
GSR_I/O21
VCCIO
GTS1_I/O18
GTS2_I/O20 VCCINT VCCINT
GCK2_I/O36GCK3_I/O47I/O58I/O6
I/O812I/O913I/O1014I/O11
I/O7
4
9
11
SW2-
CTS0_R
SW1-
CTS1_R
D6
R17182
CP5
29
28
I/O3027I/O29
I/O1219I/O1320GCK1_I/O5TCK17TMS16TDI
I/O1422I/O15
18
TXD1_BR
RXD1_R
LN1371-G
D7
D8
R18182
CP6
CP7
25
26
I/O32
I/O31
24
TCK
LN1371-G
LN1371-G
D10
R23182
1
PAD21PAD3
LN1371-G
D11
R24182
R25182
10K
R26
LN1371-G
D9
R20182
R22182
1
PAD1
SLOW TIMER
R27 10K
12
XC9 536XL
GND
31
GND
23
GND
10
TDO
30
15
TMS
TDI
TDO
3V3
0.1uF, 50V
1 2
C42
R28
0
6
2
7
DIS
TRI G
V+
8
C VOL
U5
5
3
C43
4.7uF
THRES GND
1
RST4OUT
LMC555/SO
RSTIN#
3V3
D1
WLAN POWER
WLAN ACTIVE
LN1371-G
D3
R11182
RTS0
TXD0
LN1371-G
10K
R15
R12182
3V3
10K
R14
MODE0
MODE1
1 2
JP7
TXD1
RTS1
WLAN AC T
1 2
JP8
RXD1_B
WLAN POW
RTS0_B
TXD1_B
RTS1_B
RXD0
CTS0
RXD1
TXD0_B
RTS0_B
TXD1_B
RTS1_B
RXD0
R1949.9
R2149.9
R2949.9
R3049.9
R3149.9
R3249.9
TXD0_BR TXD0_B
RTS0_BR
TXD1_BR
RTS1_BR
RXD0_R
CTS1
13579
11
13
CTS0
RXD1
CTS1
CONN PCB 7x2
R3349.9
R3449.9
CTS0_R
RXD1_R
CTS1_R
101214
3V3
J4
246
8
CPLD ISP HEADER
WiPort™ Integration Guide 28
AA:: CCoommpplliiaannccee aanndd WWaarrrraannttyy IInnffoorrmmaattiioonn

Compliance Information

(According to ISO/IEC Guide 22 and EN 45014)
Manufacturer’s Name & Address:
Lantronix 15353 Barranca Parkway, Irvine, CA 92618 USA
Declares that the following product:
Product Name Model: WiPort Embedded Device Server
Conforms to the following standards or other normative documents:
Safety:
UL 60950-1 CAN/CSA-C22.2 No. 60950-1-03 EN 60950-1:2001, Low Voltage Directive (73/23/EEC)
EMC & Radio: For purposes of certification, the WiPort was tested as a modular device.
CFR Title 47 FCC Part 15, Subpart B and C, Class B FCC Module Approval
FCC Identifier: R68WIPORTG Industry Canada ICES-003 Issue 4 (2004), Class B Industry Canada RSS-Gen Issue 1 (2005) Industry Canada RSS-210 Issue 6 (2005) Industry Canada Module Approval IC: 3867A-WIPORTG EN 301 489-1 v1.4.1 (2002-08) , EMC Directive (1999/5/EC) EN 301 489-17 v.1.2.1 (2002-08), EMC Directive (1999/5/EC) EN 300 328 v1.4.1 (2003-04), R&TTE Directive (1999/5/EC) Australia / New Zealand AS/NZS CISPR 22 (2006), Class B Australia / New Zealand AS/NZS 4771 (2000 + A1:2003) Japan VCCI (EMC emissions) V-3/2006-04 EN55022: 1998 + A1: 2000 + A2: 2003 EN55024: 1998 + A1: 2001 + A2: 2003 EN61000-3-2: 2000 + A2: 2005 EN61000-3-3: 1995 + A1: 2001
WiPort Integration Guide 29

Warranty

Lantronix warrants each Lantronix product to be free from defects in material and workmanship for a period of TWO YEARS. During this period, if a customer is unable to resolve a product problem with Lantronix Technical Support, a Return Material Authorization (RMA) will be issued. Following receipt of a RMA number, the customer shall return the product to Lantronix, freight prepaid. Upon verification of warranty, Lantronix will -- at its option -- repair or replace the product and return it to the customer freight prepaid. If the product is not under warranty, the customer may have Lantronix repair the unit on a fee basis or return it. No services are handled at the customer's site under this warranty. This warranty is voided if the customer uses the product in an unauthorized or improper way, or in an environment for which it was not designed.
Lantronix warrants the media containing its software product to be free from defects and warrants that the software will operate substantially according to Lantronix specifications for a period of 60 DAYS after the date of shipment. The customer will ship defective media to Lantronix. Lantronix will ship the replacement media to the customer.
In no event will Lantronix be responsible to the user in contract, in tort (including negligence), strict liability or otherwise for any special, indirect, incidental or consequential damage or loss of equipment, plant or power system, cost of capital, loss of profits or revenues, cost of replacement power, additional expenses in the use of existing software, hardware, equipment or facilities, or claims against the user by its employees or customers resulting from the use of the information, recommendations, descriptions and safety notations supplied by Lantronix. Lantronix liability is limited (at its election) to:
Refund of buyer's purchase price for such affected products (without
interest).
Repair or replacement of such products, provided that the buyer follows the
above procedures.
There are no understandings, agreements, representations or warranties, expressed or implied, including warranties of merchantability or fitness for a particular purpose, other than those specifically set out above or by any existing contract between the parties. Any such contract states the entire obligation of Lantronix. The contents of this document shall not become part of or modify any prior or existing agreement, commitment or relationship.
For details on the Lantronix warranty replacement policy, go to our web site at
www.lantronix.com/support/warranty
WiPort™ Integration Guide
Loading...
