UDS10

UDS100

User Guide

Part Number 900-360

Revision A June 2004

© 2004, Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America.

Ethernet is a trademark of XEROX Corporation. UNIX is a registered trademark of The Open Group. Windows 95, Windows 98, Windows 2000, and Windows NT are trademarks of Microsoft Corp. Netscape is a trademark of Netscape Communications Corporation.

Contacts

Lantronix

15353 Barranca Parkway Irvine, CA 92618, USA Phone: 949-453-3990 Fax: 949-453-3995

Technical Support

Phone: 800-422-7044 or 949-453-7198 Fax: 949-450-7226 Online: www.lantronix.com/support

Email: support@lantronix.com

Sales Offices

For a current list of our domestic and international sales offices, go to the Lantronix Web site at http://www.lantronix.com/about/contact/index.html

Disclaimer & Revisions

Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his or her own expense, will be required to take whatever measures may be required to correct the interference.

Note: This product has been designed to comply with the limits for a Class A

digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against such interference when operating in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with this guide, may cause harmful interference to radio communications.

Changes or modifications to this device not explicitly approved by Lantronix will void the user's authority to operate this device.

The information in this guide may change without notice. The manufacturer assumes no responsibility for any errors that may appear in this guide.

Date Part No. Rev. Comments

6/04 900-360 A

Initial document combining UDS10 and UDS100 products.

Contents

Contacts 2 1: Using This Guide 8

Purpose and Audience________________________________________________ 8 Chapter Summary ___________________________________________________ 8 Additional Documentation _____________________________________________ 9

2: Introduction 10

Applications _______________________________________________________ 10 Application Examples________________________________________________ 10 Protocol Support ___________________________________________________ 12 Additional Features _________________________________________________ 12 Configuration Methods_______________________________________________ 12 Product Information Label ____________________________________________ 13

3: Getting Started 14

Installing the UDS __________________________________________________ 14 Required Information ________________________________________________ 15

Assigning the IP Address and Related Network Settings ____________________ 16

Hardware Address_______________________________________________ 15 IP Address_____________________________________________________ 15

DeviceInstaller__________________________________________________ 16 Serial Port Login ________________________________________________ 17

4: Configuring the UDS Using Web Manager 18

Accessing Web Manager _____________________________________________ 18 Using Web Manager ________________________________________________ 20

Example_______________________________________________________ 20

5: Configuring the UDS Using Telnet or the Serial Port 22

Using a Telnet Connection ________________________________________ 22 Using the Serial Port _____________________________________________ 23

Server Configuration (Network Configuration) _____________________________ 24

IP Address_____________________________________________________ 24 Set Gateway IP Address __________________________________________ 24 Netmask ______________________________________________________ 24 Change Telnet configuration password_______________________________ 25 DHCP Naming__________________________________________________ 25

Channel 1 Configuration (Serial Port Settings) ____________________________ 26

Baudrate ______________________________________________________ 26 I/F (Interface) Mode ______________________________________________ 26 Flow__________________________________________________________ 27 Port Number ___________________________________________________ 27 Connect Mode __________________________________________________ 28 Manual Connection ______________________________________________ 29

UDS10/UDS100 User Guide

Remote IP Address______________________________________________ 32 Remote Port ___________________________________________________ 32 Disconnect Mode _______________________________________________ 33 Flush Mode ____________________________________________________ 33 Pack Control ___________________________________________________ 34 Disconnect Time (Inactivity Timeout) ________________________________ 35 Send Characters ________________________________________________ 35 Telnet Terminal Type ____________________________________________ 35 Channel (Port) Password _________________________________________ 35

Expert Settings ____________________________________________________ 35

TCP Keepalive time in s __________________________________________ 36 ARP Cache timeout in s __________________________________________ 36

Security Settings ___________________________________________________ 36

Disable SNMP__________________________________________________ 36 SNMP Community Name _________________________________________ 37 Disable Telnet Setup_____________________________________________ 37 Disable TFTP Firmware Upgrade ___________________________________ 37 Disable Port 77FE (Hex) __________________________________________ 37 Disable Web Setup ______________________________________________ 37 Disable ECHO Ports _____________________________________________ 37 Enable Enhanced Password_______________________________________ 37

Factory Default Settings _____________________________________________ 38

Channel 1 Configuration Defaults ___________________________________ 38 Expert Settings Defaults __________________________________________ 38 Security Settings Defaults_________________________________________ 38

Exit Configuration Mode _____________________________________________ 38

6: Updating Firmware 39

Obtaining Firmware _________________________________________________ 39 Reloading Firmware ________________________________________________ 39

Using DeviceInstaller ____________________________________________ 39 Using TFTP____________________________________________________ 40 Using Another Unit ______________________________________________ 41 Using the Serial Port _____________________________________________ 41

7: Using Monitor Mode 43

Entering Monitor Mode Using the Serial Port _____________________________ 43 Entering Monitor Mode Using the Network _______________________________ 43 Using Monitor Mode Commands_______________________________________ 44

8: Troubleshooting and Contact Information 45

LEDs ____________________________________________________________ 45 Problems and Error Messages ________________________________________ 46 Technical Support __________________________________________________ 49

9: Connections and Pinouts 51

Serial Port _____________________________________________________ 51 Serial Connector Pinouts _________________________________________ 51 Null-Modem Cable ______________________________________________ 53

UDS10/UDS100 User Guide

Network Port ___________________________________________________ 53 Ethernet Connector Pinouts _______________________________________ 54

10: Technical Specifications 55

UDS10 Technical Specifications _______________________________________ 55 UDS100 Technical Specifications ______________________________________ 56

A: Alternative Ways to Assign an IP Address 57

DHCP ________________________________________________________ 57 AutoIP ________________________________________________________ 57 BOOTP _______________________________________________________ 58 ARP and Telnet _________________________________________________ 58

B: Binary to Hexadecimal Conversions 59

Converting Binary to Hexadecimal______________________________________ 59

Conversion Table _______________________________________________ 59

Scientific Calculator ______________________________________________ 60 Connect Mode Options ______________________________________________ 61 Disconnect Mode Options ____________________________________________ 64 Flush Mode Options_________________________________________________ 66 Interface Mode Options ______________________________________________ 72 Pack Control Options ________________________________________________ 73

Declaration of Conformity 75 Warranty 76 Index 77

Figures

Figure 2-1. Application Examples ________________________________________ 11 Figure 2-2. Sample Ethernet Address _____________________________________ 13 Figure 3-1. UDS Connected to Serial Device and Network _____________________ 14 Figure 4-1. Web Browser Login __________________________________________ 18 Figure 4-2. UDS Configuration Guidelines Page _____________________________ 19 Figure 4-3. Lantronix Web Manager ______________________________________ 20 Figure 4-4. Server Properties Configuration on the Web Browser________________ 21 Figure 5-1. Network Login Using Telnet____________________________________ 22 Figure 5-2. Setup Mode ________________________________________________ 23 Figure 5-3. Network Configuration ________________________________________ 24 Figure 5-4. Server Configuration Option ___________________________________ 26 Figure 5-5. Channel 1 Configuration ______________________________________ 26 Figure 5-6. Hostlist Option ______________________________________________ 30 Figure 5-7. Expert Settings Options_______________________________________ 35 Figure 5-8. Security Settings ____________________________________________ 36 Figure 6-1. TFTP Dialog Box ____________________________________________ 41 Figure 6-2. Sending Firmware to Another Unit_______________________________ 41 Figure 6-3. Firmware Upgrade Screen Display ______________________________ 42 Figure 7-1. Entering Monitor Mode Using the Network ________________________ 43 Figure 9-1. Serial Interface _____________________________________________ 51 Figure 9-2. DB25 Female DCE Interface RS232 _____________________________ 52 Figure 9-3. DB25 Female DCE Interface RS485/422 _________________________ 52

UDS10/UDS100 User Guide

Figure 9-4. Null-Modem Cable (Lantronix Part No. 500-163) ___________________ 53

Figure 9-5. Network Interface ___________________________________________ 53

Figure 9-6. RJ45 Ethernet Connector _____________________________________ 54

Tables

Table 5-1. Standard IP Network Netmasks _________________________________ 25

Table 5-2. Netmask Examples __________________________________________ 25

Table 5-3. Interface Mode Options _______________________________________ 27

Table 5-4. Common Interface Mode Settings _______________________________ 27

Table 5-5. Flow Control Options _________________________________________ 27

Table 5-6. Connect Mode Options________________________________________ 28

Table 5-7. Manual Connection Address Example ____________________________ 29

Table 5-8. Modem Mode Commands _____________________________________ 32

Table 5-9. Disconnect Mode Options _____________________________________ 33

Table 5-10. Flush Mode Options _________________________________________ 33

Table 5-11. Pack Control Options ________________________________________ 34

Table 7-1. Monitor Mode Commands _____________________________________ 44

Table 7-2. Command Response Codes ___________________________________ 44

Table 8-1. UDS10/UDS100 LEDs ________________________________________ 46

Table 8-2. Problems and Error Messages__________________________________ 46

11:: UUssiinngg TThhiiss GGuuiiddee

Purpose and Audience

This guide provides the information needed to configure, use, and update the UDS device server. It is for system administrators and those responsible for installing and maintaining the UDS.

Chapter Summary

The remaining chapters in this guide include:

2: Introduction Describes the main features of the UDS and the protocols it

3: Getting Started Provides information for installing your unit and getting it up

4: Configuring the UDS Using Web Manager

5: Configuring the UDS Using Telnet or the Serial Port

supports.

and running.

Provides instructions for accessing Web Manager and using it to configure settings for the UDS.

Provides instructions for accessing Setup Mode (command line interface) using a Telnet connection through the network or a terminal or terminal emulation program through the serial port. Details the settings that you must configure.

6: Updating Firmware Provides instructions for obtaining the latest firmware and

updating the UDS.

7: Using Monitor Mode Provides instructions for accessing and using the command

line interface to monitor the network and diagnose problems.

8: Troubleshooting and Contact Information

9: Connections and Pinouts Provides descriptions and illustrations of connection

10: Technical Specifications Lists technical specifications for the UDS10 and the

A: Alternative Ways to Assign an IP Address

B: Binary to Hexadecimal Conversions

Describes common problems and error messages and how to contact Lantronix Technical Support.

hardware.

UDS100.

Provides detailed information about using DHCP, AutoIP, BOOTP ARP, and Telnet to assign an IP address.

Provides instructions on converting binary values to hexadecimals and tables listing all UDS configuration options in hexadecimal notation.

UDS10/UDS100 User Guide Using This Guide

Additional Documentation

The following information is available on the product CD or the Lantronix Web

site:www.lantronix.com

DeviceInstaller User Guide Provides instructions for using the Windows-based utility to

configure the UDS and other Lantronix device servers. (CD and web site)

“Live” Tutorials on the Lantronix Web Site

Explain and demonstrate Assigning an IP address to the UDS and Setting up the UDS and the Redirector. See http://ts.lantronix.com/tutorials.html.

22:: IInnttrroodduuccttiioonn

The UDS10 and UDS100 are single-port device servers that provide a quick, simple, and cost-effective way to bring the advantages of data accessibility and remote management to devices not currently connected to a network.

The main difference between the two models is that the UDS100 provides both half and full duplex 10/100 Ethernet data transfer, whereas the UDS10 provides only half duplex 10Base-T Ethernet. The technical specifications of the two products differ slightly as well. Unless otherwise noted, we refer to both products as the UDS.

Applications

The UDS family of Device Servers allows serial devices, such as those listed below, to connect and communicate over Ethernet networks using the IP protocol family (TCP for connection-oriented stream applications and UDP for datagram applications).

 Security alarms

 Access control devices

 Fire control panels

 Time/attendance clocks and terminals

 ATM machines

 Data collection devices

 RFID readers

 Universal Power Supply (UPS) management units

 Telecommunications equipment

 Data display devices

 Virtually any asynchronous RS-232, RS422, or RS485 device.

Application Examples

Using a method called serial tunneling, the UDS encapsulates serial data into packets and transports them over Ethernet. Using two UDS units, connected by a network, virtual serial connections can extend across a facility or around the world.

The Com Port Redirector software included on the product CD simplifies the integration process by extending the functionality of COM-port-based Windows™ applications. Virtual COM ports, mapped to remote device servers on the network, can replace direct serial connections.

UDS10/UDS100 User Guide Introduction

Figure 2-1. Application Examples

Note: For step-by-step instructions on configuring the UDS for serial

tunneling or for use with the Com Port Redirector, access the UDS

Configuration Tutorials using Web Manager. (See Accessing Web Manager

on page 18.)

Introduction UDS10/UDS100 User Guide

Protocol Support

The UDS uses the Internet Protocol (IP) for network communications and the Transmission Control Protocol (TCP) to assure that no data is lost or duplicated and everything sent to the connection arrives correctly at the target.

Supported protocols include:

 ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, and SNMP for

network communications.

 TCP, UDP, and Telnet for connections to the serial port.

 TFTP for firmware updates.

 IP for addressing, routing, and data block handling over the network.

 User Datagram Protocol (UDP) for typical datagram applications in which

devices interact with other devices without a point-to-point connection.

Additional Features

Modem Emulation: In modem emulation mode, the UDS can replace dial-up

modems. The unit accepts modem AT commands on the serial port, and then establishes a network connection to the end device, leveraging network connections and bandwidth to eliminate dedicated modems and phone lines.

Built-in Web Server: The UDS includes a built-in web server for configuring the unit

and displaying operating and troubleshooting information on the attached links to online support.

Configuration Methods

After installation, the UDS requires configuration. For the unit to operate correctly on a network, it must have a unique IP address on the network. There are three basic methods for logging into the UDS and assigning IP addresses and other configurable settings:

DeviceInstaller: Configure the IP address and other network settings on the UDS

using a Graphical User Interface (GUI) on a PC attached to a network.

(See DeviceInstaller on page 16.) Web Manager: Through a web interface configures the UDS settings using the

Lantronix Web Manager. (See 4: Configuring the UDS Using Web Manager.) Serial and Telnet Ports: There are two approaches to accessing Setup Mode:

making a Telnet connection to the network port (9999) or connecting a terminal (or a PC running a terminal emulation program) to the unit’s serial port.

(See 5: Configuring the UDS Using Telnet or the Serial Port.)

UDS10/UDS100 User Guide Introduction

Product Information Label

The product information label on the underside of the unit contains the following

information about your specific unit:

 Bar code

 Serial number

 Product ID (name)

 Product description

 Hardware address (also referred to as the Ethernet or MAC address)

The first three bytes of the hardware address are fixed and read 00-20-4A, identifying

the unit as a Lantronix product. The fourth, fifth, and sixth bytes are unique numbers

assigned to each unit.

Figure 2-2. Sample Hardware Address

00-20-4A-14-01-18 or 00:20:4A:14:01:18

33:: GGeettttiinngg SSttaarrtteedd

This chapter describes how to get your UDS up and running in the shortest possible time.

Installing the UDS

Figure 3-1. UDS Connected to Serial Device and Network

To install the unit, complete the following steps in order. Refer to the numbers in the figure above.

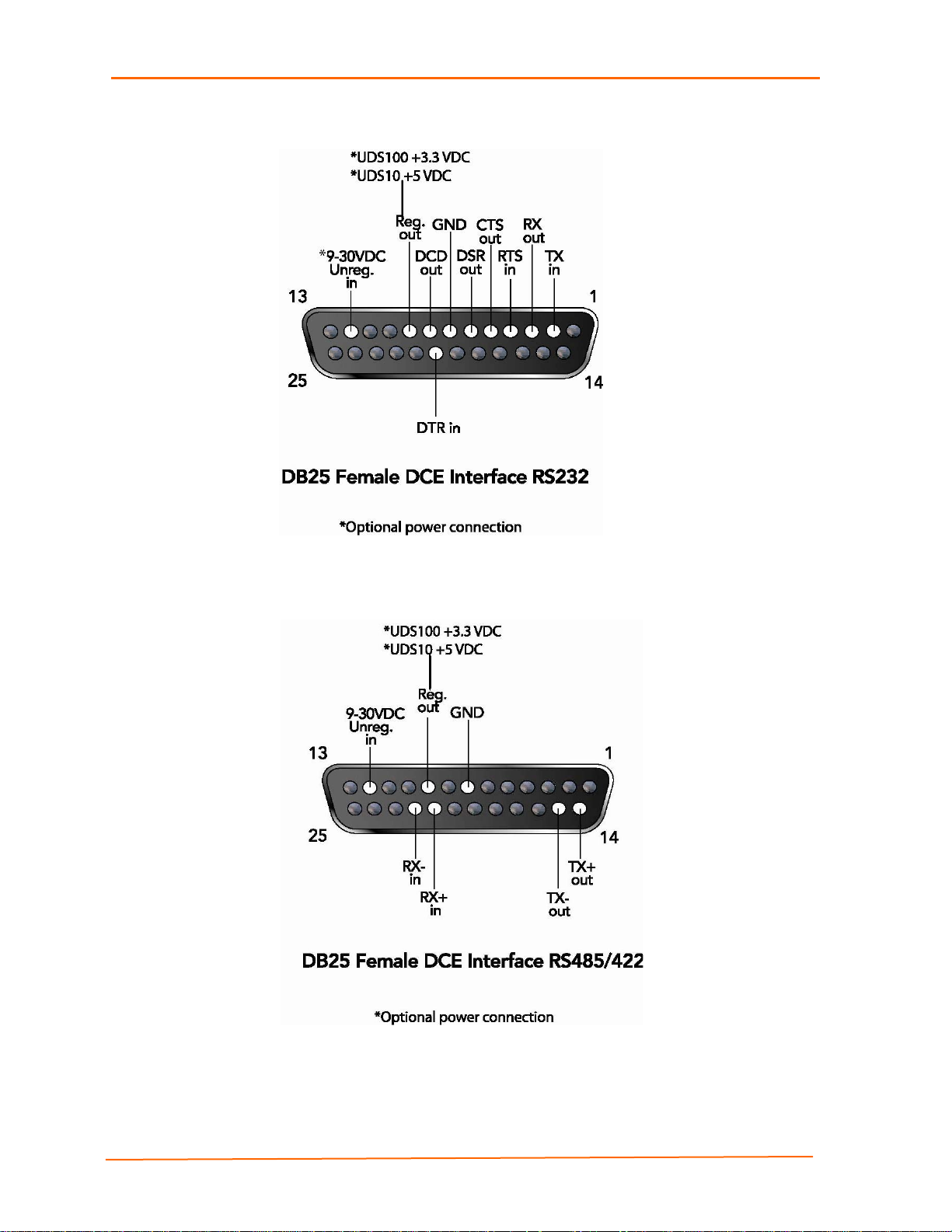

1. Connect a serial device to your unit. See 9: Connections and Pinouts for more

information about the device attachments the unit supports.

2. Connect an Ethernet cable to the RJ45 port.

3. Supply power to your unit using the power supply that was included in the

packaging.

Note: The required input voltage is 9-30 VDC or 9-24 VAC

(1 W maximum).

4. Supply power to the serial device.

Note: If you encounter a problem, please see LEDs on page 45 for

diagnostic information.

UDS10/UDS100 User Guide Getting Started

Required Information

Before configuring the UDS, have the following information available:

Hardware Address

Take note of the unit’s hardware address (also known as the Ethernet or MAC

address). It is on the product label, in the format: 00-20-4a-XX-XX-XX, where the XXs

are unique numbers assigned to the product (see Product Information Label on

page13).

Hardware Address: 00-20-4a-_____-_____-_____

IP Address

The UDS must have a unique IP address on your network. This address references

the specific unit. By default, the device is DHCP-enabled and automatically assigned

an IP address on DHCP-enabled networks. If you are assigning a static IP address,

the systems administrator generally provides the IP address, subnet mask, and

gateway.

Note: The factory default IP address is 0.0.0.0 to enable DHCP, BOOTP,

and AutoIP. When the units boots, it sends a DHCP broadcast to try and get

an IP address. If it receives no reply from a DHCP server, the UDS tries

BOOTP. If the UDS does not receive a response from BOOTP, it reverts to

an AutoIP address.

IP Address: _______ _______ _______ _______

Subnet Mask: ___

____ _______ _______ _______

Gateway: _______ _______ _______ _______

You have several options for assigning an IP to your unit. This chapter provides

information about using the DeviceInstaller (graphical user interface) and serial port

Note: For information about other methods of assigning the IP address,

such as DHCP, AutoIP, ARP, and Telnet, see A: Alternative Ways to Assign

an IP Address.

Getting Started UDS10/UDS100 User Guide

Assigning the IP Address and Related Network Settings

This section describes two ways to assign the IP address and related network settings quickly.

 DeviceInstaller

 Serial Port Login

DeviceInstaller

Note: The DeviceInstaller User Guide and the DeviceInstaller online help

provide more detailed information on using DeviceInstaller.

Installing DeviceInstaller

To use the DeviceInstaller utility, you first install it from the product CD.

1. Insert the product CD into your CD-ROM drive. The Lantronix UDS10/UDS100

DeviceInstaller window displays.

2. If the CD does not launch automatically:

a) Click the Start button on the Task Bar and select Run.

b) Enter your CD drive letter, colon, backslash, deviceinstaller.exe (e.g.,

E:\deviceinstaller.exe).

3. Click the DeviceInstaller button.

4. Respond to the installation wizard prompts. (When prompted to select an

installation type, select Typical.)

Assigning the IP Address and Network Class

1. Click the Start button on the Task Bar and select Programs Æ Lantronix Æ

DeviceInstaller Æ DeviceInstaller. The DeviceInstaller window displays.

2. Click the Assign IP icon. The Assign IP Address window displays.

3. Enter the hardware (Ethernet) address of the device.

4. Select Assign a specific IP address to assign a static IP address to the device

or select Obtain an IP address automatically to enable BOOTP, DHCP, or

Auto IP on the device.

5. Click Next.

6. Enter an IP address, subnet mask, and gateway for the device. Enter this

information in XXX.XXX.XXX.XXX format.

7. Click Next.

8. Click the Assign button to finalize the IP assignment.

UDS10/UDS100 User Guide Getting Started

Adding the Unit to the Manage List

Now add the unit to the list of similar Lantronix devices on the network so that you

can manage and configure it. To perform this step, click the Search icon.

DeviceInstaller locates the unit and adds it to the list. Now you can manage

(configure) the unit so that it works with the serial device on the network.

Methods of Configuring the UDS

Now that the UDS has an IP address and other initial settings, you can configure it

further by several methods.

Note: To assign Expert settings and Security settings, you must use the

Setup Mode window in a Telnet session.

 To configure the unit using a Web browser, click the Web icon. The Lantronix

Web Manager window displays in your browser. Continue with 4: Configuring

the UDS Using Web Manager.

 To configure the unit using a Telnet session or the serial port, click the

Telnet icon. The Setup Mode window displays. Continue with 5: Configuring

the UDS Using Telnet or the Serial Port.

Serial Port Login

To assign the IP address and other network settings using a serial connection, follow

these steps:

1. Connect a console terminal or a PC running a terminal emulation program to the unit's serial port. The default serial port settings are 9600 baud, 8 bits, no parity, 1 stop bit, no flow control.

2. To enter Setup Mode, cycle the unit's power (power off and back on). After

power-up, the self-test begins and the red Diagnostic LED starts blinking. You have one second to enter three lowercase x characters.

Note: The easiest way to enter Setup Mode is to hold down the x key at

the terminal (or emulation) while powering up the unit.

3. Select 0 (Server Configuration) and follow the prompts until you get to IP

address.

4. Enter the new IP address, subnet mask, and gateway (if applicable).

5. Do one of the following:

 Continue with 5: Configuring the UDS Using Telnet or the Serial Port.  Select 9 to save and exit Setup Mode. The unit performs a power reset.

44:: CCoonnffiigguurriinngg tthhee UUDDSS UUssiinngg WWeebb MMaannaaggeerr

You must configure the UDS so that it can communicate on a network with your serial device. For example, you must set the way the unit responds to serial and network traffic, handles serial packets, and starts and closes connections.

This chapter gives an overview of the procedure for using Web Manager to configure a UDS. This is the easiest and preferred method.

The unit’s configuration is stored in nonvolatile memory (NVRam) and is retained without power. You can change the configuration at any time. The unit performs a reset after the configuration has been changed and stored.

Accessing Web Manager

If your unit already has an IP address, you can log into it using a standard Web browser with Java enabled.

1. Type the unit's IP address into the Web browser's URL (Address/Location) field.

Figure 4-1. Web Browser Login

Note: You can also access Web Manager by clicking the Web icon on the

DeviceInstaller “Manage List” window (see Methods of Configuring the UDS on page 17.)

2. When the UDS Configuration Guidelines Page displays, select one of the four links:

UDS10/UDS100 User Guide Configuring the UDS Using Web Manager

Figure 4-2. UDS Configuration Guidelines Page

 UDS settings opens a configuration window to configure the

UDS10/UDS100, as shown in Figure 4-3.

 Serial cabling lets you view pinouts for the UDS serial port.  View UDS Configuration Tutorials provides step-by-step instructions for

configuring serial tunneling and the Com Port Redirector.

 Technical Support lets you download the latest firmware for your UDS and

view documentation.

Configuring the UDS Using Web Manager UDS10/UDS100 User Guide

Using Web Manager

1. To configure the unit, select UDS Settings on the UDS Configuration Guidelines

Page. The Web Manager page displays.

Figure 4-3. Lantronix Web Manager

2. Use the menu (pushbuttons) to navigate to sub pages where you can configure server settings.

Note: For detailed explanations of the settings, see 5: Configuring

the UDS Using Telnet or the Serial Port.

3. When you are finished, click the Update Settings button to save your settings.

Example

For example, to enter server properties:

1. Click the Server Properties button. The Server Properties section of the Web

page displays.

2. Confirm or enter values for

 IP Address  Subnet Mask  Gateway Address

UDS10/UDS100 User Guide Configuring the UDS Using Web Manager

Figure 4-4. Server Properties Configuration on the Web Browser

3. In the Telnet Password field, enter a password to prevent unauthorized access

to the Setup Mode using a Telnet connection to port 9999. The password is limited to 4 characters. (An enhanced password setting of 16 characters is available under Security Settings in Setup Mode.)

Note: No password is required to access the Setup Mode window using

a serial connection.

4. Click the Update Settings button.

55:: CCoonnffiigguurriinngg tthhee UUDDSS UUssiinngg TTeellnneett oorr tthhee

SSeerriiaall P

Poorrtt

You must configure the UDS so that it can communicate on a network with your serial device. For example, you must set the way the unit will respond to serial and network traffic, how it will handle serial packets, and when to start or close a connection.

As an alternative to using Web Manager, configure the UDS using a series of prompts referred to as Setup Mode, accessed using a Telnet or a serial port connection. Once you access the screen, the configuration procedure is identical.

This chapter provides instructions on using Setup Mode and detailed explanations of the configuration settings.

Using a Telnet Connection

To configure the unit over the network, establish a Telnet connection to port 9999.

Note: You can also establish a Telnet connection by clicking the Telnet icon

on the DeviceInstaller “Manage List” window (see Methods of Configuring the

UDS on page 17.)

1. On the Windows Start menu, click Run and type the following command, where x.x.x.x is the IP address and 9999 is the unit’s fixed network configuration port

number.

Figure 5-1. Network Login Using Telnet

telnet x.x.x.x 9999

Note: Be sure to include a space between the IP address and 9999.

2. Click OK. To remain in Setup Mode, you must press Enter within 5 seconds.

The current configuration settings display, followed by the Change Setup menu.

UDS10/UDS100 User Guide Configuring the UDS Using Telnet or the Serial Port

Figure 5-2. Setup Mode

3. Select an option on the Change Setup menu by entering the number of the

option in the Your choice ? prompt and pressing Enter.

4. To enter a value for a parameter, type the value and press Enter. To confirm a

current value, just press Enter.

5. When you are finished, save the new configurations (option 9). The unit reboots.

Using the Serial Port

For local configuration, connect a terminal or a PC running a terminal emulation program to the unit’s serial port (channel 1). Configure the terminal (or emulation) for 9600 baud, 8-bit, no parity, one stop bit, and no flow control.

1. Cycle the unit’s power (power off and back on). After power-up, the self-test

begins and the diagnostic and status LEDs start blinking.

Configuring the UDS Using Telnet or the Serial Port UDS10/UDS100 User Guide

2. Type three lowercase x characters (xxx) within one second after powering up

to start the configuration mode.

Note: The easiest way to enter Setup Mode is to hold down the x key on

your keyboard while powering up the unit.

The configuration settings display, followed by the Change Setup menu.

3. Select an option on the menu by entering the number of the option in the Your choice ? prompt and pressing Enter.

4. To enter a value for a parameter, type the value and press Enter. To confirm a default value, just press Enter.

5. When you are finished, save the new configuration (option 9). The unit reboots.

Server Configuration (Network Configuration)

Type 0 in the Your choice ? prompt and press Enter. Current values display in

parentheses. The following sections describe the configurable settings within the Server configuration menu.

Figure 5-3. Network Configuration

IP Address

The IP address must be set to a unique value in your network. If the IP address has

not been assigned by DHCP, enter it manually. Enter each octet, pressing Enter after each. See A: Alternative Ways to Assign an IP Address for more information about IP addressing.

Set Gateway IP Address

The gateway address, or router, allows communication to other LAN segments. The gateway address should be the IP address of the router connected to the same LAN segment as the unit. The gateway address must be within the local network.

Netmask

A netmask defines the number of bits taken from the IP address that are assigned for the host section. The host section is the part of the IP address that is specific to the UDS.

UDS10/UDS100 User Guide Configuring the UDS Using Telnet or the Serial Port

Note: Class A: 24 bits; Class B: 16 bits; Class C: 8 bits.

The unit prompts for the number of host bits to enter, then calculates the netmask, which displays in standard decimal-dot notation when the saved parameters display (for example, 255.255.255.0).

Table 5-1. Standard IP Network Netmasks

Network Class Host Bits Netmask

A 24 255.0.0.0 B 16 255.255.0.0 C 8 255.255.255.0

Table 5-2. Netmask Examples

Netmask Host Bits

255.255.255.252 2

255.255.255.248 3

255.255.255.240 4

255.255.255.224 5

255.255.255.192 6

255.255.255.128 7

255.255.255.0 8

255.255.254.0 9

255.255.252.0 10

255.255.248.0 11

... ...

255.128.0.0 23

255.0.0.0 24

Change Telnet configuration password

Setting the Telnet configuration password prevents unauthorized access to Setup Mode using a Telnet connection to port 9999 or using Web pages. The password is limited to 4 characters. An enhanced password setting of 16 characters is available under Security Settings.

Note: No password is required to access the Setup Mode using a serial

connection.

DHCP Naming

A DHCP name is a unique identifier used for managing multiple DHCP hosts on a network. Your unit ships with a default DHCP name of Cxxxxxx, where xxxxxx is the last six digits of the Mac address.

You can change the DHCP name (up to eight characters) when configuring the server in Setup Mode. Change the DHCP name to LTXdd, where 0.0.0.dd is the IP address assigned (dd should be a number between 1 and 99). For example, if the IP address is set to 0.0.0.5, the resulting DHCP name is LTX05.

Configuring the UDS Using Telnet or the Serial Port UDS10/UDS100 User Guide

If you give the unit an IP of 0.0.0.0, you then have the option to assign an 8-character DHCP name.

Figure 5-4. Server Configuration Option

Change DHCP device name (LTRX) ? (N) Y Enter new DHCP device name : LTRXYES

Channel 1 Configuration (Serial Port Settings)

Note: Some fields require entries in hexadecimal notation. A simple way to

convert a binary number to a hexadecimal is to use a scientific calculator, such as the one available in Windows. For more information, see B: Binary to

Hexadecimal Conversions.

Select 1 from the Change Setup menu to define how the serial port responds to

network and serial communications. Current values display in parentheses. The following sections describe the configurable settings within the Server configuration menu.

Figure 5-5. Channel 1 Configuration

Baudrate

The unit and attached serial device, such as a modem, must agree on a speed or baud rate to use for the serial connection. Valid baud rates are 300, 600, 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600, and 115200 bits per second.

I/F (Interface) Mode

The Interface (I/F) Mode is a bit-coded byte that you enter in hexadecimal notation.

Note: To look up hex values, see B: Binary to Hexadecimal.

UDS10/UDS100 User Guide Configuring the UDS Using Telnet or the Serial Port

The following table displays available I/F Mode options:

Table 5-3. Interface Mode Options

I/F Mode Option Bit 7 6 5 4 3 2 1 0

RS-232C 0 0 RS-422/485 0 1 RS-485 2-wire 1 1 7 Bit 1 0 8 Bit 1 1 No Parity 0 0 Even Parity 1 1 Odd Parity 0 1 1 Stop bit 0 1 2 Stop bit

The following table demonstrates how to build some common Interface Mode settings:

Table 5-4. Common Interface Mode Settings

Common I/F Mode Setting Binary Hex

RS-232C, 8-bit, No Parity, 1 stop bit 0100 1100 4C RS-232C, 7-bit, Even Parity, 1 stop bit 0111 1000 78 RS-485 2-Wire, 8-bit, No Parity, 1 stop bit 0100 1111 4F RS-422, 8-bit, Odd Parity, 1 stop bit 0101 1101 5D

Flow

Flow control sets the local handshake method for stopping serial input/output. Use the following table to select flow control options:

Table 5-5. Flow Control Options

Flow Control Option Hex

No flow control 00 XON/XOFF flow control 01 Hardware handshake with RTS/CTS lines 02 XON/XOFF pass characters to host 05

Port Number

Every TCP connection and every UDP datagram has a destination IP address and a port number. A port number is similar to an extension on a PBX system. For example, a Telnet application commonly uses port number 23. Port number 9999 is reserved for access to the unit's Setup Mode.

The Port Number setting represents the source port number in TCP connections. It is the number that identifies the channel for remote initiating connections. For example, to send data to channel 1, send TCP/UDP packets to this assigned port number.

The default setting for port 1 is 10001. The range is 1-65535, except for the following reserved port numbers:

Configuring the UDS Using Telnet or the Serial Port UDS10/UDS100 User Guide

Table 4-5. Reserved Port Numbers

Port Numbers Reserved for

1 – 1024 Reserved (well known ports)

9999 Telnet setup

30718 Reserved (77FEh)

Warning: We recommend that you not use the reserved port numbers

for this setting as incorrect operation may result.

Use port 0 for the outgoing local port to change with each connection. The port range is 50,000 to 59,999. Each subsequent connection increments the number by 1. (When the port number reaches 59999, it wraps around to 50000.)

Only use the automatic port increment feature to initiate a connection using TCP. Set the port to a non-zero value when the unit is in a passive mode or when you are using UDP instead of TCP.

Connect Mode

Connect Mode defines how the unit makes a connection, and how it reacts to incoming connections over the network. Enter Connect Mode options in hexadecimal notation.

Note: To look up hex values, see B: Binary to Hexadecimal.

Table 5-6. Connect Mode Options

Connect Mode Option Bit 7 6 5 4 3 2 1 0

Incoming Connection

Never accept incoming 0 0 0 Accept incoming with DTR 0 1 0 Accept unconditional 1 1 0

Response

Nothing (quiet) 0 Character response (C=conn, D=disconn, N=unreachable) 1

Startup

No active startup 0 0 0 0 With any character 0 0 0 1 With active DTR 0 0 1 0 With a specific start character 0 0 1 1 Manual connection 0 1 0 0 Autostart 0 1 0 1 Hostlist 0010

Datagram Type

Directed UDP 1 1 0 0

Modem Mode

Full Verbose 1 0 1 1 0 Without Echo 0 0 1 1 0 Numeric modem result codes 1 0 1 1 1

UDS10/UDS100 User Guide Configuring the UDS Using Telnet or the Serial Port

Manual Connection

The UDS attempts to connect when directed by a command string received from the

serial port. The first character of the command string must be a C (ASCII 0x43), and

the last character must be either a carriage return (ASCII 0x0D) or a line feed (0x0A). No spaces may be in the command string. Between the first and last command string characters must be a full or partial destination IP address and can include a destination port number.

The IP address must be in standard dot-decimal notation and may be a partial address, representing the least significant 1, 2, or 3 bytes of the remote IP address. A period is required between each pair of IP address numbers.

If present, the port number must follow the IP address, must be a decimal number in the range 1-65535, and must be preceded by a forward slash (ASCII 0x2F). The slash separates the IP address and the port number. If you omit the port number from a command string, the internally stored remote port number becomes the destination port number when the connection attempt is made.

If the command string includes a partial IP address, the UDS interprets it to be the least significant bytes of the IP address and uses the internally stored remote IP address to provide the most significant bytes of the IP address. If the IP address entered is 0.0.0.0/0, the device server enters Monitor Mode.

For example, if the remote IP address already configured in the unit is 129.1.2.3, then an example command string would be C3/7. (This would connect to 129.1.2.3 and port 7.) You may also use a different ending for the connection string. For example, C50.1/23 would connect you to 129.1.50.1 and port 23.

Table 5-7. Manual Connection Address Example

Command

Result if remote IP is 129.1.2.3 and remote port is 1234

String

C121.2.4.5/1 Complete override; connection is started with host 121.2.4.5, port 1 C5 Connect to 129.1.2.5, port 1234 C28.10/12 Connect to 129.1.28.10, port 12

Autostart (Automatic Connection): If you enable autostart, the unit automatically

connects to the remote IP address and remote port specified.

Datagram Type: When selecting this option, you will be prompted for the datagram type. Enter 01 for directed or broadcast UDP.

Hostlist: If you enable this option, the Lantronix unit scrolls through the hostlist until it

connects to a device listed in the hostlist table. Once it connects, the unit stops trying to connect to any others. If this connection fails, the unit continues to scroll through the table until it connects to another IP in the hostlist.

Configuring the UDS Using Telnet or the Serial Port UDS10/UDS100 User Guide

Figure 5-6. Hostlist Option

To use the hostlist option, follow these steps:

1. To enable the hostlist, enter a Connect Mode of 0x20 (2X). The menu shows you

a list of current entries already defined in the product.

2. To delete, modify, or add an entry, select Yes. If you enter an IP address of

0.0.0.0, that entry and all others after it are deleted.

3. After completing the hostlist, repeat the previous step if necessary to edit the hostlist again.

4. For Retrycounter, enter the number of times the Lantronix unit should try to

make a good network connection to a hostlist entry that it has successfully ARPed.

5. For Retrytimeout, enter the number of seconds the unit should wait before

failing an attempted connection.

Modem (Emulation) Mode: In Modem Mode, the unit presents a modem interface

to the attached serial device. It accepts AT-style modem commands, and handles the modem signals correctly.

Normally there is a modem connected to a local PC and a modem connected to a remote machine. A user must dial from the local PC to the remote machine,

UDS10/UDS100 User Guide Configuring the UDS Using Telnet or the Serial Port

accumulating phone charges for each connection. Modem Mode allows you to replace modems with UDS units, and to use an Ethernet connection instead of a phone call. By not having to change communications applications, you avoid potentially expensive phone calls.

To select Modem Mode, set the Connect Mode to C6 (no echo), D6 (echo with full verbose), or D7 (echo with 1-character response).

Note: If the unit is in Modem Mode and the serial port is idle, the unit still

accepts network TCP connections to the serial port if Connect Mode is set to C6 (no echo), D6 (echo with full verbose), or D7 (echo with 1-character response).

 Echo: Refers to the echo of all of the characters entered in command mode;

it does not mean to echo data that is transferred. Quiet Mode (no echo) refers to the modem not sending an answer to the commands received (or displaying what was typed).

 Full Verbose: The unit echoes modem commands and responds to a

command with a message string.

 1-Character Response: The unit echoes modem commands and responds

to a command with a single character response.

To disconnect a connection using Modem Mode commands:

1. Ensure the following:

 There must be a 1-second guardtime (no data traffic) before sending +++.

 There must not be a break longer than 1 second between +s.

 There must be another 1-second guardtime after the last + is sent.

2. When the unit acknowledges with an OK to indicate that it is in command mode,

enter ATH and press Enter. The command is echoed if echo is enabled. ATH is acknowledged by another OK.

Configuring the UDS Using Telnet or the Serial Port UDS10/UDS100 User Guide

Table 5-8. Modem Mode Commands

Modem Mode Command

ATDTx.x.x.x,pppp or ATDTx.x.x.x/pppp

ATDTx.x.x.x

ATD0.0.0.0

ATD

ATDx.x.x.x

ATH ATDTx.x.x.x,pppp

or ATDTx.x.x.x/pppp

ATS0=n

ATEn

ATVn

Function

Makes a connection to an IP address (x.x.x.x) and a remote port number (pppp).

Makes a connection to an IP address (x.x.x.x) and the remote port number defined within the unit. Forces the unit into Monitor Mode if a remote IP address and port number are defined within the unit. Forces the unit into Monitor Mode if a remote IP address and port number

are not defined within the unit.

Makes a connection to an IP address (x.x.x.x) and the remote port number defined within the unit.

Hangs up the connection (Entered as +++ATH ).

Makes a connection to an IP address (x.x.x.x) and a remote port number (pppp).

Enables or disables connections from the network going to the serial port:

n=0 disables the ability to make a connection from the network to the serial port.

n=1-9 enables the ability to make a connection from the network to the serial port.

n>1-9 is invalid.

Enables or disables character echo and responses:

n=0 disables character echo and responses.

n=1 enables character echo and responses.

Enables 1-character response or full verbose:

n=0 enables 1-character response.

n=1 enables full verbose.

Note: The unit only recognizes these AT commands as single commands

like ATE0 or ATV. It does not recognize compound commands such as ATE0V1. All other AT commands with Modem Mode set to full verbose acknowledge with an OK, but the unit takes no action.

Remote IP Address

This is the destination IP address used with an outgoing connection.

Remote Port

The remote TCP port number must be set for the unit to make outgoing connections. This parameter defines the port number on the target host to which a connection is attempted.

Note: To connect an ASCII terminal to a host using the unit for login

purposes, use the remote port number 23 (Internet standard port number for Telnet services).

UDS10/UDS100 User Guide Configuring the UDS Using Telnet or the Serial Port

Disconnect Mode

This option determines the conditions under which the unit causes a network connection to terminate. In DisConnMode, DTR drop either drops the connection or is ignored.

Note: To look up hex values, see B: Binary to Hexadecimal.

Table 5-9. Disconnect Mode Options

Disconnect Mode Option Bit 7 6 5 4 3 2 1 0

Disconnect with DTR drop 1 Ignore DTRa 0

Telnet mode and terminal type setup

Channel (port) password2

Hard disconnect3 Disable hard disconnect 1

State LED off with connection4

Disconnect with EOT (^D)5

1. The UDS sends the "Terminal Type" upon an outgoing connection.

2. A password is required for a connection to the serial port from the network.

3. The TCP connection closes even if the remote site does not acknowledge the

disconnection.

4. When there is a network conne ction to or from the serial port, the state LED

turns off instead of blinking.

5. When Ctrl D or Hex 04 are detected, the con nection is dropped. Both Telnet

mode and Disconnect with EOT must be enabled for Di sconnect with EOT t o function properly. Ctrl D is only be detecte d going from the serial port to th e network.

Flush Mode

Flush Mode (buffer flushing) controls line handling and network buffers with connection startup and disconnect. You can select between two different packing algorithms.

Note: To look up hex values, see B: Binary to Hexadecimal.

Available Flush Mode options are:

Table 5-10. Flush Mode Options

Function Bit 7 6 5 4 3 2 1 0

Input Buffer (Serial to Network)

Clear with active connection (from serial) 1 Clear with passive connection (from network) 1 Clear with disconnect 1

Output Buffer (Network to Serial)

Clear with active connection (from serial) 1 Clear with passive connection (from network) 1 Clear with disconnect 1

Alternate Packing Algorithm (Pack Control)

Enable 1

Configuring the UDS Using Telnet or the Serial Port UDS10/UDS100 User Guide

Pack Control

Two firmware-selectable packing algorithms define how and when the unit sends packets to the network. The standard algorithm is optimized for applications in which the unit is used in a local environment, allowing for very small delays for single characters while keeping the packet count low. The alternate packing algorithm minimizes the packet count on the network and is especially useful in applications in a routed Wide Area Network (WAN). Adjusting settings in this mode can economize the network data stream.

Pack control settings are enabled in Flush Mode. Set Pack Control to 00 if specific

functions are not needed.

Note: To look up hex values, see B: Binary to Hexadecimal.

Table 5-11. Pack Control Options

Option Bit 7 6 5 4 3 2 1 0

Idle Time

Force transmit: 12ms 0 0 Force transmit: 52ms 0 1 Force transmit: 250ms 1 0 Force transmit: 5sec 1 1

Trailing Characters

None 0 0 One 0 1 Two 1 0

Send Characters

2-Byte Send Character Sequence 1 Send Immediately After Send chars 1

Idle Time: Idle time to "Force transmit" defines how long the unit waits before

sending accumulated characters. This wait period is between characters. If there is an idle period between characters equal to the force transmit set, the UDS packages the serial data currently in the buffer and sends it to the network.

Trailing Characters: In some applications, CRC, Checksum, or other trailing

characters follow the end-of-sequence character. This option helps to adapt frame transmission to the frame boundary.

Send Characters:

 If 2-Byte Send Character Sequence is enabled, the unit interprets the

sendchars as a 2-byte sequence. If this option is not enabled, the unit interprets them independently.

 If Send Immediately After Send Characters is not set, any characters already

in the serial buffer are included in the transmission after the unit finds a "transmit" condition. With this option, the unit sends immediately after recognizing the transmit condition (sendchar or timeout).

Note: A transmission might occur if status information needs to be

exchanged or an acknowledgment needs to be sent.

UDS10/UDS100 User Guide Configuring the UDS Using Telnet or the Serial Port

Disconnect Time (Inactivity Timeout)

Use Disconnect Time to set an inactivity timeout. The unit drops the connection if there is no activity on the serial line before the set time expires. Enter time in the following format: mm:ss, where m is the number of minutes and s is the number of

seconds. To disable the inactivity timeout, enter 00:00. Range is 0 (disabled) to 5999

seconds (99 minutes, 59 seconds). The default is 0.

Send Characters

Enter up to two characters in hexadecimal representation for the SendChar settings. If the unit receives a character on the serial line that matches one of these characters, it sends the character immediately, along with any awaiting characters, to the TCP connection. This action minimizes the response time for specific protocol characters on the serial line (for example, ETX, EOT). Setting the first SendChar to

00 disables the recognition of the characters. Alternatively, the unit can interpret two characters as a sequence (see Pack Control on page 34).

Telnet Terminal Type

This parameter displays only if the terminal type option is enabled in Disconnect Mode. If this option is enabled, use the terminal name for the Telnet terminal type. Enter only one name.

If the terminal type option is enabled, the unit also reacts to the EOR (end of record) and binary options that can be used for applications like terminal emulation to IBM hosts.

Channel (Port) Password

This parameter displays only if the channel (port) password option is enabled in Disconnect Mode. If the option is enabled, set a password on the serial port.

Expert Settings

Note: Change these settings using Telnet or serial connections only, not

Web Manager.

Caution: Only an expert should change these parameters. These

changes have serious consequences.

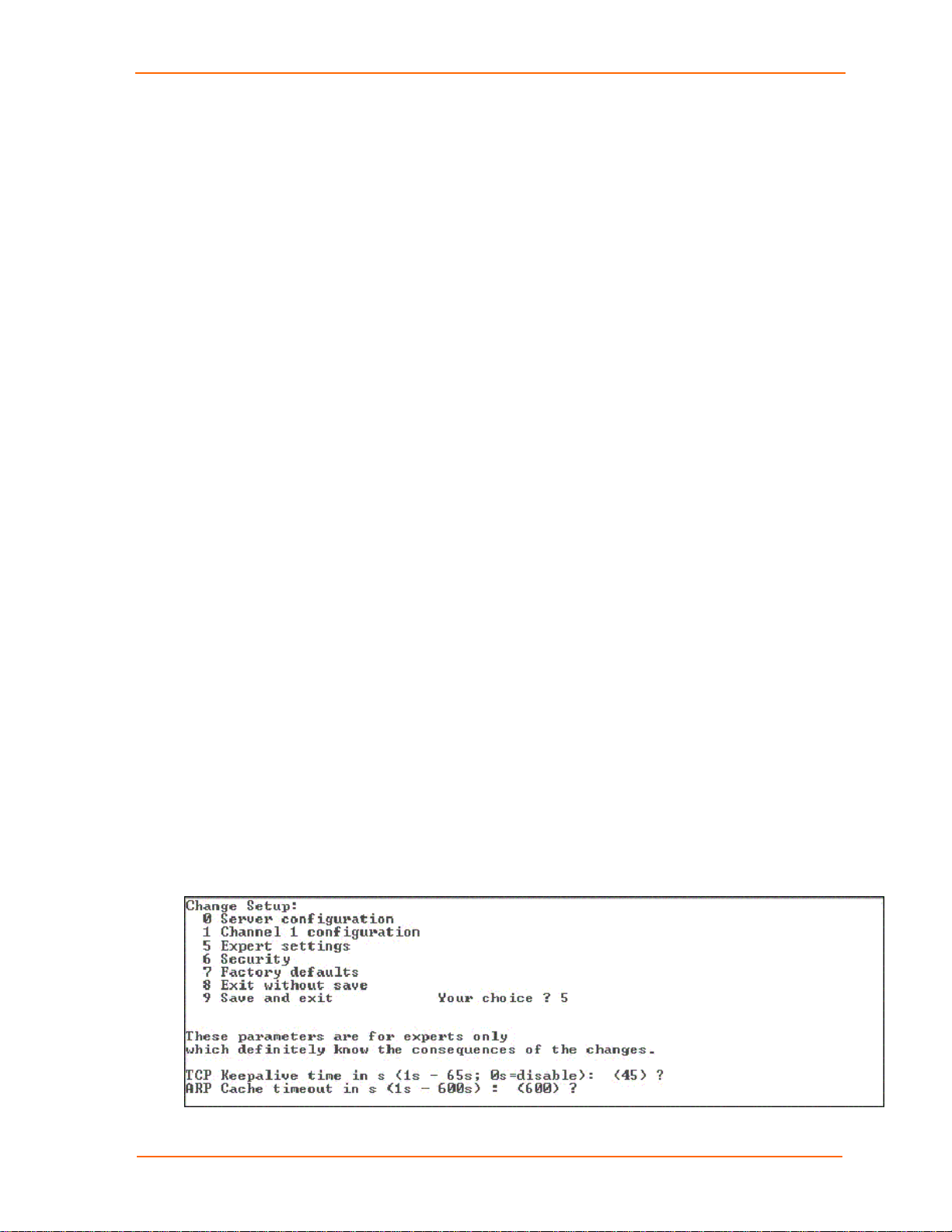

Figure 5-7. Expert Settings Options

Configuring the UDS Using Telnet or the Serial Port UDS10/UDS100 User Guide

TCP Keepalive time in s

This option defines how many seconds the unit waits during a silent connection before checking to see whether the currently connected network device is still on the network. If the unit does not receive a response, it drops that connection.

ARP Cache timeout in s

When the unit communicates with another device on the network, it adds an entry into its ARP table. The ARP Cache timeout option defines the number of seconds (1-600) the unit waits before timing out an entry in this table.

Security Settings

Change these settings using Telnet or serial connections only, not Web Manager.

Note: We recommend that you set security over the dedicated network or

over the serial setup. If you set security over the network (Telnet 9999), someone else could capture these settings.

Caution: Disabling both Telnet Setup and Port 77FE prevents users

from accessing the Setup Mode from the network.

Disable SNMP

Figure 5-8. Security Settings

This setting disables the SNMP protocol on the unit to prevent SNMP management software from communicating with the UDS.

UDS10/UDS100 User Guide Configuring the UDS Using Telnet or the Serial Port

SNMP Community Name

This option changes the SNMP community name on the unit. This allows for ease of management, and possibly some security. If someone tries to violate security but does not know what community to connect to, that person is unable to obtain the

SNMP community information from the unit. The default is public.

Disable Telnet Setup

Caution: Disabling both Telnet Setup and Port 77FE prevents users

from accessing Setup Mode from the network.

This setting defaults to the N (No) option. The Y (Yes) option disables access to Setup Mode by Telnet (port 9999). It only allows access locally using Web Manager and the serial port of the unit.

Disable TFTP Firmware Upgrade

This setting defaults to the N (No) option. The Y (Yes) option disables TFTP for network firmware upgrades. With this option, firmware upgrades can be performed only by using a *.hex file over the serial port of the unit.

Disable Port 77FE (Hex)

Caution: Disabling both Telnet Setup and Port 77FE prevents users

from accessing the Setup Mode from the network.

Port 77FE is used by DeviceInstaller, Web Manager, and custom programs to configure the unit remotely. If required, disable this capability for security purposes.

The default setting is the N (No) option, which enables remote configuration. As a result, configure the unit by using DeviceInstaller, Web Manager, Telnet, or serial configuration.

The Y (Yes) option disables remote configuration and web sites.

Note: the Y (Yes) option disables many of the GUI tools for configuring the unit,

including Web Manager.

Disable Web Setup

The Y (Yes) option disables the use of Web Manager. It disables browser-initiated sessions to port 80 on the UDS and configuration using HTTP. Port 80 is closed.

Disable ECHO Ports

Port 7 accepts Telnet and UDP connections. Whatever data is sent to this port is echoed back to the sender. This setting disables the use of the echo server that is built into the unit.

Enable Enhanced Password

This setting defaults to the N (No) option, which permits a 4-character password that protects the Setup Mode using Telnet and Web Manager. The Y (Yes) option allows an extended security password of 16-characters for protecting Telnet access.

Configuring the UDS Using Telnet or the Serial Port UDS10/UDS100 User Guide

Factory Default Settings

Select 7 to reset the unit’s serial port to the factory default settings. The server

configurations (IP address information) remain unchanged. The specific settings that this option changes are in the following list:

Channel 1 Configuration Defaults

Baudrate 9600

I/F Mode 4C (1 stop bit, no parity, 8 bit, RS-232C)

Own TCP port number 10001

Connect Mode C0 (always accept incoming connection; no active

connection startup)

Hostlist retry counter 3

Hostlist retry timeout 250 (msec)

Start character 0x0D (CR)

All other settings 0

Expert Settings Defaults

TCP keepalive 45 (seconds)

ARP cache timeout 600 (seconds)

Security Settings Defaults

SNMP Enabled

SNMP community name public

Telnet setup Enabled

TFTP download Enabled

Port 77FEh Enabled

Web Server Enabled

ECHO Disabled

Encryption Disabled

Enhanced password Disabled

Exit Configuration Mode

To exit Setup Mode:

 To save all changes and reboot, select 9. All values are stored in nonvolatile

memory.

 To exit the configuration mode without saving changes or rebooting, select 8.

66:: UUppddaattiinngg FFiirrmmwwaarree

This chapter explains how to obtain and update the unit’s firmware.

Obtaining Firmware

Obtain the most up-to-date firmware and release notes for the unit from the Lantronix Web site (http://www.lantronix.com/) or by using anonymous FTP (ftp://ftp.lantronix.com/).

Reloading Firmware

There are several ways to update the unit's internal operational code. Use DeviceInstaller (the preferred way), TFTP, another unit, or the serial port. Another

option is to use the unit's internal web interface (CBXW*.COB) using TFTP or

DeviceInstaller.

Following are typical names for the files. Check the Lantronix Web site for the latest versions and release notes.

UDS10

 LTX*.ROM (Network)

 LTX*.HEX (Serial)

UDS100

 DLX*.ROM (Network)

 DLX*.3HEX (Serial)

Using DeviceInstaller

1. Download the updated firmware files from http://www.lantronix.com/ or

ftp://ftp.lantronix.com/ and store them in a subfolder on your computer.

2. Click the Start button on the Task Bar and select Programs Æ Lantronix Æ

DeviceInstaller Æ DeviceInstaller. The DeviceInstaller window displays.

3. Click the Search the network for devices icon. The Search Network window

displays.

4. Once located by DeviceInstaller, highlight the device in the device list and click

the Upgrade button (which displays after you select the device). Select a custom installation by specifying the individual files and clicking Next.

5. Click the Browse button to select the location of the firmware file being loaded,

then click Next.

Updating Firmware UDS10/UDS100 User Guide

6. Select Do not copy or replace any files and click Next.

Note: This option upgrades the firmware file (.ROM file) only, not

the Web Manager files (.COB).

7. Click Next again. The status of the upgrade shows in the window.

8. After the upgrade completes, click Close.

Using TFTP

If you are running Windows NT or higher, you can simply enter the following command at the command prompt:

TFTP –i IP address of UDS PUT source file name destination file name

Note: It is easiest to issue the command from the same directory as the one

where the firmware files are.

To download new firmware using a TFTP client:

1. Use a TFTP client to send a binary file (LTX*.ROM for UDS10, DLX*.ROM for

UDS100) to the unit to upgrade the unit's internal operational code, and

CBXW*.cob to upgrade its internal web interface).

Note: TFTP requires the .ROM (binary) version of the unit's internal

operational code.

2. Make sure the Put and Binary options at the top of the window are selected.

3. Enter the full path of the firmware file in the Source File field.

4. In the Destination File field, type of the following:

 3L for the UDS10 or 3D for the UDS100 to load the internal operational code  WEB6 for the internal web interface.

5. In the Remote Host field, enter the IP address of the unit being upgraded.

6. Click the Put button to transfer the file to the unit.

UDS10/UDS100 User Guide Updating Firmware

Figure 6-1. TFTP Dialog Box

The unit performs a power reset after the firmware has been loaded and stored.

Using Another Unit

To distribute firmware to another unit over the network:

1. Enter the host unit's Monitor Mode (see 7: Using Monitor Mode).

2. Send the firmware to the receiving unit using the SF command, where x.x.x.x is

the receiving unit's IP address.

Figure 6-2. Sending Firmware to Another Unit

SF x.x.x.x

The receiving unit performs a power reset after the firmware has been loaded and stored.

Note: You can only update the unit’s internal web interface using TFTP or

DeviceInstaller.

Using the Serial Port

The following procedure is for using the HyperTerminal software application. This procedure takes about 10 minutes.

Warning: Do not switch off the power supply during the update. A loss

of power while reprogramming will result in a corrupt program image and a nonfunctional unit.

To download firmware from a computer using the unit’s serial port:

1. Enter Monitor Mode using the serial port (see Entering Monitor Mode Using the

Serial Port on page 43).

Updating Firmware UDS10/UDS100 User Guide

2. Download the firmware to the unit using the DL command.

3. Select Send Text File and select the LTX*.HEX file for the UDS10 or DLX*.HEX file for the UDS100 to be downloaded. The downloaded file must be the .HEX

(ASCII) version.

4. After receiving the final record, the unit checks the integrity of the firmware image before programming the new firmware in the flash ROM. The following message displays when the firmware upgrade is complete.

Figure 6-3. Firmware Upgrade Screen Display

*** NodeSet 2.0 *** 0>DL 02049 lines loaded.

Note: You can only update your unit's internal web interface using TFTP or

DeviceInstaller.

77:: UUssiinngg MMoonniittoorr MMooddee

Monitor Mode is a command line interface used for diagnostic purposes. There are two ways to enter Monitor Mode: locally using the serial port or remotely using the network.

Entering Monitor Mode Using the Serial Port

To enter Monitor Mode locally, follow the same principles used in setting the serial configuration settings:

1. Do one of the following:

 To enter Monitor Mode with network connections, type xx1 or zzz (not three

x keys as you did before).

 To enter Monitor Mode without network connections, type xx2 or yyy.

A 0> prompt indicates that you have successfully entered Monitor Mode.

Entering Monitor Mode Using the Network

To enter Monitor Mode using a Telnet connection:

1. First establish a Telnet session. The following message displays:

Figure 7-1. Entering Monitor Mode Using the Network

2. Type M (upper case). A 0> prompt indicates that you have successfully entered Monitor Mode.

Using Monitor Mode UDS10/UDS100 User Guide

Using Monitor Mode Commands

The following commands are available in Monitor Mode. Many commands have an IP address as an optional parameter (x.x.x.x). If the IP address is given, the command is applied to another unit with that IP address. If no IP address is given, the command is executed locally.

Note: All commands must be in capital letters, with blank spaces between

the settings.

Table 7-1. Monitor Mode Commands

Command Command Name Function

SF x.x.x.x Send Firmware Sends firmware to unit with IP address x.x.x.x.

VS x.x.x.x Version

GC x.x.x.x Get Configuration

SC x.x.x.x Send Configuration

PI x.x.x.x Ping

AT ARP Table Shows the unit’s ARP table entries. TT TCP Connection Table Shows all incoming and outgoing TCP connections. NC Network Connection Shows the unit’s IP configuration. RS Reset Resets the unit’s power. QU Quit Exits diagnostics mode. G0, G1...GE, GF S0, S1... SE, SF

Get configuration from memory page

Set configuration to memory page

Queries software header record (16-byte) of unit with IP address x.x.x.x. Gets configuration of unit with IP address x.x.x.x as hex records. Sets configuration of unit with IP address x.x.x.x from hex records. Pings unit with IP address x.x.x.x to check device status.

Gets a memory page of configuration information from the device. Sets a memory page of configuration information on the device.

Entering any of the commands listed above generates one of the following command response codes:

Table 7-2. Command Response Codes

Response Meaning

0> OK; no error 1> No answer from remote device 2> Cannot reach remote device or no answer 8> Wrong parameter(s) 9> Invalid command

88:: TTrroouubblleesshhoooottiinngg aanndd CCoonnttaacctt IInnffoorrmmaattiioonn

This chapter discusses how you can diagnose and fix errors quickly without having to contact a dealer or Lantronix.

It helps to connect a terminal to the serial port while diagnosing an error so you can view summary messages that may display. When troubleshooting, always ensure that the physical connections (power cable, network cable, and serial cable) are secure.

Note: Some unexplained errors might be caused by duplicate IP addresses on the

network. Make sure that your unit's IP address is unique.

LEDs

The UDS products contain the following LEDs, which help you diagnose problems.

 10 Mbps Link/Activity (green)

 100 Mbps Link/Activity (green)

 Collisions

 Diagnostics (red)

 Status (yellow)

Simultaneously lit red and green LEDs mean something is wrong. If the red LED is lit or blinking, count the number of times the green LED blinks between its pauses. The following table explains the LED functions:

Troubleshooting and Contact Information UDS10/UDS100 User Guide

Table 8-1. UDS10/UDS100 LEDs

Serial LEDs Meaning

10 Mbps link/activity steady green Valid 10 Mbps network connection

10 Mbps link/activity blinking Network packets transmitting and receiving

100 Mbps link/activity steady green Valid 100 Mbps network connection

100Mbps link/activity blinking Network packets transmitting and receiving

Collision blinking red Network collisions

Diagnostic steady red and status blinking green

Diagnostic blinking red and status blinking green

Status steady green Serial port not connected to network

Status blinking green Serial port connected to network

2 blinks = RAM error 4 blinks = EEPROM checksum error 5 blinks = Duplicate IP address on network

5 blinks = No DHCP response

Problems and Error Messages

Notes:

 When troubleshooting the following problems, make sure that the UDS is

powered up and the Link LED is lit solid green. If the Link LED is not lit, then the physical network connection is bad. Confirm that you are using a good network connection.

 We recommend that you use a serial connection so you can view any

diagnostic information sent out the serial port.

Table 8-2. Problems and Error Messages

Problem/Message Reason Solution

When you issue the ARP –S

command in Windows, The ARP entry addition failed: 5 message

displays.

When you attempted to assign an IP address to the UDS using the ARP

method, the Press Enter to go into Setup Mode error (described below)

displayed. Now when you Telnet to the UDS, the connection fails.

Your currently logged-in user does not have the correct rights to use this command on this PC.

When you Telnet into port 1 on the UDS, you are only assigning a temporary IP address. When you Telnet into port 9999 and do not

press Enter quickly, the UDS

reboots, causing it to lose the IP address.

Have someone from your IT department log you in with sufficient rights.

Telnet back into port 1. Wait for it to fail, then Telnet to port 9999 again.

Make sure you press Enter quickly.

When you Telnet to port 9999, the

message Press Enter to go into Setup Mode displays. However, nothing happens when you press Enter, or

your connection closes.

You did not press Enter quickly

enough. You only have 5 seconds to

press Enter before the connection

closes.

Telnet to port 9999 again, but press

Enter as soon as you see the message Press Enter to go into Setup Mode.

UDS10/UDS100 User Guide Troubleshooting and Contac t Information

Problem/Message Reason Solution

When you Telnet to port 1 to assign an IP address to the UDS, the Telnet window does not respond for a long time.

When you try to assign an IP with DeviceInstaller, you get the following message:

No device was found at this hardware address.

You may have entered the hardware address incorrectly with the ARP command.

The IP address you are trying to assign is not on your logical subnet.

The UDS may not be plugged into the network properly.

The cause is most likely one of the following:

The hardware address you specified is incorrect.

The device is not physically connected to the network.

Confirm that the hardware address that you entered with the ARP command is correct. The hardware address may only include numbers 0-9 and letters A-F. In Windows and usually in Unix, the segments of the address are separated by dashes. In some forms of Unix, the address is segmented with colons.

Confirm that your PC has an IP address and that it is in the same logical subnet that you are trying to assign to the UDS.

Make sure that the Link LED is lit. If the Link LED is not lit, then the UDS is not properly plugged into the network.

Double-check the settings that you specified.

Note: You cannot assign

an IP address to a UDS through a router.

No LEDs are lit. The unit or its power supply is

damaged, or the unit is not plugged into power properly.

The UDS will not power up properly, and the LEDs are flashing.

Various Consult the LEDs section above or

Try plugging the UDS into another outlet. If this does not fix the problem, contact your dealer or Lantronix Technical Support for a replacement.

the Quick Start for the LED flashing sequence patterns. Call Lantronix Technical Support if the blinking pattern indicates a critical error.

Troubleshooting and Contact Information UDS10/UDS100 User Guide

Problem/Message Reason Solution

The UDS is not communicating with the serial device attached to the UDS.

When you try to enter Setup Mode on the UDS using the serial cable, you get no response.

You can ping the UDS, but not Telnet to the UDS on port 9999.

The most likely reason is the wrong serial cable or serial settings were chosen.

The issue is likely something covered in the previous problem, or possibly

you have Caps Lock on.

There may be an IP address conflict on your network.

You are not Telneting to port 9999.

The Telnet configuration port (9999) is disabled within the UDS security settings.

The unit may have the correct IP address, but an incorrect gateway address.

Make sure that you are using the correct serial cable. The UDS serial port is just like a modem serial port (DCE). The serial settings for the serial device and the UDS must match.

The default serial settings for the UDS are RS232, 9600 baud, 8 character bits, no parity, 1 stop bit, no flow control.

Double-check everything in the

problem above. Confirm that Caps Lock is not on.

Turn the UDS off and then issue the following commands at the DOS prompt of your computer:

ARP -D X.X.X.X (X.X.X.X is the IP

of the UDS)

PING X.X.X.X (X.X.X.X is the IP of

the UDS).

If you get a response, then there is a duplicate IP address on the network (the LEDs on the UDS should flash a sequence that tells you this). If you do not get a response, use the serial port to verify that Telnet is not disabled.

With DeviceInstaller, you get the

Wrong Password error when you try

to upgrade the firmware.

The file you are attempting to load is the incorrect firmware file for the UDS.

Download the correct firmware file from the Lantronix website.

UDS10/UDS100 User Guide Troubleshooting and Contac t Information

Problem/Message Reason Solution

You are using the correct serial cable, and the UDS is set up correctly, but you are not communicating with your device attached to the UDS across the network.

When connecting to Web Manager

within the UDS, the message No Connection With The UDS displays.

If you are sure that the serial cable is correct, then you may not be connecting to the correct socket of the UDS.

Another possibility is that the UDS is not set up correctly to make a good socket connection to the network.

Your computer is not able to connect to port 30718 (77FEh) on the UDS.

You can check to see whether there is a socket connection to or from the UDS by looking at the Status LED.

If the Status LED is blinking consistently, then there is a good socket connection.

If the Status LED is solid green, then the socket connection does not exist.

Use the Connect Mode option C0 for

making a connection to the UDS from the network. Use Connect

Mode option C1 or C5 for a

connection to the network from the UDS. See the full list of Connect

Mode hexadecimals in B: Binary to

Hexadecimal.

Make sure that port 30718 (77FEh) is not blocked with any router that you are using on the network. Also make sure that port 77FEh is not disabled within the Security settings of the UDS.

Technical Support

If you are experiencing an error that is not described in this chapter, or if you are unable to fix the error, you may:

 Check our online knowledge base at http://www.lantronix.com/support

 Call us at:

(800) 422-7044 Domestic

(949) 453-7198 International

(949) 450-7226 Fax

Our phone lines are open from 6:00AM - 5:30 PM Pacific Time Monday through Friday excluding holidays.

Technical Support Europe, Middle East, Africa

Phone: +49 (0) 89 31787 817 Email: eu_techsupp@lantronix.com or eu_support@lantronix.com

Firmware downloads, FAQs, and the most up-to-date documentation are available at: http://www.lantronix.com/support

Troubleshooting and Contact Information UDS10/UDS100 User Guide

When you report a problem, please provide the following information:

 Your name, and your company name, address, and phone number

 Lantronix UDS model number

 Lantronix UDS serial number

 Software version (on the first screen shown when you Telnet to port 9999)

 Description of the problem

 Debug report (stack dump), if applicable

 Status of the unit when the problem occurred (please try to include

information on user and network activity at the time of the problem)

99:: CCoonnnneeccttiioonnss aanndd PPiinnoouuttss

Serial Port

The UDS has a female DCE DB25 serial port that supports RS-232 and RS-485/422 serial standards (software selectable) up to 115 Kbps.

Figure 9-1. Serial Interface

Serial Connector Pinouts

The unit’s female DB25 connector provides an RS-232C, RS-485, or RS-422 DCE serial port. The default serial port settings are 9600 baud, 8 bits, no parity, and 1 stop bit.

Connections and Pinouts UDS10/UDS100 User Guide

Figure 9-2. DB25 Female DCE Interface RS232

Figure 9-3. DB25 Female DCE Interface RS485/422

UDS10/UDS100 User Guide Connectons and Pinouts

Null-Modem Cable

When attaching the DB9 of the UDS to the DB9 com port on a PC, use a null-modem cable (Lantronix Part No. 500-163). The figure below shows the pinouts for a DB9 to DB9 null-modem cable. To configure the UDS using the DB9 serial port, you only need to pinout the TXD, RXD, and GND signals.

Figure 9-4. Null-Modem Cable (Lantronix Part No. 500-163)

Network Port

The unit's back panel contains a power plug and an RJ45 (10/100) Ethernet port. Power input range on the power plug is 9-30 VDC or 9-24 VAC.

Figure 9-5. Network Interface

Connections and Pinouts UDS10/UDS100 User Guide

Ethernet Connector Pinouts

The UDS10 supports 10 Mbps half-duplex Ethernet through an RJ45 connector. The UDS100 supports 100 Mbps half or full duplex Ethernet through an RJ45 connector.

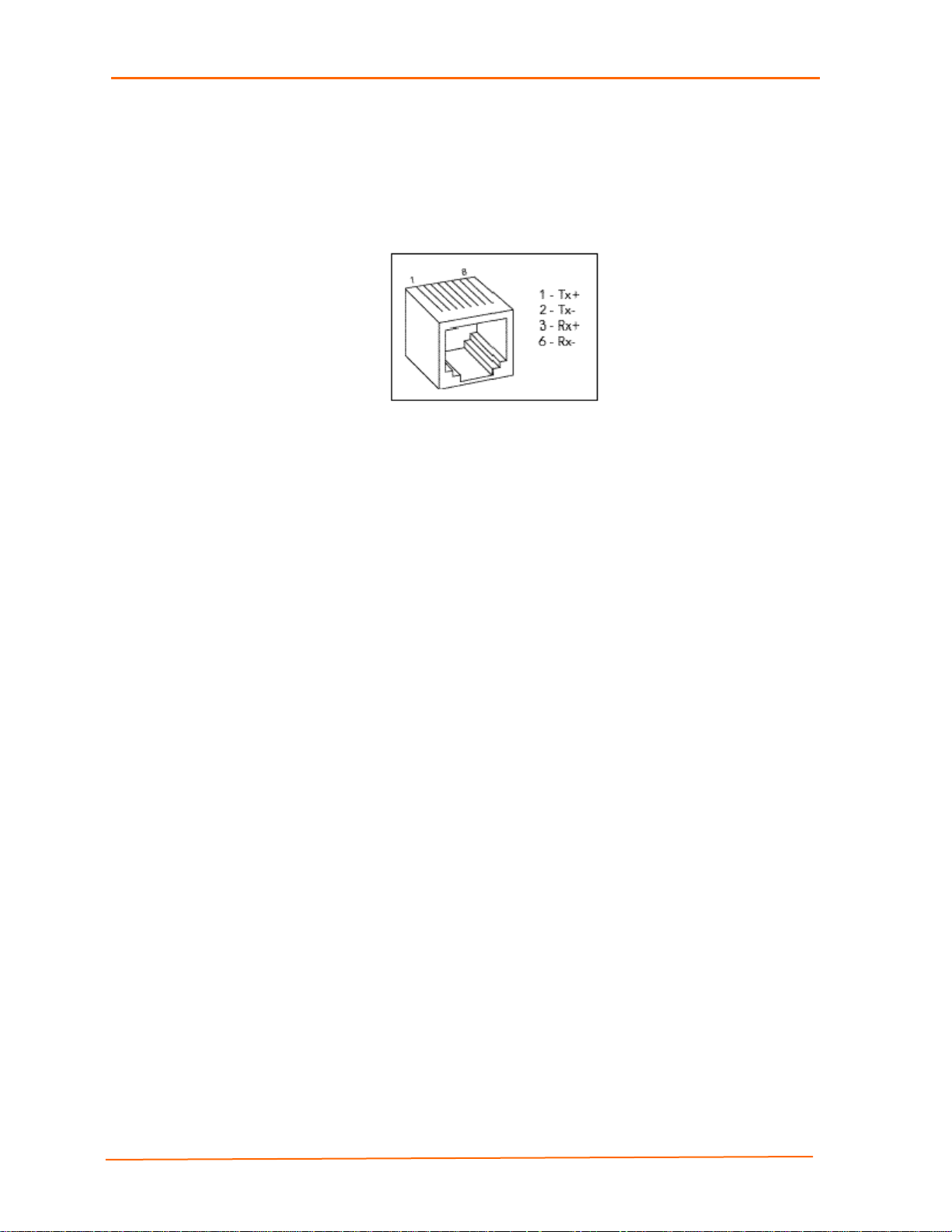

Figure 9-6. RJ45 Ethernet Connector

1100:: TTeecchhnniiccaall SSppeecciiffiiccaattiioonnss

UDS10 Technical Specifications

CPU, Memory Serial Interface

Network Interface Power Supply

Power Input Dimensions

Weight Temperature

Relative Humidity

x86 CPU, 25MHz clock, 128kByte RAM

Female DB25 connector (DCE pinout) Speed software selectable (300 to 115 kBaud) Software selectable RS-232C or RS-422/485

10 Mbps RJ45 Ethernet

External adapter included 120 VAC USA 100 - 240 VAC Universal with regional connectors

9-30 VDC or 9-24 VAC (1W maximum)

Height: 2.3 cm (0.9 in) Width: 6.4 cm (2.5 in) Depth: 9.0 cm (3.5 in)

0.35 Kg (0.8 lbs)

Operating range: 5° to 50° C (41° to 122° F) Storage range: -40° to 66° C (-40° to 151° F)

Operating: 10% to 90% non-condensing, 40% to 60% recommended Storage: 10% to 90% non-condensing

Technical Specifications UDS10/UDS100 User Guide

UDS100 Technical Specifications

CPU, Memory Lantronix DSTni-LX 186 CPU, 48 MHz

1 MByte FLASH ROM 256 Kbytes zero wait state RAM

Serial Interface Female DB25 connector (DCE pinout)

Speed software selectable (300 to 115 kBaud) Software selectable RS-232C or RS-422/485

Network Interface 10/100 RJ45 Ethernet

Power Supply External adapter included

120 VAC USA 100 - 240 VAC Universal with regional connectors

Power Input 9-30 VDC or 9-24 VAC (1W maximum)

Dimensions

Weight 0.35 Kg (0.8 lbs)

Temperature

Relative Humidity Operating: 10% to 90% non-condensing, 40% to 60% recommended

Height: 2.3 cm (0.9 in) Width: 6.4 cm (2.5 in) Depth: 9.0 cm (3.5 in)

Operating range: 5° to 50° C (41° to 122° F) Storage range: -40° to 66° C (-40° to 151° F)

Storage: 10% to 90% non-condensing

AA:: AAlltteerrnnaattiivvee WWaayyss ttoo AAssssiiggnn aann IIPP AAddddrreessss

Earlier chapters describe how to assign a static IP address using DeviceInstaller, Web Manager, and Setup Mode (through a Telnet or serial connection). This section covers other methods for assigning an IP address over the network.

DHCP

The unit ships with a default IP address of 0.0.0.0, which automatically enables DHCP. If a DHCP server exists on the network, it provides the unit with an IP address, gateway address, and subnet mask when the unit boots up.

You can use the DeviceInstaller software to search the network for the DHCPassigned IP address and add it to the list of devices retrieved.

Note: This DHCP address does not appear in the unit’s Setup Mode or in

Web Manager. You can determine your unit’s DHCP-assigned IP address in Monitor Mode. When you enter Monitor Mode from the serial port with network connection enabled (see Entering Monitor Mode Using the Serial

Port on page 43) and issue the NC (Network Communication) command, you

see the unit’s IP configuration.

AutoIP

The unit ships with a default IP address of 0.0.0.0, which automatically enables Auto IP within the unit. AutoIP is an alternative to DHCP that allows hosts to automatically obtain an IP address in smaller networks that may not have a DHCP server. A range of IP addresses (from 169.254.0.1 to 169.254.255.1) has been explicitly reserved for AutoIP-enabled devices. Do not use this range of Auto IP addresses over the Internet.

 If your unit cannot find a DHCP server, and you have not manually assigned

an IP address to it, the unit automatically selects an address from the AutoIP reserved range. Then, your unit sends out a (ARP) request to other nodes on the same network to see whether the selected address is being used.

 If the selected address is not in use, then the unit uses it for local subnet

communication.

 If another device is using the selected IP address, the unit selects another

address from the AutoIP range and reboots. After reboot, the unit sends out another ARP request to see if the selected address is in use, and so on.

AutoIP does not replace DHCP. The unit continues to look for a DHCP server on the network. If it finds a DHCP server, the unit switches to the DHCP server-provided address and reboots.

Note: If a DHCP server is found, but it denies the request for an IP address,

the unit does not attach to the network, but waits and retries.

AutoIP can be disabled by setting the unit’s IP address to 0.0.1.0. This setting enables DHCP but disables AutoIP.

Alternative Ways to Assign an IP Address UDS10/UDS100 User Guide

BOOTP

Similar to DHCP, but for smaller networks. Automatically assigns the IP address for a

specific duration of time.

ARP and Telnet

If the unit has no IP address, you can use Address Resolution Protocol (ARP) method from UNIX and Windows-based systems to assign a temporary IP address.

To assign a temporary IP address:

1. On a UNIX or Windows-based host, create an entry in the host's ARP table

using the intended IP address and the hardware address of the unit (on the product label on the bottom of the unit).

arp -s 191.12.3.77 00:20:4a:xx:xx:xx

Note: For the ARP command to work on Windows 95, the ARP table

on the PC must have at least one IP address defined other than its own.

2. If you are using Windows 95, type ARP -A at the DOS command prompt to

verify that there is at least one entry in the ARP table. If the local machine is the only entry, ping another IP address on your network to build a new entry in the ARP table; the IP address must be a host other than the machine on which you are working. Once there is at least one additional entry in the ARP table, use the following command to ARP an IP address to the unit:

arp -s 191.12.3.77 00-20-4a-xx-xx-xx

3. Open a Telnet connection to port 1. The connection fails quickly, but the unit

temporarily changes its IP address to the one designated in this step.

telnet 191.12.3.77 1

4. Open a Telnet connection to port 9999, and press Enter within five seconds

to go into Setup Mode. If you wait longer than five seconds, the unit reboots.

telnet 191.12.3.77 9999

Note: The IP address you just set is temporary and reverts to the default

value when the unit’s power is reset, unless you configure the unit with a static IP address and store the changes permanently.

BB:: BBiinnaarryy ttoo HHeexxaaddeecciimmaall CCoonnvveerrssiioonnss

Many of the unit’s configuration procedures require you to assemble a series of options (represented as bits) into a complete command (represented as a byte). The resulting binary value must be converted to a hexadecimal representation.

Use this chapter to learn how to convert binary values to hexadecimals or to look up values in the tables of configuration options in hexadecimal notation. The tables include:

 Connect Mode Options

 Disconnect Mode Options

 Flush Mode (Buffer Flushing) Options

 Interface Mode Options

 Pack Control Options

Converting Binary to Hexadecimal

Following are two simple ways to convert binary numbers to hexadecimals.

Conversion Table

Hexadecimal digits have values ranging from 0 to F, which are represented as 0-9, A (for 10), B (for 11), etc. To convert a binary value (for example, 0100 1100) to a hexadecimal representation, the upper and lower four bits are treated separately, resulting in a two-digit hexadecimal number (in this case, 4C). Use the following table to convert values from binary to hexadecimal.

Decimal Binary Hex

0 0000 0

1 0001 1 2 0010 2 3 0011 3 4 0100 4 5 0101 5 6 0110 6 7 0111 7 8 1000 8 9 1001 9 10 1010 A 11 1011 B 12 1100 C 13 1101 D 14 1110 E 15 1111 F

Binary to Hexadecimal Conversions UDS10/UDS100 User Guide

Scientific Calculator

Another simple way to convert binary to hexadecimals is to use a scientific calculator, such as the one available on Windows’ operating systems. For example:

1. On the Windows’ Start menu, click ProgramsÆAccessoriesÆCalculator.

2. On the View menu, select Scientific. The scientific calculator displays.

3. Click Bin (Binary), and type the number you want to convert.

4. Click Hex. The hexadecimal value displays.

UDS10/UDS100 User Guide Binary to Hexadecimal Conversions

Connect Mode Options

Note: Character response codes are C=conn, D=disconn, N=unreachable

Connect Mode Options

Accept Incoming Connections

Never None (quiet) No active startup N/A

Never None (quiet) Any character 1

Never None (quiet) Active DTR 2

Never None (quiet) CR (0x0D) 3

Never None (quiet) Manual

Never None (quiet) Autostart 5

Never None (quiet) UDP C

Never Character No active startup 10

Never Character Any character 11

Never Character Active DTR 12

Never Character CR (0x0D) 13

Never Character Manual

Never Character Autostart 15

Never Character UDP 1C

With DTR None (quiet) No active startup 40

With DTR None (quiet) Any character 41

With DTR None (quiet) Active DTR 42

With DTR None (quiet) CR (0x0D) 43

With DTR None (quiet) Manual

With DTR None (quiet) Autostart 45

With DTR None (quiet) UDP 4C

With DTR Character No active startup 50

With DTR Character Any character 51

With DTR Character Active DTR 52

With DTR Character CR (0x0D) 53

With DTR Character Manual

With DTR Character Autostart 55

With DTR Character UDP N/A

Unconditionally None (quiet) No active startup C0

Unconditionally None (quiet) Any character C1

Unconditionally None (quiet) Active DTR C2

Unconditionally None (quiet) CR (0x0D) C3

Unconditionally None (quiet) Manual

Serial Response Upon Connection

Active Connection Startup

connection

Hostlist Hex

Binary to Hexadecimal Conversions UDS10/UDS100 User Guide

Connect Mode Options

Accept Incoming Connections

Serial Response Upon

Active Connection Startup

Hostlist Hex

Connection

Unconditionally None (quiet) Autostart C5

Unconditionally None (quiet) UDP CC

Unconditionally Character No active startup D0

Unconditionally Character Any character D1

Unconditionally Character Active DTR D2

Unconditionally Character CR (0x0D) D3

Unconditionally Character Manual

connection

Unconditionally Character Autostart D5

Unconditionally Character UDP DC

Never None (quiet) No active startup Hostlist N/A

Never None (quiet) Any character Hostlist 21

Never None (quiet) Active DTR Hostlist 22

Never None (quiet) CR (0x0D) Hostlist 23

Never None (quiet) Manual

connection

Never None (quiet) Autostart Hostlist 25

Never None (quiet) UDP Hostlist N/A

Never Character No active startup Hostlist N/A

Never Character Any character Hostlist 31

Never Character Active DTR Hostlist 32

Never Character CR (0x0D) Hostlist 33

Never Character Manual

connection

Never Character Autostart Hostlist 35

Never Character UDP Hostlist N/A

With DTR None (quiet) No active startup Hostlist N/A

With DTR None (quiet) Any character Hostlist 61

With DTR None (quiet) Active DTR Hostlist 62

With DTR None (quiet) CR (0x0D) Hostlist 63

With DTR None (quiet) Manual

connection

With DTR None (quiet) Autostart Hostlist 65

With DTR None (quiet) UDP Hostlist N/A

With DTR Character No active startup Hostlist N/A

With DTR Character Any character Hostlist 71

With DTR Character Active DTR Hostlist 72

With DTR Character CR (0x0D) Hostlist 73

With DTR Character Manual

connection

With DTR Character Autostart Hostlist 75

With DTR Character UDP Hostlist N/A

Hostlist N/A

UDS10/UDS100 User Guide Binary to Hexadecimal Conversions

Connect Mode Options

Accept Incoming Connections

Serial Response Upon

Active Connection Startup

Hostlist Hex

Connection

Unconditionally None (quiet) No active startup Hostlist N/A

Unconditionally None (quiet) Any character Hostlist E1

Unconditionally None (quiet) Active DTR Hostlist E2

Unconditionally None (quiet) CR (0x0D) Hostlist E3

Unconditionally None (quiet) Manual

connection

Unconditionally None (quiet) Autostart Hostlist E5

Unconditionally None (quiet) UDP Hostlist N/A

Unconditionally Character No active startup Hostlist N/A

Unconditionally Character Any character Hostlist F1

Unconditionally Character Active DTR Hostlist F2

Unconditionally Character CR (0x0D) Hostlist F3

Unconditionally Character Manual

connection

Unconditionally Character Autostart Hostlist F5

Unconditionally Character UDP Hostlist N/A

Hostlist N/A

The following connect mode options are for when you use modem emulation:

Connect Mode Options for Modem Emulation Accept

Response Hex Incoming Connections

Never Echo 16

Never Without echo 6

Never 1-character response 7

With DTR Echo 56

With DTR Without echo 46

With DTR 1-character response 47

Unconditionally Echo D6

Unconditionally Without echo C6

Unconditionally 1-character response C7

Binary to Hexadecimal Conversions UDS10/UDS100 User Guide

Disconnect Mode Options

Disconnect Mode Options Disconnect

with DTR Drop

Enable 0

Enable Enable 10

Enable Enable 20

Enable Enable Enable 30

Enable Enable 40

Enable Enable Enable 50

Enable Enable Enable 60

Enable Enable Enable Enable 70

Enable Enable 80

Enable Enable Enable 90

Enable Enable Enable A0

Enable Enable Enable Enable B0

Enable Enable Enable C0

Enable Enable Enable Enable D0

Enable Enable Enable Enable E0

Enable Enable Enable Enable Enable F0

Enable Enable 1

Enable Enable Enable 11

Enable Enable Enable 21

Enable Enable Enable Enable 31

Enable Enable Enable 41

Enable Enable Enable Enable 51

Enable Enable Enable Enable 61

Enable Enable Enable Enable Enable 71

Enable Enable Enable 81

Enable Enable Enable Enable 91

Enable Enable Enable Enable A1

Enable Enable Enable Enable Enable B1

Enable Enable Enable Enable C1

Enable Enable Enable Enable Enable D1

Enable Enable Enable Enable Enable E1

Enable Enable Enable Enable Enable Enable F1

Disable 8

Enable Disable 18

Disable Enable 28

Enable Disable Enable 38

Enable Disable 48

Enable Enable Disable 58

Enable Disable Enable 68

Telnet Mode and Terminal Type Setup

Channel (port) Password

Hard Disconnect

State LED Off with Connection

Disconnect with EOT (^D)

Hex

UDS10/UDS100 User Guide Binary to Hexadecimal Conversions

Disconnect Mode Options Disconnect

with DTR Drop

Telnet Mode and Terminal

Channel (port) Password

Hard Disconnect

State LED Off with Connection

Disconnect with EOT (^D)

Hex

Type Setup

Enable Enable Disable Enable 78

Enable Disable 88

Enable Enable Disable 98

Enable Disable Enable A8

Enable Enable Disable Enable B8

Enable Enable Disable C8

Enable Enable Enable Disable D8

Enable Enable Disable Enable E8

Enable Enable Enable Disable Enable F8

Disable Enable 9

Enable Disable Enable 19

Disable Enable Enable 29

Enable Disable Enable Enable 39

Enable Disable Enable 49

Enable Enable Disable Enable 59

Enable Disable Enable Enable 69

Enable Enable Disable Enable Enable 79

Enable Disable Enable 89

Enable Enable Disable Enable Enable 99

Enable Disable Enable Enable A9

Enable Enable Disable Enable Enable B9

Enable Enable Disable Enable C9

Enable Enable Enable Disable Enable D9

Enable Enable Disable Enable Enable E9

Enable Enable Enable Disable Enable Enable F9

Binary to Hexadecimal Conversions UDS10/UDS100 User Guide

Flush Mode Options

Flush Mode Options Serial to Network

Clear input buffer upon:

None 0

Active connection 10

Passive connection 20

Active connection Passive connection

Disconnect 40

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Enable 80

Active connection Enable 90

Passive connection Enable A0

Active connection Passive connection

Disconnect Enable C0

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection 1

Active connection Active connection 11

Passive connection Active connection 21

Active connection Passive connection

Disconnect Active connection 41

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection Enable 81

Active connection Active connection Enable 91

Passive connection Active connection Enable A1

Network to Serial Clear output buffer

Alternate Packing Algorithm

Hex

upon:

Enable B0

Enable D0

Enable E0

Enable F0

Active connection 31

Active connection 51

Active connection 61

Active connection 71

UDS10/UDS100 User Guide Binary to Hexadecimal Conversions

Flush Mode Options Serial to Network

Clear input buffer upon:

Active connection Passive connection

Disconnect Active connection Enable C1

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection 2

Active connection Passive connection 12

Passive connection Passive connection 22

Active connection Passive connection

Disconnect Passive connection 42

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection Enable 82

Active connection Passive connection Enable 92

Passive connection Passive connection Enable A2

Active connection Passive connection

Disconnect Passive connection Enable C2

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Active connection

Active connection Passive connection

Disconnect Active connection

Network to Serial Clear output buffer

Alternate Packing Algorithm

Hex

upon:

Active connection Enable B1

Active connection Enable D1

Active connection Enable E1

Active connection Enable F1

Passive connection 32

Passive connection 52

Passive connection 62

Passive connection 72

Passive connection Enable B2

Passive connection Enable D2

Passive connection Enable E2

Passive connection Enable F2

Passive connection

Active connection Passive connection

Passive connection

Binary to Hexadecimal Conversions UDS10/UDS100 User Guide

Flush Mode Options Serial to Network

Clear input buffer upon:

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Passive connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Disconnect 4

Active connection Disconnect 14

Passive connection

Active connection Passive connection

Disconnect Disconnect 44

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Disconnect Enable 84

Active connection Disconnect Enable 94

Passive connection Disconnect Enable A4

Active connection Passive connection

Disconnect Disconnect Enable C4

Active connection Disconnect

Network to Serial Clear output buffer

Alternate Packing Algorithm

Hex

upon:

Active connection Passive connection

Passive connection

Active connection

Active connection Passive connection

Passive connection

Active connection Passive connection

Disconnect 24

Disconnect 34

Disconnect 54

Disconnect 64

Disconnect 74

Disconnect Enable B4

Disconnect Enable D4

Enable 83

Enable 93

Enable A3

Enable B3

Enable C3

Enable D3

Enable E3

Enable F3

UDS10/UDS100 User Guide Binary to Hexadecimal Conversions

Flush Mode Options Serial to Network

Clear input buffer upon:

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Active connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Active connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection

Active connection Passive connection

Passive connection Passive connection

Active connection Passive connection

Network to Serial Clear output buffer

Alternate Packing Algorithm

Hex

upon:

Disconnect Enable E4

Disconnect Enable F4

Disconnect

Active connection Disconnect

Disconnect

Active connection Disconnect

Disconnect

Active connection Disconnect

Disconnect

Active connection Disconnect

Disconnect

Passive connection Disconnect

Enable 85

Enable 95

Enable A5

Enable B5

Enable C5

Enable D5

Enable E5

Enable F5

Binary to Hexadecimal Conversions UDS10/UDS100 User Guide

Flush Mode Options Serial to Network

Clear input buffer upon:

Disconnect Passive connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection

Active connection Passive connection

Passive connection Passive connection

Active connection Passive connection

Disconnect Passive connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Active connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Passive connection Disconnect

Network to Serial Clear output buffer

upon:

Disconnect

Passive connection Disconnect

Disconnect

Passive connection Disconnect

Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Alternate

Hex Packing Algorithm

Enable 86

Enable 96

Enable A6

Enable B6

Enable C6

Enable D6

Enable E6

Enable F6

UDS10/UDS100 User Guide Binary to Hexadecimal Conversions

Flush Mode Options Serial to Network

Clear input buffer upon:

Active connection Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Active connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Network to Serial Clear output buffer

upon:

Active connection Passive connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Alternate

Hex Packing Algorithm

Enable 87

Enable 97

Enable A7

Enable B7

Enable C7

Enable D7

Enable E7

Enable F7

Binary to Hexadecimal Conversions UDS10/UDS100 User Guide

Interface Mode Options

Interface Mode Options Interface Bits Parity Stop

Hex

Bits

RS-232C 7 No 1 48 RS-232C 7 No 2 C8 RS-232C 7 Even 1 78 RS-232C 7 Even 2 F8 RS-232C 7 Odd 1 58 RS-232C 7 Odd 2 D8

RS-232C 8 No 1 4C RS-232C 8 No 2 CC RS-232C 8 Even 1 7C RS-232C 8 Even 2 FC RS-232C 8 Odd 1 5C RS-232C 8 Odd 2 DC RS-422/485 7 No 1 49 RS-422/485 7 No 2 C9 RS-422/485 7 Even 1 79 RS-422/485 7 Even 2 F9

RS-422/485 7 Odd 1 59

RS-422/485 7 Odd 2 D9

RS-422/485 8 No 1 4D

RS-422/485 8 No 2 CD

RS-422/485 8 Even 1 7D

RS-422/485 8 Even 2 FD

RS-422/485 8 Odd 1 5D

RS-422/485 8 Odd 2 DD RS-422/485 2-Wire 7 No 1 4B RS-422/485 2-Wire 7 No 2 CB RS-422/485 2-Wire 7 Even 1 7B RS-422/485 2-Wire 7 Even 2 FB

RS-422/485 2-Wire 7 Odd 1 5B

RS-422/485 2-Wire 7 Odd 2 DB

RS-422/485 2-Wire 8 No 1 4F

RS-422/485 2-Wire 8 No 2 CF

RS-422/485 2-Wire 8 Even 1 7F

RS-422/485 2-Wire 8 Even 2 FF

RS-422/485 2-Wire 8 Odd 1 5F

RS-422/485 2-Wire 8 Odd 2 DF

UDS10/UDS100 User Guide Binary to Hexadecimal Conversions

Pack Control Options

Pack Control Options Sendcharacter

Defined by a:

1-Byte Sequence No 12ms 0

1-Byte Sequence No 52ms 1

1-Byte Sequence No 250ms 2

1-Byte Sequence No 5sec 3

1-Byte Sequence 1 12ms 4

1-Byte Sequence 1 52ms 5

1-Byte Sequence 1 250ms 6

1-Byte Sequence 1 5sec 7

1-Byte Sequence 2 12ms 8

1-Byte Sequence 2 52ms 9

1-Byte Sequence 2 250ms A

1-Byte Sequence 2 5sec B

2-Byte Sequence No 12ms 10

2-Byte Sequence No 52ms 11

2-Byte Sequence No 250ms 12

2-Byte Sequence No 5sec 13

2-Byte Sequence 1 12ms 14

2-Byte Sequence 1 52ms 15

2-Byte Sequence 1 250ms 16

2-Byte Sequence 1 5sec 17

2-Byte Sequence 2 12ms 18

2-Byte Sequence 2 52ms 19

2-Byte Sequence 2 250ms 1A

2-Byte Sequence 2 5sec 1B

1-Byte Sequence No 12ms Yes 20

1-Byte Sequence No 52ms Yes 21

1-Byte Sequence No 250ms Yes 22

1-Byte Sequence No 5sec Yes 23

1-Byte Sequence 1 12ms Yes 24

1-Byte Sequence 1 52ms Yes 25

1-Byte Sequence 1 250ms Yes 26

1-Byte Sequence 1 5sec Yes 27

1-Byte Sequence 2 12ms Yes 28

1-Byte Sequence 2 52ms Yes 29

1-Byte Sequence 2 250ms Yes 2A

1-Byte Sequence 2 5sec Yes 2B

2-Byte Sequence No 12ms Yes 30

2-Byte Sequence No 52ms Yes 31

2-Byte Sequence No 250ms Yes 32

Trailing Characters

Idle Time Force Transmit:

Send Immediately after Sendcharacter

Hex

Binary to Hexadecimal Conversions UDS10/UDS100 User Guide

Pack Control Options Sendcharacter

Defined by a:

Trailing Characters

Idle Time Force Transmit:

Send Immediately after

Hex

Sendcharacter

2-Byte Sequence No 5sec Yes 33

2-Byte Sequence 1 12ms Yes 34

2-Byte Sequence 1 52ms Yes 35

2-Byte Sequence 1 250ms Yes 36

2-Byte Sequence 1 5sec Yes 37

2-Byte Sequence 2 12ms Yes 38

2-Byte Sequence 2 52ms Yes 39

2-Byte Sequence 2 250ms Yes 3A

2-Byte Sequence 2 5sec Yes 3B

Declaration of Conformity

(according to ISO/IEC Guide 22 and EN 45014)

Manufacturer’s Name & Address:

Lantronix 15353 Barranca Parkway, Irvine, CA 92618 USA

Declares that the following product:

Product Name Model: Device Servers UDS10 and UDS100

Conforms to the following standards or other normative documents: Safety: EN60950:1992+A1, A2, A3, A4, A11

Electromagnetic Emissions:

EN55022: 1994 (IEC/CSPIR22: 1993)

FCC Part 15, Subpart B, Class B

IEC 1000-3-2/A14: 2000

IEC 1000-3-3: 1994

Electromagnetic Immunity:

EN55024: 1998 Information Technology Equipment-Immunity Characteristics

IEC61000-4-2: 1995 Electro-Static Discharge Test IEC61000-4-3: 1996 Radiated Immunity Field Test IEC61000-4-4: 1995 Electrical Fast Transient Test IEC61000-4-5: 1995 Power Supply Surge Test IEC61000-4-6: 1996 Conducted Immunity Test IEC61000-4-8: 1993 Magnetic Field Test IEC61000-4-11: 1994 Voltage Dips & Interrupts Test

(L.V.D. Directive 73/23/EEC)

Supplementary Information:

This Class A digital apparatus complies with Canadian ICES-003 (CSA) and has been verified as being compliant within the Class A limits of the FCC Radio Frequency Device Rules (FCC Title 47, Part 15, Subpart B CLASS A), measured to CISPR 22: 1993 limits and methods of measurement of Radio Disturbance Characteristics of Information Technology Equipment. The product complies with the requirements of the Low Voltage Directive 72/23/EEC and the EMC Directive 89/336/EEC.

Export Control Classification Number 5A002, License exception ENC.

Manufacturer’s Contact:

Director of Quality Assurance, Lantronix 15353 Barranca Parkway, Irvine, CA 92618 USA Tel: 949-453-3990 Fax: 949-453-3995

Warranty

Lantronix warrants each Lantronix product to be free from defects in material and

workmanship for a period of TWO YEARS after the date of shipment. During this

period, if a customer is unable to resolve a product problem and Lantronix Technical Support determines the product is defective, a Return Material Authorization (RMA) will be issued. Following receipt of an RMA number, the customer shall return the product to Lantronix, freight prepaid. Upon verification of warranty, Lantronix will -- at its option -- repair or replace the product and return it to the customer freight prepaid. If the product is not under warranty, the customer may have Lantronix repair the unit on a fee basis or return it. No services are handled at the customer's site under this warranty. This warranty is voided if the customer uses the product in an unauthorized or improper way, or in an environment for which it was not designed.

Lantronix warrants the media containing its software product to be free from defects and warrants that the software will operate substantially according to Lantronix

specifications for a period of 60 DAYS after the date of shipment. The customer will

ship defective media to Lantronix. Lantronix will ship the replacement media to the customer.

* * * *

In no event will Lantronix be responsible to the user in contract, in tort (including negligence), strict liability or otherwise for any special, indirect, incidental or consequential damage or loss of equipment, plant or power system, cost of capital, loss of profits or revenues, cost of replacement power, additional expenses in the use of existing software, hardware, equipment or facilities, or claims against the user by its employees or customers resulting from the use of the information, recommendations, descriptions and safety notations supplied by Lantronix. Lantronix liability is limited (at its election) to:

Refund of buyer's purchase price for such affected products (without interest)

Repair or replacement of such products, provided that the buyer follows the above procedures.

There are no understandings, agreements, representations or warranties, express or implied, including warranties of merchantability or fitness for a particular purpose, other than those specifically set out above or by any existing contract between the parties. Any such contract states the entire obligation of Lantronix. The contents of this document shall not become part of or modify any prior or existing agreement, commitment, or relationship.

For details on the Lantronix warranty replacement policy, please go to our Web site at http://www.lantronix.com/support/warranty/index.html.

Index

Application examples, 10 ARP and Telnet, 58 ARPCache timeout, 36 AutoIP, 15, 57 Baudrate, 26 Binary to hexadecimal conversions, 59 BOOTP, 15, 58 Buffer flushing, 33 Cable, 53 Com Port Redirector tutorial, 19 Compliance, 75 Connect Mode, 28 Connectors, 51 DB9 to DB9 null-modem cable, 53 Defaults

List, 38 Resetting, 38

DeviceInstaller

Assigning IP address, 16 Disabling configuration by, 37

Installing from product CD, 16 DHCP, 15, 57 DHCP name, 25 Diagnostics, 43 Disabling TFTP for Upgrades, 37 Disconnect Mode, 33 Downloading firmware, 19 Echo port, 37 Error messages, 46 Ethernet address, 13 Firmware files, 39 Firmware upgrade, 39 Flow control, 27 Flush Mode, 33 Gateway, 16, 20, 24 Hardware address, 13, 15 Inactivity timeout, 35 Installation, 14 Interface (I/F) Mode, 26 Internal web server, 12 IP address

Alternative methods of assigning, 57 Assigning by DeviceInstaller, 16 Assigning by Web Manager, 20 Assigning in Setup Mode, 24 Factory default, 15 Remote, 32 Requirement, 15

Searching for on the network, 17 Label, 13 LEDs, 45 MAC address, 13 Modem emulation, 12 Modem Mode, 30 Monitor Mode

Accessing, 43

Commands, 44 Network class, 16 Null-modem cable, 53 Pack control, 34 Password

Channel (Port), 35

Enhanced security, 37 Pinouts, 19, 51 Port

9999 for Setup Mode access, 27

Disabling Echo, 37

Number, 27

Password, 35

Remote, 32 Power plug, 53 Protocols, 12 Redirection software, 10 Remote IP address, 32 Required information, 15 Reserved port numbers, 27 RJ45 Ethernet port, 53 RS-232 and RS-485/422 standards, 51 Security settings, 21, 36 Send characters, 35 Serial port

Accessing Setup Mode, 17

Index UDS10/UDS100 User Guide

Serial tunneling

Example, 10

Tutorial, 19 Server properties, 20 Setup Mode

Accessing by Serial Port, 23

Accessing using Telnet, 22

Disabling Telnet access, 37

using, 23 SNMP

Changing community name, 37

Disabling, 36 Subnet mask

Assigning on Web Manager, 20 TCP Keepalive time, 36

Technical specifications

UDS10, 55

UDS100, 56 Technical Support, 49 Telnet

Configuration password, 25

Password, 20

Terminal type, 35 TFTP, 40 Troubleshooting, 45 UDS settings configuration window, 19 Updating firmware, 39 Warranty, 76 Web browser, 18 Web Manager

Configuration using, 19

Disabling configuration by, 37

Lantronix UDS10, UDS100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contacts

Figures

Tables

Purpose and Audience

Chapter Summary

Additional Documentation

Applications

Application Examples

Protocol Support

Additional Features

Configuration Methods

Product Information Label

Installing the UDS

Required Information

Hardware Address

IP Address

Assigning the IP Address and Related Network Settings

DeviceInstaller

Serial Port Login

Accessing Web Manager

Using Web Manager

Example

Using a Telnet Connection

Using the Serial Port

Server Configuration (Network Configuration)

IP Address

Set Gateway IP Address

Netmask

Change Telnet configuration password

DHCP Naming

Channel 1 Configuration (Serial Port Settings)

Baudrate

I/F (Interface) Mode

Flow

Port Number

Connect Mode

Manual Connection

Remote IP Address

Remote Port

Disconnect Mode

Flush Mode

Pack Control

Disconnect Time (Inactivity Timeout)

Send Characters

Telnet Terminal Type

Channel (Port) Password

Expert Settings

TCP Keepalive time in s

ARP Cache timeout in s

Security Settings

Disable SNMP

SNMP Community Name

Disable Telnet Setup

Disable TFTP Firmware Upgrade

Disable Port 77FE (Hex)

Disable Web Setup

Disable ECHO Ports

Enable Enhanced Password

Factory Default Settings

Channel 1 Configuration Defaults

Expert Settings Defaults

Security Settings Defaults

Exit Configuration Mode

Obtaining Firmware

Reloading Firmware

Using DeviceInstaller

Using TFTP

Using Another Unit

Using the Serial Port

Entering Monitor Mode Using the Serial Port

Entering Monitor Mode Using the Network

Using Monitor Mode Commands

LEDs

Problems and Error Messages

Technical Support

Serial Port
