1: Introduction

Features

The SecureBox family of Secure Device Servers (SDS) allows serial devices such as those listed below to securely connect and communicate over Ethernet networks using the IP protocol family (TCP for connection-oriented stream applications and UDP for datagram applications).

 Security Alarms  Access Control Devices  Fire Control Panels  Time/Attendance Clocks and Terminals  ATM Machines  Data Collection Devices  RFID readers  Universal Power Supply (UPS) Management Units  Telecommunications Equipment  Data Display Devices

Protocol Support

The SDS1100 uses the Internet Protocol (IP) for network communications and the Transmission Control Protocol (TCP) to assure that no data is lost or duplicated, and that everything sent to the connection arrives correctly at the target.

Other supported protocols are listed below:

 ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, and SNMP for

network communications.

 TCP, UDP, and Telnet for connections to the serial port.  TFTP for firmware updates.  IP for addressing, routing, and data block handling over the network.  User Datagram Protocol (UDP) for typical datagram applications in which

devices interact with other devices without maintaining a point-to-point

connection.

SDS1100 User Guide 1: Introduction

Connections and Pinouts

Serial Port

The unit has a female DCE DB25 serial port that supports RS-232 and RS-485/422 serial standards (software selectable) up to 115 Kbps.

Figure 1-1. Serial Interface

DB25 Serial Port

Serial Connector Pinouts

The unit’s female DB25 connector provides an RS-232C, RS-485, or RS-422 DCE serial port. The default serial port settings are 9600 baud, 8 bits, no parity, and 1 stop bit.

Figure 1-2. DB25F DCE Serial Connector

SDS1100 User Guide 1: Introduction

Network Port

The unit's back panel contains a 9-30VDC power plug and an RJ45 (10/100) Ethernet port.

Figure 1-3. Network Interface

Ethernet Connector Pinouts

The unit supports 10 Mbps Ethernet through an RJ45 connector.

Figure 1-4. RJ45 Ethernet Connector

SDS1100 User Guide 1: Introduction

LEDs

The unit contains the following LEDs:

 10 Mbps Link/Activity (green)

 100 Mbps Link/Activity (green)

 Collisions

 Diagnostics (red)

 Status (yellow)

Simultaneously lit red and green LEDs mean something is wrong. If the red LED is lit or blinking, count the number of times the green LED blinks between its pauses. The following table explains the LED functions:

Table 1-1. SDS1100 LEDs

Serial LEDs Meaning

10 Mbps link/activity steady green Valid 10 Mbps network connection 10 Mbps link/activity blinking Network packets transmitting and receiving 100 Mbps link/activity steady green Valid 100 Mbps network connection 100Mbps link/activity blinking Network packets transmitting and receiving

Collision blinking red Network collisions Diagnostic steady red and status blinking

green Diagnostic blinking red and status

blinking green Status steady green Serial port not connected to network

Status blinking green Serial port connected to network

2 blinks = RAM error 4 blinks = EEPROM checksum error 5 blinks = Duplicate IP address on network

5 blinks = No DHCP response

Product Information Label

The product information label on the underside of the unit contains the following information about your specific unit:

 Bar Code

 Serial Number

 Product ID (name)

 Product Description

 Ethernet Address (also referred to as Hardware Address or MAC Address)

SDS1100 User Guide 1: Introduction

Technical Specifications

CPU, Memory Lantronix DSTni-LX 186 CPU, 48 MHz

1 MByte FLASH ROM 256 Kbytes zero wait state RAM

Serial Interface Female DB25 connector (DCE pinout)

Speed software selectable (300 to 115 kBaud)

Software selectable RS-232C or RS-422/485 Network Interface 10/100 RJ45 Ethernet Power Supply External adapter included

120VAC USA

100 - 240 VAC Universal with regional connectors Power Input 9-30 VDC or 9-24 VAC (1W maximum) Dimensions

Weight 0.35 Kg (0.8 lbs) Temperature

Relative Humidity Operating: 10% to 90% non-condensing, 40% to 60% recommended

Height: 2.3 cm (0.9 in)

Width: 6.4 cm (2.5 in)

Depth: 9.0 cm (3.5 in)

Operating range: 5° to 50° C (41° to 122° F)

Storage range: -40° to 66° C (-40° to 151° F)

Storage: 10% to 90% non-condensing

SDS1100 User Guide 1: Introduction

2: Getting Started

Addresses and Port Number

Ethernet (MAC) Address

The Ethernet address is also referred to as the hardware address or the MAC address. The first three bytes of the Ethernet Address are fixed and read 00-20-4A, identifying the unit as a Lantronix product. The fourth, fifth, and sixth bytes are unique numbers assigned to each unit.

Figure 2-1. Sample Ethernet Address

00-20-4A-14-01-18 or 00:20:4A:14:01:18

Internet Protocol (IP) Address

Every device connected to an IP network must have a unique IP address. This address is used to reference the specific unit.

Port Number

Every TCP connection and every UDP datagram is defined by a destination IP address and a port number. For example, a Telnet application commonly uses port number 23. A port number is similar to an extension on a PBX system.

The unit’s serial channel (port) can be associated with a specific TCP/UDP port number. Port number 9999 is reserved for access to the unit's Setup (configuration) Mode window.

SDS1100 User Guide 2: Getting Started

Physically Connecting the Unit

The following diagram shows a properly installed unit:

Figure 2-2. SDS1100 Connected to Serial Device and Netwo rk

To install the unit, complete the following steps in order. Refer to the numbers in the previous figure.

1. Connect a serial device to your unit. See Connections and Pinouts in the Introduction for more information about what kinds of device attachments the unit supports.

2. Connect an Ethernet cable to the 10/100 port.

3. Supply power to your unit using the power supply that was included in the

packaging.

Note: The required input voltage is 9-30 VDC or 9-24 VAC

(1 W maximum).

4. Supply power to the serial device.

SDS1100 User Guide 2: Getting Started

Methods of Assigning the IP Address

The unit's IP address must be configured before a network connection is available. You have the following options for assigning an IP to your unit:

Method Description

DHCP A DHCP server automatically assigns the IP address and network settings. DeviceInstaller You manually assign the IP address using a graphical user interface (GUI).

You must use a PC and the unit must be attached to the local network. ARP and Telnet

AutoIP This automatic method is appropriate when you have a small group of hosts rather

Serial Port Login

You manually assign the IP address and other network settings at a command

prompt using a UNIX or Windows-based system. Only one person at a time can

be logged into the configuration port (port 9999). This eliminates the possibility of

several people simultaneously attempting to configure the unit.

than a large network. This method allows the hosts to negotiate with each other

and assign addresses, in effect creating a small network.

You initially configure the unit through a serial connection.

These methods are described in the remaining sections of this chapter.

Note: In most installations, a fixed IP address is desirable. The systems

administrator generally provides the IP address. Obtain the following information before starting to set up your unit:

IP Address ___ ___ ___ ___ Subnet Mask: ___ ___ ___ ___ Gateway: ___ ___ ___ ___

SDS1100 User Guide 2: Getting Started

DHCP

The unit ships with a default IP address of 0.0.0.0, which automatically enables DHCP.

Provided a DHCP server exists on the network, it will provide the unit with an IP address, gateway address, and subnet mask when the unit boots up. The SDS1100 has acquired an IP address if the red LED stops flashing and the green Status LED is on continuously. (If no DHCP server exists, the unit responds with a diagnostic error: the red Diagnostic LED blinks continuously, and the green Status LED blinks five times. This blinking only continues for about 15 seconds.)

You can use the DeviceInstaller software to search the network for the IP your unit has been assigned by the DHCP server and add it to the managed list. See Add the

Unit to the Manage List later in this chapter.

Note: This DHCP address will not appear in the unit’s standard

configuration screens. You can, however, determine your unit’s DHCPassigned IP address in Monitor Mode. When you enter Monitor Mode from the serial port with network connection enabled (see Monitor Mode in the Troubleshooting chapter) and issue the NC (Network Communication) command, you will see the unit’s IP configuration.

AutoIP

The unit ships with a default IP address of 0.0.0.0, which automatically enables Auto IP within the unit. AutoIP is an alternative to DHCP that allows hosts to automatically obtain an IP address in smaller networks that may not have a DHCP server. A range of IP addresses (from 169.254.0.1 to 169.254.255.1) has been explicitly reserved for AutoIP-enabled devices. The range of Auto IP addresses is not to be used over the Internet.

If your unit cannot find a DHCP server, and you have not manually assigned an IP address to it, the unit automatically selects an address from the AutoIP reserved range. Then, your unit sends out a (ARP) request to other nodes on the same network to see whether the selected address is being used.

 If the selected address is not in use, then the unit uses it for local subnet

communication.

 If another device is using the selected IP address, the unit selects another

address from the AutoIP range and reboots itself. After reboot, the unit sends out another ARP request to see if the selected address is in use, and so on.

AutoIP is not intended to replace DHCP. The unit will continue to look for a DHCP server on the network. If a DHCP server is found, the unit will switch to the DHCP server-provided address and reboot.

Note: If a DHCP server is found, but it denies the request for an IP address,

the unit does not attach to the network, but waits and retries.

AutoIP can be disabled by setting the unit’s IP address to 0.0.1.0. This setting enables DHCP but disables AutoIP.

SDS1100 User Guide 2: Getting Started

DeviceInstaller

You can manually assign the IP address using the DeviceInstaller, which is on the product CD.

Install the DeviceInstaller

1. Insert the product CD into your CD-ROM drive. The Lantronix SDS1100 DeviceServer window displays.

2. If the CD does not launch automatically:

3. Click the Start button on the Task Bar and select Run.

4. Enter your CD drive letter, colon, backslash, deviceinstaller.exe (e.g., E:\deviceinstaller.exe).

5. Click the DeviceInstaller button. The installation wizard window displays.

6. Respond to the installation wizard prompts. (When prompted to select an installation type, select Typical.)

Assign IP Address and Network Class

1. Click the Start button on the Task Bar and select Programs Æ Lantronix Æ Device Installer Æ Device Installer. The DeviceInstaller window displays.

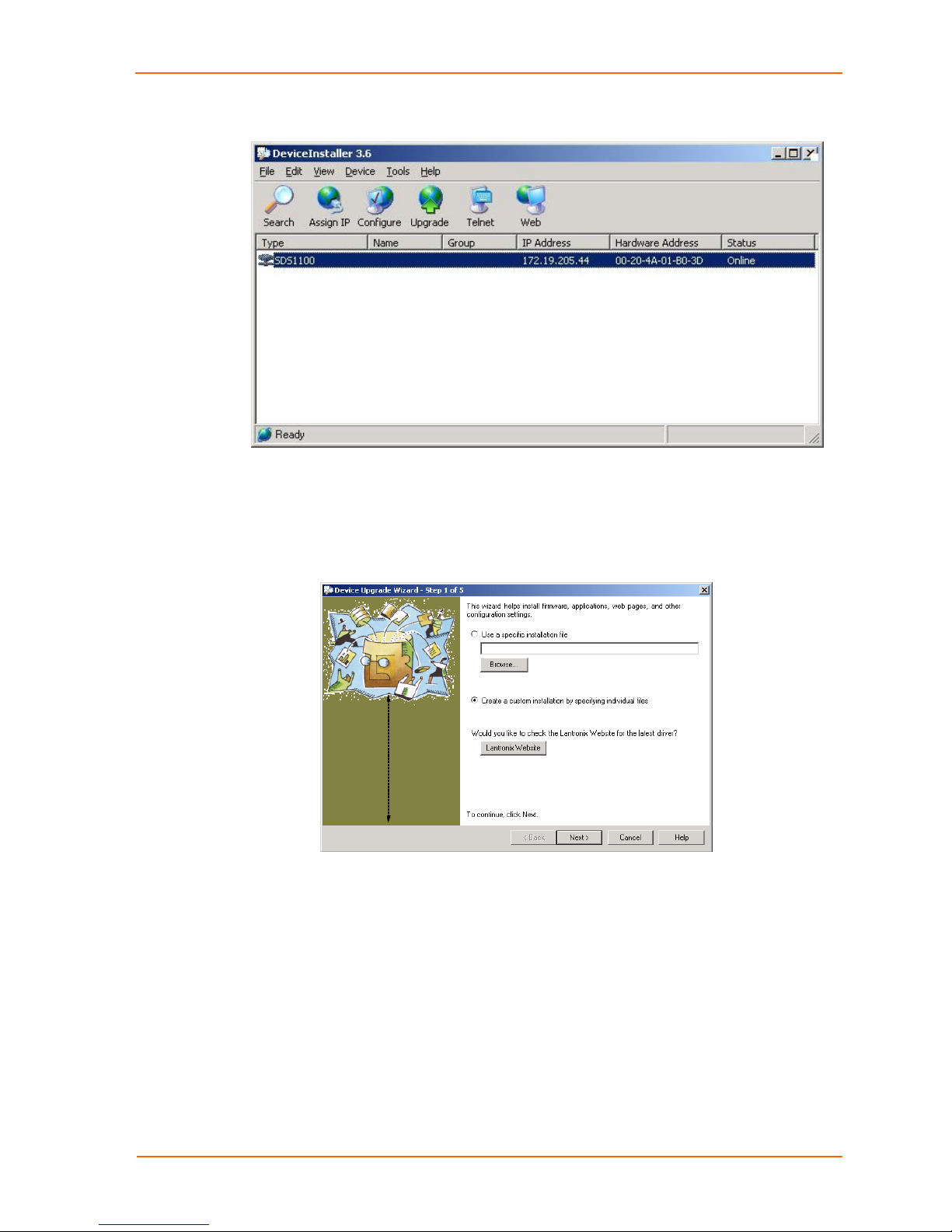

Figure 2-3. DeviceInstaller Window

SDS1100 User Guide 2: Getting Started

2. Click the Assign IP icon . The Assign IP Address window displays.

Figure 2-4. Assign IP Address Window (Device Identification)

3. Enter the Hardware or Ethernet address of the device. The following Assign IP

Address window appears.

Figure 2-5. Assign IP Address Window (Assignment Method)

SDS1100 User Guide 2: Getting Started

4. Select Assign a specific IP address to assign a static IP address to the device or select Obtain an IP address automatically to enable BOOTP, DHCP, or Auto IP on the device.

5. Click Next. The following Assign IP Address window appears.

Figure 2-6. Assign IP Address Window (IP Settings)

6. Enter the IP address, subnet mask, and gateway being assigned to the device. Enter this information in XXX.XXX.XXX.XXX format.

7. Click Next. The following Assign IP Address window appears.

SDS1100 User Guide 2: Getting Started

Figure 2-7. Assign IP Address Window (Assignment)

8. Click the Assign button to finalize the IP assignment.

Add the Unit to the Manage List

Now add the unit to the list of similar Lantronix devices on the network so that you can manage and configure it. To perform this step, click the Search icon:

The device should be located by DeviceInstaller and added into the Device List. Now you can manage (configure) the unit so that it works with the serial device on the network.

Opening a Configuration Window

Once the device is added into the list, use the Configure, Upgrade, Telnet, or Web icons to manage the device.

SDS1100 User Guide 2: Getting Started

Figure 2-8. Device Management Window

1. Do one of the following:

Note: To assign Expert settings and Security settings, you must use the

Setup Mode window in a Telnet session.

 To configure the unit via a Web browser, click the Web icon. The Lantronix

WEB-Manager window displays in your browser.

 To configure the unit via a Telnet session, click the Telnet icon. The Setup

Mode window displays.

2. Continue with the appropriate configuration procedure described in the next chapter.

Note: The Configure icon on the Device Management window allows

you to save a configuration locally on your computer as a file. It is helpful to save the file, in case, for example, someone changes the configuration of the unit incorrectly. The Configure icon sends a saved file to the unit.

ARP and Telnet

The unit’s IP address must be configured before a network connection is available. If the unit has no IP address, you can use the Address Resolution Protocol (ARP) method from UNIX and Windows-based systems to assign a temporary IP address. If you want to initially configure the unit through the network, follow these steps:

1. On a UNIX or Windows-based host, create an entry in the host's ARP table using the intended IP address and the hardware address of the unit, which is found on the product label on the bottom of the unit.

Figure 2-9. ARP on UNIX

arp -s 191.12.3.77 00:20:4a:xx:xx:xx

Note: For the ARP command to work on Windows 95, the ARP table on the

PC must have at least one IP address defined other than its own.

SDS1100 User Guide 2: Getting Started

2. If you are using Windows 95, type ARP -A at the DOS command prompt to verify

that there is at least one entry in the ARP table. If the local machine is the only entry, ping another IP address on your network to build a new entry in the ARP table; the IP address must be a host other than the machine on which you are working. Once there is at least one additional entry in the ARP table, use the following command to ARP an IP address to the unit:

Figure 2-10. ARP on Windows

arp -s 191.12.3.77 00-20-4a-xx-xx-xx

3. Open a Telnet connection to port 1. The connection will fail quickly, but the unit

will temporarily change its IP address to the one designated in this step.

Figure 2-11. Telnet to Port 1

telnet 191.12.3.77 1

4. Finally, open a Telnet connection to port 9999, and press Enter within three

seconds to go into Setup Mode. If you wait longer than three seconds, the unit will reboot.

5. Set all required parameters

Note: The IP address you just set is temporary and will revert to the default

value when the unit 's power is reset unless you log into the unit and store the changes permanently. Refer to the chapter on configuration for instructions on permanently configuring the IP address.

Serial Port Login

If you want to initially configure the unit through a serial connection, follow these steps:

1. Connect a console terminal or PC running a terminal emulation program to the

unit's Channel 1 serial port. The default serial port settings are 9600 baud, 8 bits, no parity, 1 stop bit, no flow control.

2. To enter Setup Mode, cycle the unit's power (power off and back on). After

power-up, the self-test begins and the red Diagnostic LED starts blinking. You have one second to enter three lowercase x characters.

Note: The easiest way to enter Setup Mode is to hold down the x key at

the terminal (or emulation) while powering up the unit.

Figure 2-12. Telnet to Port 9999

telnet 191.12.3.77 9999

SDS1100 User Guide 2: Getting Started

3. Select 0 (Server Configuration) and follow the prompts until you get to IP address.

4. Enter the new IP address, Subnet Mask, and Gateway (if applicable).

5. Select 9 to save the configuration and exit Setup Mode. The unit performs a power reset.

3: Configuring the Unit

You must configure the unit so that it can communicate on a network with your serial device. For example, you must set the way the unit will respond to serial and network traffic, how it will handle serial packets, and when to start or close a connection. You can configure your unit locally or remotely using the following procedures:

 Use a standard Web browser to access the unit’s internal Web pages and

configure the unit over the network. This is the easiest and preferred method.

 Use a Telnet connection to configure the unit over the network.  Use a terminal or terminal emulation program to access the serial port

locally.

The unit’s configuration is stored in nonvolatile memory (NVRam) and is retained without power. You can change the configuration at any time. The unit performs a reset after the configuration has been changed and stored.

Configuring via Web Browser

If your unit already has an IP address, you can log into it using a standard Web browser with Java enabled.

1. Type the unit's IP address into the Web browser's URL (Address/Location) field.

Figure 3-1. Web Browser Login

2. When the SDS Configuration Guidelines Page appears, select one of the four

links:

SDS1100 User Guide 3: Configuring the Unit

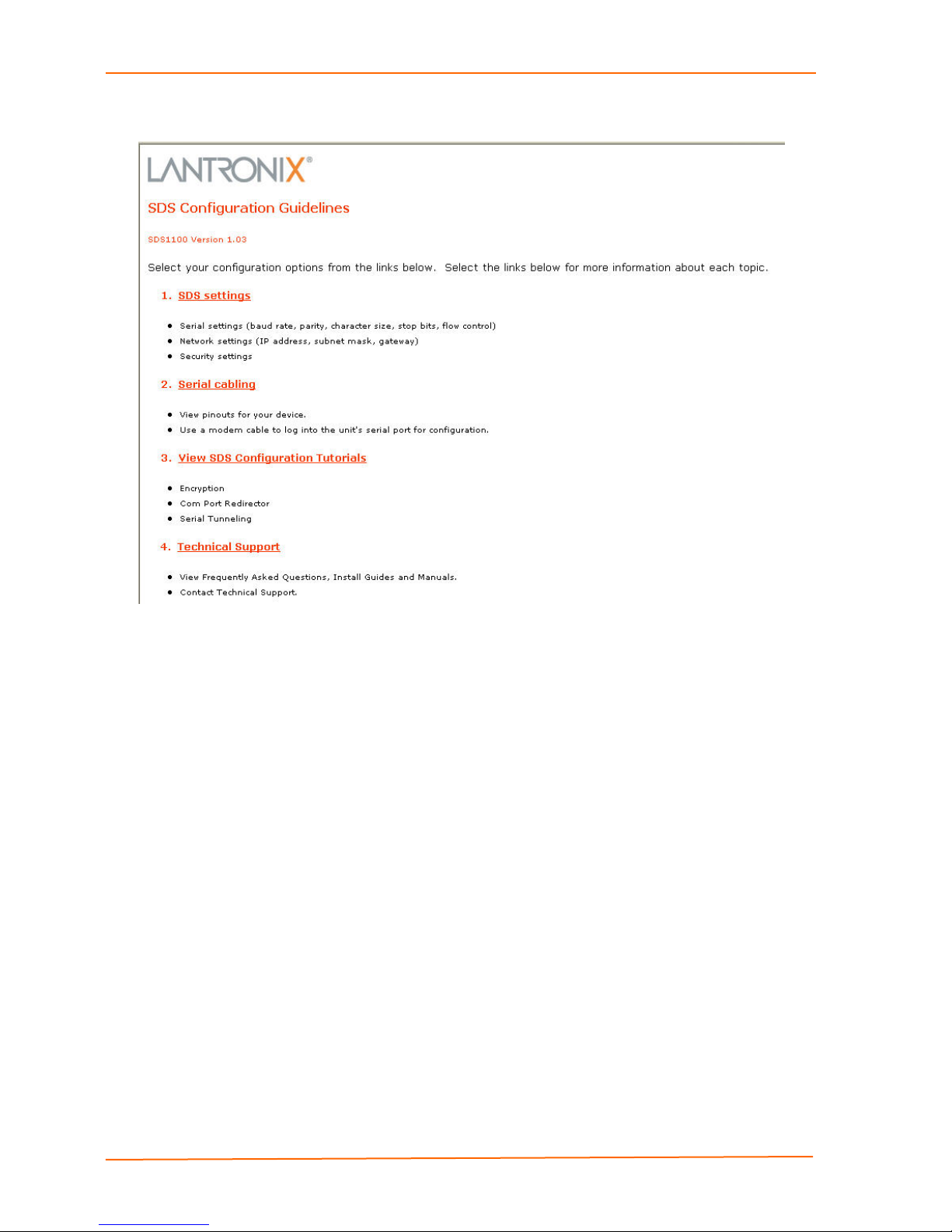

Figure 3-2. SDS Configuration Guidelines Page

 SDS settings opens a configuration window to configure the SDS1100, as

shown in Figure 3-3.

 Serial cabling lets you view pinouts for the SDS serial port.  View SDS Configuration Tutorials provide step-by-step instructions for

configuring encryption, serial tunneling, and the Com Port Redirector.

 Technical Support lets you download the latest firmware for your SDS and

view documentation.

SDS1100 User Guide 3: Configuring the Unit

Figure 3-3. Lantronix WEB-Manager

To configure the unit via a Web browser, select SDS Settings and perform the following steps.

1. Use the menu (pushbuttons) to navigate to sub pages where you can configure

server settings. See explanations of the configuration parameters later in this chapter.

Note: The sequence of parameters explained and examples shown later

in this chapter correspond to the Setup Mode window rather than to the WEB-Manager sub pages.

2. When you are finished, click the Update Settings button to save your settings. For example, to enter server properties:

1. Click the Server Properties button. The Server Properties section of the Web

page displays.

2. Confirm or enter values for

 IP Address  Subnet Mask  Gateway Address

SDS1100 User Guide 3: Configuring the Unit

Figure 3-4. Server Properties Configuration on the Web Browser

3. In the Telnet Password field, enter a password to prevent unauthorized access to the Setup Mode via a Telnet connection to port 9999. The password is limited to 4 characters. (An enhanced password setting of 16 characters is available under Security Settings on the Telnet Setup Mode window.)

Note: No password is required to access the Setup Mode window via a

serial connection.

4. Click the Update Settings button.

Configuring via the Setup Mode Window

Using a Telnet Connection

To configure the unit over the network, establish a Telnet connection to port 9999.

Note: You can also use the Telnet to Device icon on the DeviceInstaller

Device Management window to establish the connection.

1. From the Windows Start menu, click Run and type the following command, where x.x.x.x is the IP address and 9999 is the unit’s fixed network configuration port number.

Note: Be sure to include a space between the IP address and 9999.

Figure 3-5. Network Login Using Telnet

telnet x.x.x.x 9999

SDS1100 User Guide 3: Configuring the Unit

2. Click OK. The Setup Mode window displays. To remain in Setup Mode, you

must press Enter within 5 seconds.

Figure 3-6. Setup Mode Window

3. Select an option on the menu by entering the number of the option in the Your

choice ? field and pressing Enter.

4. To enter a value for a parameter, type the value and press Enter, or to confirm a

current value, just press Enter.

5. When you are finished, save the new configurations (option 9). The unit will

reboot.

SDS1100 User Guide 3: Configuring the Unit

For example, to set Channel 1 parameters:

1. Type 1 in the Your choice? field and press Enter.

Figure 3-7. Channel 1 Configuration

2. In the Baudrate field, accept 9600 by pressing Enter or enter the speed you wish to use.

3. In the I/F Mode field accept the default (4C) or change the I/F (serial) settings.

4. Continue entering the listed parameters, or accept the defaults by pressing Enter:

5. When you are finished entering all of the parameters (all options), save the new configurations (option 9). The unit will reboot.

Using the Serial Port

For local configuration, a terminal or a PC running a terminal emulation program can be connected to the unit’s serial port (channel 1). The terminal (or emulation) should be configured for 9600 baud, 8-bit, no parity, 1 stop bit, and no flow control.

1. Cycle the unit’s power (power off and back on). After power-up, the self-test begins and the diagnostic and status LEDs start blinking.

2. Type three lowercase x characters (xxx) within one second after powering up in order to start the configuration mode. The Setup Mode window displays. (See the example in Using a Telnet Connection.)

Note: The easiest way to enter Setup Mode is to hold down the x key on

your keyboard while powering up the unit.

3. Select an option on the menu by entering the number of the option in the Your choice ? field and pressing Enter.

SDS1100 User Guide 3: Configuring the Unit

4. To enter a value for a parameter, type the value and press Enter, or to confirm a

default value, just press Enter.

5. When you are finished, save the new configuration (option 9). The unit will

reboot.

Server Configuration (Network Configuration)

These are the unit’s basic network parameters.

Figure 3-8. Network Configuration

IP Address

The IP address must be set to a unique value in your network. See Methods for Assigning the IP Address for more information about IP addressing.

Set Gateway IP Address

The gateway address, or router, allows communication to other LAN segments. The gateway address should be the IP address of the router connected to the same LAN segment as the unit. The gateway address must be within the local network.

Netmask

A netmask defines the number of bits taken from the IP address that are assigned for the host section.

Note: Class A: 24 bits; Class B: 16 bits; Class C: 8 bits.

The unit prompts for the number of host bits to be entered, then calculates the netmask, which is displayed in standard decimal-dot notation when the saved parameters are displayed (for example, 255.255.255.0).

Table 3-1. Standard IP Network Netmasks

Network Class Host Bits Netmask

A 24 255.0.0.0 B 16 255.255.0.0 C 8 255.255.255.0

SDS1100 User Guide 3: Configuring the Unit

Table 3-2. Netmask Examples

Netmask Host Bits

255.255.255.252 2

255.255.255.248 3

255.255.255.240 4

255.255.255.224 5

255.255.255.192 6

255.255.255.128 7

255.255.255.0 8

255.255.254.0 9

255.255.252.0 10

255.255.248.0 11

... ...

255.128.0.0 23

255.0.0.0 24

Change Telnet configuration password

Setting the Telnet configuration password prevents unauthorized access of the setup menu via a Telnet connection to port 9999 or via Web pages. The password is limited to 4 characters. An enhanced password setting of 16 characters is available under Security Settings for Telnet access only.

Note: No password is required to access the Setup Mode window via a

serial connection.

DHCP Naming

A DHCP name is a unique identifier used for managing multiple DHCP hosts on a network. Your unit ships with a default DHCP name of Cxxxxxx, where xxxxxx are the last six digits of the Mac address.

You can change the DHCP name (up to eight characters) when configuring the server on the Setup Mode window. Change the DHCP name to LTXdd, where

0.0.0.dd is the IP address assigned (dd should be a number between 1 and 99). For

example, if the IP address is set to 0.0.0.5, the resulting DHCP name is LTX05. DHCP gives the unit a DHCP address when a LTX05 name is given.

If you give the unit an IP of 0.0.0.0, you then have the option to assign an 8-character DHCP name.

Figure 3-9. Server Configuration Option

Change DHCP device name (LTRX) ? (N) Y Enter new DHCP device name : LTRXYES

SDS1100 User Guide 3: Configuring the Unit

Channel 1 Configuration (Serial Port Parameters)

Using this option, define how the serial port will respond to network and serial communications.

Figure 3-10. Channel 1 Configuration

Baudrate

The unit and attached serial device, such as a modem, must agree on a speed or baud rate to use for the serial connection. Valid baud rates are 300, 600, 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600, and 115200 bits per second.

I/F (Interface) Mode

The Interface (I/F) Mode is a bit-coded byte that you enter in hexadecimal notation.

Note: If you do not want to convert the binary numbers to hexadecimals

yourself, look up the values in Table 6-6. Interface Mode Options in the Binary to Hexadecimal chapter.

Table 3-3. Interface Mode Options

I/F Mode Option Bit 7 6 5 4 3 2 1 0

RS-232C 0 0 RS-422/485 0 1 RS-485 2-wire 1 1 7 Bit 1 0 8 Bit 1 1 No Parity 0 0 Even Parity 1 1 Odd Parity 0 1 1 Stop bit 0 1 2 Stop bit 1 1

SDS1100 User Guide 3: Configuring the Unit

The following table demonstrates how to build some common Interface Mode settings:

Table 3-4. Common Interface Mode Settings

Common I/F Mode Setting Binary Hex

RS-232C, 8-bit, No Parity, 1 stop bit 0100 1100 4C RS-232C, 7-bit, Even Parity, 1 stop bit 0111 1000 78 RS-485 2-Wire, 8-bit, No Parity, 1 stop bit 0100 1111 4F RS-422, 8-bit, Odd Parity, 1 stop bit 0101 1101 5D

Flow

Flow control sets the local handshake method for stopping serial input/output.

Table 3-5. Flow Control Options

Flow Control Option Hex

No flow control 00 XON/XOFF flow control 01 Hardware handshake with RTS/CTS lines 02 XON/XOFF pass characters to host 05

Port Number

The setting represents the source port number in TCP connections. It is the number that identifies the channel for remote initiating connections. The default setting for Port 1 is 10001. The range is 1-65535, except for the following reserved port numbers:

Table 4-5. Reserved Port Numbers

Port Numbers Reserved for

1 – 1024 Reserved ( well known ports) 9999 Telnet setup 14000-14009 Reserved for Redirector 30718 Reserved (77FEh)

Warning: We recommend that you not use the reserved port numbers

for this setting as incorrect operation may result.

The port number functions as the TCP/UDP source port number for outgoing packets. Packets sent to the unit with this port number are received to this channel. The port number selected is the Incoming TCP/UDP port and Outgoing TCP/UDP source port. Use Port 0 when you want the outgoing source port to change with each connection.

If the port number is 0, a random value of at least 50000 is used to actively establish a connection. Each subsequent connection increments the number by 1. When the port number reaches 59999, it wraps around to 50000.

Only use the automatic port increment feature to initiate a connection using TCP. Set the port to a non-zero value when the unit is in a passive mode or when you are using UDP instead of TCP.

SDS1100 User Guide 3: Configuring the Unit

Connect Mode

Connect Mode defines how the unit makes a connection, and how it reacts to incoming connections over the network. Enter Connect Mode options in hexadecimal notation.

Note: If you do not want to convert the binary numbers to hexadecimals

yourself, look up the values in Table 6-2. Connect Mode Options in the Binary to Hexadecimal chapter.

Table 3-6. Connect Mode Options

Connect Mode Option Bit 7 6 5 4 3 2 1 0

Incoming Connection Never accept incoming 0 0 0 Accept incoming with DTR 0 1 0 Accept unconditional 1 1 0 Response Nothing (quiet) 0 Character response (C=conn, D=disconn, N=unreachable) 1 Startup No active startup 0 0 0 0 With any character 0 0 0 1 With active DTR 0 0 1 0 With a specific start character 0 0 1 1 Manual connection 0 1 0 0 Autostart 0 1 0 1 Hostlist 0 0 1 0 Datagram Type Directed UDP 1 1 0 0 Modem Mode Full Verbose 1 0 1 1 0 Without Echo 0 0 1 1 0 Numeric modem result codes 1 0 1 1 1

Manual Connection: When you use manual connection, you are not required to enter the entire IP address if the IP is already configured as the remote IP address in the unit. For example, if the remote IP address already configured in the unit is

129.1.2.3, then an example command string would be C3/7. (This would connect to

129.1.2.3 and port 7.) You may also use a different ending for the connection string. For example, C50.1/23 would connect you to 129.1.50.1 and port 23.

SDS1100 User Guide 3: Configuring the Unit

Table 3-7. Manual Connection Address Example

Command String Result if remote IP is 129.1.2.3 and re mote port is 1234

C121.2.4.5/1 Complete override; connection is started with host 121.2.4.5, port 1 C5 Connect to 129.1.2.5, port 1234 C28.10/12 Connect to 129.1.28.10, port 1 2

Autostart (Automatic Connection): If autostart is enabled, the unit automatically connects to the remote IP address and remote port specified.

Datagram Type: When selecting this option, you will be prompted for the Datagram type. Enter

01 for directed or broadcast UDP.

Hostlist: If you enable this option, the Lantronix unit scrolls through the hostlist until it

connects to a device listed in the hostlist table. Once it connects, the unit stops trying to connect to any others. If this connection fails, the unit continues to scroll through the table until it is able to connect to another IP in the hostlist. Only Channel 1 supports the hostlist option.

Figure 3-11. Hostlist Option

SDS1100 User Guide 3: Configuring the Unit

To use this ability, follow these steps:

1. To enable the hostlist, enter a Connect Mode of 0x20 (2X). The menu shows you

a list of current entries already defined in the product.

2. To delete, modify, or add an entry, select Yes. If you enter an IP address of

0.0.0.0, that entry and all others after it are deleted.

3. After completing the hostlist, repeat the previous step if necessary to edit the

hostlist again.

4. For Retrycounter, enter the number of times the Lantronix unit should try to make

a good network connection to a hostlist entry that it has successfully ARPed.

5. For Retrytimeout, enter the number of seconds the unit should wait before failing

an attempted connection.

Modem (Emulation) Mode: In Modem Mode, the unit presents a modem interface to the attached serial device. It accepts AT-style modem commands, and handles the modem signals correctly.

Normally there is a modem connected to a local PC and a modem connected to a remote machine. A user must dial from the local PC to the remote machine, accumulating phone charges for each connection. Modem Mode allows you to replace modems with SDS1100s, and to use an Ethernet connection instead of a phone call, without having to change communications applications and make potentially expensive phone calls.

To select Modem Mode, set the Connect Mode to

C6 (no echo), D6 (echo with full

verbose), or D7 (echo with 1-character response).

Note: If the unit is in Modem Mode and the serial port is idle, the unit can

still accept network TCP connections to the serial port if Connect Mode is set

C6 (no echo), D6 (echo with full verbose), or D7 (echo with 1-character

to response).

In Modem Mode, echo refers to the echo of all of the characters entered in command mode; it does not mean to echo data that is transferred. Quiet Mode (no echo) refers to the modem not sending an answer to the commands received (or displaying what was typed).

To disconnect a connection using Modem Mode commands:

 There must be 1-second guardtime (no data traffic) before sending +++.  There must not be a break longer that 1 second between +s.  There must be another 1-second guardtime after the last + is sent.  The unit acknowledges with an OK to indicate that it is in command mode.  Enter ATH and press Enter. It is echoed if echo is enabled. ATH is

acknowledged by another OK.

SDS1100 User Guide 3: Configuring the Unit

Table 3-8. Modem Mode Commands

Modem Mode Command Function

ATDTx.x.x.x,pppp or ATDTx.x.x.x/pppp

ATDTx.x.x.x ATD0.0.0.0 ATD ATDx.x.x.x

ATH ATDTx.x.x.x,pppp

or ATDTx.x.x.x/pppp

ATS0=n

Makes a connection to an IP address (x.x.x.x) and a remote port number (pppp).

Makes a connection to an IP address (x.x.x.x) and the remote port number defined within the unit. Forces the unit into monitor mode if a remote IP address and port number are defined within the unit. Forces the unit into monitor mode if a remote IP address and port number are not defined within the unit. Makes a connection to an IP address (x.x.x.x) and the remote port number defined within the unit.

Hangs up the connection (Entered as Makes a connection to an IP address (x.x.x.x) and a remote port number

(pppp).

Enables or disables connections from the network going to the serial port. n=0 disables the ability to make a connection from the network to the serial port. n=1-9 enables the ability to make a connection from the network to the serial port. n>1-9 is invalid.

+++ATH ).

ATEn

ATVn

Enables or disables character echo and responses. n=0 disables character echo and responses. n=1 enables character echo and responses. Enables 1-character response or full verbose. n=0 enables 1-character response. n=1 enables full verbose.

Note: These AT commands are only recognized as single commands like

ATE0 or ATV1; compound commands such as ATE0V1 are not recognized. All other AT commands with Modem Mode set to

full verbose acknowledge

with an OK, but no action is taken.

Remote IP Address

This is the destination IP address used with an outgoing connection.

Remote Port

The remote TCP port number must be set for the unit to make outgoing connections. This parameter defines the port number on the target host to which a connection is attempted.

Note: To connect an ASCII terminal to a host using the unit for login

purposes, use the remote port number Telnet services).

23 (Internet standard port number for

DisConnMode

In DisConnMode (Disconnect Mode), DSR drop either drops the connection or i s ignored.

SDS1100 User Guide 3: Configuring the Unit

Note: If you do not want to convert the binary numbers to hexadecimals yourself,

look up the values in Table 6-4. Disconnect Mode Options in the Binary to Hexadecimal chapter.

Table 3-9. Disconnect Mode Options

Disconnect Mode Option Bit 7 6 5 4 3 2 1 0

Disconnect with DTR drop 1 Ignore DTRa 0 Telnet mode and terminal type setup1 1 Channel (port) password Hard disconnect

Disable hard disconnect 1 State LED off with connection Disconnect with EOT (^D)

1. The SDS will send the "Terminal Type" upon an outgoing connection.

2. A password is required for a connection to the serial port from the network.

3. The TCP connection will close even if the remote site does not a cknowledge

the disconnection.

4. When there is a network conne ction to or from the serial port, the state LED

will turn off instead of blink.

5. When Ctrl D or Hex 04 are detected, the con nection is dropped. Both Telnet

mode and Disconnect with EOT must be enabled for Di sconnect with EOT t o function properly. Ctrl D will only be detected going from the serial port to the network.

1 0

1 1

Flush Mode (Buffer Flushing)

Using this parameter, you can control line handling and network buffers with connection startup and disconnect. You can also select between two different packing algorithms.

Note: If you do not want to convert the binary numbers to hexadecimals

yourself, look up the values in Table 6-5. Flush Mode Options in the Binary to Hexadecimal chapter.

Table 3-10. Flush Mode Options

Function Bit 7 6 5 4 3 2 1 0

Input Buffer (Serial to Network) Clear with active connection (from serial) 1 Clear with passive connection (from network) 1 Clear with disconnect 1 Output Buffer (Network to Serial) Clear with active connection (from serial) 1 Clear with passive connection (from network) 1 Clear with disconnect 1 Alternate Packing Algorithm (Pack Control) Enable 1

Pack Control

Two firmware-selectable packing algorithms define h ow and when packets are sent to the network. The standard algorithm is optimized for applications in which the unit is used in a local environment, allowing for very small delays for single characters while keeping the packet count low. The alternate packing algorithm minimizes the

SDS1100 User Guide 3: Configuring the Unit

packet count on the network and is especially useful in applications in a routed Wide Area Network (WAN). Adjusting parameters in this mode can economize the network data stream.

Pack control settings are enabled in Flush Mode. Set this value to

00 if specific

functions are not needed.

Note: If you do not want to convert the binary numbers to hexadecimals

yourself, look up the values in Table 6-7. Pack Control Options in the Binary to Hexadecimal chapter.

Table 3-11. Pack Control Options

Option Bit 7 6 5 4 3 2 1 0

Idle Time Force transmit: 12ms 0 0 Force transmit: 52ms 0 1 Force transmit: 250ms 1 0 Force transmit: 5sec 1 1 Trailing Characters None 0 0 One 0 1 Two 1 0 Send Characters 2-Byte Send Character Sequence 1 Send Immediately After Send chars 1

Idle Time: Idle time to "Force transmit" defines how long the unit should wait before sending accumulated characters. This wait period is between characters. If there is an idle period between characters equal to the force transmit set, then the SDS will package up the serial data currently in the buffer and send it to the network.

Trailing Characters: In some applications, CRC, Checksum, or other trailing characters follow the end-of-sequence character; this option helps to adapt fram e transmission to the frame boundary.

Send Characters: If 2-Byte Send Character Sequence is enabled, the unit interprets the sendchars as a 2-byte sequence; if not set, they are interpreted independently.

If Send Immediately After Send Characters is not set, any characters already in the serial buffer are included in the transmission after a "transmit" condition is found. If set, the unit sends immediately after recognizing the transmit condition (sendchar or timeout).

Note: A transmission might occur if status information needs to be

exchanged or an acknowledgment needs to be sent.

DisConnTime (Inactivity Timeout)

Use this parameter to set an inactivity timeout. The connection is dropped if there is no activity on the serial line before the set time expires. Enter time in the following format: mm:ss, where m is the number of minutes and s is the number of seconds. To disable the inactivity timeout, enter

00:00.

SDS1100 User Guide 3: Configuring the Unit

Send Characters

You can enter up to two characters in hexadecimal representation in the parameters "sendchar." If a character received on the serial line matches one of these characters, it is sent immediately, along with any awaiting characters, to the TCP connection. This minimizes the response time for specific protocol characters on the serial line (for example, ETX, EOT, etc.). Setting the first sendchar to recognition of the characters. Alternatively, the two characters can be interpreted as a sequence (see Pack Control above).

00 disables the

Telnet Terminal Type

This parameter appears only if the terminal type option is enabled in Disconnect Mode (see DisConnMode above). If this option is enabled, you can use the terminal name for the Telnet terminal type. Enter only one name.

If the terminal type option is enabled, the unit also reacts to the EOR (end of record) and binary options, which can be used for applications like terminal emulation to IBM hosts.

Channel (Port) Password

This parameter appears only if the channel (port) password option is enabled in Disconnect Mode (see above). If it is enabled, you can set a password on the serial port.

Expert Settings

Note: You can change these settings via Telnet or serial connections only,

not on the Web-Manager.

TCP Keepalive time in s

This option allows you to change how many seconds the unit will wait during a silent connection before attempting to see if the currently connected network device is still on the network. If the unit then gets no response, it will drop that connection.

Figure 3-12. Expert Settings Options

SDS1100 User Guide 3: Configuring the Unit

ARP Cache timeout in s

Whenever the unit communicates with another device on the network, it will add an entry into its ARP table. The ARP Cache timeout option allows you to define how many seconds (1-600) the unit will wait before timing out this table.

Security Settings

Note: You can change these settings via Telnet or serial connections only,

not on the Web-Manager. We recommend that you set security over the dedicated network or over the serial setup. If you set parameters over the network (Telnet 9999), someone else could capture these settings.

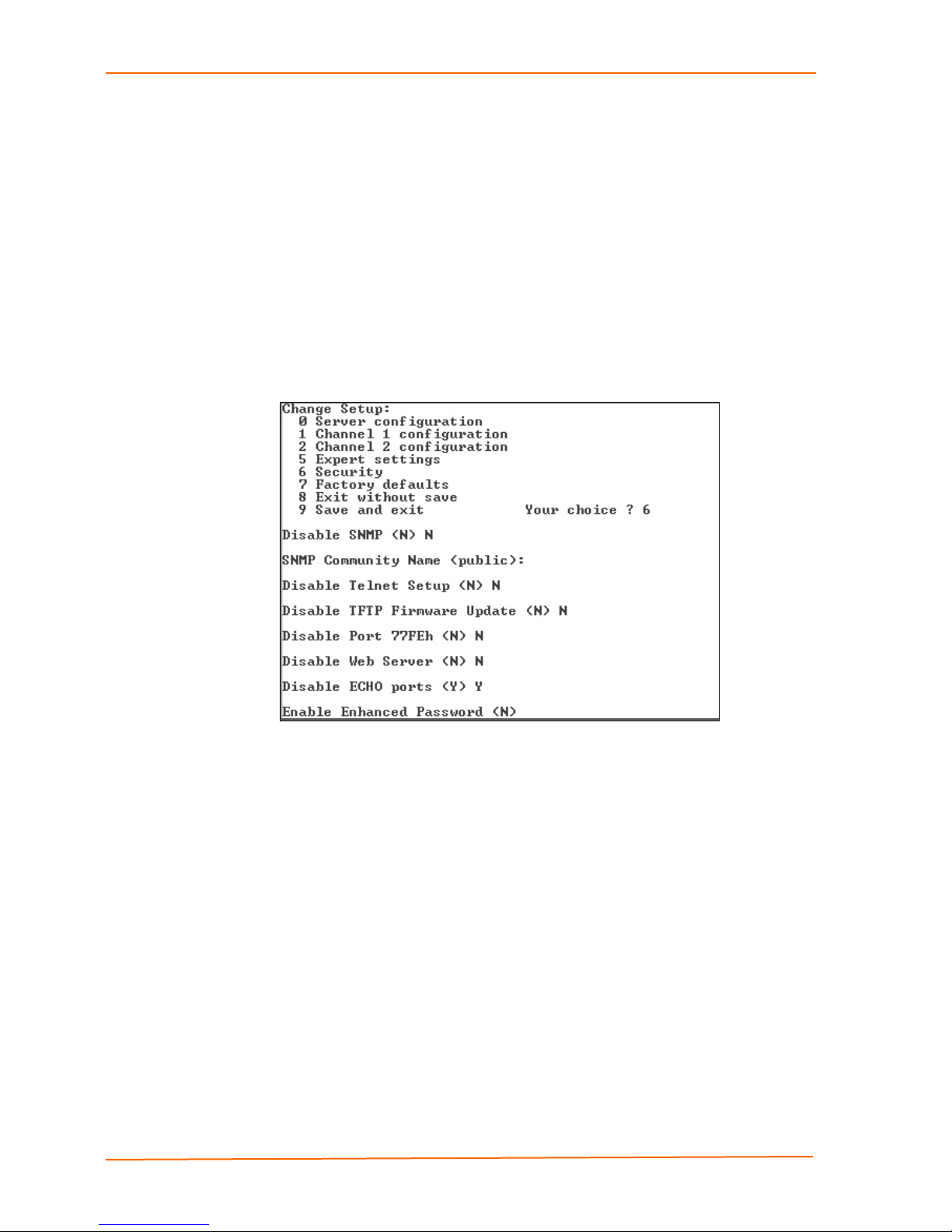

Figure 3-13. Security Settings

Disable SNMP

This setting allows you to disable the SNMP protocol on the unit preventing SNMP management software from communicating with the SDS.

SNMP Community Name

This option allows you to change the SNMP Community Name on the unit. This allows for ease of management, and possibly some security. If someone tries to violate security but doesn’t know what community to connect to, that person will be unable to get the SNMP community information from the unit.

Disable Telnet Setup

This setting prevents remote access to this Configuration Menu by Telnet (port 9999). Remote configuration access will still be available using the web interface or locally via the serial port of the unit.

SDS1100 User Guide 3: Configuring the Unit

Disable TFTP Firmware Upgrade

This setting disables the use of TFTP to perform network firmware upgrades. With this option, firmware upgrades can be performed only by using a *.hex file over the serial port of the unit.

Disable Port 77FE (Hex)

Port 77FE is a setting that allows the Lantronix Device Installer utility to configure the unit remotely. Disabling Port 77FE will prevent remote access to the unit from the Lantronix Device Installer utility. You can configure the unit only by using Web pages, Telnet, or serial configuration.

Disable Web Setup

This setting disables the use of the Web Page Configuration tool that is built into the unit. Browser initiated sessions to port 80 on the SDS will be disabled. Configuration via HTTP will be disabled. Port 80 will be closed.

Enable Enhanced Password

This setting defaults to the N (option), which allows you to set a 4-character password that protects the Configuration Menu via Telnet and Web pages. The Y (Yes) option allows you to set an extended security password of 16-characters for protecting Telnet access.

Enable Encryption

Rijndael is the block cipher algorithm chosen by the National Institute of Science and Technology (NIST) as the Advanced Encryption Standard (AES) to be used by the US government. The SDS supports 128-, 192-, and 256-bit encryption key lengths.

Follow the steps below to configure AES encryption on the SDS.

NOTE: Configuring encryption should be done through a local connection to

the serial port of the SDS, or via a secured network connection. Initial configuration information including the encryption key are sent in clear text over the network.

1. Telnet to the configuration port on the SDS (Port 9999).

An example of a Telnet command syntax is shown below. In the command examples below, replace the x's with the IP address of the SDS.

Microsoft Windows command syntax: xxx.xxx.xxx.xxx 9999 Unix command syntax: xxx.xxx.xxx.xxx 9999

2. When prompted, press Enter to go into setup mode.

3. At the Change Setup menu, select option 6 for security.

SDS1100 User Guide 3: Configuring the Unit

Figure 3-14. Encryption Keys

4. When prompted to enable encryption, press Y.

5. Enter the encryption key length when prompted. The SDS supports 128-, 192-, and 256-bit encryption key lengths.

6. When prompted to change keys, press Y.

7. At the Enter Keys prompts, enter your encryption key. The encryption keys are entered in hexadecimal. The hexadecimal values are echoed as asterisks to prevent onlookers from seeing the key. Hexadecimal values are 0-9 and A-F.

 For a 128-bit key length, enter 32 hexadecimal characters.  For a 192-bit key length, enter 48 hexadecimal characters.  For a 256-bit key length, enter 64 hexadecimal characters.

8. Continue pressing Enter until you return to the Change Setup menu.

9. At the Change Setup menu, select option 9 to save and exit.

Encryption only applies to the port selected for tunneling data (default 10001), regardless of whether you are using TCP or UDP.

Generally, one of two situations applies.

 Encrypted SDS-to-SDS communication. Be sure to configure both SDS

devices with the same encryption key.

 Third-party application to SDS-encrypted communication: SDS uses

standard AES encryption protocols. To communicate successfully , products and applications on the peer side must use the same protocols and the same shared key as the SDS. To ease the development process, Lantronix provides an AES encryption DLL for Windows and protocol source code samples. See the document “Encryption Enabling Serial Devices” on the Lantronix web site ( code.

Factory Default Settings

www.lantronix.com) for more instructions and sample

Select 7 to reset the unit’s serial port to the factory default settings. The server configurations (IP address information) remain unchanged. The specific settings that this option changes appear in the following sections.

SDS1100 User Guide 3: Configuring the Unit

Channel 1 Configuration Defaults

Baudrate 9600 I/F Mode 4C (1 stop bit, no parity, 8 bit, RS-232C) Own TCP port number 10001 Connect Mode C0 (always accept incoming connection; no active

connection startup) Hostlist retry counter 3 Hostlist retry timeout 250 (msec) Start character 0x0D (CR) All other parameters 0

Expert Settings Defaults

TCP keepalive 45 (seconds) ARP cache timeout 600 (seconds)

Security Settings Defaults

SNMP Enabled SNMP community name public Telnet setup Enabled TFTP download Enabled Port 77FEh Enabled Web Server Enabled ECHO Disabled Encryption Disabled Enhanced password Disabled

Exit Configuration Mode

Select 8 to exit the configuration mode without saving any changes or rebooting, OR select

9 to reboot and save all changes. All values are stored in nonvolatile memory.

4: Updating Firmware

Obtaining Firmware

You can obtain the most up-to-date firmware and release notes for the unit from the Lantronix Web site ( (

ftp://ftp.lantronix.com/).

Reloading Firmware

There are several ways to update the unit's internal operational code (SD11*.ROM or SD11*.HEX): via DeviceInstaller (the preferred way), via TFTP, via another unit, or

via serial port. You can also update the unit's internal Web interface (CBXW*.COB) via TFTP or DeviceInstaller.

www.lantronix.com) or by using anonymous FTP

Via DeviceInstaller

After downloading the firmware to your computer, you can use DeviceInstaller to install it. If you haven’t already installed DeviceInstaller from the product CD, see

Install the DeviceInstaller.

1. Download the updated firmware files from

ftp://ftp.lantronix.com/ and store them in a subfolder on your computer.

2. Click the Start button on the Task Bar and select Programs Æ Lantronix Æ

DeviceInstaller Æ Device Installer. The DeviceInstaller window displays.

Figure 4-1. DeviceInstaller Window

www.lantronix.com or

3. Click the Search the network for devices icon. window displays.

The Search Network

SDS1100 User Guide 4: Updating Firmware

Figure 4-2. Search Network Window

4. Once located by DeviceInstaller, highlight the device in the device list and click

the Upgrade button.

5. Select a custom installation by specifying the individual files and clicking Next.

Figure 4-3. Device Upgrade Wizard (Step 1)

6. Click the Browse button to select the location of the firmware file being loaded,

then click Next.

SDS1100 User Guide 4: Updating Firmware

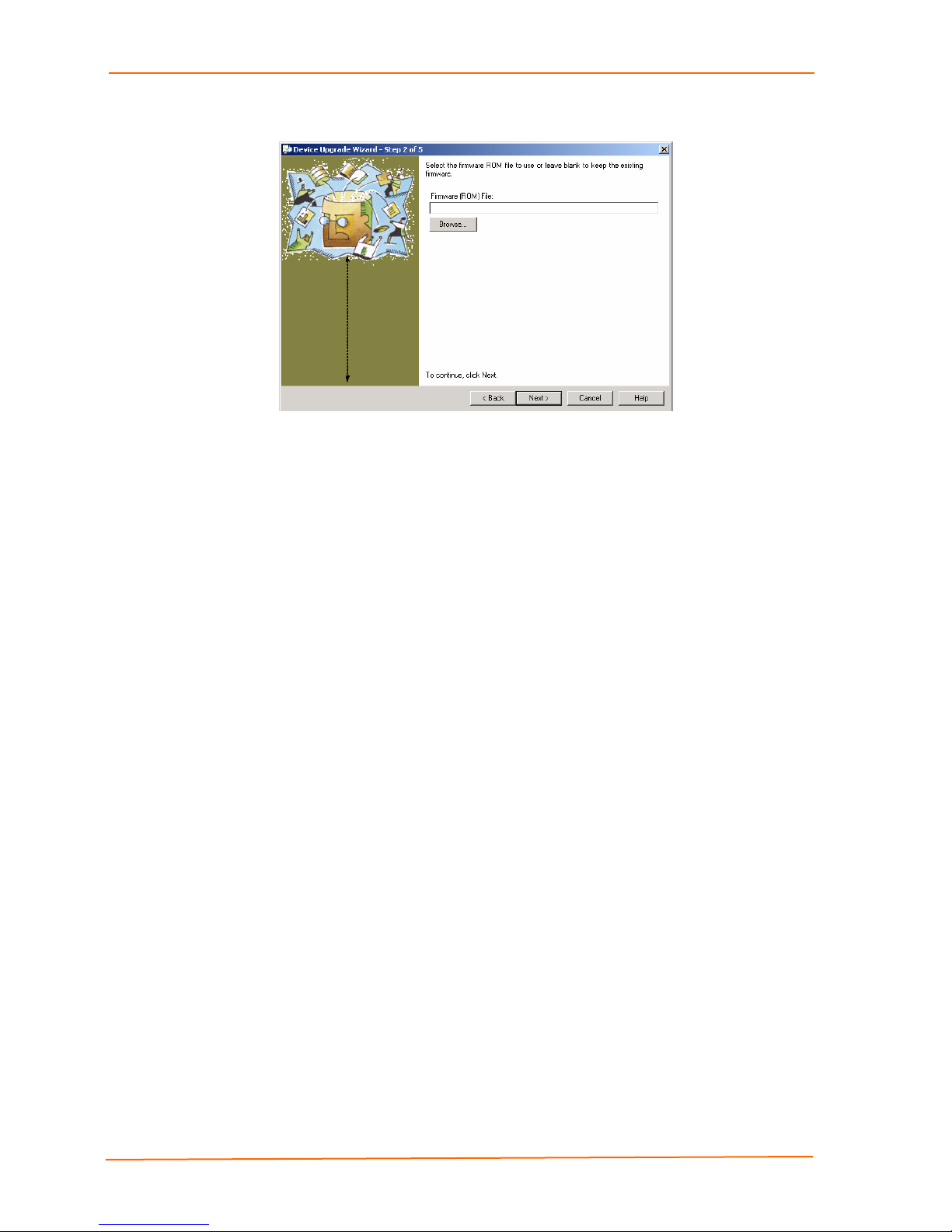

Figure 4-4. Device Upgrade Wizard (Step 2)

7. Select Do not copy or replace any files and click Next.

8. Click Next again. The status of the upgrade is shown in the window.

9. After the upgrade completes, click Close.

Via TFTP

Note: If you are running Windows NT or later, you can simply enter the

following command at the command prompt:

TFTP –i IP address of SDS PUT source file name destination file name

It is easiest to issue the command from the same directory as the one where the firmware files are located.

To download new firmware using a TFTP client:

1. Use a TFTP client to send a binary file (SD11*.ROM) to the unit to upgrade the unit's internal operational code, and cbx***.cob to upgrade its internal Web interface).

Note: TFTP requires the .ROM (binary) version of the unit's internal

operational code.

2. Make sure the Put and Binary options at the top of the window are selected.

3. Enter the full path of the firmware file in the Source File field.

4. In the Destination File field, type D1 for the internal operational code, or WEB6 for the internal Web interface.

5. In the Remote Host field, enter the IP address of the unit being upgraded.

6. Click the Put button to transfer the file to the unit.

SDS1100 User Guide 4: Updating Firmware

Figure 4-5. TFTP Dialog Box

C:\SDSxxxx.ROM

172.19.23.55

The unit performs a power reset after the firmware has been loaded and stored.

Via Another Unit

To distribute firmware to another unit over the network:

1. Enter the host unit's Monitor Mode (see Monitor Mode in the Troubleshooting

chapter).

2. Send the firmware to the receiving unit using the SF command, where x.x.x.x is

the receiving unit's IP address.

Figure 4-6. Sending Firmware to Another Unit

SF x.x.x.x

The receiving unit performs a power reset after the firmware has been loaded a nd stored.

Note: You can only update your unit 's internal Web interface using TFTP or

DeviceInstaller.

Via the Serial Port

The following procedure is for using the HyperTerminal software application. This procedure takes about 10 minutes.

SDS1100 User Guide 4: Updating Firmware

Note: Do not switch off the power supply during the update. A loss of

power while reprogramming will result in a corrupt program image and a nonfunctional unit.

To download firmware from a computer via the unit’s serial port:

1. Enter Monitor Mode via the serial port. (see Monitor Mode in the Troubleshooting chapter).

2. Download the firmware to the unit using the DL command.

3. Select Send Text File and select the SD11*.HEX file to be downloaded. The downloaded file must be the .HEX (ASCII) version.

4. After the final record is received, the unit checks the integrity of the firmware image before programming the new firmware in the flash ROM. The following message displays when the firmware upgrade is complete.

Figure 4-7. Firmware Upgrade Screen Display

*** NodeSet 2.0 *** 0>DL 02049 lines loaded.

Note: You can only update your unit 's internal Web interface using TFTP or

DeviceInstaller.

SDS1100 User Guide 4: Updating Firmware

5: Troubleshooting

This chapter discusses how you can diagnose and fix errors quickl y without having to contact a dealer or Lantronix.

It helps to connect a terminal to the serial port while diagnosing an error to view summary messages that may be displayed. When troubleshooting, always ensure that the physical connections (power cable, network cable, and serial cable) are secure.

Note: Some unexplained errors might be caused by duplicate IP addresses on the

network. Make sure that your unit's IP address is unique.

Technical Support

If you are experiencing an error that is not described in this chapter, or if you are unable to fix the error, you may:

 Check our online knowledge base at www.lantronix.com/support.com  E-mail us at support@lantronix.com  Call us at:

(800) 422-7044 Domestic (949) 453-7198 International (949) 450-7226 Fax

Our phone lines are open from 6:00AM - 5:30 PM Pacific Time Monday through Friday excluding holidays.

Technical Support Europe, Middle East, and Africa Phone: +49 (0) 7720 3016 57 Fax: +49(0) 7720 3016 88 E-mail:

Firmware downloads, FAQs, and the most up-to-date documentation are available at:

www.lantronix.com/support

eu_techsupp@lantronix.com

SDS1100 User Guide 5: Troubleshooting

When you report a problem, please provide the following information:

 Your name, and your company name, address, and phone number  Lantronix SDS model number  Lantronix SDS serial number  Software version (on the first screen shown when you Telnet to port 9999)  Description of the problem  Debug report (stack dump), if applicable  Status of the unit when the problem occurred (please try to include

information on user and network activity at the time of the problem)

Table 5-1. Problems and Error Messages

Note: When troubleshooting the following problems, make sure that the

SDS is powered up and the Link LED is lit solid green. If the Link LED is not lit, then the physical network connection is bad. Confirm that you are using a good network connection.

Problem/Message Reason Solution

When you issue the ARP –S command in Windows, “The ARP entry addition failed: 5" message displays.

When you attempted to assign an IP address to the SDS via the ARP method, the “Press Enter to go into Setup Mode” error (described below) displayed. Now when you Telnet to the SDS, the connection fails.

When you Telnet to port 9999, the message “Press Enter to go into Setup Mode” displays. However, nothing happens when you press Enter, or your connection is closed.

When you Telnet to port 1 to assign an IP address to the SDS, the Telnet window does not respond for a long time.

Your currently logged-in user does not have the correct rights to use this command on this PC.

When you Telnet into port 1 on the SDS, you are only assigning a temporary IP address. When you Telnet into port 9999 and do not press Enter quickly, the SDS will reboot, causing it to lose the IP address.

You did not press Enter quickly enough. You only have 5 seconds to press Enter before the connection is closed.

You may have entered the Ethernet address incorrectly with the ARP command.

Have someone from your IT department log you in with sufficient rights.

Telnet back into Port 1. Wait for it to fail, then Telnet to port 9999 again. Make sure you press Enter quickly.

Telnet to port 9999 again, but press Enter as soon as you see the message “Press Enter to go into Setup Mode.”

Confirm that the Ethernet address that you entered with the ARP command is correct. The Ethernet address may only include numbers 0-9 and letters A-F. In Windows and usually in Unix, the segments of the Ethernet address are separated by dashes. In some forms of Unix, the Ethernet address is segmented with colons.

SDS1100 User Guide 5: Troubleshooting

Problem/Message Reason Solution

When you try to assign an IP with DeviceInstaller, you get the following message:

“No response from device! Verify the IP, Hardware address and Network Class. Please try again.”

No LEDs are lit. The unit or its power supply is

The IP address you are trying to assign is not on your logical subnet.

The SDS may not be plugged into the network properly.

The cause is most likely one of the following:

The Hardware address you specified is incorrect.

The IP address you are trying to assign is not a valid IP for your logical subnet.

You did not choose the correct subnet mask.

damaged, or the unit is not plugged into power properly.

Confirm that your PC has an IP address and that it is in the same logical subnet that you are trying to assign to the SDS.

Make sure that the Link LED is lit. If the Link LED is not lit, then the SDS is not properly plugged into the network.

Double-check the parameters that you specified. Tip: You cannot assign an IP address to a SDS through a router.

Try plugging the SDS into another outlet. If this does not fix the problem, contact your dealer or Lantronix Technical Support for a replacement.

The SDS1100 will not power up properly, and the LEDs are flashing.

The SDS is not communicating with the serial device attached to the SDS.

When you try to enter the setup mode on the SDS via the serial cable, you get no response.

Various Consult the LEDs section in the

Introduction chapter or the Quick Start for the LED flashing sequence patterns. Call Lantronix Technical Support if the blinking pattern indicates a critical error.

The most likely reason is the wrong serial cable or serial settings were chosen.

The issue will most likely be something covered in the previous problem, or possibly you have Caps Lock on.

Make sure that you are using the correct serial cable. The SDS serial port is just like a modem serial port (DCE). The serial settings for the serial device and the SDS must match. The default serial settings for the SDS are RS232, 9600 Baud, 8 Character Bits, No Parity, 1 Stop Bit, No Flow Control.

Double-check everything in the problem above. Confirm that Caps Lock is not on.

SDS1100 User Guide 5: Troubleshooting

Problem/Message Reason Solution

You can ping the SDS, but not Telnet to the SDS on port 9999.

With DeviceInstaller you get the “Wrong Password” error when you try to upgrade the firmware.

You are using the correct serial cable, and the SDS should be set up correctly, but you are not communicating with your device attached to the SDS across the network.

There may be an IP address conflict on your network.

You are not Telneting to port 9999. The Telnet configuration port (9999)

is disabled within the SDS security settings.

The unit may have the correct IP address, but an incorrect gateway address.

You have chosen the incorrect setting for the Existing Firmware filed.

If you are sure that the serial cable is correct, then you may not be connecting to the correct socket of the SDS.

Another possibility is that the SDS is not set up correctly to make a good socket connection to the network.

Turn the SDS off and then issue the following commands at the DOS prompt of your computer: ARP -D X.X.X.X (X.X.X.X is the IP of the SDS) PING X.X.X.X (X.X.X.X is the IP of the SDS).

If you get a response, then there is a duplicate IP address on the network (the LEDs on the SDS should flash a sequence that tells you this). If you do not get a response, use the serial port to verify that Telnet is not disabled.

Try upgrading the firmware again, but make sure to use the correct setting in the field of Existing Firmware field.

You can check to see whether there is a socket connection to or from the SDS by looking at the Status LED.

If the Status LED is blinking consistently, or is completely off, then there is a good socket connection.

If the Status LED is solid green, then the socket connection does not exist. Use the Connect Mode option C0 for making a connection to the SDS from the network. Use Connect Mode option C1 or C5 for a connection to the network from the SDS. See the full list of Connect

Mode Options in the Binary to

Hexadecimal chapter.

When connecting to the WebManager within the SDS, the message “No Connection With The SDS” displays.

Your computer is not able to connect to port 30718 (77FEh) on the SDS.

Make sure that port 30718 (77FEh) is not blocked with any router that you are using on the network. Also make sure that port 77FEh is not disabled within the Security settings of the SDS.

SDS1100 User Guide 5: Troubleshooting

Monitor Mode

Monitor Mode is a command-line interface used for diagnostic purposes (see Monitor

Mode Commands at the end of this section). There are two ways to enter Monitor

Mode: locally via the serial port or remotely via the network.

Via the Serial Port

To enter Monitor Mode locally, follow the same principles used in setting the serial configuration parameters:

1. To enter Monitor Mode with network connections, type xx1 or zzz (not three x keys as you did before).

2. To enter Monitor Mode without network connections, type xx2 or yyy.

A 0> prompt indicates that you have successfully entered Monitor Mode.

Via the Network

To enter Monitor Mode using a Telnet connection:

1. First establish a Telnet session. The following message displays:

Figure 5-1. Entering Monitor Mode Via the Network

2. Type M (upper case).

A 0> prompt indicates that you have successfully entered Monitor Mode.

Monitor Mode Commands

The following commands are available in Monitor Mode. Many commands have an IP address as an optional parameter (x.x.x.x). If the IP address is given, the command is applied to another unit with that IP address. If no IP address is given, the command is executed locally.

Note: All commands must be given in capital letters, with blank spaces

between the parameters.

SDS1100 User Guide 5: Troubleshooting

Table 5-2. Monitor Mode Commands

Command Command Name Function

SF x.x.x.x Send Firmware Sends firmware to unit with IP address x.x.x.x VS x.x.x.x Version

GC x.x.x.x Get Configuration SC x.x.x.x Send Configuration

PI x.x.x.x Ping Pings unit with IP address x.x.x.x to check device status AT ARP Table Shows the unit 's ARP table entries TT TCP Connection Table Shows all incoming and outgoing TCP connections NC Network Connection Shows the unit 's IP configuration RS Reset Resets the unit 's power QU Quit Exits diagnostics mode G0, G1...GE,

GF S0, S1... SE, SF

Get configuration from memory page Set configuration to memory page

Queries software header record (16-byte) of unit with IP address x.x.x.x Gets configuration of unit with IP address x.x.x.x as hex records Sets configuration of unit with IP address x.x.x.x from hex records

Gets a memory page of configuration information from the device. Sets a memory page of configuration information on the device.

Entering any of the commands listed above will generate one of the following command response codes:

Table 5-3. Command Response Codes

Response Meaning

0> OK; no error 1> No answer from remote device 2> Cannot reach remote device or no answer 8> Wrong parameter(s) 9> Invalid command

6: Binary to Hexadecimal

Many of the unit 's configuration procedures require you to assemble a series of options (represented as bits) into a complete command (represented as a byte). The resulting binary value must be converted to a hexadecimal representation.

Use this chapter to learn how to convert binary values to hexadecimals or to look up values in the tables listing all configuration options in hexadecimal notation. The following tables are included:

 Binary to Hexadecimal Conversions  Connect Mode Options  Disconnect Mode Options  Flush Mode (Buffer Flushing) Options  Interface Mode Options  Pack Control Options

Converting Binary to Hexadecimal

Hexadecimal digits have values ranging from 0 to F, which are represented as 0-9, A (for 10), B (for 11), etc. To convert a binary value (for example, 0010 0011) to a hexadecimal representation, the upper and lower four bits are treated separately, resulting in a two-digit hexadecimal number (in this case, 4C). Use the following table to convert values from binary to hexadecimal.

SDS1100 User Guide 6: Binary to Hexadecimal

Table 6-1. Binary to Hexadecimal Conversions

Decimal Binary Hex

0 0000 0 1 0001 1

2 0010 2 3 0011 3 4 0100 4 5 0101 5 6 0110 6 7 0111 7 8 1000 8 9 1001 9 10 1010 A 11 1011 B 12 1100 C 13 1101 D 14 1110 E 15 1111 F

Connect Mode Options

Note: Character response codes are C=conn, D=disconn, N=unreachable

Table 6-2. Connect Mode Options

Accept Incoming Connections

Never None (quiet) No active startup N/A Never None (quiet) Any character 1 Never None (quiet) Active DTR 2 Never None (quiet) CR (0x0D) 3 Never None (quiet) Manual

Never None (quiet) Autostart 5 Never None (quiet) UDP C Never Character No active startup 10 Never Character Any character 11 Never Character Active DTR 12 Never Character CR (0x0D) 13 Never Character Manual

Never Character Autostart 15 Never Character UDP 1C With DTR None (qui et) No active start up 40 With DTR None (qui et) Any character 41 With DTR None (quiet) Active DT R 42 With DTR None (quiet) CR (0x0D) 43

Serial Response Upon Connection

Active Connection Startup

connection

Hostlist

Hex

SDS1100 User Guide 6: Binary to Hexadecimal

Accept Incoming Connections

Serial Response Upon

Active Connection Startup

Hostlist

Hex

Connection

With DTR None (quiet) Manual

connection With DTR None (quiet) Autostart 45 With DTR None (quiet) UDP 4C With DTR Char acter No active startup 50 With DTR Char acter Any character 51 With DTR Character Active DTR 52 With DTR Character CR (0x0D) 53 With DTR Char acter Manual

connection With DTR Char acter Autostart 55 With DTR Character UDP N/A Unconditionally None (quiet) No active startup C0 Unconditionally Non e (qui et) Any character C1 Unconditionally Non e (qui et) Active DTR C2 Unconditionally Non e (quiet) CR (0x0D) C3 Unconditionally None (quiet) Manual

connection Unconditionally None (quiet) Autostart C5 Unconditionally None (quiet) UDP CC Unconditionally Character No active startup D0 Unconditionally Character Any character D1 Unconditionally Character Active DTR D2 Unconditionally Character CR (0x0D) D3 Unconditionally Character Manual

connection Unconditionally Character Autostart D5 Unconditionally Character UDP DC Never None (quiet) No active startup Hostlist N/A Never None (quiet) Any character Hostlist 21 Never None (quiet) Active DTR Hostlist 22 Never None (quiet) CR (0x0D) Hostlist 23 Never None (quiet) Manual

connection Never None (quiet) Autostart Hostlist 25 Never None (quiet) UDP Hostlist N/A Never Character No active startup Hostlist N/A Never Character Any character Hostlist 31 Never Character Active DTR Hostlist 32 Never Character CR (0x0D) Hostlist 33 Never Character Manual

connection Never Character Autostart Hostlist 35 Never Character UDP Hostlist N/A

Hostlist N/A

SDS1100 User Guide 6: Binary to Hexadecimal

Accept Incoming Connections

Serial Response Upon

Active Connection Startup

Hostlist

Hex

Connection

With DTR None (quiet) No active startup Hostlist N/A With DTR None (quiet) Any character Hostlist 61 With DTR None (quiet) Active DTR Hostlist 62 With DTR None (quiet) CR (0x0D) Hostlist 63 With DTR None (quiet) Manual

connection With DTR None (quiet) Autostart Hostlist 65 With DTR None (quiet) UDP Hostlist N/A With DTR Character No active startup Hostlist N/A With DTR Char acter Any character Hostlist 71 With DTR Character Active DTR Hostlist 72 With DTR Character CR (0x0D) Hostlist 73 With DTR Char acter Manual

connection With DTR Character Autostart Hostlist 75 With DTR Character UDP Hostlist N/A Unconditionally None (quiet) No active startup Hostlist N/A Unconditionally None (quiet) Any character Hostlist E1 Unconditionally None (quiet) Active DTR Hostlist E2 Unconditionally Non e (qui et) CR (0x0D) Hostlist E3 Unconditionally None (quiet) Manual

connection Unconditionally None (quiet) Autostart Hostlist E5 Unconditionally None (quiet) UDP Hostlist N/A Unconditionally Character No active startup Hostlist N/A Unconditionally Character Any character Hostlist F1 Unconditionally Character Active DTR Hostlist F2 Unconditionally Character CR (0x0D) Hostlist F3 Unconditionally Character Manual

connection Unconditionally Character Autostart Hostlist F5 Unconditionally Character UDP Hostlist N/A

Hostlist N/A

The following connect mode options are for when you use modem emulation:

Table 6-3. Connect Mode Options for Modem Emulation

Response Hex Incoming Connections

Never Echo 16 Never Without echo 6 Never 1-character response 7 With DTR Echo 56

SDS1100 User Guide 6: Binary to Hexadecimal

With DTR Without echo 46 With DTR 1-character response 47 Unconditionally Echo D6 Unconditionally Without echo C6 Unconditionally 1-character response C7

SDS1100 User Guide 6: Binary to Hexadecimal

Disconnect Mode Options

Table 6-4. Disconnect Mode Options

Disconnect with DTR Drop

Telnet Mode and Terminal

Channel (port) Password

Hard Disconnect

State LED Off with Connection

Disconnect with EOT (^D)

Hex

Type Setup

Enable 0 Enable Enable 10 Enable Enable 20 Enable Enable Enable 30 Enable Enable 40 Enable Enable Enable 50 Enable Enable Enable 60 Enable Enable Enable Enable 70 Enable Enable 80 Enable Enable Enable 90 Enable Enable Enable A0 Enable Enable Enable Enable B0 Enable Enable Enable C0 Enable Enable Enable Enable D0 Enable Enable Enable Enable E0 Enable Enable Enable Enable Enable F0 Enable Enable 1 Enable Enable Enable 11 Enable Enable Enable 21 Enable Enable Enable Enable 31 Enable Enable Enable 41 Enable Enable Enable Enable 51 Enable Enable Enable Enable 61 Enable Enable Enable Enable Enable 71 Enable Enable Enable 81 Enable Enable Enable Enable 91 Enable Enable Enable Enable A1 Enable Enable Enable Enable Enable B1 Enable Enable Enable Enable C1 Enable Enable Enable Enable Enable D1 Enable Enable Enable Enable Enable E1 Enable Enable Enable Enable Enable Enable F1 Disable 8 Enable Disable 18 Disable Enable 28 Enable Disable Enable 38 Enable Disable 48 Enable Enable Disable 58

SDS1100 User Guide 6: Binary to Hexadecimal

Disconnect with DTR Drop

Telnet Mode and Terminal

Channel (port) Password

Hard Disconnect

State LED Off with Connection

Disconnect with EOT (^D)

Hex

Type Setup

Enable Disable Enable 68 Enable Enable Disable Enable 78

Enable Disable 88 Enable Enable Disable 98 Enable Disable Enable A8 Enable Enable Disable Enable B8 Enable Enable Disable C8 Enable Enable Enable Disable D8 Enable Enable Disable Enable E8 Enable Enable Enable Disable Enable F8

Disable Enable 9 Enable Disable Enable 19 Disable Enable Enable 29 Enable Disable Enable Enable 39 Enable Disable Enable 49 Enable Enable Disable Enable 59 Enable Disable Enable Enable 69 Enable Enable Disable Enable Enable 79

Enable Disable Enable 89 Enable Enable Disable Enable Enable 99 Enable Disable Enable Enable A9 Enable Enable Disable Enable Enable B9 Enable Enable Disable Enable C9 Enable Enable Enable Disable Enable D9 Enable Enable Disable Enable Enable E9 Enable Enable Enable Disable Enable Enable F9

SDS1100 User Guide 6: Binary to Hexadecimal

Flush Mode (Buffer Flushing) Options

Table 6-5. Flush Mode Options

Serial to Network Clear input buffer

upon:

None 0 Active connection 10 Passive connection 20 Active connection

Passive connection Disconnect 40 Active connection

Disconnect Passive connection

Disconnect Active connection

Passive connection Disconnect

Enable 80 Active connection Enable 90 Passive connection Enable A0 Active connection

Passive connection Disconnect Enable C0 Active connection

Disconnect Passive connection

Disconnect Active connection

Passive connection Disconnect

Active connection 1 Active connection Active connection 11 Passive connection Active connection 21 Active connection

Passive connection Disconnect Active connection 41 Active connection

Disconnect Passive connection

Disconnect Active connection

Passive connection Disconnect

Active connection Enable 81 Active connection Active connection Enable 91 Passive connection Active connection Enable A1

Network to Serial Clear output buffer

Alternate Packing Algorithm

Hex

upon:

Enable B0

Enable D0

Enable E0

Enable F0

Active connection 31

Active connection 51

Active connection 61

Active connection 71

SDS1100 User Guide 6: Binary to Hexadecimal

Serial to Network Clear input buffer

upon:

Active connection Passive connection

Disconnect Active connection Enable C1 Active connection

Disconnect Passive connection

Disconnect Active connection

Passive connection Disconnect

Passive connection 2 Active connection Passive connection 12 Passive connection Passive connection 22 Active connection

Passive connection Disconnect Passive connection 42 Active connection

Disconnect Passive connection

Disconnect Active connection

Passive connection Disconnect

Passive connection Enable 82 Active connection Passive connection Enable 92 Passive connection Passive connection Enable A2 Active connection

Passive connection Disconnect Passive connection Enable C2 Active connection

Disconnect Passive connection

Disconnect Active connection

Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Active connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Network to Serial Clear output buffer

Alternate Packing Algorithm

Hex

upon:

Active connection Enable B1

Active connection Enable D1

Active connection Enable E1

Active connection Enable F1

Passive connection 32

Passive connection 52

Passive connection 62

Passive connection 72

Passive connection Enable B2

Passive connection Enable D2

Passive connection Enable E2

Passive connection Enable F2

Passive connection

Passive connection Active connection

Passive connection

Passive connection Active connection

Passive connection

SDS1100 User Guide 6: Binary to Hexadecimal

Serial to Network Clear input buffer

upon:

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Passive connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Disconnect 4 Active connection Disconnect 14 Passive connection

Active connection Passive connection

Disconnect Disconnect 44 Active connection

Disconnect Passive connection

Disconnect Active connection

Passive connection Disconnect

Disconnect Enable 84 Active connection Disconnect Enable 94 Passive connection Disconnect Enable A4 Active connection

Passive connection Disconnect Disconnect Enable C4 Active connection

Disconnect Passive connection

Disconnect

Network to Serial Clear output buffer

Alternate Packing Algorithm

Hex

upon:

Active connection Passive connection

Passive connection

Active connection Active connection

Passive connection

Passive connection Active connection

Passive connection

Disconnect 24

Disconnect 34

Disconnect 54

Disconnect 64

Disconnect 74

Disconnect Enable B4

Disconnect Enable D4

Disconnect Enable E4

Enable 83

Enable 93

Enable A3

Enable B3

Enable C3

Enable D3

Enable E3

Enable F3

SDS1100 User Guide 6: Binary to Hexadecimal

Serial to Network Clear input buffer

upon:

Active connection Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Active connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Active connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection

Active connection Passive connection

Passive connection Passive connection

Active connection Passive connection

Disconnect Passive connection

Active connection Disconnect

Network to Serial Clear output buffer

Alternate Packing Algorithm

Hex

upon:

Disconnect Enable F4

Disconnect

Disconnect Active connection

Disconnect

Disconnect Active connection

Disconnect

Disconnect Active connection

Disconnect

Disconnect Active connection

Disconnect

Disconnect Passive connection

Disconnect

Disconnect Passive connection

Disconnect

Enable 85

Enable 95

Enable A5

Enable B5

Enable C5

Enable D5

Enable E5

Enable F5

SDS1100 User Guide 6: Binary to Hexadecimal

Serial to Network Clear input buffer

upon:

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection

Active connection Passive connection

Passive connection Passive connection

Active connection Passive connection

Disconnect Passive connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection

Active connection Active connection

Passive connection Active connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Active connection

Network to Serial Clear output buffer

upon:

Passive connection Disconnect

Disconnect

Disconnect Passive connection

Disconnect

Disconnect Passive connection

Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection Disconnect

Alternate

Hex Packing Algorithm

Enable 86

Enable 96

Enable A6

Enable B6

Enable C6

Enable D6

Enable E6

Enable F6

Enable 87

SDS1100 User Guide 6: Binary to Hexadecimal

Serial to Network Clear input buffer

upon:

Active connection Active connection

Passive connection Active connection

Active connection Passive connection

Disconnect Active connection

Active connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Network to Serial Clear output buffer

upon:

Passive connection Disconnect

Active connection Passive connection Disconnect

Passive connection Disconnect

Active connection Passive connection Disconnect

Alternate Packing Algorithm

Enable 97

Enable A7

Enable B7

Enable C7

Enable D7

Enable E7

Enable F7

Hex

SDS1100 User Guide 6: Binary to Hexadecimal

Interface Mode Options

Table 6-6. Interface Mode Options

Interface Bits Parity Stop

Hex

Bits

RS-232C 7 No 1 48 RS-232C 7 No 2 C8 RS-232C 7 Even 1 78 RS-232C 7 Even 2 F8 RS-232C 7 Odd 1 58 RS-232C 7 Odd 2 D8 RS-232C 8 No 1 4C RS-232C 8 No 2 CC RS-232C 8 Even 1 7C RS-232C 8 Even 2 FC RS-232C 8 Odd 1 5C RS-232C 8 Odd 2 DC RS-422/485 7 No 1 49 RS-422/485 7 No 2 C9 RS-422/485 7 Even 1 79 RS-422/485 7 Even 2 F9 RS-422/485 7 Odd 1 59 RS-422/485 7 Odd 2 D9 RS-422/485 8 No 1 4D RS-422/485 8 No 2 CD RS-422/485 8 Even 1 7D RS-422/485 8 Even 2 FD RS-422/485 8 Odd 1 5D RS-422/485 8 Odd 2 DD RS-422/485 2-Wire 7 No 1 4B RS-422/485 2-Wire 7 No 2 CB RS-422/485 2-Wire 7 Even 1 7B RS-422/485 2-Wire 7 Even 2 FB RS-422/485 2-Wire 7 Odd 1 5B RS-422/485 2-Wire 7 Odd 2 DB RS-422/485 2-Wire 8 No 1 4F RS-422/485 2-Wire 8 No 2 CF RS-422/485 2-Wire 8 Even 1 7F RS-422/485 2-Wire 8 Even 2 FF RS-422/485 2-Wire 8 Odd 1 5F RS-422/485 2-Wire 8 Odd 2 DF

SDS1100 User Guide 6: Binary to Hexadecimal

Pack Control Options

Table 6-7. Pack Control Options

Sendcharacter Defined by a:

Trailing Characters

Idle Time Force Transmit:

Send Immediately after

He x

Sendcharacter

1-Byte Sequence No 12ms 0 1-Byte Sequence No 52ms 1 1-Byte Sequence No 250ms 2 1-Byte Sequence No 5sec 3 1-Byte Sequence 1 12ms 4 1-Byte Sequence 1 52ms 5 1-Byte Sequence 1 250ms 6 1-Byte Sequence 1 5sec 7 1-Byte Sequence 2 12ms 8 1-Byte Sequence 2 52ms 9 1-Byte Sequence 2 250ms A 1-Byte Sequence 2 5sec B 2-Byte Sequence No 12ms 10 2-Byte Sequence No 52ms 11 2-Byte Sequence No 250ms 12 2-Byte Sequence No 5sec 13 2-Byte Sequence 1 12ms 14 2-Byte Sequence 1 52ms 15 2-Byte Sequence 1 250ms 16 2-Byte Sequence 1 5sec 17 2-Byte Sequence 2 12ms 18 2-Byte Sequence 2 52ms 19 2-Byte Sequence 2 250ms 1A 2-Byte Sequence 2 5sec 1B 1-Byte Sequence No 12ms Yes 20 1-Byte Sequence No 52ms Yes 21 1-Byte Sequence No 250ms Yes 22 1-Byte Sequence No 5sec Yes 23 1-Byte Sequence 1 12ms Yes 24 1-Byte Sequence 1 52ms Yes 25 1-Byte Sequence 1 250ms Yes 26 1-Byte Sequence 1 5sec Yes 27 1-Byte Sequence 2 12ms Yes 28 1-Byte Sequence 2 52ms Yes 29 1-Byte Sequence 2 250ms Yes 2A 1-Byte Sequence 2 5sec Yes 2B 2-Byte Sequence No 12ms Yes 30 2-Byte Sequence No 52ms Yes 31

SDS1100 User Guide 6: Binary to Hexadecimal

Sendcharacter Defined by a:

Trailing Characters

Idle Time Force Transmit:

Send Immediately after

He x

Sendcharacter

2-Byte Sequence No 250ms Yes 32 2-Byte Sequence No 5sec Yes 33 2-Byte Sequence 1 12ms Yes 34 2-Byte Sequence 1 52ms Yes 35 2-Byte Sequence 1 250ms Yes 36 2-Byte Sequence 1 5sec Yes 37 2-Byte Sequence 2 12ms Yes 38 2-Byte Sequence 2 52ms Yes 39 2-Byte Sequence 2 250ms Yes 3A 2-Byte Sequence 2 5sec Yes 3B

Lantronix SecureBox SDS1100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
