xPrintServer™
Network Edition
User Guide
Part Number 900-603 Revision B January 2013
Date
Rev.
Comments
January 2012
A
Initial Document.
January 2013
B
Updated for firmware release 3.1.0-12 adding instructions for configuring static IP address, printer user managem ent and offl ine loading of drivers.

Copyright & Trademark

Lantronix® is a registered trademark and xPrintServer™ is a trademark of Lantronix, Inc. Ethernet™ is a trademark of XEROX Corporation. Windows® and Internet Explorer® are
registered trademarks of Microsoft Corporation. Mozilla® and Firefox® are registered trademarks of the Mozilla Foundation. Chrome™ is a trademark of Google. AirPrint™ and Bonjour™ are trademarks of Apple Inc. and Apple®, iPod®, iPad® and iPhone® are registered trademarks of Apple Inc. iOS® is a registered trademark of Cisco. All other trademarks and trade names are the property of their respective holders.

Contacts

Lantronix Corporate Headquarters
167 Technology Drive Irvine, CA 92618, USA
Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-450-7249
Technical Support Online:
www.lantronix.com/support
Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at
www.lantronix.com/about/contact.

Disclaimer & Revisions

The information in this guide may change without notice. The manufacturer assumes no responsibility for any errors that may appear in this guide.

Revision History

xPrintServer User Guide 2

Table of Contents

Copyright & Trademark ___________________________________________________ 2 Contacts _______________________________________________________________ 2 Disclaimer & Revisions ___________________________________________________ 2 Revision History _________________________________________________________ 2 List of Figures __________________________________________________________ 5 List of Tables ___________________________________________________________ 5
1: Introduction 6
Key Features ___________________________________________________________ 6 Supported iOS Devices ___________________________________________________ 7 Supported Printers and Printer Protocols _____________________________________ 7 Supported DHCP Configuration ____________________________________________ 7 Supported Browsers _____________________________________________________ 7 Product Information and IP Address _________________________________________ 8
Serial Number _______________________________________________________ 8
IP Address __________________________________________________________ 8
2: Installation 9
Package Contents _______________________________________________________ 9 User-Supplied Items _____________________________________________________ 9 Hardware Components ___________________________________________________ 9
Ethernet LEDs ______________________________________________________ 10
Status LED ________________________________________________________ 10
Installation Steps _______________________________________________________ 11 Topology Support ______________________________________________________ 11
3: Navigation and Printi ng 12
Finding the xPrintServer IP Address ________________________________________ 12 System Status on the Home Page _________________________________________ 13 Logging In ____________________________________________________________ 14 Logging Off ___________________________________________________________ 14 Navigation ____________________________________________________________ 15 Printing _______________________________________________________________ 17
Printing from an iOS Device ___________________________________________ 17
4: Configuration 18
User Administration _____________________________________________________ 18
Changing Passwords ________________________________________________ 18
xPrintServer User Guide 3
Creating a New User _________________________________________________ 19
Deleting a User _____________________________________________________ 20
Changing User Access to a Printer ______________________________________ 20
Discovering New Printers ________________________________________________ 20
Configuring Printers through Discovery __________________________________ 21
Setting Real Time Clock _________________________________________________ 23 Assigning a Static IP Address to the xPrintServer _____________________________ 23 Admin Printer Configuration Options ________________________________________ 24
Printing a Test Page _________________________________________________ 24
Purging Job History __________________________________________________ 24
Deleting a Printer ___________________________________________________ 25
Changing Printer Description __________________________________________ 25
Changing Printer Location ____________________________________________ 26
Showing Shared Printer Information _____________________________________ 26
Sharing a Printer ____________________________________________________ 27
Hiding a Printer _____________________________________________________ 27
Updating Printer IP Addresses ____________________________________________ 27 Viewing and Cancelling Print Jobs on the xPrintServer User Interface _____________ 28 Renaming xPrintServer Device ____________________________________________ 29 Resetting the xPrintServer to Factory Defaults ________________________________ 30
Via the User Interface ________________________________________________ 30
Via the Hardware Reset Button ________________________________________ 30
Restarting the xPrintServer _______________________________________________ 31 Viewing Logs __________________________________________________________ 31 Printer Drivers _________________________________________________________ 32
Downloading Printer Drivers from the Internet _____________________________ 32
Exporting Printer Drivers ______________________________________________ 33
5: Updating Firmware 34 6: Technical Specifications 35 A: Technical Support 36
Diagnostic Support _____________________________________________________ 36
Send Diagnostic Information ___________________________________________ 36
Download Diagnostic Info _____________________________________________ 36
Contact Information _____________________________________________________ 37
B: Troubleshooting 38
Problems and Error Messages ____________________________________________ 38
xPrintServer User Guide 4
C: Compliance 39
Declaration of Conformity ________________________________________________ 39 RoHS Notice __________________________________________________________ 40
D: Warranty 41 Index 42

List of Figures

Figure 1-1 xPrintServer _____________________________________________________________ 6 Figure 1-2 Sample Product Information Label ___________________________________________ 8 Figure 1-3 Sample Product Information Label (Type 2) ____________________________________ 8 Figure 1-4 Sample Serial Numbers on Hardware Devices __________________________________ 8 Figure 2-1 xPrintServer LEDs ________________________________________________________ 9 Figure 3-1 Serial Number __________________________________________________________ 12 Figure 3-2 System Status Information on the Home Page _________________________________ 13 Figure 3-3 Login Prompt ___________________________________________________________ 14 Figure 3-4 Navigating the xPrintServer User Interface ____________________________________ 15 Figure 3-5 Tabs Available for the Admin User and Non-Admin Users ________________________ 16 Figure 3-6 Sample View of Native Print Menu __________________________________________ 17 Figure 3-7 Sample View of Printer Options _____________________________________________ 17 Figure 4-1 Printers Auto-Discovered upon xPrintServer Startup ____________________________ 21 Figure 4-2 Printer Information _______________________________________________________ 21 Figure 4-3 Sample Printer Auto Disco ver y Report _______________________________________ 22 Figure 4-4 Expanding Detected Printers Information _____________________________________ 22 Figure 4-5 Admin Menu (Defaults to Time-zone Link) ____________________________________ 23 Figure 4-6 Show Share Info Popup ___________________________________________________ 26 Figure 4-7 Printer IP Address Page __________________________________________________ 27 Figure 4-8 Drivers List Tab _________________________________________________________ 32 Figure 4-9 Export Drivers Button ____________________________________________________ 33

List of Tables

Table 2-1 Status LED, Top of Device _________________________________________________ 10 Table 4-1 Comparing Admin and Non-Admin User Privileges ______________________________ 18 Table 6-1 Technical Specifications ___________________________________________________ 35
xPrintServer User Guide 5

1: Introduction

The xPrintServer is a patent-pending AirPrint print server which provides wireless print ing capabilities for iPad, iPhone and other devices with iOS-enabl ed Air Pr int applications for unlimited network printers. Simply plug an xPrintServer to a wired network with Wi-Fi local subnet access and all network-connected pr int ers are auto-discovered and made available to any iOS AirPrint-enabled application on your iOS device.
Figure 1-1 xPrintServer
xPrintServer Network Edition
The xPrintServer comes in three editions: Network, Home and Office. This user guide documents the features and functionality of the xPrintServer Network Edition.

Key Features

No additional software is needed on the iOS device Simple configuration Support for an unlimited number of network attached printers
Note: Up to 10 network-attached printers are recommended for optimal performance. Print jobs
process one at a time regardless of the number of configured printers.
Automatic printer discovery and configuration (for supported printers) Security features External LED status indicator Configuration via browser (HTTP)
xPrintServer User Guide 6

Supported iOS Devices

xPrintServer supports all iOS-enabled Air Print applications. AirPrint is included in all newer generation Apple® devices with iOS 4.2 and later. These include:
iPad (all versions) iPhone (3GS or later) iPod Touch (3rd generation or later)

Supported Printers and Printer Protocols

See http://www.lantronix.com/it-management/mobile-print-servers/supported-printer-list.html for the latest list of all supported printers. This list is period ical l y update d with ne w prin ters .

Supported DHCP Configuration

xPrintServer supports both DHCP and Static IP Address Assignments.
1: Introduction

Supported Browsers

Lantronix supports the latest version of Internet Explorer, Mozilla Suite, Mozilla Firefox, Safari and Chrome.
xPrintServer User Guide 7

Product Informa ti on and IP Address

Bar Code
Product Revision

Serial Number

Part Number
Manufacturing Code Date
Manufacturing
Code Date
Product Revision
Country
of Origin
Datamatrix Bar Code
Part Number
Serial Number
You will need the serial number of your xPri ntS erv er devic e when setting up your xPrintServer user interface. The serial number can be found on the product information label adhered to your device. One of two types of product information labels will be adhered to your xPrintServer device (see Figure 1-2 or Figure 1-3 below).
Figure 1-2 Sample Product Information Label
Figure 1-3 Sample Product Information Label (Type 2)
1: Introduction
Serial Number
A serial number is a unique, identifying number specific to each hardware device including an xPrintServer, printer or any Apple iOS de vic e .
Figure 1-4 Sample Serial Numbers on Hardware Devices
00-80-A3-8E-00-63 or 00:80:A3:8E:00:63 or 0080A38E0063

IP Address

Every device connecte d to an I P net work mus t have a unique IP addres s. The xPrintServer gets a unique IP address from the DHCP server on your network (default method) or can be manually configured with a static IP address.
xPrintServer User Guide 8
Indicator
Right LED
Left LED

2: Installation

This chapter describes how to install your xPrintServer.

Package Contents

Your xPrintServer product package includes the following:
One (1) xPrintServer One (1) Quick Start Guide One (1) RJ45 Ethernet Cable (3 ft) One (1) Universal Power Supply

User-Supplied Items

You also need the following items to install and operate your xPrintServer:
A working power outlet Wi-Fi Access Point Network Attached Printer (wired or wireless) Your iOS device (e.g., iPad, iPhone) with connection to the network via Wi-Fi

Hardware Compone nts

There is one power input, one Ethernet port and two types of LED indicators on the xPrintServer. The LEDs provide information about device activity and status.
Status LED
Figure 2-1 xPrintServer LEDs
Ethernet Port
xPrintServer User Guide 9
2: Installation
Orange “X” LED
Description,
Solid
A continuous solid light indicates the power is on or the device is booting.
OFF
No light indicates the power is off.
Blinking
Even blinking pattern in dic ates the device is printing.
Glow / Dim
(Repeating Pattern)
Pulsating pattern of glowing and dimming light cycle occur ri ng once ev ery three seconds. Indicates the device is booted, idle and waiting for a job.
Code 1
A repeating pattern of a single flash followed by two seconds of no light indicates the device is obtaining the DHCP address.
Code 2
A repeating pattern of two flashes followed by two seconds of no light indicates there are no configur e d printers.
Code 3
A repeating pattern of three flashes followed by two seconds of no light indicates a factory default reset.
Code 4
A repeating pattern of four flashes followed by two seconds of no light indicates a successful firmware update.
Code 5
A repeating pattern of five flashes followed by two seconds of no light indicates a failed firmware update.
Code 6
A repeating pattern of six flashes followed by two seconds of no light indicates a printing error.
Code 7
A repeating pattern of seven flashes followed by two seconds

Ethernet LEDs

There are two LEDs located on the upper left and right corners of the Ethernet socket (see Figure
2-1). These indicate the status of the connection.
Left LED
Green ON, 100Mbps Ethernet Link Green Blinking, 100Mbps Activity Orange ON, 10Mbps Ethernet Link Orange Blinking, 10Mbps A c tivit y OFF, No Ethernet Link
Right LED
Always OFF
The Ethernet port can connect to an Ethernet (10Mbps) or Fast Ethernet (100Mbps) network.

Status LED

The Status LED on the xPrintServer device is incorporated into the “X” letter of the Lantronix logo on the top of the device. The behavior of this LED indicates the type of activity occurring in the xPrintServer device. The Status LED color is orange when lit, and specific display patterns indicate the specific type of activity. The LED may display a solid light, display no light, slowly glow on, slowly glow off, or flash on/off.
Table 2-1 Status LED, Top of Device
of no light indicates printer discovery is in process.
Note: Codes 1
through 7 indicate a grouped number of flashes in the Orange “X” LED separated by a two second interval where the light is off. The specific code/number of flashes separated by a two second no-light interval indicates a specific status as described in the grey cells to the left.
xPrintServer User Guide 10

Installation Steps

With all xPrintServer package contents and the requisite user-supplied items listed above, you may begin installation.
1. Connect the xPrintServer to the network with the Ethernet cable. The xPrintServer can be
connected to a router, switch or hub anywhere on your network.
2. Power on the xPrintServer with the supplied power cord. The xPrintServer will automatically
set-up all printers on your network and/or USB-connected printers. The glowing “X” will blink quickly for about 30 seconds, and then it will pulse slowly to show it’s ready for printing.
3. Monitor the LEDs on the xPrintServer for activity and status information (See Table 2-1
Status LED, Top of Device).

Topology Support

The xPrintServer is hardwired (via standard CAT-5) cabling to a router, switch or hub. The system requires an Access Point (A/P) be also hardwired and connected to the network. The iOS devices associates with the A/P and communicates to the xPrintServer when a print job is ready to be processed. The xPrintServer communicates with network attached printer(s); the printers may either be wired or wirel es sly connected to the network.
2: Installation
For the xPrintServer to auto-detect printers on bootup, the xPrintServer and printers must be on the same subnet. After auto-detection has been completed, the xPrintServer can then be relocated to a different subnet (Wi-Fi connected subnet that iOS devices are connected to) assuming that subnet can route to the previous subnet.
The xPrintServer uses Zeroconf to advertise print services to the iOS device(s) and requires either one or both of the following:
Both the iOS device and the xPrintServer are on the same subnet. The iOS device and xPrintServer are on different subnets but multicast traffic is
communicated between the subnets.
Multicast configuration and support can be found in the Lantronix knowledgebase. You may
perform word searches, such as for “multicast”, at
http://www.lantronix.com/resources/
.
xPrintServer User Guide 11

3: Navigation and Printing

This chapter explains how to navigate and use your xPrintServer user interface including directions on how to login and log out, how to change your password, and most importantly, how to print from your iOS device.

Finding the xPrintServer IP Address

Use these directions to find your device IP address through which you m a y log into your xPrintServer device. Internet access is required.
Every xPrintServer device has a unique, identifying serial number that can be found on the
product information label
automatically register its IP address and associated serial number with the Lantronix Web Services website (http://www.lantronix.com/findmyxprintserver IP address of the xPrintServer device. Users may then use the xPrintServer IP address to log into the user interface for printing management.
Use these directions to find the IP address of a new xPrintServer device.
. As part of the initialization/boot up process, the xPrintServer will
) which in turn provides the unique
1. Open an internet web browser. See Supp orted Br owsers.
2. Enter
3. Press Enter on the keyboard. You will be prompted for the xPrintServer serial number.
4. Enter the serial number of your xPrintServer.
5. Click the Go! button. A login prompt will appear.
http://www.lantronix.com/findmyxprintserver into the web browser address bar.
The serial number can be found on the product
information label attached to your xPrintServer packaging. It is an alphanumeric set of 12
characters.
Figure 3-1 Serial Number
Admin User
Default Login
User Name: admin Password: PASS
xPrintServer User Guide 12
6. Enter the Admin User Default Login information.
3: Navigation and Printing
User Name: admin Password: PASS
You will be redirected to your xPrintServer device URL where you will see the Sy s tem Stat us
on the Home Page.
7. Take note of the IP address of your xPrintServer device for all future logins.
Note: Your xPrintServer IP address is assigned by DHCP by default, however, you can manually
configure a static IP address. See Assigning a Static IP Address to the xPrintServer.
Note: Upon initial login, the Admin user should modify
the default “PASS” password as soon as possible for security reasons. See Changing Passwords.

System Status on t he Home Page

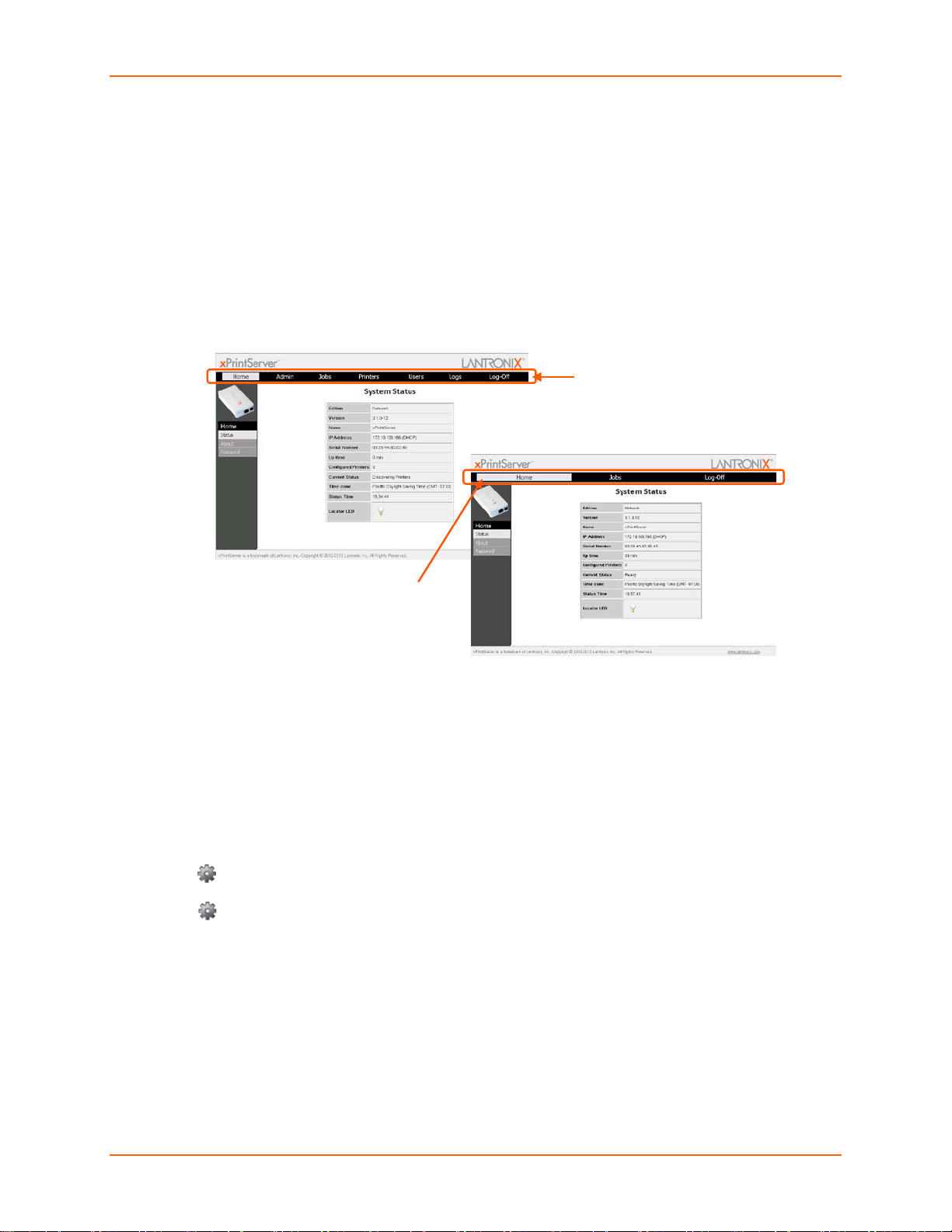

You will see your xPrintServer System Status information on the Home page whenever you log into your xPrintServer URL.
Figure 3-2 System Status Information on the Home Page
The System Status information includes your IP address alon g wit h other im por tant s ystem status information:
Edition
The edition of xPrintServer (Network)
Version
The current version of your firmware.
Name
The configurable name for the xPrintServer device. The default name is xPrintServer.
IP Address
The unique IP address associated with your xPrintServer device. This IP address may
be used to directly pull up the user interface of a connected and live xPrintServer.
Serial Number
The unique serial number associated with the xPrintServe r device which should match
what is on the product information label.
xPrintServer User Guide 13
Up time
The amount of time the xPrintServer has been oper at i ona l since po wer ed on or las t
restarted.
Configured Printers
The number of total discovered printers available for use on iOS devices.
Current Status
The current status of the xPrintServer.
Time Zone
The configured time zone (can be changed through the Admin page)
Status Time
The time at which the system status information you see on the screen was captured.
Locator LED
Clicking the light bulb will cause the “X” LED on top of the xPrintServer unit to blink
rapidly. Clicking the light bulb again turns off this feature. This feature is useful in
situations where you wish to identify a specific xPrintServer amongst multiple units.

Logging In

3: Navigation and Printing
Once the IP address of the xPrintServer device is known (see Finding the xPrintServer IP
Address and Initial Login), you may follow these directions to login to xPrintServer at any time.
1. Open an internet web browser.
2. Enter the IP address of your xPrintServer device .
Note: If Bonjour is installed on your computer or Mac, you may also access the user interface by
entering:
xPrintServer.local
Figure 3-3 Login Prompt
3. Enter your login information when prompted.
User Name Password
You are logged into the xPrintServer user interface when you see System Status on the
Home Page.

Logging Off

1. Click the Log-Off tab located at the top far right of any xPrintServer user interface page. You
will be prompted to close out of your browser window.
2. Close out of your browser to complete logging off.
xPrintServer User Guide 14

Navigation

Go backward one page… Go to the next page
Basic navigation features for the xPrintServer user interface are outlined in this section.
3: Navigation and Printing
Figure 3-4 Navigating the xPrintServer User Interface
Double-click to sort
table information by
column heading
Links
available for each
page are listed here
Search
When a specific printer
on the Printers
page is clicked, details
about this printer will
appear in grey fields
beneath the printer list.
See Figure 4-2.
Tabs allow you to move between
xPrintServer pages and to Log-Off
Clicking the button beside a particular table list item will pull up the popup
command menu
associated with that item.
Go to the first page Go to the last page
xPrintServer User Guide 15
Sometimes multiple pages are necessary to list all the items in the Printers, Users, Jobs and
Logs pages. In these
circumstances, page navigation features will become available at the bottom of the screen.
3: Navigation and Printing
Non-Admin users have
The Admin User has access to all
Off).
As illustrated above, basic navigation features for the xPrintServer user interface include the following:
Tabs
All the functionality of your xPrintServer user interface is divided between the Home, Admin, Jobs, Printers, Users, Logs and Log-Off tabs located across the top of the user interface. Only the Admin user has full access to the functionality of all tabs within the xPrintServer user interface. Non-Admin users only have access to the Home, Jobs and Log-Off tabs. Access these pages by clicking the same-named tab along the top of the screen. For instance, click the Jobs tab to get to the Jobs page or click Home to get to the Home page.
Figure 3-5 Tabs Available for the Admin User and Non-Admin Users
seven tabs of the xPrintServer user interface (Home, Admin, Jobs, Printers, Users, Logs and Log-
access to only the Home,
Jobs and Log-Off tabs.
Links
Click to select from the links/commands available for each tab. All links available for a particular web page are displayed along the left side. For instance, links to Active, Completed and All jobs are available on the left side of the Jobs page.
Search
A Search field is available for the Jobs, Printers and Users tabs. Directly typing into the Search field will automatically update the displayed list of jobs, printers or users. The contents of the Search field can be edited repeatedly or even deleted and the Jobs/Printers/Users list will adjust automatically. Deleting all contents of the Search f ield w il l cause the results to show everything available and no longer display filtered results.
Button
This button may be found beside all items listed on the Jobs and Printers pages. Click the button beside a particular print job or printer on these pages to pull up a popup command menu with commands that are available for that item.
Log-Off Tab
A Log-Off tab located at the far upper right of every xPrintServer user interface page allows you to logout easily.
xPrintServer User Guide 16

Printing

This section explains how to print from your iOS device (e.g., iPad, iPod). Be sure to have completed the following before attempting to print:
Installation of the xPrintServer device to an internet-connected network system with a Mac or
Physical installation and configuration of at least one printer to the network system
Refer to Chapter 4: Configuration for more involved printer configuration option information.

Printing from an iOS Device

Use these steps to print from your iPad, iPhone or other iOS device.
1. Open web page, email, photo, etc. you wish to print and choose the icon to open the native
3: Navigation and Printing
pc.
discovered and provisione d through the xPrintServer user interface.
print menu:

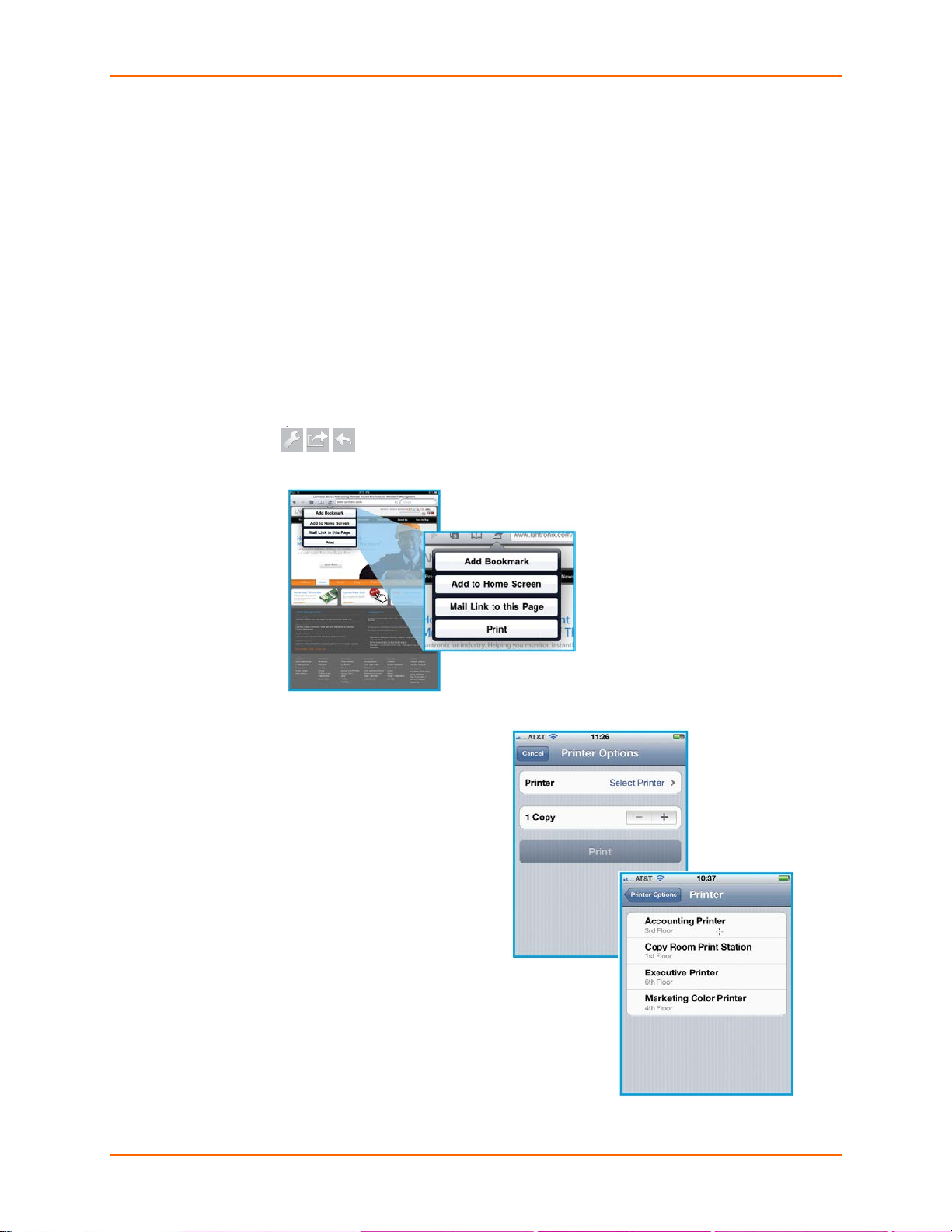

Figure 3-6 Sample View of Native Print Menu
Note: A list of available
commands will appear on the native print menu and will differ in appearance depending on the type of Apple device.
2. Click the Print option on the screen
of your iOS device. Printer Options will appear on your iOS device.
3. Click Select Printer. A list of configured
printers will appear on your iOS device.
Note: Printer
Options appear differently on different iOS devices.
4. Click the name of the printer you wish to
print this file to. You will be returned to Printer Options.
5. Click the + or – buttons to modify the
number of copies of this file you wish to have printed.
6. Click Print. Your print job will be sent
to the selected printer.
Figure 3-7 Sample View of Printer Options
xPrintServer User Guide 17
Access to functionality in the Home
Access to Home, Admin, Jobs, Printers, Users and Logs
xPrintServer unit, and monitor logs.

4: Configuration

This chapter describes how to configure your xPrintServer using the xPrintServer user interface.
Admin user: the default and permanent master user login for the xPrintServer. The Admin user has complete access to the xPrintServer user interface functionality including user, printer and job management and configuration capabilities as compared to non-Admin users who are able to change only their own password and have access to only their own print jobs and basic xPrintServer information.
Table 4-1 Comparing Admin and Non-Admin User Privileges
Non-Admin User Privileges Admin User Privileges
and Jobs tabs in the xPrintServer user interface.
Change own user password. View and modify own print jobs
(not the print jobs of other users).
View basic information about the
xPrintServer system status.

User Administration

The Admin user is able to create new users, delete users, specify user access to particular printers and update user passwords. The Admin user may also utilize the Search feature as necessary to find a particular user. Non-Admin users may only modify the password of their created account.

Changing Passwords

Directions for changing user passwords are provided in this section. All users may change their own password and the Admin user has the wider privilege of being able to change all user
passwords. Password changes are effective immediately.
To change your password:
tab pages which includes all the functionality available through the xPrintServer user interface.
Change all user passwords. View and manage information about all print jobs,
printers and user logins.
Ability to update firmware, reset device to default
settings, add/delete printers and users, manage printer access, modify time zone, restart the device, view and send diagnostic information, update the name of the
1. Login to the xPrintServer user interface (see Logging In).
2. Click the Password link on the left side of the Home page. The Change Password page will appear displaying the User for which the password change is being made.
3. Complete the following fields:
Current Password New Password
xPrintServer User Guide 18
Re-enter new Password
4. Click Change Password.
Note: Passwords are case-sensitive and may
include up to 32 characters. All printable characters maybe used with the exception of single and double quotation marks such as: ‘
or “.
4: Configuration
5. Click OK in the confirmation popup that appears. Your password is changed.
Note: You will be asked to login again if you attempt to navigate to a different user interface
page.
To change a non-Admin user password as the Admin:
1. Login to the xPrintServer user interface as Admin (see Logging In).
2. Click the Users tab to access the Users page. All users are listed here.
3. Utilize Search as necessary to find a particular user.
4. Click Password button to the right of the User ID to be changed.
5. Enter the new password into both fields:
Password Re-enter Password
6. Click Change Password.
7. Click OK in the confirmation popup that appears. User password is changed.
Note: If the Admin user password is changed, you will be asked to login again if you attempt to
navigate to a different user interface page.
Note: Passwords are case-sensitive and may
include up to 32 characters. All printable characters maybe used with the exception of single and double quotation marks such as: ‘
or “.

Creating a New User

The Admin user can use these steps to create new users.
1. Login to the xPrintServer user interface (see Logging In).
2. Click the Users tab to access the Users page. All users are listed here.
3. Click Add User.
Note: The Full Name of a new user is case sensitive and may include up to 32 alpha and/or
numeric characters.
4. Enter the following fields for the new user:
User ID Full Name Password Re-enter Password
Note: When establishing a new user, please note
that the iOS device browser capitalizes the first character of the User ID. Make sure the User ID is correct prior to submitting your request to add user.
5. Click Add User (or Cancel if you want to cancel this action). The new user will immediately display on the Users page.
xPrintServer User Guide 19
4: Configuration

Deleting a User

The Admin user can use these steps to delete users.
1. Login to the xPrintServer user interface (see Logging In).
2. Click the Users tab to access the Users page. All users are listed here.
3. Utilize Search as necessary to find a particular user.
4. Click the Delete button to the right of the User ID to be deleted.
5. Click Yes in the confirmation popup that appears (or No if you want to cancel this action). . The deleted user will immediately be removed from the list of users on the Users page.

Changing User Access to a Printer

The Admin user can use these steps to change user access to a specific printer.
1. Login to the xPrintServer user interface (see Logging In).
2. Click the Printers tab to access the Printers > List page (see Figure 3-4). All printers configured to the xPrintServer are listed here.
3. Click the Access link to the left of the Printers page. All Users or Restricted will displa y under the Allowed Users column for each configured printer on the network.
4. Utilize Search as necessary to find a particular printer.
5. Click the button to the right of the specific printer with user access to be modified.
6. To allow all users access to this printer, check the Allow access to all users checkbox at the top of the screen. Individual User ID checkboxes that may have specified user access will disappear.
7. To allow specific users access to this printer, uncheck the Allow access to all users checkbox at the top of the screen if not already unchecked. Individual User ID checkboxes will appear to allow you to select users allowed access to this printer.
Check the User ID checkbox of users you wish to grant printer access for this printer. Uncheck the User ID checkbox of users you do not wish to grant printer access for this
printer.
8. Click Save (or Cancel if you want to cancel this action). The list of printers will re-appear with the Allowed Users column immediately updated to show your latest modification.

Discovering New Printers

Note: Discovery in the xPrintServer from a PC requires Bonjour®, which may be installed via
iTunes® or Safari or Bonjour Print Helper ® at
www.apple.com.
All printers ar e typi cally added and configured to the xPrintServer via Discovery where the xPrintServer discovers and provisions all network-connected printers as AirPrint printers.
Auto Discovery: Each time the xPrintServer starts up, the Discovery protocol runs one time
automatically.
xPrintServer User Guide 20
4: Configuration
Description
Discovery: The Admin user may activate Discovery at will through the xPrintServer user
interface any time after the xPrintServer is up and running.
Note: Only printers listed among the Lantronix xPrintServer published list of printers will be auto-
provisioned after Discovery (see http://www.lantronix.com/it-management/mobile-print-
servers/supported-printer-list.html). Configuration options to manually add a printer and modify
advanced printer settings are available under Printers > Advanced. Use these advanced options only if instructed to do so by Lantronix Technical Support.

Configuring Printers through Discovery

The Admin user may utilize the instructions to discover and provision network-connec ted pr int ers installed since the xPrintServer last st arted up or printers on other networks if their IP addresses have been added (see Adding a Printer IP Address).
1. Login to the xPrintServer user interface (see Logging In) as the Admin user.
2. Click the Printer tab to access the Printer page.
A list of all currently configured printers will be listed on this page. All printers which were discovered and configured at the xPrintServer startup will also be
listed here with “Auto Discovered” listed under the Location column.
Figure 4-1 Printers Auto-Discovered upon xPrintServer Startup
3. Click on any printer to retrieve additiona l information on that printer. In Figure 4-2 below, the second printer in the list was clicked and the printer details in the grey fields below appeared at the bottom of the list of printers.
Figure 4-2 Printer Information
Name
IP Address
Location Status
4. Click the Discovery link to the left of the page. A Printer Auto Discovery Report will appear showing the date/time the xPrintServer automatically discovered, the number of configured printers (at the last startup of the device) and associa ted do wnl oad ed driv er s .
xPrintServer User Guide 21
4: Configuration

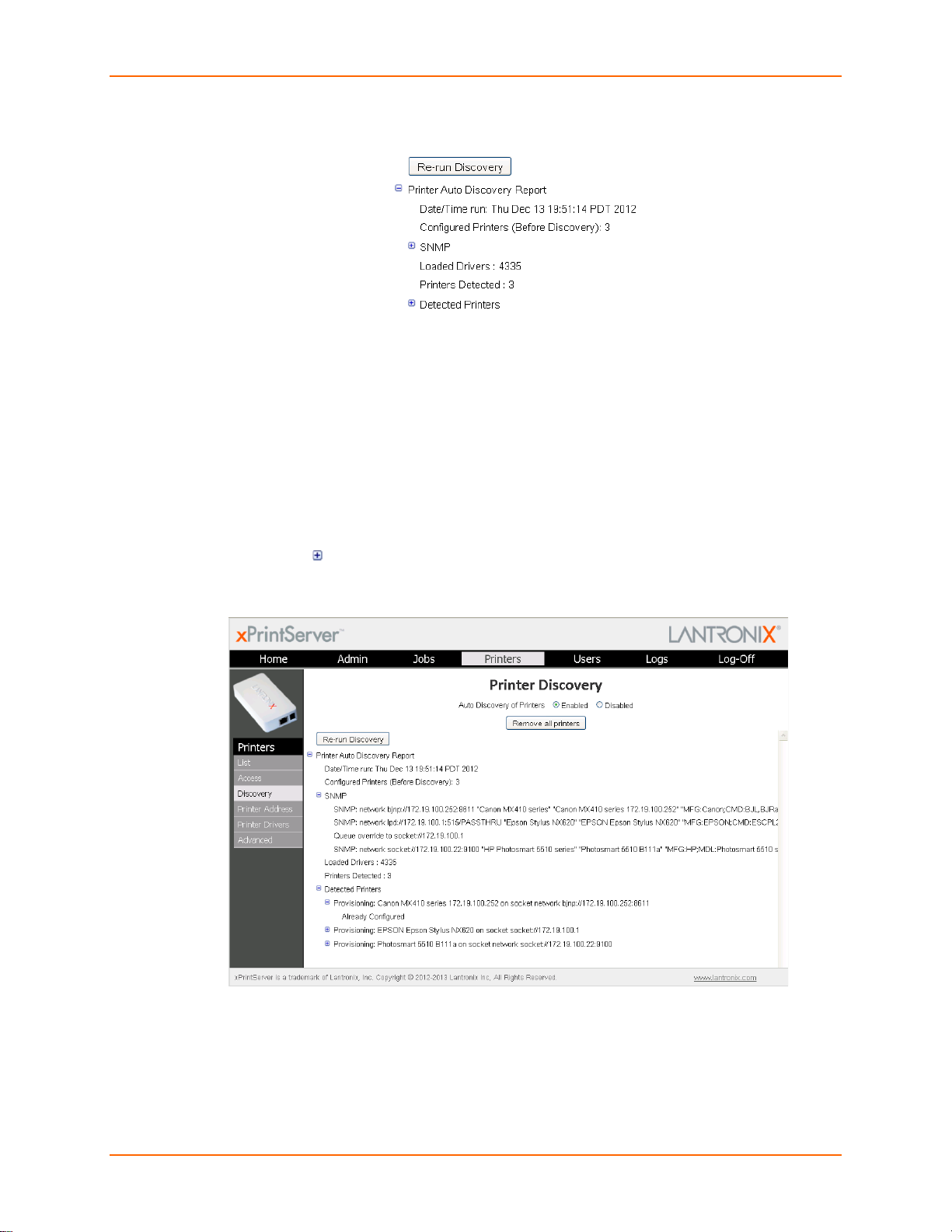

Figure 4-3 Sample Printer Auto Discovery Report
5. Click the Re-run Disco v er y button within the Printer Auto Discovery Report to manually check for any new printers that have since been added.
6. Expand the SNMP field to see configuration information about the discovered printer(s). An example of what you may see in the SNMP field:
SNMP: network lpd://172.19.100.1:515/PASSTHRU "Epson Stylus NX620" "EPSON Epson Stylus NX620" "MFG:EPSON;CMD:ESCPL2,BDC,D4,D4PX,ESCPR1;MDL:Epson Stylus NX620;CLS:PRINTER;DES:EPSON Epson Stylus NX620;CID:EpsonRGB;FID:FXN,DPA,WFA,ETA,AFN,DAN;" "172.19.100.1"
7. Expand the Detected Prin t ers field, and further expand additional available subcategories (indicated with a
icon to the left) to see a list of discovered printers and the status of the
provisioning results:
Figure 4-4 Expanding Detected Printers Information
Note: If you expand the Printer Auto Discovery Report, you may need to use the left-right and
up-down scroll bar to see the entire contents of your report.
xPrintServer User Guide 22

Setting Real Time Clock

Real Time Clock is a built-in function in xPrintServer which time-stamps printing-related ac ti vities such as identifying the time of log activities or print jobs. Real Time Clock is auto matically on and syncs time with pool.ntp.org Standard Time).
To modify the Time-zone
1. Login to the xPrintServer user interface (see Logging In) as the Admin user.
2. Click the Admin tab to access the Admin menu. A list of all available Admin user configuration options appears to the left of the screen (see Figure 4-5).
The Select Time-zone page is the default page the Admin user will get to upon clicking on the Admin tab. This page can also be accessed by clicking the Time-zone link on the left side of the Admin page.
(Network Time Protocol) and is set it at GMT -800 PST (Pacific
Figure 4-5 Admin Menu (Defaults to Time-zone Link)
4: Configuration
3. Click the Time-zone link on the left side of the page to access the Select Time-zone page.
4. Select a new time zone from the Select Time-zone drop-down menu.
5. Click the Change Time-zone button.
6. Click Yes in the confirmation popup that appears.
7. Wait 35 seconds. When the time zone is changed, the xPrintServer device will automatically restart, bringing you back to System Status on the Home Page. The unit is now set to your new chosen time zone.

Assigning a Static IP Address to the xPrintSer ver

Your xPrintServer IP address is DHCP by default, but can be configured with a static IP address. The Admin user may utilize these instructions to establish a static IP address.
1. Login to the xPrintServer user interface (see Logging In) as Admin user.
xPrintServer User Guide 23
4: Configuration
2. Click the Admin tab to access the Admin menu. A list of all available Admin user configuration options appears to the left of the screen (see Figure 4-5).
3. Select IP Address to access the Admin > IP Address page.
4. Click the Static radio button near the top of the page to access static IP address configuration fields.
5. Complete the following fields:
IP Address Netmask Default Gateway DNS Server
6. Click Save.
7. Click OK in the confirmation popup that appears. The unit will automatically restart.
8. Close out of your xPrintServer browser and open a new browser.
9. Enter the newly assigned static IP address.
10. Login to the xPrintServer user interface (see Logging In). The assigned static IP address will appear on the System St at u s page.

Admin Printer Configuration Options

Configuration options available on a specific printer can be accessed through the Pop-Up Printer Command Menu (see Figure 3-4) of the xPrintServer user interface. The Admin user may utilize
the Search feature as necessary to find a particular, previously discovered printer, and acc es s the Pop-Up Printer Command Menu for that printer.

Printing a Test Page

Use these directions to print a test page for a selected printer.
1. Login to the xPrintServer user interface (see Logging In) as Admin.
2. Click the Printers tab to access the Printers > List page (see Figure 3-4).
3. Utilize Navigation as necessary in situations where there are multiple pages of printers.
4. Utilize Search as necessary to find a particular printer.
5. Click the button beside the printer through which you want to print a test page.
6. Click Print Test Page in the popup command menu that appears (or Cancel within the same menu if you want to back out of it) and a test page print job will be sent to the selected printer..
7. Click OK in the confirmation popup providing a print job ID.

Purging Job History

The Admin user may use this selection to purge all printed job history information. By default, xPrintServer otherwise maintains a list of the last 50 printed jobs.
xPrintServer User Guide 24
4: Configuration
1. Login to the xPrintServer user interface (see Logging In) as Admin.
2. Click the Printers tab to access the Printers > List page (see Figure 3-4).
3. Utilize Navigation as necessary in situations where there are multiple pages of printers.
4. Utilize Search as necessary to find a particular printer.
5. Click the button beside the printer with the job history you want to purge.
6. Click Purge Job History in the popup command menu that appear s (or Cancel within the same menu if you want to back out of it).
7. Click Yes in the confirmation popup to continue (or No to cancel action) and all print jobs not yet printed will be purged from the selected printer.
8. Click OK in the second confirmation popup.

Deleting a Printer

The Admin user may use this selection to delete a printer that is currently configured. Printers may later be added and configured according to the directions in the Adding, Finding and
Discovering Printers section.
1. Login to the xPrintServer user interface (see Logging In) as Admin.
2. Click the Printers tab to access the Printers > List page (see Figure 3-4).
3. Utilize Navigation as necessary in situations where there are multiple pages of printers.
4. Utilize Search as necessary to find a particular printer.
5. Click the button beside the printer you want to delete.
6. Click Delete Printe r in the popup command menu that appears (or Cancel within the same menu if you want to back out of it).
7. Click Yes in the confirmation popup to continue (or No to cancel action) and the selected printer will be deleted.
8. Click OK in the second confirmation popup.

Changing Printer Description

The Admin user may use this selection to change the description of a configured printer as it will display to all users.
1. Login to the xPrintServer user interface (see Logging In) as Admin.
2. Click the Printers tab to access the Printers > List page (see Figure 3-4).
3. Utilize Navigation as necessary in situations where there are multiple pages of printers.
4. Utilize Search as necessary to find a particular printer.
5. Click the button beside the printer for which you want to change description.
6. Click Change Description in the popup command menu that appears (or Cancel within the same menu if you want to back out of it).
7. Type the new description for the printer in the field which appears.
xPrintServer User Guide 25
4: Configuration
8. Click Save. After a few seconds, the printer description will be changed.

Changing Printer Location

The Admin user may use this selection to change the location of a configured printer. This command is useful for updating the location of printers initially identified as “Auto Discovery”.
1. Login to the xPrintServer user interface (see Logging In) as Admin.
2. Click the Printers tab to access the Printers > List page (see Figure 3-4).
3. Utilize Navigation as necessary in situations where there are multiple pages of printers.
4. Utilize Search as necessary to find a particular printer.
5. Click the button beside the printer with location to be changed.
6. Click Change Location in the popup command menu that appears (or Cancel wit hin the same menu if you want to back out of it).
7. Type the new description for the printer in the field which appears.
8. Click Save. After a few seconds, the printer name will be changed.

Showing Shared Printer Information

The Admin user may use this selection to make an xPrintServer-provisioned printer visible and available to iPad, iPhone and other iOS devices. Up to 10 network-attached printers can be seen and shared at a time.
1. Login to the xPrintServer user interface (see Logging In) as Admin user.
2. Click the Printer tab to access the Printers > List page (see Fi gure 3-4).
3. Utilize Navigation as necessary in situations where there are multiple pages of printers.
4. Utilize Search as necessary to find a particular printer.
5. Click the button beside the printer information to be shared.
6. Click Show Share Info in the popup command menu that appears (or Cancel within the same menu if you want to back out of it). An information popup window appears showing the printer as it is shared:
Figure 4-6 Show Share Info Popup
7. Click OK in the share info popup window to close it.
xPrintServer User Guide 26
4: Configuration

Sharing a Printer

The Admin user may use this selection to make an xPrintServer-provisioned printer visible and available to iPad, iPhone and other iOS devices.
1. Login to the xPrintServer user interface (see Logging In) as Admin.
2. Click the Printers tab to access the Printers > List page (see Figure 3-4).
3. Utilize Navigation as necessary in situations where there are multiple pages of printers.
4. Utilize Search as necessary to find a particular printer.
5. Click the button beside the printer to be shared.
6. Click Share Printer in the popup command menu that appears (or Cancel within the same menu if you want to back out of it).
7. Click Yes in the confirmation popup to continue (or No to cancel action) and the selected printer becomes visible and availab le on iOS de vices .
8. Click OK in the second confirmation popup.

Hiding a Printer

The Admin user may use this selection to hide an xPrintServer-provisioned printer so that the it is no longer visible or available on iPad, iPhone and other iOS devices.
1. Login to the xPrintServer user interface (see Logging In) as Admin.
2. Click the Printers tab to access the Printers > List page (see Figure 3-4).
3. Utilize Navigation as necessary in situations where there are multiple pages of printers.
4. Utilize Search as necessary to find a particular printer.
5. Click the button beside the printer you wish to hide.
6. Click Hide Printer in the popup command menu that appears (or Cancel within the same menu if you want to back out of it).
7. Click Yes in the confirmation popup to continue (or No to cancel action) and the selected printer becomes invisible and no longer available on iOS devices.
8. Click OK in the second confirmation popup.

Updating Printer IP Addresses

The Admin user may use this feature to update printer IP addresses on the xPrintServer.
1. Login to the xPrintServer user interface (see Logging In) as Admin.
2. Click the Printers tab to access the Printers > List page (see Figure 3-4).
3. Click the Printer Address link on the left side of the Printers page. A list of existing Printer IP Addresses will appear in the Printer IP Addresses page, if any were previo us l y established.Click into the large square field of the Printer IP Addresses page.
Figure 4-7 Printer IP Address Page
xPrintServer User Guide 27
4: Configuration
Click inside
to edit/type
printer IP
addresses.
4. Update the Printer IP Addresses by adding a new printer IP address, modifying an existing IP address or deleting an address. To add more than one printer IP address, enter one address per line (separated by a paragraph break using the Enter key on the keyboard).
5. Click Save to save added or modified IP address(es).
6. Click OK in the confirmation popup.

Viewing and Cancelling Print Jobs on the xPrintServer User Interface

The Admin user can view and/or cancel all print jobs but non-Admin users may only view and/or cancel their own print jobs. Use these steps to v iew and/or cancel a specific submitted print job.
1. Login to the xPrintServer user interface (see Logging In).
2. Click the Jobs tab to access the Jobs page. All Active Jobs are listed here. The information on this page is refreshed every 15 seconds.
3. Click the desired link to left to view a desired job category:
Active: to show all jobs that are currently active (default view) Completed: to show all jobs that have been completed All: to show all jobs, active or completed.
4. Utilize Navigation as necessary in situations where there are multiple pages of printers.
5. Utilize Search as necessary to find a particular print job.
6. Click the button to the right of a particular print job to modify. A popup will appear with the option to cancel this print job.
7. Click the Cancel job command to cancel the print job (or Cance l Action to exit the command menu without cancelling the print job). A confirmation popup will appear.
8. Click OK to confirm action. The confirmed action will immediately take place.
xPrintServer User Guide 28

Renaming xPrintSe rver Device

As part of the initialization process, the xPrintServer registers a Lantronix-specif ic Bonj o ur Service Type (lantronix-ips._tcp which uses the default device name of xPrintServer). As with any Bonjour discovery application, you can find your xPrintServer or any Bonjour­supported web browser using the URL: http://<devicename>.local, substituting the <devicename> with the name of the device. Therefore, you would search for your xPrintServer device with http://xprintserver.local by default. If you change the default device name, the xPrintServer URL used to access the xPrintServer web interface would also be modified. For instance, if the default name xprintserver is renamed to printer1, the browser URL address would be http://printer1.local.
Note: All Apple devices natively include Bonjour Services. MS Windows Operating Systems do
not include Bonjour Service and will require an installation of an application that includes Bonjour Service for Windows, such as the Apple “Bonjour Print Services for Windows” or the Apple Safari for Windows. Once Bonjour Service for Windows has been installed, the xPrintServer can be discovered using the configured <name>.local in the web browser, as described above.
The directions below can be used to rename an xPrintServer device to whatever name the Admin user designates. This is a useful function in situations where there are multiple xPrintServers on a network as each device should have a unique name. Changing the xPrintServer name requires a restart to use the new xPrintServer name.
4: Configuration
1. Login to the xPrintServer user interface (see Logging In) as the Admin user.
2. Click the Admin tab to access the Admin menu. A list of all available Admin user configuration options appears to the left of the screen (see Figure 4-5).
3. Click the Name link on the left side of the page to access the Change xPrintServer Name page. The Current Name of your device will display (xPrintServer).
4. Type in the New Name (an alpha and/or numeric combination that may include the - and _ characters).
5. Click the Chang e Name button to submit the new name.
6. Click Yes in the confirmation popup to continue (or No to cancel action) renam ing your xPrintServer device.
7. Wait 35 seconds. When the renaming of your unit is complete, the xPrintServer device will automatically restart, bringing you back to the Change xPrintServer Name page where your new device name will display.
xPrintServer User Guide 29

Resetting the xPrintServer to Factory Defaults

Resetting the xPrintServer to factory default wipes out all configuration information and resets the xPrintServer configuration parameters to the original factory settings. There are two ways to reset the xPrintServer to factory default settings: through the user interface or utilizing the reset button on the xPrintServer device.

Via the User Interface

The Admin user may utilize these directions to reset the xPrintServer to factory default settings through the Reset Unit to Factory Defaults page of the xPrintServer user interface. A device restart automatically follows a reset.
1. Login to the xPrintServer user interface (see Logging In) as Admin user.
2. Click the Admin tab to access the Admin menu. A list of all available Admin user configuration options appears to the left of the screen (see Figure 4-5).
3. Click the Default link on the left side of the page to access the Reset Unit to Factory Defaults page.
4. Click the Reset to Factory Defaults button.
4: Configuration
5. Click Yes in the confirmation popup that appears (or No to cancel this action). The unit automatically restarts in order to complete resetting to factory defaults.
6. Wait for the xPrintServer to reboot. When the reset to factory default process is complete and the device restarted, you will be brought back to System Status on the Home Page. Authentication (Logging In) will be required to access the xPrintServer user interface.

Via the Hardware Reset Button

Use these directions to reset the xPrintServer to factory default settings utilizing the Reset button on the bottom of the xPrintServer device. This button is accessible through a hole in the case.
To reset the unit to factory defaults, perform the following steps:
1. Place the end of a paperclip or similar object into the reset opening (pin-sized hole on the bottom of the device) and press for a minimum of 10 seconds. Within the 10 seconds, the “X” Status LED on top of the xPrintServer unit will display a solid orange light to indicate the device is rebooting (see Table 2-1) after which it will begin to blink.
2. Remove the paperclip to release the button. This procedure restores factory default settings to the configuration and reboots the unit.
xPrintServer User Guide 30

Restarting the xPrintServer

The Admin user may use these directions to restart the xPrintServer device through the xPrintServer user interface and without changing any settings.
1. Login to the xPrintServer user interface (see Logging In) as the Admin user.
2. Click the Admin tab to access the Admin menu. A list of all available Admin user configuration options appears to the left of the screen (see Figure 4-5).
3. Click the Restart link on the left side of the page to access the Restart Unit page.
4. Click the Restart Unit button.
5. Click Yes in the confirmation popup that appears (or No to cancel this action).
6. Wait 35 seconds while the unit restarts. The xPrintServer device will restart, bringing you back to System Status on the Home Page. Authentication (Logging In) will be required to access the xPrintServer user interface.

Viewing Logs

4: Configuration
The Admin user may use these directions to view logs. xPrintServer user interface provides logs for all diagnostic and access messages.
1. Login to the xPrintServer user interface (see Logging In) as the Admin user.
2. Click the Logs tab to access the Logs page. A list of all Diagnostic logs appear b y default .
3. Click the Access link to the left to view only access logs.
4. Click the Diagnostic link to the left to view only diagnostic logs.
5. Click the Job Status link to the left to view only job status logs.
6. Utilize Navigation as necessary in situations where there are multiple pages of logs.
Note: The number of logs on the bottom of the page will update each time the Diagnostic or
Access link on the left is clicked.
xPrintServer User Guide 31

Printer Drivers

The Printer Driver Download page allows you to download a printer driver: from the internet to allow operation of the xPrintServer where internet access is not possible. This page also provides a method to export printer drivers onto your PC drive for downloading onto other xPrintServers as well as a way to preload drivers onto the xPrintServer unit.

Downloading Printer Drivers from the Internet

The Admin user may utilize these directions to download printer drivers from the internet.
4: Configuration
1. Login to the xPrintServer user interface (see Logging In) as Admin user.
2. Click the Printers tab to access the Printers > List page (see Figure 3-4). All printers configured to the xPrintServer are listed here.
3. Click the Prin t er Dri v er s link to get to the Printer Driver Download page. You will see a list of drivers that have been previously downloaded by make and model under the Loaded Drivers tab.
4. Click the Drivers List tab. A drop-down Manufacturer menu will display on the screen.
Figure 4-8 Drivers List Tab
5. Select the desired printer Manufacturer from the drop-down menu. The number of printer models associated with that manufacturer and available for download will display on the screen.
6. Enter the Printer Model name. Once you begin typing the model name, models with the characters you have typed will appear on the screen.
7. Select the correct model from the list of models.
8. Click Download Driver to save the file directly to your PC. You will be notified when the driver has been downloaded or if there was any kind of error.
9. Click OK.
xPrintServer User Guide 32
4: Configuration

Exporting Printer Drivers

The Admin user may utilize these directions to export printer drivers from the xPrintServer. Once exported, you may move the printer driver from your pc to an alternative location. This is useful in situations where you may wish to use the printer driver on other xPrintServer devices.
1. Login to the xPrintServer user interface (see Logging In) as Admin user.
2. Click the Printers tab to access the Printers > List page (see Figure 3-4). All printers configured to the xPrintServer are listed her e.
3. Click the Prin t er Dri v er s link to get to the Printer Driver Download page. You will see a list of drivers that have been previously downloaded by make and model under the Loaded Drivers tab.
Note: You must have already downloaded printer drivers under the Loaded Drivers tab.
The file name of the printer driver must be printerdrivers.bin.
4. Click to select a specific printer driver to export. The selected driver will be highlighted in dark blue.
5. Click Export Drivers. A popup window will appear.
6. Click OK to save the file directly to your PC. You will be notified when the driver has been exported or if there was any kind of error.
7. Move and upload the exported driver onto another xPrintServer device as desired.
Figure 4-9 Export Drivers Button
xPrintServer User Guide 33

5: Updating Firmware

Note: Internet access is required for firmware updates.
This chapter provides directions for updating firmware, which may be necessary from time to time. Only the Admin user may perform a firmware update through the xPrintServer user interface.
1. Login to the xPrintServer user interface (see Logging In).
2. Click the Admin tab to access the Admin menu. A list of all available Admin user configuration options appears to the left of the screen (see Figure 4-5).
3. Click the Firmware link on the left side of the page. The firmware you are currently running will display.
4. Click the Check for Firmware Update button to check if a firmware update is available at this time. After a few seconds, you will receive one of two messages:
“Firmware update is available” indicating you may proceed to step 5. “You are running the latest version of the firmware” indicating no firmware update is
necessary at this time.
5. Click Upgrade Firmware.
6. Click Yes in the confirmation popup that appears. Wait a few minutes while firmware upgrades. When the upgrade is complete, the xPrintServer device will automatically restart, bringing you back to System Status on the Home Page. The list of discovered printers, created users and other custom configuration settings remain unchanged across firmware updates.
xPrintServer User Guide 34
90-264 VAC on barrel connecter (5V power supply) Normal Power Usage: <1 Watt
1 RJ45 10Base-T/100Base-TX Ethernet port
11.43 x 6.02 x 2.16 cm (4.5 x 2.37 x .85 in)
19g ( .4 lbs)
Operating range: 0° to 55°C Storage range: -40° to 70°C
Operating 0% to 90% non-condensing
White plastic case.
SNMP
IPP
HTTP (HTML/browser-based)
AirPrint
Chrome Version 16
(1) Status LED (2) Ethernet LEDs

6: Technical Specifications

Basic device information is provided in this chapter.
Table 6-1 Technical Specifications
Category Description
Power Input
Network Interface
Dimensions
Weight
Temperature
Relative Humidity
Case
Protocols Supported
Management
System Software
Efficiency: 87%
JetDirect (AppSocket) LPD LPR
Zeroconf Microsoft Internet Explorer, Version 8 and 9 Firefox Version 7 Safari Version 5
LEDs
xPrintServer User Guide 35

A: Technical Support

This chapter provides directions and contact information for getting live technical support for your xPrintServer device. The xPrintServer user interface provides an easy way for you to directly send helpful diagnostic information to Lantronix. Calling Technical Support after the y have received this information will help them better and more quickly assist you.

Diagnostic Support

Send Diagnostic Information

The Admin user may follow the directions below to send diagnostic support information about your xPrintServer device to the Lantronix Technical Support before calling for assistance.
1. Login to the xPrintServer user interface (see Logging In).
2. Click the Admin tab to access the Admin menu. A list of all available Admin user configuration options appears to the left of the screen (see Figure 4-5).
3. Click the Diagnostic link on the left side of the page.
4. Click Send Diagnostic Information. Wait a few moments while diagnostic information is sent to Lantronix Technical support.
5. Click OK in the confirmation popup that appears. Diagnostic support information is sent.

Download Diagnostic Info

The Admin user may follow the directions below to download diagnostic data necessary to bypass certain international firewalls. You may use these directions in instances where you have trouble accessing the Lantronix web server to access firmware updates.
1. Login to the xPrintServer user interface (see Logging In).
2. Click the Admin tab to access the Admin menu. A list of all available Admin user configuration options appears to the left of the screen (see Figure 4-5).
3. Click the Diagnostic link on the left side of the page.
4. Click Download Diagnostic Info. Wait a few moments while diagnostic information is downloaded.
xPrintServer User Guide 36

Contact Informati on

Technical Support U.S.
Phone: (800) 422-7044 Please check our online knowledge base or send a question to Technical Support at
http://www.lantronix.com/support.
Technical Support Europe, Middle East, Africa Phone: (33) 13-930-4172
Email: Firmware downloads, FAQs, and the most up-to-date documentation are available at
http://www.lantronix.com/support
When you report a problem, please provide the following information:
Your name, and your company name, address, and phone number Lantronix model number Lantronix serial number/MAC address
eu_techsupp@lantronix.com or eu_support@lantronix.com
Firmware version (on the first screen shown when you Telnet to the device and type show) Description of the problem Status of the unit when the problem occurred (please try to include information on user and
network activity at the time of the problem)
xPrintServer User Guide 37
specific technical issues.
Make sure that xPrintServer is connected securely to its power supply unit.

B: Troubleshooting

Some of the errors encountered setting up or using the xPrintServer are addressed in this appendix. When troubleshooting, always ensure that the physical connections (power cable, network cable) are secure. When troubleshooting the following problems, make sure that xPrintServer is powered up and connected to a good network connection.

Problems and Error M essages

Problem/Message Possible Solution
LED lights display correctly but printer does not print job.
Status LED does not display light.
Ethernet LED(s) are not displaying light.
Designated banner page is not printing with print job.
Document did not print to the correct printer.
Make sure that the network printer:
Is powered on. Has a good network connection – wired or wireless. This includes
proper cabling, correct IP addressing and/or Wi-Fi connection configuration settings and proper routing if going across routed network environments.
Has adequate paper supply. Has adequate ink or toner supply. Has no paper jams.
Consult the printer manufacturer to troubleshoot these or other print-
Otherwise, try another wall outlet. Contact Technical Support if xPrintServer's status LED continues to not display light after confirming good power.
Make sure that Ethernet patch cable is securely connected to both xPrintServer's Ethernet port and the Ethernet hub or switch to the network at both ends. Otherwise, swap the patch cable for another k now n good cable. Use a straight CAT5 (or greater) Ethernet patch cable, not a crossover Ethernet cable to connect to the network drop.
Ensure that banners configurations are enabled under Set Default Options in Printers > Advanced page.
Make sure your application output encode is set to ASCII. If not, change it to ASCII.
Network-attached printer is not displaying on the iOS device.
iOS device cannot print or access xPrintServer.
1) Reboot the xPrintServer.
2) Manually run Discovery
3) Verify that the network-attached printer supports Bonjour. Make sure your iOS device is compatible. See Supported iOS Devices.
xPrintServer User Guide 38

C: Compliance

Declaration of Conformity

Manufacturer’s Name & Address:
Lantronix 167 Technology Drive, Irvine, CA 92618 USA Tel: 800-526-8766 Tel: 949-453-3990 Fax: 949-450-7249
Product Name Model: xPrintServer Conforms to the following standards or other normative documents:
Emissions
FCC Part 15 Class B, VCCI Class B, EN 55022, CISPR22, ICES-003
Safety Agency UL, CE Mark, NOM and C-Tick Agency Approvals
RoHS, Reach, Linux OS
xPrintServer User Guide 39
C: Compliance
• Lead (Pb)
• Mercury (Hg)
• Polybrominated biphenyls (PBB)
• Cadmium (Cd)
• Hexavalent Chromium (Cr (VI))
• Polybrominated diphenyl ethers (PBDE)
Product Family Name
Toxic or hazardous Substances and Elements
Lead
Mercury
Cadmium
Hexavalent
Polybrominated
Polybrominated (PBDE)
DSC 0 0 0 0 0 0
EDS 0 0 0 0 0 0
IntelliBox 0 0 0 0 0 0
MatchPort 0 0 0 0 0 0
Micro 0 0 0 0 0 0
MSS100 0 0 0 0 0 0
PremierWave
0 0 0 0 0
0
SCS 0 0 0 0 0 0
SecureBox
0 0 0 0 0
0
SLB 0 0 0 0 0 0
SLC 0 0 0 0 0 0
SLP 0 0 0 0 0 0
Spider and Spider Duo
0 0 0 0 0
0
UBox 0 0 0 0 0 0
UDS1100 and 2100
0 0 0 0 0
0
WiBox 0 0 0 0 0 0
WiPort 0 0 0 0 0 0
xDirect 0 0 0 0 0 0
xPico 0 0 0 0 0 0
XPort 0 0 0 0 0 0
XPress DR & XPress-DR+
0 0 0 0 0
0
xPrintServer
0 0 0 0 0
0
xSenso 0 0 0 0 0 0

RoHS Notice

All Lantronix products in the following families are China RoHS-compliant and free of the following hazardous substances and elements:
(Pb)
O: toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363-2006. X: toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363-2006.
(Hg)
(Cd)
Chromium (Cr (VI))
biphenyls (PBB)
diphenyl ethers
xPrintServer User Guide 40

D: Warranty

For details on the Lantronix warranty replacement policy, go to our web site at
http://www.lantronix.com/support/warranty/index.html
xPrintServer User Guide 41

Index

A
A/P, 11 Access Point, 11 Activity LED, 10 Adding a Printer IP Address, 27 Admin User, 18 Agency Approvals, 39 AirPrint, 6, 7, 35 Apple, 7 Assign Static IP Address, 23 Auto Discovery, 20 Auto printer discovery, 6
B
Bonjour, 20, 29
C
Cabling, 11 Case, 35
Change Password, 19 Change Time-Zone, 23
Changing Printer Description, 25 Changing Printer Location, 26 Chrome, 35 Compliance, 39 Configuration, 6, 18 Contact Information, 37 Contacts, 2 Copyright, 2
D
Declaration of Conformity, 39 Deleting a Printer, 25 Deleting a Printer IP Address, 27 DHCP, 10 Diagnostic Support, 36 Dim, 10 Dimensions, 35 Discovery, 21 Download Diagnostic Info, 36 Download Printer Drivers, 32
E
Emissions, 39
Ethernet, 2, 35 Ethernet Cable, 9 Ethernet LEDs, 10 Ethernet Port, 9, 10 Export Printer Drivers, 33
F
Factory Defaults, 30 Firefox, 35 Firmware, 34 Firmware, 41–42
G
Glow, 10
H
Hiding a Printer, 27 Hub, 11
I
Installation, 9 Installation Steps, 11 Internet Explorer, 35 iOS, 6, 7, 11 IOS, 11 IP
Address, 8 IP Address, 12 IPP, 35
J
JetDirect, 35 Job History, 25
K
Key Features, 6
L
LED, 6, 10 LEDs, 9, 35
Links, 16
Linux OS, 39 Logging In, 14 Logging Off, 14
Logout, 16
Logs, 31 LPD, 35 LPR, 35
M
Management, 35 Manufacturer’s Name & Address, 39 Modifying a Printer IP Address, 27
xPrintServer User Guide 42
Index
N
Navigation, 15 Network Interface, 35 Non-Admin User, 18
P
Package Contents, 9
Pages, 16
Password, 18 Passwords, 18 Power Input, 9, 35 Print Job, 11 Print Jobs, 28 Printer, 26 Printer Auto Discovery Report, 22 Printer Configuration, 24 Printer Drivers, 32 Printer IP Address, 27 Printing, 17 Printing a Test Page, 24 Problems and Error Messages, 38 Product Information Label, 8 Protocols, 35 Purging Job History, 25
Search, 16
Security, 6
Send Diagnostic Information, 36 Serial Number, 8
Sharing a Printer, 27 Show Share Info, 26 SNMP, 22, 35 Software, 35 Solid, 10 Status LED, 10 Subnet, 11 Switch, 11 System Status, 13
T
Tabs, 16
Technical Specifications, 35 Technical Support, 36 Temperature, 35 Test Page, 24 Time-Zone, 23 Topology, 11 Trademark, 2 Troubleshooting, 38
Q
Quick Start Guide, 9
R
Reach, 39, 41–42 Real Time Clock, 23 Relative Humidity, 35 Renaming, 29 Reset Button, 30 Resetting, 30 Restarting Unit, 31 Restoring, 30 RoHS, 39 RoHS Notice, 40 Router, 11
S
Safari, 35
Safety Agency, 39
U
Universal Power Supply, 9 Updating Firmware, 34 Updating Printer IP Addresses , 27 Upgrade Firmware, 34 User Access, 20 User Administration, 18 User Creation, 19 User Deletion, 20
W
Warranty, 41 Weight, 35
X
xPrintServer, 6, 10, 11, 24, 39
xPrintServer User Guide 43
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
