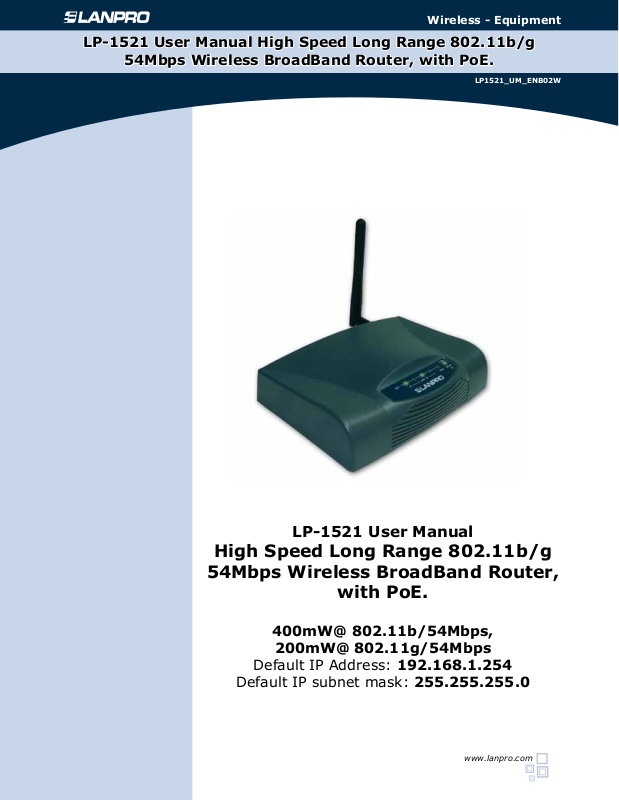

LP-1521 User Manual High Speed Long Range 802.11b/g

54Mbps Wireless BroadBand Router, with PoE.

LP1521_UM_ENB02W

LP-1521 User Manual

High Speed Long Range 802.11b/g

54Mbps Wireless BroadBand Router,

with PoE.

400mW@ 802.11b/54Mbps,

200mW@ 802.11g/54Mbps

Default IP Address: 192.168.1.254

Default IP subnet mask: 255.255.255.0

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Trademarks
Copyright @2009

Contents are subject to change without notice.
All trademarks belong to their respective proprietors.

Copyright Statement
THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF THIS
COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM
OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY PHOTOCOPYING,
RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS COMPANY.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.

FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the

user’s authority to operate this equipment.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Revision History

DATE REVISION OF USER’S MANUAL FIRMWARE

2009/7/27 Version B01 (g/v)1.4.7

Terminology

3DES Triple Data Encryption Standard

AES Advanced Encryption Standard

ANSI American National Standards Institute

AP Access Point

CCK Complementary Code Keying

CSMA/CA Carrier Sense Multiple Access/ Collision Avoidance

CSMA/CD Carrier Sense Multiple Access/ Collision Detection

DDNS Dynamic Domain Name Server

DH Dife-Hellman Algorithm

DHCP Dynamic Host Conguration Protocol

DSSS Direct Sequence Spread Spectrum

EAP Extensible Authentication Protocol

ESP Encapsulating Security Payload

FCC Federal Communications Commission

FTP File Transfer Protocol

IEEE Institute of Electrical and Electronic Engineers

IKE Internet Key Exchange

IP Internet Protocol

ISM Industrial, Scientic and Medical

LAN Local Area Network

MAC Media Access Control

MD5 Message Digest 5

NAT Network Address Translation

NT Network Termination

NTP Network Time Protocol

PPTP Point to Point Tunneling Protocol

PSD Power Spectral Density

RF Radio Frequency

SHA1 Secure Hash Algorithm

SNR Signal to Noise Ratio

SSID Service Set Identication

TCP Transmission Control Protocol

TFTP Trivial File Transfer Protocol

TKIP Temporal Key Integrity Protocol

UPNP Universal Plug and Play

VPN Virtual Private Network

WDS Wireless Distribution System

WEP Wired Equivalent Privacy

WLAN Wireless Local Area Network

WPA Wi-Fi Protected Access

3

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

1

Introduction

The Wireless LAN Broadband LanPro 1521 Router is an affordable IEEE 802.11b/g wireless LAN broadband router solution;

setting SOHO and enterprise standard for high performance, secure, manageable and reliable WLAN.

This document describes the steps required for the initial IP address assign and other WLAN router conguration. The

description includes the implementation of the above steps.

1.1

Package contents

The package of the WLAN Broadband Router includes the following items:

• The WLAN Broadband Router

• The AC to DC power adapter

• The Documentation CD

• 1.8M RJ-45 Cable Line (Option)

1.2

Product Specications:

Product Name High Speed Long Range 802.11b/g 54Mbps Wireless Super Power AP

Standard 802.11b/g(Wireless), 802.3(10BaseT), 802.3u(100BaseT)

Data Transfer Rate 54Mbps(Wireless), 100Mbps(Ethernet)

Chipset Realtek RTL8186 180MHz

Memory Information: 16MB SDRAM, 2MB Flash

Modulation Method

RF Spreading Method Direct Sequence Spread Spectrum (DSSS)

Frequency Band

Transmitter Characteristics RF output power: <23 dBm (max.) @ 802.11g/54Mbps 200mw

Receiver Sensitivity 802.11b -98 dBm@8%, 802.11g -80 dBm@5%

Operation Range 200 to 1000 meters (depend on surrounding)

Antenna External Antenna

LED Power, Active (WLAN/Ethernet)

Security

LAN interface

Power Consumption 12V DC Power Adapter

Operating Temperature 0 ~ 50oC ambient temperature

Storage Temperature -20 ~ 70oC ambient temperature

Humidity 5 to 90 % maximum (non-condensing)

Dimension 118 x 95 x 25 mm

IEEE 802.11b: CCK, DQPSK, DBPSK

IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM DBPSK/ DQPSK/ CCK

N. America / FCC : 2.412 ~ 2.462 GHz (11 channels)
Europe CE / ETSI : 2.412 ~ 2.472 GHz (13 channels)
Japan : 2.412 ~ 2.484 GHz (14 channels)
France : 2.457 ~ 2.472 GHz (4 channels)
Spain : 2.457 ~ 2.462 GHz (2 channels)

RF output power: < 26 dBm(max.) @ 802.11b/11Mbps. 400mw

64 bit/ 128 bit WEP, WPA, WPA2, port ltering, IP ltering, MAC ltering, port

forwarding and DMZ hosting

One 10/100BaseT with RJ45 connector (WAN)
Four 10/100BaseT with RJ45 connectors (LAN)

4

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

1.3

FEATURES

• Support passive 12V~22V 1A 802.3 POE

• 802.11b/g compliant

• WEP, WPA Encryption- 64/128bit (WEP), WPA TKIP

• Wireless users access control

• Wireless sites survey

• TCP/UDP/ICMP/ARP protocol stack

• Dynamic DNS

• WDS, AP, Client, WDS+AP

• VPN Pass-through with multiple sessions

• Supports rewall security with port ltering, IP ltering, MAC ltering, port forwarding, trigger port and DMZ hosting

functions

• DHCP Client and Server

• WAN access mode

• PPPoE PPTP

• DHCP Client

• Fixed IP Address

• Log System (local and remote)

• Telnet

• TX Power control

• UPnP

• QoS

• Watchdog

• Hide SSID

1.4

LP-1521 Panel Description

Figure 1

5

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

LED Indicator State Description

On The WLAN Broadband Router is powered on.

1. Power LED

2. WLAN LED

3. WAN LED
ACT

10/100M

4. LAN LED ACT

Off The WLAN Broadband Router is powered off.

Flashing Data is transmitting or receiving on the antenna.

Off No data is transmitting or receiving on the antenna.

Flashing Data is transmitting or receiving on the WAN interface.

Off No data is transmitting or receiving on the WAN interface.

On Connection speed is 100Mbps on WAN interface.

Off Connection speed is 10Mbps on WAN interface.

Flashing Data is transmitting or receiving on the LAN interface.

Off No data is transmitting or receiving on the LAN interface.

10/100M

On Connection speed is 100Mbps on LAN interface.

Off Connection speed is 10Mbps on LAN interface

Antenna

WAN

Reset

Figure 2

Interfaces Description

1. Antenna The Wireless LAN Antenna.

2. Reset

3. WAN

4. LAN

5. Power

RESET

Push continually the reset button 5 ~ 10 seconds to reset the conguration

parameters to factory defaults.

The RJ-45 socket allows WAN connection through a Category 5 cable. Support auto­sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u

respectively.

The RJ-45 sockets allow LAN connection through Category 5 cables. Support auto­sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u

respectively.

The power jack allows an external DC +7.5 V power supply connection.
The external AC to DC adaptor provide adaptive power requirement to the WLAN

Broadband Router.

WAN 1 2 3 4 PWR

LAN

Power

6

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

PoE support ports : WAN

1.5

Hardware Installation

Figure 3

Step 1: Place the Wireless LAN Broadband Router to the best optimum transmission location. The best transmission

location for your WLAN Broadband Router is usually at the geographic center of your wireless network, with line of
sign to all of your mobile stations.

Step 2: Connect the WLAN Broadband Router to your wired network. Connect the Ethernet WAN interface of WLAN

Broadband Router by category 5 Ethernet cable to your switch/ hub/ xDSL modem or cable modem. A straight-

through Ethernet cable with appropriate cable length is needed.

Step 3: Supply DC power to the WLAN Broadband Router. Use only the AC/DC power adapter supplied with the WLAN
Broadband Router; it may occur damage by using a different type of power adapter.
The hardware installation nished.

1.6

Software Installation

• There are no software drivers, patches or utilities installation needed, but only the conguration setting. Please refer
to chapter 3 for software conguration.

Notice: It will take about 55 seconds to complete the boot up sequence after powered on the WLAN

Broadband Router; Power LED will be active, and after that the WLAN Activity LED will be ashing to show

the WLAN interface is enabled and working now.

2

Software conguration

There are web based management and conguration functions allowing you to have the jobs done easily.

The WLAN Broadband Router is delivered with the following factory default parameters on the Ethernet LAN interfaces.
Default IP Address: 192.168.1.254
Default IP subnet mask: 255.255.255.0
WEB login User Name: <empty>
WEB login Password: <empty>

7

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Prepare your PC to congure the WLAN Broadband Router

For OS of Microsoft Windows 95/ 98/ Me:

1

Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.

Note: Windows Me users may not see the Network control panel. If so, select View all Control Panel options on the left

side of the window

2

Move mouse and double-click the right button on Network icon. The Network window will appear.

3

Check the installed list of Network Components. If TCP/IP is not installed, click the Add button to install it; otherwise

go to step 6.

4

Select Protocol in the Network Component Type dialog box and click Add button.

5

Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install the TCP/IP

protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box

after the TCP/IP installation.

6

Select TCP/IP and click the properties button on the Network dialog box.

7

Select Specify an IP address and type in values as following example.

• IP Address: 192.168.1.254, any IP address within 192.168.1.1 to 192.168.1.253 is good to connect the Wireless

LAN Access Point.

• IP Subnet Mask: 255.255.255.0

8

Click OK and reboot your PC after completes the IP parameters setting.

For OS of Microsoft Windows 2000, XP:

1

Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.

2

Move mouse and double-click the right button on Network and Dial-up Connections icon. Move mouse and double-

click the Local Area Connection icon. The Local Area Connection window will appear. Click Properties button in the Local

Area Connection window.

3

Check the installed list of Network Components. If TCP/IP is not installed, click the Add button to install it; otherwise

go to step 6.

4

Select Protocol in the Network Component Type dialog box and click Add button.

5

Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install the TCP/IP

protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box

after the TCP/IP installation.

6

Select TCP/IP and click the properties button on the Network dialog box.

7

Select Specify an IP address and type in values as following example.

• IP Address: 192.168.1.254, any IP address within 192.168.1.1 to 192.168.1.253 is good to connect the Wireless

LAN Access Point.

• IP Subnet Mask: 255.255.255.0

8

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

8

Click OK to completes the IP parameters setting.

For OS of Microsoft Windows NT:

1

Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.

2

Move mouse and double-click the right button on Network icon. The Network window will appear. Click Protocol

tab from the Network window.

3

Check the installed list of Network Protocol window. If TCP/IP is not installed, click the Add button to install it;

otherwise go to step 6.

4

Select Protocol in the Network Component Type dialog box and click Add button.

5

Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install the TCP/IP

protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box

after the TCP/IP installation.

6

Select TCP/IP and click the properties button on the Network dialog box.

7

Select Specify an IP address and type in values as following example.

• IP Address: 192.168.1.254, any IP address within 192.168.1.1 to 192.168.1.253 is good to connect the Wireless

LAN Access Point.

• IP Subnet Mask: 255.255.255.0

8

Click OK to complete the IP parameters setting.

Connect to the LP-1521 WLAN Broadband Router

Open a WEB browser, i.e. Microsoft Internet Explore, then enter 192.168.1.254 on the URL to connect the WLAN Broadband

Router.

Management and conguration on the WLAN Broadband Router

Status

This page shows the current status and some basic settings of the device, includes system, wireless, Ethernet LAN and WAN

conguration information.

Screen snapshot – Status

Figure 4

9

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Item Description

System

Uptime It shows the duration since WLAN Broadband Router is powered on.

Firmware version It shows the rmware version of WLAN Broadband Router.

Wireless conguration

Mode It shows wireless operation mode

Band It shows the current wireless operating frequency.

It shows the SSID of this WLAN Broadband Router.

SSID

Channel Number It shows the wireless channel connected currently.

Encryption It shows the status of encryption function.

BSSID

Associated Clients It shows the number of connected clients (or stations, PCs).

TCP/IP conguration

Attain IP Protocol It shows type of connection.

IP Address It shows the IP address of LAN interfaces of WLAN Broadband Router.

Subnet Mask It shows the IP subnet mask of LAN interfaces of WLAN Broadband Router.

Default Gateway It shows the default gateway setting for LAN interfaces outgoing data packets.

DHCP Server It shows the DHCP server is enabled or not.

MAC Address It shows the MAC address of LAN interfaces of WLAN Broadband Router.

WAN conguration

Attain IP Protocol

IP Address It shows the IP address of WAN interface of WLAN Broadband Router.

Subnet Mask It shows the IP subnet mask of WAN interface of WLAN Broadband Router.

Default Gateway It shows the default gateway setting for WAN interface outgoing data packets.

MAC Address It shows the MAC address of WAN interface of WLAN Broadband Router.

The SSID is the unique name of WLAN Broadband Router and shared among its service
area, so all devices attempts to join the same wireless network can identify it.

It shows the BSSID address of the WLAN Broadband Router. BSSID is a six-byte

address.

It shows how the WLAN Broadband Router gets the IP address. The IP address can be

set manually to a xed one or set dynamically by DHCP server or attain IP by PPPoE /

PPTP connection.

Setup Wizard

This page guides you to congure wireless broadband
router for rst time

Figure 5

10

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Screen snapshot – Setup Wizard

I Operation Mode

This page followed by Setup Wizard page to dene the

operation mode.

Screen snapshot – Operation Mode

Figure 6

II Time Zone Setting

This page is used to enable and congure NTP client

Screen snapshot – Time Zone Settings

Figure 7

III LAN Interface Setup

This page is used to congure local area network IP

address and subnet mask

Screen snapshot – LAN Interface Setup

Figure 8

IV WAN Interface Setup

This page is used to congure WAN access type

Screen snapshot – WAN Interface Setup

Figure 9

11

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

V LP-1521 Wireless Basic Settings

This page is used to congure basic wireless parameters

like Band, Mode, Network Type SSID, Channel Number,

Enable Mac Clone(Single Ethernet Client).

Screen snapshot – Wireless Basic Settings

Figure 10

VI Wireless Security Setup

This page is used to congure wireless security

Screen snapshot – Wireless Security Setup

Figure 11

Operation Mode

This page is used to congure which mode wireless

broadband router acts.

Screen snapshot – Operation Mode

Figure 12

Item Description

Gateway Traditional gateway conguration. It always connects internet via ADSL/Cable

Modem. LAN interface, WAN interface, Wireless interface, NAT and Firewall modules
are applied to this mode

Bridge

Wireless ISP

Apply Changes Click the Apply Changes button to complete the new conguration setting.

Reset

Each interface (LAN, WAN and Wireless) regards as bridge. NAT, Firewall and all
router’s functions are not supported

Switch Wireless interface to WAN port and all Ethernet ports in bridge mode.
Wireless interface can do all router’s functions

Click the Reset button to abort change and recover the previous conguration

setting.

12

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Wireless - Basic Settings

This page is used to congure the parameters

for wireless LAN clients that may connect
to your Broadband Router. Here you may
change wireless encryption settings as well
as wireless network parameters.

Screen snapshot – Wireless Basic Settings

Figure 13

Item Description

Disable Wireless LAN Interface Click on to disable the wireless LAN data transmission

Band Click to select 2.4GHz(B) / 2.4GHz(G) / 2.4GHz(B+G)

Mode Click to select the WLAN AP / Client / WDS / AP+WDS wireless mode.

The Site Survey button provides tool to scan the wireless network. If any Access Point or

Site Survey

SSID It is the wireless network name. The SSID can be 32 bytes long.

Channel Number Select the wireless communication channel from pull-down menu.

Associated Clients

Enable Mac Clone (Single Ethernet
Client)

Enable Universal Repeater Mode Click to enable Universal Repeater Mode

SSID of Extended Interface Assign SSID when enables Universal Repeater Mode.

Apply Changes

Reset

IBSS is found, you could choose to connect it manually when client mode is enabled. Refer to

3.3.9 Site Survey.

Click the Show Active Clients button to open Active Wireless Client Table that shows the
MAC address, transmit-packet, receive-packet and transmission-rate for each associated
wireless client.

Take Laptop NIC MAC address as wireless client MAC address. [Client Mode only]

Click the Apply Changes button to complete the new conguration setting.

Click the Reset button to abort change and recover the previous conguration setting.

13

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Wireless - Advanced Settings

These settings are only for more technically

advanced users who have a sufcient

knowledge about wireless LAN. These
settings should not be changed unless you
know what effect the changes will have on
your WLAN Broadband Router.

Screen snapshot – Operation Mode

Item Description

Authentication Type

Fragment Threshold

RTS Threshold

Beacon Interval

Data Rate

Broadcast SSID

IAPP

802.11g Protection Protect 802.11b user.

RF Output Power To adjust transmission power level.

Turbo Mode Click to enable/disable turbo mode.(Only apply to WLAN IC of Realtek).

Apply Changes Click the Apply Changes button to complete the new conguration setting.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Figure 14

Click to select the authentication type in Open System, Shared Key or Auto
selection.

Set the data packet fragmentation threshold, value can be written between 256 and

2346 bytes.

Refer to 4.10 What is Fragment Threshold?

Set the RTS Threshold, value can be written between 0 and 2347 bytes.

Refer to 4.11 What is RTS(Request To Send) Threshold?

Set the Beacon Interval, value can be written between 20 and 1024 ms.

Refer to 4.12 What is Beacon Interval?

Select the transmission data rate from pull-down menu. Data rate can be auto-select,
11M, 5.5M, 2M or 1Mbps.

Click to enable or disable the SSID broadcast function.
Refer to 4.14 What is SSID Broadcast?

Click to enable or disable the IAPP function.
Refer to 4.20 What is Inter-Access Point Protocol(IAPP)?

14

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Wireless - Security Setup

This page allows you setup the wireless security. Turn
on WEP, WPA, WPA2 by using encryption keys could
prevent any unauthorized access to your wireless
network.

Screen snapshot – Wireless Security Setup

Item Description

Select the encryption supported over wireless access.

The encryption method can be None, WEP, WPA(TKIP), WPA2 or WPA2 Mixed

Refer to 4.9 What is WEP?

Encryption

Use 802.1x Authentication

WPA Authentication Mode

Pre-Shared Key Format

Pre-Shared Key Fill in the key value. [WPA, Personal(Pre-Shared Key) only]

Enable Pre-Authentication Click to enable Pre-Authentication. [WPA2/WPA2 Mixed only, Enterprise only]

Authentication RADIUS

Server

Apply Changes Click the Apply Changes button to complete the new conguration setting.

Reset

4.15 What is Wi-Fi Protected Access (WPA)?

4.16 What is WPA2(AES)?

4.17 What is 802.1X Authentication?

4.18 What is Temporal Key Integrity Protocol (TKIP)? 4.19 What is Advanced
Encryption Standard (AES)?

While Encryption is selected to be WEP.

Click the check box to enable IEEE 802.1x authentication function.

Refer to 4.16 What is 802.1x Authentication?

While Encryption is selected to be WPA.
Click to select the WPA Authentication Mode with Enterprise (RADIUS) or Personal (Pre­Shared Key).
Refer to 4.15 What is Wi-Fi Protected Access (WPA)?

While Encryption is selected to be WPA.
Select the Pre-shared key format from the pull-down menu. The format can be

Passphrase or Hex (64 characters). [WPA, Personal(Pre-Shared Key) only]

Set the IP address, port and login password information of authentication RADIUS
sever.

Click the Reset button to abort change and recover the previous conguration setting.

Figure 15

15

www.lanpro.com

VII WEP Key Setup

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Screen snapshot – WEP Key Setup

Item Description

Select the WEP shared secret key length from pull-down menu. The length can be

Key Length

Key Format

Default Tx Key

Encryption Key 1

Encryption Key 2 Secret key 2 of WEP security encryption function.

Encryption Key 3 Secret key 3 of WEP security encryption function.

Encryption Key 4 Secret key 4 of WEP security encryption function.

Apply Changes Click the Apply Changes button to complete the new conguration setting.

Close

Reset

chose between 64-bit and 128-bit (known as “WEP2”) keys.
The WEP key is composed of initialization vector (24 bits) and secret key (40-bit or
104-bit).

Select the WEP shared secret key format from pull-down menu. The format can be

chose between plant text (ASCII) and hexadecimal (HEX) code

Set the default secret key for WEP security function.

Value can be chose between 1 and 4.

Secret key 1 of WEP security encryption function.

Click to close this WEP Key setup window.

Click the Reset button to abort change and recover the previous conguration setting.

Figure 16

Previous conguration setting.

WEP encryption key (secret key) length:

Length
Format

ASCII 5 characters 13 characters

HEX 10 hexadecimal codes 26 hexadecimal codes

64-bit 128-bit

16

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Wireless - Access Control

If you enable wireless access control, only those
clients whose wireless MAC addresses are in the
access control list will be able to connect to your
Access Point. When this option is enabled, no
wireless clients will be able to connect if the list
contains no entries.

Screen snapshot – Wireless Access Control

Figure 17

Item Description

Click the Disabled, Allow Listed or Deny Listed of drop down menu choose wireless
Wireless Access Control
Mode

access control mode.

This is a security control function; only those clients registered in the access control

list can link to this WLAN Broadband Router.

MAC Address

Fill in the MAC address of client to register this WLAN Broadband Router access

capability.

Comment Fill in the comment tag for the registered client.

Apply Changes Click the Apply Changes button to register the client to new conguration setting.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Current Access Control List It shows the registered clients that are allowed to link to this WLAN Broadband Router.

Delete Selected

Click to delete the selected clients that will be access right removed from this WLAN

Broadband Router.

Delete All Click to delete all the registered clients from the access allowed list.

Reset Click the Reset button to abort change and recover the previous conguration setting.

LP-1521 WDS Settings

Wireless Distribution System uses wireless media
to communicate with other APs, like the Ethernet
does. To do this, you must set these APs in the
same channel and set MAC address of other AP
that you want to communicate with in the table
and then enable the WDS.

Screen snapshot – WDS Setup

Figure 18

17

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Item Description

Enable WDS

Click the check box to enable wireless distribution system. Refer to 4.21 What is
Wireless Distribution System (WDS)?

MAC Address

Fill in the MAC address of AP to register the wireless distribution system access
capability.

Comment Fill in the comment tag for the registered AP.

Apply Changes Click the Apply Changes button to register the AP to new conguration setting.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Set Security

Click button to congure wireless security like WEP(64bits), WEP(128bits),
WPA(TKIP), WPA2(AES) or None

Show Statistics It shows the TX, RX packets, rate statistics

Delete Selected

Click to delete the selected clients that will be removed from the wireless distribution
system.

Delete All Click to delete all the registered APs from the wireless distribution system allowed list.

Reset Click the Reset button to abort change and recover the previous conguration setting.

VIII WDS Security Setup

Requirement: Set [Wireless]->[Basic Settings]->[Mode]->AP+WDS

This page is used to congure the wireless security between APs. Refer to 3.3.6 Wireless Security Setup.

Screen snapshot – WDS Security Setup

Figure 19

IX WDS AP Table

This page is used to show WDS statistics

Screen snapshot – WDS AP Table

Figure 20

18

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Item Description

MAC Address It shows the MAC Address within WDS.

Tx Packets It shows the statistic count of sent packets on the wireless LAN interface.

Tx Errors It shows the statistic count of error sent packets on the Wireless LAN interface.

Rx Packets It shows the statistic count of received packets on the wireless LAN interface.

Tx Rare (Mbps) It shows the wireless link rate within WDS.

Refresh Click to refresh the statistic counters on the screen.

Close Click to close the current window

Site Survey

This page is used to view or congure other APs

near yours.

Screen snapshot – Wireless Site Survey

Figure 21

Item Description

SSID It shows the SSID of AP.

BSSID It shows BSSID of AP.

Channel It show the current channel of AP occupied.

Type It show which type AP acts.

Encrypt It shows the encryption status.

Signal It shows the power level of current AP.

Select Click to select AP or client you’d like to connect.

Refresh Click the Refresh button to re-scan site survey on the screen.

Connect Click the Connect button to establish connection.

LAN Interface Setup

This page is used to congure the parameters for

local area network that connects to the LAN ports
of your WLAN Broadband Router. Here you may
change the setting for IP address, subnet mask,
DHCP, etc.

Screen snapshot – LAN Interface Setup

Figure 22

19

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Item Description

IP Address Fill in the IP address of LAN interfaces of this WLAN Access Point.

Subnet Mask Fill in the subnet mask of LAN interfaces of this WLAN Access Point.

Default Gateway Fill in the default gateway for LAN interfaces out going data packets.

DHCP

DHCP Client Range

Show Client

DNS Server Manual setup DNS server IP address.

Domain Name Assign Domain Name and dispatch to DHCP clients. It is optional eld.

802.1d Spanning Tree

Clone MAC Address

Apply Changes Click the Apply Changes button to complete the new conguration setting.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Click to select Disabled, Client or Server in different operation mode of wireless

Access Point.

Fill in the start IP address and end IP address to allocate a range of IP addresses;

client with DHCP function set will be assigned an IP address from the range.

Click to open the Active DHCP Client Table window that shows the active clients

with their assigned IP address, MAC address and time expired information. [Server

mode only]

Select to enable or disable the IEEE 802.1d Spanning Tree function from pull-down

menu.

Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is

Clone MAC Address?

WAN Interface Setup

This page is used to congure the parameters for wide

area network that connects to the WAN port of your
WLAN Broadband Router. Here you may change the
access method to Static IP, DHCP, PPPoE or PPTP by
click the item value of WAN Access Type.

X Static IP

Screen snapshot – WAN Interface Setup – Static IP

Figure 23

20

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Item Description

Static IP

IP Address If you select the Static IP support on WAN interface, ll in the IP address for it.

Subnet Mask If you select the Static IP support on WAN interface, ll in the subnet mask for it.

Default Gateway

MTU Size Fill in the mtu size of MTU Size. The default value is 1400

DNS 1 Fill in the IP address of Domain Name Server 1.

DNS 2 Fill in the IP address of Domain Name Server 2.

DNS 3 Fill in the IP address of Domain Name Server 3.

Clone MAC Address

Enable uPNP

Enable Web Server Access
on WAN

Enable WAN Echo Reply Click the checkbox to enable WAN ICMP response.

Enable IPsec pass through

on VPN connection

Enable PPTP pass through on

VPN connection

Enable L2TP pass through on

VPN connection

Apply Changes Click the Apply Changes button to complete the new conguration setting

Reset Click the Reset button to abort change and recover the previous conguration setting.

Click to select Static IP support on WAN interface. There are IP address, subnet mask
and default gateway settings need to be done.

If you select the Static IP support on WAN interface, ll in the default gateway for WAN

interface out going data packets.

Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is

Clone MAC Address?

Click the checkbox to enable uPNP function.

Refer to 4.22 What is Universal Plug and Play (uPNP)?

Click the checkbox to enable web conguration from WAN side.

Click the checkbox to enable IPSec packet pass through

Click the checkbox to enable PPTP packet pass through

Click the checkbox to enable L2TP packet pass through

XI DHCP Client

Screen snapshot – WAN Interface Setup
– DHCP Client

Figure 24

21

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Item Description

DHCP Client

Host Name Fill in the host name of Host Name. The default value is empty

MTU Size Fill in the mtu size of MTU Size. The default value is 1400

Attain DNS Automatically

Set DNS Manually Click to select getting DNS address for DHCP support.

DNS 1 Fill in the IP address of Domain Name Server 1.

DNS 2 Fill in the IP address of Domain Name Server 2.

DNS 3 Fill in the IP address of Domain Name Server 3.

Clone MAC Address

Enable uPNP

Enable Web Server Access
on WAN

Enable WAN Echo Reply Click the checkbox to enable WAN ICMP response.

Apply Changes Click the Apply Changes button to complete the new conguration setting.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Click to select DHCP support on WAN interface for IP address assigned automatically
from a DHCP server.

Click to select getting DNS address for DHCP support. Please select Set DNS
Manually if the DHCP support is selected.

Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is

Clone MAC Address?

Click the checkbox to enable uPNP function.
Refer to 4.22 What is Universal Plug and Play (uPNP)?

Click the checkbox to enable web conguration from WAN side.

XII PPPoE

Screen snapshot – WAN Interface Setup – PPPoE

Figure 25

22

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Item Description

PPPoE

User Name

Password

Service Name Fill in the service name of Service Name. The default value is empty.

Connection Type

Idle Time

MTU Size

Attain DNS Automatically

Set DNS Manually Click to select getting DNS address for Static IP support.

DNS 1 Fill in the IP address of Domain Name Server 1.

DNS 2 Fill in the IP address of Domain Name Server 2.

DNS 3 Fill in the IP address of Domain Name Server 3.

Clone MAC Address

Enable uPNP

Enable Web Server Access
on WAN

Enable WAN Echo Reply Click the checkbox to enable WAN ICMP response.

Apply Changes Click the Apply Changes button to complete the new conguration setting.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Click to select PPPoE support on WAN interface. There are user name, password,
connection type and idle time settings need to be done.

If you select the PPPoE support on WAN interface, ll in the user name and password to

login the PPPoE server.

If you select the PPPoE support on WAN interface, ll in the user name and password to

login the PPPoE server.

Select the connection type from pull-down menu. There are Continuous, Connect on

Demand and Manual three types to select.
Continuous connection type means to setup the connection through PPPoE protocol

whenever this WLAN Broadband Router is powered on.
Connect on Demand connection type means to setup the connection through PPPoE

protocol whenever you send the data packets out through the WAN interface; there are

a watchdog implemented to close the PPPoE connection while there are no data sent out
longer than the idle time set.
Manual connection type means to setup the connection through the PPPoE protocol by
clicking the Connect button manually, and clicking the Disconnect button manually.

If you select the PPPoE and Connect on Demand connection type, ll in the idle time

for auto-disconnect function. Value can be between 1 and 1000 minutes.

Fill in the mtu size of MTU Size. The default value is 1400. Refer to 4.23 What is

Maximum Transmission Unit (MTU) Size?

Click to select getting DNS address for PPPoE support. Please select Set DNS Manually
if the PPPoE support is selected.

Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is Clone

MAC Address?

Click the checkbox to enable uPNP function.

Refer to 4.22 What is Universal Plug and Play (uPNP)?

Click the checkbox to enable web conguration from WAN side.

23

www.lanpro.com

XIII PPTP

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Screen snapshot – WAN Interface
Setup – PPTP

Figure 26

Item Description

PPTP

IP Address If you select the PPTP support on WAN interface, ll in the IP address for it.

Subnet Mask If you select the PPTP support on WAN interface, ll in the subnet mask for it.

Server IP Address Enter the IP address of the PPTP Server.

User Name

Password

MTU Size

Request MPPE Encryption Click the checkbox to enable request MPPE encryption.

Attain DNS Automatically

Set DNS Manually Click to select getting DNS address for PPTP support.

DNS 1 Fill in the IP address of Domain Name Server 1.

DNS 2 Fill in the IP address of Domain Name Server 2.

DNS 3 Fill in the IP address of Domain Name Server 3.

Clone MAC Address

Enable uPNP

Enable Web Server Access on
WAN

Enable WAN Echo Reply Click the checkbox to enable WAN ICMP response.

Apply Changes Click the Apply Changes button to complete the new conguration setting.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Allow user to make a tunnel with remote site directly to secure the data transmission among the
connection. User can use embedded PPTP client supported by this router to make a VPN connec­tion.

If you select the PPTP support on WAN interface, ll in the user name and password to login the

PPTP server.

If you select the PPTP support on WAN interface, ll in the user name and password to login the

PPTP server.

Fill in the mtu size of MTU Size. The default value is 1400. Refer to 4.23 What is Maximum Trans-

mission Unit (MTU) Size?

Click to select getting DNS address for PPTP support. Please select Set DNS Manually if the
PPTP support is selected.

Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is Clone MAC

Address?

Click the checkbox to enable uPNP function.
Refer to 4.22 What is Universal Plug and Play (uPNP)?

Click the checkbox to enable web conguration from WAN side.

24

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Firewall - Port Filtering

Entries in this table are used to restrict certain
types of data packets from your local network to

Internet through the Gateway. Use of such lters

can be helpful in securing or restricting your local
network.

Screen snapshot – Firewall - Port Filtering

Figure 27

Item Description

Enable Port Filtering Click to enable the port ltering security function.

To restrict data transmission from the local network on certain ports, ll in the range of

Port Range

start-port and end-port, and the protocol, also put your comments on it.
The Protocol can be TCP, UDP or Both.
Comments let you know about whys to restrict data from the ports.

Apply Changes Click the Apply Changes button to register the ports to port ltering list.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Delete Selected Click to delete the selected port range that will be removed from the port-ltering list.

Delete All Click to delete all the registered entries from the port-ltering list.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Firewall - IP Filtering

Entries in this table are used to restrict certain
types of data packets from your local network to

Internet through the Gateway. Use of such lters

can be helpful in securing or restricting your local
network.

Screen snapshot – Firewall - IP Filtering

Figure 28

Item Description

Enable IP Filtering Click to enable the IP ltering security function.

Local IP Address
Protocol
Comments

To restrict data transmission from local network on certain IP addresses, ll in the IP

address and the protocol, also put your comments on it.
The Protocol can be TCP, UDP or Both.
Comments let you know about whys to restrict data from the IP address.

Apply Changes Click the Apply Changes button to register the IP address to IP ltering list.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Delete Selected Click to delete the selected IP address that will be removed from the IP-ltering list.

Delete All Click to delete all the registered entries from the IP-ltering list.

Reset Click the Reset button to abort change and recover the previous conguration setting.

25

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Firewall - MAC Filtering

Entries in this table are used to restrict certain
types of data packets from your local network to

Internet through the Gateway. Use of such lters

can be helpful in securing or restricting your local
network.

Screen snapshot – Firewall - MAC Filtering

Figure 29

Item Description

Enable MAC Filtering Click to enable the MAC ltering security function.

MAC Address
Comments

To restrict data transmission from local network on certain MAC addresses, ll in the

MAC address and your comments on it.

Apply Changes Click the Apply Changes button to register the MAC address to MAC ltering list.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Delete Selected

Click to delete the selected MAC address that will be removed from the MAC-ltering

list.

Delete All Click to delete all the registered entries from the MAC-ltering list.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Firewall - Port Forwarding

Entries in this table allow you to automatically

redirect common network services to a specic
machine behind the NAT rewall. These settings

are only necessary if you wish to host some sort
of server like a web server or mail server on the

private local network behind your Gateway’s NAT
rewall.

Screen snapshot – Firewall ­Port Forwarding

Figure 30

Item Description

Enable Port Forwarding Click to enable the Port Forwarding security function.

IP Address
Protocol
Port Range
Comment

Apply Changes

Reset Click the Reset button to abort change and recover the previous conguration setting.

Delete Selected

To forward data packets coming from WAN to a specic IP address that hosted in local network
behind the NAT rewall, ll in the IP address, protocol, port range and your comments.

The Protocol can be TCP, UDP or Both.
The Port Range for data transmission.
Comments let you know about whys to allow data packets forward to the IP address and port
number.

Click the Apply Changes button to register the IP address and port number to Port forwarding
list.

Click to delete the selected IP address and port number that will be removed from the port­forwarding list.

Delete All Click to delete all the registered entries from the port-forwarding list.

Reset Click the Reset button to abort change and recover the previous conguration setting.

26

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Firewall – URL Filtering

URL Filtering is used to restrict users to access

specic websites in internet.

Screen snapshot – Firewall – URL Filtering

Figure 31

Item Description

Enable URL Filtering Click to enable the URL Filtering function.

URL Address Add one URL address.

Apply Changes Click the Apply Changes button to save settings

Reset Click the Reset button to abort change and recover the previous conguration setting.

Delete Selected

Delete All Click to delete all the registered entries from the URL Filtering list.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Click to delete the selected URL address that will be removed from the URL Filtering list.

Firewall - DMZ

A Demilitarized Zone is used to provide Internet

services without sacricing unauthorized access

to its local private network. Typically, the DMZ
host contains devices accessible to Internet

trafc, such as Web (HTTP) servers, FTP servers,

SMTP (e-mail) servers and DNS servers.

Screen snapshot – Firewall - DMZ

Figure 32

Item Description

Enable DMZ Click to enable the DMZ function.

DMZ Host IP Address

Apply Changes Click the Apply Changes button to register the IP address of DMZ host.

Reset Click the Reset button to abort change and recover the previous conguration setting.

To support DMZ in your rewall design, ll in the IP address of DMZ host that can be access from

the WAN interface.

27

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

VPN Setting

This page is used to show VPN connection table,
congure IPSEC VPN, NAT Traversal, Generate

RSA Key, Show RSA Public Key.

Screen snapshot – VPN Setup

Figure 33

Item Description

Enable IPSEC VPN

Click to enable IPSEC VPN function. Refer to 4.27 What is VPN? and 4.28 What is IPSEC?

Enable NAT Traversal Click to enable NAT Traversal function.

Generate RSA Key Click to generate RSA key.

Show RSA Public Key Click to show RSA public key that we generate.

Apply Changes Click the Apply Changes button to enable IPSEC VPN, NAT Traversal settings.

Current VPN Connection

It shows current WAN interface information and VPN connection table.

Table

Edit Click to enter the current VPN tunnel conguration page.

Delete Click to delete the current VPN tunnel that radio button stay.

Reset Click to refresh the current VPN connection table.

XIV VPN Setup - Edit Tunnel

Screen snapshot – VPN Setup-Edit-1

Figure 34

28

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Item Description

Enable Tunnel # Click to enable the IPSEC VPN current tunnel.

Connection Name Assign the connection name tag.

Auth Type Click to select PSK or RSA.

Local Site

Click to select Single Address or Subnet Address VPN connection.

Local IP Address/
Network
Local Subnet Mask

Remote Site

Remote Secure Gateway
Remote Gateway
DomainName
Remote IP Address/
Network
Remote Subnet Mask

Local/Peer ID

Local ID Type
Local ID
Remote ID Type

Remote ID

Fill in IP address or subnet address depends on which Local Site option you choose.
Fill in the local subnet mask.

Click to select Single Address, Subnet Address, Any Address or NAT-T Any

Address VPN remote connection.

Fill in remote gateway IP address

Fil in remote gateway Domian Name
Fill in IP address or subnet address depends on which Remote Site option you choose.
Fill in remote subnet mask

Dene IKE exchange information type
Click to select IP, DNS or E-mail as local exchange type
Fill in local ID except IP selected
Click to select IP, DNS or E-mail as remote exchange type
Fill in remote ID except IP selected

Screen snapshot – VPN Setup-Edit-2

Figure 35

Item Description

Key Management Click to select IKE or Manual mode.

Advanced Click Advanced button to congure more IKE settings.

Connection Type Click to select Initiator or Responder mode.

Connect Click to connect manually. [Responder mode only]

Disconnect Click to disconnect manually. [Responder mode only].

ESP

PreShared Key Fill in the key value. [IKE mode only]

Remote RSA Key Fill in the remote gateway RSA key. [IKE mode only]

Status It shows connection status. [IKE mode only]

SPI Fill in Security Parameter Index value. [Manual mode only]

Encryption Key Fill in encryption key. [Manual mode only]

Authentication Key Fill in authentication key. [Manual mode only]

Apply Change Click the Apply Changes button to save current tunnel settings.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Refresh It shows the current connection status. [Manual mode only]

Back It returns back to VPN Setup page.

Click to congure 3DES, AES128 or NULL encryption.
Click to congure MD5 or SHA1 authentication.

29

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

XV Advanced IKE Setup

Screen snapshot – Advanced VPN
Settings for IKE

Figure 35

Item Description

Phase 1

Negotiation Mode Main mode.

Encryption Algorithm Click to select 3DES or AES128 encryption.

Authentication Algorithm Click to select MD5 or SHA1 authentication.

Key Group Click to select DH1(modp768), DH2(modp1024) or DH5(modp1536) key group.

Default value is DH2

Key Life Time Fill in the key life time value by seconds.

Phase 2

Active Protocol ESP.

Encryption Algorithm Click to select 3DES, AES128 or NULL encryption.

Authentication Algorithm Click to select MD5 or SHA1 authentication.

Key Life Time Fill in the key life time value by seconds.

Encapsulation Tunnel mode.

Perfect Forward Secrecy
(PFS)

Ok Click the Ok button to save current tunnel settings.

Cancel Click the Cancel button to close current window without any changes.

Click to select ON or NONE.

30

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Management - Statistics

This page shows the packet counters for
transmission and reception regarding to wireless,
Ethernet LAN and Ethernet WAN networks.

Screen snapshot – Management - Statistics

Figure 36

Item Description

Wireless LAN

Sent Packets

Wireless LAN

Received Packets

Ethernet LAN

Sent Packets

Ethernet LAN

Received Packets

Ethernet WAN

Sent Packets

Ethernet WAN

Received Packets

It shows the statistic count of sent packets on the wireless LAN interface.

It shows the statistic count of received packets on the wireless LAN interface.

It shows the statistic count of sent packets on the Ethernet LAN interface.

It shows the statistic count of received packets on the Ethernet LAN interface.

It shows the statistic count of sent packets on the Ethernet WAN interface.

It shows the statistic count of received packets on the Ethernet WAN interface.

Refresh Click the refresh the statistic counters on the screen.

Management - DDNS

This page is used to congure Dynamic DNS

service to have DNS with dynamic IP address.

Screen snapshot – Management – DDNS

Figure 37

Item Description

Enable DDNS

Click the checkbox to enable DDNS service. Refer to 4.25 What is DDNS?

Service Provider Click the drop down menu to pickup the right provider.

Domain Name To congure the Domain Name.

User Name/Email Congure User Name, Email.

Password/Key Congure Password, Key.

Apply Change Click the Apply Changes button to save the enable DDNS service.

Reset Click the Reset button to abort change and recover the previous conguration setting.

31

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Management - Time Zone Setting

This page is used to congure NTP client to get

current time.

Screen snapshot – Management –
Time Zone Settings

Figure 38

Item Description

Current Time It shows the current time.

Time Zone Select Click the time zone in your country.

Enable NTP client update

Click the checkbox to enable NTP client update. Refer to 4.26 What is NTP Client?

NTP Server Click select default or input NTP server IP address.

Apply Change Click the Apply Changes button to save and enable NTP client service.

Reset Click the Reset button to abort change and recover the previous conguration setting.

Refresh Click the refresh the current time shown on the screen.

Management – Denial-of-Service

This page is used to enable and setup protection
to prevent attack by hacker’s program. It provides
more security for users.

Screen snapshot – Management –
Denial-of-Service

Figure 39

Item Description

Enable DoS Prevention Click the checkbox to enable DoS prevention.

Whole System Flood /

Per-Source IP Flood…

Enable and setup prevention in details.

Select ALL Click the checkbox to enable all prevention items.

Clear ALL Click the checkbox to disable all prevention items.

Apply Changes Click the Apply Changes button to save above settings.

32

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Management - Log

This page is used to congure the remote log

server and shown the current log.

Screen snapshot – Management – Log

Figure 40

Item Description

Enable Log

System all
Wirelessy
DoS

Enable Remote Log
Log Server IP Address

Click the checkbox to enable log.

Show all log of wireless broadband router
Only show wireless log
Only show Denial-of-Service log

Click the checkbox to enable remote log service.

Input the remote log IP address

Apply Changes Click the Apply Changes button to save above settings.

Refresh Click the refresh the log shown on the screen.

Clear Clear log display screen

Management - Upgrade Firmware

This page allows you upgrade the Access Point

rmware to new version. Please note, do not

power off the device during the upload because it
may crash the system.

Screen snapshot – Management ­Upgrade Firmware

Figure 41

Item Description

Select File Click the Browse button to select the new version of web rmware image le.

Upload

Click the Upload button to update the selected web rmware image to the WLAN
Broadband Router.

Reset Click the Reset button to abort change and recover the previous conguration setting.

33

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Management Save/ Reload Settings

This page allows you save current settings to a

le or reload the settings from the le that was

saved previously. Besides, you could reset the

current conguration to factory default.

Screen snapshot – Management ­Save/Reload Settings

Figure 42

Item Description

Save Settings to File

Load Settings from File

Click the Save button to download the conguration parameters to your personal
computer.

Click the Browse button to select the conguration les then click the Upload button

to update the selected conguration to the WLAN Broadband Router.

Reset Settings to Default Click the Reset button to reset the conguration parameter to factory defaults.

Management - Password Setup

This page is used to set the account to access
the web server of Access Point. Empty user name
and password will disable the protection.

Screen snapshot – Management ­Password Setup

Figure 43

Item Description

User Name Fill in the user name for web management login control.

New Password Fill in the password for web management login control.

Conrmed Password

Because the password input is invisible, so please ll in the password again for
conrmation purpose.

Clear the User Name and Password elds to empty, means to apply no web

Apply Changes

management login control.
Click the Apply Changes button to complete the new conguration setting.

Reset Click the Reset button to abort change and recover the previous conguration setting.

34

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Logout

This page is used to logout web management

page. This item will be activated next time you
login after you dene user account and password.

Screen snapshot – Logout

Figure 44

Screen snapshot – Logout - OK

Figure 45

Item Description

Apply Change Click the Apply Change button, Then click OK button to logout.

Screen snapshot – Watch Dog settings

Figure 46

Item Description

Enable Watchdog Enable Watchdog function.

WatchDog IP Address Fill in with the IP for Pinging

Ping Interval Fill in with the time in seconds.

Ping Fail to reboot Counter Fill with the times you will count before reboot.

Apply Changes Click the Apply Change button to save changes

Reset Click the Reset button to abort change and recover the previous conguration setting.

35

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

Figure 47

Frequently Asked Questions (FAQ)

What and how to nd my PC’s IP and MAC address?
IP address is the identier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol route

messages based on the IP address of the destination. The format of an IP address is a 32-bit numeric address written as

four numbers separated by periods. Each number can be zero to 255. For example, 192.168.1.254 could be an IP address.

The MAC (Media Access Control) address is your computer’s unique hardware number. (On an Ethernet LAN, it’s the same as
your Ethernet address.) When you’re connected to the Internet from your computer (or host as the Internet protocol thinks
of it), a correspondence table relates your IP address to your computer’s physical (MAC) address on the LAN.

To nd your PC’s IP and MAC address:

• Open the Command program in the Microsoft Windows.

• Type in ipcong /all then press the Enter button.

• Your PC’s IP address is the one entitled IP Address and your PC’s MAC address is the one entitled Physical Address.

What is Wireless LAN?

A wireless LAN (WLAN) is a network that allows access to Internet without the need for any wired connections to the user’s
machine.

What are ISM bands?
ISM stands for Industrial, Scientic and Medical; radio frequency bands that the Federal Communications Commission
(FCC) authorized for wireless LANs. The ISM bands are located at 915 +/- 13 MHz, 2450 +/- 50 MHz and 5800 +/- 75 MHz.

How does wireless networking work?

The 802.11 standard dene two modes: infrastructure mode and ad hoc mode. In infrastructure mode, the wireless network

consists of at least one access point connected to the wired network infrastructure and a set of wireless end stations. This

conguration is called a Basic Service Set (BSS). An Extended Service Set (ESS) is a set of two or more BSSs forming a
single subnetwork. Since most corporate WLANs require access to the wired LAN for services (le servers, printers, Internet

links) they will operate in infrastructure mode.

Ad hoc mode (also called peer-to-peer mode or an Independent Basic Service Set, or IBSS) is simply a set of 802.11
wireless stations that communicate directly with one another without using an access point or any connection to a wired
network. This mode is useful for quickly and easily setting up a wireless network anywhere that a wireless infrastructure

does not exist or is not required for services, such as a hotel room, convention center, or airport, or where access to the

wired network is barred (such as for consultants at a client site).

36

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

What is BSSID?

A six-byte address that distinguishes a particular a particular access point from others. Also know as just SSID. Serves as

a network ID or name.

What is ESSID?

The Extended Service Set ID (ESSID) is the name of the network you want to access. It is used to identify different wireless

networks.

What are potential factors that may causes interference?

Factors of interference:

• Obstacles: walls, ceilings, furniture… etc.

• Building Materials: metal door, aluminum studs.

• Electrical devices: microwaves, monitors and electrical motors.

Solutions to overcome the interferences:

• Minimizing the number of walls and ceilings.

• Position the WLAN antenna for best reception.

• Keep WLAN devices away from other electrical devices, eg: microwaves, monitors, electric motors, … etc.

• Add additional WLAN Access Points if necessary.

What are the Open System and Shared Key authentications?

IEEE 802.11 supports two subtypes of network authentication services: open system and shared key. Under open system
authentication, any wireless station can request authentication. The station that needs to authenticate with another wireless
station sends an authentication management frame that contains the identity of the sending station. The receiving station
then returns a frame that indicates whether it recognizes the sending station. Under shared key authentication, each
wireless station is assumed to have received a secret shared key over a secure channel that is independent from the 802.11
wireless network communications channel.

What is WEP?

An optional IEEE 802.11 function that offers frame transmission privacy similar to a wired network. The Wired Equivalent
Privacy generates secret shared encryption keys that both source and destination stations can use to alert frame bits to
avoid disclosure to eavesdroppers.

WEP relies on a secret key that is shared between a mobile station (e.g. a laptop with a wireless Ethernet card) and an
access point (i.e. a base station). The secret key is used to encrypt packets before they are transmitted, and an integrity

check is used to ensure that packets are not modied in transit.

What is Fragment Threshold?

The proposed protocol uses the frame fragmentation mechanism dened in IEEE 802.11 to achieve parallel transmissions.

A large data frame is fragmented into several fragments each of size equal to fragment threshold. By tuning the fragment

threshold value, we can get varying fragment sizes. The determination of an efcient fragment threshold is an important

issue in this scheme. If the fragment threshold is small, the overlap part of the master and parallel transmissions is large.
This means the spatial reuse ratio of parallel transmissions is high. In contrast, with a large fragment threshold, the overlap
is small and the spatial reuse ratio is low. However high fragment threshold leads to low fragment overhead. Hence there
is a trade-off between spatial re-use and fragment overhead.

Fragment threshold is the maximum packet size used for fragmentation. Packets larger than the size programmed in this
eld will be fragmented.

If you nd that your corrupted packets or asymmetric packet reception (all send packets, for example). You may want to try

lowering your fragmentation threshold. This will cause packets to be broken into smaller fragments. These small fragments,
if corrupted, can be resent faster than a larger fragment. Fragmentation increases overhead, so you’ll want to keep this

value as close to the maximum value as possible.

37

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

What is RTS (Request To Send) Threshold?

The RTS threshold is the packet size at which packet transmission is governed by the RTS/CTS transaction. The IEEE

802.11-1997 standard allows for short packets to be transmitted without RTS/CTS transactions. Each station can have a
different RTS threshold. RTS/CTS is used when the data packet size exceeds the dened RTS threshold. With the CSMA/

CA transmission mechanism, the transmitting station sends out an RTS packet to the receiving station, and waits for the
receiving station to send back a CTS (Clear to Send) packet before sending the actual packet data.

This setting is useful for networks with many clients. With many clients, and a high network load, there will be many more
collisions. By lowering the RTS threshold, there may be fewer collisions, and performance should improve. Basically, with a
faster RTS threshold, the system can recover from problems faster. RTS packets consume valuable bandwidth, however, so
setting this value too low will limit performance.

What is Beacon Interval?

In addition to data frames that carry information from higher layers, 802.11 includes management and control frames that

support data transfer. The beacon frame, which is a type of management frame, provides the “heartbeat” of a wireless LAN,

enabling stations to establish and maintain communications in an orderly fashion.

Beacon Interval represents the amount of time between beacon transmissions. Before a station enters power save mode,
the station needs the beacon interval to know when to wake up to receive the beacon (and learn whether there are buffered
frames at the access point).

What is Preamble Type?

There are two preamble types dened in IEEE 802.11 specication. A long preamble basically gives the decoder more time
to process the preamble. All 802.11 devices support a long preamble. The short preamble is designed to improve efciency
(for example, for VoIP systems). The difference between the two is in the Synchronization eld. The long preamble is 128

bits, and the short is 56 bits.

What is SSID Broadcast?

Broadcast of SSID is done in access points by the beacon. This announces your access point (including various bits of

information about it) to the wireless world around it. By disabling that feature, the SSID congured in the client must match

the SSID of the access point.

Some wireless devices don’t work properly if SSID isn’t broadcast (for example the D-link DWL-120 USB 802.11b adapter).
Generally if your client hardware supports operation with SSID disabled, it’s not a bad idea to run that way to enhance
network security. However it’s no replacement for WEP, MAC ltering or other protections.

What is Wi-Fi Protected Access (WPA)?

Wi-Fi’s original security mechanism, Wired Equivalent Privacy (WEP), has been viewed as insufcient for securing condential

business communications. A longer-term solution, the IEEE 802.11i standard, is under development. However, since the

IEEE 802.11i standard is not expected to be published until the end of 2003, several members of the WI-Fi Alliance
teamed up with members of the IEEE 802.11i task group to develop a signicant near-term enhancement to Wi-Fi security.

Together, this team developed Wi-Fi Protected Access.

To upgrade a WLAN network to support WPA, Access Points will require a WPA software upgrade. Clients will require a
software upgrade for the network interface card, and possibly a software update for the operating system. For enterprise
networks, an authentication server, typically one that supports RADIUS and the selected EAP authentication protocol, will
be added to the network.

What is WPA2?

It is the second generation of WPA. WPA2 is based on the nal IEEE 802.11i amendment to the 802.11 standard.

38

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

What is 802.1x Authentication?

802.1x is a framework for authenticated MAC-level access control, denes Extensible Authentication Protocol (EAP) over
LANs (WAPOL). The standard encapsulates and leverages much of EAP, which was dened for dial-up authentication with
Point-to-Point Protocol in RFC 2284.

Beyond encapsulating EAP packets, the 802.1x standard also denes EAPOL messages that convey the shared key

information critical for wireless security.

What is Temporal Key Integrity Protocol (TKIP)?

The Temporal Key Integrity Protocol, pronounced tee-kip, is part of the IEEE 802.11i encryption standard for wireless LANs.

TKIP is the next generation of WEP, the Wired Equivalency Protocol, which is used to secure 802.11 wireless LANs. TKIP
provides per-packet key mixing, a message integrity check and a re-keying mechanism, thus xing the aws of WEP.

What is Advanced Encryption Standard (AES)?

Security issues are a major concern for wireless LANs, AES is the U.S. government’s next-generation cryptography algorithm,

which will replace DES and 3DES.

What is Inter-Access Point Protocol (IAPP)?

The IEEE 802.11f Inter-Access Point Protocol (IAPP) supports Access Point Vendor interoperability, enabling roaming of

802.11 Stations within IP subnet.

IAPP denes messages and data to be exchanged between Access Points and between the IAPP and high layer management
entities to support roaming. The IAPP protocol uses TCP for inter-Access Point communication and UDP for RADIUS request/
response exchanges. It also uses Layer 2 frames to update the forwarding tables of Layer 2 devices.

What is Wireless Distribution System (WDS)?

The Wireless Distribution System feature allows WLAN AP to talk directly to other APs via wireless channel, like the wireless
bridge or repeater service.

What is Universal Plug and Play (uPNP)?

UPnP is an open networking architecture that consists of services, devices, and control points. The ultimate goal is to allow

data communication among all UPnP devices regardless of media, operating system, programming language, and wired/

wireless connection.

What is Maximum Transmission Unit (MTU) Size?

Maximum Transmission Unit (MTU) indicates the network stack of any packet is larger than this value will be fragmented

before the transmission. During the PPP negotiation, the peer of the PPP connection will indicate its MRU and will be
accepted. The actual MTU of the PPP connection will be set to the smaller one of MTU and the peer’s MRU. The default is

value 1400.

What is Clone MAC Address?

Clone MAC address is designed for your special application that request the clients to register to a server machine with one

identied MAC address.

Since that all the clients will communicate outside world through the WLAN Broadband Router, so have the cloned MAC
address set on the WLAN Broadband Router will solve the issue.

What is DDNS?

DDNS is the abbreviation of Dynamic Domain Name Server. It is designed for user own the DNS server with dynamic WAN
IP address.

What is NTP Client?

NTP client is designed for fetching the current timestamp from internet via Network Time protocol. User can specify time
zone, NTP server IP address.

39

www.lanpro.com

Wireless - Equipment - 2.4 GHz - LP-1521 User Manual High Speed Long Range Wireless Broad Band Router, with PoE

What is VPN?

VPN is the abbreviation of Virtual Private Network. It is designed for creating point-to point private link via shared or public

network.

What is IPSEC?

IPSEC is the abbreviation of IP Security. It is used to transferring data securely under VPN.

TECHNICAL SUPPORT

[email protected]

40

www.lanpro.com
