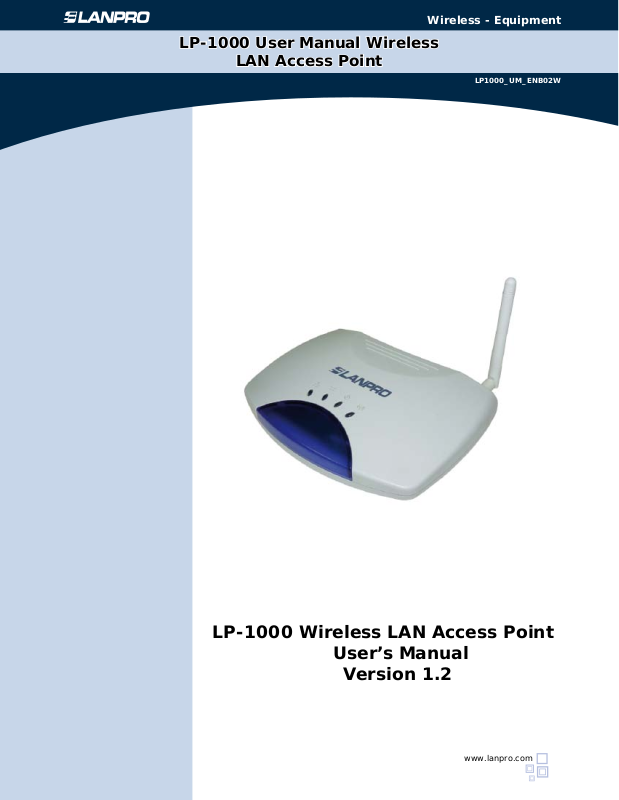

Page 1
Wireless - Equipment
LP-1000 User Manual Wireless
LAN Access Point
LP1000_UM_ENB02W
LP-1000 Wireless LAN Access Point
User’s Manual
Version 1.2
www.lanpro.com
Page 2
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
Copyright © 2003 by manufacturer. All rights reserved.
No part of this documentation may be reproduced in any form or by any means or used to make any derivative work
(such as translation, transformation, or adaptation) without written permission from the copyright owner.
All the other trademarks and registered trademarks are the property of their respective owners.
Statement of Conditions
The content described in this manual may be improved or changed at any time and it is subject to be changed without
notice.
Manufacturer assumes no responsibility for errors contained herein or for direct, indirect, special, incidental or consequential
damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if manufacturer of its
suppliers have been advised of the possibility of such damages.
Electronic Emission Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1- This device may not cause harmful interference.
2- This device will accept any interference received, including interference that may cause undesired operation.
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user need to
correct the interference at his area. If the equipment causes interference to radio or television reception, try to correct the
interference by using one or more of the following measures:
• Plug the equipment into an outlet that is on a different circuit from the television or radio.
• Change the direction of the television or radio antenna until the interference disappears.
• Move the equipment to one side or the other of the television or radio.
• Move the equipment farther away from the television or radio.
To assure continued compliance, any changes or modications not expressly approved by manufacturer could void the
user’s authority to operate the equipment.
FCC Radiation Exposure Statement
This device and its antennas must operate with a separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter. End users must be provided with specic
operating instructions for satisfying RF exposure compliance.
This product has been certied in France, Germany, Italy, Spain, Sweden, UK, and US.
2
www.lanpro.com
Page 3
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
Regulatory information / Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user
documentation provided with the product. Any changes or modications (including the antennas) made to this device that
are not expressly approved by manufacturer may void the user’s authority to operate the equipment. The manufacturer is
not responsible for any radio or television interference caused by unauthorized modication of this device, or the substitution
or attachment of connecting cables and equipment other than manufacturer specied. It is the responsibility of the user
to correct any interference caused by such unauthorized modication, substitution or attachment. Manufacturer and its
authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising
from failing to comply with these guidelines.
LIMITED WARRANTY
This product is warranted by manufacturer to be free from defects in material and workmanship for one (1) year from the
date of purchase unless otherwise stated.
During this period if this product is found to be defective in material or workmanship, manufacturer or one of its authorized
service facilities will at its option either repair or replace this product without charge, subject to the following conditions,
limitations and exclusions:
• This warranty extends to the original consumer purchaser only and is not assignable or transferable.
• This warranty shall not apply to any product which has been subjected to misuse, abuse, abnormal use, negligence,
alteration or accident, or has had its serial number altered or removed.
• This warranty does not apply to any defects or damage directly or indirectly caused by or resulting from the use of
unauthorized replacement parts and/or service performed by unauthorized personnel.
• This warranty does not apply to the software driver that accompanies this product.
This warranty is made expressly in lieu of all other warranties, expressed or implied, including but not limited to any
implied warranty of merchantability of tness for a particular purpose, and all other obligations on the part of Manufacturer
provided, however, that if the disclaimer of implied warranties is ineffective under applicable law, the duration of any implied
warranties arising by operation of law shall be limited to one (1) year from the date of purchase or such longer period as
may be required by applicable law.
Manufacturer hereby disclaims any and all liabilities for consequential and incidental damages arising out of or in connection
with any breach of this warranty or any other claim with respect to this product, including but not limited to claims of
negligence, strict liability in tort or breach of contract.
3
www.lanpro.com
Page 4
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
Table of Contents
1. INTRODUCTION 5
1.1 Features 5
1.2 Applications 5
2. INSTALLATION 6
2.1 Product Kit 6
2.2 System Minimum Requirements 6
2.3 AP’s location 6
2.4 Plug in Power 6
2.5 Connect to a Network 7
2.6 Connect to an ADSL modem 7
2.7 Install Utilities 8
2.8 Install AP’s Driver 10
3. CONFIGURATION 12
3.1 AP Utility 12
3.2 SNMP Manager 14
3.3 RSS Tool 14
3.4 Web Management 15
4. CONFIGURE AP AS BRIDGE - BLEND MODE
(POINT TO MULTIPOINT MODE AND POINT TO POINT SETTINGS) 16
4.1 Block Diagram 16
4.2 Conguration via SNMP manager 16
4.2.1 Open Access Point SNMP Manager window 16
4.2.2 Conguration procedure for bridge – blend mode 17
4.2.3 Wireless Repeater Mode 22
4.3 Adjust the best angle of antenna 26
5. DISABLE IP FILTERING 27
6. SPECIFICATIONS 30
7. DEFAULT SETTINGS 31
4
www.lanpro.com
Page 5
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
1
INTRODUCTION
Wireless LAN is local area networking without wires, which uses radio frequencies to transmit and receive data between PCs
or other network devices. Wireless LAN is able to congure independent networks and infrastructure networks. The former
is suitable for small or temporary peer-to-peer congurations, and the latter is offering fully distributed data connectivity
via micro cells and roaming.
The Wireless Access Point (AP) is designed to meet the mobility, performance, security, interoperability, management,
reliability requirements of IEEE 802.11b high data rate standard and IEEE 802.3 Ethernet 10 Base-T standard. This installed
AP can communicate with other IEEE 802.11b and IEEE 802.3 compatible products to create a wireless network in your
ofce or home.
1.1
Features
• Compliant with IEEE 802.11b standard
• Automatic data rate fallback under noisy environment (11 / 5.5 / 2 / 1 Mbps)
• Supports full mobility and seamless roaming from cell to cell
• Local, remote and automatic conguration
• Easy client management with supplied utility software
• Desktop and wall/ceiling mount
• Operating range
- Open environment: Up to 300m
- Ofce environment: 30 ~ 100m
• Bridging function
• Support IEEE 802.11d International roaming
• Provide repeater function
• Wireless to wireless ltering
• Site Survey function
• Support IEEE 802.1x Port Based Network Access
• Provide web server function
1.2
Applications
• Home networking for device sharing - Remote access to corporate network information email, le transfer and
terminal emulation.
• Frequently changing environments - Retailers, manufacturers and banks that frequently rearrange the
workplace and change location.
• SOHO (Small Ofce and Home Ofce) users - SOHO users need easy and quick installation of a small computer
network functions.
• Inter-building connection - The wireless building-to-building network installs quickly, requires no monthly
lease fees, and provides the exibility to recongure easily.
• Typical applications include hard-to-wire buildings, campuses, hospitals/medical ofces, warehouse, security
huts, exhibition centers, etc.
• Temporary LANs for special projects or occasions - Auditors require workgroups at customer sites. Trade
shows, exhibitions, retailers, airline, and shipping companies need additional workstations for the peak periods
of data trafc.
5
www.lanpro.com
Page 6
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
2
INSTALLATION
Please follow steps described in Section 2.1 through 2.8 to install your AP -- including hardware, driver, and utilities.
2.1
Product Kit
Before starting installation, please make sure the Wireless Access Point (AP) package you purchased includes
the following three items:
1. Wireless Access Point with one antenna.
2. CD-ROM (containing Driver/Utility, and User’s Manual).
2. Power adapter.
If anything from the above items is missing, please contact your vendor.
2.2
System Minimum Requirements
Your system should meet the following minimum requirements to install the AP successfully.
1. LAN with Ethernet network device such as hub or switch.
2. An A/C power outlet (100~240V, 50~60Hz) close to the location of AP (refer to Section 2.3).
3. UTP Ethernet cable (category 3, 4, or 5) with RJ-45 connectors and enough length from the location of AP
to the hub.
2.3
AP’s location
Please choose a proper place for your AP. Normally, the best location to place the AP is at the center of all your
stations (PC card or USB dongle) within line of sight. The higher altitude is for the AP’s location, the better
performance it may have.
2.4
Plug in Power
Plug the power cord of power adapter into the socket marked with on the rear panel of AP, and plug
the power adapter into an A/C power outlet. When completed, the power LED on the top panel should light up as
shown in Table 1. Note that only use the power adapter supplied with AP; otherwise, the AP may be damaged.
LED Off On Flash
LAN
No power,
orno network
connection.
Linked to hub, but no
network trafc.
LAN trafc is detected. The heavier the trafc,
the faster the LED ashes.
Flashes in non-bridge mode. In bridge mode,
RSS Nil. Nil.
the faster the LED ashes, the larger the
received signal strength (RSS) .
Power
No power or AP
failure.
Power on AP failure.
WLAN AP failure. Nil.
Radio trafc is detected. The heavier the
trafc, the faster the LED ashes.
6
www.lanpro.com
Page 7
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
2.5
Connect to a Network
Plug one end of a RJ-45 UTP Ethernet cable into the socket marked with on the rear panel of AP, then
plug the other end of this Ethernet cable into a free socket of the hub’s LAN ports. When completed, the LAN
LED on the top panel should light up as shown in Table 1.
Note that your wireless LAN is able to operate in some simple systems, i.e. only one AP and a DHCP server
available, by using the default settings (refer to Section 7) whenever you have completed the above steps
successfully. If in such case, your installation process is completed and you can neglect the following steps.
Otherwise, the following steps should be resumed for complicated systems or for the case that you would like
to change the AP’s settings.
2.6
Connect to an ADSL modem
Notebook with
Wireless LAN Card,
Wireless USB Dongle
Figure 1. Direct Connection of AP to ADSL Modem
Please note the conditions for the connection of AP with ADSL modem:
If the AP is directly connected to the ADSL modem output (see Figure 1), a crossover or a straight-through Ethernet
cable is needed depending on the type of ADSL modem.
If the AP is connected to the ADSL modem through a hub, there are two cases (see Figure 2 and 3) depending on
the ADSL service type.
1• ADSL service with dynamic IP addresses:
the AP is connected to one of the hub’s LAN ports, standard RJ-45 cables are used to connect among AP, Hub, and
ADSL modem. (see Figure 2).
Figure 2. AP connect to ADSL Modem through Hub
7
www.lanpro.com
Page 8
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
2• ADSL service with a xed IP address:
A Router or IP sharing device is included so that the AP and other devices connected to the hub’s LAN ports can share
the same IP address for operations. (see Figure 3).
Figure 3. AP connect to ADSL Modem through Hub and Router
When an AP is connected to an ADSL, disabling IP ltering function is needed for the AP conguration, the normal
settings of ADSL modem, Access Point, and WLAN NIC can then be followed for installations. Section 5 shows how
to disable the IP ltering of AP.
2.7
Install Utilities
Before installing the utilities into your PC, you have to ensure that your PC is running under Windows 98, Me,
NT, 2000, or XP operating system and has minimum 5 Mbytes free disk space.
Please follow the steps below to install three utilities, AP Utility, SNMP Manager and RSSTool. The rst is used
for the local conguration, the second is the remote conguration, and the last is the RSS test tool. The rst
two utilities perform the same functions except the password options and physical connections.
1• Insert the supplied CD-ROM in the CD-ROM drive.
2• Run \Utilities\setup.exe in the CD-ROM.
8
www.lanpro.com
Page 9
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
3• Follow the prompted instructions to nish the installation.
4• Restart your PC when prompted.
9
www.lanpro.com
Page 10
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
2.8
Install AP’s Driver
You may skip the AP’s driver installation on the conditions that:
1. Your PC cannot connect to AP through an USB cable.
2. Your PC is running Windows NT where USB connection is not supported.
3. The local conguration is not needed.
Please follow the steps below to install the AP’s driver.
1. Plug an USB cable into socket marked with on the rear panel of AP, and plug the other end of the USB
cable into USB port (type A) of the PC.
2. When plugged, your PC should detect the inserted AP automatically and display New Hardware Found on the
display box.
10
www.lanpro.com
Page 11
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
3. Put the supplied CD-ROM in the CD-ROM drive.
4. The driver installation procedure will guide you through the standard steps from your operating
system.
11
www.lanpro.com
Page 12
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
5. Restart your PC when prompted.
3
CONFIGURATION
After you have completed the Installation process of Section 2 successfully, please follow this section to congure the
settings of AP in order to t in your environment. There are three utilities available, AP Utility, SNMP Manager and RSSTool.
The rst is used for local conguration, the second is used for remote conguration, and the last is the RSS test tool. They
are described in Sections 3.1, 3.2 and 3.3 respectively. You can also congure the settings of AP by Web Management, it is
described in Section 3.3.
The following notations for congurations will be used in this manual.
The window names will be printed in italic fonts.
The items that need actions or inputs within the window will be printed in bold fonts.
3.1
AP Utility
Before running AP Utility, you have to make sure that:
1. Your PC is connected to the AP properly through an USB cable.
2. Your PC is running under Windows 98, Me, 2000, or XP.
3. AP Utility has been installed (refer to Section 2.7).
4. The AP’s driver has been installed (refer to Section 2.8).
5. The AP is turned on.
Run the AP Utility from Start, Program, Access Point Utilities, and AP Utility. A window AP Utility Application
will be displayed. Three buttons allow you to do the following functions.
12
www.lanpro.com
Page 13
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
• 1
Conguration: Congure the settings of the AP.
• 2
Reset AP: Reset the AP and new conguration will take effect.
• 3
Restore Default: Restore the factory default values (refer to Section 6).
After you click the Conguration button, a window AP Conguration with the current settings will be displayed.
Click the Get button to receive the settings in conguration window. Click the listed identier and press the
Modify button, a popped-up window allows you to input the new setting. The new settings will be stored to the
AP only after you click the Set button. Click the Exit button when completed. Please refer to Section 7 for the
detailed information of each setting.
13
www.lanpro.com
Page 14
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
3.2
SNMP Manager
Before running SNMP Manager, you have to make sure that:
1. The AP is turned on and is connected to a LAN.
2. Your PC can access to the AP.
3. Your PC is running under Windows 98, Me, 2000, XP, or NT.
4. SNMP Manager has been installed (refer to Section 2.7).
Run the SNMP Manager from Start, Program, Access Point Utilities, and SNMP Manager. A window Access
Point SNMP Manager will be displayed. If you have difculty in using it, please run from Start, Program, AP,
and SNMP Help for the detailed description about how to operate the SNMP Manager.
3.3
RSS Tool
Before running RSSTool, you have to make sure that:
1. The AP is turned on and is connected to a LAN.
2. Your AP’s operational mode is bridge mode.
3. Your PC can access to the AP.
4. Your PC is running under Windows 98, Me, 2000, XP, or NT.
5. RSSTool has been installed (refer to Section 2.7).
Run the RSSTool from Start, Program, Access Point Utilities, and RSSTool. A window RSSTool Application
will be displayed. Three buttons allow you to do the following functions.
• 1
Rescan: Rescan the AP on the same subnetwork.
14
www.lanpro.com
Page 15
• 2
Start: Start sending message to remote AP.
• 3
Abort: Stop sending message to remote AP.
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
Note: When RSSTool is running, you can’t run SNMP Manager at the same time.
3.4
Web Management
The built-in Web Management provides you with a set of user-friendly graphical user interfaces (web pages)
to manager your Access Points. With the assigned IP address (e.g. http://192.168.1.100/, 192.168.1.100 is
the default IP address) to the Access Point, you may get access to the Access Point Web Pages via a web
browser to monitor and congure the Access Point.
1. Launch web browser, and enter the AP’s
default IP address, 192.168.1.100, in the
Address eld. Then press Enter.
2. A password request page will show, and
enter “public” (the default password) in
the Password field. Then click the Submit
button. Then you can monitor and configure
the Access Point.
15
www.lanpro.com
Page 16
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
If you have difculty in using it, please click the Help for the detailed description about how to operate the Web Manager.
Note: The utility and web sever can not be run at the same time. The default IP “192.168.1.100” of AP will be automatically
changed if DHCP client is enable and there is a DHCP server in the connected LAN environment.
4
CONFIGURE AP AS BRIDGE - BLEND MODE (POINT TO MULTIPOINT MODE AND POINT TO POINT SETTINGS)
4.1
Block Diagram
We assume that there are three LANs and they will be connected as a group via AP by using AP bridge function.
For the three APs (AP1, AP2 and AP3) in the following diagram, they can be congured to act as bridges via the
SNMP Manager (see Section 4.2) or the AP utility (see Section 3.1).
Figure 4. Wireless Connection via Bridge Mode.
4.2
Conguration via SNMP manager
• 4.2.1
Open Access Point SNMP Manager window
See the description in Section 3.2 to open the
Access Point SNMP Manager from the PC or NB.
16
www.lanpro.com
Page 17
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
• In the menu bar, click File, a pull-down menu
will allow you to select Connect to Access
Point or Find Access Point:
If you know the AP’s IP address, then select
Connect to Access Point.
If you do not know the AP’s IP address, then
select Find Access Point. Wait for few seconds,
and select the right AP and click Connect.
Then the Connect to Access Point window will
be displayed.
• Enter the password in the Community field,
which is already defined via the AP Utility.
Select Administrator in the Authority field.
After clicking on OK button, the Access Point
SNMP Manager window will be displayed again
with more items in the menu bar.
• 4.2.2
• Conguration procedure for bridge – blend mode
Follow the steps below to congure AP1:
Step 1: Assign Point to Multipoint mode to AP1
· At Access Point SNMP Manager window,
click Setup, select Wireless LAN, and then
Operational Settings, the Wireless Operational
Setting windows will be displayed as follows:
• Click on , the following window will be displayed
17
www.lanpro.com
Page 18
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
• Select Wireless Bridge, and then Point to
Multi Point, finally click on OK button to go
back to Wireless Operational Settings window.
Step 2: Assign ESSID and Channel for AP1.
• At Wireless Operational Settings window, set values for ESSID and Channel fields. The values for ESSID
and Channel should be the same for all three APs (AP1, AP2 and AP3), so they can be formed as a group and
connected to the available bridge AP. And then click on OK button to go back to the Access Point SNMP Manager
window.
18
www.lanpro.com
Page 19
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
Step 3: Assign DHCP server accessing method for AP1.
• At Access Point SNMP Manager window, click Setup, select Bridge, and then IP Configuration. The following
window will be displayed.
• Click DHCP Enable and select Ethernet in Primary Port, then click on OK button to go back to the Access
Point SNMP Manager window.
The Primary Port is the path for connecting DHCP Server to get IP address. Because AP1 is connected to DHCP
Server via Ethernet port, so the setting must be Ethernet.
• Click File and select Download Changes, so all your changes will be download to the AP1.
Step 4: Get AP1 MAC address
This value will be used by AP2 and AP3 to assign which device it will be communicated with.
• Run SNMP Manager from the PC or NB in LAN1. Follow the same procedure as described in step 3 to open the
Access Point SNMP Manager window.
• At Access Point SNMP Manager window, click Setup, select Bridge, and then IP Configuration. The Bridge
IP Configuration window will be displayed. Record the value in MAC Address field.
19
www.lanpro.com
Page 20
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
Step 5: Assign Point to Point mode and remote AP1’s MAC address to AP2/AP3.
• To PC/NB in LAN2/3 to configure AP2/3.
At Access Point SNMP Manager window, click Setup, select Wireless LAN, and then Operational Settings.
The following window will be displayed.
• At Operation Mode window, select Wireless
Bridge and Point to Point, and set AP1 MAC
address into Remote MAC Address field, then
click on OK button to come back to Wireless
Operational Settings window.
Click on
The Operation Mode window will be
displayed.
20
www.lanpro.com
Page 21
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
• Set values for ESSID and Channel fields.
The values for ESSID and Channel should be
the same for AP1, AP2 and AP3, so they can be
formed as a group and communicate to each
other. And then click on OK button to go back to
Access Point SNMP Manager window.
Step 6: Assign DHCP server accessing method for AP2 and AP3.
• At Access Point SNMP Manager window, click Setup, select Bridge, and then IP Configuration. The following
window will be displayed.
• Click DHCP Enable and select Wireless in Primary Port, then click on OK button.
The Primary Port is the path for connecting DHCP Server to get IP address. However, AP2 and AP3 are
connected with DHCP Server via wireless connection, so the setting must be Wireless.
• Click File and select Download Changes to download the change to AP2 and AP3.
When all settings are complete and correct, LAN1, LAN2 and LAN3 can use the same ESS to connect to each
other by wireless and let every PC or NB in LAN2 and LAN3 to use LAN1’s DHCP Server.
In this mode, it is recommended that the AP1(as the center of the three APs) be equipped with omni-directional
or 75 to 90-degree directional antennas, while AP2 and AP3 be equipped with directional antennas.
21
www.lanpro.com
Page 22
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
• 4.2.3
Wireless Repeater Mode
This mode can be used to increase the coverage area. The Wireless Repeater (the AP2 in Figure 5) starts acting
as an AP after it has associated itself with another AP (Parent AP, the AP1 in Figure 5). From that point on, PC
cards or USB dongles can get associated to it.
Figure 5. Wireless Repeater Mode
Follow the steps below to congure AP1:
Step 1: Assign Access Point mode to AP1
• At Access Point SNMP Manager window, click Setup,
select Wireless LAN, and then Operational Settings,
the Wireless Operational Setting windows will be
displayed as follows:
• Select Access Point, finally click on OK button
to go back to Wireless Operational Settings
window.
22
• Click on , the following
window will be displayed
www.lanpro.com
Page 23
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
Step 2: Assign ESSID and Channel for AP1.
• At Wireless Operational Settings window, set values for ESSID and Channel elds. The values for ESSID
and Channel should be the same for AP2. And then click on OK button to go back to the Access Point SNMP
Manager window.
Step 3: Assign DHCP server accessing method for AP1.
• At Access Point SNMP Manager window, click Setup, select Bridge, and then IP Conguration. The following
window will be displayed.
23
www.lanpro.com
Page 24
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
• Click DHCP Enable and select Ethernet in Primary Port, then click on OK button to go back to the Access
Point SNMP Manager window.
The Primary Port is the path for connecting DHCP Server to get IP address. Because AP1 is connected to DHCP
Server via Ethernet port, so the setting must be Ethernet.
• Click File and select Download Changes, so all your changes will be download to the AP1.
Step 4: Get AP1 MAC address
This value will be used by AP2 to assign which device it will be communicated with.
• Run SNMP Manager from the PC or NB in LAN1. Follow the same procedure as described in step 3 to open the
Access Point SNMP Manager window.
• At Access Point SNMP Manager window, click Setup, select Bridge, and then IP Configuration. The Bridge
IP Configuration window will be displayed. Record the value in MAC Address field.
Step 5: Assign DHCP server accessing method for AP2.
• At Access Point SNMP Manager window, click Setup, select Bridge, and then IP Configuration. The following
window will be displayed.
• Click DHCP Enable and select Wireless in Primary Port, then click on OK button.
The Primary Port is the path for connecting DHCP Server to get IP address. However, AP2 is connected with
DHCP Server via wireless connection, so the setting must be Wireless.
• Click File and select Download Changes to download the change to AP2.
24
www.lanpro.com
Page 25
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
Step 6: Assign Repeater mode and remote AP1’s MAC address to AP2.
• At Access Point SNMP Manager window, click Setup, select Wireless LAN, and then Operational Settings.
The following window will be displayed.
• Click on , the Operation
Mode window will be displayed.
• At Operation Mode window, select Wireless Repeater, and set AP1 MAC address into Remote MAC Address
field, then click on OK button to come back to Wireless Operational Settings window.
25
www.lanpro.com
Page 26
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
• Set values for ESSID and Channel fields. The values for ESSID and Channel should be the same for AP1.
And then click on OK button to go back to Access Point SNMP Manager window.
Note: The Repeater can be configured with the SNMPManager through the wireless STAs associated to it or the
PCs in the Wired LAN behind the Parent AP.
4.3
Adjust the best angle of antenna
Step 1: Open RSSTool window
See the description in Section 3.3 to open the RSSTool from the LAN1’s PC or NB.
Step 2: Confirm the remote IP
If you know the AP2’s IP address, then type it in the “Remote IP” blank. If you do not know the AP2’s IP address,
then click Rescan. Wait for few seconds, and select the right AP name from the pull-down menu.
26
www.lanpro.com
Page 27
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
Step 3: Click “Start” button
When you click the “Start” button, the RSSTool will send message to the AP2. You can adjust the AP2’s antenna
until AP2’s LED of RSS flash faster.
Step 4: Click “Abort” button
If you have adjusted the AP2’s antenna, you can stop this tool.
Step 5: Repeat the Step 1 ~ 4 at LAN2’s PC or NB
When you finish the step 5, you will get the best angle of antennas. Then AP1 and AP2 can communicate with
the best quality.
Note: When RSSTool is running, you can’t run SNMP Manager at the same time.
5
DISABLE IP FILTERING
Use AP Utility to disable IP Filtering
Run AP Utility, then click Conguration.
1
27
www.lanpro.com
Page 28
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
2
If the item IP Filtering is not Disable, click Modify
3
Select Disable, then click OK
4
Click Set.
28
www.lanpro.com
Page 29
5
Click Yes, then wait for download completion.
6
Exit AP Utility.
Use SNMP Utility to disable IP Filtering
1
Run SNMP, then press Setup -> Bridge -> Filtering
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
2
Un-check IP Routing, then click OK.
3
Press File -> Download Change.
4
Exit SNMP Utility.
29
www.lanpro.com
Page 30
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
6
SPECIFICATIONS
General
Standards compliance IEEE 802.3 and 802.11b
Security WEP 64-bit, 128-bit, encryption RC4
Hardware
RF Frequency range: 2.4 ~ 2.4835GHz
Data rate 11Mbps / 5.5Mbps / 2Mbps / 1Mbps
Modulation
Coding
Number of channels
Host interface
Transmit power +20dBm (Min.)
Receive sensitivity -83dBm (Typ.) for 11Mbps
Power ‹750mA @ 5Vdc
Range Open environment: up to 300m (985ft)
Software
Management interface Local: AP Utility under Windows 98/2000/Me/XP
Mechanical
Antenna One RSMA connector for external antenna
Indicator LAN, RSS, Power, WLAN
Environmental
Dimensions 6.8” x 5.5” x 1.0” (172.0 x 141.0 x 26.5 mm), without antenna
Weight 22.6 oz. (670 grams), excluding power adapter
Certicate
EMC
DSSS (Direct Sequence Spread Spectrum)
DBPSK/DQPSKt
1, 2Mbps: 11 chip/bit Barker Coding
5.5, 11Mbps: Complementary Code Keying
Europe: 13 (3 non-overlapping)
US: 11 (3 non-overlapping)
France: 4 (1 non-overlapping)
Japan: 14 (3 non-overlapping)
RJ-45
USB (local conguration)
Ofce environment:
up to 30m(98ft ) @ 11Mbps
up to 40m (131ft) @ 5.5Mbps
up to 60m (197ft) @ 2Mbps
up to 100m (328ft) @ 1Mbps
Range for the AP depends on many factors and can vary greatly depending on the environment. The actual range may be less than stated.
Remote: SNMP under Windows 98/2000/Me/XP/NT
0 ~ 55°C (operation), -20 ~ +65°C (storage)
Relative Humidity 95% (non-condensing)
U.S.: FCC Part 15, Sections 15.247, 15.205, 15.209
Europe: ETS 300 328, ETS 300 826, CE Marked
30
www.lanpro.com
Page 31
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
7
DEFAULT SETTINGS
No. Identier Description Default Value Possible Values
1 Eth_IP_Address AP’s IP address 192.168.1.100
2 Eth_SubMask Subnet mask 255.255.255.0
3 ESSID Extended service set ID WLAN-AP
Transmission rate is
4 Auto Rate Fall Back
5 Channel
6
7 RTS Threshold
8 WEP Type
9 WEP Key WEP keys to be used. Key1 “Key1”, “Key2”, “Key3”, “Key4”.
10 Key64 1
11 Key64 2
12 Key64 3
13 Key64 4
14 Key128 1
15 Key128 2
16 Key128 3
17 Key128 4
18 Preamble Type
Fragmentation
Threshold
subject to the past
transmission status.
Designate operating
radio channel
The size at which
packets will be
fragmented.
Minimum size to enable
RTS/CTS mechanism
Type of Wired
Equivalent Privacy
64-bit WEP value of
key 1
64-bit WEP value of
key 2
64-bit WEP value of
key 3
64-bit WEP value of
key 4
128-bit WEP value of
128-bit WEP value of
key 1
128-bit WEP value of
key 2
128-bit WEP value of
key 3
128-bit WEP value of
key 4
The appropriate frame
format for transmission
to physical layer.
Enable “Enable”, “Disable”.
6 for FCC, IC, ETSI,
MKK. 10 for others.
2346 “256” to “2346” bytes.
2346 (stands for disa-
bled)
Disable
10 11 12 13 14 “00” to “FF” for each eld.
20 21 22 23 24 “00” to “FF” for each eld.
30 31 32 33 34 “00” to “FF” for each eld.
40 41 42 43 44 “00” to “FF” for each eld.
10 11 12 13 14 00 00
00 00 00 00 00 00
20 21 22 23 24 00 00
00 00 00 00 00 00
30 31 32 33 34 00 00
00 00 00 00 00 00
40 41 42 43 44 00 00
00 00 00 00 00 00
Long “Short”, “Long”.
FCC/IC: 1 to 11, ETSI: 1 to 13,
Spain: 10 to 11, France: 10 to
13, MKK: 1 to 14.
“256” to “2346” bytes.
“Disable”, “64-bit WEP”, “128-bit
WEP”.
“00” to “FF” for each eld.
“00” to “FF” for each eld.
“00” to “FF” for each eld.
“00” to “FF” for each eld.
31
www.lanpro.com
Page 32
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
No. Identier Description Default Value Possible Values
“Open System”: the
access to AP is valid
if the security key
of station is not set.
“Shared Key”: the
access to AP is valid
19 Authentication Type
20 Access Point Name Name used for the AP Access Point
21
22 Beacon Period
23 DTIM
24 Operational Mode
25 User Community
26 User Access
27
28 Administrator Access
29 Gateway IP Address
30 IP Filtering
31 DHCP Client
32 Primary Port
33
34 SNMP Traps
35 Preferred BBS
Operational
Rate Set
Administrator
Community
Authorization
Algorithm
if the security key of
station matches with
AP’s.
“Both”: both “Open
System” and “Shared
Key” and are
applicable.
Range of applicable
data rate
Duration between
beacon packets
Interval of AP sends its
broadcast trafc
Which operation mode
is taken
The user password
used for SNMP
User access rights used
for SNMP
The administrator
password used for
SNMP
Administrator access
rights used for SNMP
IP address of the
gateway
Allow only IP packets
to pass through the
WLAN
Automatic IP address
assignment by the
DHCP server
Port connects to DHCP
server
Enable authorized MAC
address stations to
access AP.
The message indicates
the AP’s actions.
Remote MAC address
for connection in the
operational mode of
Access Point Client or
Wireless Bridge.
Both Type
82 84 8b 96
100 20 to 1000 milliseconds.
2 (beacons)
Access Point
public
READ ONLY “READ ONLY”, “READ\WRITE”.
public
READ\WRITE “READ ONLY”, “READ\WRITE”.
0.0.0.0
Disable “Enable”, “Disable”.
Enable “Enable”, “Disable”.
Ethernet “Ethernet”, “Wireless”.
Disable “Enable”, “Disable”.
Enable “Enable”, “Disable”.
00 00 00 00 00 00 “00” to “FF” for each eld.
“Open System”, “Shared Key”,
“Both”.
“82 84 8b 96” for 1 to 11Mbps,
“82 84 0b 16” for 1 to 2 Mbps.
“WBridge Point to MultiPoint”,
“Access Point”, “Access Point
Client”, “WBridge Point to Point”,
”Wireless Repeater”.
32
www.lanpro.com
Page 33
Wireless - Equipment - 2.4 GHz - LP-1000ai User Manual version 1.2
No. Identier Description Default Value Possible Values
36 SSID Broadcasting
37
38
39 Conguration Port
40
41
42 802.1x Enable
43 Broadcast Key Period
44 Server IP Address
45 Server Secret
Send Back Broadcast
Enable
Forward Broadcast
Enable
Send Back Unicast
Enable
International
Roaming
Enable
AP broadcasts the
ESSID to the stations
The AP send back to
the air broadcast trafc
received from the air.
The AP forward
broadcast trafc to the
air.
Port will be used for the
AP conguration.
The AP send back to
the air unicast trafc
received from the air.
AP support the
International
Roaming function
Start the 802.1x
authentication schema
Duration between
Broadcast Key
RADIUS Server’s IP
address
The shared key used
by the AP and RADIUS
Server during the
authentication process.
Enable “Enable”, “Disable”.
Enable “Enable”, “Disable”.
Enable “Enable”, “Disable”.
Both Ports
Enable “Enable”, “Disable”.
Enable “Enable”, “Disable”.
Disable
0 0-65535
0.0.0.0
“Both Ports”, “Ethernet Port”,
“Wireless Port”.
“Enable”, “Disable”,
“802.1x Mixed Environment”.
LanPro is a member of the One Network Aliance Group of Companies.
LanPro, The Natural Choice in Networking and LanProfessional are US registered brands.
LanPro America: 1880 NW 93rd Av, Doral, Florida 33172, USA.
Main web page: www.lanpro.com Support: [email protected]
33
www.lanpro.com
Loading...
