Lanier LD320D Operating Manual

Operating Instructions

Copy Reference

1Placing Originals

2Copying

3Troubleshooting

4User Tools (Copier Features)

5Remarks

6Specifications

Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety Information in this manual before using the machine.

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handling or operating the machine.

Notes

Some illustrations in this manual might be slightly different from the machine.

Certain options might not be available in some countries. For details, please contact your local dealer.

Laser Safety:

CDRH Regulations

This equipment complies with requirements of 21 CFR subchapter J for class 1 laser products. This equipment contains a 5 milliwatt, 760-800 nanometer wavelength, GaAlAs laser diode. This equipment does not emit hazardous light, since the beam is totally enclosed during all customer modes of operation and maintenance.

Caution:

Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure.

Notes:

The model names of the machines do not appear in the following pages. Check the type of your machine before reading this manual. (For details, see p.8 “Machine Types”.)

•Type 1: 9016/DSm716/LD316/Aficio MP 1600

•Type 2: 9021d/DSm721d/LD320d/Aficio MP 2000

Certain types might not be available in some countries. For details, please contact your local dealer.

Two kinds of size notation are employed in this manual. With this machine refer to the inch version.

For good copy quality, the supplier recommends that you use genuine toner from the supplier.

The supplier shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the supplier with your office products.

Power Source

120V, 60Hz, 12A or more

Please be sure to connect the power cord to a power source as above. For details about power source, see p.59 “Power Connection”.

Manuals for This Machine

The following manuals describe the operational procedures of this machine. For particular functions, see the relevant parts of the manual.

Note

Manuals provided are specific to machine type.

Adobe Acrobat Reader is necessary to view the manuals as a PDF file.

General Settings Guide

Provides an overview of the machine and describes System SettingsSystem Settings (paper trays, Key Operator Tools, etc.), and troubleshooting.

Network Guide

Describes procedures for configuring the machine and computers in a network environment.

Copy Reference (this manual)

Describes operations, functions, and troubleshooting for the machine's copier function.

Printer/Scanner Reference

Describes system settings, functions, troubleshooting and operations for the machine's printer and scanner function.

i

TABLE OF CONTENTS
Manuals for This Machine ......................................................................................	i
Notice ......................................................................................................................	1
How to Read This Manual .....................................................................................	3
Names of Major Options ............................................................................................	4
Safety Information .................................................................................................	5
Safety During Operation.............................................................................................	5

Positions of Labels and Hallmarks for RWARNING and RCAUTION Labels ... 7

Machine Types .......................................................................................................	8
Control Panel..........................................................................................................	9
Display .....................................................................................................................	10
Reading the Display and Using Keys.......................................................................	11
Turning On the Power .........................................................................................	12
Turning On the Main Power .....................................................................................	12
Turning On the Power ..............................................................................................	12
Turning Off the Power ..............................................................................................	13
Turning Off the Main Power .....................................................................................	13
Saving Energy..........................................................................................................	13
1. Placing Originals
Originals ...............................................................................................................	15
Sizes and Weights of Recommended Originals.......................................................	15
Sizes Detectable with Auto Paper Select.................................................................	17
Missing Image Area .................................................................................................	18
Placing Originals..................................................................................................	19
Original Orientation ..................................................................................................	19
Placing Originals on the Exposure Glass.................................................................	19
Placing Originals in the ADF or ARDF .....................................................................	20
2. Copying
Basic Procedure...................................................................................................	23

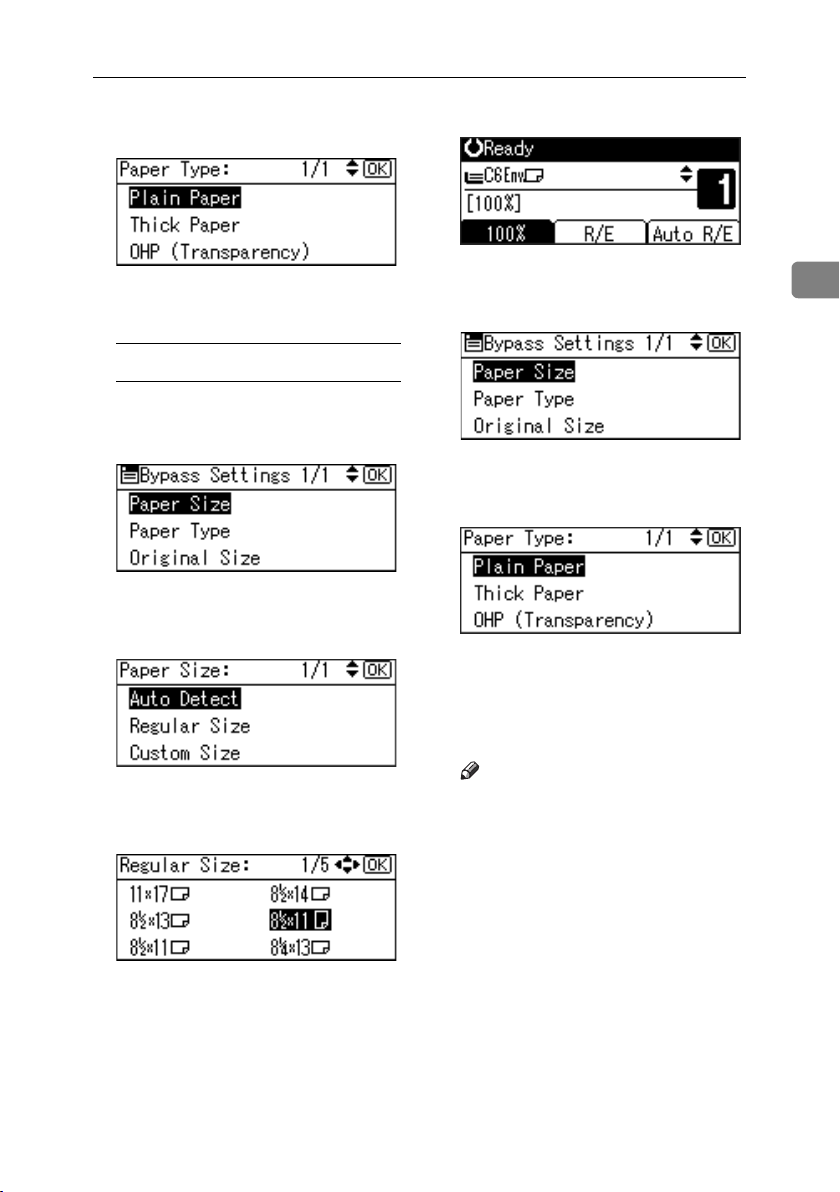

Copying from the Bypass Tray...........................................................................	24
Copier Functions .................................................................................................	28
Adjusting Image Density ..........................................................................................	28
Selecting Original Type Setting................................................................................	28
Selecting Copy Paper ..............................................................................................	28
Preset Reduce/Enlarge ............................................................................................	30
Zoom ........................................................................................................................	30
Auto Reduce/Enlarge ...............................................................................................	31
Sort...........................................................................................................................	32
Duplex (Type 2 only) ................................................................................................	34
One-Sided Combine.................................................................................................	36
Two-Sided Combine (Type 2 only)...........................................................................	37
Series Copies...........................................................................................................	39

ii

3. Troubleshooting
If Your Machine Does Not Operate As You Want..............................................	41
When a Message Is Displayed.................................................................................	41
If You Cannot Make Clear Copies.......................................................................	42
If You Cannot Make Copies As You Want .........................................................	43
When Memory Is Full ...............................................................................................	44
B Loading Paper .................................................................................................	45
Loading Paper..........................................................................................................	45
Orientation-Fixed Paper or Two-Sided Paper ..........................................................	46
D Adding Toner...................................................................................................	48
Handling Toner.........................................................................................................	48
Toner Storage ..........................................................................................................	48
Used Toner ..............................................................................................................	48
Removing Toner...................................................................................................	49
Inserting Toner.....................................................................................................	50
4. User Tools (Copier Features)
Accessing User Tools (Copier Features)...........................................................	51
Changing Default Settings .......................................................................................	51
Quitting User Tools ..................................................................................................	52
Settings You Can Change with User Tools .......................................................	53
APS/ Auto R/E Priority ............................................................................................	53
Auto Tray Switching .................................................................................................	53
Original Type Setting ...............................................................................................	53
Duplex Mode Priority................................................................................................	54
Orientation................................................................................................................	54
Max. Number of Sets ...............................................................................................	54
Original Count Display .............................................................................................	54
Reproduction Ratio ..................................................................................................	54
Preset R/E Priority ...................................................................................................	55
Duplex Margin ..........................................................................................................	55
Rotate Sort ...............................................................................................................	55
Rotate Sort:Auto Continue .......................................................................................	55
Letterhead Setting....................................................................................................	55
5. Remarks
Do's and Don'ts....................................................................................................	57
Where to Put Your Machine ................................................................................	58
Machine Environment ..............................................................................................	58
Moving......................................................................................................................	59
Power Connection....................................................................................................	59
Access to the Machine .............................................................................................	60
Maintaining Your Machine ..................................................................................	61
Cleaning the Exposure Glass...................................................................................	61
Cleaning the Exposure Glass Cover ........................................................................	61
Cleaning the ADF or ARDF......................................................................................	61

iii

6. Specifications
Combination Chart...............................................................................................	63
Supplementary Information ................................................................................	64
INDEX.........................................................................................................	67

iv

Notice

Important

Do not copy or print any item for which reproduction is prohibited by law.

Copying or printing the following items is generally prohibited by local law:

bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, passports, driver's licenses.

The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its completeness or accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your legal advisor.

Notice To Wireless LAN Interface (option) Users

Notes to users in the United States of America

Notice:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

1

Note to users in Canada

Note:

This Class B digital apparatus complies with Canadian ICES-003.

Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

IEEE 802.11b Interface Unit Type D:

This device complies with RSS-210 of Industry Canada.

The term “IC:” before the certification/registration number only signifies that the Industry Canada technical specifications were met.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Remarque concernant les utilisateurs au Canada

Avertissement:

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

IEEE 802.11b Interface Unit Type D:

Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada.

L'expression «IC:» avant le numéro d'homologation/enregistrement signifie seulement que les spécifications techniques d'Industrie Canada ont été respectées.

Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal.

Si le matériel (ou son antenne d'émission) est installe à l'extérieur, il doit faire l'objet d'une licence.

2

How to Read This Manual

Symbols

The following set of symbols is used in this manual.

RWARNING:

This symbol indicates a potentially hazardous situation that might result in death or serious injury when you misuse the machine without following the instructions under this symbol. Be sure to read the instructions, all of which are described in the Safety Information section.

RCAUTION:

This symbol indicates a potentially hazardous situation that might result in minor or moderate injury or property damage that does not involve personal injury when you misuse the machine without following the instructions under this symbol. Be sure to read the instructions, all of which are described in the Safety Information section.

* The statements above are notes for your safety.

Important

If this instruction is not followed, paper might be misfed, originals might be damaged, or data might be lost. Be sure to read this.

Preparation

This symbol indicates information or preparations required prior to operating.

Note

This symbol indicates precautions for operation, or actions to take after abnormal operation.

Limitation

This symbol indicates numerical limits, functions that cannot be used together, or conditions in which a particular function cannot be used.

Reference

This symbol indicates a reference.

[ ]

Keys that appear on the machine's display panel.

{}

Keys built into the machine's control panel.

3

Names of Major Options

Major options of this machine are referred to as follows in this manual:

•Auto Document Feeder → ADF

•Auto Document Feeder capable of scanning both sides of a sheet → ARDF

4

Safety Information

When using this machine, the following safety precautions should always be followed.

Safety During Operation

In this manual, the following important symbols are used:

RWARNING:

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

RCAUTION:

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

RWARNING:

•Disconnect the power plug (by pulling the plug, not the cable) if the power cable or plug becomes frayed or otherwise damaged.

•To avoid hazardous electric shock or laser radiation exposure, do not remove any covers or screws other than those specified in this manual.

•Turn off the power and disconnect the power plug (by pulling the plug, not the cable) if any of the following occurs:

•You spill something into the machine.

•You suspect that your machine needs service or repair.

•The external housing of your machine has been damaged.

•Do not incinerate spilled toner or used toner. Toner dust might ignite when exposed to an open flame.

•Disposal can take place at our authorized dealer.

•Dispose of the used toner bottle in accordance with the local regulations.

•Connect the machine only to the power source described on the inside front cover of this manual. Connect the power cord directly into a wall outlet and do not use an extension cord.

•Do not damage, break or make any modifications to the power cord. Do not place heavy objects on it. Do not pull it hard nor bend it more than necessary. These actions could cause an electric shock or fire.

5

RCAUTION:

•Protect the machine from dampness or wet weather, such as rain and snow.

•Unplug the power cord from the wall outlet before you move the machine. While moving the machine, you should take care that the power cord will not be damaged under the machine.

•When you disconnect the power plug from the wall outlet, always pull the plug (not the cable).

•Do not allow paper clips, staples, or other small metallic objects to fall inside the machine.

•Keep toner (used or unused) and toner bottle out of the reach of children.

•For environmental reasons, do not dispose of the machine or expended supply waste at household waste collection points. Disposal can take place at an authorized dealer.

•The inside of the machine could be very hot. Do not touch the parts with a label indicating the “hot surface”. Otherwise, an injury might occur.

•Keep the machine away from humidity and dust. Otherwise a fire or an electric shock might occur.

•Do not place the machine on an unstable or tilted surface. If it topples over, an injury might occur.

•Before moving the machine, be sure to pull all four handles fully out. If not, an injury might occur. After moving the machine, return the four handles to their original positions.

•When the optional paper tray unit is installed, do not push the upper part of the main unit horizontally. An injury might occur if the paper tray unit becomes detached from the main unit.

•If you use the machine in a confined space, make sure there is a continuous air turnover.

•Keep the machine away from flammable liquids, gases, and aerosols. A fire or an electric shock might occur.

6

Positions of Labels and Hallmarks for RWARNING and RCAUTION Labels

This machine has labels for RWARNING and RCAUTION at the positions shown below. For safety, please follow the instructions and handle the machine as indicated.

1

1

APE023S

7

Machine Types

This machine comes in three models which vary by copy speed. To make sure which model you have, see the inside front cover of this manual.

	Type 1	Type 2
Copy Speed	16 copies/minute	21 copies/minute
	(A4K, 81/2" ×	(A4K, 81/2" ×
	11"K)	11"K)
Duplex unit	—

: Can be used with this type.

—: Cannot be used with this type.

8

Control Panel

Note

These illustrations show Type 2.

1	2	3	4	5		6	7 8	9	10
						User Tools/Counter	ClearModes
Copy
					ABC	DEF	Clear/Stop
Scanner
				GHI	JKL	MNO
				Escape OK
Printer							Start
	Duplex			PRS	TUV	WXY
				Original
	Combine/			Text
		Sort	Lighter	Darker
	Series			Photo	OPER
						Enter
	11 12 13		14	15 16 17	18		19	APE029S

1. {Copy}key

Press to activate the copier function.

2. Indicators

Display errors and machine status.

•h: Error indicator

See “Control Panel”, General Settings Guide.

•D: Add Toner indicator

See p.48 “D Adding Toner”.

•B: Load Paper indicator

See p.45 “B Loading Paper”.

3. Display

Displays operation status and messages.

4. Selection keys

8. {Clear/Stop}key

Clear: clears an entered numeric value. Stop: stops copying.

9. Main power indicator

Lights when the main power switch is turned on.

Reference

p.12 “Turning On the Power”

10. Operation switch (On indicator)

Press to turn the power on. The On indicator lights. To turn the power off, press again.

Note

Correspond to items on the display. Press to select the corresponding item.

5. Scroll keys

Press to select an item. {U}: scroll upward {T}: scroll downward {V}: scroll right

{W}: scroll left

Reference

See p.11 “Reading the Display and

Using Keys”.

6. {User Tools/Counter}key

Press to change default or operation parameters according to requirement.

7. {Clear Modes}key

Press to clear the current settings.

This key is inactivate during scanning or while setting defaults.

Reference

p.12 “Turning On the Power”

11. {Duplex}key (Type 2 only)

Makes two-sided copies.

Reference

See p.34 “Duplex (Type 2 only)”.

12. {Combine/Series}key

Press to make combine or series copies.

Reference
p.36	“One-Sided Combine”
p.37 “Two-Sided Combine (Type 2
only)”
p.39	“Series Copies”	9

13.{Sort}key

Automatically sorts copies.

14.{Lighter}and {Darker}

Press to change the image density setting. Select the image density in five increments, Lighter to Darker.

15. {Escape}key

Press to cancel an operation or return to the previous display.

16. {Original}key

Press to select the original type registered with [Original Type 1 (Text)] or [Original Type 2 (Photo)]. When the original type is selected, the corresponding indicator lights.

17. {OK}key

Press to set a selected item or entered numeric value.

18. Number keys

Press to enter numeric values.

19. {Start}key

Press to start scanning or sending.

Display

This section explains how to read the display and use the Selection key for the initial copy display.

Note

The copy display is set as the default screen when the machine is turned on.

Initial copy display

1

2

3

	4
	AAI024S
1. Operational status or messages	3. Number of copies set.

2. Messages and the selected tray appear here. Currently selected items appear in brackets.

4. Reduce/Enlarge ratio function for non-fixed ratios.

10

Reading the Display and Using Keys

This section explains how to read the display and use the selection key for the initial copy display.

Note

The copy display is set as the default screen when the machine is turned on.

4

	Escape	OK
1	2	3

APE026S

1. Selection keys

Correspond to items at the bottom line on the display.

Example: initial copy display

•When the instruction “press [100%]” appears in this manual, press the left selection key.

•When the instruction “press [R/E]” appears in this manual, press the center selection key.

•When the instruction “press [Auto R/E]” appears in this manual, press the right selection key.

2. {Escape}key

Press to cancel an operation or return to the previous display.

3. {OK}key

Press to set a selected item or entered numeric value.

4. Scroll keys

Press to move the cursor to each direction one by one.

When {U},{T},{V}, or {W} key appears in this manual, press the scroll key of the same direction.

11

Turning On the Power

This machine has two power switches.

Operation switch (right side of the control panel)

Press to activate the machine. When the machine has finished warming up, you can operate the machine.

Main power switch (left side of the machine)

Turning off this switch makes the main power indicator on the right side of the control panel go off. When this is done, machine power is completely off.

Note

This machine automatically enters Energy Saver mode or turns itself off if you do not use it for a while. See General Settings Guide.

Turning On the Main Power

A Make sure the power cord is firmly plugged into the wall outlet.

B Turn on the main power switch.

The main power indicator goes on.

AAI049S

Important

Do not turn off the main power switch immediately after turning it on. Doing so may result in damage to the memory, leading to malfunctions.

Turning On the Power

A Press the operation switch.

The On indicator goes on.

arModes

ar/Stop

tart

APE030S

Note

If the power does not come on when the operation switch is pressed, check the main power switch is on. If it is off, turn it on.

12

Turning Off the Power

A Press the operation switch.

The On indicator goes off.

arModes

ar/Stop

Start

APE030S

Note

Even if you press the operation switch, the indicator does not go out, but blinks in the following cases:

•During communication with external equipment.

Turning Off the Main Power

Important

Do not turn off the main power switch when the On indicator is lit or blinking. Doing so may result in damage to the memory.

Make sure 100% is shown as available memory on the initial scanner display before turning off the main power switch.

Be sure to turn off the main power switch before pulling out the power plug. Not doing this may result in damage to the memory.

A Be sure the On indicator is not lit.

B Turn off the main power switch.

The main power indicator goes out.

Saving Energy

-Auto Off/ Low Power

The machine automatically turns itself off when the job is finished, after a certain period of time has elapsed. This function is called “Auto Off”.

Note

You can change the Auto Off time. See General Settings Guide.

The Auto Off Timer function will not operate in the following cases:

•When a warning message appears

•When the service call message appears

•When paper is jammed

•When the cover is open

•When the “Add Toner” message appears

•When toner is being replenished

•When the User Tools screen is displayed

•When fixed warm-up is in progress

•When the printer or other functions are active

•When operations are suspended during printing

•When the Data In indicator is on or blinking

13

14

1. Placing Originals

Originals

Sizes and Weights of Recommended Originals

Metric version

Original location	Original size	Original weight
Exposure glass	Up to A3	--
ADF or ARDF	One-sided originals:	40–128 g/m2
	A3L – A5KL
	Two-sided originals: *1	52–105 g/m2	*1
	A3L – A5KL

Inch version

Original location	Original size	Original weight
Exposure glass	Up to 11" × 17"	--
ADF or ARDF	One-sided originals:	11–34 lb.
	11" × 17"L – 51/2" × 81/2"KL
	Two-sided originals *1 :	14–28 lb. *1
	11" × 17"L – 51/2" × 81/2"KL

*1 The optional ARDF is required.

Note

About 30 originals can be placed in the ADF.

About 50 originals can be placed in the ARDF.

15

Placing Originals

Non-compatible originals for the ADF or ARDF

	Placing the following types of originals in the ADF or ARDF can cause paper
	misfeeds or result in damage to the originals. Place these originals on the expo-
1	sure glass instead.
	•	Originals other than those specified on p.15 “Sizes and Weights of Recom-
		mended Originals”
	• Stapled or clipped originals
	• Perforated or torn originals
	• Curled, folded, or creased originals
	•	Pasted originals
	•	Originals with any kind of coating, such as art paper, aluminum foil, carbon
		paper, or conductive paper

• Originals with perforated lines

• Originals with indexes, tags, or other projecting parts

• Sticky originals such as translucent paper

• Thin, highly flexible originals

• Thick originals such as postcards

• Bound originals such as books

• Transparent originals such as OHP transparencies or translucent paper

Note

The original might become dirty if it is written with a pencil or a similar tool.

16

Originals

Sizes Detectable with Auto Paper Select

Metric version

										1
	Size	A3L	B4 JIS *1	A4KL	B5 JIS *1	B5 JIS *1	A5LK	81/2" ×
	Original location		L		L	K		13"L
	Exposure glass				×		×
	ADF or ARDF

: Detectable size × : Undetectable size

*1 JIS: Japanese Industrial Standard

Note

If you want to set up the machine to select A5K automatically, contact your service representative.

Inch version

Size	11" × 17"L	81/2" × 14"L	81/2" × 13"L	81/2" ×	51/2" ×
Original location				11"KL	81/2"KL
Exposure glass					×
ADF or ARDF			×

: Detectable size × : Undetectable size

Exposure glass

	Positioning
	mark	Horizontal size
	Vertical	Maximum scanning area
	size	A3	(297x420mm)
		11"x17"		(279x432mm)

17

Placing Originals

ADF or ARDF

1

Maximum scanning area

Note

When you copy custom size originals, make sure you specify the size of the originals. If not, the image may not be copied properly. See p.21 “Placing custom size originals”.

Sizes difficult to detect

It is difficult for the machine to detect the sizes of the following originals, so select the paper size manually.

•Originals with indexes, tags, or other projecting parts

•Transparent originals such as OHP transparencies or translucent paper

•Dark originals with lots of text and drawings

•Originals partially consisting of a solid image

•Originals that have solid images around their edges

Missing Image Area

Even if you place originals in the ADF or ARDF, or on the exposure glass correctly, 4 mm (0.2”) margins on all four sides might not be copied.

18
