Operating Instructions
Copy Reference
1Placing Originals
2Copying
3Color Adjustment/Program
4Troubleshooting
5User Tools (Copier/Document Server Features)
6Specifications
For safe and correct use of this machine, please be sure to read the Safety Information in the General Settings Guide before you use it.
Introduction
This manual contains detailed instructions on the operation and maintenance of this machine. To get maximum versatility from this machine all operators should carefully read and follow the instructions in this manual. Please keep this manual in a handy place near the machine.
Notes
Some illustrations may be slightly different from your machine.
Certain options may not be available in some countries. For details, please contact your local dealer.
Warning:
Use of controls or adjustment or performance of procedures other than those specified in this manual might result in hazardous radiation exposure.
Notes:
The model names of the machines do not appear in the following pages. Check the type of your machine before reading this manual. (For details, P.3 “Machine Types”.)
•Type 1: 24 copies/minute (81/2" × 11"K)
•Type 2: 32 copies/minute (81/2" × 11"K)
Certain types might not be available in some countries. For details, please contact your local dealer.
Two kinds of size notation are employed in this manual. With this machine refer to the inch version.
For good copy quality, the supplier recommends that you use genuine toner from the supplier.
The supplier shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the supplier with your office products.
Power Source
120V, 60Hz, 12A or more
Please be sure to connect the power cord to a power source as above. For details about power source, see “Power Connection” in the General Settings Guide.
What You Can Do With This Machine
<Color Functions/Color Adjustments>
Color Copying ( p.25)
You can switch the color copy mode depending on the type of originals used and the desired finish.
Full Color Copy ( p.25) |
Black/White Copy ( p.25) |
Copies using four colors: yellow, magenta, cyan and black.
Copies in black and white, even when the original is in color.
Single Color Copy (p.25)
Copies in the designated color.
Yellow |
Beige |
Orange |
Red |
Light green |
Cyan |
|
|
|
||||||
Pink |
Magenta |
Green |
Marine blue |
Blue |
Purple |
Registered colour |
||||||||
2-Color Copy ( p.25) |
|
|
|
|
|
|
|
|
|
|
|
|||
Color: Copies using 2 registered colors. |
Black/Red: Copies the red part of the |
|||||||||||||
|
|
|
|
|
|
|
original in red, and copies all other areas |
|||||||
|
|
|
|
|
|
|
in black and white. |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GCMO022e
i
Color Copying ( p.25)
Convert Colors ( p.26)
Copies by changing a specific color in the original to another color.
Erase Specified Color ( p.27)
Copies by deleting a specific color in the original.
Color Background ( p.27)
Copies by adding a color to the whole page.
Stamping on Copies ( p.60)
Copies with the date, page numbers, etc. The stamp color can be yellow, red, cyan, magenta, green, blue, and black.
Printed inserts types:
•Preset Stamp (p.60)
•User Stamp (p.61)
•Date Stamp (p.64)
•Page Numbering (p.66)
GCMO026e
ii
Adjusting Colors ( |
p.73) |
|
|
|
|
|
|
|
|
|
|
|||||
|
Primary Colors |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Yellow |
|
|
Colors can be created by combining the 3 primary colors: |
||||||||||||
|
Green |
Red |
|
yellow, magenta and cyan. Black can be made by combining |
||||||||||||
|
|
|
|
Black |
|
yellow, magenta and cyan, however, as there might be some |
||||||||||
|
|
|
|
|
slight differences, "black" will be expressed using a black |
|||||||||||
|
Cyan |
Magenta |
|
|||||||||||||
|
|
toner. |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Blue |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Adjust Color ( |
p.73) |
|
|
|
Color Balance ( |
p.74) |
|||||||||
|
Adjusts the specific colors (yellow, red, |
|
Adjusts the overall color tone of copies. |
|||||||||||||
|
magenta, blue, cyan and green) by mixing |
|
|
|
|
|
|
|
|
|
|
|||||
|
them with adjacent colors in the color |
|
|
|
|
|
|
|
|
|
|
|||||
|
circle. |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
Yellow |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Green |
|
Red |
|
|
|
Darker |
|
|
|
Lighter |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
Cyan |
|
Magenta |
|
|
|
|
|
|
|
|
|
|
|||
|
Blue |
|
Yellow |
|
|
Cyan |
||||||||||
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Make yellow |
Make yellow |
Magenta |
Black |
more green |
more red |
|
|
Adjusting Images ( |
p.76) |
|
|
Sharp/Soft ( p.76) |
|
Background Density ( |
p.76) |
Adjusts the outline of the image. |
Adjusts the background density of the image. |
Soft |
Sharp |
Light |
Dark |
Contrast ( |
p.76) |
Other Adjustments ( |
p.77) |
||
Adjusts the shades of the image. |
Adjust U.C.R ( |
p.77) |
|
||
|
|
Text/Photo Sensitivity ( |
p.77) |
||
|
|
A.C.S. Sensitivity ( |
p.106) |
||
|
|
Color Sensitivity |
( |
p.106) |
|
Low |
High |
|
|
|
GCMO023e |
|
|
|
|
|
iii
What You Can Do With This Machine
Types of Duplex Copies
The functions available may vary according to the options installed. For details p.4 "Functions that Require Options"
1-sided 2 Pages |
2-sided 1 Page |
p.46 |
2-sided 1 Page |
2-sided 1 Page |
p.46 |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
2-sided 2 Pages |
2-sided 1 Page |
p.49 |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|||
1-sided 4 Pages |
2-sided 1 Page |
p.49 |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-sided 8 Pages 2-sided 1 Page p.49 |
2-sided 4 Pages 2-sided 1 Page p.50 |
|
|
|
|
|
|
|
|
Front |
Back |
Front |
Back |
|
1-sided 16 Pages 2-sided 1 Page p.49 2-sided 8 Pages 2-sided 1 Page p.50
Front |
Front |
Back |
Back |
Bound Originals 2-sided Pages p.51 |
Front/Back Bound Originals 2-sided Pages p.51 |
|
GCMO024e |
iv
Combining Multiple Pages onto a Single Page ( p.48)
The functions available may vary according to the options installed. For details, see p.4 "Functions that Require Options"
1-sided 2 Pages 1-sided 1 Page 2-sided 1 Page 1-sided 1 Page
1-sided 4 Pages 1-sided 1 Page |
2-sided 2 Pages 1-sided 1 Page |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-sided 8 Pages 1-sided 1 Page |
2-sided 4 Pages 1-sided 1 Page |
Copying Originals Such as Books
Bound Originals 1-sided Pages p.51 |
Front/Back Bound Originals |
||||||
2-sided Pages p.51 |
|||||||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2-sided Page 1-sided 2 Pages p.46
Copying onto Envelopes (p.22)
Bound Originals 2-sided Pagesp.51
GCMO025e
v
TABLE OF CONTENTS |
|
What You Can Do With This Machine <Color Functions/Color Adjustments> |
...i |
What You Can Do With This Machine ................................................................. |
iv |
Notice ...................................................................................................................... |
1 |
How to Read this Manual ...................................................................................... |
2 |
Machine Types ....................................................................................................... |
3 |
Functions that Require Options ........................................................................... |
4 |
Control Panel.......................................................................................................... |
5 |
Common Key Operations ........................................................................................... |
6 |
1. Placing Originals |
|
Originals ................................................................................................................. |
7 |
Sizes and Weights of Recommended Originals......................................................... |
7 |
Sizes Detectable by the Auto Paper Select ............................................................... |
8 |
Missing Image Area ................................................................................................. |
10 |
Direction-fixed paper or 2-sided paper..................................................................... |
11 |
Placing Originals.................................................................................................. |
12 |
Original Orientation .................................................................................................. |
12 |
Placing Originals on the Exposure Glass................................................................. |
13 |
Placing Originals in the Document Feeder............................................................... |
13 |
2. Copying |
|
Basic Procedure................................................................................................... |
17 |
Auto Start ................................................................................................................. |
18 |
Interrupt Copy .......................................................................................................... |
18 |
Original Beeper ........................................................................................................ |
18 |
Job Preset ................................................................................................................ |
19 |
Copying from the Bypass Tray........................................................................... |
20 |
When Copying on the Back Side of Paper............................................................... |
23 |
Making A3, 11" × 17" Full Bleed Copies ............................................................ |
24 |
Color Functions ................................................................................................... |
25 |
Selecting a Color Mode............................................................................................ |
25 |
Convert Colors ......................................................................................................... |
26 |
Erase Color .............................................................................................................. |
27 |
Color Background .................................................................................................... |
27 |
Copy Functions.................................................................................................... |
29 |
Adjusting Copy Image Density ................................................................................. |
29 |
Selecting Original Type Setting................................................................................ |
30 |
Selecting Copy Paper .............................................................................................. |
31 |
Preset Reduce/Enlarge ............................................................................................ |
34 |
Zoom ........................................................................................................................ |
35 |
Auto Reduce/Enlarge ............................................................................................... |
36 |
Size Magnification .................................................................................................... |
37 |
Directional Magnification (%) ................................................................................... |
37 |
Directional Size Magnification (inch) ........................................................................ |
38 |
Sort........................................................................................................................... |
39 |
vi
Stack ........................................................................................................................ |
42 |
Staple ....................................................................................................................... |
43 |
Duplex ...................................................................................................................... |
46 |
1 Sided Combine...................................................................................................... |
48 |
2 Sided Combine...................................................................................................... |
49 |
Series Copies........................................................................................................... |
51 |
Image Repeat........................................................................................................... |
52 |
Double Copies.......................................................................................................... |
54 |
Centering.................................................................................................................. |
54 |
Positive/Negative ..................................................................................................... |
55 |
Mirror........................................................................................................................ |
56 |
Margin Adjustment ................................................................................................... |
56 |
Erase........................................................................................................................ |
57 |
Preset Stamp ........................................................................................................... |
60 |
User Stamp .............................................................................................................. |
61 |
Date Stamp .............................................................................................................. |
64 |
Page Numbering ...................................................................................................... |
66 |
Covers...................................................................................................................... |
69 |
Slip Sheets ............................................................................................................... |
70 |
Storing Originals in the Document Server ........................................................ |
72 |
3. Color Adjustment/Program |
|
Color Adjustment................................................................................................. |
73 |
Color Balance....................................................................................................... |
74 |
Color Balance Program............................................................................................ |
74 |
Image Adjustment................................................................................................ |
76 |
Auto Color Calibration .............................................................................................. |
77 |
User Color............................................................................................................. |
79 |
Adjusting Colors Based on the Selected Color ........................................................ |
79 |
Mixing Colors Manually with the Number Keys ........................................................ |
81 |
Deleting User Colors ................................................................................................ |
81 |
Sampling the User Colors ........................................................................................ |
81 |
Programs .............................................................................................................. |
82 |
Storing a Program .................................................................................................... |
82 |
Deleting a Program .................................................................................................. |
83 |
Recalling a Program................................................................................................. |
83 |
4. Troubleshooting |
|
If Your Machine Does Not Operate as You Want .............................................. |
85 |
When a Message is Displayed................................................................................. |
85 |
If You Cannot Make Clear Copies....................................................................... |
87 |
If You Cannot Make Copies as You Want .......................................................... |
88 |
When Memory is Full ............................................................................................... |
90 |
vii
5. User Tools (Copier/Document Server Features)
User Tools Menu (Copier/Document Server Features) .................................... |
91 |
|
Accessing the User Tools (Copier/Document Server Features) ..................... |
97 |
|
Exiting From the User Tools..................................................................................... |
97 |
|
General Features 1/ |
5 ................................................................................................ |
98 |
|
|
|
General Features 2/ |
5 ................................................................................................ |
99 |
|
|
|
General Features 3/ |
5 ................................................................................................ |
99 |
|
|
|
General Features 4/ |
5 ................................................................................................ |
99 |
|
|
|
General Features 5/ |
5 .............................................................................................. |
100 |
|
|
|
Reproduction Ratio |
1/ ........................................................................................... |
100 |
|
2 |
|
Reproduction Ratio |
2/ ........................................................................................... |
100 |
|
2 |
|
Edit 1/2 .................................................................................................................... |
|
101 |
Edit 2/2 .................................................................................................................... |
|
101 |
Stamp .................................................................................................................... |
|
103 |
Input/Output .......................................................................................................... |
|
105 |
Adjust Color Image................................................................................................. |
|
106 |
6. Specifications
Combination Chart............................................................................................. |
107 |
Supplementary Informations ............................................................................ |
108 |
INDEX....................................................................................................... |
116 |
viii
Notice
Do not make copies of any item for which copying is prohibited by law.
Copying the following items is normally prohibited by local law:
Bank bills, revenue stamps, bonds, stock certificates, bank drafts, checks, passports, driver's licenses.
The color copy samples in this book may differ slightly from the actual copies due to printing effects.
The color on each Color key may differ slightly from that of the actual copy.
This machine is equipped with a function that prevents making counterfeit bank bills. Due to this function the original images similar to bank bills may not be copied properly.
1
How to Read this Manual
Symbols
In this manual, the following symbols are used:
R WARNING:
This symbol indicates a potentially hazardous situation that might result in death or serious injury when you misuse the machine without following the instructions under this symbol. Be sure to read the instructions, all of which are included in the Safety Information section in the General Settings Guide.
R CAUTION:
This symbol indicates a potentially hazardous situation that might result in minor or moderate injury or property damage that does not involve personal injury when you misuse the machine without following the instructions under this symbol. Be sure to read the instructions, all of which are included in the Safety Information section in the General Settings Guide.
• WARNINGS and CAUTIONS are notes for your safety.
Important
If this instruction is not followed, paper might be misfeed, originals might be damaged, or data might be lost. Be sure to read this.
Preparation
This symbol indicates the prior knowledge or preparations required before operating.
Note
This symbol indicates precautions for operation or actions to take after misoperation.
Limitation
This symbol indicates numerical limits, functions that cannot be used together, or conditions in which a particular function cannot be used.
Reference
This symbol indicates a reference.
[ ]
Keys that appear on the machine's display panel.
{}
Keys built into the machine's control panel.
Notice
B4 JISKL, B5 JISKL, B6 JISL are referred to as B4KL, B5KL, B6L in this manual.
2
Machine Types
This machine comes in two models which vary by copy speed. To make sure which model you have, see the inside front cover of this manual.
|
Type 1 |
Type 2 |
|
|
|
Copy speed/Single Color |
24 copies/minute |
32 copies/minute |
|
(A4K, 81/2" × 11"K) |
(A4K, 81/2" × 11"K) |
Copy speed/Full Color |
8 copies/minute |
10 copies/minute |
|
(A4K, 81/2" × 11"K) |
(A4K, 81/2" × 11"K) |
|
|
|
3
Functions that Require Options
The available functions depend on your machine configuration and which options you have. See the table below.
Required options
Functions |
|
|
|
|
|
1-Sided 4, 8, 16 pages → 2-Sided (Combine) |
2-Sided 2, 4, 8 pages→ 2-Sided (Combine) |
|
|
|
|
|
|
|
|
Document Feeder Mixed Size Mode |
Copying from the Bypass Tray |
1-Sided → 2-Sided (Duplex) |
2-Sided → 2-Sided (Duplex) |
2-Sided → 1-Sided (Duplex) |
Book→2-Sided (Series) |
Front/Back→2-Sided (Series) |
Shift Sort |
Shift Stack |
Staple |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Document Feeder (ADF) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
500-Sheet Finisher |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1000-Sheet Finisher |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Options |
Shift Sort Tray |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Bypass Tray |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Duplex Unit |
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4
Control Panel
Note
This illustration shows the Control Panel of the machine with options fully installed.
1. Screen Contrast knob |
5. Color Circle |
Adjusts the brightness of the display panel.
2. {User Tools/Counter} key
•User Tools
Press to change the default settings and conditions to meet your requirements.
•Counter
Press to check or print the Counter value.
•Inquiry
Shows where to order expendable supplies and where to call when a malfunction occurs. You can also print these details.
3. Indicators
These indicators show the status of the machine or indicate errors.
4. {Adjust/Program Color} key
Use this key to adjust and register colors.p.73 “Color Adjustment/Program”
Note
When image quality is adjusted, the lamp in the {Adjust/Program Color} key is lit.
Refer to this when adjusting colors. p.73 “Color Adjustment”
6. Display panel
Shows operation status, error messages, and function menus.
7. {Check Modes} key
Press to check the entered copy job settings.
8. {Program} key
Press to select the program mode. p.82 “Programs”
9. {Clear Modes} key
Press to clear the previously entered copy job settings.
10. {Energy Saver} key
Press to switch to and from the Energy Saver mode. “General Settings Guide”
11. {Interrupt} key
Press to interrupt a long copy job to make copies. p.18 “Interrupt Copy”
12. Main power indicator
This indicator goes on when the main power switch is turned on and goes off when the switch is turned off.
5
Important
Do not turn the main power off while the main power indicator is flashing. The hard disk may malfunction.
13. Operation switch
Press this switch to turn the power on (the On indicator goes on). To turn the power off, press this switch again (the On indicator goes off).
14. {Sample Copy} key
Use this key to make a single sample copy before starting a long copy run. By checking the sample copy and making any necessary changes to the image quality settings before you make multiple copies, you can save time and paper. p.41 “Sample Copy”
15. {Start} key
Press to start copying. Press to start scanning and printing in Document Server mode.
16. {Clear/Stop} key
•Clear
Press to delete a number entered.
•Stop
Press to stop a copy job in progress.
17. {#} key
Press to enter a value.
18. Number keys
Use to enter the desired number of copies and data for selected modes.
19. Color Selection Key
Use these key to switch color functions:p.25 “Color Functions”
{Auto Color Select} {Full Color}
{B & W} {Single Color} {Two-color}
20. Function keys/Function Status indicator
These keys switch display to the operating screen of each functions. Follow the instructions displayed by switching between screen with the function keys. These show the status of the above functions:
•Yellow: the function is selected
•Green: the function is active
•Red: the function has been interrupted
Common Key Operations
The following keys are common to all screens.
[Exit] |
Returns to the previous screen. |
|
|
[Cancel] |
Deletes a selected function or entered values, and then returns |
|
to the previous screen. |
|
|
[OK] |
Acknowledges a selected function or entered values, and then |
|
returns to the previous screen. |
|
|
[▲Previous] [▼Next] |
Moves to the previous or the next page when all the functions |
|
cannot be displayed on one page. |
|
|
6
1. Placing Originals
Originals
Sizes and Weights of Recommended Originals
Metric version
Where Original Is |
|
|
|
Placed |
Original Size |
Original Weight |
|
|
|
|
|
Exposure glass |
Up to A3 |
-- |
|
|
|
|
|
Document feeder |
1-sided originals: |
40 – 128g/m2 |
|
|
|
A3L– A5KL |
|
|
|
|
|
|
|
2-sided originals: |
52 – 105g/m2 |
|
|
A3L– A5KL |
|
|
|
|
|
Inch version
Where Original Is |
|
|
|
Placed |
Original Size |
Original Weight |
|
|
|
|
|
Exposure glass |
Up to 11" × 17" |
-- |
|
|
|
|
|
Document feeder |
1-sided originals: |
11 – 34 lb. |
|
|
|
11" × 17"L– 51/2" × 81/2"KL |
|
|
|
2-sided originals: |
14 – 28 lb. |
|
|
11" × 17"L– 51/2" × 81/2"KL |
|
|
|
|
|
Note
The number of originals that can be placed in the document feeder is about 50.
The weight range for originals in the Mixed Size mode is 52-81g/m2, 13.8-21.5 lb.
Non-recommended originals for the document feeder
Placing the following types of originals in the document feeder can cause paper misfeeds or result in damage to the originals. Place these originals on the exposure glass instead.
•Originals other than those specified in p.7 “Sizes and Weights of Recommended Originals”
•Stapled or clipped originals
•Perforated or torn originals
•Curled, folded, or creased originals
7
Placing Originals
•Pasted originals
•Originals with any kind of coating, such as thermal fax paper, art paper, aluminum foil, carbon paper, or conductive paper
•Originals with perforated lines
1• Originals with indexes, tags, or other projecting parts
•Sticky originals such as translucent paper
•Thin originals that have low stiffness
•Thick originals such as postcards
•Bound originals such as books
•Transparent originals such as OHP transparencies or translucent paper
Note
The original might become dirty if it is written with a pencil or a similar tool.
Sizes Detectable by the Auto Paper Select
Metric version
Size |
A3L |
B4L |
A4K |
B5K |
A5K |
11" × |
81/2"× |
81/2"× |
51/2"× |
81/2"× |
||
Location of |
|
|
|
L |
L |
|
L |
17"L |
14"L |
11"K |
81/2" |
13"L |
|
|
|
|
|
|
|
|
|
L |
KL |
|
|
the original |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Exposure glass |
|
|
|
|
|
|
× |
× |
× |
× |
× |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Document |
|
|
|
|
|
|
|
× |
× |
× |
× |
|
feeder |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
: Detectable size |
× : Undetectable size |
|
|
|
|
|
|
Inch version
Size |
A3L |
B4L |
A4K |
B5K |
A5K |
11" × |
81/2"× |
81/2"× |
51/2"× |
10" × |
Location of |
|
|
L |
L |
L |
17"L |
14"L |
11"K |
81/2" |
14"L |
|
|
|
|
|
|
|
L |
KL |
|
|
the original |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Exposure glass |
× |
× |
× |
× |
× |
|
|
|
× |
× |
|
|
|
|
|
|
|
|
|
|
|
Document |
× |
× |
× |
× |
× |
|
|
|
|
|
feeder |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
: Detectable size × : Undetectable size
8
Originals
Exposure glass
Reference |
|
|
|
A3 |
position |
Horizontal size |
|
|
|
|
|
1 |
||
Vertical |
Maximum Scanning area |
|||
|
||||
size |
A3 |
(297x420mm) |
|
|
11"x17" |
(279x432mm) |
|
||
A4 A3 |
|
|
|
|
|
|
|
|
CP01AEE |
Document feeder
Sizes difficult to detect
It is difficult for the machine to detect the sizes of the following originals, so select the paper size manually.
•Originals with indexes, tags, or other projecting parts
•Transparent originals such as OHP transparencies or translucent paper
•Dark originals with a lot of text and drawings
•Originals which partially contain a solid image
•Originals which have solid images at their edges
9
Placing Originals
Missing Image Area
Even if you correctly place originals in the document feeder or on the exposure glass, margins of a few millimeters on all four sides of the original might not be
1 copied.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1. 0 - 4 mm, 0”- 0.16” |
3. |
||||||||||||||
2. 0 - 4 mm, 0”- 0.16” |
4. |
0 - 4 mm, 0”- 0.16”
2 - 6 mm, 0.08”- 0.24”
10
Originals
Direction-fixed paper or 2-sided paper
Direction-fixed (top to bottom) or 2-sided paper (e.g., letterhead paper, punched paper, or copied paper) might not be printed correctly depending on how the
originals and paper are placed. Set "Letterhead setting" in system settings, and 1 then place the original and paper as shown below. p.106 “Letterhead Setting”
11
Placing Originals
Placing Originals
Note
1 Place originals after correction fluid and ink have completely dried. Not taking this precaution could dirty the exposure glass with marks that will be copied.
Reference
For document sizes you can set. p.7 “Originals”.
Original Orientation
You can set the original orientation in the following ways.
This function is useful for copying torn originals or large originals.
Standard Orientation
Select this function when the original direction is the same as the copy paper direction.
90° Turn
This function rotates the copy image by 90°.
Use this function when you want
to copy onto A3K, B4K, 81/2" × 14", 81/2" × 13" or 11" × 17"K paper.
A Press [Special Original].
B Select the original orientation.
Standard Orientation
A Make sure that is selected.
90° Turn
When you want to copy A3K, B4K, 81/2" × 14", 81/2" × 13" or 11" × 17"K size originals, place your
original in the landscape orientation, and then press . The machine rotates the original image, and you can make copies as you wish. This is useful for copying large originals with the Staple, Duplex, Combine or Stamp functions.
Note
It is recommended to use this function together with the Auto Paper Select or the Auto Reduce/Enlarge function.
A Press .
12 |
C Press [OK]. |
|
Placing Originals
Placing Originals on the Exposure Glass
A Lift the exposure glass cover or the document feeder.
Important
Do not open the exposure glass cover or the document feeder forcefully. Otherwise, the cover of the document feeder might open or be damaged.
Note
Be sure to open the exposure
glass cover or the document feeder by more than 30°. Otherwise, the size of the original might not be detected correctly.
B Place the original face down on the exposure glass. The original should be aligned to the rear left corner.
1.Reference mark
2.Left scale
Note
Start with the first page to be copied.
C Lower the exposure glass cover or document feeder.
Placing Originals in the
Document Feeder
Settings should be made in the fol- |
1 |
lowing situations: |
|
When placing originals one by one:
p.14 “SADF mode”
When placing originals consisting of more than 50 pages:
p.14 “Batch mode”
When copying originals of various sizes:
p.15 “Mixed Size mode”
When placing custom size originals:
p.16 “Placing Custom Size Originals”
Note
Do not stack originals beyond the limit mark on the side fence of the document feeder.
The last page should be on the bottom.
Do not place any foreign objects on the sensors or cover them with your hands. This could cause the size not to be detected properly. Also, do not place anything on the exposure glass cover as this could cause a malfunction.
1. Sensors
13
Placing Originals
A Set the document guide to the original size.
B Align the edges of the original
1 |
and place it on the document |
|
|
|
feeder (ADF) with the side to be |
|
|
|
copied facing up. |
ZGHS060E |
1.Limit mark
2.Document guide
Note
Straighten curls in the original before placing it on the document feeder (ADF).
To prevent multiple sheets from being fed at once, fan the original before placing it on the document feeder (ADF).
Set the original squarely.
Batch mode
In the batch mode, the machine copies an original including more than 50 pages as one document, even if it is placed on the document feeder in parts.
A Press [Special Original].
B Select [Batch], and then press [OK].
Note
When [Batch] is not displayed, change the settings in p.105 “Switch to Batch (SADF)”
C Place the first part of the original, then press the {Start} key.
D After the first part of the original has been fed, place the next part and then press the {Start} key.
Note
Repeat step D when setting multiple sets of originals.
When the Sort, Combine or 1 Sided → 2 Sided mode has been set, press the {#} key after all originals have been scanned.
SADF mode
In SADF mode, even when an original is placed page by page in the document feeder (ADF), each page is automatically fed when placed.
Note
To use the SADF function, you should make a setting in "User Tools (Copy/Document Server Features)", so that [SADF] will be
displayed when you press [Special Original]. p.105 “Switch to Batch (SADF)”
Reference
Related Default Settings p.105
“SADF Auto Reset”
14
Placing Originals
A Press [Special Original].
B Press [SADF].
C Press [OK].
D Place one page of an original, and then press the {Start} key.
The Auto Feed indicator is shown on the display.
E When the machine instructs you to place another original, place the next page.
The second and subsequent pages will be fed automatically without pressing the {Start} key.
Mixed Size mode
When you place different size originals which have the same width in
the document feeder at the same time, 1 the machine automatically checks the
size of the originals and makes copies.
Note
When placing originals of different sizes in the document feeder and making copies without using the Mixed Size mode, parts of the original image might not be copied or paper might become jammed.
Copy speed and scanning speed may be reduced.
The sizes of the originals that can be placed together with this function are as follows:
Metric |
A3L• A4K, A4L • A5K |
version |
|
|
|
Inch |
11" × 17"L• 81/2" × 11"K, |
version |
81/2" × 14"L • 81/2" × 11"K, |
|
81/2" × 11"L• 51/2" × 81/2K, |
|
81/2" × 14"L • 51/2" × 81/2"K |
A Press [Special Original].
15
Placing Originals
B Press [Mixed Size], and then press
[OK].
1
C Align the rear and left edges of the originals as shown in the illustration.
1 |
A4 |
A3 |
|
2
CP19AE
1.Place into the document feeder
2.Vertical size
D Adjust the guide to the widest original size.
E Place the aligned originals face up into the document feeder.
F Press the {Start} key.
Placing Custom Size Originals
When placing custom size originals in the document feeder, specify the size of the originals.
Note
Paper that has a vertical length of 105-297 mm (4.2" – 11.6") and a horizontal length of 128-432 mm (5.1" – 17.0") can be placed with this function.
A Press [Special Original].
B Press [Custm Size Origi.].
C Enter the horizontal size of the original with the Number keys, and then press [#].
Note
If you make a mistake, press
[Clear] or the {Clear/Stop} key, and then enter the value again.
D Enter the vertical size of the original with the Number keys, and then press [#].
E Press [OK].
F Place your originals, and then press the {Start} key.
16
2. Copying
Basic Procedure
A When the machine is set for user codes, enter a user code (up to 8 digits) with the number keys, and then press the {#} key.
The machine is ready to copy.
Reference
For Users Code, see General
Settings Guide, “Key Operator
Tools”.
B Make sure that "Ready" is displayed on the screen.
If any other function is displayed, press the {Copy} key.
Initial copy display
C Make sure that there are no previous settings remaining.
Note
When there are previous settings remaining, press the {Reset} key and enter again.
D Place your originals.
Reference
p.12 “Placing Originals”
E Set your desired settings.
Reference
Please refer to each functions.
F Enter the number of copies required with the number keys.
Note
The maximum copy quantity that can be set is 100.
G Press the {Start} key.
The machine starts copying.
Note
When you place originals on the exposure glass, press the {#} key after all originals are scanned.
Copies are delivered face down.
-How to Operate
To stop the machine during a multi-
copy run.
Press the {Clear/Stop} key.
To return the machine to the initial
condition after copying.
Press the {Clear Modes} key.
When clearing entered values.
Press the {Clear/Stop} key or [Clear] on the display.
To confirm the settings.
Press the {Check Modes} key.
17
Copying
Auto Start
Copy starts automatically when the machine is ready for copy.
A Set the copy contents while “Please wait.” is displayed.
2 |
B Set the original. |
|
|
|
C Press the {Start} key. |
The {Start} key lamp will flash.
Note
The interrupt copy job settings will be restored and the machine will continue copying from where it left off.
When the machine keeps copying
A Place the originals you wish to copy.
B Press the {Start} key.
Interrupt Copy
Use this function if you wish to interrupt a long copy job to make urgently needed copies.
Limitation
You cannot use the Interrupt Copy function when scanning fax originals.
A Press the {Interrupt} key.
The Interrupt indicator goes on.
When the originals stop scanning
A Remove the originals that were being copied and place the originals you wish to copy.
B Press the {Start} key.
The machine starts making your copies.
C When your copy job is finished, remove your originals and copies.
D Press the {Interrupt} key again.
The Interrupt indicator goes off.
E When the display prompts you, set the remaining originals again before interrupting.
F Press the {Start} key.
The machine stops the previous original job and starts copying your original.
C When copying is complete, remove your originals and copies.
D Press the {Interrupt} key again.
The Interrupt indicator goes off.
The interrupt copy job settings will be restored and the machine will continue copying from where it left off.
Original Beeper
The beeper sounds and an error message is displayed when you leave your originals on the exposure glass after copying.
Note
p.99 “Tone: Original remains”
18

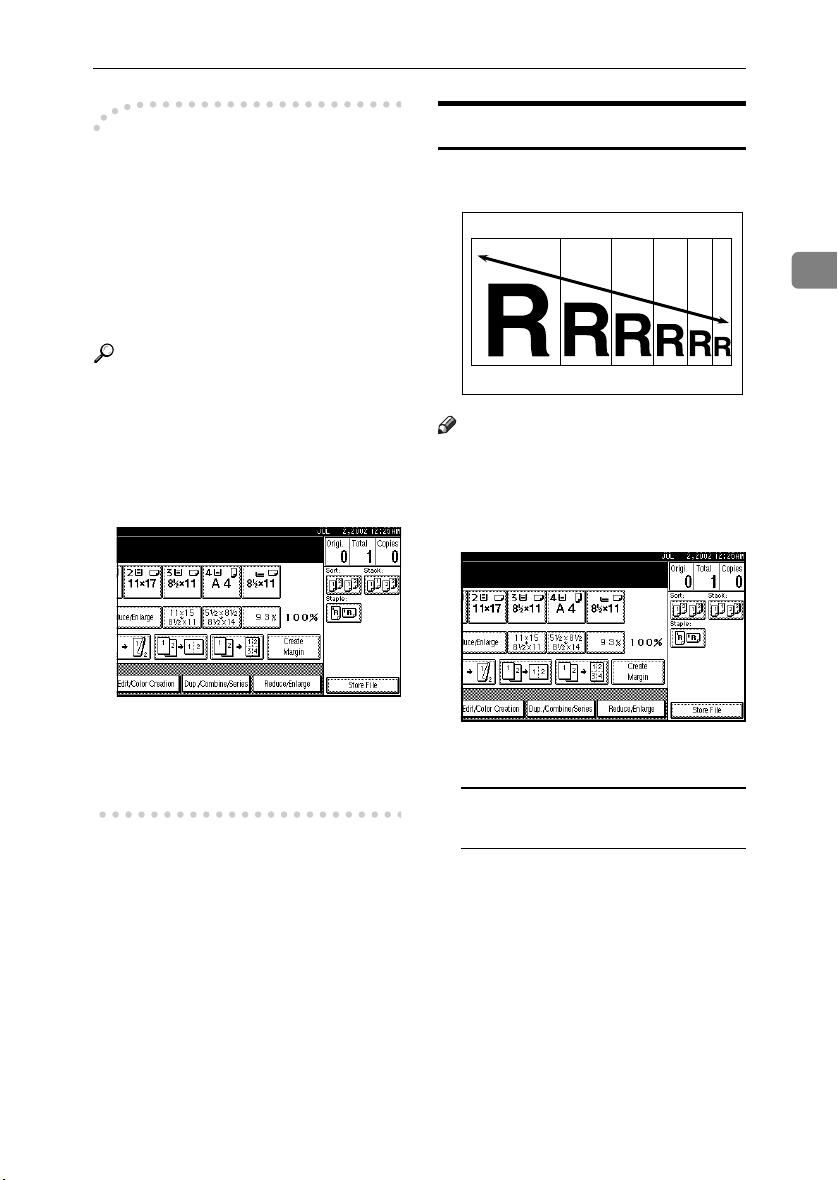

Job Preset
You can set up the next copy content during copy.
If a long copy job is in progress and you do not wish to wait for it to finish, you can use this function to set up the next copy job in advance. When the current copy job is finished, your copy job will be started automatically.
A Press [Next Job] when "Copying" is shown.
B Set up the next copy job.
C Place the originals in the document feeder, and then press the
{Start} key.
All originals are scanned.
D Press [To "Printing"].
Returns to the initial copy display.
After the current copy job, the next job starts automatically.
Note
You can switch the display to the current copy job by pressing [To "Printing"]. You can switch the display to the preset job by pressing [To "Reserving"].
Basic Procedure
2
19
2
20
Copying
Copying from the Bypass Tray
The optional bypass tray is required to use this function.
Use the bypass tray to copy onto special paper (OHP transparencies, label paper (adhesive labels), thick paper (for example: postcards and envelopes), thin paper), and copy paper that cannot be loaded in the paper trays.
Preparation
When the Duplex unit is attached,
the default setting is [1 Sided→2
Sided].
When copying from the bypass tray, select [1 Sided] for copying in
[Dup./Combine/Series] (for example [1 Sided ]→[1 Sided] or [2 Sided]→[1 Sided]). You can change the initial settings. p.99 “Duplex Mode Priority”
Important
It is not possible to use inkjet pa-
per. For details about paper sizes and paper types, see General Settings Guide, “Paper Type”.
When paper larger than 457.3 mm in size is used, the paper may become wrinkled, may not be fed into the machine, or may cause paper jams.
Note
If you do not use the standard size copy paper or if you use special pa-
per, you should input vertical and horizontal dimensions. p.16 “Placing Custom Size Originals” The sizes that you can input are as follows.
Metric |
• Vertical: 90.0 – 305.0mm |
|
version |
• |
Horizontal: 148.0 – |
|
|
457.2mm |
|
|
|
Inch |
• Vertical: 3.55" – 12.00" |
|
version |
• |
Horizontal: 5.83" – 18.00” |
|
|
|
The machine can automatically detect the following sizes as standard size copy paper.
Metric |
A3L, A4L, 8" × 13"L, A5L |
version |
|
|
|
Inch |
11" × 17"L, 81/2" × 11"L, |
version |
51/2" × 81/2"L |
When copying on OHP transpar-
encies or paper heavier than 128
g/m2 (about 34 lb.), you need to specify the paper type. General Settings Guide,“Paper Type”
The maximum number of sheets you can load at the same time depends on the paper type. The maximum number of sheets should not exceed the upper limit.
A Open the bypass tray.
