Laney
CTXLoudspeakers
ServiceInformation
PartNumber-SM3036
Page 2
Laney
Contents
1. CTX10 data
2. CTX12 data
3. CTX15 data
4. Dwg 9129
CTX10 crossover circuit
5. Dwg 9328
CTX12/CTX15 crossover circuit
6. CTX10 Parts List
7. CTX12 Parts List
8. CTX15 Parts List
9. Contacts
Concept
Page 3
Laney

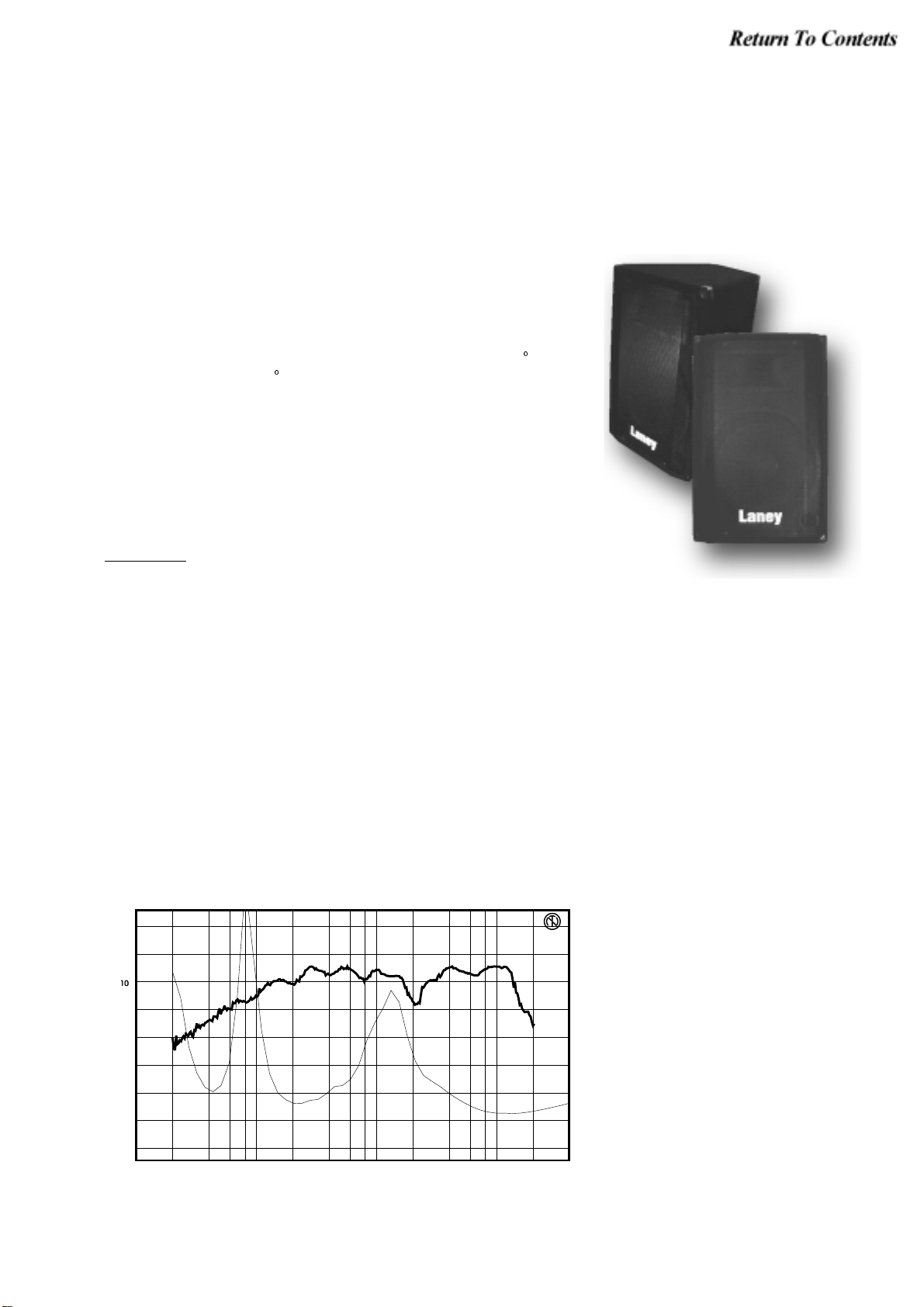

Concept CTX10 Enclosure
Technical Specification
Frequency Response
Power Rating
Drivers
Sensitivity
Connectors
Weight
Dimensions
Impedance
Accessories
Spares
Description
CTX Loudspeakers are compact high power full range enclosures designed for a
variety of applications such as sound reinforcement for bands, places of worship,
health clubs, discotheques and DJ’s.
All CTX enclosures feature custom low frequency drivers and a compession driver
for high frequencies housed in a high power power reflex enclosure .They are the
results from extensive measurements and listening tests using a variety of live
and prerecorded material. All CTX cabinets feature crossovers optimized for use
in each cabinet.
The CTX ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle in the rear is provided for easy transport.
Loudspeaker connection is provided by two ¼ inch Jacks and a 4 pole Speakon
type connector. This allows an input and a link out facility to additional cabinets.
Where additional bass extension is required the CS low frequency enclosures can
be added. This can be done simply by driving into the CS cabinet and taking the
link out from the CS cabinet to the CTX cabinets input.
A 35mm top hat is provided in the base of the loudspeaker for easy stand
mounting or pole mounting above a CS loudspeaker.
90Hz - 20KHz
200W Continuous
400W Program
Reflex Loaded 10“ bass driver &
high frequency horn with conical
dispersion
97dB/W@1M
Two ¼ inch jack sockets+1NL4
speakon
13kg
470 x 310 x 330mm
8 Ohms
Tri-pod stand , Pole stand for use
with CS enclosures
41011 bass driver , 10503 horn
Measured @ 1W @ 1m in freefield conditionsMeasured @ 1W @ 1m in freefield conditions
120
110
100
90
80
70
Sound Pressure Level (dB)Sound Pressure Level (dB)
60
50
40
10
Frequency Response for Concept CTX10 EnclosureFrequency Response for Concept CTX10 Enclosure
Impedance Curve for Concept CTX10 EnclosureImpedance Curve for Concept CTX10 Enclosure
100
50
45
40
35
30
25
20
15
Impedance (8 ohms)Impedance (8 ohms)
10
5
Concept
1K
Frequency (Hz)Frequency (Hz)
10K
0
40K
Data
Page 4
Laney
Concept CTX12 Enclosure
Technical Specification
Frequency Response
Power Rating
Drivers
Sensitivity
Connectors
Weight
Dimensions
Impedance
Accessories
Spares
Description
CTX Loudspeakers are compact high power full range enclosures designed for a
variety of applications such as sound reinforcement for bands, places of worship,
health clubs, discotheques and DJ’s.
All CTX enclosures feature custom low frequency drivers and a compession driver
for high frequencies housed in a high power power reflex enclosure .They are the
results from extensive measurements and listening tests using a variety of live
and prerecorded material. All CTX cabinets feature crossovers optimized for use
in each cabinet.
The CTX ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle in each side is provided for easy transport.
Loudspeaker connection is provided by two ¼ inch Jacks and a 4 pole Speakon
type connector. This allows an input and a link out facility to additional cabinets.
Where additional bass extension is required the CS low frequency enclosures can
be added. This can be done simply by driving into the CS cabinet and taking the
link out from the CS cabinet to the CTX cabinets input.
A 35mm top hat is provided in the base of the loudspeaker for easy stand
mounting or pole mounting above a CS loudspeaker.
Measured @ 1W @ 1m in freefield conditionsMeasured @ 1W @ 1m in freefield conditions
120
110
100
90
80
65Hz - 17KHz
350W Continuous
700W Program
Reflex Loaded 3“ Voice coil 12“ bass
driver & 1” exit compression driver on 90
o
x 40 horn
99dB/W@1M
Two ¼ inch jack sockets + 1 NL4 speakon
23Kg
597 x 384 x 397mm
8 Ohms
Tri-pod stand , Pole for use with CS
enclosures
41228 bass driver , 10501 Compression
driver
o
40
35
30
25
20
Sound Pressure Level (dB)Sound Pressure Level (dB)
70
60
50
40
10
100
Frequency Response for Concept CTX12 EnclosureFrequency Response for Concept CTX12 Enclosure
Concept
Impedance for Concept CTX12 EnclosureImpedance for Concept CTX12 Enclosure
1K
Frequency (Hz)Frequency (Hz)
10K
15
Impedance (8 ohms)Impedance (8 ohms)
10
5
0
40K
Data
Page 5
Laney
Concept CTX15 Enclosure
Technical Specification
Frequency Response
Power Rating
Drivers
Sensitivity
Connectors
Weight
Dimensions
Impedance
Accessories
Spares
Description
CTX Loudspeakers are compact high power full range enclosures designed for a
variety of applications such as sound reinforcement for bands, places of worship,
health clubs, discotheques and DJ’s.
All CTX enclosures feature custom low frequency drivers and a compession driver
for high frequencies housed in a high power power reflex enclosure .They are the
results from extensive measurements and listening tests using a variety of live
and prerecorded material. All CTX cabinets feature crossovers optimized for use
in each cabinet.
The CTX ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle in each side is provided for easy transport.
Loudspeaker connection is provided by two ¼ inch Jacks and a 4 pole Speakon
type connector. This allows an input and a link out facility to additional cabinets.
Where additional bass extension is required the CS low frequency enclosures can
be added. This can be done simply by driving into the CS cabinet and taking the
link out from the CS cabinet to the CTX cabinets input.
A 35mm top hat is provided in the base of the loudspeaker for easy stand
mounting or pole mounting above a CS loudspeaker.
120
110
100
90
80
60Hz - 17KHz
350W Continuous
700W Program
Reflex Loaded 3“ Voice coil 15“ bass
driver & 1” exit compression driver on 90
o
x 40 horn
102dB/W@1M
Two ¼ inch jack sockets + 1 NL4 speakon
23Kg
597 x 384 x 397mm
8 Ohms
Tri-pod stand , Pole for use with CS
enclosures
41512 bass driver , 10501 Compression
driver
o
40
35
30
25
20
Sound Pressure Level (dB)Sound Pressure Level (dB)
70
60
50
40
10
100
Frequency Response for Concept CTX15 EnclosureFrequency Response for Concept CTX15 Enclosure
Impedancxe curve for Concept CTX15 EnclosureImpedancxe curve for Concept CTX15 Enclosure
Concept
1K
Frequency (Hz)Frequency (Hz)
10K
15
Impedance (8 ohms)Impedance (8 ohms)
10
5
0
40K
Data
Page 6
Page 7
Page 8
Assembly for CTX10 (CTX10US)
Stock Code Description Quantity
10004 MONO JACK SOCKET 2
10055 PLASTIC CABINET FOOT 4
10057 SMALL LANEY BADGE 1
10107 SMALL INSERT HANDLE 1
10200 M5 x 10mm TEENUT 4
10204 5mm X 25mm PAN POZI 4
10205 NO.8 X 5/8" ROUND 4
10206 6*5/8 FLANGE POZI AB 4
10207 NO.6 X 5/8" CSK POZI 8
10224 35mm FINISHED NAILS 35
10225 STAPLES 97/12 6
10231 No8x1/2" FLANGE POZI 24
10240 10 * 1 CSK POZI 4
10243 NO4*1/2 TYPE B CSK 2
10244 FLAT SPIRE CLIP 2
10256 8*1 FLANGE POZI 4
10301 18mm CHIPBOARD 0
10503 DB150C APT80 HORN 1
10600 32/18 STAPLES 12
10621 POLY. BAG 30(0) X 36 1
10646 35mm METAL TOP HAT 1
10656 LABEL (TWIN RECESS) 2
41011 INVADER 10100PA8 1
541004 HC25/50 4.8 FASTON 5
541053 1/4" LG RECEPTACLE 1
541055 90~ TWIN FASTON TAB 1
8G-CT10 GRILL CT10 1
10326 M4005 BLACK CARPET 0
10448 CARTON CT10 1
10039 PENN CORNER C1839K 4
10113 M1530 PORT 1
10044 C1823K CORNER 4
10939 CTX MANUAL 1
530066 SPEAKON SOCKET 1
588006 POP RIVET (BLACK) 2
8P-8856 CTX/CSX SPKR PLATE 1
6342 9129/CTX10 X'VER 1
Assembly List for CTX10 Crossover (006342)
Stock Code Description Quantity
1718 10R 11W CEMENT 5% 2
1726 2R2 11W CEMENT 5% 2
1920 ZERO OHM RESISTOR 1
2434 3.3UF 250V AXIAL 1
5038 1/4" SPADE TERMINAL 7
9129 V10 X'VER PCB 1
10012 10UF 150V AXIAL 1
541051 1/4" SML RECEPTACLE 7
8T-6120 3.3UH CHOKE (DB) 1
5688 SRS 8-10-01 4
Page 9
Assembly List for CTX12 (CTX12US)
Stock Code Description Quantity
10055 PLASTIC CABINET FOOT 4
10056 LARGE LANEY BADGE 1
10107 SMALL INSERT HANDLE 2
10200 M5 x 10mm TEENUT 4
10204 5mm X 25mm PAN POZI 4
10206 6*5/8 FLANGE POZI AB 6
10224 35mm FINISHED NAILS 30
10231 No8x1/2" FLANGE POZI 30
10240 10 * 1 CSK POZI 4
10241 NO8x1 1/4"FLANGE 12
10244 FLAT SPIRE CLIP 2
10245 N04*1/2 CSK POZI 2
10252 M6 SPRING WASHER 2
10254 6*20 HEX SET SCREW 2
10256 8*1 FLANGE POZI 14
10312 15mm PLYWOOD 0
10314 18mm MDF 0
10320 ACOUSTIC WADDING 0
10500 HORN FLARE (140*310) 1
10501 COMPRESSION DRIVER 1
10600 32/18 STAPLES 12
10646 35mm METAL TOP HAT 1
541004 HC25/50 4.8 FASTON 2
541053 1/4" LG RECEPTACLE 6
8G-CTX12 GRILL CTX12 1
8P-8856 CTX/CSX SPKR PLATE 1
10326 M4005 BLACK CARPET 0
10453 CARTON CTX12 1
41228 CTX12 LOUDSPEAKER 1
6341 9127/CTX12 X'VER 1
10039 PENN CORNER C1839K 4
10113 M1530 PORT 2
10044 C1823K CORNER 4
10939 CTX MANUAL 1
10207 NO.6 X 5/8" CSK POZI 8
Assembly List for CTX12 Crossover (006341)
Stock Code Description Quantity
1718 Y 10R 17W CEMENT 5% 4
1722 Y 22R 17W CEMENT 5% 2
2432 Y 15UF 150V REVERSIBLE 1
2435 Y 4.7UF 250V AXIAL 1
5020 Y CCX TIE WRAP 2
5038 Y 1/4" SPADE TERMINAL 7
5040 Y LF CHOKE 1
9127 Y CCX X'VER PCB 1
8T-6122 Y HF CHOKE (5041) 1
5688 Y SRS 8-10-01 4
Page 10
Assembly List for CTX15 (CTX15US)
Stock Code Description Quantity
10055 PLASTIC CABINET FOOT 4
10056 LARGE LANEY BADGE 1
10107 SMALL INSERT HANDLE 2
10200 M5 x 10mm TEENUT 4
10204 5mm X 25mm PAN POZI 4
10206 6*5/8 FLANGE POZI AB 6
10224 35mm FINISHED NAILS 30
10231 No8x1/2" FLANGE POZI 30
10240 10 * 1 CSK POZI 4
10241 NO8x1 1/4"FLANGE 12
10244 FLAT SPIRE CLIP 2
10245 N04*1/2 CSK POZI 2
10252 M6 SPRING WASHER 2
10254 6*20 HEX SET SCREW 2
10256 8*1 FLANGE POZI 4
10312 15mm PLYWOOD 0
10314 18mm MDF 0
10320 ACOUSTIC WADDING 0
10500 HORN FLARE (140*310) 1
10501 COMPRESSION DRIVER 1
10600 32/18 STAPLES 12
10646 35mm METAL TOP HAT 1
41512 INVADER CCX15 8R 1
541004 HC25/50 4.8 FASTON 2
541053 1/4" LG RECEPTACLE 6
8G-CTX15 GRILL CTX15 1
8P-8856 CTX/CSX SPKR PLATE 1
10326 M4005 BLACK CARPET 0
10452 CARTON CTX15 1
6340 9127/CTX15 X'VER 1
10039 PENN CORNER C1839K 4
10113 M1530 PORT 2
10044 C1823K CORNER 4
10939 CTX MANUAL 1
10207 NO.6 X 5/8" CSK POZI 8
Assembly List for CTX15 Crossover (006340)
Stock Code Description Quantity
1715 4R7 17W CEMENT 5% 4
1722 22R 17W CEMENT 5% 2
2432 15UF 150V REVERSIBLE 1
2435 4.7UF 250V AXIAL 1
5020 CCX TIE WRAP 2
5038 1/4" SPADE TERMINAL 7
5040 LF CHOKE 1
9127 CCX X'VER PCB 1
8T-6122 HF CHOKE (5041) 1
5688 SRS 8-10-01 4
