Laney
CTLoudspeakers
ServiceInformation
PartNumber-SM3034
Page 2
Laney
Contents
1. CT10 Data
2. CT12 Data
3. CT15 Data
4. CT815 Data
5. Dwg 3006

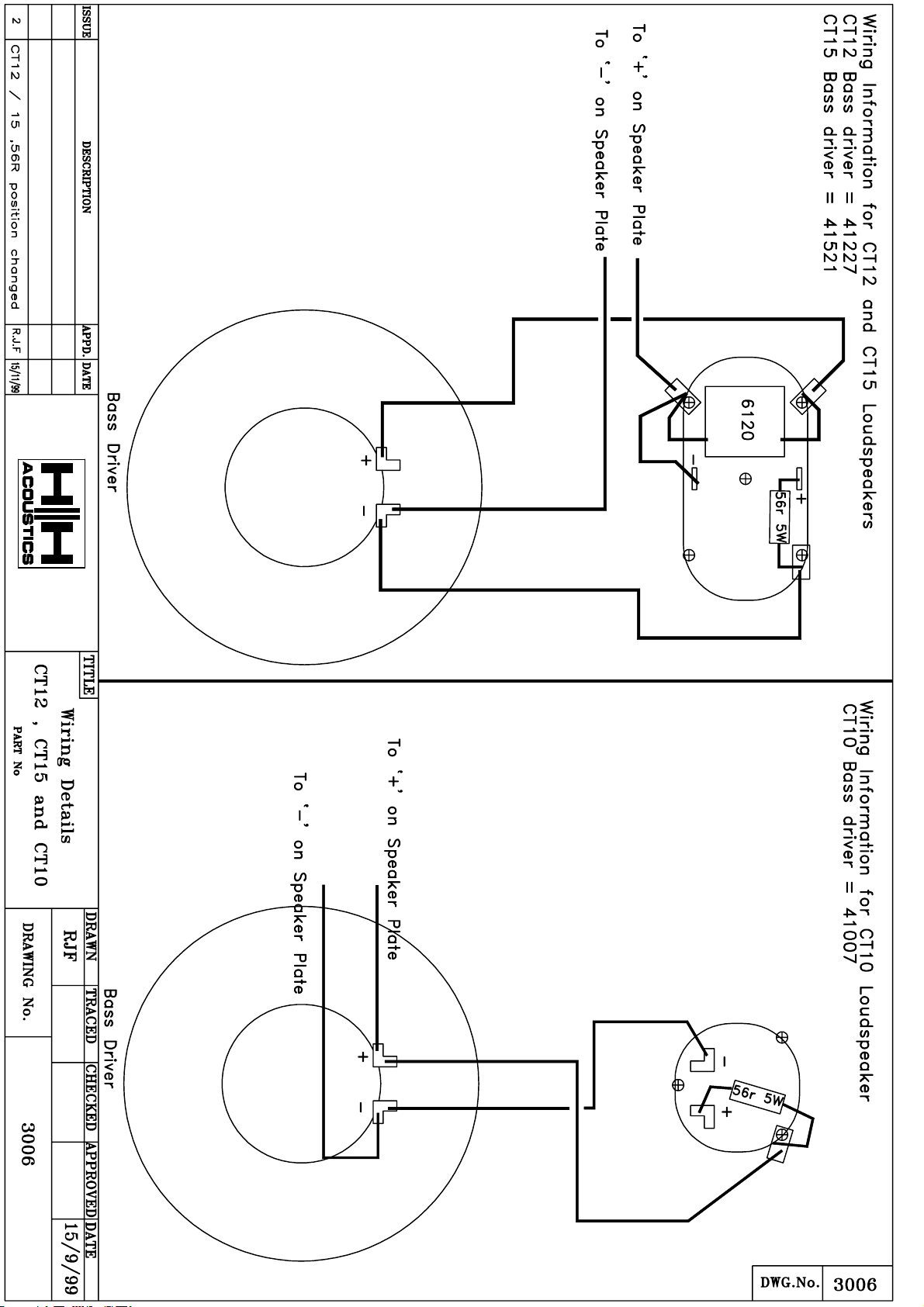

CT10 , CT12 , CT15 Wiring
6. Dwg 9325

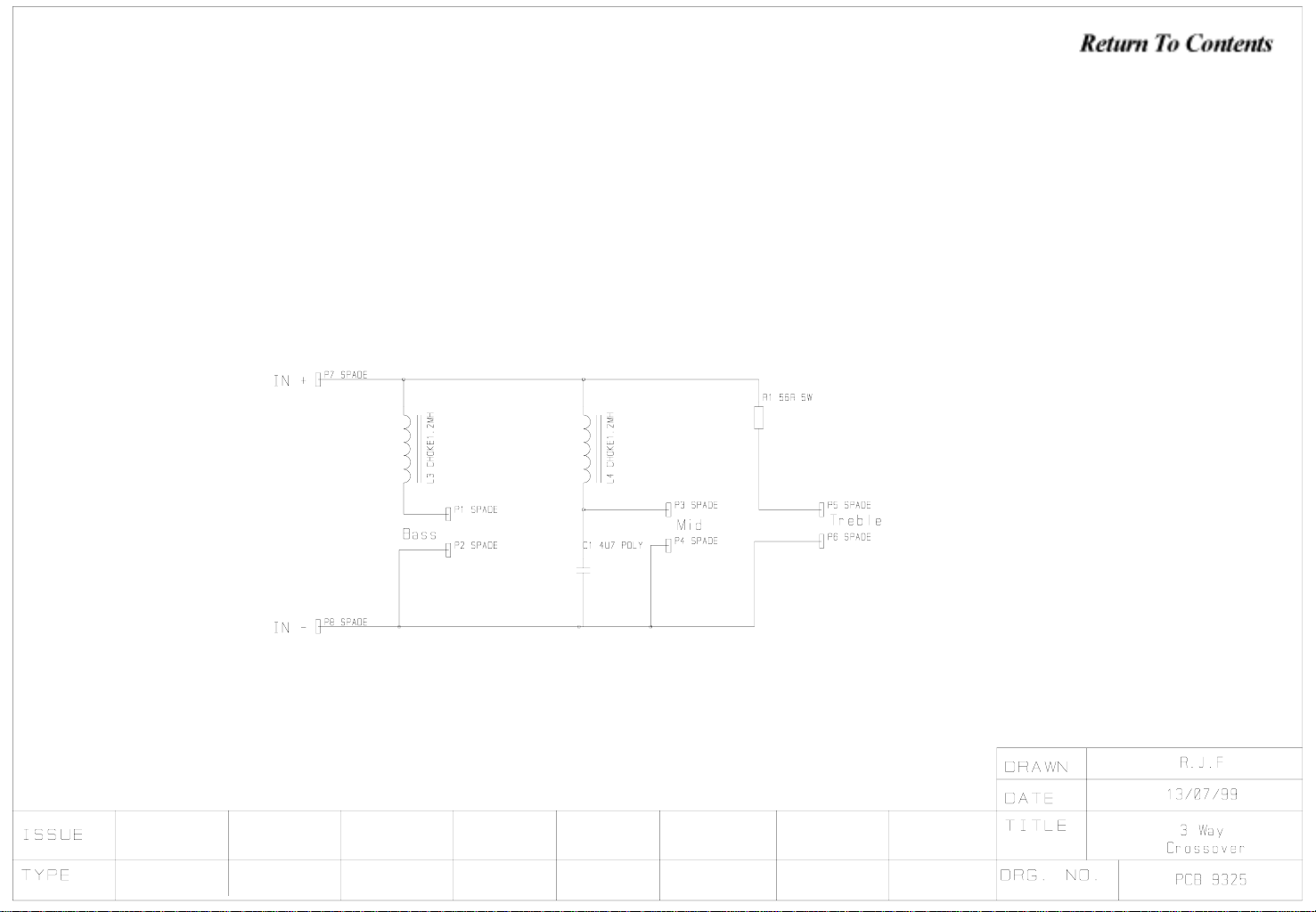

CT815 Crossover
7. CT10 Parts list
8. CT12 Parts list
9. CT15 Parts list
Concept
10. CT815 Parts list
11. Contacts
Page 3
Laney

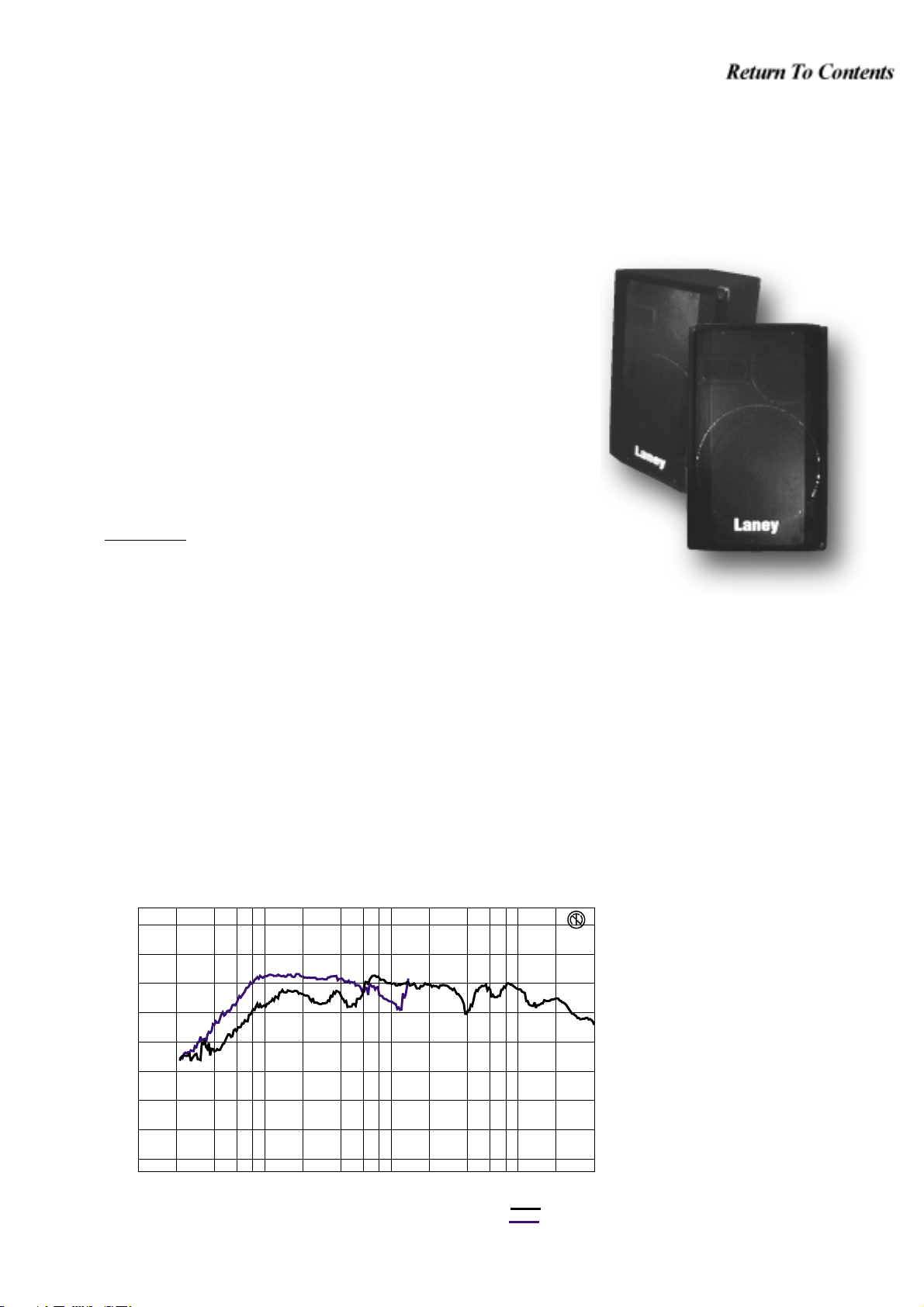

Concept CT10 Enclosure
Technical Specification
Frequency Response
Power Rating
Drivers
Sensitivity
Connectors
Weight
Dimensions
Impedance
Accessories
Spares
Description
CT Loudspeakers are compact full range enclosures designed for a variety of
applications such as sound reinforcement for bands, places of worship, health
clubs, discotheques and DJ’s.
All CT enclosures feature custom low frequency drivers and a piezo type tweeter
in an optimized reflex enclosure. They are the results from extensive
measurements and listening tests using a variety of live and pre-recorded
material.
The CT ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle is provided in the rear for easy transport.
Loudspeaker connection is provided by two ¼ inch Jacks. This allows an input
and a link out facility to additional cabinets.
Where additional bass extension is required the CS low frequency enclosures can
be added. The CS115 is an ideal partner for any of the CT range. This can be
done simply by driving into the CS115 and taking the link out from the CS115 to
the CT cabinets input.
A 35mm top hat is provided in the base of the loudspeaker for easy stand
mounting or pole mounting above a CS loudspeaker.
The additional bass extension of a CS115 can be seen in the graph below.
100 - 20KHz
80W Continuous
160W Program
Reflex Loaded 10“ bass driver &
tweeter
97dB/W@1M
Two ¼ inch jack sockets
10.5kg
470 x 310 x 330mm
8 Ohms
Tri-pod Stand ,Pole stand for use
with CS enclosures
41007 bass driver, 10512 tweeter
Sound Pressure Level (dB)Sound Pressure Level (dB)
50
120
110
100
90
80
70
60
50
40
10
100
Frequency Response for Concept CT10 EnclosureFrequency Response for Concept CT10 Enclosure
Impedance Curve for Concept CT10 EnclosureImpedance Curve for Concept CT10 Enclosure
Frequency Response for Concept CS115 EnclosureFrequency Response for Concept CS115 Enclosure
Concept
1K
Frequency (Hz)Frequency (Hz)
10K
45
40
35
30
25
20
15
Impedance (8 ohms)Impedance (8 ohms)
10
5
0
40K
Data
Page 4
Laney

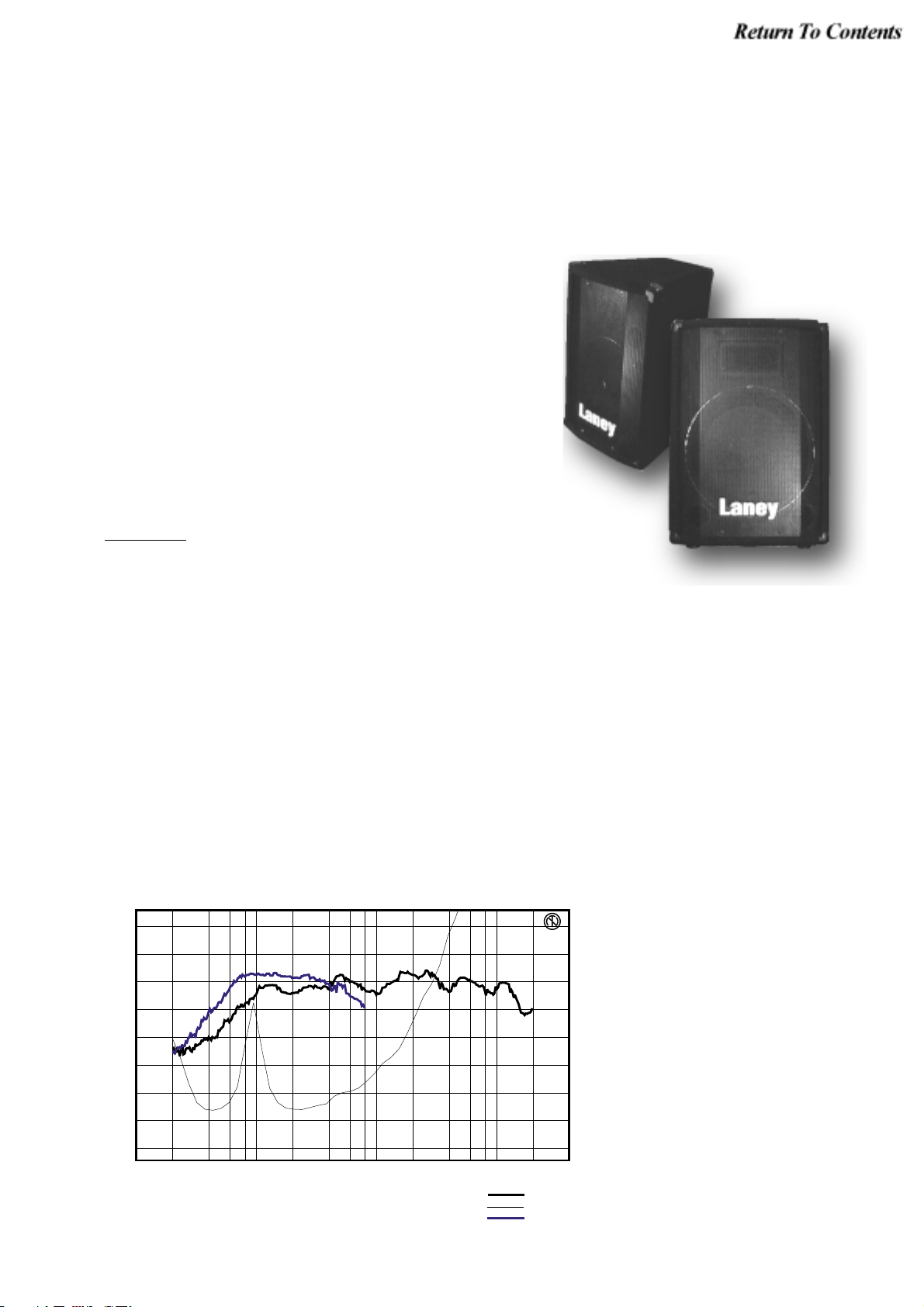

Concept CT12 Enclosure
Technical Specification
Frequency Response
Power Rating
Drivers
Sensitivity
Connectors
Weight
Dimensions
Impedance
Accessories
Spares
Description
CT Loudspeakers are compact full range enclosures designed for a variety of
applications such as sound reinforcement for bands, places of worship, health
clubs, discotheques and DJ’s.
All CT enclosures feature custom low frequency drivers and a piezo type tweeter
in an optimized reflex enclosure. They are the results from extensive
measurements and listening tests using a variety of live and pre-recorded
material.
The CT ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle is provided in the rear for easy transport.
Loudspeaker connection is provided by two ¼ inch Jacks. This allows an input
and a link out facility to additional cabinets.
Where additional bass extension is required the CS low frequency enclosures can
be added. The CS115 is an ideal partner for any of the CT range. This can be
done simply by driving into the CS115 and taking the link out from the CS115 to
the CT cabinets input.
A 35mm top hat is provided in the base of the loudspeaker for easy stand
mounting or pole mounting above a CS loudspeaker.
The additional bass extension of a CS115 can be seen in the graph below.
85 - 20KHz
100W Continuous
200W Program
Reflex Loaded 12“ bass driver &
dual horn with built in protection
98dB/W@1M
Two ¼ inch jack sockets
15kg
545 x 384 x 397mm
8 Ohms
Tri-pod Stand ,Pole stand for use
with CS enclosures
41227 bass driver, 10514 tweeter
Sound Pressure Level (dB)Sound Pressure Level (dB)
120
110
100
90
80
70
60
50
40
40
35
30
25
20
15
Impedance (8 ohms)Impedance (8 ohms)
10
5
10
100
Frequency Response for Concept CT12 EnclosureFrequency Response for Concept CT12 Enclosure
Impedance Curve for CT12 enclosureImpedance Curve for CT12 enclosure
Frequency Response for Curve for CS115 enclosureFrequency Response for Curve for CS115 enclosure
Concept
1K
Frequency (Hz)Frequency (Hz)
10K
0
40K
Data
Page 5
Laney
Concept CT15 Enclosure
Technical Specification
Frequency Response
Power Rating
Drivers
Sensitivity
Connectors
Weight
Dimensions
Impedance
Accessories
Spares
Description
CT Loudspeakers are compact full range enclosures designed for a variety of
applications such as sound reinforcement for bands, places of worship, health
clubs, discotheques and DJ’s.
All CT enclosures feature custom low frequency drivers and a piezo type tweeter
in an optimized reflex enclosure. They are the results from extensive
measurements and listening tests using a variety of live and pre-recorded
material.
The CT ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle is provided in the rear for easy transport.
Loudspeaker connection is provided by two ¼ inch Jacks. This allows an input
and a link out facility to additional cabinets.
Where additional bass extension is required the CS low frequency enclosures can
be added. The CS115 is an ideal partner for any of the CT range. This can be
done simply by driving into the CS115 and taking the link out from the CS115 to
the CT cabinets input.
A 35mm top hat is provided in the base of the loudspeaker for easy stand
mounting or pole mounting above a CS loudspeaker.
The additional bass extension of a CS115 can be seen in the graph below.
65Hz - 18KHz
150W Continuous
300W Program
Reflex Loaded 15“ bass driver &
dual driver high frequency horn
98dB/W@1M
Two ¼ inch jack sockets
20kg
637 x 444 x 463mm
8 Ohms
Tri-pod ,Pole stand for
Use with CS enclosures
41521 bass driver , 10514 tweeter
Sound Pressure Level (dB)Sound Pressure Level (dB)
120
110
100
90
80
70
60
50
40
40
35
30
25
20
15
Impedance (8 ohms)Impedance (8 ohms)
10
5
10
100
Frequency Response for Concept CT15 EnclosureFrequency Response for Concept CT15 Enclosure
Impedance Curve for Concept CT15 EnclosureImpedance Curve for Concept CT15 Enclosure
Frequency Response for Concept CS115 EnclosureFrequency Response for Concept CS115 Enclosure
Concept
1K
Frequency (Hz)Frequency (Hz)
10K
0
40K
Data
Page 6
Laney
Laney
Concept CT815 Enclosure
Technical Specification
Frequency Response
Power Rating
Drivers
Sensitivity
Connectors
Weight
Dimensions
Impedance
Accessories
Spares
Description
CT Loudspeakers are compact full range enclosures designed for a variety of
applications such as sound reinforcement for bands, places of worship, health
clubs, discotheques and DJ’s.
All CT enclosures feature custom low frequency drivers and a piezo type tweeter
in an optimized reflex enclosure. They are the results from extensive
measurements and listening tests using a variety of live and pre-recorded
material.
The CT ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle is provided in the rear for easy transport.
Loudspeaker connection is provided by two ¼ inch Jacks. This allows an input
and a link out facility to additional cabinets.
Where additional bass extension is required the CS low frequency enclosures can
be added. The CS115 is an ideal partner for any of the CT range. This can be
done simply by driving into the CS115 and taking the link out from the CS115 to
the CT cabinets input.
A 35mm top hat is provided in the base of the loudspeaker for easy stand
mounting or pole mounting above a CS loudspeaker.
The additional bass extension of a CS115 can be seen in the graph below.
65Hz - 18KHz
250W Continuous
500W Program
Reflex Loaded 15“ bass driver, sealed 8” mid
driver & dual driver high frequency horn
99dB/W@1M
Two ¼ inch jack sockets
24Kg
715 x 444 x 463mm
8 Ohms
Tri-pod stand ,Pole stand use
With CS enclosures.
41504 bass driver ,40801 mid driver ,
10514 tweeter
Sound Pressure Level (dB)Sound Pressure Level (dB)
120
110
100
90
80
70
60
50
40
10
100
Concept
Frequency Response for Concept CT815 EnclosureFrequency Response for Concept CT815 Enclosure
Impedance Curve for Concept CT815 EnclosureImpedance Curve for Concept CT815 Enclosure
Frequency Response for Concept CS115 EnclosureFrequency Response for Concept CS115 Enclosure
1K
Frequency (Hz)Frequency (Hz)
10K
40K
Data
Page 7
Page 8
Page 9
Assembly List for Concept 10 (CT10US)
Stock Code Description Quantity
1707 56R 5W RESISTOR 1
10004 MONO JACK SOCKET 2
10055 PLASTIC CABINET FOOT 4
10057 SMALL LANEY BADGE 1
10107 SMALL INSERT HANDLE 1
10200 M5 x 10mm TEENUT 4
10204 5mm X 25mm PAN POZI 4
10205 NO.8 X 5/8" ROUND 4
10206 6*5/8 FLANGE POZI AB 4
10207 NO.6 X 5/8" CSK POZI 8
10224 35mm FINISHED NAILS 35
10225 STAPLES 97/12 6
10231 No8x1/2" FLANGE POZI 24
10240 10 * 1 CSK POZI 4
10243 NO4*1/2 TYPE B CSK 2
10244 FLAT SPIRE CLIP 2
10256 8*1 FLANGE POZI 4
10301 18mm CHIPBOARD 0
10512 J44 HORN KSN1005A 1
10600 32/18 STAPLES 12
10621 POLY. BAG 30(0) X 36 1
10646 35mm METAL TOP HAT 1
10656 LABEL (TWIN RECESS) 2
41007 INVADER 10P708 1
541004 HC25/50 4.8 FASTON 5
541053 1/4" LG RECEPTACLE 1
541055 90~ TWIN FASTON TAB 1
8G-CT10 GRILL CT10 1
10326 M4005 BLACK CARPET 0
10448 CARTON CT10 1
10039 PENN CORNER C1839K 4
10113 M1530 PORT 1
10044 C1823K CORNER 4
10940 CT MANUAL 1
10054 NEW TWIN RECESS 1
Page 10
Assembly List for Concept 12 (CT12US)
Stock Code Description Quantity
1707 56R 5W RESISTOR 1
10004 MONO JACK SOCKET 2
10054 NEW TWIN RECESS 1
10055 PLASTIC CABINET FOOT 4
10057 SMALL LANEY BADGE 1
10107 SMALL INSERT HANDLE 1
10200 M5 x 10mm TEENUT 4
10204 5mm X 25mm PAN POZI 4
10205 NO.8 X 5/8" ROUND 4
10206 6*5/8 FLANGE POZI AB 6
10207 NO.6 X 5/8" CSK POZI 8
10224 35mm FINISHED NAILS 35
10225 STAPLES 97/12 6
10231 No8x1/2" FLANGE POZI 24
10240 10 * 1 CSK POZI 4
10243 NO4*1/2 TYPE B CSK 2
10244 FLAT SPIRE CLIP 2
10256 8*1 FLANGE POZI 4
10301 18mm CHIPBOARD 0
10514 HORN 2 SEGMENT 1
10600 32/18 STAPLES 12
10646 35mm METAL TOP HAT 1
10656 LABEL (TWIN RECESS) 2
41227 CT12 LOUDSPEAKER 1
541004 HC25/50 4.8 FASTON 5
541053 1/4" LG RECEPTACLE 2
541055 90~ TWIN FASTON TAB 2
8G-CT12 GRILL CT12 1
8T-6120 3.3UH CHOKE (DB) 1
10326 M4005 BLACK CARPET 0
10451 CARTON CT12 1
10039 PENN CORNER C1839K 4
10113 M1530 PORT 2
10044 C1823K CORNER 4
10940 CT MANUAL 1
5020 CCX TIE WRAP 1
Page 11
Assembly List for Concept 15 (CT15US)
Stock Code Description Quantity
1707 56R 5W RESISTOR 1
10004 MONO JACK SOCKET 2
10054 NEW TWIN RECESS 1
10055 PLASTIC CABINET FOOT 4
10057 SMALL LANEY BADGE 1
10107 SMALL INSERT HANDLE 1
10200 M5 x 10mm TEENUT 4
10204 5mm X 25mm PAN POZI 43
10205 NO.8 X 5/8" ROUND 4
10206 6*5/8 FLANGE POZI AB 6
10207 NO.6 X 5/8" CSK POZI 8
10224 35mm FINISHED NAILS 35
10225 STAPLES 97/12 6
10231 No8x1/2" FLANGE POZI 24
10240 10 * 1 CSK POZI 4
10243 NO4*1/2 TYPE B CSK 2
10244 FLAT SPIRE CLIP 2
10256 8*1 FLANGE POZI 4
10301 18mm CHIPBOARD 0
10514 HORN 2 SEGMENT 1
10600 32/18 STAPLES 12
10646 35mm METAL TOP HAT 1
10656 LABEL (TWIN RECESS) 2
41521 CT15 LOUDSPEAKER 1
541004 HC25/50 4.8 FASTON 5
541053 1/4" LG RECEPTACLE 2
541055 90~ TWIN FASTON TAB 2
8G-CT12 GRILL CT12 1
8T-6120 3.3UH CHOKE (DB) 1
10326 M4005 BLACK CARPET 1
10450 CARTON CT15 1
10039 PENN CORNER C1839K 4
10113 M1530 PORT 2
10044 C1823K CORNER 4
10940 CT MANUAL 1
5020 CCX TIE WRAP 1
Page 12
Assembly List for Concept 815 (CT815US)
Stock Code Description Quantity
6339 9325/CT815 X'VER 1
10054 NEW TWIN RECESS 1
10055 PLASTIC CABINET FOOT 4
10056 LARGE LANEY BADGE 1
10107 SMALL INSERT HANDLE 2
10200 M5 x 10mm TEENUT 8
10204 5mm X 25mm PAN POZI 8
10205 NO.8 X 5/8" ROUND 4
10206 6*5/8 FLANGE POZI AB 6
10224 35mm FINISHED NAILS 35
10225 STAPLES 97/12 8
10231 No8x1/2" FLANGE POZI 24
10240 10 * 1 CSK POZI 4
10243 NO4*1/2 TYPE B CSK 2
10244 FLAT SPIRE CLIP 2
10256 8*1 FLANGE POZI 4
10301 18mm CHIPBOARD 0
10314 18mm MDF 0
10514 HORN 2 SEGMENT 1
10600 32/18 STAPLES 12
10629 MASKING TAPE 1.5" 3
10646 35mm METAL TOP HAT 1
10656 LABEL (TWIN RECESS) 2
40801 NEW 8" MIDI DRIVER 1
41504 INVADER 15P2008 1
541004 HC25/50 4.8 FASTON 6
541053 1/4" LG RECEPTACLE 6
8G-CT815 GRILL CT815 1
10326 M4005 BLACK CARPET 1
10449 CARTON CT815 1
10039 PENN CORNER C1839K 4
10113 M1530 PORT 2
10044 C1823K CORNER 4
Assembly List for CT815 Crossover (0063389)
Stock Code Description Quantity
2435 4.7UF 250V AXIAL 1
1707 56R 5W RESISTOR 1
5040 LF CHOKE 2
5020 CCX TIE WRAP 2
5038 1/4" SPADE TERMINAL 8
5688 SRS 8-10-01 4
9325 CT815 3 WAY X'VER 1
Page 13
Loading...
