Laney

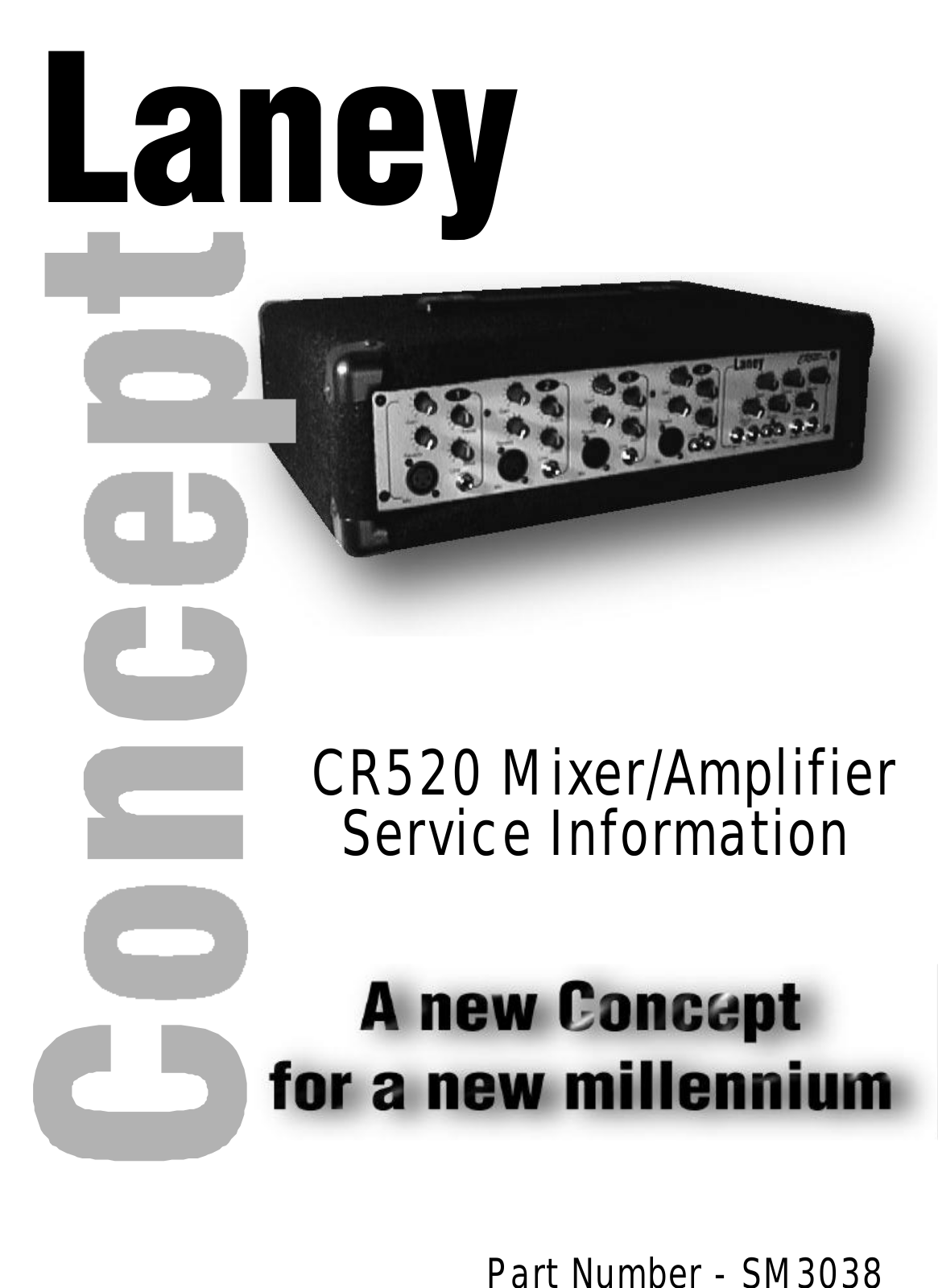

CR520Mixer/Amplifier
ServiceInformation
PartNumber-SM3038
Laney

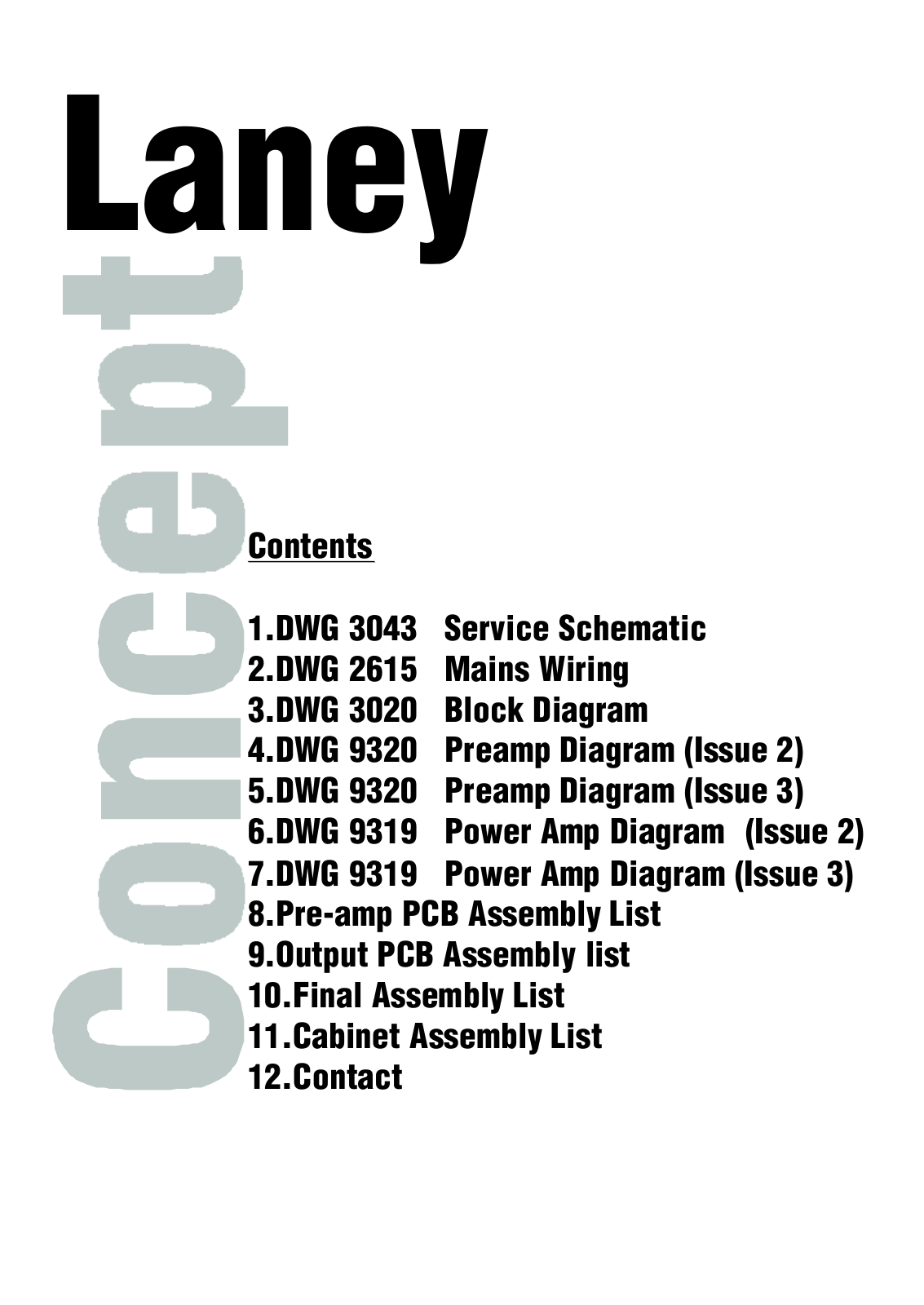

Contents

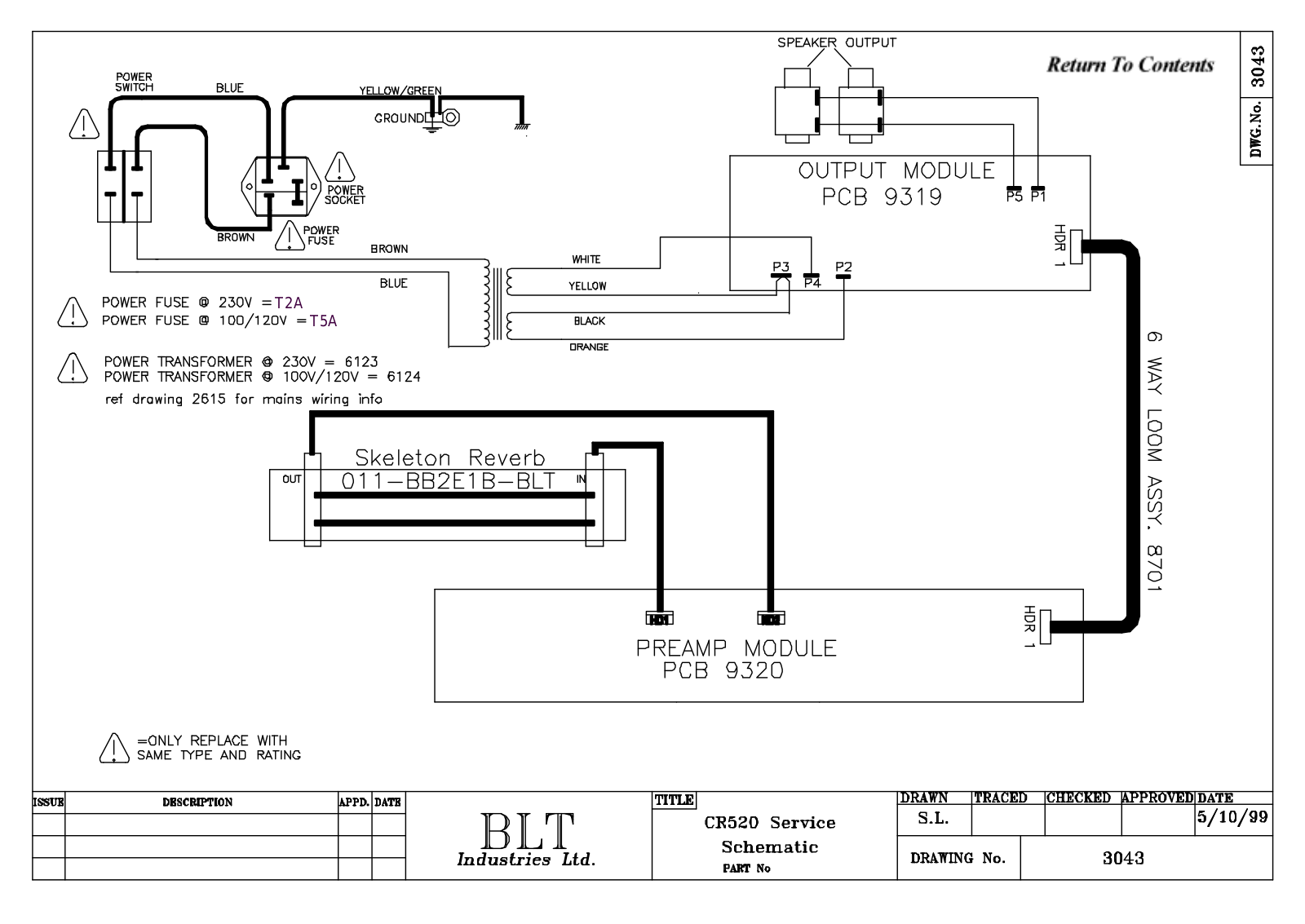

1.DWG3043

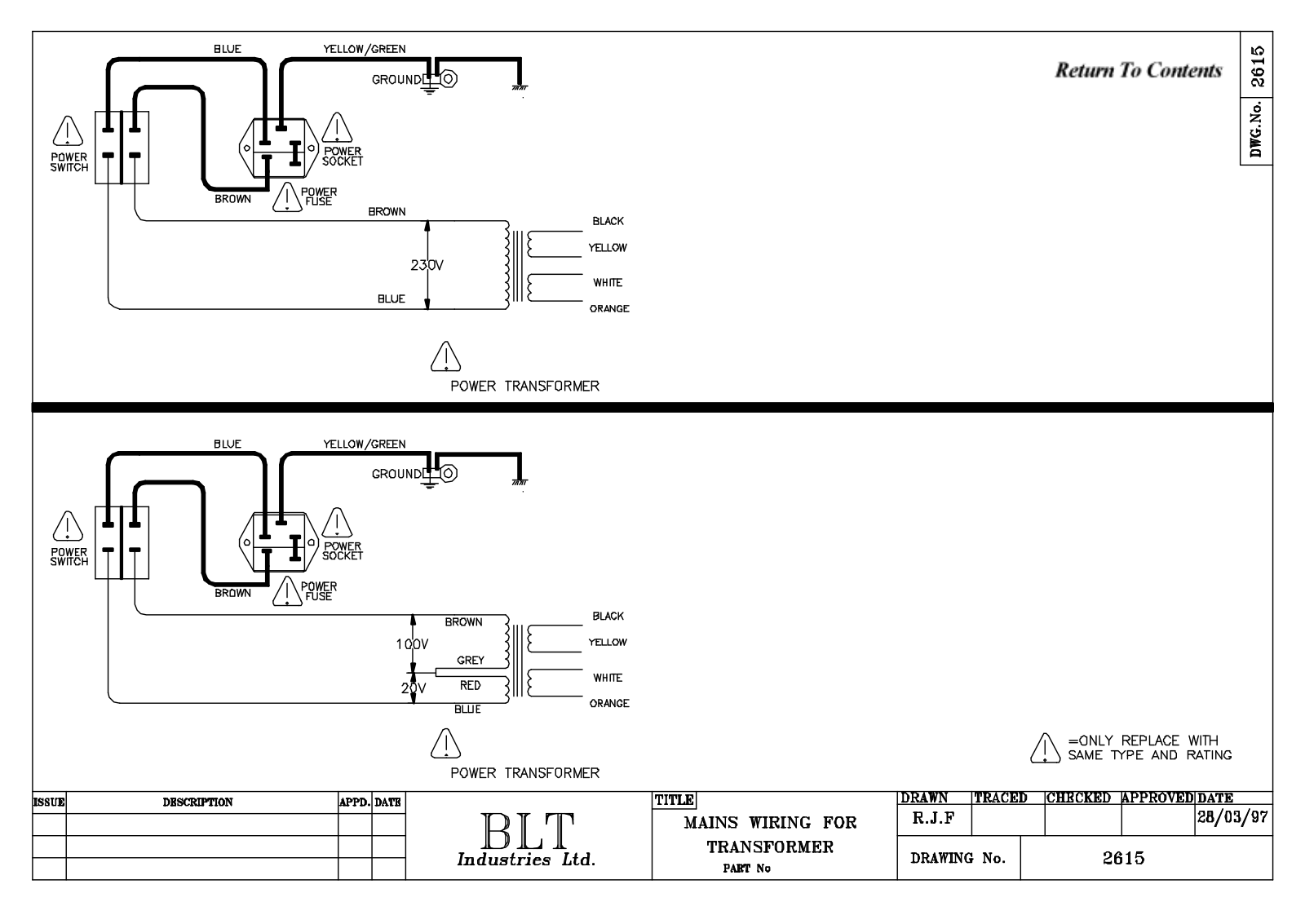

2.DWG2615MainsWiring
3.DWG3020

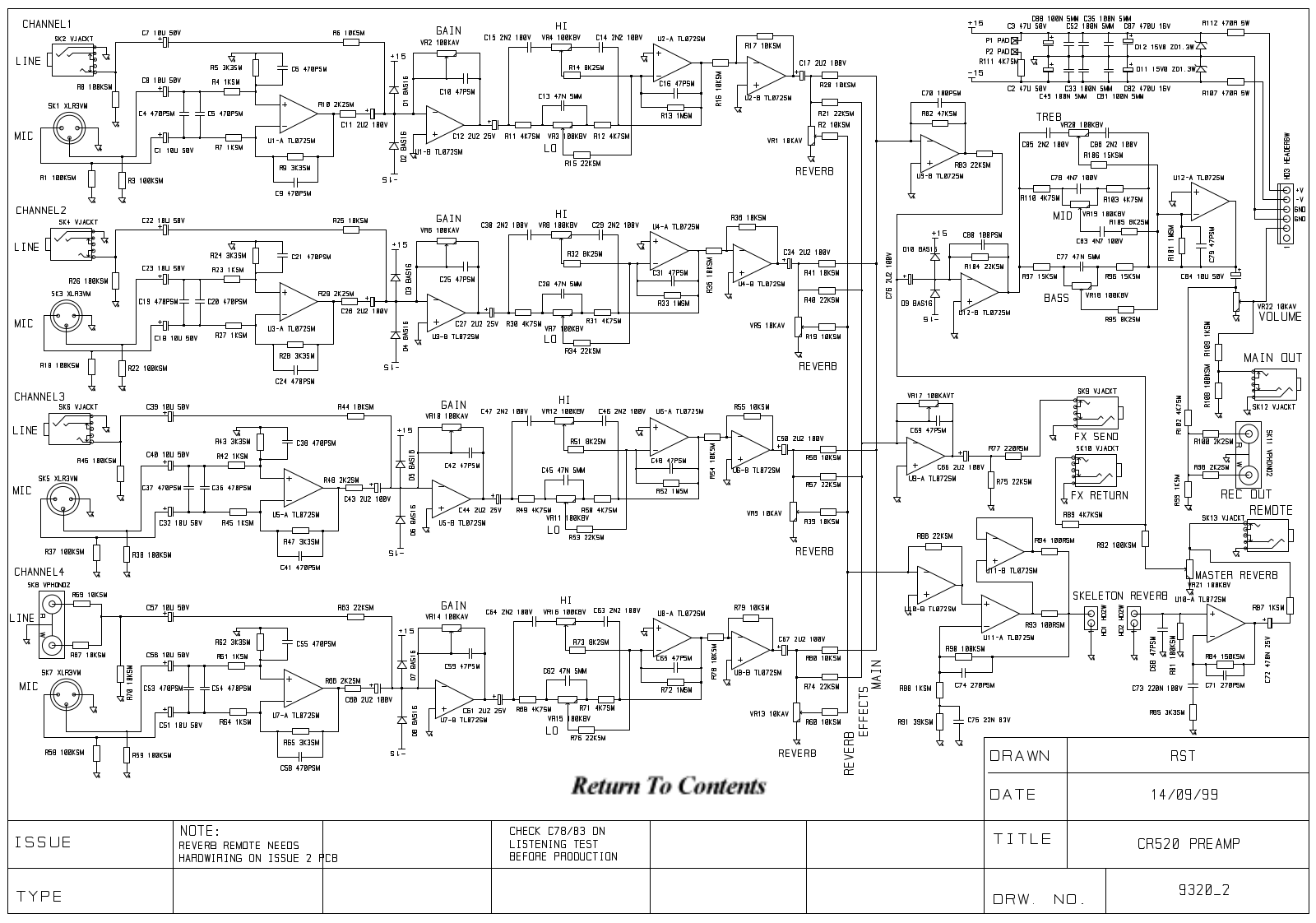

4.DWG9320PreampDiagram(Issue2)

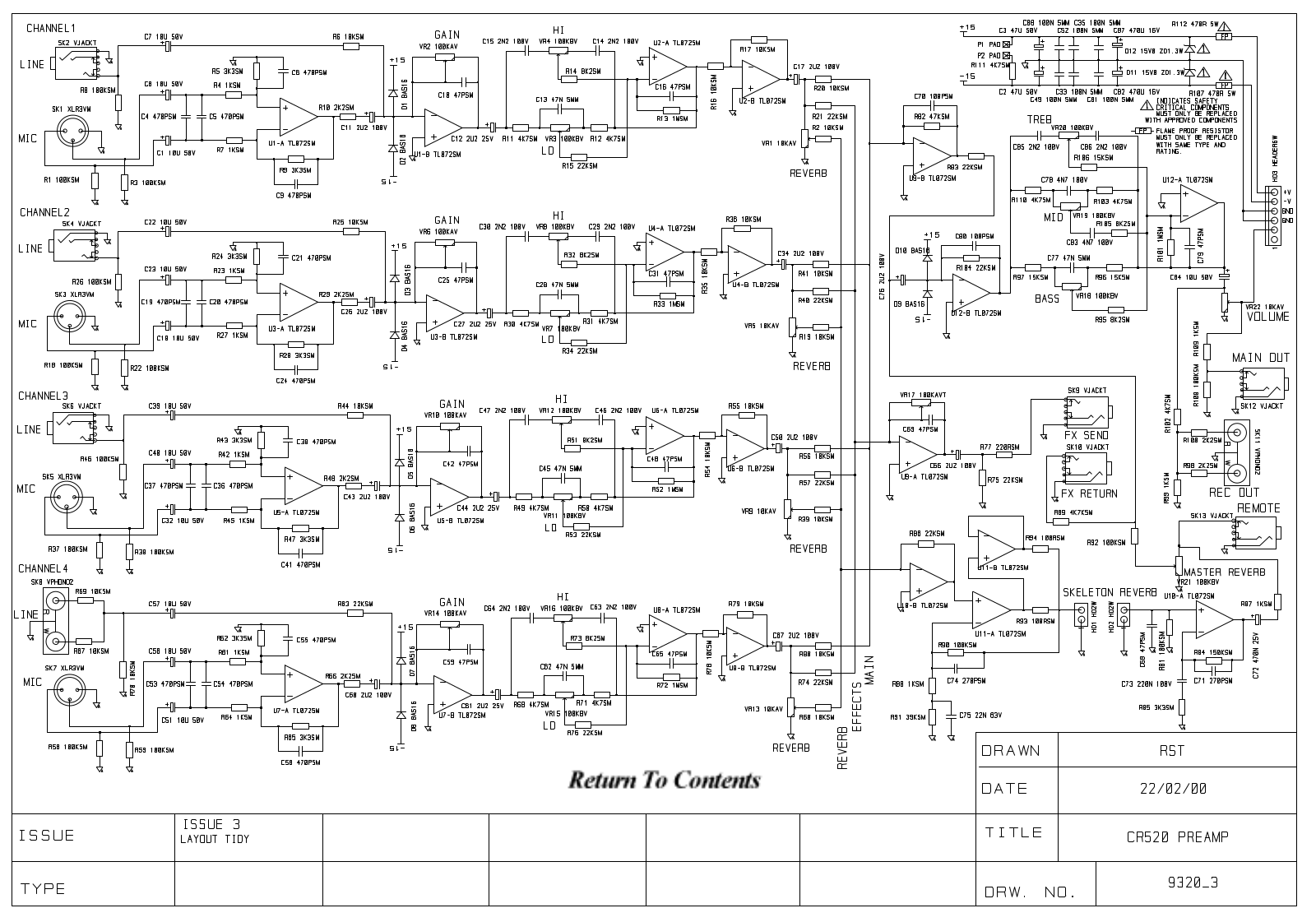

5.DWG9320PreampDiagram(Issue3)

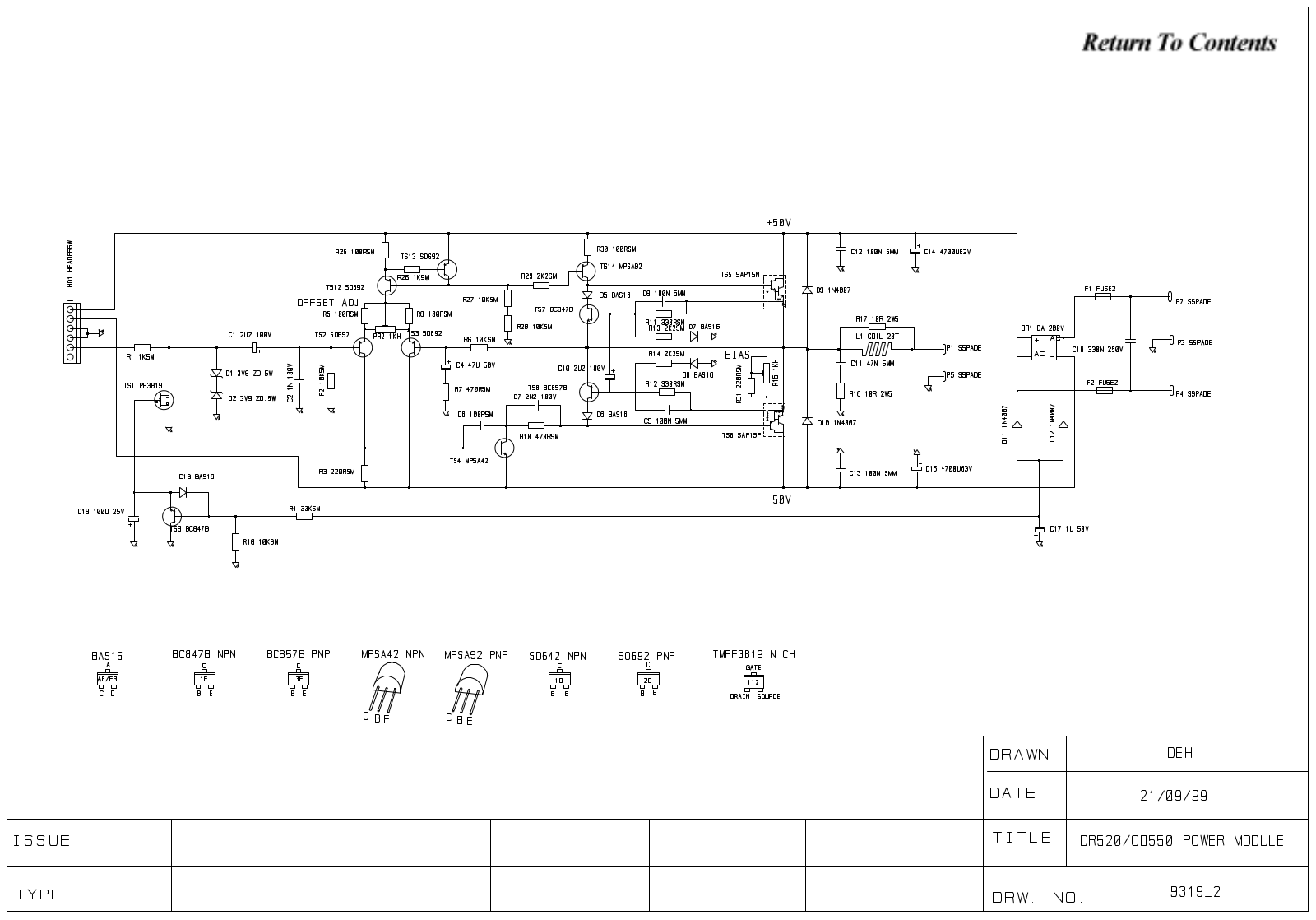

6.DWG9319PowerAmpDiagram

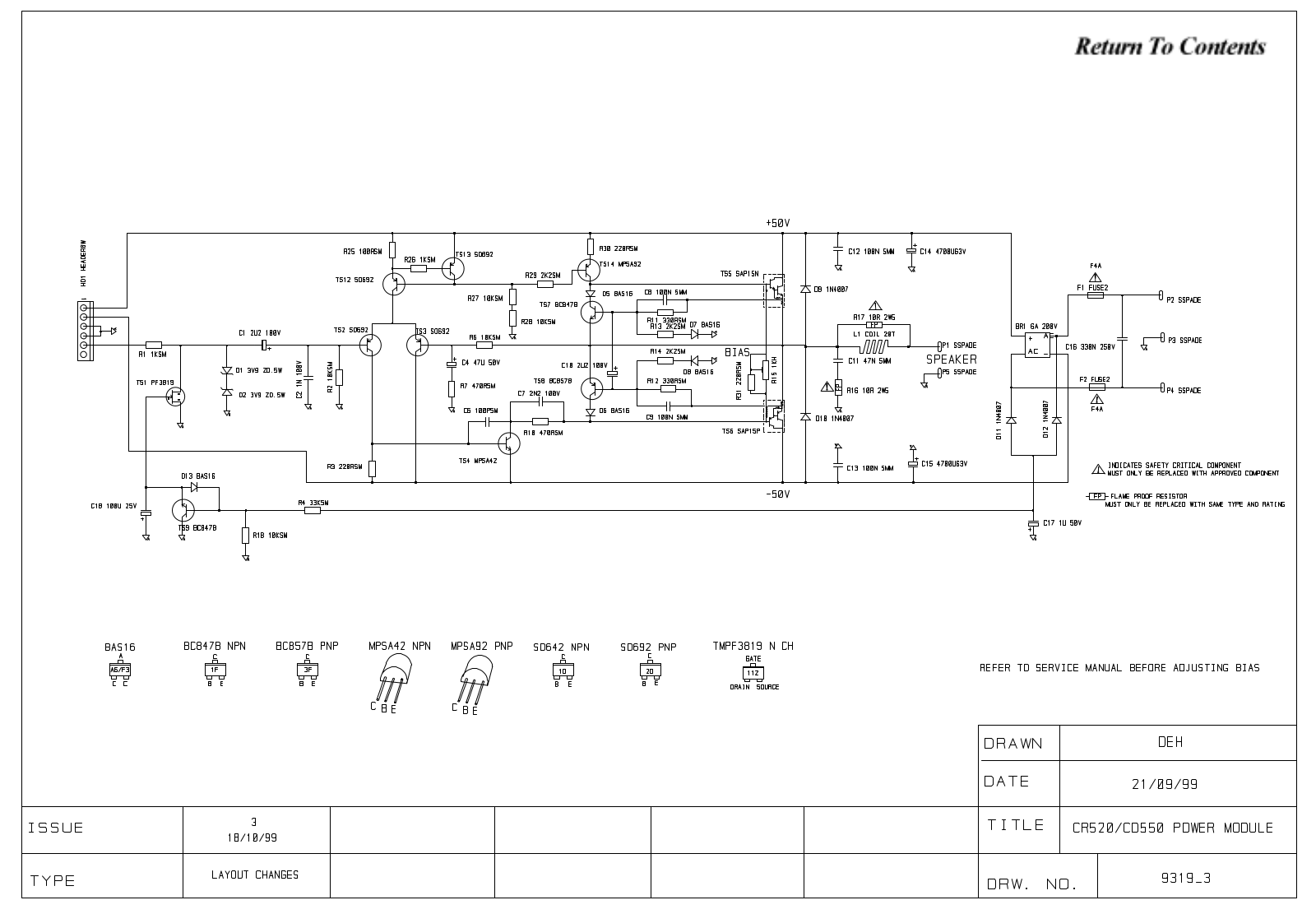

7.DWG9319PowerAmpDiagram(Issue3)
8.Pre-ampPCBAssemblyList
9.OutputPCBAssemblylist
10.FinalAssemblyList
11.CabinetAssemblyList

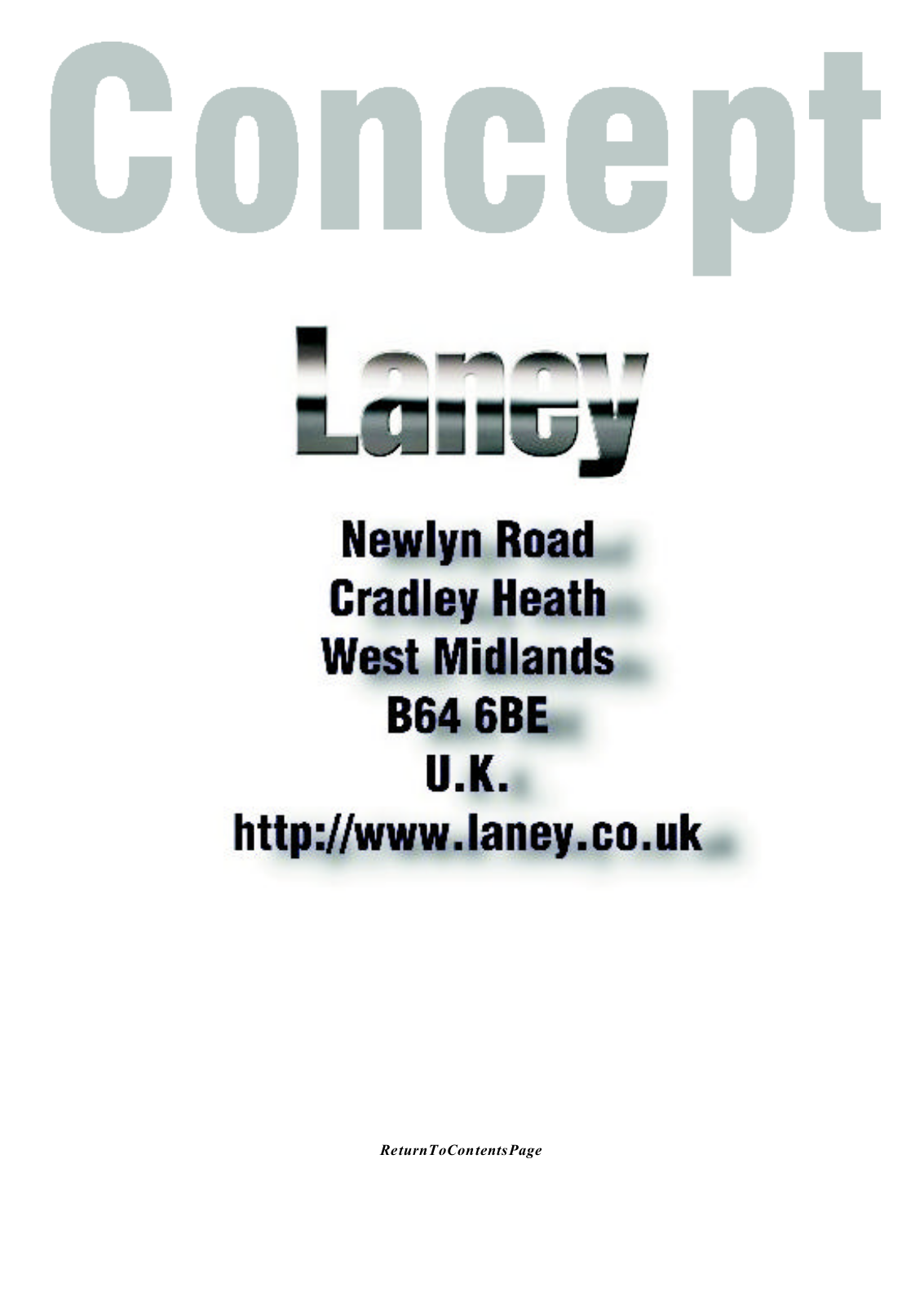

12.Contact
ServiceSchematic

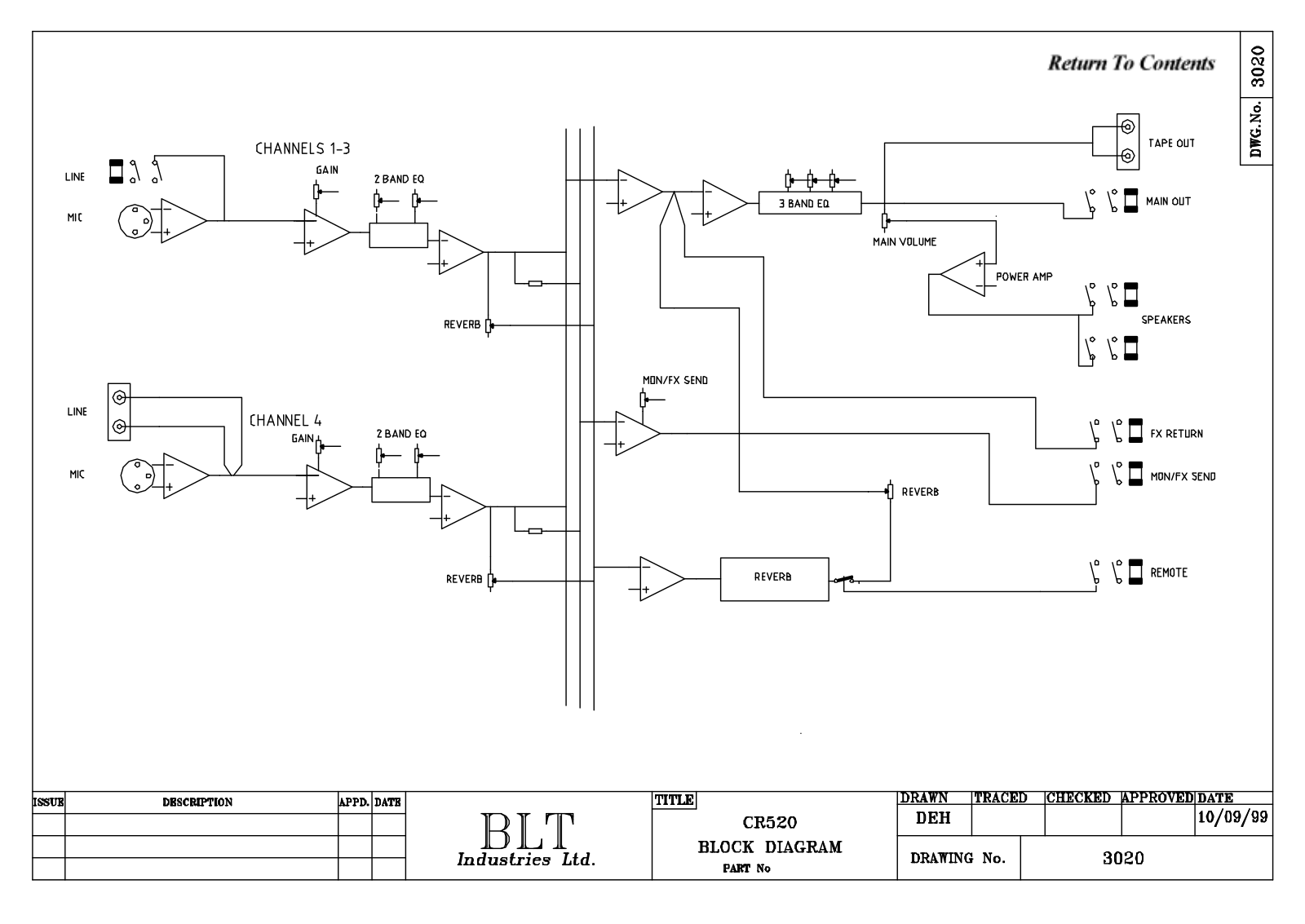

BlockDiagram
(Issue2)
T2A
T5A

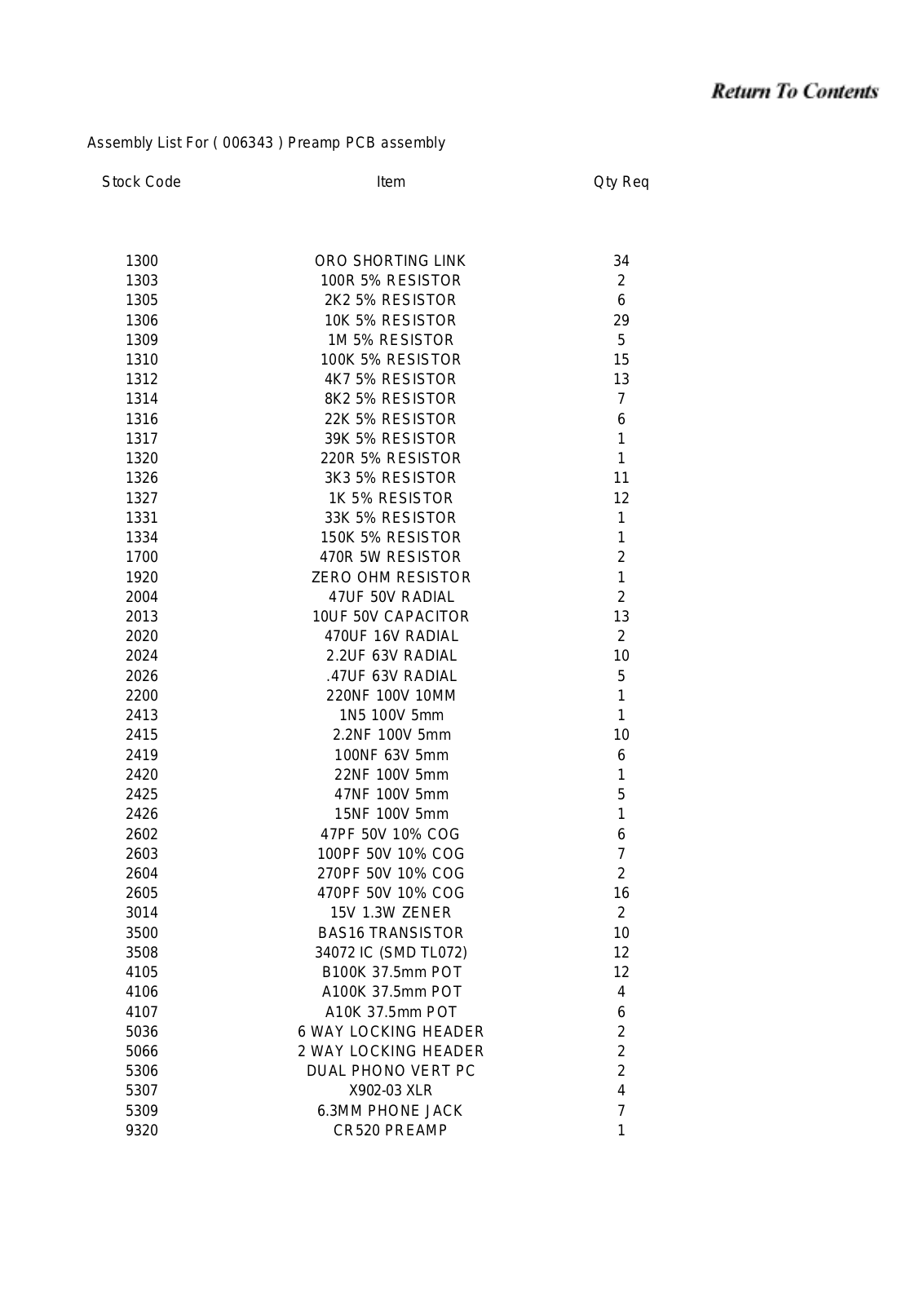

Assembly List For ( 006343 ) Preamp PCB assembly
Stock Code Item Qty Req
1300 ORO SHORTING LINK 34
1303 100R 5% RESISTOR 2
1305 2K2 5% RESISTOR 6
1306 10K 5% RESISTOR 29
1309 1M 5% RESISTOR 5
1310 100K 5% RESISTOR 15
1312 4K7 5% RESISTOR 13
1314 8K2 5% RESISTOR 7
1316 22K 5% RESISTOR 6
1317 39K 5% RESISTOR 1
1320 220R 5% RESISTOR 1
1326 3K3 5% RESISTOR 11
1327 1K 5% RESISTOR 12
1331 33K 5% RESISTOR 1
1334 150K 5% RESISTOR 1
1700 470R 5W RESISTOR 2
1920 ZERO OHM RESISTOR 1
2004 47UF 50V RADIAL 2
2013 10UF 50V CAPACITOR 13
2020 470UF 16V RADIAL 2
2024 2.2UF 63V RADIAL 10
2026 .47UF 63V RADIAL 5
2200 220NF 100V 10MM 1
2413 1N5 100V 5mm 1
2415 2.2NF 100V 5mm 10
2419 100NF 63V 5mm 6
2420 22NF 100V 5mm 1
2425 47NF 100V 5mm 5
2426 15NF 100V 5mm 1
2602 47PF 50V 10% COG 6
2603 100PF 50V 10% COG 7
2604 270PF 50V 10% COG 2
2605 470PF 50V 10% COG 16
3014 15V 1.3W ZENER 2
3500 BAS16 TRANSISTOR 10
3508 34072 IC (SMD TL072) 12
4105 B100K 37.5mm POT 12
4106 A100K 37.5mm POT 4
4107 A10K 37.5mm POT 6
5036 6 WAY LOCKING HEADER 2
5066 2 WAY LOCKING HEADER 2
5306 DUAL PHONO VERT PC 2
5307 X902-03 XLR 4
5309 6.3MM PHONE JACK 7
9320 CR520 PREAMP 1

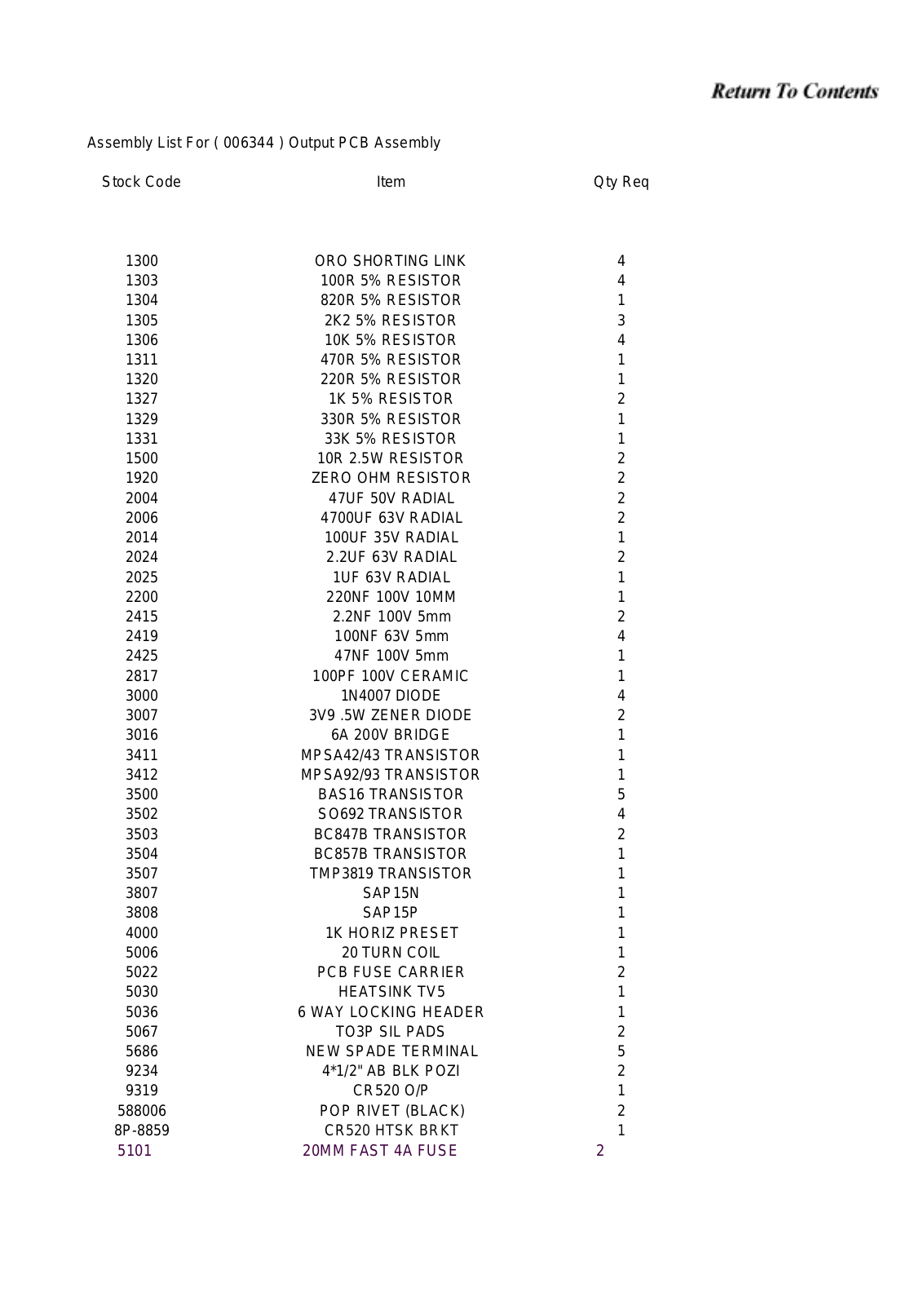

Assembly List For ( 006344 ) Output PCB Assembly
5101 20MM FAST 4A FUSE 2
Stock Code Item Qty Req
1300 ORO SHORTING LINK 4
1303 100R 5% RESISTOR 4
1304 820R 5% RESISTOR 1
1305 2K2 5% RESISTOR 3
1306 10K 5% RESISTOR 4
1311 470R 5% RESISTOR 1
1320 220R 5% RESISTOR 1
1327 1K 5% RESISTOR 2
1329 330R 5% RESISTOR 1
1331 33K 5% RESISTOR 1
1500 10R 2.5W RESISTOR 2
1920 ZERO OHM RESISTOR 2
2004 47UF 50V RADIAL 2
2006 4700UF 63V RADIAL 2
2014 100UF 35V RADIAL 1
2024 2.2UF 63V RADIAL 2
2025 1UF 63V RADIAL 1
2200 220NF 100V 10MM 1
2415 2.2NF 100V 5mm 2
2419 100NF 63V 5mm 4
2425 47NF 100V 5mm 1
2817 100PF 100V CERAMIC 1
3000 1N4007 DIODE 4
3007 3V9 .5W ZENER DIODE 2
3016 6A 200V BRIDGE 1
3411 MPSA42/43 TRANSISTOR 1
3412 MPSA92/93 TRANSISTOR 1
3500 BAS16 TRANSISTOR 5
3502 SO692 TRANSISTOR 4
3503 BC847B TRANSISTOR 2
3504 BC857B TRANSISTOR 1
3507 TMP3819 TRANSISTOR 1
3807 SAP15N 1
3808 SAP15P 1
4000 1K HORIZ PRESET 1
5006 20 TURN COIL 1
5022 PCB FUSE CARRIER 2
5030 HEATSINK TV5 1
5036 6 WAY LOCKING HEADER 1
5067 TO3P SIL PADS 2
5686 NEW SPADE TERMINAL 5
9234 4*1/2" AB BLK POZI 2
9319 CR520 O/P 1
588006 POP RIVET (BLACK) 2
8P-8859 CR520 HTSK BRKT 1

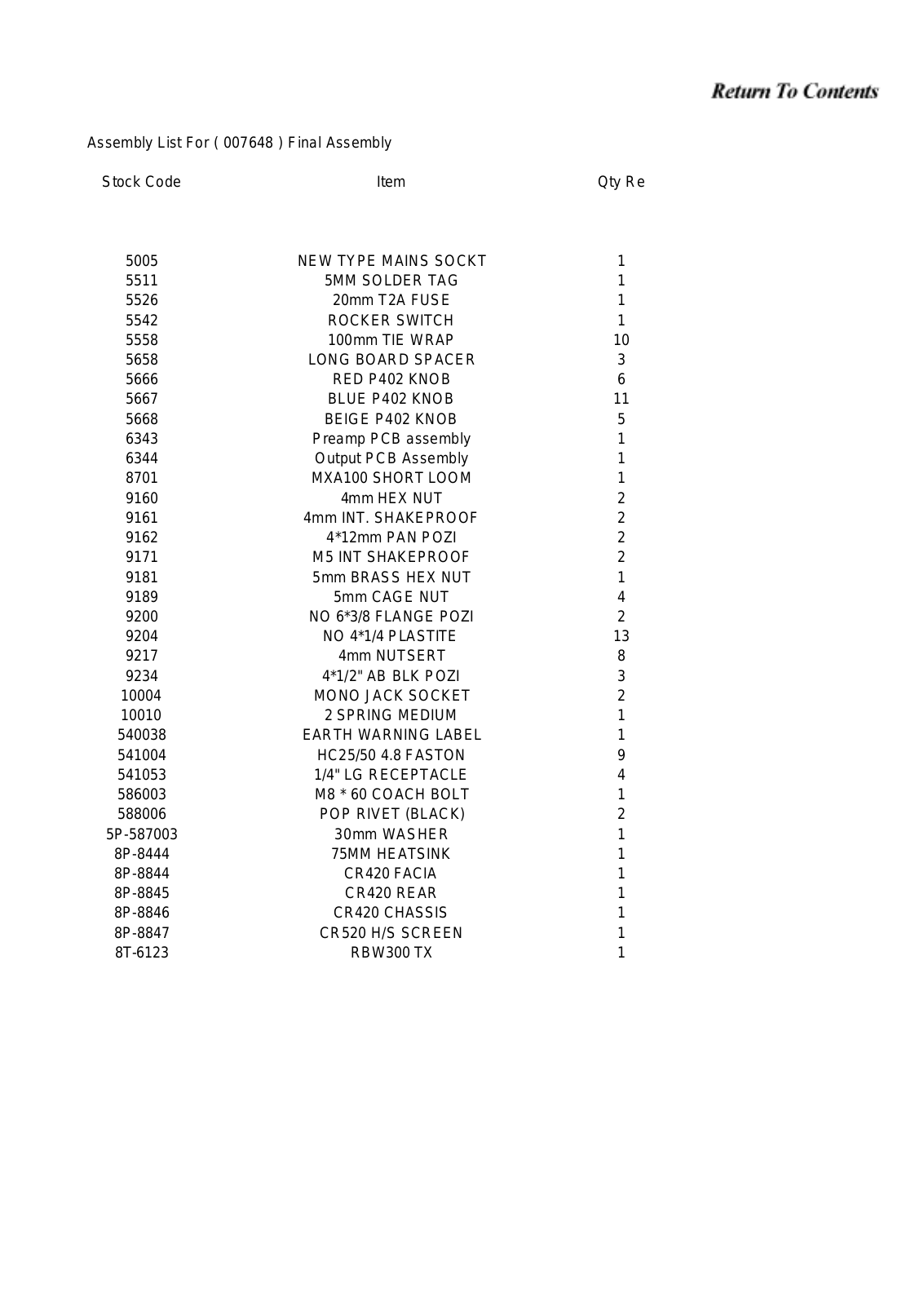

Assembly List For ( 007648 ) Final Assembly
Stock Code Item Qty Re
5005 NEW TYPE MAINS SOCKT 1
5511 5MM SOLDER TAG 1
5526 20mm T2A FUSE 1
5542 ROCKER SWITCH 1
5558 100mm TIE WRAP 10
5658 LONG BOARD SPACER 3
5666 RED P402 KNOB 6
5667 BLUE P402 KNOB 11
5668 BEIGE P402 KNOB 5
6343 Preamp PCB assembly 1
6344 Output PCB Assembly 1
8701 MXA100 SHORT LOOM 1
9160 4mm HEX NUT 2
9161 4mm INT. SHAKEPROOF 2
9162 4*12mm PAN POZI 2
9171 M5 INT SHAKEPROOF 2
9181 5mm BRASS HEX NUT 1
9189 5mm CAGE NUT 4
9200 NO 6*3/8 FLANGE POZI 2
9204 NO 4*1/4 PLASTITE 13
9217 4mm NUTSERT 8
9234 4*1/2" AB BLK POZI 3
10004 MONO JACK SOCKET 2
10010 2 SPRING MEDIUM 1
540038 EARTH WARNING LABEL 1
541004 HC25/50 4.8 FASTON 9
541053 1/4" LG RECEPTACLE 4
586003 M8 * 60 COACH BOLT 1
588006 POP RIVET (BLACK) 2
5P-587003 30mm WASHER 1
8P-8444 75MM HEATSINK 1
8P-8844 CR420 FACIA 1
8P-8845 CR420 REAR 1
8P-8846 CR420 CHASSIS 1
8P-8847 CR520 H/S SCREEN 1
8T-6123 RBW300 TX 1

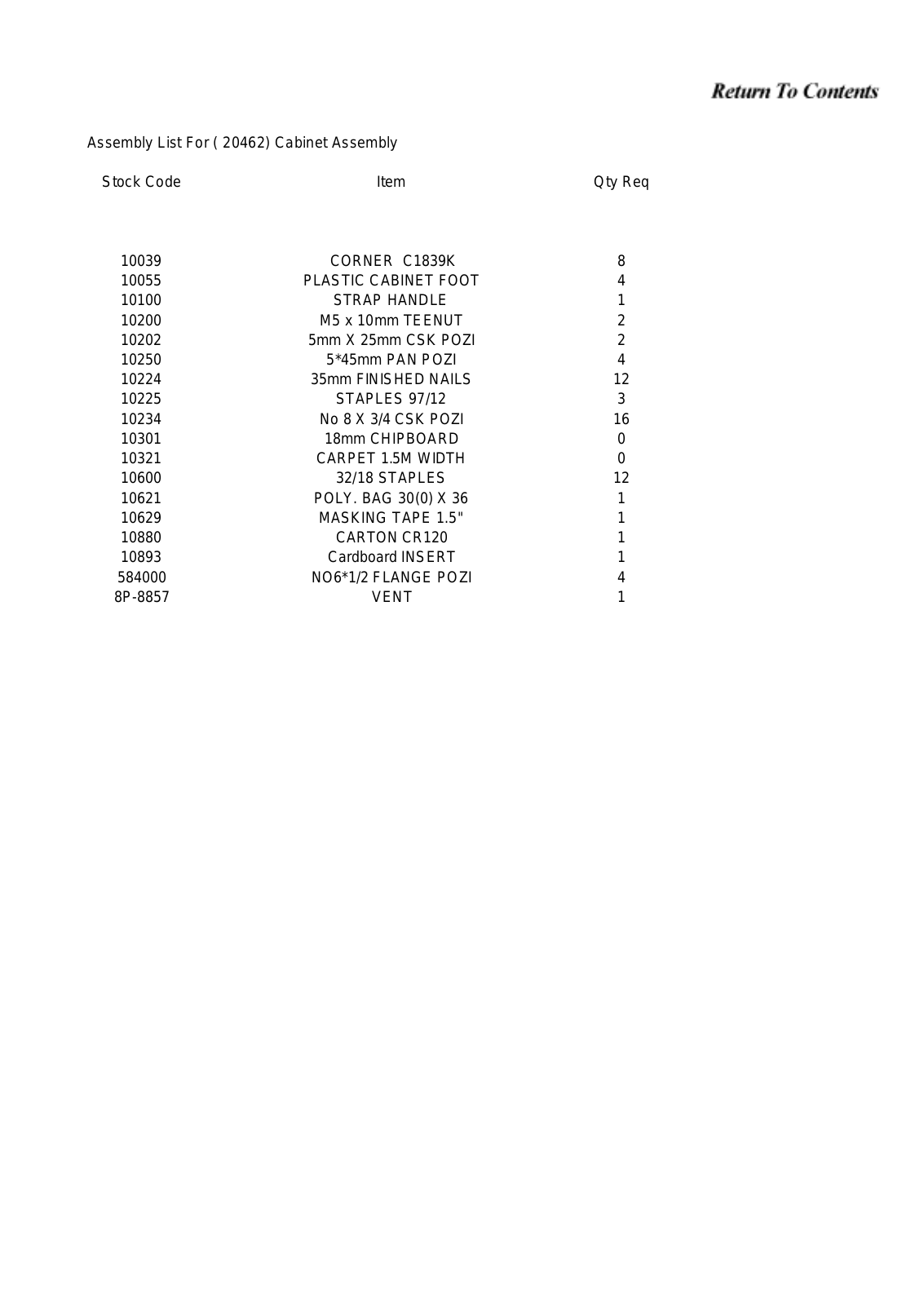

Assembly List For ( 20462) Cabinet Assembly
Stock Code Item Qty Req
10039 CORNER C1839K 8
10055 PLASTIC CABINET FOOT 4
10100 STRAP HANDLE 1
10200 M5 x 10mm TEENUT 2
10202 5mm X 25mm CSK POZI 2
10250 5*45mm PAN POZI 4
10224 35mm FINISHED NAILS 12
10225 STAPLES 97/12 3
10234 No 8 X 3/4 CSK POZI 16
10301 18mm CHIPBOARD 0
10321 CARPET 1.5M WIDTH 0
10600 32/18 STAPLES 12
10621 POLY. BAG 30(0) X 36 1
10629 MASKING TAPE 1.5" 1
10880 CARTON CR120 1
10893 Cardboard INSERT 1
584000 NO6*1/2 FLANGE POZI 4
8P-8857 VENT 1
