Page 1
Laney
CPC12 PoweredMonitor
ServiceInformation
PartNumber-SM3032
Page 2
Laney
Contents
1.DWG2613
2.DWG2615MainsWiring

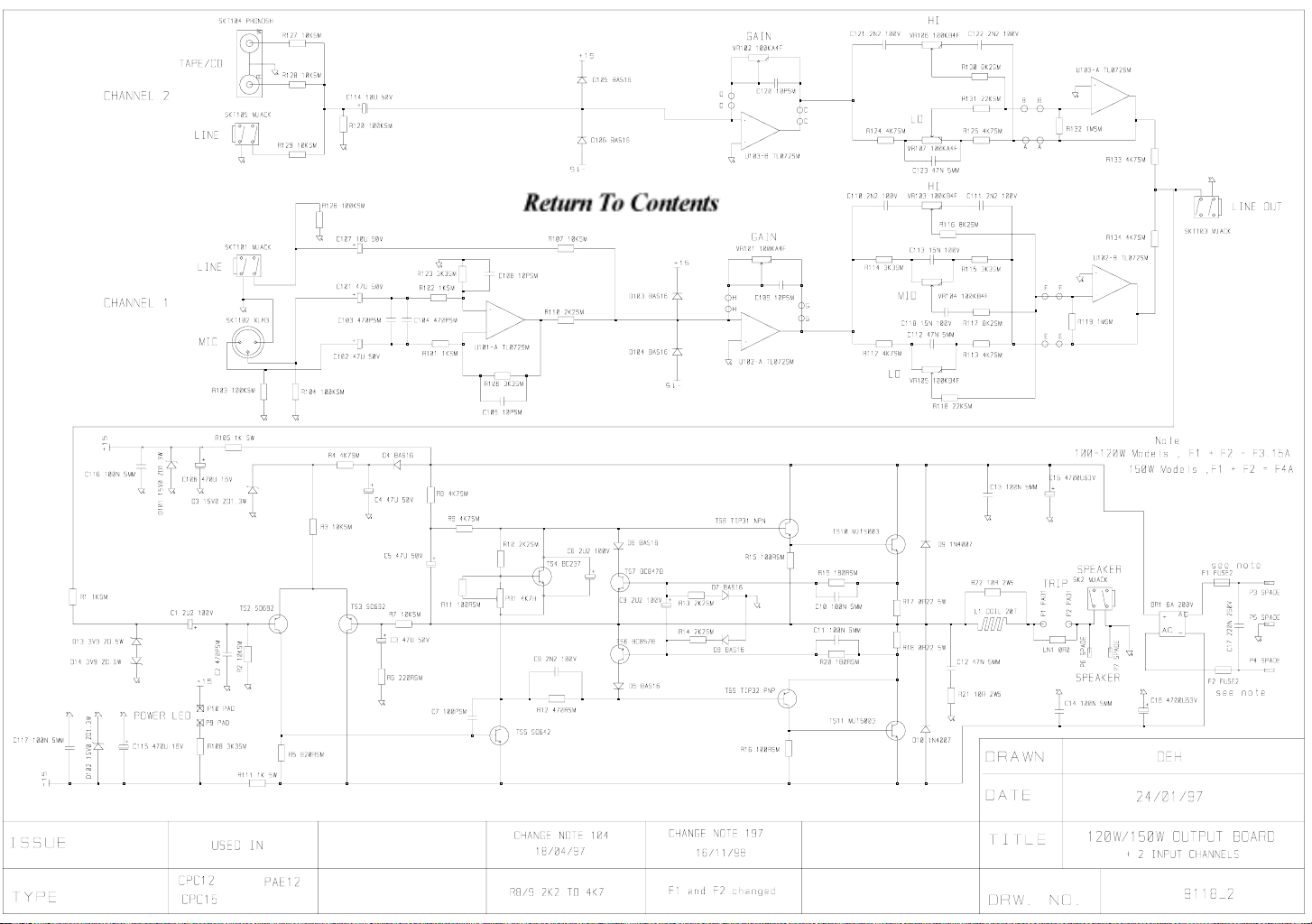

4.DWG9118CircuitDiagram
5.PCBAssemblylist
6.FinalAssemblyList
7.CabinetAssemblyList
8.Contact
ServiceSchematic
(Issue2)
Page 3
Page 4
Page 5
Page 6
Assembly List For ( 008444) PCB Assembly
Stock Code Description Qty Req
1005 2K2 .25W RESISTOR 1
1300 ORO SHORTING LINK 9
1303 100R 5% RESISTOR 3
1304 820R 5% RESISTOR 1
1305 2K2 5% RESISTOR 5
1306 10K 5% RESISTOR 7
1309 1M 5% RESISTOR 2
1310 100K 5% RESISTOR 2
1311 470R 5% RESISTOR 1
1312 4K7 5% RESISTOR 7
1314 8K2 5% RESISTOR 3
1316 22K 5% RESISTOR 2
1318 6K8 5% RESISTOR 2
1320 220R 5% RESISTOR 1
1322 180R 5% RESISTOR 2
1326 3K3 5% RESISTOR 5
1327 1K 5% RESISTOR 3
1500 10R 2.5W RESISTOR 2
1701 1K 5W RESISTOR 2
1703 0R22 5W RESISTOR 2
1920 ZERO OHM RESISTOR 3
2004 47UF 50V RADIAL 4
2006 4700UF 63V RADIAL 2
2013 10UF 50V CAPACITOR 2
2020 470UF 16V RADIAL 2
2024 2.2UF 63V RADIAL 4
2200 220NF 100V 10MM 1
2415 2.2NF 100V 5mm 5
2419 100NF 63V 5mm 6
2425 47NF 100V 5mm 3
2426 15NF 100V 5mm 1
2601 10PF 50V 10% COG 4
2603 100PF 50V 10% COG 1
2605 470PF 50V 10% COG 3
3000 1N4007 DIODE 2
3007 3V9 .5W ZENER DIODE 2
3014 15V 1.3W ZENER 3
3016 6A 200V BRIDGE 1
3405 BC237 TRANSISTOR 1
3500 BAS16 TRANSISTOR 9
3501 SO642 TRANSISTOR 1
3502 SO692 TRANSISTOR 2
3503 BC847B TRANSISTOR 1
3504 BC857B TRANSISTOR 1
3508 34072 IC (SMD TL072 3
3610 TIP31C TRANSISTOR 1
3611 TIP32C TRANSISTOR 1
3800 MJ15003 TRANSISTOR 2
4018 4K7 HORIZ PRESET 1
4083 4mm 100K LIN POT 5
4095 4mm 100K LOG POT 2
5002 MONO JACK SOCKET 4
5006 20 TURN COIL 1
5008 TV125 FLAT HEATSINK 2
5022 PCB FUSE CARRIER 2
5038 1/4" SPADE TERMINAL 5
5054 XLR SOCKET FEMALE 1
5527 20mm F3.15A FUSE 2
5622 DUAL PHONO SOCKET 1
9118 CPC12/15 OUTPUT PCB 1
Page 7
Assembly List For ( 007418) Final Assembly
Stock Code Description Qty Req
3800 MJ15003 TRANSISTOR 2
5005 NEW TYPE MAINS SOCK 1
5007 TO3 HARDWARE WASHER 2
005007A TO3 LONG BUSH 4
5031 70oC THERMAL TRIP 1
5510 3MM SOLDER TAG 2
5511 5MM SOLDER TAG 2
5530 20mm T1A FUSE 1
5542 ROCKER SWITCH 1
5558 100mm TIE WRAP 3
5646 KNOB 4MM GREY/RED 2
5647 KNOB 4MM GREY/BLUE 5
8444 PCB Assembly 1
8801 RED LED 1
9150 3mm HEX NUT 4
9151 3mm INT SHAKEPROOF 6
9160 4mm HEX NUT 3
9161 4mm INT. SHAKEPROOF 4
9163 4*20mm PAN POZI 2
9167 4*8 PAN POZI TAPTE 2
9171 M5 INT SHAKEPROOF 2
9173 5*12mm PAN POZI 1
9181 5mm BRASS HEX NUT 1
9189 5mm CAGE NUT 6
9204 NO 4*1/4 PLASTITE 3
9228 3*12 ZINC PAN POZI 4
540038 EARTH WARNING LABEL 1
541054 INSULATION BOOT 1
581002 3*6mm CSK POZI TPTE 2
586003 M8 * 60 COACH BOLT 1
588006 POP RIVET (BLACK) 2
5P-587003 30mm WASHER 1
8P-8657 CPC12 FACIA 1
8P-8800 HTSNK BRACKET 1
8P-8801 110mm LONG THINNED 1
8T-6105 CR120 230V 120W 1
Page 8
Assembly List For ( 20408) Cabinet Assembly
Stock Code Description Qty Req
10050 SMALL CORNER 8
10055 PLASTIC CABINET FOO 4
10057 SMALL LANEY BADGE 1
10100 STRAP HANDLE 1
10200 M5 x 10mm TEENUT 6
10202 5mm X 25mm CSK POZI 2
10204 5mm X 25mm PAN POZI 4
10205 NO.8 X 5/8" ROUND 6
10207 NO.6 X 5/8" CSK POZ 8
10224 35mm FINISHED NAILS 35
10231 No8x1/2" FLANGE POZ 4
10234 No 8 X 3/4 CSK POZI 20
10240 10 * 1 CSK POZI 4
10243 NO4*1/2 TYPE B CSK 2
10244 FLAT SPIRE CLIP 2
10256 8*1 FLANGE POZI 4
10301 18mm CHIPBOARD 0
10316 GRANITE VYNHYDE 1
10513 J73 HORN KSN1141B 1
10600 32/18 STAPLES 12
10621 POLY. BAG 30(0) X 3 1
10646 35mm METAL TOP HAT 1
10885 CARTON CC12 1
10981 GLUE/PAINT COST 1.2 1
41210 INVADER 12P1008 1
541004 HC25/50 4.8 FASTON 6
541051 1/4" SML RECEPTACLE 2
8G-CC12 FRONT GRILL CC12 1
